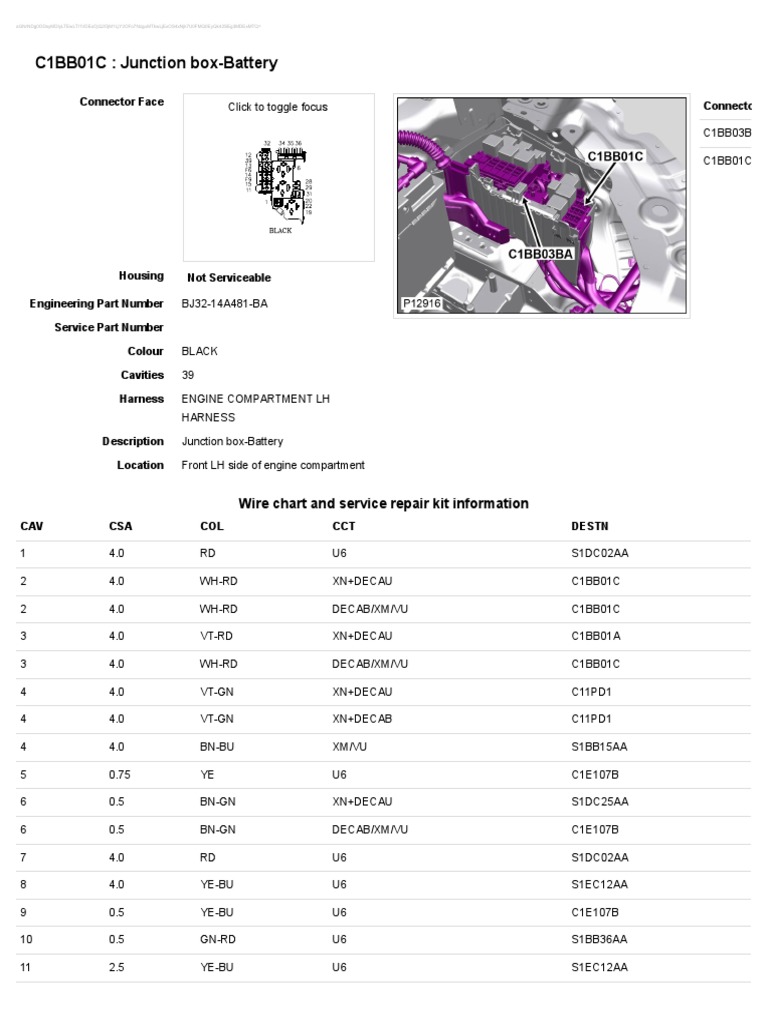

C1BB01C : Junction box-Battery

Connector Face Click to toggle focus Connecto

C1BB03B

C1BB01C

Housing Not Serviceable

Engineering Part Number BJ32-14A481-BA

Service Part Number

Colour BLACK

Cavities 39

Harness ENGINE COMPARTMENT LH


HARNESS

Description Junction box-Battery

Location Front LH side of engine compartment

Wire chart and service repair kit information


CAV CSA COL CCT DESTN

1 4.0 RD U6 S1DC02AA

2 4.0 WH-RD XN+DECAU C1BB01C

2 4.0 WH-RD DECAB/XM/VU C1BB01C

3 4.0 VT-RD XN+DECAU C1BB01A

3 4.0 WH-RD DECAB/XM/VU C1BB01C

4 4.0 VT-GN XN+DECAU C11PD1

4 4.0 VT-GN XN+DECAB C11PD1

4 4.0 BN-BU XM/VU S1BB15AA

5 0.75 YE U6 C1E107B

6 0.5 BN-GN XN+DECAU S1DC25AA

6 0.5 BN-GN DECAB/XM/VU C1E107B

7 4.0 RD U6 S1DC02AA

8 4.0 YE-BU U6 S1EC12AA

9 0.5 YE-BU U6 C1E107B

10 0.5 GN-RD U6 S1BB36AA

11 2.5 YE-BU U6 S1EC12AA


CAV CSA COL CCT DESTN

12 2.5 BU U6 S1BB01AA

13 1.0 WH-BU DG2AK C11ZG

14 0.75 VT-GY DG2AK C31A

15 1.0 GN-WH U6 C11PD1

16 1.0 GY-YE U6 S1CBB08D

17 0.75 BN U6 C11PD1

18 1.0 VT-OG U6 C11PD1

19 4.0 WH-RD XN+DECAU C1BB01C

20 4.0 BN-BU XN+DECAU S1BB15AB

21 0.5 GY-OG XN+DECAU C1E107B

22 0.5 BN-GN XN+DECAU S1DC25AA

23 2.5 YE-BU U6 S1EC12AA

24 4.0 BN-BU XM/VU S1BB15AA

24 4.0 BN-BU XN+DECAU S1BB15AB

28 1.0 VT-RD U6 C1BB01A

29 0.75 GY-BN U6 C11PD1

30 0.5 GN-RD U6 S1BB36AA

31 0.5 BU-GY U6 C21D

32 0.5 GN DECAU/XM/VU C31E

37 2.5 YE-BU U6 S1EC12AA

39 2.5 YE-BU U6 S1EC12AA
