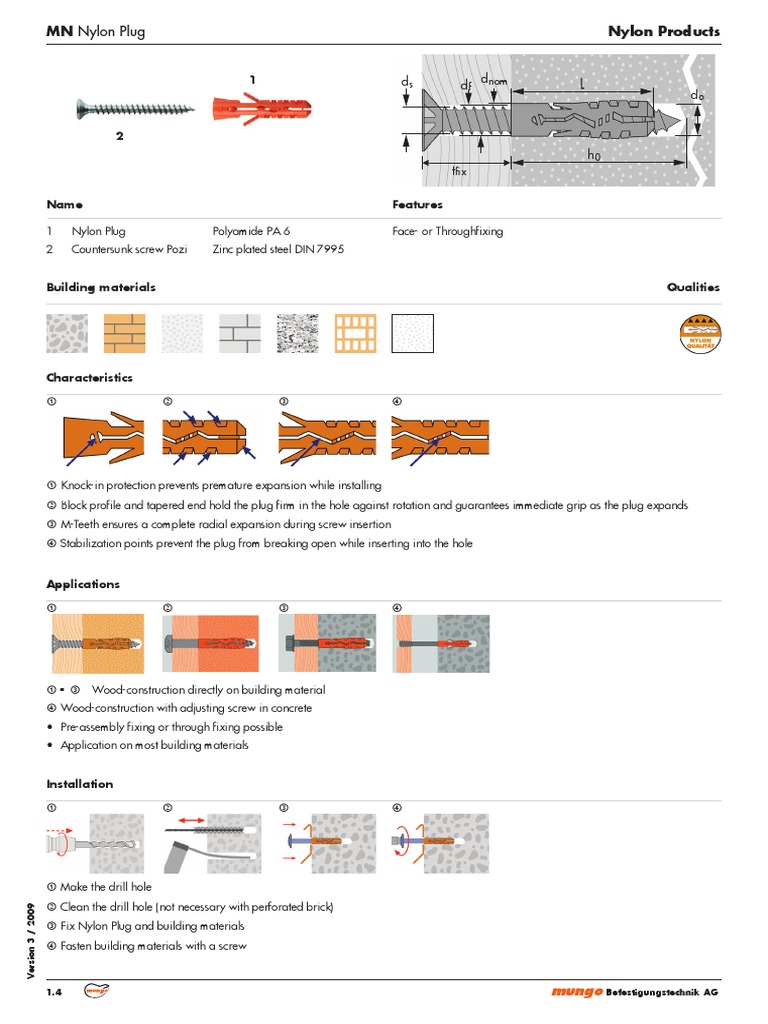

MN Nylon Plug Nylon Products

1 ds df d nom l
do

2
h0
t fix

Name Features

1 Nylon Plug Polyamide PA 6 Face- or Throughfixing

2 Countersunk screw Pozi Zinc plated steel DIN 7995

Building materials Qualities

Characteristics

 ‚ ƒ „

 Knock-in protection prevents premature expansion while installing

‚ Block profile and tapered end hold the plug firm in the hole against rotation and guarantees immediate grip as the plug expands
ƒ M-Teeth ensures a complete radial expansion during screw insertion
„ Stabilization points prevent the plug from breaking open while inserting into the hole

Applications

 ‚ ƒ „

 - ƒ Wood-construction directly on building material

„ Wood-construction with adjusting screw in concrete
• Pre-assembly fixing or through fixing possible
• Application on most building materials

Installation

 ‚ ƒ „

 Make the drill hole

‚ Clean the drill hole (not necessary with perforated brick)
Version 3 / 2009

ƒ Fix Nylon Plug and building materials

„ Fasten building materials with a screw

1.4 mungo Befestigungstechnik AG

Nylon Products Nylon Plug MN

MN
Plug size 4 5 6 7 8 10 12 14 15 16 20
- Concrete 0.25 0.35 0.6 0.7 0.85 1.4 1.8 2.6 2.9 3.2 5.2
NRec - Brick kN 0.1 0.2 0.4 0.55 0.6 0.8 1 1.3 1.5 - -
- Aerated concrete 0.02 0.04 0.06 0.07 0.09 0.2 0.4 0.5 0.6 0.6 1
- Wood screws-Ø
mm 2.2-3 2.6-4 3.5-5 4.5-5 4.5-6 6-8 8-10 10-12 10-12 12-14 14-16
ds - Chipboard screws-Ø
- Metric screws M - 3 4 4 5 6 8 10 10 12 14
h0 Drill hole depth mm 30 35 40 50 55 65 80 90 95 100 115
d0 Drill hole-Ø in the building material mm 4 5 6 7 8 10 12 14 15 16 20
l Plug length mm 20 25 30 35 40 50 60 70 75 80 90
dnom Outside-Ø plug mm 4 5 6 7 8 10 12 14 15 16 20

1000040

1000050

1000060

1000070

1000080

1000100

1000120

1000140

1000150

1000160

1000200
1)

1)
MN Nylon Plug
1) For use with TR Toproc Spacer Screw (see page 2.60)
Wood screws with maximum diameter / Safety factor 5

MN-S with countersunk-/ chipboard screw Pozi

Plug size 5 6 8 10
ds x ls - Countersunk-chipboard-screw Pozi mm 3.5 x 30 4.5 x 40 5 x 50 6 x 60
h0 Drill hole depth mm 35 45 55 65
d0 Drill hole-Ø in the building material mm 5 6 8 10
df Clearance hole in fixture mm 4 5 5.5 6.5
l Plug length mm 25 30 40 50
dnom Outside-Ø plug mm 5 6 8 10
PZ Drive 2 2 2 3
tfix Usable length mm 1.5 4 10 4
1380076

1380077

1380078

1380070

MN-S Nylon Plug

Wood screws with maximum diameter / Safety factor 5
