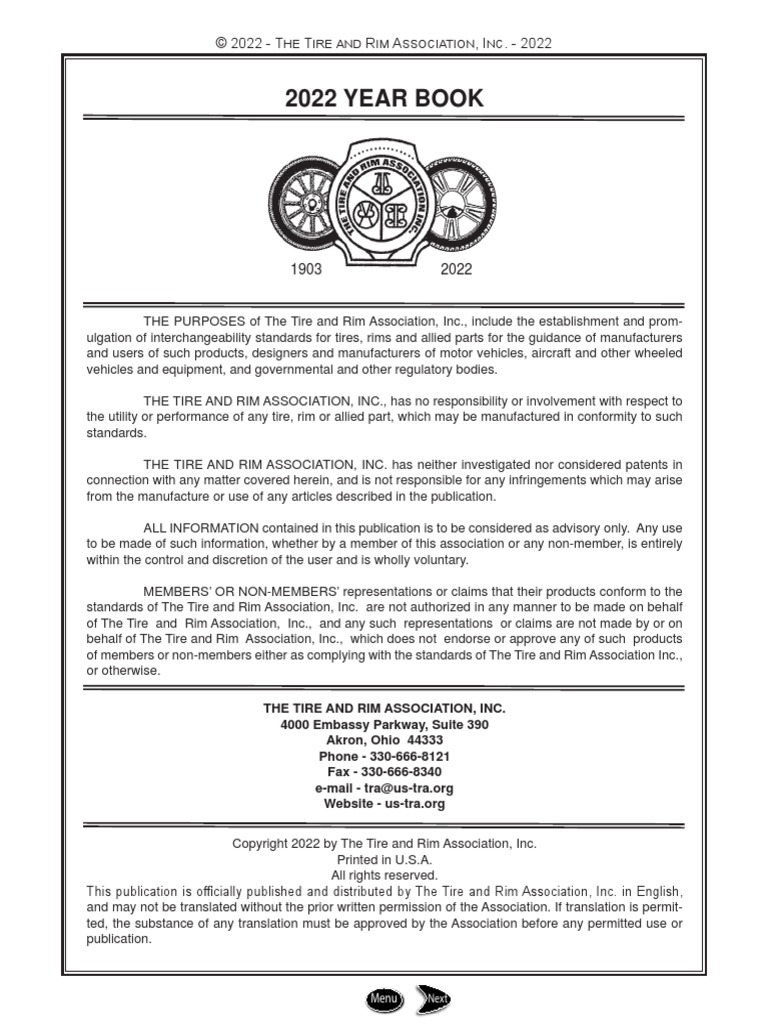

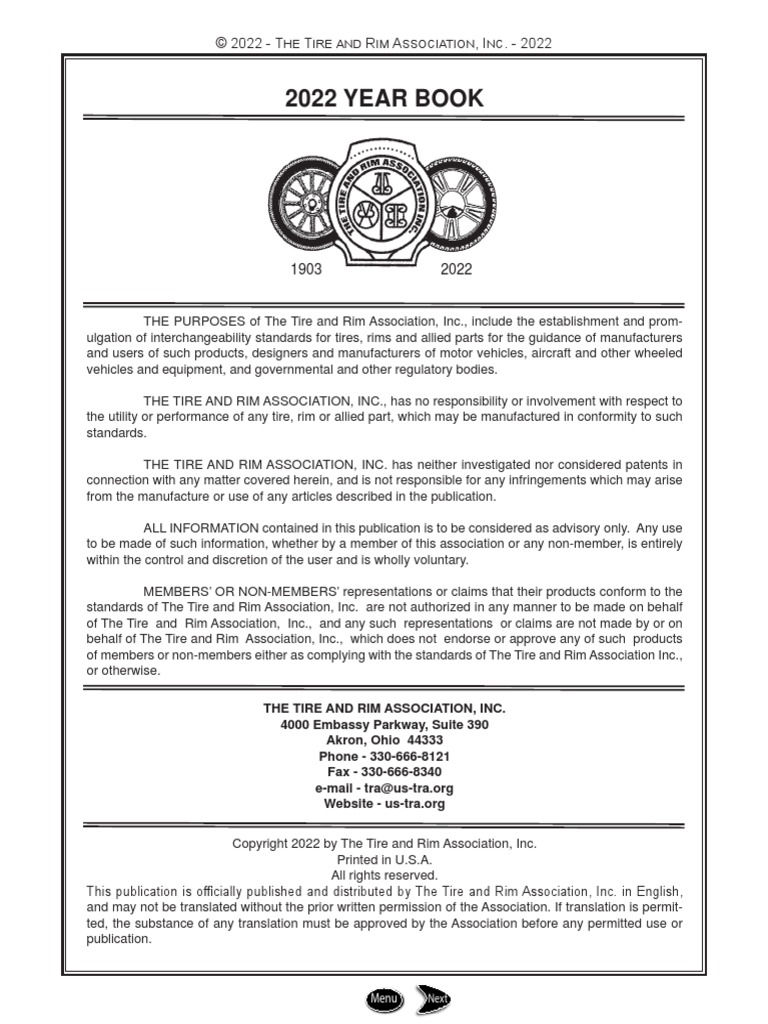

- 2022
1903 2022
THE PURPOSES of The Tire and Rim Association, Inc., include the establishment and prom-
ulgation of interchangeability standards for tires, rims and allied parts for the guidance of manufacturers
and users of such products, designers and manufacturers of motor vehicles, aircraft and other wheeled
vehicles and equipment, and governmental and other regulatory bodies.
THE TIRE AND RIM ASSOCIATION, INC., has no responsibility or involvement with respect to
the utility or performance of any tire, rim or allied part, which may be manufactured in conformity to such
standards.
THE TIRE AND RIM ASSOCIATION, INC. has neither investigated nor considered patents in
connection with any matter covered herein, and is not responsible for any infringements which may arise
from the manufacture or use of any articles described in the publication.
ALL INFORMATION contained in this publication is to be considered as advisory only. Any use
to be made of such information, whether by a member of this association or any non-member, is entirely
within the control and discretion of the user and is wholly voluntary.
MEMBERS’ OR NON-MEMBERS’ representations or claims that their products conform to the
standards of The Tire and Rim Association, Inc. are not authorized in any manner to be made on behalf
of The Tire and Rim Association, Inc., and any such representations or claims are not made by or on
behalf of The Tire and Rim Association, Inc., which does not endorse or approve any of such products
of members or non-members either as complying with the standards of The Tire and Rim Association Inc.,
or otherwise.
Menu Next
© 2022 - The Tire and Rim Association, Inc. - 2022 II
YEAR BOOK
The YEAR BOOK contains all TRA Standards and related information approved by the Association
for tires, rims and allied parts for ground vehicles. These Standards include tire designations; tire
load ratings and dimensions; approved rim contour(s) and valve(s) for each tire size; rim contour
dimensions; valve dimensions; and other data and notes necessary for tire/rim/valve
interchangeability. This Year Book is also available digitally.
The AIRCRAFT YEAR BOOK contains all TRA Standards and related information approved by the
Associaiton for tires, rims and allied parts for aircraft. These Standards include tire designations; tire
load ratings and dimensions; approved rim contour(s) and valve(s) for each aircraft tire size; rim
contour dimensions; valve dimensions; and other data and notes necessary for aircraft tire/rim/valve
interchangeability.
Additional engineering data established by the Association for ground vehicle tires are published in the
ENGINEERING DESIGN INFORMATION BOOK.
Additional engineering data established by the Association for aircraft tires are published in the
ENGINEERING DESIGN INFORMATION BOOK FOR AIRCRAFT TIRES.
MILITARY SUPPLEMENT
The MILITARY SUPPLEMENT contains all TRA Military Standards and related information approved
by the Association for tires, rims and allied parts for military ground vehicles. These Standards
include tire designations; load ratings and dimensions and approved rim contour(s) for each tire size;
rim contour dimensions and other data and notes necessary for tire / rim interchangeability.
NOTE: All publications are available from the Tire and Rim Association office.
ASSOCIATION OFFICERS
2022
PRESIDENT
J. SPEARS, Continental Tire the Americas, LLC
Fort Mill, South Carolina
VICE PRESIDENT
J. R. MARTIN, Toyo Tire Holdings of Americas
Cypress, California
TREASURER
R. J. RICHARDS, The Goodyear Tire & Rubber Company
Akron, Ohio
GENERAL COUNSEL
C. MOWERY, Roetzel & Andress
Akron, Ohio
BOARD OF TRUSTEES
J. SPEARS, Chair, Continental Tire the Americas, LLC, Fort Mill, South Carolina
C. R. KESSLER, Accuride Corporation, Evansville, Indiana
A. TANK, Bridgestone Americas Tire Operations, Akron, Ohio
B. J. RUMP, The Goodyear Tire & Rubber Company, Akron, Ohio
D. TERRILL, Hankook Tire Manufacturing Ltd., Taejon, Korea
D. MASON, Howmet, Cleveland, Ohio
J. WOLF, Maxion Wheels, Novi, Michigan
J. SATTERFIELD, Michelin North America, Inc., Greenville, South Carolina
S. CARPINO, Pirelli Tire North America, Rome, Georgia
D. A. BADZINSKI, Sumitomo Rubber USA, Tonawanda, New York
J. GRASSO, Titan International, Inc., Quincy, Illinois
T. HOWARD, Topy America, Inc., Frankfort, Kentucky
J. R. MARTIN, Toyo Tire Holdings of Americas, Cypress, California
ASSOCIATION MEMBERS
Tire Members Representative Alternate
American Kenda Rubber Industrial Co. Ltd., Reynoldsburg, Ohio......T. Williams D. Shavers
BKT USA, Inc., Akron, Ohio................................................................M. Mehta C. Durbin
Bridgestone Americas Tire Operations, Akron, Ohio...........................A. Tank R. Close
The Carlstar Group, LLC, Clinton, Tennessee....................................D. Dahl R. Hogg
Cheng Shin Rubber USA, Inc. (Maxxis), Suwanee, Georgia..............B. Chung C. Sun
Continental Tire the Americas, Fort Mill, South Carolina.....................J. Spears S. Bellenger
Dunlop Aircraft Tyres, Inc., Mocksville, North Carolina.......................C. Valentine M. Limiti
Duro Tire Corporation, Covington, Georgia.........................................C. A. Bryan K. Brantley
Giti Tire, Richburg, South Carolina......................................................H. Aboutorabi R. Cooper
The Goodyear Tire & Rubber Company, Akron, Ohio.........................B. J. Rump M. Cherveny
Guizhou Tyre Ltd., Guizhou, China.....................................................C. Chuanhu M. Lammlein
Hankook Tire Mfg., Ltd., Taejon, Korea...............................................B. Wheeler J. Ahn
JK Tyre and Industries Ltd., New Delhi, India.....................................R. Tiede K. Joshi
Kumho Tire Company, Inc., Seoul, South Korea.................................R. Cunat M. D. Panning
Linglong Americas Inc., Medina, Ohio.................................................C. D. Miller
Michelin North America, Inc., Greenville, South Carolina...................J. Satterfield D. Josson
Michelin Aircraft Tire Company, LLC, Greenville, South Carolina.......S. Lindsey W. Davis
Nexen Tire, Richfield, Ohio.................................................................D. Lee A. Neumann
Nokian Tyres Ltd., Nokia, Finland.......................................................S. Bourassa O. Seppala
Pirelli Tire North America, Rome, Georgia..........................................S. Carpino B. Laney
Prometeon Tyre Group LLC, Rome, Georgia.....................................M. Verzino C. Fernandez
Specialty Tires of America, Inc., Indiana, Pennsylvania......................T. Stadtmiller
Sumitomo Rubber USA, Tonawanda, New York.................................D. A. Badzinski M. Pisarzewicz
Tianjin Wanda Tyre Goup Company, Ltd., Duluth, Georgia................B. Tai B. Nyland
Toyo Tire Holdings of Americas, Cypress, California..........................J. R. Martin S. Altomare
Trelleborg Wheel Systems Americas, Inc., Charles City, Iowa............G. Payne N. Herbener
Triangle Tire Company, Ltd., Shandong, China..................................Y. Ding Z. Tao
The Yokohama Tire Corporation, Tokyo, Japan..................................T. Kenny J. Kahrs
AFFILIATED MEMBERS
(continued)
Foreign Corresponding Members
NOTE: ALL ASSOCIATION MEMBERS (EXCEPT ASSOCIATE AND FOREIGN) ARE MEMBERS OF THESE SUBCOMMITTEES.
THE CHAIRPERSONS AND PERSONNEL ARE LISTED TO EXPEDITE ACTIVITIES.
TRA RESPONSIBILITIES IN
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION
TECHNICAL COMMITTEE 31 (TIRES, RIMS AND VALVES)
U.S. TECHNICAL ADVISORY GROUP FOR TC 31 REPRESENTATIVE
J. SATTERFIELD (Representative), Michelin North America, Inc.
R. E. CONSOLACION (Alternate), The Tire and Rim Association, Inc.
DEFINITION OF TERMS
Design/Measuring Rim Width - “Design/Measuring Rim Width” is the specific rim width assigned to
each tire size designation to determine basic tire dimensions.
Section Width - “Section Width” is the width of a new tire, including 24-hour inflation growth and
including normal sidewalls, but not including protective side ribs, bars, or decorations.
Overall Width - “Overall Width” is the width of a new tire, including 24-hour inflation growth, and
including protective side ribs, bars and decorations.
Overall Diameter - “Overall Diameter” is twice the section height of a new tire, including 24-hour
inflation growth, plus the nominal rim diameter.
Size Factor - “Size Factor” of an inflated tire is the sum of the section width and overall diameter.
Load Identification -
Load Range with a letter (A, B, C etc.), Standard Load, Light Load and Extra Load are
used to identify a given size highway tire with its load and inflation limits when used
in a specific type of service, as defined in the heading of TRA tables.
Ply Rating - The term “Ply Rating” is used to identify a given non-highway tire with its
maximum recommended load when used in a specific type of service. It is an index of
tire strength and does not necessarily represent the number of cord plies in the tire.
Load Index - A numerical code associated with the maximum load a tire can carry at the
speed indicated by its speed symbol under specified service conditions.
Symbol Mark () - Symbol used to identify a reference inflation pressure for a given size tire
and service condition and its corresponding load. See Off-the-Road and Industrial sections
for appropriate reference pressures and corresponding loads.
Static Loaded Radius - The distance from the wheel center to the contact surface at the reference
load and inflation pressure.
NOTE: See each section for dimensions of grown tires and/or minimum clearance allowances.
For “P” Type Passenger Car Tires - Before measuring, tires shall be mounted and inflated to 180 kPa (26
psi) for Standard Load and 220 kPa (32 psi) for Extra Load, allowed to stand 24 hours minimum at ambient
room temperature and inflation pressure readjusted to 180 kPa (26 psi) for Standard Load and 220 kPa (32
psi) for Extra Load. The tire section width is to be measured at approximately 50% of the tire section height.
For “T” Type Passenger Car Tires - Before measuring, tires shall be mounted and inflated to 60 psi, allowed
to stand 24 hours minimum at ambient room temperature and inflation pressure readjusted to 60 psi.
For Other Passenger Car Tires - Before measuring, tires shall be mounted and inflated to 24 psi for Load
Range B, to 28 psi for Load Range C and to 32 psi for Load Range D, allowed to stand 24 hours minimum at
ambient room temperature and inflation pressure readjusted to 24 psi (Load Range B), 28 psi (Load Range
C) and 32 psi (Load Range D).
For Other Than Passenger Car Tires - Before measuring, tires shall be mounted and inflated to the pressure
for the maximum load (for duals if listed), allowed to stand 24 hours minimum at ambient room temperature
and inflation pressure readjusted to the pressure for the maximum load.
DUAL SPACING
Dual Spacing can be measured from the tire tread centerline to tire tread centerline. Dual spacing is a
function of rim/wheel offset.
Minimum Dual Spacing is based on tire dimensions only to prevent grown, deflected tires from contacting
one another during usage.
Prefix letters are included, when necessary, as part of Tire Size Designations to
differentiate between tires designed for service conditions which may require
different loads and inflaitons and/or tires designed for and which must be used on
different types of rims.
AT - Identifies a tire intended for service on All-Terrain Vehicles.
DH - Identifies a tire intended for agricultural and logging service which must
be mounted on a DH drop center rim.
LT - Identifies a tire primarily intended for service on light trucks.
P - Identifies a tire primarily intended for service on passenger cars.
T - Identifies a tire intended for one-position “temporary use” as a spare only.
VA - Identifies a tire intended for agricultural and logging service which must
be mounted on a VA multipiece rim.
ST - Identifies a special tire for trailers in highway service.
IF - Identifies an agricultural tire to operate at 20% higher rated load than standard
metric tires at the same inflation pressure.
VF - Identifies an agricultural tire to operate at 40% higher rated load than standard
metric tires at the same inflation pressure.
TRUCK-BUS
TR - Tires for service on Trucks, Busses and other vehicles with rims having specified rim
diameter of nominal plus .156” or plus .250”. This suffix is intended to differentiate among tires for
Passenger Car, Light Truck, and other vehicles or other services, which use similar designations.
HC - Identifies a 17.5 rim diameter code tire for use on low platform trailers.
LIGHT TRUCK
LT - Light Truck tires for service on Trucks, Busses, Trailers and Multipurpose Passenger Vehicles
used in normal highway service.
OFF-THE-ROAD
DT - Tires primarily designed for sand and paver service.
TG - Off-the-Road tire for use on rims having bead seats with nominal +0.188” diameter
(not for highway service).
K - Compactor tire for use on 5° drop center or semi-drop center rims having bead seats with
nominal minus .032 diameter.
AGRICULTURAL
IND - Drive wheel tractor tire used in industrial service.
IMP - Tires designed primarily for agricultural machines, implements or trailers which are not
suitable for sustained high torque service.
SS - Differentiates tires for off-highway vehicles such as mini and skid-steer loaders from other
tires which use similar size designations such as 7.00-15TR and 7.00-15NHS, but may use
different rim bead seat configurations.
CYCLE
M/C - Identifies tires and rims for certain motorcycles.
RIM NOTES
Rim Diameter Code x Rim Contour Designation (unless specifically defined otherwise).
Example: 17 x 8J
Nominal (named) rim diameter for tire/rim matching. See Section 8 for specified
rim diameter.
Identified by numbers and/or letters to show the designated width and contour of the
rim.
RIM SELECTION
TIRES SHOWN IN THIS YEAR BOOK ARE DESIGNED BY MANUFACTURERS FOR USE ON
RIMS WHICH MEET TIRE AND RIM ASSOCIATION STANDARDS. TO INSURE PROPER TIRE TO
RIM FIT, AND TIRE MOUNTABILITY, IT IS THE RESPONSIBILITY OF VEHICLE MANUFACTURERS
AND VEHICLE USERS TO SPECIFY THAT RIMS COMPLY WITH THESE STANDARDS.
SEE PAGE 8-03 FOR NOTES ON LOADS AND INFLATIONS FOR RIMS AND WHEELS.
All TRA rim dimensions are applicable to the tire side of the rim.
The TRA rim dimensions, tolerances and drawing formats are predicated upon and correspond
to TRA tapes and gauges and the associated TRA measuring procedure. Use of different
procedures or other types of measuring apparatus is acceptable; however, they must be
correlated with the standard TRA measuring procedure.
Refer to Pages 8-62 thru 8-72 for inspection procedures for rim contours and valve holes.
*The accuracy values are designated for converting present TRA data to S.I. Units in order to
maintain the accuracy of the original unit.
PRIMARY UNITS
Unless otherwise indicated in each Section, the first appearing units in the load table are the
primary units used in the calculation. The italicized units are derived from the primary units.
Scope of the Association and Some of its History
With the introduction of straight side rims and standards for tire loads and
inflations, a more suitable name, THE TIRE AND RIM ASSOCIATION, was
adopted on July 6, 1917. At that time the Association’s activities became
much more technical in nature and the direction of the Association was placed
in the hands of the top technical representatives of member companies.
By 1922 the use of pneumatic tires had extended to trucks, busses and
airplanes. Tire loads and inflations plus principal tire and rim dimensions were
standardized. On June 14 of that year, the Association was incorporated in
Connecticut and the name changed to THE TIRE AND RIM ASSOCIATION
OF AMERICA, INCORPORATED. At that time manufacturers of allied parts
joined the Association and activity was started on the standardization of
tubes, valves, and flaps.
(continued)
On April 11, 1933, the Association was incorporated in Ohio and its name
changed to THE TIRE AND RIM ASSOCIATION, INCORPORATED.
By this time the many developments that had been introduced required
much more attention than could be given at the quarterly meetings of the
Association. Thus the Standards Committee, The Tire and Rim Agricultural,
Aircraft, and Tube and Valve Standards Subcommittees; and the Technical
Advisory Committee were established to draft standards for the consideration
of the Association.
When the United States entered World War II, the Armed Forces required
vast amounts of tires and rims for both ground vehicles and aircraft in a very
short time. This situation was complicated by the shortage of natural rubber
which demanded the use of relatively untested synthetic materials. The
usefulness of the Association to industry and the nation was never better
demonstrated than during that period when its various advisory committees
voluntarily worked with the Armed Forces. This teaming of Industry with the
Armed Forces was highly successful.
Association standards are now established for tires, rims, tubes, valves and
flaps for passenger cars, motorcycles, trucks, busses, mobile homes, trailers,
aircraft, earthmoving, road building, mining, logging, agricultural, industrial
and other vehicles. These standards are documented and available in the
Tire and Rim Association publications.
Recently, with the globalization of the tire, rim and valve industries the
Association is coordinating its standards wherever possible with other countries’
and regions’ standards bodies as well as the International Organization for
Standardization (ISO).
Back Menu
