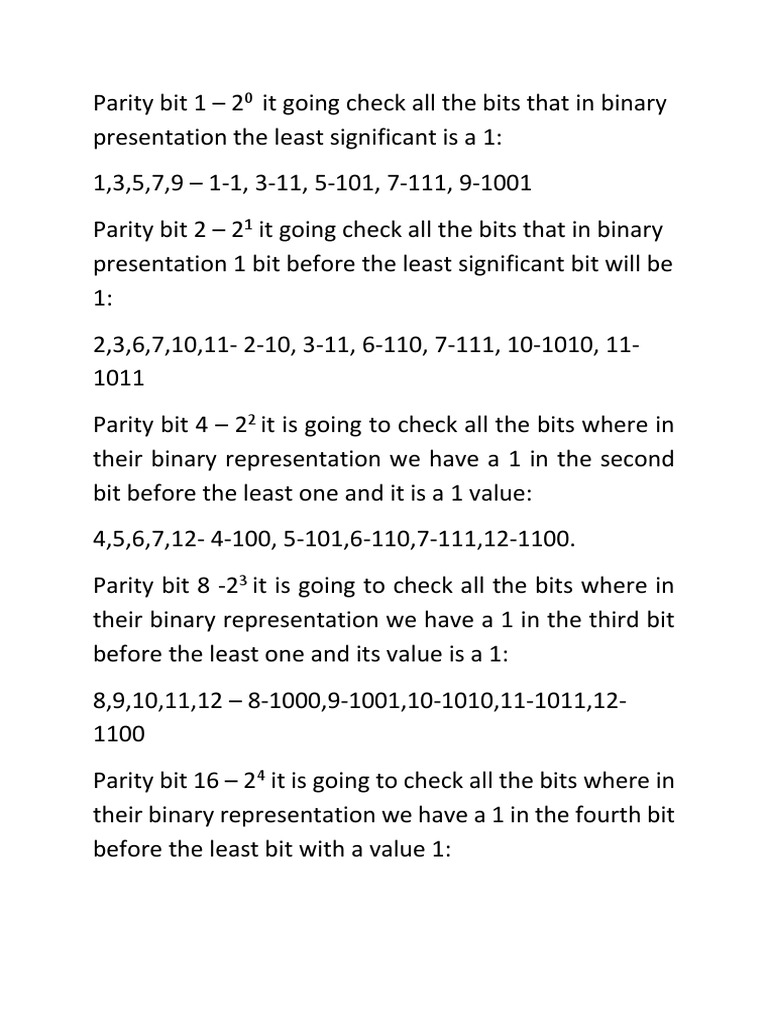

Parity bit 1 – 20 it going check all the bits that in binary

presentation the least significant is a 1:

1,3,5,7,9 – 1-1, 3-11, 5-101, 7-111, 9-1001
Parity bit 2 – 21 it going check all the bits that in binary
presentation 1 bit before the least significant bit will be
1:
2,3,6,7,10,11- 2-10, 3-11, 6-110, 7-111, 10-1010, 11-
1011
Parity bit 4 – 22 it is going to check all the bits where in
their binary representation we have a 1 in the second
bit before the least one and it is a 1 value:
4,5,6,7,12- 4-100, 5-101,6-110,7-111,12-1100.
Parity bit 8 -23 it is going to check all the bits where in
their binary representation we have a 1 in the third bit
before the least one and its value is a 1:
8,9,10,11,12 – 8-1000,9-1001,10-1010,11-1011,12-
1100
Parity bit 16 – 24 it is going to check all the bits where in
their binary representation we have a 1 in the fourth bit
before the least bit with a value 1:
16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31 – 16-
10000,17-10001

1011001- original message without the redundant bits

introduced

1 0 1 R8 1 0 0 R4 1 R2 R1– redundant bits

introduced through the message bits
1 0 1 R8 1 0 0 R4 1 R 2 R1
R1- 0
1,3,5,7,9,11

1 0 1 R8 1 0 0 R 4 1 R 2 0
R2-1
2,3,6,7,10,11

1 0 1 R8 1 0 0 R 4 1 1 0
R4- 1
4,5,6,7,12

1 0 1 R8 1 0 0 1 1 1 0
R8- 0
8,9,10,11
1 0 1 0 1 0 0 1 1 1 0 – message that will be transmitted
with the introduction of redundant bits of parity
1 0 1 0 1 1 0 1 1 1 0 – in the receiving part we have this
stream of information bits.
R1- (1,3,5,7,9,11)- there are 4 so even number no error
--------- 0

1 0 1 0 1 1 0 11 10
R2- (2,3,6,7,10,11)- there are 5 so odd number of 1s so
there is an error ----------1

1 0 1 0 1 1 0 11 10
R4- (4,5,6,7)- there are 3 ones so an odd number of 1s
so there is an error --------1

1 0 1 0 1 1 0 11 10
R8- (8,9,10,11)-there are 2 ones so an even number of
1s so there is no error --------0
R8 R4 R2 R1
0 1 1 0 - 610
We need to check if the message were transmitted
without errors with Hamming code (we get the
information bits plus the redundant bits).
Example 1
110001101010 – 11001100 (original message after
omit the redundant bits)
R1(1,3,5,7,9,11)- 2 bits are 1 so even number of 1s no
error --------0
110001101010
R2(2,3,6,7,10,11)- 4 bits are 1 so even number of 1s no
error ------0
110001101010
R4(4,5,6,7,12)- 4 bits are 1 so even number of 1s no
error ------0
110001101010
R8(8,9,10,11,12)-2 bits are 1 so even number of 1s no
error ------0
So there are no errors in this transmission
Example 2
001100011111- message transmitted
00110001 – original message after correction and
eliminating the redundant bits
001100011111
R1- even number of 1s so we don’t error detected by
this parity bit -----------0
001100011111
R2- odd number of 1s there is an error detected by this
parity bit -----------------1
001100011111
R4 – even number of 1s there is not an error detected
by this parity bit ---------0
001100011111
R8 – even number of 1s there are no errors detected by
this parity bit so ---------0
R8 R4 R2 R1
0 0 1 0 – 210
Example 3
010100010000 – message received
00010010 – original message that I got
010100010000
R1 – 3 bits are 1 and we have an odd number of 1s
there is an error detected ----------1
010100010000
R2- 1 bit is 1 so odd number of 1s there is an error
detected -------------1
010100010000
R4- 1 bit is 1 so odd number of 1s there is an error
detected -------------1
010100010000
R8- even number of 1s so there are no errors detected
by the parity bit 8 ----0
R8 R4 R2 R1
0 1 1 1 -710
Example 4
010100110000 – message received (01010010)
010100110000
R1- odd number of 1s it detects an error ----- 1
010100110000
R2- even number of 1s so no error ------------0
010100110000
R4- even number of 1s no error ---------------0
010100110000
R8- even number of 1s no error --------------0
