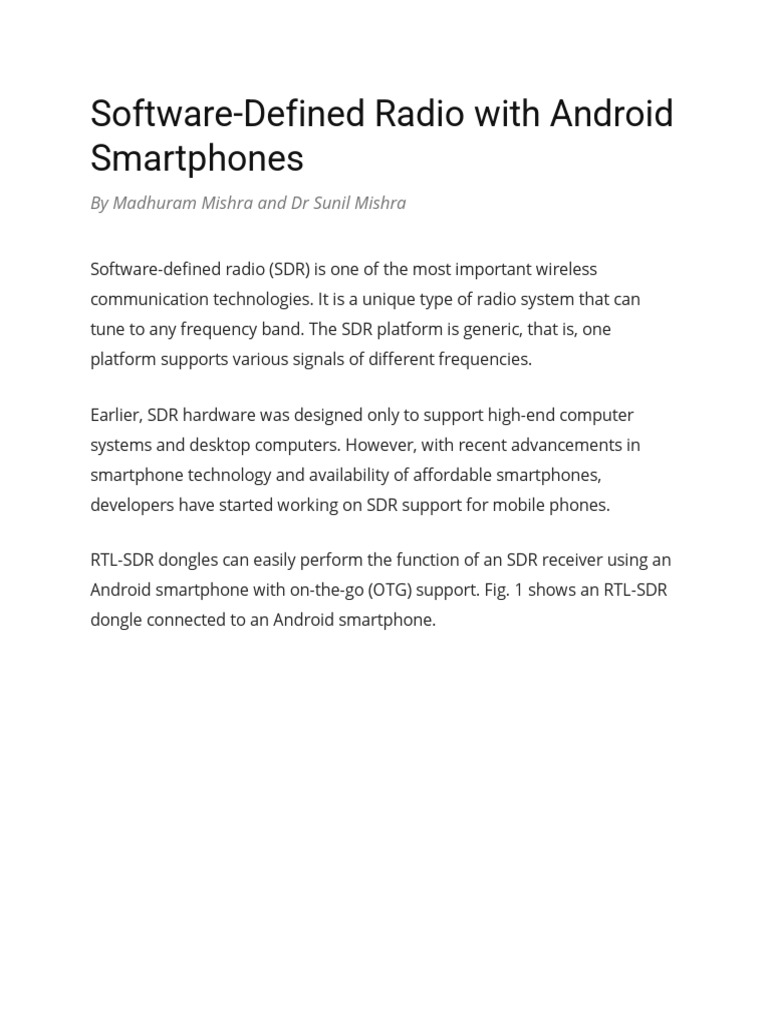

Software-Defined Radio with Android

Smartphones
By Madhuram Mishra and Dr Sunil Mishra

Software-defined radio (SDR) is one of the most important wireless

communication technologies. It is a unique type of radio system that can
tune to any frequency band. The SDR platform is generic, that is, one
platform supports various signals of different frequencies.

Earlier, SDR hardware was designed only to support high-end computer

systems and desktop computers. However, with recent advancements in
smartphone technology and availability of affordable smartphones,
developers have started working on SDR support for mobile phones.

RTL-SDR dongles can easily perform the function of an SDR receiver using an
Android smartphone with on-the-go (OTG) support. Fig. 1 shows an RTL-SDR
dongle connected to an Android smartphone.
 Fig. 1: RTL-Software Defined Radio (SDR) and Android setup
- Advertisement -

RTL-SDR dongles provide the functionality to receive a signal in the 25MHz-

1.75GHz frequency range. The system/radio receiver designed using an RTL-
SDR dongle can also be used to study digital communications by electronics
and communications engineering students.

An RTL-SDR dongle is mainly a DVB-T/DVB-T2 signal receiver dongle to view

terrestrial TV channels. But developers realised that the RTL2832U chip
present in these dongles can also be used as SDR hardware. The dongle is
set in test mode and acts as an SDR receiver. DVB-T and DVB-T2 dongles are
shown in Fig. 2.
. 2: RTL-Software Defined Radio (SDR) dongle type—DVB-T2 (left) dongle and
DVB-T (right) dongle
The antenna provided with the dongle (see Fig. 3) is suitable for signal
reception. It comes with a magnetic base, so it can be mounted on a metallic
surface.

Fig. 3: Antenna provided with dongle

You can use any of the two USB dongles (shown in Fig. 2) for SDR
applications. The setup for an Android smartphone based SDR system with
only signal reception capability is explained in the following sections.
The SDR system and Android smartphone can be used to perform the
following functions:

1. The SDR dongle can make Android tablet/phone compatible for FM signal
reception and listening to FM broadcasts, which is helpful for devices without
FM option.

2. The SDR implemented using Android smartphone and RTL-SDR can receive
FM broadcast channels.

3. The amplitude modulation (AM) signal can be demodulated using the

setup between the supported frequency ranges.

4. The SDR system can be used to get Radio Data System (RDS) values of FM
broadcast signals.

5. The FM signal spectrum can be viewed using the Android app.

6. Troubleshooting guide is provided in the SDRTouch app for using the

Android SDR system.

Setup requirements
1. Android smartphone (preferably with Android 5 or higher version)

2. USB OTG adaptor

3. RTL-SDR dongle (DVB-T/DVB-T2)

4. Internet connection to download the apps

5. RTL-SDR driver (available in PlayStore, developed by Martin Marinov)

6. SDRTouch app (available in PlayStore, developed by Martin Marinov)

Hardware setup

1. First, connect the OTG adaptor carefully with the Android smartphone

2. Connect the antenna to the RTL-SDR dongle properly

3. Connect the USB dongle to the OTG adaptor

4. After connections are complete, place the device at a suitable location

Software setup

Download and install:

1. RTL-SDR driver from PlayStore

2. SDRTouch app from PlayStore. This app is available in two versions; testing
was done using the free, limited-functionalities app

3. SDRoid app (free version) from PlayStore. It provides the spectrum

function

The smartphone screen with all the above-mentioned software installed is

shown in Fig. 4.
 Fig. 4: Required apps
The SDRTouch app interface is shown in Fig. 5.
 Fig. 5: Interface of SDRTouch app
Figs 6 through 13 show the app interface and basic options available in SDR
apps for Android smartphones.

Fig. 6: Spectrum in SDRTouch app

Fig. 7: Signal types supported by SDRTouch app

Fig. 8: Interface of SDRoid app

Fig. 9: Signals supported by SDRoid app

Fig. 10: Tune to frequency setting in SDRoid

Fig. 11: Spectrum in SDRoid

Fig. 12: RDS data values in SDRTouch

Fig. 13: Interface with RDS values in SDRTouch

Notes.

1. The SDRTouch app (free version) supports spectrum viewing only for a
limited time (few seconds).

2. Use a good-quality OTG adaptor/cable for the project.

3. SDRTouch supports audio recording.

4. Some mobile phones may not support the hardware and drivers.
Madhuram Mishra is an ME (digital communication) student at NITTTR, Bhopal,
with keen interest in circuit design and working with Arduino boards.

Dr Sunil Mishra is a professor at Institute for Excellence in Higher Education

(IEHE), Bhopal and also a fellow of IETE, India. His areas of interest are
microwaves and antenna design.

This project was first published on 13 June 2018 and was updated on 6
March 2020.
