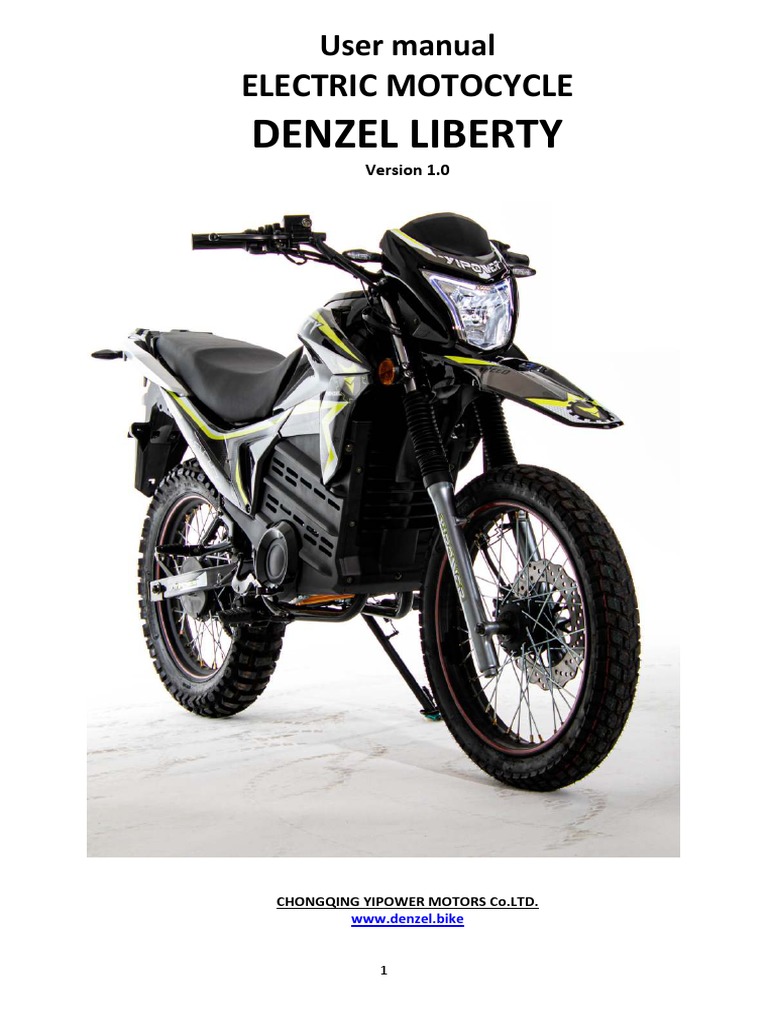

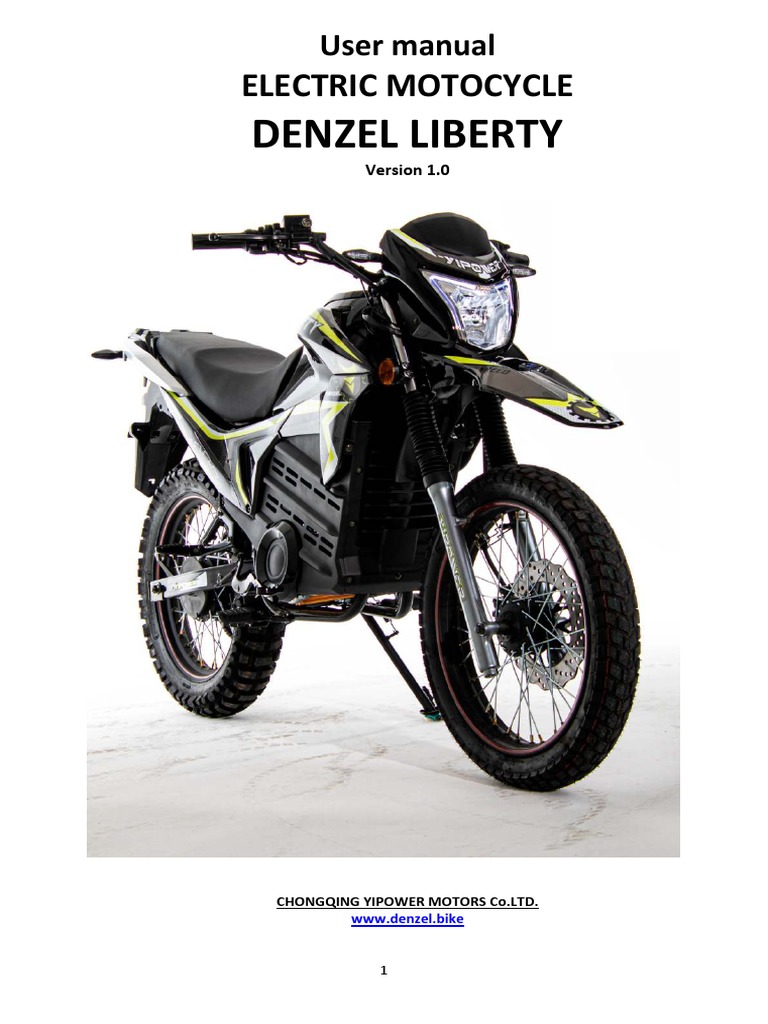

ELECTRIC MOTOCYCLE
DENZEL LIBERTY
Version 1.0
1
Table of Contents::
5
2. General overview of configuration
7
3. Specification and technical parameters
8
4. Assembly and preparation of the electric bike for operation
5 Description of controls 9
9. Starting to drive 16
Warranty card , 23
Attention! The complete set of the model can be changed at the discretion of the manufacturer, without any warning.
2
1. Safety rules when operating the electric motorcycle
LIBERTY
Riding an electric bike involves a certain amount of risk and high danger. In order to
minimize the risk, we kindly ask you to adhere to the Traffic Laws and to follow basic safety
requirements related to the specifics of riding an electric bike. It should be understood,
however, that there are no precautions that could eliminate each and every risk. We
recommend the use of dedicated safety equipment for driving at night. The main feature of such
accessories are the LED lights built into them.
Remember that brakes lose some of their effectiveness in wet weather, so always
consider this when driving. Also remember that wet roads are more slippery than dry ones, so
when driving on wet or damp roads keep your speed under control, avoid sudden maneuvers
and sudden braking. Be especially careful when passing railroad or streetcar tracks, driving on
metal surfaces, and when passing road markings, which are especially slippery in wet weather.
4
2. General overview of configuration
Dear Customer!
The configuration of the electric bike shown in the picture may differ from the delivered
configuration.
Pic 1
5
Pic 2
6
3. SPECIFICATION AND TECHNICAL PARAMETERS
3.1 Specification
Наименование Параметры
Front light Head lamp: parking lights, low and high beams, turn signals
7
Rear light Parking lights, Brake light, rear turn signals
Horn 12V, standard motorcycle horn
Warning! The configuration of the model can be changed at the manufacturer's discretion without prior notice.
Warning!
Removal of speed limits by making changes to the design - deprives you of the warranty and also deprives you of the
right to drive this vehicle without registering it.
Assembly
Before assembly, check that you have all the parts listed below on hand:
Front wheel
Headlight
Speedometer
Footrests
Handlebars complete with throttle grip and handlebar switch
Carefully evaluate your ability to properly assemble the electric bike. We recommend that you
have your bike assembled at a professional bike shop or electric bike shop if you have insufficient
experience! Denzel is not liable for any damage to the electric bike or any of its parts if it occurs during
assembly!
8
5. Description of controls.
- Throttle, Denzel standard 5V hall sensor throttle, you can also use any other 5V hall sensor
throttle.
- Analog electronic brake. Adjustable electronic braking and recuperation system. When the
trigger is pressed, the motor switches to the “generator” mode and slows down the moped,
simultaneously charging the battery with regenerative current. By changing the angle of inclination of
the trigger handle, the braking force and, accordingly, the recuperation current change.
- Cruise control button. Turns Cruise Control on and off. This feature is being tested and will be
available from 2023.
- PARKING button. This function provides additional safety when operating the moped. When
you turn on the moped, the PARKING function is automatically activated. To remove the moped from
the Parking lot, just press the button once. At the same time, the parking indicator “P” will turn off on
the display screen. If you press this button again, the function will be activated again. The Trigger
located under the moped seat is responsible for the operation of this function. If you disable this
Trigger, the parking function will not be available and the bike will work in normal mode.
9
STEERING COLUMN – LEFT SIDE:
- Light switcher - three-position light switch - turns on the "parking" (daylight), the LED
low beam headlight. We strongly recommend driving with daylight on even during daylight
hours.
- High beam switch - switches the headlight from low beam to high beam. Be careful and
turn on your high beams only when necessary, this will help save energy on your battery, as well
as increase the safety of road users by avoiding dazzling them.
- Turn signal switcher - This switch turns on the right and left turn signals of the bike.
- Horn activation button - turns on the claxon. Your bike is equipped with a 12V standard
motorcycle horn. Be careful - use the horn only in rare cases when necessary and remember
that in many countries in certain areas - the use of the horn is strictly prohibited.
- Pass light - High beam button - "Blinker" - pressing this button turns on the high beam
10
FRONT SIDE:
- Display
Your moped is equipped with a DENZEL DSD-I display. The display shows all the necessary
standard information, as well as the battery current. The display speed can be edited - in the
display settings. For display settings, contact your nearest dealer. More details about the display
below.
11
6. Indication and control system
The bike speedometer consists of three parts (screens).
Speed display
This screen displays the current speed.
REV – REVERSE
P – Parking – activated
Note: LED indicator in the center of the screen - indicates the charging status
Once charging is complete - if there were no errors during charging - the green LED will light up,
indicating that charging is complete.
Once charging is complete, you may or may not unplug the charger from the bike at your
discretion - the charger has an auto-disconnect feature.
Central part of the display
12
The current battery voltage is displayed in the upper right corner.
The current value of the battery current is displayed in the upper left part (disabled
in the settings)
In the central part of the screen there is a scale that by default displays the battery
voltage - the maximum value is 100% - corresponds to a fully charged battery - 84V.
By default, this speedometer is set to a nominal operating voltage of 72V, also by
changing the settings - the speedometer can be set to 36V, 48V, 60V, 72V, 96V, 110V
Also, the operation of this scale can be rebuilt by changing the settings and it will
display the current value of the current.
At the bottom of the screen is displayed - the distance traveled for the trip and the
total mileage.
13
7. First time power-up and system check
7.1. By default, the moped is delivered with the battery disabled by the software.
Therefore, after collecting the moped, you need to use a special APP to turn on the
battery. To do this, you can download the APP on the official website of the manufacturer.
http://www.denzel.bike/liberty.html
Or contact your nearest dealer.
On the official website you will also find a description of the program.
Attention - immediately after turning on your bike is ready to ride so be careful with the throttle!
Before switching on, make sure your bike is on level ground and the kickstand is holding the bike
securely.
7.2. Insert the ignition key into the lock and turn it to the right.
Lighting test:
Steering column - left side. Turn on the light switch to the first position - "parking" or
daylight. At the same time, the front LED daytime running lamp, tail lamp and display screen
should light up. Move the switch to the second position - the headlight should turn on - low
beam.
With the low beam on, turn on the high beam with the corresponding switch - this should
turn on the high beam of the headlight, as well as the information LED on the high beam on the
display screen.
Turn off high and low beams.
Reverse button. The front of the moped. By default, your bike is set to move forward. If
you need to move backward and you need to turn on reverse, then you need to press the switch
on the front panel with the “insole down” pattern. When you turn on the reverse gear, the red
REV inscription will turn on on the display screen - which will mean that the bike is ready to
reverse. Changing the direction of movement is possible only at a complete stop. The bike is
14
equipped with automatic protection in which the bike does not stop completely - changing the
direction of movement will not turn on.
After checking the performance of all systems, you can start moving.
NOTE.
If on your bike, when checking the performance of the systems, defects or shortcomings
were revealed - please contact the nearest service center or the seller where this bike was
purchased.
1. Before using, please check all parts of the electric moped for integrity and
serviceability. Check that all moving parts of the electric scooter are tight.
2. When traveling, please follow the traffic rules and do not use the stroller for cargo.
3. Use your brakes with great care. Always apply the rear brake first and then the front
brake. Front brake braking on slippery surfaces will cause you to fall!
4. It is forbidden to put the electric moped or its parts into water.
5. Do not leave the battery in the sun or near hot objects over 60°C.
6. When charging the battery, be sure to use only the standard cable designed for
charging from AC 84V - 220V, supplied with the electric moped.
7. Do not leave the battery discharged for more than 1 week
8. It is necessary to charge the battery at least once a month, regardless of its use.
9. Standard battery charging time is 3-4 hours. The first charge time can be up to 4
hours. You need to charge the battery until the indicator on the charger turns green (or the
indicator on the display).
10. It is forbidden to disassemble batteries, electric motors, control systems and other
complex parts of an electric moped on your own - if necessary, contact the seller's service
center (contact information is indicated in the warranty card).
11. For safety reasons, do not allow people who do not know how to operate models
with an electric motor to use the electric motor.
12. The battery of the electric scooter is absolutely safe for the environment during
operation, however, for safety reasons, please do not throw the used batteries into the trash
can, they need to be disposed of. For disposal, please contact the service center of the seller's
company (contact information is indicated in the warranty card).
15
9 Start to drive
ATTENTION! We strongly recommend that before turning on the electric moped - get
on it and get ready to ride. We do not recommend turning on the electric moped before you
sit on it.
In order to bring the bike into the on state, you must double-click on the lightning bolt
icon on the remote control.
Make sure that you have SPORT mode turned off, as well as the high beam headlights
(see above - controls)
Make sure the footrest of the moped is in the folded position. A special waterproof
sensor is installed in the footboard. If the footrest of the moped is in the open state, then the
signal from the parking sensor goes to the controller and blocks the engine, and the parking
indicator “P” is also on the display screen
In order to set the electric moped in motion (when the electric moped is on), it is
enough to turn the “throttle” handle, the movement should be smooth and without jerks.
You can control the movement with the throttle and brakes only.
NOTE:
On mopeds with an asynchronous motor, the Anti-Slope function can be activated. When
this function is activated, your bike will not be able to move in the opposite direction to the
selected one. For example - if you have forward motion (FRW) turned on - then the bike
cannot roll back - the engine will resist. This is useful when you need to stop on a slope (traffic
light or intersection) - and then start moving again, so in order not to keep the bike constantly
on the brake and then it is difficult to start moving - you just stop using this function - no
matter what slope, and then turn the throttle again and your bike will go.
If you need to move back, but this function interferes with you, then you can do the
following:
1. Press the reverse button and calmly move the bike back to the desired distance or
drive in reverse.
2. Turn off the bike and simply move back the desired distance.
3. Disable this feature. We do not recommend doing this. But if you do not like the
operation of this function or you cannot get used to it and it causes you inconvenience, then
this function can be disabled through the software - for this, contact any service center - This
service is free.
16
10. Driving range and driving modes
The range of an electric moped is not constant, it ranges from 80 km to 120 km - the
range depends on the driving style, terrain and weather conditions and the type of tire
chosen. The mileage is affected by the total mass (the weight of the electric moped, the
weight of the rider, the weight of the cargo carried on the trunk), the type of road surface
(asphalt, concrete, gravel, crushed stone, etc.), the terrain (uphill, downhill, plain), wind
speed and direction relative to the direction of travel (headwind, or vice versa, tailwind),
atmospheric air temperature (battery capacity decreases in cold weather), battery charge
level, driving style (for example, start speed, braking intensity, etc.). etc., tire pressure, etc.
In order to increase the range, we strongly recommend using the coasting advantage.
You also need to remember that a sharp start and high speed - increase battery consumption
- which leads to a decrease in driving range.
Your electric moped has two modes of operation and two directions of movement
The ECO mode is the normal mode of operation of the bike, while the bike has low
power consumption, smooth acceleration, and limited speed.
"Sport" mode - the bike has an increased energy consumption, but has a sharp start
and high speed (the maximum value of which is limited by existing legislation)
Keep an eye on tire pressure - as mileage can be greatly reduced on "flat tires"
11 BRAKE CONTROL
The front brake lever is located on the steering column on the right side of the
steering wheel. There brake lever – is foot brake. The classic approach: you must always
start braking with the rear brake, you only need to slow down with the front brake. But on
your bike, by default, the recuperation system is enabled - during which the "electronic"
braking of the bike occurs. Recovery (braking) occurs smoothly with increasing force (the
longer you hold the throttle, the stronger the braking). This setting can be changed, as well
as change the strength of the "electronic" braking and the reaction time of the "electronic"
braking. In this case, to start braking - you only need to slightly press the front brake lever -
and you will immediately feel the start of the "electronic" braking system, then you can use
the classic approach to braking described above.
NOTE:
When the brake sensors are turned on (when any of the “brakes” is pressed), the
throttle stick is turned off, READY goes out on the display screen and BRK lights up. You
cannot move - to start moving again - you must release the brake lever.
17
12 Charger and battery charging instructions
12.1 On board waterproof charger
Your electric moped has an on-board waterproof (IP67 protection class) charger with a
current of 10A installed under the seat, this charger is specially designed for permanent
connection to batteries. It doesn't need to be turned off.
Onboard charger specifications:
- Rated voltage: 72V
- Maximum charge current: (Input voltage: 220V 50Hz) -10A, (Input voltage: 85V-110V
50Hz) -7A
- Degree of water protection: IP67
The charger is equipped with overheating protection, automatic short circuit protection.
To charge an electric moped - You need a special cord to connect to a standard AC 85V-
220V home network
Figure 3 below shows the charging
socket:
Pic 3
18
Figure 4 - shows the electric moped charging cord - for connecting to a standard 85V -
220V AC household mains
Pic 4
Note: use only original accessories, in case of loss or damage to the charging power cord,
contact the nearest service center or the seller.
In case of loss or failure of this power cord - you can order it from a service center or
make it yourself - for this you will need to find a standard 2-pin connector from CNLINKO
- Connect the charger cable to the socket on the frame of your electric bike (connect the
charger plug with the rounded end to the battery socket in the frame).
- Connect the power cord of your battery charger to a household power outlet.
The charging lamp should be flashing red to indicate that charging is in progress and the
cooling fan should be running.
19
1. Charge immediately after each use.
2. Charge before storing. During winter time store the battery in a warm room, do not
store it in temperatures below 0°C. Charge every 30 days when not in use or during winter
storage of the bike.
3. Charge the battery for 3-4 hours, until the indicator on the charger changes color from
red to green.
4. Do not allow the battery to be completely depleted.
5. For safety reasons, do not charge for more than 24 hours at a time.
6. Turn off the bike when it is not in use.
It is recommended that you charge the battery after each trip. Please read the following
instructions carefully before charging.
Caution! To charge the battery, use only the original battery charger supplied with the
electric bike. Do not use the battery to power any device other than the electric bike with which
it was delivered. Do not disassemble or modify the battery.
Important!
• Check that the mains voltage is the same as that of your charger. Never plug the
charger into a circuit with a different voltage.
• Do not drop the battery charger, this may damage the sensitive electronics inside.
• Charge the battery before each trip, regardless of range. This will help extend the life of
the battery.
• Remember to always charge the battery after every trip on your electric bike to extend
the life of the battery. Do not leave the battery flat for long periods of time, as this may cause
the battery to fail.
• Charge the battery only in a well-ventilated and conditioned area away from flammable
materials. Never cover it.
• Never disassemble the charger or change its settings.
• The first three charges may take up to 4 hours to charge the battery pack.
• If the battery is stored for a long time without use, it should be charged at least once a
month and stored in a warm place.
• Do not leave the battery in a state of constant charging from the mains power supply.
When charging is complete, disconnect the charger power cord from the mains and battery.
20
13. Storing and transporting the battery
Store the battery and the charger separately from each other in a clean, dry and
ventilated place away from sources of fire and heat at an ambient temperature of +5 to 25°C
and an air humidity of 40% to 60%. Avoid contact with moisture.
Even if you don't use the electric bike, make sure to charge the battery once a month
with an authorized battery charger for 3-4 hours until the green indicator appears.
Caution! Using a non-standard battery charger to charge a lithium-ion battery is NOT
acceptable!
Winter storage of battery. Winter storage of the Lithium-ion battery pack should be
done in a cool, dry room with a temperature between +5 and 25 degrees and a relative
humidity of 40-60%. Do not forget to unplug your electric bike when you store it.
The battery should be packed in a box and protected from shocks, vibration and pressure
during transportation. A packaged battery may be transported in any vehicle, such as a car,
airplane, etc.
Caution! Always comply with the Traffic Code! Before you get on your electric bike, make
sure that you have read the operating instructions and carefully read this manual. What you
should check before you use the electric bike:
1. Handlebars mounting.
2. Tire pressure.
3. Brake pad wear, replace if necessary.
4. Brake adjustment.
5. Chain tension.
6. Battery condition as indicated by the electric bike indicators.
7. Brake effectiveness. Do not use the front brake to come to a sudden stop.
8. Securely fasten all nuts and bolts (including factory-installed nuts and bolts).
21
15. Warranty service
1. Warranty service is performed only upon presentation of a properly completed warranty
card signed and stamped by the purchaser and seller.
2. The warranty period is 12 months from the date of purchase.
3. The warranty covers the parts and units of the vehicle if they have defects of assembly
and manufacture due to the fault of the manufacturer, except for parts and units subject
to normal wear and tear, as specified below.
4. A special precondition for the warranty is that all maintenance work should be carried
out in good time according to the service schedule (see Operating Instructions), and that
the equipment should be operated at ambient temperatures between 0°C and +50°C and
at a humidity of max. 80%.
Parts and assemblies subject to normal wear and tear, i.e.: trim and lighting components,
plastic parts, wear parts (friction components, belt, chain, springs, etc.); periodically
replaced brake system parts (pads, brake cables, brake discs, fittings, etc.); consumables
(lamps, fuses, tires, bearings, bearings, etc.); and consumables (lamps, fuses, etc.); other
control elements that have failed due to a fall, as well as chargers.
Batteries in case of: storage and use of the electric bike at temperatures below 0°C;
storage of batteries in depleted condition without monthly recharging; frequent full
discharge of the battery; mechanical damage; use of the electric bike for rental purposes.
Damage as a result of driving the vehicle in violation of the operating manual,
overloading the vehicle.
Damage to the vehicle as a result of a traffic accident.
Damage by external causes, such as damage to paint surfaces caused by chemicals or
other agents, damage caused by negligent handling.
Damage caused by force majeure circumstances, namely: snow, hail, hurricane, fire,
flood, and other natural disasters of natural origin.
Damage by third parties.
If problems are related to the quality of the product, the seller shall take prompt action to
restore quality.
22
Warranty card
The Buyer is familiar with the technical and external condition of the vehicle and the warranty conditions and has
no claims against the Seller.
Address: ______________________
Telephone: _______________________
E-mail: _________________________
You can always get additional information and assistance from your dealer, on the company
website: www.denzel.bike.
23
