Spiral Bevel Reducers & Parallel Shafts

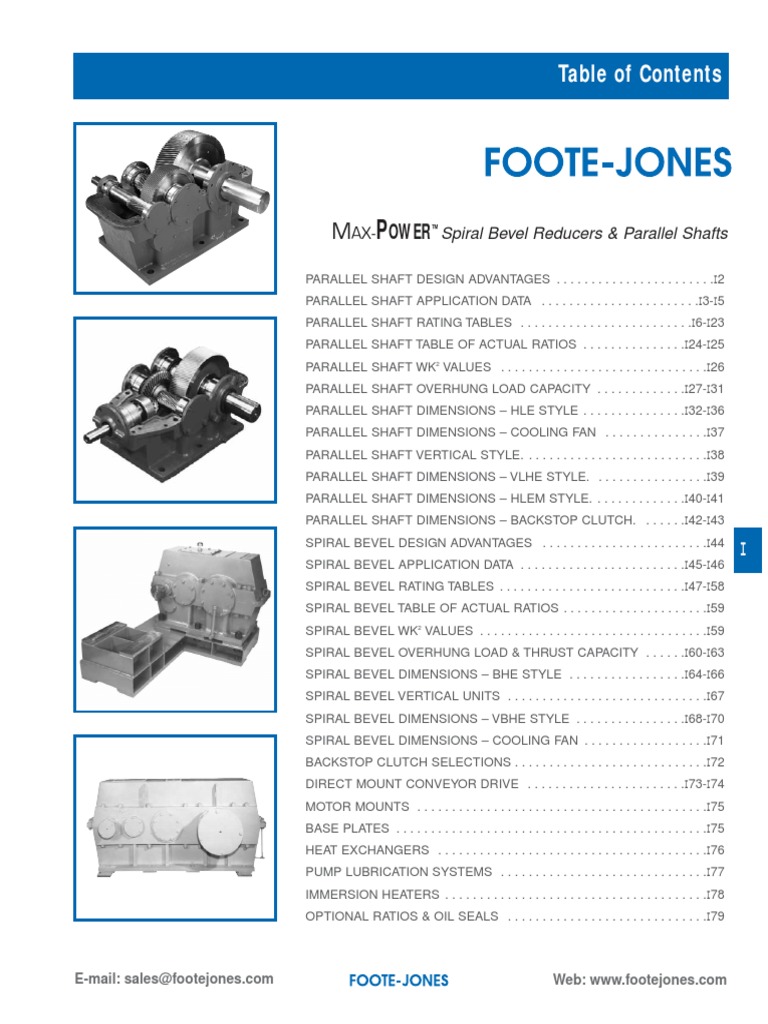

Table of Contents
MAX-POWER ™
Spiral Bevel Reducers & Parallel Shafts
PARALLEL SHAFT DESIGN ADVANTAGES . . . . . . . . . . . . . . . . . . . . . . .I2

PARALLEL SHAFT APPLICATION DATA . . . . . . . . . . . . . . . . . . . . . . .I3-I5
PARALLEL SHAFT RATING TABLES . . . . . . . . . . . . . . . . . . . . . . . . .I6-I23
PARALLEL SHAFT TABLE OF ACTUAL RATIOS . . . . . . . . . . . . . . .I24-I25
PARALLEL SHAFT WK2 VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I26
PARALLEL SHAFT OVERHUNG LOAD CAPACITY . . . . . . . . . . . . .I27-I31
PARALLEL SHAFT DIMENSIONS – HLE STYLE . . . . . . . . . . . . . . .I32-I36
PARALLEL SHAFT DIMENSIONS – COOLING FAN . . . . . . . . . . . . . . .I37
PARALLEL SHAFT VERTICAL STYLE. . . . . . . . . . . . . . . . . . . . . . . . . . .I38
PARALLEL SHAFT DIMENSIONS – VLHE STYLE. . . . . . . . . . . . . . . . .I39
PARALLEL SHAFT DIMENSIONS – HLEM STYLE. . . . . . . . . . . . . .I40-I41
PARALLEL SHAFT DIMENSIONS – BACKSTOP CLUTCH. . . . . . .I42-I43
SPIRAL BEVEL DESIGN ADVANTAGES . . . . . . . . . . . . . . . . . . . . . . . .I44
I
SPIRAL BEVEL APPLICATION DATA . . . . . . . . . . . . . . . . . . . . . . . .I45-I46
SPIRAL BEVEL RATING TABLES . . . . . . . . . . . . . . . . . . . . . . . . . . .I47-I58
SPIRAL BEVEL TABLE OF ACTUAL RATIOS . . . . . . . . . . . . . . . . . . . . .I59
SPIRAL BEVEL WK2 VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I59
SPIRAL BEVEL OVERHUNG LOAD & THRUST CAPACITY . . . . . .I60-I63
SPIRAL BEVEL DIMENSIONS – BHE STYLE . . . . . . . . . . . . . . . . .I64-I66
SPIRAL BEVEL VERTICAL UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I67
SPIRAL BEVEL DIMENSIONS – VBHE STYLE . . . . . . . . . . . . . . . .I68-I70
SPIRAL BEVEL DIMENSIONS – COOLING FAN . . . . . . . . . . . . . . . . . .I71
BACKSTOP CLUTCH SELECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . .I72
DIRECT MOUNT CONVEYOR DRIVE . . . . . . . . . . . . . . . . . . . . . . .I73-I74
MOTOR MOUNTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I75
BASE PLATES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I75
HEAT EXCHANGERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I76
PUMP LUBRICATION SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I77
IMMERSION HEATERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I78
OPTIONAL RATIOS & OIL SEALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I79
E-mail: sales@footejones.com Web: www.footejones.com

MAX-POWER ™
I2 Parallel Shaft Reducer Design Advantages
GEARING
• Heavy Duty Through Hardened Gearing – Produces a uniform gradient from surface
through core for optimum combination of wear resistance and strength.
• Precision Tolerances – Gears are hobbed after heat treating for maximum accuracy
and finish.
• Higher Break Loads – 25° pressure angle tooth profile provides higher strength-to-wear
ratio.
• Higher Continuous Loads – Pinions are crown-hobbed for equal tooth load distribution.
SHAFTS
• Higher Strength – Through-hardened steel provides for greater overload protection.
• Higher Loads – Generous shaft lengths and diameters provide increased overhung
load capacity.
BEARINGS
• Longer Life – Oversize heavy-duty tapered roller bearings exceed industry standards.
• Easily Maintained – Adjustable without removing housing cover.
SEALS
• Premium Performance – Spring loaded dual-lip wave type cartridge seals provided on
all shaft extensions.
• Taconite Duty – Grease purged seals available for unusually abrasive dust conditions.
HOUSING
• Cast-Iron or Steel Construction – Alignment of shafts, gears and bearings is
maintained with ruggedly constructed and reinforced housing.
• Higher Capacity – Large surface areas provide increased thermal capacity.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Parallel Shaft Reducer Application Data I3
STARTING AND PEAK LOADS AGMA Standards permit oil (sump) temperatures up to 200°F.
FOOTE-JONES reducers are designed in accordance with When the thermal rating is less than the transmitted load,
AGMA Standards for helical, herringbone and spiral bevel a larger size unit with sufficient thermal capacity must
reducers. The catalog ratings are satisfactory for infrequent be selected or an external cooling system must be
starting (five starts per hour or less) and for maximum added. Thermal horsepower ratings are shown in the catalog
momentary or starting loads not exceeding 275% of rated load rating tables.
(175% overload). For more frequent starting (up to ten starts Only transmitted horsepower is subject to thermal horsepower
per hour), the actual maximum momentary or starting load limitations, service factors do not apply. For intermittent service
shall not exceed 200% of rated load (100% load). Rated load or unusual ambient temperatures, consult your FOOTE-
is defined as the unit rating with a service factor of 1.0. JONES Sales Representative
If the maximum starting or momentary load exceeds the
above, the application should be referred to your RATING TABLES
FOOTE-JONES Sales Representative with complete details Horsepower ratings have been calculated on a 1.0 service
on the duty cycle. factor in accordance with current AGMA recommended practice.
The tabulations are compiled for easy unit size selection. The
All components are designed to permit loads of 285% of the tables are organized by input speed and columns headed with
catalog rating without stressing any component beyond 75% of ratio and nominal output rpm designations.
the material yield point.
HP values are at input, torque figures are at output and allow
Brake Applications – Where the torque rating of the brake for efficiency losses.
exceeds the rating of the motor, the rating of the brake dictates
the selection of the gear drive. When the required speed falls between two cataloged speeds
of a unit for a cataloged ratio, interpolate to determine unit
Oversize Prime Movers are discouraged. Published Service rating. When a special intermediate ratio is required, use
Factors do not cover applications that require oversize prime the lowest output torque from either the next higher or
movers for higher inertia or peak loads. Refer such lower standard ratio, and calculate the input horsepower
applications to your FOOTE-JONES Sales Representative for allowing for efficiency.
selection of suitable drives.
CAUTION Where service factors are low (i.e. 1.0 or less), OVERHUNG LOADS
Overhung loads are calculated at the most adverse
often strength rather than durability ratings are limiting based
on starting or peak loads, so particular care should be taken to
combination of rating, speed, rotation and direction of load. In
most applications where there is a reasonable service factor,
I
consider all load factors.
appreciably greater overhung load may be available. This is
SERVICE FACTORS particularly true in the higher output speed ranges where the
Mechanical horsepower and output torque capacities shown in bearings limit the overhung load capacity.
rating tables are calculated on a 1.0 service factor, with an For applications involving high overhung loads, Style 4
electric motor or turbine drive. When selecting a reducer for reducers are usually required and these applications should be
operation in a specific application, multiply the actual required carefully reviewed. When greater capacity is desired, contact
input horsepower or output torque by the proper service factor your FOOTE-JONES Sales Representative with complete
(Table A) to obtain the equivalent horsepower or torque rating. application data including direction of rotation and side load.
This equivalent value may then be used with the rating tables
to select the reducer. Calculated overhung load for shafts must not exceed the
permissible overhung load capacity listed in the rating tables
The service factors are based on electric, pneumatic, hydraulic for the reducer size, type, ratio and rpm selected.
motors or turbine drivers. For internal combustion engine
drivers, see Table B for service factor conversions. The permissible overhung loads shown in the ratings tables
are calculated for loads applied perpendicular to the shaft
Note: The service factors are based on field experience by the at one diameter distance from the heads of the bearing
gear industry with average installations, and may not be cap screws.
applicable in all instances. They are recommended minimums.
The purchaser is to evaluate the service factors against his Sprockets, pinions and gears should be mounted as close
experience, and to specify different service factors where there to the reducer as possible to minimize reactions on shafts
is sufficient experience, and all load factors as known. and bearings. If the point of application of the overhung load
is located beyond one diameter, the tabulated overhung
THERMAL RATINGS load capacities no longer apply. Applications of this
Thermal horsepower ratings represent the maximum type should be referred to your FOOTE-JONES Sales
horsepower that can be transmitted without overheating when Representative.
a reducer is operated continuously for more than three hours.

MAX-POWER ™
I4 Parallel Shaft Reducer Application Data
OPERATING SPEEDS Modifications such as special seals, heaters, heat exchangers,

Operate units only at the speeds shown on the nameplate. etc., could be required for these unusual conditions. Consult
Before changing speeds, refer complete application details and your FOOTE-JONES Sales Representative.
nameplate data to your FOOTE-JONES Sales Representative
for a review of the lubrication system. Also specify reducer SAFETY
operating speeds on orders to insure proper lubrication. The purchaser should determine the applicable local and
national safety codes related to speed reducers for the specific
Variable or Multi-Speed Applications installation involved. Shaft guarding and noise level requirements
It is essential that all orders indicate maximum and minimum particularly should be checked, and any requirements involving
speeds as well as the duty cycle, as modifications to the the reducer clearly specified.
lubrication system may be required. This is particularly
important for units with a build-in oil pump. STORAGE
All units are coated with a rust-inhibiting oil during the shop
For input speeds above 1750 rpm or below 100 rpm, consult
test, and shaft extensions are coated with a dry-film preservative.
your FOOTE-JONES Sales Representative.
This treatment will provide adequate protection for normal
RATIOS periods during installation. This period could range from 2-3
Both nominal AGMA and actual ratios (accurate to three months in severe, unprotected outside storage, up to a year in
decimal places) are shown. Where exact ratios for precise temperature-controlled indoor storage. It is recommended the
synchronization are required, consult your FOOTE-JONES units be protected during storage, and periodic inspection is
Sales Representative for actual tooth combinations. Optional recommended and re-treatment applied, if necessary.
intermediate ratios are available. Long Term Storage – For more positive storage instructions,
MOUNTING POSITION refer to the Maintenance Manual.
All gear reducers are designed to operate with the base Certified Prints shall be contractually binding as to the
mounted horizontally unless specified otherwise. Refer all understanding of FOOTE-JONES regarding the mechanical
other special mountings to your FOOTE-JONES Sales and rating requirements, and shall govern when there is a
Representative. Modifications to the lubrication system and conflict between them and the inquiry, order, quotation or
seals may be required. specifications.
EFFICIENCIES FORMULAS
The approximate full load efficiencies for normal operating 1. Torque
conditions are listed below. Where efficiency is critical, consult HP x 63025
your FOOTE-JONES Sales Representative with complete T=
N
application data for a more precise figure.
2. Horsepower
Single Reduction 98% TxN
Double Reduction 97% HP =
63025
Triple Reduction 96%
3. Overhung Load
For units with built-in pumps, allow an additional 0.5%. HP x 63025 x K TxK
P= or
WARRANTY NxR R
FOOTE-JONES warrants that the equipment manufactured will FACTORS
perform satisfactorily for the rating specified on the certified
print and nameplate provided it is properly installed and All factors must be determined at shaft under study.
operated within the speed and torque limits and other load and HP =
Transmitted horsepower
environmental conditions for which it was sold, and maintained T =
Torque in inch pounds
in accordance with the Maintenance Manuals. P =
Equivalent overhung load in pounds
The warranty is applicable providing the drive system is free N =
RPM of shaft
from critical speeds, torsional or lateral vibratory loads within R =
Pitch radius in inches of sprocket, pinion,
the operating speed range, no matter how induced. sheave, or pulley
Responsibility for the system analysis rests with the purchaser. K = Overhung load factors
Sprocket (single or multiple strand) . . . .1.00
ENVIRONMENT Spur Pinion . . . . . . . . . . . . . . . . . . . . . .1.25
The standard reducer is designed to operate in a protected V-Belt sheave . . . . . . . . . . . . . . . . . . . . .1.50
location with reasonable ventilation, free from temperature Flat belt pulley . . . . . . . . . . . . . . . . . . . .2.50
extremes (below -10°F or above 100°F for significant periods)
or severe dust, toxic, explosive, or other unusual environments.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Parallel Shaft Reducer Application Data I5
SELECTION PROCEDURE
Step 1 Determine service factor for your application depending on number of hours of
operation each day and the type of prime mover. Refer to Tables A and B.
Step 2 Multiply the service factor obtained in Step 1 by the actual input horsepower or output
torque required to operate the driven equipment to determine an equivalent rating.
Step 3 Refer to rating tables to select the speed reducer size with the proper input and output
speeds that also has the capacity to equal or exceed the required equivalent rating.
Step 4 If the drive is subject to starting or peak torque more than 200% to 275% of the
catalog rating for reducer selected in Step 3, consult your FOOTE-JONES Sales
Representative.
Step 5 The thermal capacity of the reducer you select must equal or exceed the actual
input horsepower transmitted (not the equivalent horsepower). If the input horsepower
is greater, consider fan cooling, heat exchanges or select a larger reducer size. When
the unit operates intermittently (less than three hours continuously), consult your
FOOTE-JONES Sales Representative.
Step 6 The overhung load on all shafts not connected with a flexible coupling must be
calculated from the formula on page 4. The overhung load for a specific torque;
however, can be reduced by increasing the diameter of the gear, sprocket or sheave
that is mounted on the shaft.
Step 7 A backstop may be required to prevent reverse rotation for some applications. Other
accessories, such as bases, are also available.
I
STANDARD ASSEMBLY DIAGRAMS
HLE CODE
1 2 3 4 5 6 7 8 9
(R-L) (L-R) (R-R) (L-L) (R-LR) (L-LR) (LR-L) (LR-R) (LR-R)
VHLE CODE
1 (U-D) 2 (U-U) 3 (U-UD)

MAX-POWER ™
I6 Parallel Shaft Reducer Ratings
1750 RPM INPUT (@ 1.0 S.F.)

0701 0801 0901 1001 1101 1201 1301
Nom. Output
Ratio RPM MHp THp Tq MHp THp Tq MHp THp Tq MHp THp Tq MHp THp Tq MHp THp Tq MHp THp Tq
1.837 950 400 87 26.1 567 100 37.0 800 113 52.1 1050 125 67.8 1400 161 91.1 1750 161 114 2190 188 143
2.250 780 330 87 26.2 466 105 37.8 675 120 53.5 900 132 71.5 1200 164 95.5 1430 164 114 1800 191 145
2.756 635 266 90 26.2 400 105 38.5 527 120 52.0 709 132 69.1 1000 175 97.1 1250 175 121 1500 200 148
3.375 520 219 90 25.7 313 113 37.3 415 125 49.6 564 135 66.7 788 175 93.2 937 175 111 1200 205 143
4.134 425 163 100 23.9 234 120 34.4 326 132 47.7 450 150 65.2 613 200 88.9 750 200 109 902 229 132
5.062 346 120 105 21.6 176 125 31.5 235 141 42.4 350 158 61.5 450 207 81.1 535 207 96.6 675 250 122
6.200 282 90 – 19.8 134 132 29.1 175 150 38.4 263 166 57.7 332 225 72.8 400 225 87.6 525 263 116
7.594 230 71 – 18.8 100 – 27.0 137 – 36.3 190 175 50.3 250 226 67.8 313 226 84.6 400 270 106
0702 0802 0902 1002 1102 1202 1302

Nom. Output
7.59 230 125 30 32.5 188 45 49.2 228 53 60.4 330 70 86.5 438 95 115 500 95 132 638 125 169
9.30 188 105 31 33.6 150 45 48.6 200 55 64.0 266 75 85.3 350 100 114 438 100 143 563 125 174
11.39 154 82 31 31.9 125 45 49.9 160 57 63.7 225 75 88.5 313 105 121 375 102 145 450 132 179
13.95 125 66 32 32.2 105 50 50.7 132 60 64.9 188 80 89.3 250 105 120 313 105 151 375 134 177
17.09 102 56 33 32.8 80 50 47.8 105 62 62.3 157 80 92.3 200 113 119 234 113 138 279 138 168
20.93 84 47 35 33.4 66 52 48.5 80 63 58.7 120 82 87.4 157 113 116 189 113 138 231 143 170
25.63 68 38 35 33.2 55 53 49.4 66 65 59.6 100 87 87.6 132 120 118 157 120 141 191 150 173
31.39 56 27 – 29.6 41 – 44.6 55 – 60.6 81 – 86.7 106 – 116 132 120 144 157 – 170
38.44 45 20 – 26.6 31 – 41.6 40 – 53.8 60 – 80.3 80 – 106 95 – 126 125 – 164
0703 0803 0903 1003 1103 1203 1303

Nom. Output
31.39 56 37.5 – 40.5 50.0 – 54.0 70.0 – 75.4 98.9 – 105 134.0 120 141 161.0 120 169 200.0 157 214
38.44 45 31.3 – 40.6 41.2 – 54.2 56.1 – 75.5 81.9 – 107 113.0 – 148 132.0 125 172 164.0 157 217
47.08 37 23.4 – 37.4 37.5 – 60.5 46.8 – 76.6 64.5 – 103 90.0 – 145 113.0 – 181 136.0 – 220
57.66 30 19.1 – 37.8 31.3 – 61.3 40.0 – 79.1 53.4 – 105 75.0 – 146 93.8 – 184 114.0 – 224
70.62 25 15.8 – 38.2 25.0 – 60.4 31.3 – 76.0 45.0 – 107 62.5 – 150 75.0 – 180 94.2 – 227
86.50 20 13.2 – 38.9 21.0 – 61.0 23.2 – 69.0 37.5 – 110 50.0 – 148 62.5 – 183 80.0 – 233
105.9 16.5 9.4 – 34.4 17.5 – 62.6 20.0 – 71.6 27.8 – 99.3 40.0 – 144 52.5 – 189 60.0 – 216
129.7 13.5 7.5 – 33.8 13.5 – 58.6 15.9 – 69.8 23.0 – 100 32.4 – 142 40.8 – 180 50.0 – 223
158.9 11.0 6.3 – 34.1 11.3 – 60.6 13.2 – 70.8 18.8 – 102 26.3 – 140 31.3 – 167 37.8 – 208
194.6 9.0 5.3 – 35.3 8.0 – 51.9 9.5 – 62.0 15.6 – 102 20.7 – 137 25.1 – 167 31.6 – 211
238.4 7.4 3.8 – 30.7 6.0 – 47.8 7.8 – 62.5 11.4 – 93.2 15.2 – 122 18.8 – 151 23.8 – 194
MHP – Mechanical Horsepower (Thermal HP listed when less than Mechanical HP)
THP – Thermal Horsepower (Additional thermal capacity available with fan cooling or heat exchanger)
Tq – Output Torque x 1000 (in. lbs.)
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Parallel Shaft Reducer Ratings I7
1750 RPM INPUT (@ 1.0 S.F.)

1401 1501 1601 1701 1801 1901 2001
Nom. Output
1.837 950 250 188 163 – – – – – – – – – – – – – – – – – –
2.250 780 2080 191 167 2630 225 210 3000 225 240 – – – – – – – – – – – –
2.756 635 1750 200 173 2190 225 210 2500 225 240 3130 267 304 3590 267 348 4000 278 394 4500 278 443
3.375 520 1400 205 167 1750 235 208 2000 235 238 2360 280 282 2660 280 319 3140 300 371 3500 300 414
4.134 425 1050 229 154 1270 264 188 1500 264 222 1880 319 275 2190 319 321 2500 350 362 2820 350 409
5.062 346 800 250 145 953 283 172 1130 283 203 1400 350 253 1610 350 291 1800 375 331 2060 375 362
6.200 282 625 263 138 750 313 163 875 313 190 1050 375 230 1250 375 274 1400 400 305 1580 400 343
7.594 230 469 270 124 563 314 153 640 314 173 807 382 214 937 382 249 1130 415 300 1250 415 331
1402 1502 1602 1702 1802 1902 2002

Nom. Output
7.59 230 700 125 185 905 157 241 927 157 246 1350 206 356 1500 206 397 1880 250 495 2080 250 545
9.30 188 600 125 195 788 160 257 800 160 260 1130 219 367 1270 219 412 1570 263 507 1750 263 561
11.39 154 525 132 209 625 164 250 701 164 279 913 225 360 1070 225 426 1250 263 496 1400 263 551
13.95 125 415 134 202 501 175 243 571 175 277 788 227 378 913 227 439 1060 272 511 1230 272 592
17.09 102 322 138 194 403 175 239 468 175 277 625 233 368 750 233 442 900 280 530 1000 280 590
20.93 84 270 143 198 350 188 254 400 188 291 500 250 364 600 250 436 700 300 510 800 300 579
25.63 68 225 150 203 285 188 251 330 188 291 405 250 366 478 250 430 563 313 497 625 313 548
31.39 56 177 157 194 225 200 247 263 200 290 334 263 366 400 263 441 467 313 503 525 313 563 I
38.44 45 150 – 202 188 – 250 205 201 273 263 – 315 300 267 402 338 320 466 375 320 498
1403 1503 1603 1703 1803 1903 2003

Nom. Output
31.39 56 225.0 157 244 287.0 200 307 323 200 349 401 263 434 450 263 486 563 313 596 629 313 671
38.44 45 188.0 157 248 233.0 201 309 266 201 354 350 267 449 405 267 520 465 320 613 529 320 688
47.08 37 160.0 – 259 191.0 – 311 225 205 367 287 273 451 330 273 534 400 328 646 450 328 721
57.66 30 134.0 – 263 163.0 – 318 188 – 363 236 – 460 279 – 543 324 – 635 375 328 735
70.62 25 113.0 – 274 134.0 – 324 157 – 378 200 – 481 228 – 552 270 – 646 313 – 751
86.50 20 93.8 – 273 105.0 – 315 120 – 359 157 – 471 188 – 557 225 – 666 250 – 734
105.9 16.5 66.7 – 240 83.6 – 303 100 – 362 132 – 479 157 – 571 188 – 685 203 – 741
129.7 13.5 54.5 – 243 70.0 – 308 83 – 363 107 – 473 132 – 587 157 – 696 175 – 773
158.9 11.0 45.0 – 247 56.8 – 305 66 – 355 82 – 441 94 – 513 120 – 651 141 – 760
194.6 9.0 37.5 – 251 46.0 – 308 53 – 358 70 – 465 81 – 533 94 – 615 105 – 690
238.4 7.4 30.0 – 245 35.3 – 285 40 – 326 53 – 423 60 – 484 67 – 544 75 – 607

MAX-POWER ™
1750 RPM INPUT (@ 1.0 S.F.)

2101 2251 2401 2501 2651 2801 2981
Nom. Output
1.837
2.250
2.756
3.375
4.134
CONSULT FACTORY
5.062
6.200
7.594
2102 2252 2402 2502 2652 2802 2982

Nom. Output
7.59 154 – – – – – – – – – – – –
9.30 188 2050 300 651 2330 300 741 – – – – – –
11.39 154 1750 300 689 2000 300 791 2250 350 879 2500 350 978
13.95 125 1400 313 670 1580 313 761 1880 352 900 2080 352 999
17.09 102 1140 316 683 1270 316 760 1500 375 884 1610 375 947 CONSULT FACTORY
20.93 84 938 328 680 1130 328 817 1250 375 896 1400 375 999
25.63 68 750 350 656 875 350 765 1050 400 919 1200 400 1040
31.39 56 625 351 670 700 351 750 800 401 878 875 401 964
38.44 45 450 375 607 500 375 674 573 414 774 630 414 852
2103 2253 2403 2503 2653 2803 2983

Nom. Output
31.39 56 800 351 860 900 351 967 934 401 986 1130 401 1200
38.44 45 632 375 827 709 375 938 832 414 1070 941 414 1214
47.08 37 502 375 815 568 375 921 700 438 1100 800 438 1260
57.66 30 438 375 855 473 375 926 600 438 1150 675 438 1300
70.62 25 353 – 843 400 375 958 471 438 1130 535 438 1280
86.50 20 300 – 868 330 – 957 400 – 1180 450 438 1310
CONSULT FACTORY
105.9 16.5 250 – 883 275 – 972 323 – 1160 375 – 1340
129.7 13.5 200 – 884 225 – 990 264 – 1150 300 – 1320
158.9 11.0 167 – 887 188 – 999 225 – 1190 237 – 1270
194.6 9.0 125 – 815 140 – 915 157 – 1050 175 – 1160
238.4 7.4 90 – 730 100 – 820 120 – 984 132 – 1080
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
1170 RPM INPUT (@ 1.0 S.F.)

0701 0801 0901 1001 1101 1201 1301
Nom. Output
1.837 635 283 135 27.6 409 160 39.9 564 188 54.9 750 205 728 1050 273 102 1250 273 121 1600 326 156
2.250 520 237 135 28.1 334 160 40.6 472 188 56.0 631 207 74.9 838 273 100 1050 273 125 1290 329 155
2.756 425 189 139 27.9 282 165 40.6 378 188 55.9 525 219 76.6 716 278 104 900 278 131 1070 332 158
3.375 346 157 140 27.8 225 175 40.1 300 191 53.6 405 219 71.5 563 283 99.5 700 283 124 830 350 148
4.134 282 120 – 26.2 167 – 36.6 232 200 50.8 314 219 68.0 438 300 95.0 525 300 114 675 351 148
5.062 230 82.5 – 22.3 125 – 33.4 167 – 45.0 250 227 65.7 314 300 84.7 383 300 103 473 375 128
6.200 190 62.5 – 20.4 94.3 – 30.7 125 – 41.1 188 – 61.6 236 – 77.3 283 – 92.8 375 – 124
7.594 154 50.2 – 19.8 70 – 28.2 100 – 39.4 134 – 53.1 177 – 71.8 225 – 91.1 284 – 112
0702 0802 0902 1002 1102 1202 1302

Nom. Output
7.59 154 90 57 35.2 132 87 51.4 161 105 63.6 236 136 92.6 313 188 123 375 188 147 452 234 179
9.30 125 75 60 35.9 105 90 51.0 136 106 65.1 189 138 91.0 250 188 122 313 188 153 382 238 184
11.39 102 60 – 35.1 88 – 52.4 113 – 67.1 157 142 92.3 209 191 121 263 191 152 313 250 188
13.95 84 46 – 33.4 75 – 54.2 94 – 69.0 132 – 93.3 175 – 125 219 200 158 263 250 192
17.09 68 40 – 35.0 55 – 49.4 75 – 66.8 105 – 93.0 138 – 122 166 – 147 200 – 180
20.93 56 32 – 34.5 46 – 50.2 55 – 60.6 82 – 89.1 106 – 117 132 – 145 161 – 177
25.63 45 26 – 34.8 38 – 50.9 46 – 61.5 70 – 91.8 90 – 121 107 – 144 133 – 180 I
31.39 37 19 – 30.7 28 – 45.9 38 – 62.4 56 – 89.4 75 – 122 90 – 146 106 – 176
38.44 30 14 – 27.2 21 – 41.7 28 – 55.3 41 – 82.2 56 – 108 65 – 130 88 – 176
0703 0803 0903 1003 1103 1203 1303

Nom. Output
31.39 37 26.3 – 41.8 35.3 – 57.7 47.5 – 76.5 68 – 109 93.8 – 148 113 – 178 138 – 220
38.44 30 21 – 40.8 30 – 59.1 40 – 80.5 56.3 – 110 75.7 – 148 93.8 – 184 113 – 224
47.08 25 15.9 – 38.2 25 – 60.3 32 – 78.4 45 – 108 62.5 – 151 75.2 – 180 94 – 227
57.66 20 13.2 – 39.2 20.8 – 60.9 26.8 – 79.3 37.5 – 110 52.5 – 153 62.5 – 183 80 – 234
70.62 16.5 10.7 – 38.9 17.5 – 63.8 21.1 – 76.6 31.3 – 111 41.2 – 148 52.5 – 188 64.4 – 232
86.50 13.5 8.9 – 39.2 14.2 – 62.0 16 – 71.0 25 – 109 35 – 155 43.8 – 193 54 – 235
105.9 11 6.3 – 34.3 11.7 – 62.5 13.2 – 70.3 19 – 101 27.3 – 147 35 – 189 40.9 – 220
129.7 9 5.3 – 35.3 9.4 – 61.0 11.3 – 73.7 15.6 – 102 22.6 – 148 28.1 – 186 33.3 – 222
158.9 7.4 4.2 – 34.4 7.5 – 60.1 8.9 – 71.4 13.2 – 110 17.5 – 140 21.3 – 170 26.3 – 216
194.6 6 3.5 – 35.3 5.4 – 52.5 6.5 – 62.9 10.6 – 103 14 – 139 17.5 – 174 21.4 – 214
238.4 4.9 2.6 – 32.0 4 – 47.5 5.3 – 63.2 7.7 – 94.4 10.3 – 124 12.5 – 150 16.2 – 197

MAX-POWER ™
1170 RPM INPUT (@ 1.0 S.F.)

1401 1501 1601 1701 1801 1901 2001
Nom. Output
1.837 635 1880 326 183 2250 381 220 2630 381 257 3130 464 305 3750 464 366 4380 525 425 4640 525 450
2.250 520 1580 329 190 1880 400 226 2190 400 262 2820 469 334 3220 469 381 3580 525 430 4000 525 480
2.756 425 1250 332 184 1600 400 230 1800 400 259 2250 500 326 2630 500 381 3000 531 442 3160 531 465
3.375 346 1000 350 178 1250 400 223 1500 400 266 1750 500 313 2000 500 358 2280 563 404 2630 563 464
4.134 282 788 351 173 914 410 202 1060 410 233 1350 525 295 1580 525 345 1800 563 390 2000 563 433
5.062 230 563 375 152 700 438 189 800 438 215 1000 527 270 1200 527 325 1400 670 369 1500 600 395
6.200 190 450 375 149 534 450 174 625 450 203 750 563 246 900 563 294 1000 613 326 1130 613 367
7.594 154 334 – 132 400 – 162 456 450 185 600 563 238 675 563 268 800 625 317 900 625 356
1402 1502 1602 1702 1802 1902 2002

Nom. Output
7.59 154 525 234 208 645 300 257 700 300 277 928 400 366 1130 400 445 1350 476 533 1580 476 620
9.30 125 450 238 218 563 313 274 613 313 298 800 403 388 904 403 438 1050 500 508 1250 500 571
11.39 102 375 250 225 450 313 269 525 313 315 675 414 398 788 414 468 900 500 534 1000 500 588
13.95 84 300 250 219 358 318 260 409 318 297 537 438 386 644 438 463 751 525 539 833 525 600
17.09 68 225 – 203 283 – 251 328 324 291 450 438 396 530 438 476 625 525 551 700 525 618
20.93 56 188 – 207 236 – 256 273 – 297 350 – 381 405 – 439 500 – 544 563 529 609
25.63 45 157 – 212 200 – 264 230 – 303 282 – 382 333 – 449 400 – 528 438 – 574
31.39 37 125 – 206 157 – 259 188 – 310 234 – 384 278 – 457 326 – 525 359 – 577
38.44 30 105 – 210 125 – 249 142 – 282 176 – 351 204 – 409 235 – 468 263 – 523
1403 1503 1603 1703 1803 1903 2003

Nom. Output
31.39 37 161 – 259 200 – 321 231 – 369 283 – 458 331 – 534 400 – 632 450 – 718
38.44 30 133 – 263 163 – 324 188 – 375 250 – 480 283 – 543 328 – 646 375 – 734
47.08 25 113 – 274 133 – 324 157 – 384 200 – 470 228 – 552 267 – 646 313 – 749
57.66 20 93.8 – 275 113 – 330 132 – 385 164 – 477 200 – 583 225 – 657 250 – 734
70.62 16.5 75.5 – 274 93.8 – 339 107 – 386 135 – 484 157 – 570 188 – 674 206 – 741
86.50 13.5 63.7 – 277 75 – 335 83 – 370 107 – 477 132 – 587 157 – 697 175 – 768
105.9 11 45.6 – 245 57.5 – 312 70 – 379 90 – 490 107 – 580 125 – 680 139 – 760
129.7 9 37.5 – 250 50 – 326 57 – 375 75 – 498 90 – 600 105 – 695 120 – 795
158.9 7.4 31.3 – 250 40 – 310 45 – 362 56 – 452 65 – 529 81 – 662 96 – 775
194.6 6 26.3 – 258 31.3 – 321 38 – 377 46 – 460 55 – 543 64 – 626 70 – 690
238.4 4.9 20 – 244 23.9 – 289 27 – 331 35 – 422 40 – 482 46 – 553 50 – 608
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
1170 RPM INPUT (@ 1.0 S.F.)

2101 2251 2401 2501 2651 2801 2981
Nom. Output
1.837
2.250
2.756
3.375
4.134
CONSULT FACTORY
5.062
6.200
7.594
2102 2252 2402 2502 2652 2802 2982

Nom. Output
7.59 154 – – – – – – – – – – – –
9.30 125 1500 563 716 1660 563 791 1910 626 908 2040 626 975
11.39 102 1250 563 740 1400 563 827 1600 642 936 1800 642 1050
13.95 84 1000 573 716 1130 573 810 1350 675 970 1500 675 1070
17.09 68 802 600 719 900 600 806 1050 675 924 1200 675 1060 CONSULT FACTORY
20.93 56 675 613 732 788 613 850 900 700 967 1000 700 1070
25.63 45 532 – 695 625 – 817 750 – 980 811 700 1060
31.39 37 438 – 703 500 – 801 563 – 924 613 – 1010

I
38.44 30 313 – 630 350 – 706 400 – 808 450 – 911
2103 2253 2403 2503 2653 2803 2983

Nom. Output
31.39 37 563 – 905 625 – 1005 675 – 1070 800 714 1280
38.44 30 453 – 893 503 – 991 600 – 1150 675 – 1300

47.08 25 350 – 851 400 – 971 500 – 1170 563 – 1320
57.66 20 300 – 875 327 – 957 400 – 1150 453 – 1300
70.62 16.5 250 – 895 270 – 971 323 – 1160 375 – 1340
86.50 13.5 203 – 879 227 – 982 267 – 1180 313 – 1370
CONSULT FACTORY
105.9 11.0 175 – 925 188 – 994 225 – 1210 263 – 1410
129.7 9.0 135 – 894 157 – 1030 188 – 1220 204 – 1340
158.9 7.4 113 – 900 132 – 1040 150 – 1190 162 – 1300
194.6 6.0 88 – 854 96 – 934 107 – 1070 120 – 1190
238.4 4.9 60 – 735 70 – 859 80 – 981 88 – 1080

MAX-POWER ™
870 RPM INPUT (@ 1.0 S.F.)

0701 0801 0901 1001 1101 1201 1301
Nom. Output
1.837 470 225 188 29.4 319 225 41.9 450 250 59.0 613 276 80.0 800 375 104 1000 375 131 1250 450 164
2.250 386 188 – 30.0 263 225 43.0 375 250 59.8 500 276 79.8 675 375 108 812 375 130 1050 450 169
2.756 315 150 – 29.7 225 – 43.6 300 250 59.5 400 282 78.4 563 375 110 700 375 136 832 452 165
3.375 258 120 – 28.5 175 – 41.8 230 – 55.5 315 287 74.9 438 381 104 527 381 125 675 460 162
4.134 210 90 – 26.4 132 – 39.0 188 – 55.2 250 – 72.7 331 – 96.4 408 388 119 525 469 154
5.062 172 63.6 – 23.1 100 – 35.9 132 – 47.9 188 – 66.6 250 – 90.8 300 – 109 375 – 137
6.200 140 47.3 – 20.9 75 – 32.8 95 – 41.9 140 – 61.9 188 – 82.7 225 – 98.9 284 – 126
7.594 115 40 – 21.2 52.5 – 28.5 75 – 40.0 105 – 56.2 137 – 74.6 175 – 98.4 225 – 119
0702 0802 0902 1002 1102 1202 1302

Nom. Output
7.59 115 66.9 – 35.1 100 – 52.5 125 – 66.3 188 – 99 234 – 124 282 – 149 350 – 187
9.30 94 55.6 – 35.8 80 – 52.1 105 – 67.7 150 – 96.7 190 – 125 231 – 152 300 – 194
11.39 76 45 – 35.4 65.6 – 52.9 87.5 – 69.8 120 – 96.4 161 – 125 200 – 156 250 – 201
13.95 62 35 – 34.2 55.1 – 53.8 70.3 – 69.6 100 – 95.3 133 – 128 163 – 158 200 – 196
17.09 51 30 – 35.4 43.8 – 52.7 55.9 – 67 80.3 – 95.4 106 – 126 132 – 157 157 – 190
20.93 42 25 – 35.8 35 – 51.5 41.9 – 62 63.1 – 92.4 81 – 120 100 – 148 125 – 185
25.63 34 20 – 35.6 30 – 54.1 35 – 63.3 52.5 – 92.5 66.5 – 120 81.2 – 147 105 – 191
31.39 28 14.1 – 30.9 21.3 – 46.7 28.7 – 63.6 43.8 – 94.7 55.6 – 122 70 – 154 81 – 180
38.44 23 10.4 – 27.7 15.9 – 42.4 20.9 – 56.3 31.3 – 84.2 40.9 – 109 50 – 133 64 – 173
0703 0803 0903 1003 1103 1203 1303

Nom. Output
31.39 28 20 – 42.7 27.2 – 59.8 37.5 – 81.2 52.6 – 114 70.4 – 149 87.5 – 185 105 – 225
38.44 23 15.8 – 41.5 22.5 – 59.5 30 – 81.3 45 – 118 57.1 – 150 70 – 184 87.5 – 232
47.08 18 12.5 – 40.4 18.9 – 61.2 25 – 82.3 33.4 – 108 45.6 – 148 56.9 – 183 71.1 – 231
57.66 15 10 – 39.9 15.7 – 61.8 20.2 – 80.4 27.6 – 109 38 – 149 47 – 185 60 – 236
70.62 12.3 8.1 – 39.4 13.2 – 64.2 15.9 – 77.3 23 – 110 31.3 – 151 40 – 193 50 – 242
86.50 10 6.7 – 39.7 10.7 – 62.7 12.5 – 74.8 18.8 – 112 26.3 – 156 31.9 – 189 40.8 – 239
105.9 8.2 4.6 – 34.3 8.8 – 63.1 10 – 71.9 14.3 – 102 20.5 – 148 26.3 – 190 31.3 – 226
129.7 6.7 3.8 – 34.5 7 – 60.9 8.1 – 71.6 11.7 – 103 17.5 – 154 21.3 – 189 25 – 224
158.9 5.5 3.2 – 34.7 5.5 – 59.1 6.7 – 72 9.5 – 104 13.2 – 141 16 – 172 20 – 222
194.6 4.5 2.6 – 35.6 4 – 52.9 5 – 65.6 7.9 – 104 10.5 – 140 13.2 – 176 16.1 – 216
238.4 3.7 1.9 – 31 3 – 47.9 4 – 64.7 6 – 98.7 7.7 – 125 9.4 – 152 12.5 – 205
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
870 RPM INPUT (@ 1.0 S.F.)

1401 1501 1601 1701 1801 1901 2001
Nom. Output
1.837 470 1430 450 187 1800 530 237 2010 530 264 2500 639 328 2870 639 375 3380 714 441 3750 714 490
2.250 386 1230 450 198 1500 530 241 1750 530 282 2250 639 357 2630 639 417 2830 714 457 3130 714 505
2.756 315 1000 452 198 1250 563 242 1400 563 270 1800 675 352 2060 675 403 2300 750 455 2500 750 496
3.375 258 788 460 189 955 563 229 1130 563 270 1400 675 337 1580 675 381 1880 750 447 2010 750 477
4.134 210 613 469 180 716 565 213 825 565 245 1050 700 309 1250 700 367 1400 788 409 1600 788 467
5.062 170 450 – 164 532 – 193 625 600 227 788 700 286 909 700 330 1070 800 377 1200 777 424
6.200 140 350 – 155 416 – 182 474 – 207 600 – 265 700 – 309 800 – 350 875 800 383
7.594 115 263 – 139 313 – 171 354 – 193 450 – 240 525 – 280 625 – 334 700 – 374
1402 1502 1602 1702 1802 1902 2002

Nom. Output
7.59 115 410 375 218 500 471 268 574 471 309 750 626 398 834 626 444 1050 751 559 1230 751 646
9.30 94 350 – 229 438 – 287 500 – 330 625 – 408 700 645 456 875 800 569 1000 800 646
11.39 76 284 – 229 350 – 282 400 – 323 525 – 417 600 – 479 700 – 559 788 – 624
13.95 62 230 – 226 280 – 273 319 – 311 415 – 401 500 – 484 600 – 579 642 – 622
17.09 51 175 – 211 225 – 269 251 – 300 350 – 414 413 – 489 500 – 592 536 – 636
20.93 42 143 – 213 188 – 275 209 – 305 264 – 385 313 – 457 375 – 549 450 – 653
25.63 34 120 – 218 157 – 278 175 – 311 225 – 408 263 – 475 300 – 533 330 – 582
31.39 28 94 – 208 120 – 264 140 – 311 179 – 396 219 – 484 250 – 542 274 – 592 I
38.44 23 80 – 217 95 – 253 113 – 302 134 – 359 157 – 423 179 – 479 200 – 533
1403 1503 1603 1701 1803 1903 2003

Nom. Output
31.39 28 125 – 272 157 – 336 175 – 377 219 – 477 263 – 569 313 – 666 350 – 751
38.44 23 105 – 280 125 – 334 143 – 383 188 – 485 219 – 567 251 – 664 287 – 753
47.08 18 83.7 – 272 105 – 345 120 – 395 157 – 495 175 – 570 203 – 659 228 – 736
57.66 15 70 – 276 87.5 – 342 100 – 392 125 – 490 150 – 591 175 – 688 189 – 746
70.62 12.3 57 – 278 70.3 – 342 81 – 396 105 – 508 120 – 587 140 – 676 157 – 760
86.50 10 50 – 293 56 – 337 64 – 384 82 – 491 100 – 598 120 – 713 132 – 782
105.9 8.2 35 – 253 45 – 328 53 – 383 67 – 490 81 – 589 94 – 690 105 – 771
129.7 6.7 28 – 251 37.5 – 332 45 – 398 56 – 496 66 – 595 80 – 713 90 – 800
158.9 5.5 23 – 252 30 – 324 35 – 378 44 – 475 50 – 548 61 – 672 75 – 815
194.6 4.5 18.9 – 254 23 – 316 27 – 368 35 – 466 41 – 549 50 – 660 53 – 698
238.4 3.7 15 – 246 17.9 – 291 21 – 334 26 – 427 31 – 507 35 – 562 38 – 614

MAX-POWER ™
870 RPM INPUT (@ 1.0 S.F.)

2101 2251 2401 2501 2651 2801 2981
Nom. Output
1.837
2.250
2.756
3.375
4.134
CONSULT FACTORY
5.062
6.200
7.594
2102 2252 2402 2502 2652 2802 2982

Nom. Output
7.59 – – – – – – – – – – – – –
9.30 94 1200 645 766 1290 645 825 1500 800 959 1630 800 1040
11.39 76 930 675 738 1060 675 848 1250 800 981 1400 800 1100
13.95 62 755 700 727 838 700 811 1050 806 1010 1140 806 1100
17.09 51 625 – 754 700 – 844 812 – 964 909 824 1070 CONSULT FACTORY
20.93 42 525 – 765 600 – 870 700 – 1010 750 – 1080
25.63 34 411 – 722 479 – 841 563 – 989 625 – 1100
31.39 28 327 – 705 375 – 810 416 – 918 455 – 1010
38.44 23 233 – 631 265 – 718 313 – 850 335 – 913
2103 2253 2403 2503 2653 2803 2983

Nom. Output
31.39 28 404 – 874 462 – 999 525 – 1110 613 – 1310
38.44 23 350 – 928 383 – 1015 450 – 1160 500 – 1290
47.08 18 264 – 863 300 – 980 375 – 1180 415 – 1310
57.66 15 225 – 883 250 – 986 313 – 1210 350 – 1350

70.62 12.3 188 – 902 201 – 985 250 – 1200 281 – 1350
86.50 10 157 – 915 175 – 1020 202 – 1200 232 – 1370 CONSULT FACTORY
105.9 8.2 132 – 940 140 – 996 175 – 1260 200 – 1440
129.7 6.7 105 – 930 113 – 1000 137 – 1200 157 – 1390
158.9 5.5 88 – 936 94 – 1010 113 – 1210 125 – 1350
194.6 4.4 64 – 834 75 – 986 81 – 1090 94 – 1250
238.4 3.7 45 – 742 53 – 865 60 – 991 65 – 1080
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
720 RPM INPUT (@ 1.0 S.F.)

0701 0801 0901 1001 1101 1201 1301
Nom. Output
1.837 390 188 – 29.7 272 263 43.1 376 300 59.5 502 327 79.2 700 450 110 838 450 132 1050 527 167
2.250 320 151 – 30.3 225 – 44.3 314 300 60.5 438 327 84.5 567 450 110 700 450 136 900 527 175
2.756 260 125 – 29.9 188 – 44.0 251 – 60.1 350 334 83.2 475 453 112 613 453 145 718 537 172
3.375 212 100 – 28.6 142 – 41.1 200 – 58.1 268 – 76.9 375 – 108 450 – 130 563 – 163
4.134 174 75.7 – 26.9 113 – 40.4 157 – 55.7 207 – 72.8 281 – 98.9 350 – 123 438 – 156
5.062 142 53.7 – 23.6 81.4 – 35.4 113 – 49.7 160 – 68.3 207 – 91.0 263 – 116 314 – 138
6.200 116 40.0 – 21.4 62.5 – 33.1 80 – 42.8 120 – 63.9 157 – 83.5 188 – 100 250 – 134
7.594 95 32.4 – 20.8 45.0 – 29.5 63 – 40.4 90 – 58.0 120 – 78.8 143 – 93.8 188 – 120
0702 0802 0902 1002 1102 1202 1302

Nom. Output
7.59 95 56 – 35.7 82 – 51.9 105 – 67.7 157 – 100 200 – 128 238 – 152 300 – 193
9.30 77 47 – 36.3 70 – 55.0 88 – 68.3 125 – 97.3 161 – 128 200 – 159 250 – 196
11.39 63 38 – 35.7 55 – 53.8 75 – 72.4 100 – 95.6 136 – 128 175 – 165 203 – 198
13.95 51 30 – 35.4 46 – 54.6 60 – 71.8 83 – 95.3 113 – 132 138 – 161 175 – 207
17.09 42 25 – 35.7 35 – 51.2 47 – 68.3 70 – 100 90 – 129 113 – 163 132 – 193
20.93 34 21 – 35.5 30 – 53.4 35 – 62.7 53 – 94.3 70 – 125 82 – 147 105 – 188
25.63 28 17 – 35.9 25 – 54.5 30 – 65.5 44 – 93.2 56 – 122 70 – 153 88 – 193
31.39 23 12 – 31.2 18 – 47.2 25 – 67.0 35 – 92.2 46 – 123 57 – 151 70 – 188 I

38.44 19 9 – 28.2 13 – 42.8 18 – 58.8 26 – 85.6 35 – 113 42 – 134 54 – 175
0703 0803 0903 1003 1103 1203 1303

Nom. Output
31.39 23 16.10 – 41.4 22.80 – 60.6 31.30 – 82.0 45.0 – 115 60.0 – 153 70.8 – 181 90.0 – 234
38.44 19 13.20 – 41.8 18.80 – 60.2 25.00 – 82.0 37.5 – 118 47.9 – 152 60.0 – 190 71.9 – 231
47.08 15 10.10 – 39.1 15.70 – 61.7 20.20 – 80.4 27.9 – 109 38.0 – 149 47.6 – 185 60.0 – 236
57.66 12.5 8.18 – 39.4 13.20 – 62.7 17.50 – 84.5 23.0 – 110 31.9 – 151 40.0 – 191 – – 238
70.62 10.2 6.73 – 39.6 10.70 – 62.7 13.20 – 77.8 20.0 – 115 26.3 – 154 32.3 – 189 40.8 – 239
86.50 8.3 5.58 – 39.9 8.92 – 63.1 10.10 – 73.2 15.6 – 112 21.3 – 153 26.6 – 190 35.0 – 248
105.9 6.8 4.00 – 35.6 7.50 – 65.2 8.23 – 71.5 11.9 – 103 17.5 – 153 22.5 – 197 26.3 – 230
129.7 5.5 3.18 – 34.7 6.00 – 63.4 6.73 – 72.0 10.0 – 107 14.1 – 150 17.8 – 191 20.8 – 225
158.9 4.5 2.64 – 34.4 4.55 – 59.4 5.56 – 72.4 7.9 – 104 11.3 – 146 13.4 – 174 16.2 – 217
194.6 3.7 2.14 – 35.5 3.35 – 53.2 4.03 – 63.7 6.6 – 105 8.8 – 141 10.7 – 172 13.4 – 217
238.4 3.0 1.57 – 31.1 2.50 – 48.2 3.28 – 64.0 5.0 – 99.4 6.4 – 126 7.8 – 152 10.0 – 199

MAX-POWER ™
720 RPM INPUT (@ 1.0 S.F.)

1401 1501 1601 1701 1801 1901 2001
Nom. Output
1.837 390 1250 527 199 1500 632 239 1750 632 278 2190 800 347 2500 800 396 2870 875 452 3170 875 500
2.250 320 1050 527 205 1250 632 243 1500 632 291 1880 800 361 2190 800 427 2500 875 4188 2640 875 516
2.756 260 821 537 197 1050 644 244 1230 644 288 1570 800 369 1800 800 424 2000 875 478 2190 875 524
3.375 212 675 563 195 815 675 236 1000 675 289 1140 800 333 1350 800 394 1600 900 460 1750 900 502
4.134 174 525 – 186 625 – 224 704 675 253 900 814 320 1050 814 374 1250 908 441 1350 908 477
5.062 142 375 – 165 451 – 198 525 – 230 675 – 296 800 – 351 908 – 388 1000 934 427
6.200 116 300 – 160 353 – 187 403 – 213 500 – 267 575 – 307 675 – 357 750 – 396
7.594 95 225 – 145 263 – 173 313 – 206 380 – 245 450 – 290 525 – 338 573 – 369
1402 1502 1602 1702 1802 1902 2002

Nom. Output
7.59 95 350 – 225 438 – 284 500 – 325 625 – 401 708 – 455 900 – 576 1050 – 666
9.30 77 300 – 236 354 – 280 407 – 324 525 – 414 613 – 483 705 – 554 822 – 624
11.39 63 239 – 233 300 – 292 350 – 341 438 – 420 500 – 483 600 – 578 675 – 645
13.95 51 200 – 236 237 – 280 271 – 320 351 – 410 418 – 488 500 – 583 563 – 660
17.09 42 150 – 219 188 – 271 219 – 315 285 – 408 350 – 501 406 – 582 452 – 648
20.93 34 125 – 223 157 – 278 176 – 310 225 – 398 263 – 464 316 – 560 375 – 658
25.63 28 100 – 219 132 – 282 150 – 321 188 – 412 219 – 479 251 – 538 278 – 592
31.39 23 80 – 213 100 – 267 120 – 321 157 – 419 178 – 476 209 – 547 230 – 601
38.44 19 65 – 211 80 – 258 94 – 303 113 – 367 132 – 431 157 – 508 165 – 533
1403 1503 1603 1703 1803 1903 2003

Nom. Output
31.39 23 105.0 – 273 132.0 – 343 150.0 – 390 188.0 – 495 219.0 – 573 263.0 – 677 300.0 – 776
38.44 19 87.5 – 280 105.0 – 338 125.0 – 404 157.0 – 490 188.0 – 585 219.0 – 701 250.0 – 792
47.08 15 70.0 – 275 87.5 – 346 100.0 – 397 132.0 – 505 150.0 – 590 175.0 – 687 191.0 – 745
57.66 12.5 60.0 – 286 75.0 – 355 83.6 – 395 105.0 – 498 125.0 – 591 142.0 – 675 158.0 – 754
70.62 10.2 47.6 – 281 60.0 – 353 70.0 – 411 87.5 – 511 100.0 – 510 120.0 – 701 132.0 – 769
86.50 8.3 40.0 – 283 47.2 – 343 53.7 – 392 70.0 – 509 81.6 – 589 95.9 – 690 113.0 – 806
105.9 6.8 28.6 – 250 37.5 – 331 45.0 – 396 55.9 – 495 70.0 – 619 80.0 – 709 90.0 – 798
129.7 5.5 23.2 – 252 31.3 – 334 37.5 – 401 46.4 – 500 55.3 – 599 65.1 – 702 75.0 – 804
158.9 4.5 19.0 – 254 25.0 – 326 28.2 – 368 35.5 – 464 41.1 – 546 52.5 – 695 62.5 – 821
194.6 3.7 15.8 – 256 20.0 – 326 22.6 – 370 30.0 – 484 35.0 – 565 40.0 – 637 45.0 – 717
238.4 3.0 12.5 – 248 15.0 – 294 17.5 – 344 21.4 – 419 25.0 – 490 28.5 – 562 31.3 – 618
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
720 RPM INPUT (@ 1.0 S.F.)

2101 2251 2401 2501 2651 2801 2981
Nom. Output
1.837
2.250
2.756
3.375
4.134
CONSULT FACTORY
5.062
6.200
7.594
2102 2252 2402 2502 2652 2802 2982

Nom. Output
7.59 – – – – – – – – – – – – –
9.30 77 1000 900 773 1130 900 869 1260 1130 972 1400 1130 1090
11.39 63 800 – 768 901 – 868 1050 – 999 1200 1130 1140
13.95 54 638 – 742 709 – 828 875 – 1020 1000 – 1170
17.09 42 525 – 765 600 – 874 700 – 1000 800 – 1150 CONSULT FACTORY
20.93 34 450 – 793 500 – 876 568 – 992 630 – 1090
25.63 28 350 – 743 407 – 864 471 – 1000 525 – 1110
31.39 23 275 – 717 313 – 816 350 – 934 383 – 1020 I

38.44 19 200 – 656 225 – 736 263 – 863 282 – 927
2103 2253 2403 2503 2653 2803 2983

Nom. Output
31.39 23 350.0 – 911 400 – 1041 438 – 1120 500 – 1290
38.44 19 284.0 – 908 322 – 1030 375 – 1170 438 – 1370
47.08 15 225.0 – 890 250 – 989 313 – 1200 350 – 1330
57.66 12.5 188.0 – 892 204 – 985 263 – 1230 300 – 1410
70.62 10.2 157.0 – 913 175 – 1030 206 – 1200 235 – 1370
86.50 8.3 132.0 – 932 141 – 996 175 – 1260 200 – 1420 CONSULT FACTORY
105.9 6.8 105.0 – 902 120 – 1030 140 – 1220 160 – 1400
129.7 5.5 87.5 – 939 94 – 1010 120 – 1270 132 – 1410
158.9 4.5 70.6 – 914 80 – 1030 94 – 1210 105 – 1370
194.6 3.7 52.9 – 840 63 – 992 70 – 1140 75 – 1210
238.4 3.0 37.5 – 748 44 – 874 50 – 998 54 – 1080

MAX-POWER ™
580 RPM INPUT (@ 1.0 S.F.)

0701 0801 0901 1001 1101 1201 1301
Nom. Output
1.837 315 157 – 30.8 225 – 45 313 – 61.5 418 383 81.8 567 525 111 700 525 137 900 625 177
2.250 258 132 – 31.7 188 – 466 363 – 63 350 – 85 469 – 113 600 525 144 750 625 182
2.756 210 105 – 31.3 157 – 45.7 208 – 61.9 281 – 82.7 400 – 117 500 – 146 613 – 182
3.375 172 82.1 – 29.2 120 – 43 162 – 58.5 225 – 80.2 313 – 112 375 – 134 462 – 166
4.134 140 62.5 – 27.5 93.8 – 41.5 132 – 58.3 175 – 76.5 233 – 102 287 – 126 358 – 158
5.062 115 45 – 24.5 70 – 37.7 94 – 51 132 – 70 175 – 95 209 – 114 263 – 144
6.200 94 32.8 – 21.7 52.5 – 34.5 66 – 43.8 100 – 66.2 132 – 87.3 157 – 104 200 – 133
7.594 76 26.6 – 21.2 37.5 – 30.5 53 – 41.9 72 – 57.5 95 – 78 120 – 97.7 157 – 125
0702 0802 0902 1002 1102 1202 1302

Nom. Output
7.59 76 46.2 – 36.4 67.1 – 52.9 87.5 – 69.8 132 – 104 163 – 129 200 – 158 250 – 200
9.30 62 38.3 – 37 55.1 – 53.8 71.9 – 69.6 105 – 102 133 – 131 160 – 158 205 – 199
11.39 51 31.3 – 36.9 45.2 – 54.6 60 – 71.9 80.3 – 95.4 113 – 132 138 – 161 167 – 202
13.95 42 25 – 36.6 37.8 – 55.4 50 – 74.2 70 – 100 93.8 – 136 113 – 164 138 – 203
17.09 34 20.1 – 35.6 28.7 – 51.9 40 – 71.9 55.2 – 98.2 75 – 134 93.8 – 167 105 – 191
20.93 28 16.7 – 36 23.8 – 52.5 28.7 – 63.6 45 – 98.9 56.3 – 125 70 – 155 87.5 – 194
25.63 23 13.6 – 36.3 20 – 54.2 23.7 – 64.3 35 – 92.6 45.5 – 123 55.6 – 151 70 – 191
31.39 18 9.6 – 31.5 15 – 49.6 20 – 66.3 30 – 97.2 38 – 125 46.5 – 153 55.5 – 185
38.44 15 7.1 – 28.2 11.3 – 45.3 14.2 – 57.4 21.2 – 85.5 28 – 112 35 – 140 45 – 182
0703 0803 0903 1003 1103 1203 1303

Nom. Output
31.39 18 13.2 – 42.1 18.8 – 61.9 25 – 81.3 37.5 – 120 47.9 – 152 60 – 190 71.6 – 231
38.44 15 10.7 – 42.2 15.5 – 61.8 20 – 81.2 30 – 119 40 – 158 47 – 185 60 – 239
47.08 12.3 8.15 – 39.4 13.2 – 64.1 16.4 – 81.1 22.7 – 110 31.3 – 152 40 – 193 50 – 244
57.66 10 6.64 – 39.7 10.6 – 62.7 13.7 – 81.7 18.8 – 112 26.3 – 154 31.9 – 189 40.5 – 239
70.62 8.2 5.45 – 39.9 8.75 – 63.8 10.7 – 78.3 15.6 – 112 21.1 – 153 26.3 – 190 33 – 240
86.50 6.7 4.52 – 40.1 7.5 – 65.9 8.26 – 74 13.2 – 116 17.5 – 156 22.5 – 200 27.6 – 242
105.9 5.5 3.13 – 34.7 6 – 64.8 6.67 – 72 10 – 108 13.9 – 151 17.8 – 193 20.8 – 226
129.7 4.5 2.62 – 35.6 4.73 – 62.1 5.45 – 72.4 7.9 – 104 11.4 – 150 15 – 199 17.5 – 235
158.9 3.7 2.13 – 35 3.75 – 60.8 4.5 – 72.7 6.4 – 105 8.9 – 143 11.3 – 182 13.2 – 219
194.6 3.0 1.75 – 35.6 2.71 – 53.4 3.25 – 64 5.3 – 105 7.1 – 141 8.8 – 175 11.3 – 228
238.4 2.4 1.27 – 31.3 2.01 – 48.3 2.65 – 64.3 4 – 98.7 5.3 – 127 6.3 – 153 8.1 – 199
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
580 RPM INPUT (@ 1.0 S.F.)

1401 1501 1601 1701 1801 1901 2001
Nom. Output
1.837 315 1050 625 207 1250 752 246 1500 752 296 1800 914 354 2060 914 406 2500 1050 490 2660 1050 521
2.250 258 875 625 212 1050 752 254 1230 752 301 1580 914 376 1800 914 435 2010 1050 487 2250 1050 544
2.756 210 700 633 208 875 788 254 1000 767 290 1250 932 366 1500 932 439 1650 1050 490 1800 1050 535
3.375 172 539 – 194 700 – 252 801 800 288 955 950 345 1130 950 406 1290 1067 459 1430 1067 512
4.134 140 418 – 185 525 – 234 600 – 268 750 – 331 875 – 387 1000 – 437 1113 – 495
5.062 115 313 – 171 377 – 205 450 – 245 563 – 307 644 – 350 754 – 400 829 – 439
6.200 94 250 – 165 300 – 197 334 – 219 411 – 272 477 – 316 563 – 370 625 – 410
7.594 76 188 – 150 219 – 179 250 – 205 315 – 252 375 – 299 438 – 351 475 – 380
1402 1502 1602 1702 1802 1902 2002

Nom. Output
7.59 76 287 – 229 350 – 281 402 – 324 525 – 418 600 – 479 719 – 572 833 – 659
9.30 62 239 – 234 300 – 295 335 – 331 438 – 429 500 – 490 613 – 599 700 – 679
11.39 51 200 – 242 250 – 302 279 – 338 353 – 420 408 – 489 477 – 571 536 – 636
13.95 42 162 – 237 200 – 293 225 – 329 300 – 434 350 – 508 403 – 583 450 – 653
17.09 34 120 – 218 150 – 269 175 – 313 234 – 416 286 – 508 334 – 594 375 – 667
20.93 28 100 – 222 125 – 274 150 – 329 188 – 411 219 – 480 263 – 578 313 – 683
25.63 23 82 – 222 105 – 280 125 – 331 150 – 409 175 – 476 205 – 547 228 – 602
31.39 18 64 – 211 82 – 272 100 – 333 125 – 413 150 – 500 175 – 568 189 – 611 I
38.44 15 53 – 214 65 – 259 75 – 301 94 – 377 107 – 430 125 – 501 135 – 541
1403 1503 1603 1703 1803 1903 2003

Nom. Output
31.39 18 83.7 – 272 105 – 338 125 – 404 150 – 490 175 – 571 219 – 698 239 – 770
38.44 15 70 – 279 87.5 – 351 100 – 403 132 – 512 150 – 579 175 – 695 200 – 787
47.08 12.3 57 – 278 70 – 344 80.3 – 396 105 – 499 120 – 587 139 – 676 157 – 760
57.66 10 47.6 – 281 60 – 352 70 – 411 87.5 – 515 100 – 589 120 – 708 132 – 782
70.62 8.2 40 – 293 47.8 – 349 55.5 – 405 70 – 508 80.6 – 589 95.5 – 690 106 – 771
86.50 6.7 32.5 – 285 40 – 361 45 – 407 55.9 – 505 66.4 – 595 80 – 714 90 – 799
105.9 5.5 23.2 – 252 30 – 328 35.4 – 387 45.5 – 500 54.6 – 599 63.8 – 702 71.3 – 785
129.7 4.5 18.9 – 254 25 – 332 30 – 398 37.8 – 505 45 – 605 52.9 – 708 60 – 800
158.9 3.7 15.4 – 256 20 – 324 22.8 – 370 30 – 487 33.5 – 552 41.7 – 685 50 – 815
194.6 3.0 13.2 – 267 15.8 – 230 18.8 – 381 23.5 – 471 27.8 – 556 32.4 – 641 35.8 – 707
238.4 2.4 10 – 246 12.5 – 305 13.8 – 338 17.5 – 424 20.3 – 493 23.1 – 566 26.3 – 644

MAX-POWER ™
580 RPM INPUT (@ 1.0 S.F.)

2101 2251 2401 2501 2651 2801 2981
Nom. Output
1.837
2.250
2.756
3.375
4.134
CONSULT FACTORY
5.062
6.200
7.594
2102 2252 2402 2502 2652 2802 2982

Nom. Output
7.59 – – – – – – – – – – – – –
9.30 62 809 – 777 905 – 869 1050 – 1010 1140 – 1100
11.39 51 675 – 804 750 – 895 875 – 1030 955 – 1130
13.95 42 526 – 760 600 – 870 700 – 1010 800 – 1150
17.09 34 438 – 793 478 – 865 573 – 1020 644 – 1140 CONSULT FACTORY
20.93 28 359 – 784 405 – 881 471 – 1020 525 – 1140
25.63 23 287 – 757 350 – 923 400 – 1050 438 – 1160
31.39 18 225 – 729 263 – 851 286 – 946 314 – 1040
38.44 15 160 – 650 188 – 764 219 – 891 231 – 942
2103 2253 2403 2503 2653 2803 2983

Nom. Output
31.39 18 287 – 931 318 – 1030 355 – 1130 410 – 1310
38.44 15 238 – 946 263 – 1045 313 – 1210 350 – 1360
47.08 12.3 188 – 922 201 – 985 251 – 1190 285 – 1350
57.66 10 157 – 920 165 – 991 206 – 1200 235 – 1370

70.62 8.2 125 – 904 136 – 996 167 – 1210 200 – 1440
86.50 6.7 105 – 921 120 – 1040 137 – 1220 158 – 1400 CONSULT FACTORY
105.9 5.5 87.5 – 934 94 – 1010 114 – 1230 132 – 1430
129.7 4.5 70 – 932 76 – 1010 87 – 1150 107 – 1410
158.9 3.7 57.1 – 917 63 – 1010 75 – 1200 83 – 1340
194.6 3 43.8 – 862 50 – 986 55 – 1110 63 – 1250
238.4 2.4 31.3 – 776 35 – 886 40 – 992 45 – 1120
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
100 RPM INPUT (@ 1.0 S.F.)

0702 0802 0902 1002 1102 1202 1302
Nom. Output
7.59 13 8.8 – 40.1 13.2 – 60.5 16.5 – 76.4 25.0 – 115 31.7 – 146 40.0 – 183 47.9 – 222
9.30 11 7.5 – 42.0 10.5 – 59.1 13.7 – 77.1 20.0 – 112 26.3 – 150 31.3 – 179 40.0 – 226
11.39 8.8 6.0 – 41.1 8.8 – 61.4 11.3 – 78.3 15.3 – 105 21.3 – 144 26.4 – 179 32.2 – 226
13.95 7.2 4.5 – 38.3 7.1 – 59.9 9.4 – 80.8 13.2 – 109 17.5 – 147 21.4 – 181 26.8 – 228
17.09 5.9 3.8 – 38.5 5.3 – 55.8 7.5 – 78.6 10.3 – 106 14.1 – 146 17.6 – 182 10.2 – 213
20.93 4.8 3.1 – 38.3 4.5 – 57.6 5.3 – 68.3 8.8 – 111 10.6 – 137 13.2 – 170 15.9 – 204
25.63 3.9 2.5 – 38.7 3.6 – 56.4 4.5 – 70.8 6.5 – 98.9 8.8 – 137 10.3 – 163 13.2 – 210
31.39 3.2 1.8 – 33.4 2.6 – 50.4 3.6 – 69.0 5.3 – 99.4 7.0 – 133 8.8 – 167 10.0 – 194
38.44 2.6 1.3 – 29.6 2.0 – 46.5 2.6 – 64.4 4.0 – 93.6 5.3 – 122 6.3 – 149 8.0 – 189
0703 0803 0903 1003 1103 1203 1303

Nom. Output
31.39 3.2 2.37 – 44.0 3.50 – 66.9 4.50 – 84.8 6.49 – 120 8.75 – 161 10.70 – 196 13.30 – 248
38.44 2.6 2.00 – 45.6 2.82 – 64.9 3.75 – 88.3 5.25 – 122 7.04 – 161 8.75 – 200 11.30 – 260
47.08 2.1 1.50 – 42.2 2.31 – 65.1 3.00 – 86.0 4.12 – 116 5.36 – 159 7.06 – 198 8.85 – 250
57.66 1.7 1.19 – 41.2 1.91 – 65.3 2.50 – 86.8 3.50 – 120 4.70 – 160 6.00 – 207 7.50 – 257
70.62 1.4 1.00 – 42.6 1.55 – 65.5 1.91 – 81.0 2.79 – 116 3.81 – 160 4.74 – 199 6.00 – 253
86.50 1.16 .80 – 41.4 1.29 – 65.7 1.51 – 78.6 22.7 – 117 3.11 – 161 4.00 – 206 5.00 – 255
105.9 .95 .56 – 35.8 1.05 – 65.8 1.19 – 74.4 1.75 – 109 2.50 – 157 3.18 – 201 3.75 – 236 I
129.7 .77 .46 – 35.8 .85 – 64.4 1.00 – 76.9 1.41 – 108 2.05 – 157 2.62 – 203 3.02 – 236
158.9 .63 .38 – 35.9 .65 – 61.2 .80 – 74.8 1.13 – 108 1.60 – 149 2.00 – 187 2.37 – 228
194.6 .51 .30 – 36.0 .48 – 54.7 .58 – 65.6 .94 – 108 1.25 – 145 1.53 – 178 2.00 – 234
238.4 .41 .22 – 31.9 .35 – 49.3 .47 – 65.7 .69 – 98.4 .92 – 129 1.10 – 155 1.42 – 202

MAX-POWER ™
100 RPM INPUT (@ 1.0 S.F.)

1402 1502 1602 1702 1802 1902 2002
Nom. Output
7.59 13 56.5 – 262 70.0 – 326 80.0 – 374 105.0 – 483 120.0 – 557 141.0 – 651 161.0 – 739
9.30 11 46.6 – 264 56.3 – 321 64.5 – 369 82.1 – 466 100.0 – 568 120.0 – 678 138.0 – 776
11.39 8.8 38.0 – 267 47.0 – 329 54.3 – 381 70.0 – 483 80.0 – 555 93.8 – 651 105.0 – 725
13.95 7.2 31.6 – 269 40.0 – 339 45.2 – 384 57.0 – 479 66.6 – 559 80.0 – 672 90.0 – 758
17.09 5.9 22.6 – 238 28.5 – 295 33.2 – 344 45.0 – 464 54.7 – 564 64.1 – 661 71.6 – 739
20.93 4.8 18.8 – 242 23.4 – 297 27.3 – 346 35.0 – 444 40.7 – 517 50.2 – 640 60.0 – 759
25.63 3.9 15.3 – 241 20.0 – 308 22.6 – 349 27.9 – 441 33.1 – 520 40.0 – 618 43.8 – 672
31.39 3.2 11.8 – 228 15.3 – 294 18.8 – 363 23.1 – 444 27.2 – 524 32.1 – 604 35.5 – 666
38.44 2.6 10.0 – 236 12.5 – 290 13.7 – 319 17.5 – 409 20.0 – 469 22.8 – 533 26.3 – 612
1403 1503 1603 1703 1803 1903 2003

Nom. Output
31.39 3.2 15.50 – 292 20.00 – 375 22.5 – 402 27.5 – 522 32.4 – 610 40.0 – 742 45.0 – 853
38.44 2.6 13.20 – 306 15.60 – 363 18.8 – 440 23.4 – 525 27.4 – 614 32.2 – 742 37.5 – 871
47.08 2.1 10.40 – 295 13.20 – 375 15.0 – 429 20.0 – 560 22.5 – 637 26.3 – 744 30.0 – 841
57.66 1.7 8.75 – 306 10.70 – 366 12.5 – 425 15.5 – 530 18.8 – 640 21.2 – 728 23.7 – 814
70.62 1.4 7.01 – 298 8.75 – 370 10.1 – 426 13.2 – 557 15.0 – 636 17.5 – 731 20.0 – 839
86.50 1.16 6.00 – 306 7.05 – 369 8.2 – 428 10.2 – 534 12.5 – 651 14.2 – 734 16.0 – 821
105.9 .95 4.18 – 263 5.42 – 344 6.5 – 415 8.3 – 529 10.0 – 637 11.5 – 737 13.2 – 843
129.7 .77 3.50 – 271 4.50 – 347 5.4 – 417 6.9 – 531 8.1 – 630 9.5 – 739 10.7 – 827
158.9 .63 2.74 – 264 3.50 – 329 4.1 – 384 5.3 – 494 6.3 – 596 7.6 – 720 8.8 – 830
194.6 .51 2.27 – 265 2.81 – 330 3.3 – 385 4.2 – 488 5.0 – 579 6.0 – 688 6.4 – 734
238.4 .41 1.75 – 250 2.13 – 301 2.5 – 355 3.1 – 435 3.8 – 526 4.1 – 585 4.5 – 643
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
100 RPM INPUT (@ 1.0 S.F.)

2102 2252 2402 2502 2652 2802 2982
Nom. Output
7.59 – – – – – – – – – – – – –
9.30 11.0 163 – 906 188 – 1050 219 – 1210 230 – 1290
11.39 8.8 132 – 914 150 – 1040 175 – 1200 190 – 1300
13.95 7.2 105 – 885 114 – 962 137 – 1150 157 – 1320
17.09 5.9 83 – 868 94 – 984 113 – 1170 132 – 1360 CONSULT FACTORY
20.93 4.8 70 – 888 80 – 1010 90 – 1130 100 – 1250
25.63 3.9 55 – 836 65 – 987 75 – 1150 82 – 1260
31.39 3.2 44 – 822 50 – 937 54 – 1040 60 – 1150
38.44 2.6 30 – 707 35 – 825 40 – 945 45 – 1070
2103 2253 2403 2503 2653 2803 2983

Nom. Output
31.39 3.2 55.0 – 1040 60.0 – 1134 70.0 – 1290 80.0 – 1490
38.44 2.6 45.7 – 1060 50.0 – 1152 55.6 – 1250 64.4 – 1450
47.08 2.1 32.7 – 929 37.5 – 1060 45.8 – 1260 53.0 – 1460
57.66 1.7 27.4 – 936 30.0 – 1050 37.7 – 1270 45.0 – 1520
70.62 1.4 22.5 – 942 25.0 – 1070 31.3 – 1310 35.2 – 1470
86.50 1.16 18.8 – 954 20.3 – 1030 25.0 – 1300 30.0 – 1540 CONSULT FACTORY
105.9 .95 15.2 – 941 16.7 – 1030 20.4 – 1280 23.7 – 1490
I
129.7 .77 12.5 – 965 13.4 – 1030 17.5 – 1330 20.0 – 1540
158.9 .63 10.2 – 949 11.3 – 1060 13.3 – 1240 15.0 – 1410
194.6 .51 7.7 – 879 8.8 – 1000 10.0 – 1170 10.6 – 1250
238.4 .42 5.4 – 775 6.3 – 898 7.1 – 1020 7.8 – 1130

MAX-POWER ™
I24 Parallel Shaft Reducer Table Of Actual Ratios
SINGLE
Nominal
Ratio 0701 0801 0901 1001 1101 1201 1301
1.837 1.837 1.841 1.837 1.829 1.829 1.829 1.837
2.250 2.237 2.289 2.237 2.238 2.250 2.250 2.262
2.756 2.778 2.711 2.784 2.750 2.737 2.737 2.778
3.375 3.320 3.360 3.75 3.333 3.333 3.333 3.360
4.134 4.125 4.143 4.125 4.087 4.087 4.087 4.125
5.062 5.100 5.043 5.087 4.957 5.087 5.087 5.100
6.200 6.190 6.136 6.182 6.182 6.174 6.174 6.217
7.594 7.435 7.600 7.476 7.476 7.636 7.636 7.435
DOUBLE
Nominal
Ratio 0702 0802 0902 1002 1102 1202 1302
7.59 7.445 7.476 7.546 7.456 7.524 7.524 7.578
9.30 9.222 9.289 9.178 9.259 9.357 9.357 9.227
11.39 11.205 11.470 11.404 11.353 11.078 11.078 11.483
13.95 13.922 13.843 14.082 13.569 13.732 13.732 13.922
17.09 16.806 17.069 16.995 16.859 16.932 16.932 17.213
20.93 20.446 21.021 20.958 20.843 21.075 21.075 21.038
25.63 25.245 25.578 25.812 25.278 25.656 25.656 25.943
31.39 31.212 31.138 31.406 30.683 31.215 31.215 31.628
38.44 37.886 37.885 38.166 38.268 37.885 37.885 38.435
TRIPLE
Nominal
Ratio 0703 0803 0903 1003 1103 1203 1303
31.39 30.889 31.735 31.578 30.710 30.554 30.554 31.056
38.44 37.467 38.459 39.116 38.082 37.965 37.965 38.379
47.08 46.551 46.415 47.526 46.692 46.879 46.879 46.908
57.66 57.750 56.805 57.358 57.082 56.577 56.577 56.896
70.62 70.820 69.959 70.641 69.116 69.759 69.759 70.007
86.50 85.489 84.562 85.952 85.874 85.912 85.912 85.511
105.90 105.696 103.917 103.880 103.000 104.535 104.535 104.486
129.70 130.135 126.442 127.936 127.975 127.260 127.260 129.591
158.90 158.322 155.902 155.667 158.223 154.836 154.836 159.812
194.60 195.486 189.794 191.966 192.054 192.721 192.721 194.208
238.40 237.284 230.920 233.576 239.532 233.901 233.901 236.758
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Parallel Shaft Reducer Table Of Actual Ratios I25
SINGLE
Nominal
Ratio 1401 1501 1601 1701 1801 1901 2001
1.837 1.837 – – – – – –
2.250 2.262 2.256 2.256 – – – –
2.756 2.778 2.711 2.711 2.737 2.737 2.778 2.778
3.375 3.360 3.360 3.360 3.375 3.375 3.333 3.333
4.134 4.125 4.167 4.167 4.125 4.125 4.087 4.087
5.062 5.100 5.087 5.087 5.087 5.087 4.957 4.957
6.200 6.217 6.136 6.136 6.182 6.182 6.136 6.136
7.594 7.435 7.636 7.636 7.476 7.476 7.476 7.476
DOUBLE
Nominal
Ratio 1402 1502 1602 1702 1802 1902 2002
7.59 7.578 7.622 7.622 7.546 7.546 7.540 7.540
9.30 9.227 9.325 9.325 9.281 9.281 9.259 9.259
11.39 11.483 11.458 11.458 11.289 11.289 11.353 11.353
13.95 13.922 13.889 13.889 13.750 13.750 13.732 13.732
17.09 17.213 16.957 16.957 16.859 16.859 16.859 16.859
20.93 21.038 20.790 20.790 20.790 20.790 20.843 20.843
25.63
31.39
25.943
31.628
25.214
31.447
25.214
31.447
25.877
31.406
25.877
31.406
25.278
30.817
25.278
30.817
I
38.44 38.435 37.934 37.934 38.166 38.166 38.152 38.152
TRIPLE
Nominal
Ratio 1403 1503 1603 1703 1803 1903 2003
31.39 31.056 31.067 31.067 31.480 31.480 30.757 30.757
38.44 38.379 38.580 38.580 37.270 37.270 38.277 38.277
47.08 46.908 47.303 47.303 45.696 45.696 46.931 46.931
57.66 56.896 56.536 56.536 56.645 56.645 56.898 56.898
70.62 70.007 70.244 70.244 69.843 69.843 69.542 69.542
86.50 84.511 86.848 86.848 86.932 86.932 85.979 85.979
105.90 104.486 105.326 105.326 105.831 105.831 106.030 106.030
129.70 129.591 127.847 127.847 128.764 128.764 128.852 128.852
158.90 159.812 156.084 156.084 156.277 156.277 158.236 158.236
194.60 194.208 194.670 194.670 192.721 192.721 190.503 190.503
238.40 236.758 234.829 234.829 234.200 234.200 235.850 235.850

MAX-POWER ™
I26 Parallel Shaft Reducer WK 2 Values
SINGLE REDUCTION
Unit Size
Nominal 1101 1301 1501 1701 1901
Ratio 0701 0801 0901 1001 1201 1401 1601 1801 2001
1.837 2.10 3.80 6.40 11.45 28.00 59.50 109.00 215.00 560.00
2.250 1.55 3.10 5.40 9.20 23.00 47.50 77.50 168.00 390.00
2.756 1.20 2.45 4.35 7.30 18.00 25.00 71.00 137.00 277.00
3.375 1.00 2.00 3.40 5.80 14.25 21.00 56.00 109.00 127.00
4.134 0.80 1.15 1.50 2.45 7.80 15.50 42.50 53.50 89.50
5.062 0.60 0.70 1.30 2.20 4.50 11.00 32.00 37.00 60.50
6.200 0.45 0.60 1.00 1.75 3.70 7.90 24.00 27.50 44.00
7.594 0.30 0.45 0.75 1.45 3.00 5.20 16.50 17.00 29.00
DOUBLE REDUCTION
Unit Size
Nominal 1102 1302 1502 1702 1902 2102 2402
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002 2252 2502
7.59 0.50 1.10 1.80 2.80 7.30 14.75 26.00 58.80 88.00 – –
9.30 0.35 0.80 1.30 2.00 5.30 10.65 19.00 42.00 63.50 115.00 197.00
11.39 0.25 0.60 0.90 1.85 3.80 7.70 13.55 31.00 58.50 83.40 148.00
13.95 0.25 0.45 0.70 1.40 2.95 5.60 9.45 22.50 42.50 79.00 111.00
17.09 0.20 0.40 0.50 1.10 2.20 5.10 8.50 16.50 31.50 59.00 83.00
20.93 0.15 0.30 0.45 0.80 2.05 3.90 6.50 15.50 23.00 43.00 77.00
25.63 0.10 0.25 0.35 0.75 1.50 2.85 4.85 11.40 21.50 32.00 57.50
31.39 0.10 0.25 0.25 0.55 1.15 2.70 3.65 8.45 16.00 30.00 55.50
38.44 0.10 0.25 0.25 0.55 1.10 2.05 3.65 8.00 15.50 29.00 53.50
TRIPLE REDUCTION
Unit Size
Nominal 1103 1303 1503 1703 1903 2103 2403
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003 2253 2503
31.39 0.10 0.15 0.45 0.58 1.40 2.30 3.90 7.90 13.50 24.00 41.00
38.44 0.08 0.13 0.30 0.42 1.00 1.60 2.70 5.50 9.50 17.00 29.00
47.08 0.07 0.10 0.25 0.40 0.75 1.50 2.40 5.00 9.20 16.00 26.50
57.66 0.06 0.10 0.20 0.30 0.55 1.00 1.70 3.40 6.50 11.50 18.00
70.62 0.05 0.08 0.20 0.25 0.53 0.80 1.30 2.50 5.00 8.50 14.00
86.50 0.04 0.07 0.20 0.24 0.40 0.65 1.00 2.30 4.50 6.20 12.30
105.90 0.04 0.06 0.13 0.17 0.25 0.65 0.93 1.70 3.50 5.60 8.80
129.70 0.03 0.05 0.13 0.16 0.24 0.50 0.70 1.40 2.60 4.30 8.20
158.90 0.03 0.05 0.13 0.16 0.23 0.45 0.65 1.30 2.40 4.20 8.15
194.60 0.03 0.05 0.13 0.15 0.23 0.45 0.65 1.30 2.40 4.20 8.10
238.40 0.03 0.05 0.09 0.15 0.22 0.40 0.65 1.25 2.40 4.15 8.10
EQUIVALENT MASS MOMENT OF INERTIA

APPROXIMATE WK2 REFERRED TO INPUT SHAFT LB. FT.2
Above values are approximate within ± 15%.

Refer to factory for exact values.
WK2 referred to output shaft equal to WK2
Referred to input shaft x (actual overall ratio)2
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Parallel Shaft Reducer Overhung Load Capacity I27
OUTPUT SHAFT
Overhung Load Capacity at Nominal Output RPM ◆
Output
RPM 0700 0800 0900 1000 1100 ➀
230 5100 7700 11400 11500 –
188 5600 8400 12200 12500 1500
154 6100 9000 12600 13500 2760
125 6800 9400 12800 14400 4960
102 6800 9400 12800 15300 6140
84 6800 9400 12800 15300 6760
68 6800 9400 12800 15300 7370
56 6800 9400 12800 15300 8020
45 & Lower 6800 9400 12800 15300 9370
Output
RPM 1200 1300 ➀ 1400 1500 ➀ 1600
230 13000 720 16600 500 20600
188 14000 1450 17900 500 22100
154 15000 2750 19400 2100 23900
125 16400 4850 21000 4600 25900
102 18000 6030 22500 5900 27700
84 20600 7080 24200 7600 29700
68 20600 7790 29700 9300 35200
56 20600 9650 29700 11700 35200 I

45 & Lower 20600 10400 29700 13900 35200
Output
RPM 1700 ➀ 1800 1900 ➀ 2000 Above 20”
230 10300 25100 21000 42900
188 12300 27000 22900 45500

C F
154 13700 29000 24600 45500 O A
125 15000 31000 26500 45500 N C
102 16800 34000 28600 45500 S T
84 18300 37000 31400 45500
U O
L R
68 19900 39200 34400 45500
T Y
56 21500 39200 36900 45500
45 & Lower 24100 39200 41000 45500
◆ Capacities are in pounds and are for radial loads only. Load location at one shaft diameter distance from
shaft seal. If combination radial and thrust loads are applied, please consult factory.
➀ Style 1 units
Sizes 2100 thru 4100, consult factory with required L10 Lifes.

MAX-POWER ™
I28 Parallel Shaft Reducer Overhung Load Capacity
SINGLE REDUCTION
Input Shaft at 1750 RPM ◆
Nominal 1101 1301 1501 1701 1901
Ratio 0701 0801 0901 1001 1201 1401 1601 1801 2001
1.837 1410 2730 1570 2870 4680 2920 – – –
2.250 1550 2880 2370 3070 5030 3340 4380 – –
2.756 1680 3010 2560 3280 5190 3660 4880 4120 9620
3.375 1840 3230 2840 3610 5710 4160 5170 5060 10500
4.134 1160 1930 ❉ 2470 4200 2090 3610 4880 4900
5.062 1320 2120 960 2740 4620 2840 4160 5530 5600
6.200 1480 2340 1330 3060 5030 4050 4700 6190 6490
7.594 1640 2560 1700 3330 5430 4800 5240 6840 7250
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 ❉ ❉ ❉ 1180 ❉ ❉ ❉ ❉ 4225
9.30 ❉ ❉ 810 1380 ❉ ❉ ❉ 540 3960
11.39 ❉ ❉ 920 1800 ❉ ❉ ❉ 950 7870
13.95 570 ❉ 1100 1900 930 530 1030 1620 7970
17.09 630 690 1280 2000 1230 1250 1700 2950 7970
20.93 660 730 1580 2100 1790 1370 1850 3100 7970
25.63 730 760 1630 2600 1860 1450 1970 3230 7970
31.39 970 1000 1670 2660 1940 2260 2440 4550 7970
38.44 1170 1200 2030 3100 2500 2320 2880 5600 7970
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 250 400 640 610 1080 480 1280 210 1060
38.44 290 500 680 680 1080 660 1500 420 1390
47.08 440 550 680 1030 1080 1040 2000 850 1950
57.66 470 590 680 1070 1080 1130 2090 1010 2170
70.62 490 670 680 1100 1080 1220 2200 1150 2370
86.50 490 670 680 1100 1080 1300 2330 1800 3170
105.90 490 670 680 1100 1080 1800 2350 1880 3300
129.70 490 670 680 1100 1080 1850 2350 1960 3310
158.90 490 670 680 1100 1080 2100 2350 2580 3310
194.60 490 670 680 1100 1080 2200 2350 2740 3310
238.40 490 670 680 1100 1080 2200 2350 2740 3310
◆ Capacities are in pounds and are for radial loads only. Load location at one shaft diameter distance from shaft seal.
If combination radial and thrust loads are applied, please consult factory.
❉ Style 1 units
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
SINGLE REDUCTION
Nominal 1101 1301 1501 1701 1901
Ratio 0701 0801 0901 1001 1201 1401 1601 1801 2001
1.837 1790 3310 2740 3560 5720 3800 5220 4360 10200
2.250 1940 3470 2950 3770 6100 4250 5500 4730 11100
2.756 2080 3610 3160 3990 6270 4590 6040 5320 11700
3.375 2250 3850 3450 4340 6820 5120 6360 6330 12600
4.134 1460 2370 1190 3060 5120 3880 4560 6110 6230
5.062 1630 2580 1440 3340 5560 4380 5140 6800 7040
6.200 1800 2810 1700 3670 5980 4930 5710 7490 7910
7.594 1970 3040 2250 3950 6400 5430 6280 8180 8720
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 ❉ ❉ 1000 1600 ❉ ❉ ❉ ❉ 7280
9.30 ❉ ❉ 1160 1800 ❉ ❉ ❉ ❉ 7060
11.39 510 ❉ 1270 2300 1100 ❉ ❉ ❉ 7970
13.95 770 580 1440 2400 1400 1000 1650 1760 7970
17.09 830 900 1630 2500 1700 1770 2400 2470 7970
20.93 870 950 1960 2600 2300 1900 2550 3920 7970
25.63 930 980 2010 3100 2400 2000 2680 4080 7970
31.39 1180 1240 2050 3200 2500 2800 3100 4230 7970
I
38.44 1270 1450 2370 3500 3100 2900 3600 5570 7970
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 370 560 680 860 1080 800 1770 640 1910
38.44 400 670 680 930 1080 1000 2000 870 2230
47.08 490 670 680 1110 1080 1430 2350 1380 2790
57.66 490 670 680 1110 1080 1530 2350 1550 3020
70.62 490 670 680 1110 1080 1620 2350 1680 3210
86.50 490 670 680 1110 1080 1680 2350 2350 3310
105.90 490 670 680 1110 1080 2200 2350 2440 3310
129.70 490 670 680 1110 1080 2200 2350 2530 3310
158.90 490 670 680 1110 1080 2200 2350 2740 3310
194.60 490 670 680 1110 1080 2200 2350 2740 3310
238.40 490 670 680 1110 1080 2200 2350 2740 3310
❉ Style 1 units

MAX-POWER ™
I30 Parallel Shaft Reducer Overhung Load Capacity
SINGLE REDUCTION
Nominal 1101 1301 1501 1701 1901
Ratio 0701 0801 0901 1001 1201 1401 1601 1801 2001
1.837 2120 3800 3220 4140 6610 4550 6160 5340 11900
2.250 2270 3970 3450 4360 7000 5020 6470 5730 12800
2.756 2420 4120 3660 4590 7180 5380 7030 6360 13400
3.375 2600 4360 3960 4590 7750 5930 7360 7400 14300
4.134 1720 2750 1480 3540 5890 4580 5360 7150 7360
5.062 1890 2960 1750 3840 6340 5100 5970 7870 8200
6.200 2060 3120 2010 4180 6780 5670 6560 8590 9100
7.594 2230 3120 2270 4480 6810 6190 7150 9310 9920
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 ✤ ✤ 1280 2000 ✤ ✤ ✤ ✤ 7970
9.30 530 ✤ 1450 2200 1300 ✤ ✤ 1770 7970
11.39 680 660 1560 2700 1500 ✤ 1600 2180 7970
13.95 940 750 1730 2800 1800 1400 2200 2520 7970
17.09 1000 1090 1920 3000 2100 2200 3000 3200 7970
20.93 1040 1130 2270 3100 2700 2350 3100 4730 7970
25.63 1100 1160 2320 3500 2800 2450 3300 4910 7970
31.39 1270 1430 2360 3500 2900 3300 3700 5060 7970
38.44 1270 1640 2370 3500 3500 3350 4300 6430 7970
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 470 670 680 1110 1080 1100 2200 1020 2600
38.44 490 670 680 1110 1080 1290 2350 1250 2930
47.08 490 670 680 1110 1080 1750 2350 1820 3310
57.66 490 670 680 1110 1080 1850 2350 2000 3310
70.62 490 670 680 1110 1080 1950 2350 2130 3310
86.50 490 670 680 1110 1080 2010 2350 2740 3310
105.90 490 670 680 1110 1080 2200 2350 2740 3310
129.70 490 670 680 1110 1080 2200 2350 2740 3310
158.90 490 670 680 1110 1080 2200 2350 2740 3310
194.60 490 670 680 1110 1080 2200 2350 2740 3310
238.40 490 670 680 1110 1080 2200 2350 2740 3310
✤ Consult factory for more information.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
SINGLE REDUCTION
Nominal 1101 1301 1501 1701 1901
Ratio 0701 0801 0901 1001 1201 1401 1601 1801 2001
1.837 2630 4570 3980 5050 7990 5740 7650 6910 14500
2.250 2790 4740 4220 5280 8400 6240 7980 7330 15400
2.756 2940 4900 4400 5530 8600 6620 8580 8000 16100
3.375 3120 5150 4760 5900 9190 7200 8930 9090 17100
4.134 2110 3120 1940 4310 6810 5690 6630 8790 9140
5.062 2300 3120 2220 4610 6810 6230 7260 9540 10000
6.200 2430 3120 2490 4970 6810 6820 7880 10300 11000
7.594 2430 3120 2760 5270 6810 7000 8500 11100 11860
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 660 750 1730 2600 1700 ✤ ✤ 2310 7970
9.30 770 840 1900 2800 1900 ✤ 2000 2930 7970
11.39 920 930 2020 3400 2100 1500 2400 3370 7970
13.95 1200 1010 2180 3500 2400 2000 3000 3720 7970
17.09 1270 1370 2370 3500 2700 2900 3900 4360 7970
20.93 1270 1410 2370 3500 3400 3000 4100 6000 7970
25.63 1270 1450 2370 3500 3500 3150 4200 6180 7970
31.39 1270 1720 2370 3500 3600 4000 4600 6350 7970
I
38.44 1270 1720 2370 3500 4200 4100 5000 7740 7970
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 490 670 680 1110 1080 1600 2350 1620 3310
38.44 490 670 680 1110 1080 1750 2350 1870 3310
47.08 490 670 680 1110 1080 2200 2350 2500 3310
57.66 490 670 680 1110 1080 2200 2350 2690 3310
70.62 490 670 680 1110 1080 2200 2350 2740 3310
86.50 490 670 680 1110 1080 2200 2350 2740 3310
105.90 490 670 680 1110 1080 2200 2350 2740 3310
129.70 490 670 680 1110 1080 2200 2350 2740 3310
158.90 490 670 680 1110 1080 2200 2350 2740 3310
194.60 490 670 680 1110 1080 2200 2350 2740 3310
238.40 490 670 680 1110 1080 2200 2350 2740 3310
✤ Consult factory for more information.

MAX-POWER ™
I32 Parallel Shaft Reducer Dimensions
SINGLE REDUCTION (HLE)
For Reference Only. Use certified prints for construction purposes. All dimensions given are in inches.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Parallel Shaft Reducer Dimensions I33
SINGLE REDUCTION (HLE)

Reducer
Size AA AB AC AD AE A B C D E F G
0701 23.12 9.06 7 16.38 8.25 18.75 2.38 5.75 3.75 4.50 4.00 2.12
0801 25.88 10.06 8 18.62 9.50 20.75 2.50 6.75 3.88 5.12 4.25 2.75
0901 28.38 11.06 9 20.88 10.50 23.25 2.50 7.50 4.75 6.00 4.50 3.25
1001 31.38 12.31 10 22.88 11.50 26.50 2.75 8.50 5.38 7.12 5.00 3.75
1101
36.88 14.56 12 27.25 13.75 30.25 3.00 10.00 6.00 8.25 5.50 4.75
1201
1301
42.62 17.06 14 31.25 15.75 36.00 3.25 11.50 7.50 10.50 6.00 5.75
1401
1501
47.75 19.12 16 36.62 18.00 41.50 3.75 13.62 8.25 12.12 7.00 6.88
1601
1701
55.00 21.88 18 39.62 20.00 46.25 5.25 15.00 9.25 13.50 8.00 7.25
1801
1901
59.50 23.50 20 44.38 23.00 49.00 5.25 15.75 9.75 13.00 8.25 8.62
2001
Reducer Low Speed Shaft

Size H J K L M N O P Q➀ Key Seat R S
0701 4.62 1.38 11.50 4.75 1.00 6.00 4.25 .88 2.88 .75 x .38 5.00 5.25
0801 5.25 1.50 12.50 5.12 1.12 6.50 4.50 1.00 3.38 1.00 x .50 5.94 6.19
0901 6.50 1.62 13.50 5.62 1.12 7.00 4.62 1.00 3.88 1.00 x .50 6.62 6.88
1001 7.75 1.75 14.00 5.75 1.25 7.00 4.62 1.12 4.50 1.25 x .62 7.38 7.62
1101
9.00 2.00 15.50 6.38 1.38 8.50 5.50 1.25 5.00 1.25 x .62 8.50 8.75
1201
1301
12.25 2.25 17.50 7.38 1.38 9.50 5.50 1.25 6.00 1.50 x .75 9.75 10.00
1401
1501
1601
13.62 2.50 19.25 8.00 1.62 10.25 5.75 1.50 6.50 1.50 x .75 10.50 10.75 I
1701
15.00 2.75 22.00 9.12 1.88 12.50 6.75 1.75 7.25 1.75 x .62 11.38 11.62
1801
1901
15.62 3.00 23.50 9.62 2.12 13.50 7.88 2.00 7.75 2.00 x .75 11.75 12.12
2001
H.S. Shafts For Ratios

Reducer 1.837 - 3.375 4.134 - 7.594 Approximate
Size T U V W X Y Z➀ Key Seat Z➀ Key Seat Wt / Lbs
0701 11.75 6.50 6.50 11.75 5.25 5.00 2.12 .50 x .25 1.75 .38 x .19 550
0801 13.25 7.25 7.12 13.25 6.19 5.94 2.38 .62 x .31 1.88 .50 x .25 715
0901 14.50 7.75 7.62 14.25 6.69 6.44 2.62 .62 x .31 2.00 .50 x .25 860
1001 15.50 8.00 8.00 15.50 7.62 7.38 3.00 .75 x .38 2.25 .50 x .25 1300
1101
17.50 8.75 8.88 17.25 8.50 8.25 3.38 .88 x .44 2.50 .62 x .31 1700
1201
1301
19.75 10.00 10.00 19.00 9.25 9.00 3.75 1.00 x .50 3.00 .75 x .38 2200
1401
1501
21.50 10.88 10.88 21.50 10.75 10.50 4.50 1.25 x .62 3.25 .75 x .38 3600
1601
1701
24.25 12.50 12.38 24.00 11.38 11.00 5.00 1.25 x .62 4.00 1.00 x .50 4900
1801
1901
25.50 13.50 13.25 25.00 11.62 11.25 5.62 1.50 x .75 4.00 1.00 x .50 6550
2001
➀ Shaft diameters of 2 inches and under are held to limits of +.000” -.0005”
Shaft diameters of over 2 inches are held to limits of +.000” -.001”

MAX-POWER ™
DOUBLE & TRIPLE REDUCTION (HLE)
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™

Reducer Size
Double Triple AA AB AC AD AE A B C D E F G H
0702 0703 26.00 8.75 12.00 16.00 8.25 20.50 1.25 8.75 4.50 4.75 3.75 4.38 4.88
0802 0803 29.50 9.75 14.00 18.44 9.50 23.00 1.50 10.38 4.62 5.00 4.25 5.25 5.00
0902 0903 32.00 10.75 15.00 20.31 10.50 25.00 1.50 11.00 5.25 5.75 5.00 5.00 5.00
1002 1003 36.50 11.88 17.00 22.31 11.50 29.00 1.50 13.00 6.38 6.62 5.50 6.25 6.25
1102 1103
42.25 14.00 20.00 26.56 13.75 33.25 1.62 15.00 7.12 7.88 5.75 8.00 8.00
1202 1203
1302 1303
48.50 16.25 23.00 30.88 15.75 38.00 2.00 17.00 8.00 9.00 6.75 9.25 8.50
1402 1403
1502 1503
54.50 18.50 26.00 35.38 18.00 43.50 2.25 19.50 8.75 10.75 8.00 9.50 10.00
1602 1603
1702 1703
62.50 20.62 30.00 38.88 20.00 50.25 2.25 23.50 10.00 12.25 9.00 12.25 11.00
1802 1803
1902 1903
70.25 23.25 34.00 43.88 23.00 56.75 2.50 26.25 11.50 14.00 10.00 13.75 13.00
2002 2003
DOUBLE & TRIPLE REDUCTION

Reducer Size Low Speed Shaft
Double Triple J K L M N O P Q➀ Keyseat R S T U
0702 0703 1.38 13.25 5.38 1.25 6.50 8.62 1.00 3.00 .75 x .38 4.62 5.19 12.12 6.88
0802 0803 1.50 15.00 6.25 1.25 7.75 9.88 1.12 3.50 1.00 x .50 5.50 6.06 13.75 7.81
0902 0903 1.62 16.00 6.75 1.25 8.00 10.38 1.12 4.00 1.00 x .50 6.25 6.75 15.00 8.31
1002 1003 1.75 18.00 7.50 1.50 9.50 11.38 1.25 4.50 1.25 x .62 7.25 7.88 17.00 9.19
1102 1103
2.00 20.00 8.38 1.62 10.00 12.38 1.25 5.00 1.25 x .62 8.25 8.69 18.81 10.06
1202 1203
1302 1303
2.25 22.00 9.25 1.75 12.00 13.56 1.50 6.00 1.50 x .75 9.25 10.12 21.38 11.44
1402
1502
1403
1503
I
2.50 25.00 10.50 2.00 13.50 15.06 1.75 6.50 1.50 x .75 10.50 11.00 23.62 12.69
1602 1603
1702 1703
2.75 28.50 12.38 1.88 16.50 16.81 1.75 7.25 1.75 x .62 11.88 12.38 27.25 14.62
1802 1803
1902 1903
3.00 31.50 13.50 2.25 17.50 18.31 2.00 7.75 2.00 x .75 12.75 13.25 29.38 16.19
2002 2003
Reducer Double Double Reduction Triple Reduction Approx. Wt/Lbs

Size Triple High Speed Shaft High Speed Shaft Double Triple
Double Triple V W X Y Z➀ Keyseat W X Y Z➀ Keyseat Red. (02) Red. (03)
0702 0703 6.75 10.88 4.00 3.50 1.50 .38 x .19 10.44 3.56 3.06 1.12 .25 x .12 575 550
0802 0803 7.56 12.38 4.75 4.25 1.75 .38 x .19 11.62 4.00 3.50 1.25 .25 x .12 800 850
0902 0903 8.12 13.75 5.50 5.00 2.00 .50 x .25 12.25 4.12 3.50 1.25 .25 x .12 990 1100
1002 1003 9.12 15.12 6.00 5.50 2.25 .50 x .25 13.88 4.88 4.38 1.50 .38 x .19 1265 1375
1102 1103
10.00 16.75 6.75 6.25 2.50 .62 x .31 14.81 4.81 4.25 1.50 .38 x.19 1925 2050
1202 1203
1302 1303
11.25 18.75 7.50 7.25 3.00 .75 x .38 17.50 6.25 6.00 2.00 .50 x .25 2750 2970
1402 1403
1502 1503
12.50 20.38 7.88 7.31 3.00 .75 x .38 18.75 6.25 5.75 2.00 .50 x .25 3850 4100
1602 1603
1702 1703
14.31 23.62 9.38 8.88 3.50 .88 x .44 21.38 7.12 6.62 2.25 .50 x .25 5500 5850
1802 1803
1902 1903
15.62 25.12 9.50 9.00 3.50 .88 x .44 23.62 8.00 7.50 2.50 .62 x .31 7950 8150
2002 2003

MAX-POWER ™

Unit Size
Double Triple AB AD AE B C D E F G J K
2102 2103
26.50 47.25 23.50 5.12 21.50 10.00 13.00 8.00 4.00 3.00 33.25
2252 2253
2402 2403
28.50 54.75 27.25 5.00 24.25 10.75 13.50 6.00 3.00 3.25 36.50
2502 2503

Unit Size Low Speed Shaft
Double Triple L M N O P Q Keyseat R S T U V
2102 2103
14.12 2.50 20.62 9.50 2.25 9.00 2.50 x .88 16.50 16.75 35.00 17.50 17.00
2252 2253
2402 2403
15.75 2.50 25.00 10.00 2.25 9.75 2.50 x .88 16.75 17.50 38.00 20.50 19.62
2502 2503
Double Reduction Triple Reduction Approx. Wt.

Reducer High Speed High Speed Double Triple
Size Shaft Shaft Red. Red.
Double Triple AA AC A H W X Y Z Keyseat AA AC A H W X Y Z Keyseat (02) (03)
2102 2103
90.25❖ 38.50 73.50 19.00❖ 30.28 13.38 11.50 4.00 1.00 x .50 90.25 48.50 73.50 19.00 27.25 10.25 8.75 2.62 .62 x .31 11550 13200
2252 2253
2402 2403
90.50 43.00 70.50 12.00 31.88 12.38 12.00 4.25 1.00 x .50 100.25 55.00 80.25 21.75 29.00 9.50 9.25 2.87 .75 x .38 14850 15400
2502 2503
Shaft diameters are held to limits of +.000” -.001”

❖ For welded steel housing: AA = 83.00 H = 12.00
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
COOLING FAN
Fan Cooling Multipliers

Fan cooling increases the thermal
capacity of non-ventilated units. Use
multipliers to determine capacities
attainable with one or two fans.
Heat exchangers are to be used where

thermal capacity exceeds the fan
cooling range.
Input RPM 1750 1170

One fan on power 1.50 1.30
input extension
One fan opposite to 1.75 1.45

power input extension
Two fans 2.50 2.00
Reducer Single Reduction Reducer Double Reduction Reducer Triple Reduction

Size AA AF AG AH AK T Size AA AF AG AH AK T Size AA AF AG AH AK T
0702 26.00 9.12 1.75 2.81 6.88 12.12 0703 – – – – – –
0701 23.12 8.75 3.00 3.31 1.88 11.75
0802 29.50 9.88 2.50 2.81 8.88 13.75 0803 – – – – – –
0902 32.00 11.12 2.62 3.00 9.00 15.00 0903
0801 25.88 9.88 3.38 3.94 2.00 13.25 – – – – – –
1002 36.50 12.38 2.53 3.88 9.50 17.00 1003
1102 1103
0901 28.38 10.69 3.56 3.94 3.00 14.50 42.25 13.25 3.50 3.88 12.50 18.81 – – – – – –
1202 1203
1302 1303
1001 31.38 11.12 4.38 4.75 2.50 15.50 48.50 15.00 3.75 4.50 14.50 21.38 48.50 14.12 3.38 3.75 17.00 21.38
1402 1403
1101 1502 1503
36.88 12.56 4.69 5.12 3.25 17.50 54.50 16.25 4.12 4.50 17.50 23.62 54.50 15.38 3.38 3.75 20.00 23.62
1201 1602 1603
1301 1702 1703
42.62 14.31 4.69 6.44 3.50 19.75 62.50 18.81 4.81 5.38 19.50 27.25 62.50 17.50 3.88 5.12 22.50 27.25
1401 1802 1803
1501 1902 1903
47.75 15.44 6.06 6.44 5.50 21.50 70.25 20.19 4.94 5.38 23.50 29.38 70.25 18.88 4.75 5.12 26.50 29.38
1601 2002 2003
1701 2102 2103
55.00 17.50 6.50 7.00 6.00 24.25 83.00 24.69 5.69 6.88 23.12 35.00 90.25 23.38 3.38 7.00 36.38 35.00
1801 2252 2253
1901 2402 2403
58.00 18.38 6.62 7.00 8.00 25.50 90.50 25.75 6.12 6.88 27.62 38.00 100.25 24.50 4.50 7.00 42.88 38.00
2001 2502 2503

MAX-POWER ™
I38 Parallel Shaft Reducer Vertical Style
SELECTION BEARINGS
These reducers may be selected using the Parallel Horse- Longer bearing life/oversize heavy-duty tapered roller
power Rating Tables. bearings exceed industry standards.
COMPACT DESIGN LUBRICATION

Space-saving, compact design allows reducer to be installed A rotary, positive displacement, self-priming pump delivers oil
into right areas, yet permits easy accessibility for service. to the proper upper bearings. For VERTICAL SHAFT DOWN
applications, the low speed bearing is grease lubricated.
DRY WELL CONSTRUCTION
Prevents leakage of oil at low speed shaft of the reducer. OIL FLOW INDICATOR
A prominently mounted indicator gives instant assurance of
ACCEPTS STANDARD MOTOR adequate lubricant circulation. As an optional feature, an
Motor is mounted to reducer by means of an adapter. electrical switch can be incorporated to actuate an alarm in
Reducer accepts a standard NEMA “C” Flange motor the event of low oil flow.
coupled to the reducer by using a standard flexible coupling.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
VERTICAL DOUBLE & TRIPLE REDUCTION (VHLE)
I
Reducer Low Speed Shaft
Size AA AB AC A B C D E F G H J K L M N P Q Keyseat R S T U AK
1102-1103
42.50 14.50 20 37.50 3.00 15.75 6.75 9.00 5.75 10.12 10.12 2.25 31.75 14.25 1.62 21.25 1.25 5.00 1.25 x .62 8.25 8.69 18.75 23.00 10.75
1202-1203
1302-1303
48.75 16.75 23 43.50 3.50 18.25 7.62 10.62 6.75 11.62 11.62 2.50 36.00 16.25 1.75 24.00 1.50 6.00 1.50 x 3.75 9.25 10.12 21.38 26.25 12.00
1402-1403
1502-1503
54.25 18.75 26 48.00 3.75 20.25 8.38 11.88 7.00 13.5 13.50 2.50 41.00 18.5 2.00 28.00 1.75 6.50 1.50 x .75 10.50 11.00 24.12 28.75 13.25
1602-1603
1702-1703
62.75 21.25 30 55.75 3.75 24.12 10.12 14.00 7.00 17.38 17.38 2.75 46.00 21.00 2.00 32.00 1.75 7.25 1.75 x .62 11.88 12.38 27.25 33.00 15.75
1802-1803
Double Reduction Triple Reduction

High Speed High Speed
Reducer Shaft Shaft
Size AD AE AF AG AH AJ X Y Z Keyseat AD AE AF AG AH AJ X Y Z Keyseat Weights
1102-1103 SPECIFY SPECIFY
27.50 25.88 5.75 6.75 6.25 2.50 .62 x .31 25.56 25.38 5.75 4.81 4.25 1.50 .38 x .19 2500
1202-1203 MOTOR MOTOR
30.75 28.00 5.75 7.50 7.25 3.00 .75 x .38 29.50 28.06 5.75 6.25 6.00 2.00 .50 x .25 3500
33.62 31.25 7.62 7.88 7.31 3.00 .75 x .38 32.00 30.56 7.62 6.25 5.75 2.00 .50 x .25 4600
39.38 35.12 8.25 9.38 8.88 3.50 .88 x .44 37.12 34.75 8.75 7.12 6.62 2.25 .50 x .25 6300
Shaft diameters of 2 inches and under are held to limits of +.000” -.0005”

MAX-POWER ™
I40 Parallel Shaft Reducer
MEDIUM SPEED SINGLE REDUCTION (HLEM)
The HLEM reducer is designed for increased H.S. Unit Size

thermal horsepower capacity for pitch line Shaft Nominal 1101 1301 1501 1701 1901
velocities above 2800 FPM. HLEM Units are RPM Ratio 0701 0801 0901 1001 1201 1401 1601 1 8 0 1 2 0 0 1
defined as those having a Pitch Line Velocity 1.837 123 135 160 183 224 261 – – –
from 2800 to 4000 FPM. For pitch line velocities 2.250 125 136 163 185 229 267 299 – –
over 2800 FPM or speeds above 1750 RPM, 2.756 127 138 166 189 234 275 310 352 369
refer to Foote-Jones for selection information. 1750 3.375 130 140 169 195 244 188 326 373 396
4.134 140 152 184 206 270 323 268 424 452
The dimensions shown below illustrate the shaft 5.062 – 161 198 229 289 345 393 454 485
driven pump located opposite the low speed 6.200 – – 207 241 304 366 418 484 521
shaft extension. This location is the most 7.594 – – – 251 317 384 439 508 552
common and typical for HLEM units. However, 1.837 190 215 265 300 378 453 525 612 697
dependent on shaft speeds, the pump may be 2.250 191 217 266 303 381 457 548 618 700
located opposite the H.S. shaft extension. 2.756 223 268 317 387 461 551 656 705
1170 3.375 236 271 321 394 386 554 662 747
4.134 – – – – 417 489 565 692 750
5.062 – – – – – – 603 695 796
6.200 – – – – – – – 742 814
7.594 – – – – – – – – –
Thermal HP listed only when it is less than Mechanical HP.
Notes:
1. The dimensions listed for HLEM Units furnished with FABRICATED
STEEL HOUSINGS.
The dimensions for HLEM Units with CAST IRON HOUSINGS are
the same as Standard HLE Units.
2. Pitch Line Velocity (PLV) Formula:

PLV = 2 x “AC” x 0.262 x RPM
1 + Ratio
PLV . . . . . . . . . . . . . . . . . . . .FPM
“AC” . . . . . . . . . . . . . . . . . . . .Dimensions
RPM . . . . . . . . . . . . . . . . . . . .Speed of Highest Input or Output
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Parallel Shaft Reducer I41
MEDIUM SPEED SINGLE REDUCTION (HLEM)

Reducer Size AA AB AC AD AE A B C E J
0701 22.50 8.75 7.00 21.62 14.00 18.50 2.25 9.50 4.50 1.00
0801 24.50 9.50 8.00 23.62 15.00 20.50 2.38 10.62 5.12 1.00
0901 27.00 11.00 9.00 25.88 16.00 23.00 2.00 12.00 7.00 1.00
1001 30.00 11.75 10.00 27.88 17.00 25.50 2.00 14.00 7.50 1.12
1101
35.00 14.00 12.00 31.88 19.00 30.00 2.00 16.50 9.50 1.25
1201
1301
41.00 16.00 14.00 34.88 20.50 35.50 2.75 19.50 10.50 1.25
1401
1501
45.75 17.75 16.00 37.88 22.00 39.75 2.75 22.25 12.00 1.50
1601
1701
52.00 20.50 18.00 42.38 24.00 45.00 3.50 24.50 13.50 1.75
1801
1901
56.50 22.00 20.00 45.88 26.00 49.50 4.00 27.00 14.50 2.00
2001
Low Speed Shaft

Reducer Size K L M N P Q Keyseat R S T U
0701 15.25 6.62 1.00 9.25 1.00 2.88 .75 x .38 5.00 5.25 11.75 11.25
0801 16.00 7.00 1.00 10.00 1.00 3.38 1.0 x .50 5.94 6.19 13.25 11.75
0901 17.00 7.50 1.00 11.00 1.00 3.88 1.0 x .50 6.62 6.88 14.50 12.50
1001 18.00 7.88 1.12 11.00 1.12 4.50 1.0 x .50 7.38 7.62 15.50 12.75
1101
20.00 8.75 1.25 12.00 1.25 5.00 1.25 x .62 8.50 8.75 17.50 13.25
1201
1301
22.00 9.75 1.25 14.00 1.25 6.00 1.5 x .75 9.75 10.00 19.75 13.75
1401
1501
1601
24.75 10.88 1.50 14.75 1.50 6.50 1.5 x .75 10.50 10.75 21.50 15.00
I
1701
28.50 12.50 1.75 17.50 1.75 7.25 1.75 x .62 11.38 11.62 24.25 16.50
1801
1901
31.50 13.75 2.00 19.50 2.00 7.75 2.0 x .75 11.75 12.12 25.50 17.50
2001
High Speed Shaft For Ratios Sump

1.837 - 3.375 4.134 - 7.594 Approx. Cap.
Reducer Size V W X Y Z Keyseat Z Keyseat Weight Gallons
0701 6.50 11.75 5.25 5.00 2.12 .50 x .25 1.75 .38 x .19 610 5.0
0801 7.12 13.25 6.19 5.94 2.38 .62 x .31 1.88 .50 x .25 830 6.5
0901 7.62 14.25 6.69 6.44 2.62 .62 x .31 2.00 .50 x .25 1080 8.0
1001 8.00 15.50 7.62 7.38 3.00 .75 x .38 2.25 .50 x .25 1400 9.5
1101
8.88 17.25 8.50 8.25 3.38 .88 x .44 2.50 .62 x .31 1850 11.5
1201
1301
10.00 19.00 9.25 9.00 3.75 1.0 x .50 3.00 .75 x .38 2450 14.5
1401
1501
10.88 21.50 10.75 10.50 4.50 1.25 x .62 3.25 .75 x .38 3850 18.0
1601
1701
12.38 24.00 11.38 11.00 5.00 1.25 x .62 4.00 1.0 x .50 5400 22.0
1801
1901
13.25 25.00 11.62 11.25 5.62 1.5 x .75 4.00 1.0 x .50 7100 25.0
2001
Shaft diameters of 2 inches and under are held to limits of +.000” -.0005”

MAX-POWER ™
I42 Parallel Shaft Reducer
BACKSTOP CLUTCH
Sprag-type backstops are available for all sizes of parallel shaft speed reducers. They grip positively to prevent reverse
rotation with minimum backlash. The backstop is mounted on an extension of the high speed shaft, and is enclosed in
its own housing with its own reservoir for oil.
When one cooling fan is required in addition to a backstop, location of the fan assembly will be as shown by the dotted
lines on the input shaft extension.
When two cooling fans are required in addition to a backstop, refer to your FOOTE-JONES Sales Representative.
Notes:
“X” dimension must be checked to determine if there will be any
interference between the backstop and a coupling or sprocket
mounted on the low speed shaft extension.
“L” dimensions shown do not include fan on backstop shaft

extension. Refer to your FOOTE-JONES Representative for
this option.
BACKSTOP CLEARANCE DIMENSIONS

HLE SINGLE REDUCTION
Reducer
Size 0701 0801 0901 1001 1101 1201 1301 1401 1501 1601 1701 1801 1901 2001
A 7.25 7.75 8.38 8.50 9.50 9.50 9.75 9.75 12.25 12.25 13.50 13.50 14.25 14.25
B 7.00 8.00 9.00 10.00 12.00 12.00 14.00 14.00 16.00 16.00 18.00 18.00 20.00 20.00
HLE DOUBLE & TRIPLE REDUCTION

Reducer 0702 0802 0902 1002 1102 1202 1302 1402 1502 1602 1702 1802 1902 2002
Size 0703 0803 0903 1003 1103 1203 1303 1403 1503 1603 1703 1803 1903 2003
A 7.38 8.12 8.75 9.62 10.62 10.62 11.88 11.88 13.12 13.12 15.00 15.00 16.50 16.50
B 12.00 14.00 15.00 17.00 20.00 20.00 23.00 23.00 26.00 26.00 30.00 30.00 34.00 34.00
BACKSTOP DIMENSIONS
Backstop
Size 500 600 700 750 800 900 1000
L 7.00 7.25 9.75 11.75 12.25 13.00 14.00
B 4.25 5.38 7.12 8.75 10.00 12.00 15.00
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER™
Parallel Shaft Reducer I43
BACKSTOP CLUTCH
CLEARANCE DIMENSIONS
Reducer I
Size A B C
0702 & 0703 9.62 9.00 8.88
0802 & 0803 10.62 10.12 9.88
0902 & 0903 11.50 11.50 10.75
1002 & 1003 12.62 12.75 12.00
1102-1202 & 1103-1203 15.00 15.00 14.00
1302-1402 & 1303-1403 17.38 17.62 16.38
1502-1602 & 1503-1603 19.62 19.75 18.75
1702-1802 & 1703-1803 21.62 22.62 20.62
1902-2002 & 1903-2003 24.25 25.50 23.50
2102-2252 & 2103-2253 26.75 28.75 26.50
2402-2502 & 2403-2503 28.88 32.25 28.50
The housing dimensions shown above are for

reference in detailing applications such as
KILN drives where the clearance at the low
speed end of the reducer is critical.

MAX-POWER ™
I44 Spiral Bevel Reducer Design Advantages
GEARING
• Greater Strength and Durability – Constructed of allow steels for high core strength and heat treated for
maximum surface durability.
• Precise Alignment – Spiral bevel gearing in the high speed set does not allow external thrust loads to
disturb alignment.
• Smoother Operation – Helical low speed gears are designed to divide the transmitted load over several
gear teeth for smoother, quieter operation.
• Better Load Distribution – Helical pinions are integrally cut with the shaft to distribute tooth load more
effectively.
• Easily Adjusted – Spiral bevel gear set can be adjusted conveniently from the outside of the housing.
HOUSING
• Long Service Life – Alignment of shafts, gears and bearings is maintained with ruggedly constructed
and reinforced high tensile alloy cast iron housing which is corrosion resistant and suitable for outdoor
installation. Steel housings also available.
• Higher Thermal Capacity – Large surface areas of housing effectively radiate heat.
• Easy Inspection and Maintenance – Large inspection port provided above gearing.
• Mount Auxiliary Equipment – Broad level pads located on top of housing.
• Effective Dust Protection – Breather filter element traps particles as small as 40 microns. Easily
removed for cleaning.
SHAFTS
• Greater Overload Protection – Through-hardened steel
• Higher Overhung Loads – Generous shaft lengths and diameters
BEARINGS
• Longer Bearing Life – Oversize heavy-duty tapered roller bearings exceed industry standards.
• Easily Maintained – Bearings may be adjusted without removing housing cover.
SEALS
• Efficient Sealing – Spring loaded dual-lip wave type cartridge seals provided on all shaft extensions.
• Extra Seal Protection – Grease purged seals available for unusually abrasive dust conditions.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Application Data I45
RATING TABLES located beyond one diameter, the tabulated overhung

Horsepower ratings have been calculated on a 1.0 service factor load capacities no longer apply. Applications of this type
in accordance with current AGMA recommended practice. The should be referred to your FOOTE-JONES Sales Representative.
tabulations are compiled for easy unit size selection. The tables
are organized by input speed and columns headed with ratio OPERATING SPEEDS
and nominal output rpm designation. Operate units only at the speeds shown on the nameplate.
Before changing speeds, refer complete application details
HP values are at input, torque figures are at output, and allow and nameplate data to your FOOTE-JONES Sales
for efficiency losses. Representative for a review of the lubrication system. Also
When the required speed falls between two cataloged speeds specify reducer operating speeds on orders to insure proper
of a unit for a cataloged ratio, interpolate to determine unit lubrication.
rating. When a special intermediate ratio is required, use the Variable or Multi-Speed Applications
lowest output torque from either the next higher or lower It is essential that all orders indicate maximum and minimum
standard ratio, and calculate the input horsepower allowing speeds as well as the duty cycle, as modifications to the
for efficiency. lubrication system may be required. This is particularly
THERMAL RATINGS important for units with a built-in oil pump.
Thermal horsepower ratings represent the maximum For input speeds above 1750 rpm or below 100 rpm, consult
horsepower that can be transmitted without overheating when your FOOTE-JONES Sales Representative.
a reducer is operated continuously for more than three hours.
AGMA Standards permits oil (sump) temperatures up to 200°F. FORMULAS
When the thermal rating is less than the transmitted load, a 1. Torque
larger size unit with sufficient thermal capacity must be HP x 63025
T=
selected or an external cooling system added. Thermal N
horsepower ratings are shown in the catalog rating tables. Only 2. Horsepower
transmitted horsepower is subject to thermal horsepower TxN
limitations, service factors do not apply. For intermittent service HP =
63025
or unusual ambient temperatures, consult your FOOTE-JONES
Sales Representative. 3. Overhung Load
HP x 63025 x K TxK
OVERHUNG LOADS
P=
NxR
or
R
I
Overhung loads are calculated at the most adverse
combination of rating, speed, rotation and direction of load. FACTORS
In most applications where there is a reasonable service factor, All factors must be determined at shaft under study.
appreciably greater overhung load may be available. This is
HP =
Transmitted horsepower
particularly true in the higher output speed ranges where
T =
Torque in inch pounds
the bearings limit the overhung load capacity.
P =
Equivalent overhung load in pounds
STYLE 1 reducers are generally intended for applications N =
RPM of shaft
where the connected load is direct-coupled to the reducer R =
Pitch radius in inches of sprocket, pinion,
output shaft. For applications involving overhung loads, STYLE sheave, or pulley
4 reducers are usually required, and these applications K = Overhung load factors
should be carefully reviewed. When greater capacity is Sprocket (single or multiple strand) . . . .1.00
desired, contact your FOOTE-JONES Sales Representative Spur Pinion . . . . . . . . . . . . . . . . . . . . . .1.25
with complete application data including direction of rotation V-Belt sheave . . . . . . . . . . . . . . . . . . . . .1.50
and side load. Flat belt pulley . . . . . . . . . . . . . . . . . . . .2.50
Calculated overhung load for shafts must not exceed the
permissible overhung load capacity listed in the ratings tables
for the reducer size, type, ratio and rpm selected.
The permissible overhung loads shown in the rating tables are
calculated for loads applied perpendicular to the shaft at one
diameter distance from the heads of the bearing cap screws.
Sprockets, pinions and gears should be mounted as close to
the reducer as possible to minimize reactions on shafts and
bearings. If the point of application of the overhung load is

MAX-POWER ™
I46 Spiral Bevel Reducer Application Data
SELECTION PROCEDURE
Step 1 Determine service factor for your application depending on number of hours of operation each day and
the type of prime mover. Refer to Tables A and B on pages 6-9.
Step 2 Multiply the service factor obtained in Step 1 by the actual input horsepower or output torque required to
operate the driven equipment to determine an equivalent rating.
Step 3 Refer to rating tables to select the speed reducer size with the proper input and output speeds that also
has the capacity to equal or exceed the required equivalent rating.
Step 4 If the drive is subject to starting or peak torque more than 200% to 275% of the catalog rating for reducer
selected in Step 3, consult your FOOTE-JONES Sales Representative.
Step 5 The thermal capacity of the reducer you select must equal or exceed the actual input horsepower
transmitted (not the equivalent horsepower). If the input horsepower is greater, consider fan cooling,
heat exchanges or select a larger reducer size. When the unit operates intermittently (less than three
hours continuously), consult your FOOTE-JONES Sales Representative.
Step 6 The overhung load on all shafts not connected with a flexible coupling must be calculated from the
Overhung Load Rating Table. If a Style 1 reducer does not have sufficient overhung load capacity, check
a Style 4. The overhung load for a specific torque; however, can be reduced by increasing the diameter
of the gear, sprocket, or sheave that is mounted on the shaft.
Step 7 A backstop may be required to prevent reverse rotation for some applications. Refer to your FOOTE-
JONES Sales Representative for backstop selection. Other accessories, such as bases, are also available.
STANDARD ASSEMBLY DIAGRAMS
BHE
CODE
1 (LC) 2 (RC) 3 (LCC) 4 (RCC) 5 (LC-RCC) 6 (RC-LCC)
VBHE
CODE
1 (UCC) 2 (DC) 3 (UCC-DC)
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Ratings I47
1750 RPM INPUT DOUBLE REDUCTION (@ 1.0 S.F.)

0702 0802 0902 1002 1102 1202
Nom. Output
Ratio RPM MHp THp Tq MHp THp Tq MHp THp Tq MHp THp Tq MHp THp Tq MHp THp Tq
7.59 230 120 30 31.4 164 45 43.5 228 53 60.4 313 70 82.2 400 95 105 500 95 131
9.30 188 81.8 31 26.5 125 45 40.6 166 55 53.5 239 75 76 313 100 102 376 100 120
11.39 154 80 31 31.7 120 46 47.7 157 57 62.6 225 75 88.6 278 105 109 350 105 137
13.95 125 56.3 32 27.6 87.5 50 42.5 120 60 58.5 175 80 83.3 225 105 110 266 105 130
17.09 102 52.6 33 30.9 71.2 50 42.5 94 62 55.1 139 80 80.5 188 113 109 239 113 139
20.93 84 40 34 29 60 52 43.7 81 63 58.5 120 82 84.9 157 112 114 188 113 136
25.63 68 30 – 26.4 45 – 39.8 60 – 52.7 90 87 79.1 120 – 104 138 120 121
31.39 56 25 – 27.1 37.9 – 40.6 50 – 54 70 – 73.6 100 – 108 132 120 142
38.44 45 20.2 – 26.6 31.3 – 40.8 41 – 53.8 63 – 82 80 – 105 100 – 131
1302 1402 1502 1602 1702 1802

Nom. Output
7.59 230 625 125 162 675 125 175 900 157 242 1050 157 281 1290 206 336 1500 206 391
9.30 188 479 125 154 563 125 181 700 160 230 800 160 262 1050 219 337 1140 219 366
11.39 154 408 132 165 450 132 182 633 164 257 750 164 305 900 219 359 1000 219 398
13.95 125 322 135 161 375 135 188 471 175 229 538 175 262 700 227 344 812 227 398
17.09 102 300 138 179 322 138 192 450 175 272 525 175 316 636 233 373 710 233 416
20.93 84 233 143 172 270 143 199 333 188 245 400 188 294 500 250 361 600 250 434
25.63 68 176 150 158 219 150 196 263 188 233 300 188 266 375 250 328 438 250 385
31.39 56 157 – 170 188 157 203 232 200 251 275 200 297 350 263 378 407 263 440
I
38.44 45 125 – 165 157 – 207 188 – 246 219 201 285 263 – 346 313 267 411
1902 2002 2102 2252 2402 2502

Nom. Output
7.59 230 1800 250 471 2000 250 524
9.30 188 1430 263 458 1580 263 506 CONSULT FACTORY
11.39 154 1260 263 496 1400 263 551
13.95 125 955 272 455 1050 272 503 1400 313 668 1630 313 778
17.09 102 906 280 526 1050 280 608 1230 316 716 1290 316 760
20.93 84 700 300 493 750 300 528 900 328 643 1000 238 722
25.63 68 500 313 436 563 313 491 750 350 650 875 350 757
31.39 56 457 313 488 500 313 536 625 351 673 700 351 758 800 401 875 875 401 964
38.44 45 350 320 463 375 320 498 450 375 606 500 375 681 600 414 813 630 414 852

MAX-POWER ™
I48 Spiral Bevel Reducer Ratings
1750 RPM INPUT TRIPLE REDUCTION (@ 1.0 S.F.)

0703 0803 0903 1003 1103 1203
Nom. Output
31.39 56 33.5 – 34.6 53.6 – 57.4 70 – 75.4 93.9 90 100 132 119 141 159 120 169
38.44 45 31.3 – 41 45 – 58.4 53.2 – 71.3 80 – 104 105 – 137 125 – 165
47.08 37 23.8 – 37.4 37.5 – 60.5 50 – 79.6 64.5 – 103 90 – 144 113 – 181
57.66 30 20 – 38.4 31.3 – 60.7 37.9 – 74.7 53.4 – 105 71.2 – 139 87.5 – 172
70.62 25 16.2 – 38.2 26.3 – 62.8 33 – 79 45 – 106 60 – 145 71.2 – 171
86.50 20 13.2 – 38.6 20 – 58.3 26.3 – 77.1 37.5 – 109 50 – 147 60 – 176
105.9 16.5 9.4 – 33.9 16.2 – 58.7 20 – 71.2 27.8 – 99.3 37.5 – 135 45 – 162
129.7 13.5 7.8 – 33.8 13.4 – 58.6 15.8 – 69.8 23.5 – 100 31.3 – 135 38 – 164
158.9 11 6.4 – 34 10.7 – 57.9 13.2 – 71.9 19.1 – 101 26.3 – 138 31.5 – 165
194.6 9 5.3 – 34.3 7.9 – 51.9 9.4 – 62.6 15.9 – 102 21 – 137 26.3 – 172
238.4 7.4 4 – 31.7 6 – 48 7.7 – 62.5 11.6 – 93.2 15.4 – 122 18.8 – 149
1303 1403 1503 1603 1703 1803

Nom. Output
31.39 56 200 157 213 231 157 246 276 200 295 313 200 337 401 263 431 477 263 513
38.44 45 157 – 206 167 157 223 219 201 290 250 210 332 313 267 415 375 267 496
47.08 37 133 – 215 157 – 253 190 – 306 225 205 363 282 273 450 335 273 534
57.66 30 105 – 208 120 – 237 150 – 293 175 – 343 225 – 446 267 – 524
70.62 25 83.9 – 200 94 – 224 120 – 285 140 – 334 190 – 450 234 – 552
86.50 20 71.1 – 209 80.6 – 237 105 – 304 125 – 362 157 – 462 188 – 551
105.9 16.5 60 – 218 65.4 – 240 80 – 289 90 – 325 120 – 430 138 – 494
129.7 13.5 46.9 – 207 55 – 243 70 – 308 80 – 352 105 – 460 132 – 578
158.9 11 38.3 – 208 45.1 – 245 60 – 317 70 – 370 82.8 – 441 100 – 533
194.6 9 32 – 211 37.6 – 248 46.8 – 308 54.4 – 358 70 – 460 80.5 – 533
238.4 7.4 25 – 201 30 – 241 35.9 – 285 41.1 – 326 52.5 – 419 60 – 483
1903 2003 2103 2253 2403 2503

Nom. Output
31.39 56 563 313 602 626 313 668 800 351 857 900 351 968 1050 401 1121 1130 401 1200
38.44 45 453 320 595 525 320 687 642 375 843 750 375 988 875 414 1143 930 414 1210
47.08 37 382 328 624 438 328 716 525 375 846 569 375 908 700 438 1120 800 438 1280
57.66 30 313 – 631 351 328 708 450 375 896 502 375 991 613 438 1200 675 438 1300
70.62 25 269 – 646 313 – 751 357 – 857 400 375 958 479 438 1150 537 438 1280
86.50 20 225 – 667 248 – 737 300 – 882 326 – 957 377 – 1090 450 – 1310
105.9 16.5 175 – 634 206 – 741 250 – 901 270 – 972 329 – 1180 375 – 1380
129.7 13.5 157 – 685 175 – 764 202 – 893 225 – 1000 265 – 1160 300 – 1290
158.9 11.0 125 – 667 143 – 760 175 – 922 189 – 988 225 – 1190 237 – 1270
194.6 9.0 95 – 614 105 – 677 132 – 844 143 – 915 162 – 1070 175 – 1180
238.4 7.4 70 – 559 75 – 599 90 – 735 100 – 831 120 – 991 132 – 1090
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™

0702 0802 0902 1002 1102 1202
Nom. Output
7.59 154 80.4 57 31.5 120.0 88 47.7 161.0 105 63.6 225.0 136 88.0 300.0 188 117 375 188 147
9.30 125 57.0 – 27.6 87.5 – 42.3 120.0 106 58.0 175.0 138 83.2 219.0 188 107 265 188 129
11.39 102 55.2 – 32.8 80.0 – 47.7 107.0 – 63.3 150.0 142 88.6 206.0 191 121 263 191 154
13.95 84 40.0 – 29.4 60.0 – 43.5 80.0 – 58.6 120.0 – 85.6 175.0 – 115 188 – 138
17.09 68 37.5 – 32.8 50.0 – 44.8 64.6 – 56.7 95.4 – 83.0 140.0 – 122 188 – 163
20.93 56 27.3 – 29.6 41.0 – 44.6 56.0 – 60.6 82.2 – 86.7 107.0 – 116 132 – 143
25.63 45 20.2 – 26.6 31.3 – 41.5 40.9 – 53.8 62.5 – 82.1 80.1 – 104 96 – 126
31.39 37 17.5 – 28.4 26.3 – 42.2 35.0 – 56.6 46.3 – 72.9 70.0 – 113 90 – 145
38.44 30 13.8 – 27.2 21.4 – 41.7 28.1 – 55.3 41.9 – 82.2 55.1 – 108 66 – 130
1302 1402 1502 1602 1702 1802

Nom. Output
7.59 154 450 234 175 500 234 194 639 300 257 750 300 300 939 400 366 1130 400 442
9.30 125 335 238 161 400 238 192 464 313 227 563 313 276 700 403 336 801 403 385
11.39 102 300 250 182 334 250 202 450 313 273 525 313 319 651 414 388 788 414 468
13.95 84 227 – 170 264 250 198 334 318 243 400 318 290 500 438 367 573 438 419
17.09 68 219 – 195 238 – 211 313 – 282 375 324 337 460 438 403 536 438 470
20.93 56 161 – 177 188 – 207 232 – 256 270 – 297 350 – 378 406 – 439
25.63 45 125 – 168 150 – 202 188 – 248 206 – 273 263 – 346 313 – 411
31.39 37 113 – 183 125 – 203 160 – 259 191 – 308 250 – 404 283 – 457 I
38.44 30 88 – 173 105 – 208 132 – 257 150 – 293 179 – 351 208 – 409
1902 2002 2102 2252 2402 2502

Nom. Output
7.59 154 1260 476 495 1400 476 550
9.30 125 1050 500 503 1130 500 543 1410 563 680 1640 563 791
CONSULT
11.39 102 900 500 529 993 500 584 1230 563 721 1290 563 759
FACTORY
13.95 84 700 525 499 750 525 536 1000 573 724 1200 573 874 1250 675 896 1250 675 885
17.09 68 637 525 553 708 525 615 834 600 730 910 600 801 1070 675 934 1200 675 1040
20.93 56 477 – 503 525 – 553 626 613 669 700 613 756 800 700 873 875 700 961
25.63 45 350 – 457 378 – 493 503 – 653 600 – 776 634 – 838 631 – 852
31.39 37 316 – 505 350 – 561 438 – 705 500 – 809 563 – 908 613 – 986
38.44 30 237 – 468 263 – 523 313 – 631 350 – 712 404 – 819 450 – 911

MAX-POWER ™

0703 0803 0903 1003 1103 1203
Nom. Output
31.39 37 25.0 – 41.2 37.5 – 60.3 47.5 – 76.5 64.7 – 103 90.0 – 143 113.0 – 180
38.44 30 20.6 – 40.8 31.3 – 61.6 37.5 – 75.1 55.4 – 108 71.8 – 140 87.5 – 170
47.08 25 16.2 – 38.2 25.0 – 60.3 32.9 – 78.4 45.0 – 108 62.5 – 150 75.2 – 180
57.66 20 13.5 – 38.6 21.0 – 60.9 26.3 – 77.8 37.5 – 110 50.0 – 146 60.0 – 176
70.62 16.5 11.3 – 40.0 17.5 – 62.6 22.5 – 80.1 31.3 – 110 40.0 – 145 50.0 – 179
86.50 13.5 9.0 – 39.2 13.5 – 58.6 17.6 – 77.1 25.0 – 109 33.4 – 147 40.9 – 180
105.9 11.0 6.3 – 34.0 11.3 – 61.1 13.2 – 70.3 19.0 – 101 26.3 – 141 31.3 – 168
129.7 9.0 5.3 – 34.2 9.4 – 61.5 10.7 – 70.9 16.0 – 102 21.2 – 137 26.3 – 170
158.9 7.4 4.5 – 35.6 7.5 – 60.7 8.8 – 72.0 13.2 – 105 17.7 – 139 22.5 – 177
194.6 6.0 3.5 – 34.6 5.3 – 52.5 6.3 – 62.9 11.3 – 108 14.2 – 139 17.2 – 171
238.4 4.9 2.6 – 31.0 4.0 – 48.1 5.2 – 63.6 7.9 – 94 10.5 – 124 13.2 – 157
1303 1403 1503 1603 1703 1803

Nom. Output
31.39 37 139.0 – 220 163.0 – 259 200.0 – 320 225.0 – 361 280.0 – 451 331.0 – 534
38.44 30 113.0 – 221 120.0 – 239 157.0 – 311 167.0 – 332 225.0 – 446 264.0 – 523
47.08 25 93.8 – 226 107.0 – 258 125.0 – 301 136.0 – 328 200.0 – 477 231.0 – 522
57.66 20 70.4 – 209 80.0 – 237 105.0 – 307 125.0 – 365 157.0 – 465 188.0 – 557
70.62 16.5 60.0 – 214 64.7 – 231 81.8 – 292 100.0 – 356 132.0 – 466 161.0 – 567
86.50 13.5 50.0 – 220 55.7 – 245 71.4 – 309 83.9 – 363 113.0 – 496 132.0 – 580
105.9 11.0 38.3 – 208 45.0 – 247 53.9 – 291 62.5 – 338 80.0 – 427 95.9 – 512
129.7 9.0 31.9 – 211 37.5 – 248 46.7 – 308 54.3 – 358 71.7 – 471 90.0 – 591
158.9 7.4 26.3 – 214 31.3 – 254 40.0 – 316 45.8 – 361 56.7 – 452 66.4 – 529
194.6 6.0 22.5 – 222 26.3 – 260 31.8 – 313 37.5 – 369 46.8 – 460 54.8 – 543
238.4 4.9 16.4 – 197 20.0 – 240 25.0 – 296 27.9 – 331 35.0 – 418 40.0 – 482
1903 2003 2103 2253 2403 2503

Nom. Output
31.39 37 400 – 642 450 – 718 537 – 860 625 – 1005 712 – 1138 800 714 1271
38.44 30 316 – 622 375 – 733 450 – 884 503 – 991 613 – 1199 647 – 1260
47.08 25 265 – 646 300 – 732 355 – 857 400 – 956 500 – 1200 538 – 1280
57.66 20 219 – 661 250 – 755 313 – 930 350 – 1030 409 – 1200 450 – 1310
70.62 16.5 188 – 675 206 – 741 250 – 896 271 – 971 330 – 1180 375 – 1340
86.50 13.5 157 – 698 175 – 769 202 – 893 225 – 1000 263 – 1110 279 – 1200
105.9 11.0 120 – 651 141 – 760 175 – 950 188 – 1030 225 – 1220 263 – 1410
129.7 9.0 105 – 687 120 – 781 138 – 908 150 – 1000 188 – 1230 204 – 1310
158.9 7.4 83 – 662 100 – 796 120 – 945 132 – 1030 149 – 1190 162 – 1300
194.6 6.0 65 – 626 71 – 690 88 – 856 94 – 934 113 – 1130 120 – 1200
238.4 4.9 46 – 553 53 – 627 63 – 764 67 – 833 80 – 990 88 – 1080
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™

0702 0802 0902 1002 1102 1202
Nom. Output
7.59 115 62.5 – 32.9 90 – 48.1 125 – 66.3 167 – 88.3 228 – 120 282 – 149
9.30 94 45 – 29.3 65.6 – 42.7 90 – 58.5 132 – 84.5 165 – 108 204 – 134
11.39 76 43.8 – 35.1 62.5 – 50.1 81 – 64.6 114 – 90 157 – 124 200 – 158
13.95 62 30 – 29.6 45.3 – 44.2 62.5 – 61.6 90 – 86.4 117 – 115 142 – 140
17.09 51 27.3 – 32.2 37.5 – 45.1 50 – 59 75 – 87.6 107 – 125 138 – 161
20.93 42 20.7 – 30.2 31.3 – 45.9 43.8 – 63.7 62.6 – 88.7 81.7 – 119 100 – 146
25.63 34 15.3 – 27.1 23.3 – 41.5 31.3 – 55.4 46.1 – 81.6 62.5 – 109 75 – 133
31.39 28 13.2 – 28.8 20 – 43.1 26.3 – 57.1 35 – 74.2 52.5 – 114 66 – 144
38.44 23 10.5 – 27.7 16.2 – 42.4 21.3 – 56.3 31.7 – 83.7 41.3 – 109 50 – 132
1302 1402 1502 1602 1702 1802

Nom. Output
7.59 115 350 – 183 407 375 218 500 471 270 574 471 309 750 626 393 875 626 459
9.30 94 263 – 170 300 – 199 359 – 237 438 – 289 532 – 344 625 – 404
11.39 76 233 – 190 273 – 229 350 – 286 400 – 326 502 – 402 586 – 468
13.95 62 175 – 176 203 – 205 263 – 257 300 – 293 375 – 371 450 – 443
17.09 51 159 – 191 188 – 224 232 – 281 279 – 338 356 – 420 415 – 489
20.93 42 125 – 185 143 – 213 178 – 263 207 – 305 265 – 385 313 – 454
25.63 34 94 – 169 113 – 205 138 – 245 157 – 280 200 – 353 229 – 405
31.39 28 82 – 178 95 – 207 125 – 272 150 – 325 188 – 409 225 – 489
I
38.44 23 65 – 173 80 – 213 100 – 262 113 – 297 136 – 359 158 – 418
1902 2002 2102 2252 2402 2502

Nom. Output
7.59 115 1000 751 526 1130 751 596 – – – – – – – – – – – –
9.30 94 800 – 515 875 800 565 1130 645 733 1270 645 826 1500 800 960 1600 800 1010
11.39 76 700 – 553 767 – 607 911 675 720 1000 675 790 1200 800 945 1270 800 997
13.95 62 525 – 503 569 – 546 752 700 729 900 700 879 945 806 910 944 806 896
17.09 51 500 – 584 563 – 658 640 – 754 701 700 830 822 – 969 900 824 1060
20.93 42 375 – 531 403 – 571 500 – 719 529 – 768 625 – 915 675 – 996
25.63 34 264 – 463 300 – 526 400 – 692 456 – 794 500 – 890 500 – 908
31.39 28 250 – 537 263 – 568 321 – 696 375 – 816 438 – 955 452 – 981
38.44 23 188 – 500 200 – 534 237 – 641 263 – 721 313 – 855 335 – 913

MAX-POWER ™

0703 0803 0903 1003 1103 1203
Nom. Output
31.39 28 18.8 – 39 27.7 – 60 35.9 – 77.9 50 – 107 70 – 150 83.3 – 179
38.44 23 15.6 – 41.5 22.9 – 60.6 27.6 – 74.5 43.8 – 114 54.9 – 144 65.9 – 172
47.08 18 12.5 – 39.4 18.9 – 61.2 25 – 79.7 33.4 – 108 45.3 – 148 56.9 – 183
57.66 15 10.2 – 39.1 15.8 – 61.8 20 – 80 27.4 – 109 37.5 – 147 45.3 – 178
70.62 12.3 8.3 – 39.4 13.2 – 63.6 17.5 – 84 23.1 – 110 31.3 – 152 37.5 – 181
86.50 10 6.8 – 39.7 10.2 – 59.7 13.2 – 77.8 18.8 – 112 26.3 – 156 31.3 – 185
105.9 8.2 4.7 – 34.3 8.3 – 60.8 10 – 71.8 14.3 – 102 19 – 137 23.3 – 168
129.7 6.7 4 – 35 6.9 – 60.9 8 – 71.6 12.5 – 107 16 – 139 20 – 174
158.9 5.5 3.3 – 34.7 5.3 – 59.1 6.5 – 72 10 – 107 13.3 – 140 16.3 – 172
194.6 4.5 2.6 – 34.9 4 – 53 4.7 – 63.4 8.1 – 104 10.6 – 140 13.2 – 173
238.4 3.7 2 – 32 3 – 48.4 4 – 65.2 6 – 96.6 7.8 – 125 9.5 – 151
1303 1403 1503 1603 1703 1803

Nom. Output
31.39 28 105 – 227 125 – 271 150 – 325 175 – 378 219 – 472 263 – 570
38.44 23 83 – 207 90 – 241 120 – 321 132 – 353 175 – 467 204 – 542
47.08 18 70 – 227 81 – 263 100 – 324 120 – 389 150 – 481 176 – 563
57.66 15 53.6 – 214 62.5 – 249 80 – 315 93.8 – 369 120 – 479 142 – 565
70.62 12.3 45 – 216 50 – 240 62.5 – 300 75 – 360 100 – 475 125 – 591
86.50 10 37.5 – 222 43.8 – 259 54.3 – 316 63.9 – 372 82 – 485 100 – 592
105.9 8.2 30 – 219 35 – 259 40.9 – 297 46.3 – 336 62.5 – 449 75 – 538
129.7 6.7 25 – 222 28.2 – 251 35.2 – 312 41 – 363 54.4 – 480 65.9 – 582
158.9 5.5 20 – 218 23.1 – 252 30 – 318 35 – 371 43.8 – 470 50.3 – 539
194.6 4.5 16.3 – 216 19.1 – 254 23.9 – 316 27.8 – 368 35.2 – 465 41.2 – 549
238.4 3.7 12.5 – 203 15 – 242 18.8 – 301 21 – 334 26.3 – 422 31.3 – 508
1903 2003 2103 2253 2403 2503

Nom. Output
31.39 28 300 – 648 332 – 713 409 – 883 462 – 999 563 – 1211 613 – 1310
38.44 23 250 – 661 276 – 725 350 – 923 383 – 1015 452 – 1189 500 – 1309
47.08 18 201 – 659 225 – 739 270 – 876 313 – 1000 375 – 1120 410 – 1310
57.66 15 164 – 665 188 – 762 230 – 923 263 – 1040 313 – 1240 350 – 1370
70.62 12.3 140 – 676 157 – 760 188 – 916 201 – 985 250 – 1210 281 – 1350
86.50 10 120 – 714 132 – 782 157 – 935 165 – 991 200 – 1180 219 – 1260
105.9 8.2 94 – 682 106 – 771 125 – 911 136 – 996 175 – 1260 200 – 1440
129.7 6.7 80 – 702 90 – 790 105 – 935 113 – 1020 137 – 1210 157 – 1360
158.9 5.5 63 – 672 75 – 802 90 – 956 96 – 1010 113 – 1210 125 – 1350
194.6 4.5 50 – 649 54 – 698 64 – 847 71 – 950 81 – 1110 90 – 1240
238.4 3.7 35 – 562 38 – 614 46 – 751 52 – 878 60 – 991 65 – 1080
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™

0702 0802 0902 1002 1102 1202
Nom. Output
7.59 95 52.5 – 33.4 75 – 48.5 105 – 67.7 141 – 90.1 200 – 127 238 – 152
9.30 77 37.5 – 29.5 55.2 – 43.4 75 – 58.9 113 – 87.2 140 – 111 175 – 139
11.39 63 35.4 – 34.1 52.5 – 50.9 70 – 67.6 95.3 – 91.1 132 – 126 165 – 158
13.95 51 25 – 29.8 38 – 44.9 52.5 – 62.5 75.2 – 87.2 100 – 119 120 – 143
17.09 42 22.8 – 32.5 31.3 – 45.6 40.9 – 58.3 62.5 – 88.3 90 – 127 120 – 169
20.93 34 17.5 – 30.8 26.3 – 46.5 35.7 – 62.7 52.5 – 89.9 70 – 123 84 – 147
25.63 28 13.2 – 28.3 20 – 43 26.3 – 56.2 40 – 85.5 52.5 – 111 63 – 133
31.39 23 10.7 – 28.2 16.3 – 42.6 21.3 – 56.1 30 – 76.7 43.8 – 115 56 – 146
38.44 19 8.8 – 28 13.5 – 42.8 17.8 – 56.8 26.5 – 84.6 35 – 112 44 – 139
1302 1402 1502 1602 1702 1802

Nom. Output
7.59 95 313 – 198 354 – 223 419 – 274 500 – 325 625 – 396 719 – 456
9.30 77 219 – 176 250 – 195 313 – 250 375 – 299 450 – 351 526 – 411
11.39 63 200 – 205 237 – 233 300 – 296 335 – 331 438 – 425 500 – 483
13.95 51 150 – 183 175 – 214 219 – 259 250 – 295 313 – 374 375 – 447
17.09 42 134 – 194 157 – 228 200 – 293 235 – 344 313 – 445 350 – 498
20.93 34 105 – 188 125 – 223 150 – 269 175 – 312 225 – 395 263 – 462
25.63 28 80 – 175 94 – 206 120 – 258 132 – 284 167 – 353 200 – 426
31.39 23 70 – 184 80 – 211 105 – 276 125 – 328 157 – 412 188 – 494
I
38.44 19 55 – 175 66 – 211 81 – 256 94 – 297 114 – 364 133 – 424
1902 2002 2102 2252 2402 2502

Nom. Output
7.59 95 834 – 531 927 – 591 – – – – – – – – – – – –

9.30 77 675 – 525 710 – 554 923 900 722 1130 900 885 1250 1130 962 1400 1130 1070
11.39 63 600 – 572 675 – 645 800 – 769 875 – 835 1000 – 950 1130 – 1070
13.95 51 450 – 521 500 – 580 636 – 745 753 – 888 800 – 931 800 – 917
17.09 42 409 – 578 454 – 641 539 – 767 613 – 877 700 – 998 755 – 1070
20.93 34 313 – 537 350 – 598 405 – 703 450 – 790 525 – 930 563 – 1000
25.63 28 225 – 476 250 – 529 323 – 680 382 – 804 407 – 876 408 – 896
31.39 23 202 – 525 219 – 571 269 – 706 313 – 824 354 – 930 379 – 994
38.44 19 157 – 505 165 – 533 200 – 658 225 – 746 263 – 867 282 – 927

MAX-POWER ™

0703 0803 0903 1003 1103 1203
Nom. Output
31.39 23 15.7 – 39.4 23.2 – 60.6 31.3 – 81.9 41 – 106 56.3 – 146 70 – 182
38.44 19 13.2 – 42.4 19.1 – 61.2 23.1 – 75.2 35.5 – 112 46.2 – 146 55.5 – 176
47.08 15 10.2 – 39.1 15.7 – 61.7 20.8 – 80.4 27.9 – 109 38.3 – 149 47.6 – 185
57.66 12.5 8.8 – 40.8 13.2 – 62.2 16.3 – 78.6 23 – 110 31.3 – 148 38 – 181
70.62 10.2 6.9 – 39.6 11.3 – 65.6 14.1 – 81.7 20 – 115 26.3 – 154 31.3 – 183
86.50 8.3 5.6 – 39.9 8.8 – 61.9 11.3 – 80.4 15.6 – 112 21.1 – 151 26.3 – 187
105.9 6.8 4 – 35.1 7 – 61.3 8.2 – 71.5 11.9 – 103 16 – 139 20 – 175
129.7 5.5 3.3 – 34.7 5.8 – 61.3 6.7 – 72 10 – 104 13.3 – 140 16.4 – 172
158.9 4.5 2.7 – 34.9 4.5 – 59.4 5.4 – 72 8.1 – 104 113 – 145 13.6 – 174
194.6 3.7 2.2 – 35.8 3.3 – 53.2 4 – 65 6.7 – 105 8.9 – 141 11.3 – 180
238.4 3 1.6 – 31.2 2.5 – 48.7 3.2 – 64 5 – 97.4 6.5 – 126 7.9 – 152
1303 1403 1503 1603 1703 1803

Nom. Output
31.39 23 90 – 234 105 – 275 125 – 326 143 – 374 188 – 493 219 – 574
38.44 19 70 – 224 75 – 243 100 – 322 107 – 344 142 – 455 175 – 563
47.08 15 60 – 235 70 – 276 83.5 – 327 100 – 392 125 – 485 150 – 582
57.66 12.5 45 – 217 52.5 – 253 65.7 – 312 80 – 380 100 – 483 120 – 580
70.62 10.2 37.5 – 217 41 – 238 52.5 – 304 62.5 – 363 82.9 – 476 105 – 600
86.50 8.3 31.3 – 224 35.5 – 254 45.5 – 320 53.6 – 377 70 – 500 82.4 – 589
105.9 6.8 25 – 221 28.1 – 250 35 – 307 40 – 351 52.5 – 455 62.5 – 542
129.7 5.5 20 – 215 23.5 – 252 30 – 322 35 – 375 45.4 – 484 55.1 – 588
158.9 4.5 16.4 – 217 20 – 265 25 – 320 28.7 – 368 35.8 – 464 43.8 – 568
194.6 3.7 13.5 – 217 16 – 256 20 – 320 23.2 – 370 30 – 479 35 – 564
238.4 3 10.2 – 199 12.5 – 244 15.1 – 292 17.5 – 338 22.5 – 436 25 – 490
1903 2003 2103 2253 2403 2503

Nom. Output
31.39 23 250 – 651 279 – 724 350 – 912 400 – 1045 458 – 1188 500 – 1291
38.44 19 204 – 651 231 – 735 285 – 910 322 – 1030 380 – 1207 415 – 1312
47.08 15 175 – 695 188 – 745 227 – 888 263 – 1020 313 – 1190 350 – 1350
57.66 12.5 137 – 674 157 – 769 200 – 969 225 – 1080 263 – 1240 284 – 1350
70.62 10.2 120 – 701 131 – 763 157 – 922 175 – 1030 208 – 1220 235 – 1370
86.50 8.3 96 – 690 113 – 807 132 – 942 138 – 996 163 – 1150 178 – 1240
105.9 6.8 76 – 665 90 – 788 105 – 925 113 – 1000 141 – 1240 160 – 1390
129.7 5.5 66 – 697 75 – 796 88 – 953 94 – 1020 120 – 1220 132 – 1380
158.9 4.5 53 – 679 62 – 808 75 – 960 80 – 1020 94 – 1210 105 – 1360
194.6 3.7 41 – 637 45 – 706 54 – 853 60 – 963 70 – 1110 75 – 1220
238.4 3 30 – 583 32 – 618 38 – 756 44 – 884 50 – 1000 54 – 1080
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™

0702 0802 0902 1002 1102 1202
Nom. Output
7.59 76 43.8 – 34.6 62.5 – 50.1 87.5 – 69.8 120 – 95.3 158 – 125 200 – 158
9.30 62 31.3 – 30.6 45.3 – 44.2 62.5 – 60.9 90 – 86.3 120 – 118 142 – 140
11.39 51 30 – 35.9 43.8 – 52.6 55.4 – 66.4 80 – 95 113 – 134 136 – 161
13.95 42 20.4 – 30.2 31.3 – 45.9 41.9 – 62 62.5 – 90 80.7 – 119 100 – 148
17.09 34 18.8 – 33.3 26.3 – 47.5 33.3 – 59 50 – 87.7 75 – 132 95 – 166
20.93 28 14.1 – 30.9 21.3 – 46.7 30 – 65.6 43.8 – 93.1 55.9 – 122 70 – 153
25.63 23 10.4 – 27.7 15.9 – 42.4 21.2 – 56.3 31.6 – 83.7 41.6 – 109 50 – 133
31.39 18 8.8 – 28.6 13.3 – 43 17.5 – 57 23.8 – 75.6 35 – 114 45 – 147
38.44 15 7.1 – 28.2 11.3 – 44.5 15 – 59.4 22.5 – 89.1 28.3 – 112 35 – 139
1302 1402 1502 1602 1702 1802

Nom. Output
7.59 76 250 – 196 300 – 234 350 – 283 402 – 324 525 – 413 613 – 482
9.30 62 176 – 175 203 – 202 251 – 248 313 – 309 375 – 369 450 – 443
11.39 51 165 – 202 200 – 244 238 – 292 276 – 338 350 – 421 408 – 489
13.95 42 125 – 190 141 – 213 176 – 258 202 – 296 263 – 390 313 – 463
17.09 34 113 – 202 125 – 224 159 – 290 200 – 363 250 – 442 287 – 508
20.93 28 88 – 195 100 – 222 125 – 279 142 – 316 188 – 411 219 – 478
25.63 23 64 – 173 80 – 217 95 – 253 113 – 302 136 – 359 158 – 418
31.39 18 56 – 182 65 – 212 84 – 273 100 – 326 132 – 429 150 – 490 I
38.44 15 45 – 179 54 – 214 66 – 259 76 – 297 94 – 372 113 – 446
1902 2002 2102 2252 2402 2502

Nom. Output
7.59 76 700 – 553 800 – 632 – – – – – – – – – – – –
9.30 62 533 – 515 600 – 581 788 – 767 900 – 879 1050 – 1010 1130 – 1070
11.39 51 500 – 592 536 – 636 638 – 756 701 – 830 822 – 969 900 – 1060
13.95 42 375 – 539 400 – 577 525 – 763 625 – 915 645 – 932 675 – 961
17.09 34 350 – 614 375 – 657 450 – 795 500 – 888 572 – 1010 625 – 1100
20.93 28 263 – 559 279 – 592 333 – 717 375 – 816 438 – 962 455 – 1010
25.63 23 188 – 495 200 – 526 264 – 691 313 – 818 328 – 877 335 – 913
31.39 18 165 – 532 175 – 566 225 – 730 263 – 858 300 – 979 313 – 1020
38.44 15 125 – 497 135 – 541 162 – 660 188 – 773 219 – 895 231 – 942

MAX-POWER ™

0703 0803 0903 1003 1103 1203
Nom. Output
31.39 18 13.2 – 41.2 18.9 – 61.2 25 – 81.2 33.5 – 108 45.9 – 148 56.9 – 183
38.44 15 10.6 – 42.2 15.5 – 61.8 18.8 – 76 30 – 118 38.1 – 150 45.5 – 179
47.08 12.3 8.3 – 39.4 13.2 – 64.1 17.5 – 84 22.7 – 110 31.3 – 151 40 – 193
57.66 10 6.9 – 39.7 10.7 – 62.7 13.3 – 79.4 18.8 – 112 26.3 – 155 31.3 – 185
70.62 8.2 5.6 – 39.9 8.7 – 63.1 11.5 – 82.3 15.6 – 112 20.4 – 149 26.3 – 190
86.50 6.7 4.5 – 40.1 6.9 – 60.9 8.9 – 78.7 13.2 – 116 17.5 – 156 21.3 – 189
105.9 5.5 3.2 – 34.7 5.6 – 61.7 6.7 – 72 9.6 – 104 13.2 – 143 15.9 – 173
129.7 4.5 2.7 – 34.9 4.7 – 62.1 5.4 – 72.4 8.1 – 104 11.3 – 148 13.3 – 173
158.9 3.7 2.2 – 36 3.7 – 62 4.5 – 74.5 6.6 – 105 9.4 – 149 11.3 – 179
194.6 3 1.8 – 35.2 2.7 – 53.4 3.2 – 64 5.4 – 105 7.2 – 141 8.8 – 173
238.4 2.4 1.3 – 31.3 2 – 48.3 2.6 – 64.3 4 – 96.5 5.3 – 126 6.4 – 153
1303 1403 1503 1603 1703 1803

Nom. Output
31.39 18 71.4 – 231 83.7 – 272 105 – 342 120 – 389 150 – 486 175 – 569
38.44 15 56.6 – 225 62.5 – 251 81.1 – 325 90 – 361 120 – 479 141 – 565
47.08 12.3 47.7 – 232 55.4 – 270 70 – 340 80 – 389 105 – 506 125 – 601
57.66 10 37.5 – 225 41.9 – 251 53.6 – 316 62.9 – 371 80.9 – 485 100 – 598
70.62 8.2 30 – 216 33.3 – 240 43.8 – 316 50 – 360 70 – 499 82.7 – 589
86.50 6.7 26.3 – 233 30 – 267 37.5 – 327 45 – 392 55.9 – 496 67 – 595
105.9 5.5 20 – 219 22.8 – 252 27.8 – 303 31.6 – 345 41.7 – 449 50.1 – 539
129.7 4.5 16.3 – 217 19.1 – 254 23.8 – 316 27.7 – 368 37.5 – 496 45 – 595
158.9 3.7 13.4 – 219 15.6 – 256 20 – 318 23.3 – 370 30 – 482 35 – 562
194.6 3 11.3 – 226 13.2 – 263 16.1 – 320 18.8 – 373 23.8 – 471 27.8 – 556
238.4 2.4 8.2 – 199 10 – 243 12.5 – 300 14.1 – 338 17.5 – 422 20..3 – 493
1903 2003 2103 2253 2403 2503

Nom. Output
31.39 18 203 – 656 229 – 736 281 – 911 318 – 1031 375 – 1208 410 – 1313
38.44 15 167 – 662 189 – 746 233 – 923 263 – 1045 313 – 1237 350 – 1374
47.08 12.3 137 – 676 157 – 775 188 – 927 201 – 985 250 – 1210 281 – 1350
57.66 10 113 – 690 125 – 764 157 – 945 188 – 1120 219 – 1300 232 – 1370
70.62 8.2 95.4 – 690 106 – 771 125 – 911 136 – 996 175 – 1260 200 – 1440
86.50 6.7 80 – 716 90 – 799 105 – 945 113 – 1020 132 – 1160 150 – 1300
105.9 5.5 62.5 – 682 75 – 815 87.5 – 960 93.8 – 1030 114 – 1250 132 – 1430
129.7 4.5 53.4 – 703 62.5 – 824 70 – 934 75 – 1010 93.8 – 1240 106 – 1370
158.9 3.7 43.8 – 703 50 – 802 60 – 952 64.2 – 1010 75.8 – 1210 82.9 – 1340
194.6 3 32.9 – 641 37.5 – 730 45 – 888 50 – 997 55.7 – 1120 62.5 – 1270
238.4 2.4 23.5 – 566 26.3 – 634 31.4 – 761 35.1 – 854 40.7 – 1000 45 – 1120
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™

0702 0802 0902 1002 1102 1202
Nom. Output
7.59 13 8.1 – 37.2 11.7 – 54.4 16.5 – 76.4 22.5 – 103 31.3 – 143 40 – 183
9.30 11 5.7 – 32.2 8.8 – 49.6 11.8 – 66.6 17.5 – 97.4 22.7 – 127 27.4 – 154
11.39 8.8 5.4 – 37.7 7.8 – 54.4 10.3 – 71.3 15 – 103 20.5 – 141 26.3 – 181
13.95 7.2 3.8 – 32.6 6 – 50.9 7.9 – 67.5 11.6 – 97.1 15.2 – 130 18.8 – 162
17.09 5.9 3.4 – 35.9 4.6 – 48.2 6.3 – 64.2 9.4 – 95.5 13.5 – 137 17.5 – 178
20.93 4.8 2.6 – 33.3 4 – 51 5.4 – 68.3 8 – 98.4 10.4 – 132 13.2 – 167
25.63 3.9 1.9 – 29.3 3 – 46.6 4 – 61.5 6 – 92.3 7.8 – 118 9.4 – 144
31.39 3.2 1.6 – 29.7 2.5 – 47 3.2 – 59.6 4.5 – 82.8 6.4 – 120 8.3 – 156
38.44 2.6 1.3 – 29.6 2 – 45.6 2.6 – 60.7 4 – 91.7 5.3 – 120 6.3 – 144
1302 1402 1502 1602 1702 1802

Nom. Output
7.59 13 50 – 227 60 – 272 70 – 329 80 – 374 105 – 479 120 – 548
9.30 11 35 – 196 40 – 220 50 – 287 60 – 344 75 – 428 87.5 – 492
11.39 8.8 31.9 – 226 37.7 – 267 46.3 – 329 53.6 – 381 70 – 488 80 – 555
13.95 7.2 22.9 – 201 26.9 – 236 33.2 – 283 37.7 – 321 50 – 430 60 – 515
17.09 5.9 20.3 – 212 23 – 236 31.3 – 331 37.5 – 394 47.1 – 483 55 – 564
20.93 4.8 15.8 – 204 18.8 – 242 23 – 297 27 – 346 35 – 443 40.9 – 517
25.63 3.9 11.9 – 187 15 – 236 17.8 – 275 20.3 – 315 26.3 – 404 30 – 461
31.39 3.2 10.2 – 194 11.9 – 226 15.5 – 293 18.8 – 355 23.5 – 444 27.7 – 524 I
38.44 2.6 8.2 – 189 10 – 231 12.5 – 285 14 – 319 17.5 – 402 20.2 – 464
1902 2002 2102 2252 2402 2502

Nom. Output
7.59 13 139 – 636 157 – 719 – – – – – – – – – – – –
9.30 11 105 – 587 113 – 636 150 – 849 179 – 1010 202 – 1120 219 – 1210
11.39 8.8 94.4 – 649 105 – 725 132 – 905 139 – 953 163 – 1110 178 – 1210
13.95 7.2 70.3 – 586 80 – 668 105 – 875 120 – 1000 125 – 1040 125 – 1030
17.09 5.9 63.8 – 648 70.1 – 712 87.5 – 897 94.3 – 971 113 – 1160 125 – 1280
20.93 4.8 50 – 616 53.3 – 657 63.8 – 797 70.4 – 890 81.5 – 1040 90 – 1160
25.63 3.9 35 – 534 37.9 – 578 50 – 760 60 – 909 63.2 – 977 64.2 – 1010
31.39 3.2 31.3 – 585 32.5 – 610 41.3 – 780 47.7 – 903 54.6 – 1030 60 – 1130
38.44 2.6 23 – 533 26.3 – 611 31.3 – 737 35 – 832 40 – 950 45 – 1060

MAX-POWER ™

0703 0803 0903 1003 1103 1203
Nom. Output
31.39 3.2 2.5 – 45.1 3.5 – 65.9 4.5 – 84.8 6.25 – 117 8.75 – 164 10.5 – 192
38.44 2.6 1.91 – 44.2 2.82 – 64.9 3.5 – 82 5.25 – 122 7.03 – 161 8.75 – 199
47.08 2.1 1.5 – 41.4 2.31 – 65.1 3.05 – 85.1 4.12 – 116 5.67 – 159 7.06 – 198
57.66 1.7 1.25 – 41.9 2 – 68 2.5 – 86.8 3.5 – 120 4.69 – 160 6 – 207
70.62 1.4 1 – 41.5 1.57 – 65.5 2.06 – 85.7 2.81 – 116 3.75 – 159 4.6 – 193
86.50 1.16 .81 – 41.4 1.26 – 64.1 1.58 – 81.2 2.27 – 117 3.12 – 161 4 – 206
105.9 .95 .57 – 35.8 1.02 – 64.5 1.19 – 74.4 1.75 – 109 2.34 – 147 3 – 190
129.7 .77 .47 – 35.8 .84 – 64.4 1 – 77.5 1.5 – 112 2 – 151 2.5 – 189
158.9 .63 .39 – 35.9 .65 – 61.2 .78 – 74.8 1.17 – 108 1.62 – 149 2.02 – 186
194.6 .51 .32 – 36 .48 – 54.7 .56 – 65.6 1 – 112 1.27 – 145 1.56 – 178
238.4 .41 .23 – 31.9 .35 – 49.3 .46 – 65.7 .7 – 98.4 .93 – 129 1.12 – 155
1303 1403 1503 1603 1703 1803

Nom. Output
31.39 3.2 11.3 – 256 15.5 – 292 19 – 360 22.5 – 428 27.6 – 522 32.4 – 610
38.44 2.6 10.6 – 231 11.3 – 263 15.1 – 352 16.1 – 374 22.5 – 521 26.5 – 614
47.08 2.1 8.8 – 248 10.3 – 290 13.2 – 371 15 – 422 18.8 – 526 22.5 – 628
57.66 1.7 6.91 – 240 7.88 – 273 10.1 – 345 11.9 – 407 15 – 521 17.9 – 620
70.62 1.4 5.44 – 227 6.25 – 260 7.76 – 324 9.38 – 392 12.5 – 515 15.1 – 623
86.50 1.16 4.7 – 242 5.38 – 277 6.91 – 350 8.14 – 412 10.2 – 526 12.5 – 640
105.9 .95 3.57 – 227 4.09 – 263 5.25 – 332 6 – 379 7.73 – 483 9.38 – 586
129.7 .77 2.92 – 226 3.5 – 270 4.25 – 328 5 – 385 6.69 – 514 8.2 – 630
158.9 .63 2.4 – 228 2.78 – 264 3.56 – 329 4.16 – 384 5.29 – 493 6.31 – 588
194.6 .51 1.95 – 225 2.29 – 265 2.87 – 330 3.34 – 385 4.25 – 488 5 – 579
238.4 .41 1.43 – 202 1.75 – 247 2.25 – 312 2.51 – 349 3.11 – 435 3.75 – 529
1903 2003 2103 2253 2403 2503

Nom. Output
31.39 3.2 38 – 713 43.8 – 818 52.9 – 993 60 – 1129 70.7 – 1322 80 – 1487
38.44 2.6 31.1 – 717 35.2 – 806 45 – 1033 50 – 1152 60 – 1374 63.6 – 1449
47.08 2.1 26.3 – 750 28.4 – 810 33.2 – 943 37.5 – 1060 45.5 – 1280 52.5 – 1460
57.66 1.7 20.6 – 728 23.1 – 814 30 – 1010 33.1 – 1140 40 – 1380 43.8 – 1500
70.62 1.4 17.5 – 735 20 – 839 22.5 – 953 25 – 1070 31.3 – 1320 35.2 – 1470
86.50 1.16 14.1 – 734 16 – 821 18.8 – 954 20 – 1040 25 – 1280 26.9 – 1350
105.9 .95 11.3 – 714 13.2 – 830 15.1 – 956 16.2 – 1030 20.6 – 1300 23.7 – 1490
129.7 .77 9.7 – 739 11.3 – 865 12.5 – 957 13.2 – 1030 17.5 – 1350 20 – 1540
158.9 .63 7.7 – 720 8.9 – 830 10.4 – 964 11.3 – 1030 13.5 – 1260 15 – 1410
194.6 .51 6 – 677 6.5 – 734 7.9 – 893 8.9 – 998 10.1 – 1160 11.3 – 1300
238.4 .41 4.2 – 585 4.6 – 643 5.6 – 788 6.3 – 885 7.5 – 1070 7.8 – 1130
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Table Of Actual Ratios I59

DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 7.500 7.595 7.500 7.493 7.493 7.425 7.692 7.457 7.493
9.30 9.273 9.246 9.249 9.087 9.326 9.180 9.391 9.196 9.167
11.39 11.344 11.393 11.344 11.239 11.239 11.602 11.623 11.404 11.239
13.95 14.025 13.870 13.989 13.630 13.989 14.344 14.190 14.064 13.630
17.09 16.795 12.209 16.795 16.640 16.640 17.050 17.262 16.775 16.620
20.93 20.764 20.950 20.711 20.180 20.711 21.080 21.075 20.687 20.157
25.63 25.204 25.490 25.169 25.169 25.137 25.699 25.422 25.094 24.955
31.39 30.992 30.681 30.946 30.120 30.913 31.025 30.913 30.946 30.565
38.44 37.619 37.330 37.606 37.566 37.518 37.822 37.290 37.606 37.841
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 30.049 31.133 31.034 30.652 31.041 30.938 31.220 30.908 30.346
38.44 38.443 37.684 38.334 37.813 37.790 38.250 38.115 38.470 37.518
47.08 45.748 46.411 46.264 46.361 46.562 46.793 46.830 46.361 47.415
57.66 55.658 56.362 57.333 57.320 56.684 57.705 56.793 57.705 58.622
70.62 68.723 69.413 69.194 68.639 70.332 69.278 69.332 68.639 69.683
86.50 84.928 84.459 85.217 84.863 85.621 85.434 84.084 85.434 86.153
105.90 105.002 104.729 103.689 102.919 104.175 105.627 104.870 103.689 105.029
129.70 126.398 127.430 128.744 124.247 125.393 128.361 128.033 127.516 126.798
158.90 153.776 157.120 158.557 153.614 152.564 157.823 153.221 154.763 154.579
194.60 189.873 191.276 192.683 186.460 189.894 191.791 191.099 190.854 187.468
238.40 230.471 232.724 234.448 232.554 230.469 233.812 230.531 231.932 232.092
For actual ratios over 20” C.D., consult factory.
Spiral Bevel Reducer WK 2 Values

I
DOUBLE REDUCTION
Unit Size
Nominal 1102 1302 1502 1702 1902 2102 2402
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002 2252 2502
7.59 0.40 .095 1.50 2.40 6.20 12.50 22.00 50.00 74.50 – –
9.30 0.30 0.65 1.10 1.70 4.50 9.05 16.00 36.00 54.00 97.50 168.00
11.39 0.20 0.50 0.80 1.55 3.20 6.55 11.50 26.00 49.50 70.50 126.00
13.95 0.02 0.35 0.60 1.20 2.50 4.75 8.05 19.00 36.50 67.00 94.50
17.09 0.15 0.35 0.45 0.90 1.90 4.35 7.20 14.00 27.00 50.00 70.50
20.93 0.10 0.25 0.40 0.65 1.75 3.30 5.55 13.00 19.50 36.50 65.50
25.63 0.10 0.20 0.30 0.65 1.30 2.40 4.15 9.70 18.50 27.00 49.00
31.39 0.10 0.20 0.25 0.45 1.00 1.70 3.10 7.15 13.50 26.00 47.00
38.44 0.10 0.20 0.25 0.45 0.95 1.70 3.10 6.80 13.00 25.00 45.50
TRIPLE REDUCTION
Unit Size
Nominal 1103 1303 1503 1703 1903 2103 2403
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003 2253 2503
31.39 0.09 0.15 0.35 0.45 1.20 1.93 3.30 6.70 11.50 20.50 34.50
38.44 0.07 0.10 0.25 0.35 0.85 1.40 2.30 4.90 8.10 14.40 24.50
47.08 0.06 0.10 0.20 0.35 0.60 1.25 2.00 4.20 7.85 13.50 22.50
57.66 0.05 0.07 0.20 0.25 0.45 0.90 1.45 2.90 5.55 9.75 15.50
70.62 0.04 0.07 0.19 0.20 0.45 0.70 1.10 2.15 4.25 7.25 11.50
86.50 0.04 0.06 0.15 0.20 0.35 0.55 0.85 1.95 3.85 5.25 10.50
105.90 0.04 0.05 0.10 0.14 0.20 0.55 0.75 1.50 3.00 4.75 7.45
129.70 0.03 0.05 0.10 0.14 0.20 0.40 0.55 1.15 2.20 3.70 7.00
158.90 0.03 0.05 0.10 0.13 0.19 0.40 0.55 1.10 2.10 3.60 6.90
194.60 0.02 0.05 0.10 0.13 0.19 0.35 0.55 1.10 2.10 3.55 6.85
238.40 0.02 0.05 0.08 0.13 0.19 0.35 0.55 1.10 2.05 3.50 6.80
EQUIVALENT MASS MOMENT OF INERTIA APPROXIMATE WK2 REFERRED TO INPUT SHAFT LB. FT.2

MAX-POWER ™
I60 Spiral Bevel Reducer Overhung Load Capacity

OUTPUT SHAFT
Overhung Load Capacity at Nominal Output RPM ◆
Output
RPM 0700 0800 0900 1000 1100 ➀
230 5100 7700 11400 11500 –
188 5600 8400 12200 12500 1500
154 6100 9000 12600 13500 2760
125 6800 9400 12800 14400 4960
102 6800 9400 12800 15300 6140
84 6800 9400 12800 15300 6760
68 6800 9400 12800 15300 7370
56 6800 9400 12800 15300 8020
45 & Lower 6800 9400 12800 15300 9370
Output
RPM 1200 1300 ➀ 1400 1500 ➀ 1600
230 13000 720 16600 500 20600
188 14000 1450 17900 500 22100
154 15000 2750 19400 2100 23900
125 16400 4850 21000 4600 25900
102 18000 6030 22500 5900 27700
84 20600 7080 24200 7600 29700
68 20600 7790 29700 9300 35200
56 20600 9650 29700 11700 35200
45 & Lower 20600 10400 29700 13900 35200
Output
RPM 1700 ➀ 1800 1900 ➀ 2000 Above 20”
230 10300 25100 21000 42900
C F ◆ Capacities are in pounds and are for radial loads
188 12300 27000 22900 45500 only. Load location at one shaft diameter distance
154 13700 29000 24600 45500
O A from shaft seal. If combination radial and thrust
125 15000 31000 26500 45500 N C loads are applied, please consult factory.
102 16800 34000 28600 45500 S T
➀ Style 1 units
84 18300 37000 31400 45500 U O
68 19900 39200 34400 45500
L R Sizes 2100 thru 4100, consult factory with required L10
56 21500 39200 36900 45500 Lifes.
45 & Lower 24100 39200 41000 45500
T Y
Spiral Bevel Reducer Thrust Capacity

DOUBLE & TRIPLE REDUCTIONS
Styles 1 & 4 Low Speed Shafts
Output RPM
Reducer 7.5 &
Size 230 155 100 68 45 30 20 13.5 Lower
0702-0703 4500 5400 6650 7950 8800 10500 12500 15000 18500
0802-0803 7150 8500 10000 12000 14000 16000 19000 22000 27000
0902-0903 8800 1000 12000 14000 15000 18000 22000 26000 31000
1002-1003 9000 11000 13000 15000 16000 19000 23000 27000 31000
1102-1103
1202-1203 10000 12500 15000 19000 20000 24000 28000 31000 31000
1302-1303
1402-1403 11000 13500 17000 20000 22000 27000 32500 37000 48000
1502-1503
1602-1603 11500 14000 17500 21000 24000 28000 32000 40500 52000
1702-1703
1802-1803 14000 17000 21500 26000 29000 35000 43000 50000 65000
1902-1903
2002-2003 15000 19000 24000 29000 32000 40500 49000 56000 74000
2102-2103
2252-2253 19000 23000 28500 36000 42000 46000 55000 60500 80000
2402-2403
2502-2503 20000 24000 30000 34500 43000 47500 56000 65000 85000
Note: Thrust capacities are listed in pounds and apply along axis of low speed shaft.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Overhung Load Capacity I61
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 ❉ 650 550 ❉ 780 2430 ❉ ❉ 3500
9.30 1100 1550 2050 1840 1970 3340 3010 3280 ❉
11.39 ❉ 580 ❉ ❉ 810 2640 1000 1370 2730
13.95 1100 1550 1650 2600 2020 3370 3000 3150 6900
17.09 1100 1180 910 760 860 2510 ❉ 1380 2200
20.93 1100 1550 1620 1790 1920 3330 3190 3060 6900
25.63 1100 1550 2060 2600 3200 4280 2750 5310 6900
31.39 1100 1550 2060 2600 2040 3440 3120 2930 6900
38.44 1100 1550 2060 2600 3180 4210 4330 5230 6900
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903

Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 400 620 400 800 650 550 180 200 2700
38.44 250 620 350 320 1550 2050 1600 1970 3500
47.08 490 620 400 1080 880 400 500 560 2800
57.66 540 620 120 1100 1550 1650 1710 1960 3670
70.62 540 620 480 1090 1180 900 710 620 2840
86.50 540 620 620 1100 1550 1640 1640 1950 3690 I
105.90 540 620 620 1100 1550 2060 2600 3200 4380
129.70 540 620 620 1100 1550 2060 2600 2040 3700
158.90 540 620 620 1100 1550 2060 2600 3180 4380
194.60 540 620 620 1100 1550 2060 2600 3400 5000
238.40 540 620 620 1100 1550 2060 2600 3400 5000
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 700 1180 1020 ❉ ❉ 2750 1840 ❉ 5720
9.30 1100 1550 2060 2520 2580 4070 3720 4380 ❉
11.39 720 1160 710 910 ❉ 2970 2180 1260 5130
13.95 1100 1550 2060 2550 2650 4160 1110 4180 6900
17.09 990 1550 1540 1550 810 2920 2170 1660 4940
20.93 1100 1550 2060 2520 2620 4140 4020 4170 6900
25.63 1100 1550 2060 2600 3400 5000 3560 6520 6900
31.39 1100 1550 2060 2600 2770 4340 3980 4080 6900
38.44 1100 1550 2060 2600 3400 5000 5270 6490 6900
❉ Consult factory for more information.

MAX-POWER ™
I62 Spiral Bevel Reducer Overhung Load Capacity
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903
Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 540 620 620 1100 1200 1000 720 810 3410
38.44 540 620 620 720 1550 2060 2550 2580 4400
47.08 540 620 620 1100 1500 1050 1470 1420 3620
57.66 540 620 620 1100 1500 2060 2400 2650 4540
70.62 540 620 620 1100 1500 1530 1470 1440 3700
86.50 540 620 620 1100 1500 2060 2390 2620 4560
105.90 540 620 620 1100 1500 2060 2600 3400 5290
129.70 540 620 620 1100 1500 2060 2600 2790 5290
158.90 540 620 620 1100 1500 2060 2600 3400 5290
194.60 540 620 620 1100 1500 2060 2600 3400 5290
238.40 540 620 620 1100 1500 2060 2600 3400 5290
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 1020 1550 1440 1280 2080 3100 2400 ❉ 6900
9.30 1100 1550 2060 2600 3100 4800 4360 5230 4000
11.39 1070 1550 1230 1480 1260 3340 2790 2030 6900
13.95 1100 1550 2060 2600 3200 4810 2440 5080 6900
17.09 1100 1550 2060 2600 1210 3600 2830 2030 6900
20.93 1100 1550 2060 2600 3180 4850 4730 5090 6900
25.60 1100 1550 2060 2600 3400 5000 4290 7560 6900
31.39 1100 1550 2060 2600 3370 5000 4700 5060 6900
38.44 1100 1550 2060 2600 3400 5000 5500 7570 6900
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903

Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 540 620 620 1100 1550 1440 1200 2100 4100
38.44 540 620 620 1070 1550 2060 2600 3100 5000
47.08 540 620 620 1100 1550 1230 1410 1980 4320
57.66 540 620 620 1100 1550 2060 2600 3200 5000
70.62 540 620 620 1100 1550 2060 2130 2030 4420
86.50 540 620 620 1100 1550 2060 2600 3230 5000
105.90 540 620 620 1100 1550 2060 2600 3400 5000
129.70 540 620 620 1100 1550 2060 2600 3400 5000
158.90 540 620 620 1100 1550 2060 2600 3400 5000
194.60 540 620 620 1100 1550 2060 2600 3400 5000
238.40 540 620 620 1100 1550 2060 2600 3400 5000
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Overhung Load Capacity I63
DOUBLE REDUCTION
Nominal 1102 1302 1502 1702 1902
Ratio 0702 0802 0902 1002 1202 1402 1602 1802 2002
7.59 1100 1550 2060 2150 1890 3630 3320 ❉ 6900
9.30 1100 1550 2060 2600 3400 5000 5390 6630 6900
11.39 1100 1550 2060 2510 2050 3960 3790 3340 6900
13.95 1100 1550 2060 2600 3400 5000 3520 6570 6900
17.09 1100 1550 2060 2600 2090 4680 3870 3430 6900
20.93 1100 1550 2060 2600 3400 5000 5500 6640 6900
25.60 1100 1550 2060 2600 3400 5000 5420 7800 6900
31.39 1100 1550 2060 2600 3400 5000 5500 6670 6900
38.44 1100 1550 2060 2600 3400 5000 5500 7800 6900
TRIPLE REDUCTION
Nominal 1103 1303 1503 1703 1903

Ratio 0703 0803 0903 1003 1203 1403 1603 1803 2003
31.39 540 620 620 1100 1550 2060 2150 2000 4500
38.44 540 620 620 1100 1550 2060 2600 3400 5000
47.08 540 620 620 1100 1550 2060 2400 2910 5000
57.66 540 620 620 1100 1550 2060 2600 3400 5000 I
70.62 540 620 620 1100 1550 2060 2600 3000 5000
86.50 540 620 620 1100 1550 2060 2600 3400 5000
105.90 540 620 620 1100 1550 2060 2600 3400 5000
129.70 540 620 620 1100 1550 2060 2600 3400 5000
158.90 540 620 620 1100 1550 2060 2600 3400 5000
194.60 540 620 620 1100 1550 2060 2600 3400 5000
238.40 540 620 620 1100 1550 2060 2600 3400 5000

MAX-POWER ™
I64 Spiral Bevel Reducer Dimensions
DOUBLE & TRIPLE REDUCTION (BHE)
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Dimensions I65

Reducer Size
Double Triple AB AD AE A B C D E F G H J K
0702 0703 8.88 16.00 8.25 20.50 1.25 8.75 4.50 4.75 3.75 4.38 4.88 1.38 13.25
0802 0803 9.88 18.44 9.50 23.00 1.50 10.38 4.62 5.00 4.25 5.25 5.00 1.50 15.00
0902 0903 10.88 20.31 10.50 25.00 1.50 11.00 5.25 5.75 5.00 5.00 5.00 1.62 16.00
1002 1003 12.00 22.31 11.50 29.00 1.50 13.00 6.38 6.62 5.50 6.25 6.25 1.75 18.00
1102 1103
14.12 26.56 13.75 33.25 1.62 15.00 7.12 7.88 5.75 8.00 8.00 2.00 20.00
1202 1203
1302 1303
16.50 30.88 15.75 38.00 2.00 17.00 8.00 9.00 6.75 9.25 8.50 2.25 22.00
1402 1403
1502 1503
18.62 35.38 18.00 43.50 2.25 19.50 8.75 10.75 8.00 9.50 10.00 2.50 25.00
1602 1603
1702 1703
20.62 38.88 20.00 50.25 2.25 23.50 10.00 12.25 9.00 12.25 11.00 2.75 28.50
1802 1803
1902 1903
23.25 43.88 23.00 56.75 2.50 26.25 11.50 14.00 10.00 14.00 13.25 2.75 32.25
2002 2003

Double Triple L M N O P Q➀ Keyseat R S T U V
0702 0703 5.38 1.25 6.50 8.62 1.00 3.00 .75 x .38 4.62 5.19 12.12 6.88 6.75
0802 0803 6.25 1.25 7.75 9.88 1.12 3.50 1.00 x .50 5.50 6.06 13.75 7.81 7.56
0902 0903 6.75 1.25 8.00 10.38 1.12 4.00 1.00 x .50 6.25 6.75 15.00 8.31 8.12
1002 1003 7.50 1.50 9.50 11.38 1.25 4.50 1.25 x .62 7.25 7.88 17.00 9.19 9.12
1102 1103
8.38 1.62 10.00 12.38 1.25 5.00 1.25 x .62 8.25 8.69 18.81 10.06 10.00
1202 1203
1302 1303
1402 1403
9.25 1.75 12.00 13.56 1.50 6.00 1.25 x .62 9.25 10.12 21.38 11.44 11.25
I
1502 1503
10.50 2.00 13.50 15.06 1.75 6.50 1.50 x .75 10.50 11.00 23.62 12.69 12.50
1602 1603
1702 1703
12.38 1.88 16.50 16.81 1.75 7.25 1.75 x .62 11.88 12.38 27.25 15.94 14.31
1802 1803
1902 1903
13.50 2.62 21.25 18.31 2.00 7.75 2.00 x .75 12.75 13.25 29.38 16.19 15.62
2002 2003
Reducer Double Reduction Triple Reduction Approx. Wt/Lbs

Size High Speed Shaft High Speed Shaft Double Triple
Double Triple AA W X Y Z➀ Keyseat AA W X Y Z➀ Keyseat Red. (02) Red. (03)
0702 0703 28.38 23.50 4.00 3.50 1.50 .38 x .19 30.06 24.75 3.56 3.06 1.12 .25 x .12 650 670
0802 0803 32.75 27.62 4.75 4.25 1.75 .38 x .19 34.50 28.62 4.00 3.88 1.25 .25 x .12 880 920
0902 0903 35.31 29.90 5.50 5.00 2.00 .50 x .25 36.50 29.62 4.00 3.88 1.25 .25 x .12 1090 1200
1002 1003 39.38 33.38 6.00 5.50 2.25 .50 x .25 41.50 33.50 4.00 3.50 1.50 .38 x .19 1375 1520
1102 1103
46.25 38.88 6.75 6.25 2.50 .62 x .31 49.00 39.62 4.75 4.25 1.75 .38 x .19 2120 2250
1202 1203
1302 1303
54.31 45.31 7.50 7.25 3.00 .75 x .38 54.94 43.94 5.50 5.00 2.00 .50 x .25 3030 3300
1402 1403
1502 1503
60.50 49.75 7.88 7.31 3.00 .75 x .38 62.00 49.38 6.00 5.50 2.25 .50 x .25 4230 4510
1602 1603
1702 1703
69.12 57.88 9.38 8.88 3.50 .88 x .44 70.75 56.88 6.75 6.25 2.50 .62 x .31 6050 6325
1802 1803
1902 1903
76.25 62.50 9.50 9.00 3.50 .88 x .44 81.06 65.31 7.50 7.25 3.00 .75 x .38 8690 8965
2002 2003

MAX-POWER ™

Unit Size
Double Triple AB AD AE B C D E F G J K
2102 2103
26.50 47.25 23.50 4.00 21.50 10.00 13.00 5.50 2.75 3.00 33.25
2252 2253
2402 2403
28.50 54.75 27.25 5.00 24.25 10.75 13.50 6.00 3.00 3.25 36.50
2502 2503

Double Triple L M N O P Q Keyseat R S T U V
2102 2103
14.12 2.50 22.75 9.50 2.25 9.00 2.50 x .88 16.50 16.75 35.00 18.75 18.50
2252 2253
2402 2403
15.75 2.50 25.00 10.00 2.25 9.75 2.50 x .88 16.75 17.50 38.00 20.50 19.62
2502 2503

Reducer High Speed High Speed Double Triple
Double Triple AA A H W X Y Z Keyseat AA A H W X Y Z Keyseat (02) (03)
2102 2103
89.25 64.50 12.00 74.00 11.25 10.75 3.75 .88 x .44 90.88 68.50 16.00 72.25 7.88 7.31 3.00 .75 x .38 12650 14575
2252 2253
2402 2403
95.75 70.50 12.00 78.50 11.25 10.75 3.75 .88 x .44 102.00 79.25 20.75 82.75 9.38 8.88 3.50 .88 x .44 16225 17000
2502 2503

Refer to FOOTE-JONES for dimension and weights of larger reducers not shown.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Vertical Units I67
SPECIAL FEATURES OF VERTICAL TYPES
DRY WELL CONSTRUCTION LUBRICATION

A specially constructed dry well prevents leakage at the low A rotary, positive displacement, self-priming pump delivers oil
speed seal on vertical shaft-down reducers. The low speed to the high speed, upper low speed and upper intermediate
shaft is surrounded by a vertical column that rises above the speed bearings on all sizes and types of double and triple
oil level and shields the lower low speed bearing and seal reduction vertical spiral bevel speed reducers. The pump is a
from the oil bath. The top of the column is covered by an standard industrial model positively connected to the spiral
umbrella-type labyrinth seal. The lower bearing is greased bevel gear shaft and operates with either direction of rotation.
through a pressure fitting. Piping extends under the housing. For applications where units operate at extremely slow speed
A pressure relief fitting equalizes grease pressure to prevent or have long periods of idle time, a separate motor-driven
damage to the low speed shaft seal from excessive pump will be provided at a nominal charge. Single reduction
lubrication. Grease through the pressure relief fitting alerts units are splash lubricated.
the maintenance man that lubrication is completed.
SELECTION
VBHE reducers are available in double reduction sizes 0702
through 2502 and triple reduction sizes 0703 through 2503
(larger sizes are available on application) Refer to spiral
Bevel rating tables for available ratios and horsepower
ratings.

MAX-POWER ™
DOUBLE & TRIPLE REDUCTION (VBHE)
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™

Reducer Size
Double Triple AB AE A B C D E F G H J K
0702 0703 8.75 7.25 22.62 2.25 9.06 4.06 5.00 3.75 5.69 5.69 1.38 21.00
0802 0803 9.88 8.00 26.00 2.50 10.50 5.00 5.50 4.50 6.25 6.25 1.50 22.75
0902 0903 11.50 8.75 28.25 2.50 11.62 4.88 6.75 4.50 7.38 7.38 1.75 25.75
1002 1003 12.25 9.62 31.75 2.75 13.12 5.75 7.38 5.50 7.62 7.62 1.75 28.25
1102 1103
14.50 10.75 37.50 3.00 15.75 6.75 9.00 5.75 10.12 10.12 2.25 31.75
1202 1203
1302 1303
16.75 12.00 43.50 3.50 18.25 7.62 10.62 6.75 11.62 11.62 2.50 36.00
1402 1403
1502 1503
18.75 13.25 48.00 3.75 20.25 8.38 11.88 7.00 13.50 13.50 2.50 41.00
1602 1603
1702 1703
21.25 15.75 55.75 3.75 24.12 10.12 14.00 7.00 17.38 17.38 2.75 46.00
1802 1803
1902 1903
23.00 16.75 59.00 3.50 26.00 10.00 16.00 6.00 20.50 20.50 3.00 51.00
2002 2003

Double Triple L M N P Q➀ Keyseat R S T U
0702 0703 9.38 1.12 14.25 1.00 3.00 .75 x .38 4.62 5.19 12.12 15.75
0802 0803 10.12 1.25 15.25 1.12 3.50 1.00 x .50 5.50 6.06 13.75 17.25
0902 0903 11.62 1.25 16.75 1.12 4.00 1.00 x .50 6.25 6.75 15.00 19.25
1002 1003 12.75 1.38 19.25 1.25 4.50 1.25 x .62 7.25 7.88 17.00 21.00
1102 1103
14.25 1.62 21.25 1.25 5.00 1.25 x .62 8.25 8.69 18.81 23.00
1202 1203
1302
1402
1303
1403
16.25 1.75 24.00 1.50 6.00 1.50 x .75 9.25 10.12 21.38 26.25 I
1502 1503
18.50 2.00 28.00 1.75 6.50 1.50 x .75 10.50 11.00 23.62 28.75
1602 1603
1702 1703
21.00 2.00 32.00 1.75 7.25 1.75 x .62 11.88 12.38 27.25 33.00
1802 1803
1902 1903
22.75 2.75 37.00 2.00 7.75 2.00 x .75 12.75 13.25 29.38 –
2002 2003
Reducer Double Reduction Triple Reduction Approx. Wt/Lbs

Size High Speed Shaft High Speed Shaft Double Triple
Double Triple AA AD W X Y Z➀ Keyseat AA AD W X Y Z➀ Keyseat Red. (02) Red. (03)
0702 0703 28.25 17.25 23.50 4.00 3.50 1.50 .38 x .19 29.94 16.00 24.75 3.56 3.06 1.12 .25 x .12 700 750
0802 0803 32.75 19.00 27.62 4.75 4.25 1.75 .38 x .19 34.50 18.62 28.62 4.00 3.88 1.25 .25 x .12 750 1000
0902 0903 35.94 20.25 29.94 5.50 5.00 2.00 .50 x .25 37.12 20.00 29.62 4.00 3.88 1.25 .25 x .12 1190 1330
1002 1003 39.62 21.88 33.38 6.00 5.50 2.25 .50 x .25 41.75 21.62 33.50 4.00 3.50 1.50 .38 x .19 1500 1660
1102 1103
46.62 23.25 38.88 6.75 6.25 2.50 .62 x .31 49.38 23.00 39.62 4.75 4.25 1.75 .38 x .19 2300 2500
1202 1203
1302 1303
54.56 25.75 45.31 7.50 7.25 3.00 .75 x .38 55.19 26.00 43.94 5.50 5.00 2.00 .50 x .25 3300 3630
1402 1403
1502 1503
60.50 29.00 49.75 8.00 7.31 3.00 .75 x .38 62.12 28.25 49.38 6.00 5.50 2.25 .50 x .25 4675 4950
1602 1603
1702 1703
69.62 32.75 57.75 9.38 8.88 3.50 .88 x .44 71.38 32.50 59.88 6.75 6.25 2.50 .62 x .31 6710 6930
1802 1803
1902 1903
76.00 34.75 62.50 9.50 9.00 3.50 .88 x .44 80.81 34.75 65.31 7.50 7.25 3.00 .75 x .38 9570 9900
2002 2003

MAX-POWER ™

Double Triple AB AD AE B E F J K L M N P Q Keyseat R S T U
2102 2103
25.50 38.75 18.75 3.50 18.00 6.00 3.00 56.00 25.25 2.75 20.00 2.25 9.00 2.50 x .88 16.50 16.75 35.00 36.88
2252 2253
2402 2403
27.50 41.25 20.00 4.00 19.50 7.00 3.25 60.00 27.25 2.75 21.50 2.25 9.75 2.50 x .88 16.75 17.50 38.00 39.25
2502 2503

Unit High Speed High Speed Double Triple
Double Triple AA A C D G H W X Y Z Keyseat AA A C D G H W X Y Z Keyseat (02) (03)
2102 2103
88.25 68.00 30.50 12.50 24.50 24.50 74.00 11.25 10.75 3.75 .88 x .44 93.12 75.50 34.25 16.25 28.25 28.25 72.25 7.88 7.31 3.00 .75 x .38 13900 16000
2252 2253
2402 2403
94.75 73.50 32.75 13.25 25.75 25.75 78.50 11.25 10.75 3.75 .88 x .44 101.75 84.50 38.25 18.75 31.25 31.25 82.75 9.38 8.88 3.50 .88 x .44 17900 18700
2502 2503

Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
COOLING FAN
Reducer AF AG Reducer AF AG Fan Cooling Multipliers

Size 02 03 02 03 Size 02 03 02 03 Fan cooling increases the thermal
07 21.62 – 1.88 – 16 45.50 46.50 4.25 2.88 capacity of non-ventilated units. Use
08 25.25 – 2.38 – 17 52.88 52.38 4.88 3.50
multipliers to determine capacities
attainable with one fan.
09 27.19 – 2.75 – 18 52.88 53.38 4.88 3.50
10 30.50 – 2.88 – 19 57.50 61.06 5.00 4.25

Heat exchangers are to be used where
11 35.38 37.25 3.50 2.38 20 57.50 61.06 5.00 4.25 thermal capacity exceeds the fan
12 35.38 37.25 3.50 2.38 21 69.00 – 5.00 – cooling range.
13 41.50 41.25 3.81 2.75 22 69.00 – 5.00 –
14 41.50 41.25 3.81 2.75 24 73.50 – 5.00 – Input RPM 1750 1170
15 45.50 46.50 4.25 2.88 25 73.50 – 5.00 –
One fan on power 1.75 1.45
input extension

MAX-POWER ™
I72 Spiral Bevel Reducer Backstop Clutch
Selections are based on the normal motor rating (250% maximum starting torque) with no overload for infrequent application of
6 times per 8 hours or less with at least one minute between applications. For selections at higher speeds, for more frequent
applications or overloading, refer to your FOOTE-JONES Sales Representative.
Backstops require regular inspection and maintenance as parts become worn to prevent a failure and conveyor roll back.
Centrifugal Throw Out (CTO) type backstops are available at nominal additional cost and provide longer service life. They are
particularly applicable in the larger sizes (700 and up) and at higher speeds. For ultimate reliability and reduced maintenance, a
low speed holdback on the head shaft should be considered.
For ambient temperatures exceeding 100°F or for severe dust or abrasive environments, refer to your FOOTE-JONES Sales
Representative, as CTO type backstops or special seals and lubrication may be required.
Where there is more than one drive on a head shaft, refer to your FOOTE-JONES Sales Representative for backstop selections.
CAUTION : The backstop reservoir requires a separate fill of oil. Oils with EP or similar additives should not be used. Refer
to the maintenance manual for detailed instructions before operation.
Sprag-type ball bearing backstops are available for all sizes of speed reducers. They grip instantaneously to prevent reverse rota-
tion without backlash. The backstop is mounted on an extension of the first intermediate shaft on the BHE reducers 0702-2003
and is enclosed in its own housing with its own reservoir for oil; therefore, the backstop does not run at the motor RPM indicated.
Refer backstop selections for reducers larger than 2003-2003 to your FOOTE-JONES representative.
Double Reduction Units

Backstop locations as shown are correct for assemblies RC,
RC-LCC and LCC.
On all other assemblies the backstop is on the opposite side.
Triple Reduction Units

Backstop locations as shown are correct for assemblies LC, RCC,
and LC-RCC.
On all other assemblies the backstops are on the opposite side.
NOTE: “X” dimensions must be checked to determine if there will be any interference between
the backstop and a coupling or sprocket mounted on the low speed shaft extension.
BHE DOUBLE & TRIPLE REDUCTION BACKSTOP CLEARANCE DIMENSIONS

Reducer 0702 0802 0902 1002 1102 1202 1302 1402 1502 1602 1702 1802 1902 2002
Size 0703 0803 0903 1003 1103 1203 1303 1403 1503 1603 1703 1803 1903 2003
A 7.25 8.12 8.75 9.63 10.63 10.63 11.88 11.88 13.13 13.13 15.00 15.00 16.50 16.50
C (02) 7.00 8.00 9.00 10.00 12.00 12.00 14.00 14.00 16.00 16.00 18.00 18.00 20.00 20.00
C (03) 12.00 14.00 15.00 17.00 20.00 20.00 23.00 23.00 26.00 26.00 30.00 30.00 34.00 34.00
BACKSTOP DIMENSIONS
Size 500 600 700 750 800 900 1000
L 7.00 7.25 9.75 11.75 12.25 13.00 14.00
B 4.25 5.38 7.12 8.75 10.00 12.00 15.00
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Spiral Bevel Reducer Direct Mount Conveyor Drive I73
SHAFT MOUNT STYLE

The Direct Mount arrangement has been designed as a standard modification for all double and triple reduction Spiral Bevel
Reducers, sizes 1302/3 to 2502/3. Capacities are from 625 to over 2000 horsepower.
A hollow or flanged hub Low Speed Shaft allows direct mounting on the conveyor head shaft and the drive connection can be
either by key, keyless compression connection or flanged hub. This feature eliminates the costly low speed coupling and struc-
tural or foundation sub-base.
I
Drive alignment is maintained by a rigid fabricated steel bedplate with a torque arm or a NEMA Flange Style Motor Mount with
Coupling.
Refer to standard Spiral Bevel tables for ratios and horsepower/torque ratings.
FLANGE MOUNT STYLE

MAX-POWER ™
DIRECT MOUNT CONVEYOR DRIVE (SMBHE)

Reducer Approx. Wt/Lbs.
Size “Q” Double Triple
Double Triple AB AD A B D G H K Max.✝ R S U Red. Red.
1302 1303
16.50 11.75 38.62 23.25 12.25 7.75 2.0 13.00 6.00 26.0 2.5 11.75 3850 4100
1402 1403
1502 1503
18.62 13.75 43.12 25.75 13.50 9.00 2.0 14.75 6.50 29.5 2.5 13.00 5350 5600
1602 1603
1702 1703
20.62 15.25 47.25 28.38 15.88 10.50 2.5 14.75 7.50 29.5 3.0 15.00 7320 7520
1802 1803
1902 1903
23.25 17.25 53.00 32.12 17.25 11.50 2.5 16.75 8.50 33.5 3.0 16.00 10300 10600
2002 2003
2102 2103
26.50 17.50 48.88 35.12 19.62 12.50 3.0 20.25 9.50 40.5 3.5 18.00 15500 17250
2252 2253
2402 2403
28.50 19.50 66.38 38.88 21.00 14.00 3.0 20.25 10.00 40.5 3.5 20.00 20150 20900
2502 2503
Reducer Size Double Reduction Triple Reduction

Double Triple AA AC W X Y Z Keyseat AA AC W X Y Z Keyseat
1302 1303
61.81 91.0 45.31 7.50 7.25 3.000 .75 x .38 60.44 91.0 43.94 5.50 5.00 2.000 .50 x .25
1402 1403
1502 1503
68.38 103.0 49.75 7.88 7.31 3.000 .75 x .38 68.00 103.0 49.38 6.00 5.50 2.250 .50 x .25
1602 1603
1702 1703
78.50 117.0 57.88 9.38 8.88 3.500 .88 x .44 77.50 117.0 56.88 6.75 6.25 2.500 .62 x .31
1802 1803
1902 1903
85.75 126.0 62.50 9.50 9.00 3.500 .88 x .44 88.56 126.0 65.31 7.50 7.25 3.000 .75 x .38
2002 2003
2102 2103
100.50 138.0 74.00 11.25 10.75 3.750 .88 x .44 98.76 138.0 72.25 7.88 7.31 3.000 .75 x .38
2252 2253
2402 2403
107.00 155.0 78.50 11.25 10.75 3.750 .88 x .44 111.38 155.0 82.88 9.38 8.88 3.500 .88 x .44
2502 2503
✝ Refer to FOOTE-JONES for low speed shaft bore for keyed connection.
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Accessories I75
MOTOR MOUNTS
TOP SCOOP
MOTOR MOUNT MOTOR MOUNT
TOP MOUNTS
Motor mounts located on top of the reducer are available for Parallel Shaft and Spiral Bevel reducers. These drives are furnished
with belt drive and guard.
SCOOP MOUNTS
Scoop style motor mounts are available for Parallel Shaft and Spiral Bevel reducers through a 444T frame size. These drives are
furnished with coupling and guard.
FLANGE MOUNTS I
Flange style mounts are available on vertical units through 326T frame size. These drives are furnished with coupling.
BASE PLATES
The welded steel, one-piece machined complete design of Max-Power™ base plates insure rigidity and stability even in
the roughest applications.
These base plates are available for all Parallel and Spiral Bevel reducer models. They may be designed to
accommodate various types of drivers and couplings. With FOOTE-JONES’ standardized building block approach and
CAD technology, the optimum custom base plate can be designed and delivered in just weeks.

MAX-POWER ™
I76 Accessories
HEAT EXCHANGER SELECTION

Required Service HP: 1150 @ 1750 RPM Input & 635 RPM Output
Service Factor: 1.25
I. Reducer Selection
Required Reducer Capacity = Service HP x Service Factor
1150 x 1.25 = 1440 @ 1750 RPM
Select from rating table size 1301 HLE 2.756:1 Ratio
II. Heat Exchanger System Selection

1301 HLE, 2.756:1 Ratio @ 1750 RPM Input Rates:
1475 HP Mechanical
193 HP Thermal
Since thermal capacity is lower than service requirement a heat exchanger is required. HP shown in chart is
additional HP obtained by the use of a heat exchanger. Add to reducer thermal rating for total thermal capacity.
1. Compute additional thermal capacity requirement
Service HP – Thermal Capacity of Reducer
1150 – 193 = 957
2. Select from chart heat exchanger system #3
3. Comput water requirement in GPM.
= HP x .0077
GPM Water = 957 x .0077
= 7.4
Since the answer is less than minimum flow shown in the table, use table value of 10 GPM.
Heat Input Notes:

Exchanger Min. Water Max. Water RPM 1. Heat exchanger systems apply to single, double and triple
reduction HLE and BHE reducers. Consult your FOOTE-JONES
System No. Flow GPM Flow GPM 1750 1170 870 720 580
representative for dimensions of units not shown.
1 3.3 23 157 154 150 147 141
2 3.3 12 515 480 440 360 250 2. Oil circulates through heat exchanger shell, water circulates
through tubes.
3 10 30 1100 1020 940 780 650
4 10 30 1940 1810 1690 1610 1230 3. Selections are based on 80°F. For water temperature higher than
80°F, consult your FOOTE-JONES representative.
5 14.5 57 2800 2630 2460 2460 1720
Phone: (605) 225-0360 Fax: (605) 225-0567

MAX-POWER ™
Accessories I77
PUMP LUBRICATION
The standard splash type lubrication on FOOTE-JONES HLE and BHE reducers provides oil to all parts continuously during
operation, without mechanical devices. When pump lubrication is required, such as incline mounting, the table below provides
the proper selection for mechanical driven pumps mounted on the reducer high speed shaft. For variable input speeds, the
pump should be selected at the lowest input RPM. Optional accessories include oil filters and flow indicator with micr-switch
for actuating an alarm in the event of low oil flow and oil thermometer.
The pump is a standard industrial rotary, positive displacement, self priming type connected to the reducer high speed
shaft and operates in either direction of rotation. If the pump is located on an intermediate shaft extension, refer to
FOOTE-JONES for the proper pump selection. A motorized pump is optional and should be referred to FOOTE-JONES for
selection.
The lube pump for BHE reducers is mounted on the intermediate

shaft; therefore, the selection will be determined by the reducer
input speed and the high speed gear ratio. Refer all selections to
your FOOTE-JONES Sales Representative.
I
MECHANICAL DRIVEN PUMP MOTORIZED LUBE PUMP
Input Shaft RPM Input Shaft RPM
Reducer Size 1750 1170 870 580 Reducer Size 1750 1170 870 580
0701 #0 #0 #0 #0 1501
#1 #2 #2 #3
0702 1601
#0 #0 #0 #1
0703 1502
#2 #3 #3 #4
0801 #0 #0 #0 #1 1602
0802 1503
#0 #0 #1 #2 #2 #3 #3 #4
0803 1603
0901 #0 #0 #1 #2 1701
#2 #3 #3 #4
1801
0902
#0 #1 #1 #2 1703
0903 #3 #4 #4 #5
1802
1001 #0 #1 #1 #2
1703
1002 #3 #4 #4 #5
#1 #2 #2 #2 1803
1003
1901
1101 #3 #4 #4 #5
#1 #2 #2 #2 2001
1201
1902
1102 #3 #4 #4 #5
#2 #2 #2 #3 2002
1202
1903
1103 #3 #4 #4 #5
#2 #2 #2 #3 2003
1203
2102
1301 #3 #4 #4 #5
#2 #2 #2 #3 2252
1401
2103
1302 #4 #4 #5 –
#2 #2 #3 #3 2253
1402
2402
1303 #4 #4 #5 –
#2 #2 #3 #3 2502
1403
2403
#4 #5 #5 –
2503

MAX-POWER ™
I78 Accessories
IMMERSION HEATERS
Immersion heaters are available for all sizes of parallel shaft and spiral bevel speed reducers. Heater elements are rated at 11 watts
density per square inch to prevent degradation of lubricating oil. A thermostat is furnished with the immersion heater and is pre-set at
the factory for +40°F.
The standard immersion heater is furnished with a general purpose, sheet metal enclosure. A combination moisture tight, explosion
resistant enclosure is available for the immersion heater and controller. They are U.L. listed and meet Class I Groups C & D, Division 1
& 2, Class II Groups, E, F, & G, Division 1 & 2 and Class III, Division 1 & 2 specifications. For explosion proof heaters, add “X” to heater
number listed below. Assemblies are available in 1/60/120/240 volts AC only.
The selection tables below are for maintaining +40°F ambient and include heater part number and quantity required for reducer.
High Speed
+20°F (20° Rise 0°F (40° Rise -20°F (60° Rise -40° (80° Rise +20°F (20° Rise 0°F (40° Rise -20°F (60° Rise -40° (80° Rise
Ambient In Oil Temp.) In Oil Temp.) In Oil Temp.) In Oil Temp.) In Oil Temp.) In Oil Temp.) In Oil Temp.) In Oil Temp.)
0701 (1) #211 (1) #311 (1) #212 (1) #213 (1) #218 (1) #218 (1) #218 (1) #218
0702
0703 (1) #211 (1) #211 (1) #212 (1) #213 (1) #218 (1) #218 (1) #218 (1) #218
0801 (1) #211 (1) #211 (1) #213 (1) #214 (1) #218 (1) #218 (1) #218 (1) #218
0802
0803 (1) #211 (1) #212 (1) #213 (1) #215 (1) #218 (1) #218 (1) #218 (1) #218
0901 (1) #211 (1) #212 (1) #213 (1) #215 (1) #218 (1) #218 (1) #218 (1) #218
0902
0903 (1) #211 (1) #213 (1) #215 (1) #216 (1) #218 (1) #218 (1) #218 (1) #218
1001 (1) #211 (1) #213 (1) #214 (1) #214 (1) #218 (1) #218 (1) #218 (1) #218
1002
1003 (1) #211 (1) #214 (1) #216 (2) #214 (1) #218 (1) #218 (1) #219 (1) #220
1201 (1) #211 (1) #214 (1) #216 (2) #214 (1) #218 (1) #218 (1) #219 (1) #220
1202
1203 (1) #212 (1) #215 (2) #214 (2) #215 (1) #218 (1) #218 (1) #220 (1) #220
1401 (1) #212 (1) #215 (1) #216 (2) #215 (1) #218 (1) #218 (1) #219 (1) #221
1402
1403 (1) #213 (1) #216 (2) #215 (2) #216 (1) #218 (1) #219 (1) #221 (1) #222
1601 (1) #212 (1) #216 (1) #217 (1) #217 (1) #218 (1) #219 (1) #220 (1) #221
1602
1603 (1) #214 (1) #217 (2) #216 (2) #217 (1) #218 (1) #220 (1) #222 (1) #220
1801 (1) #213 (1) #216 (1) #217 (2) #216 (1) #218 (1) #219 (1) #221 (1) #222
1802
1803 (1) #215 (1) #217 (1) #659 (2) #217 (1) #218 (1) #221 (1) #222 (2) #221
2001 (1) #215 (1) #217 (1) #659 (2) #217 (1) #218 (1) #220 (1) #222 (2) #220
2002
2003 (1) #216 (1) #659 (1) #660 (2) #659 (1) #219 (1) #222 (1) #661 (2) #222
2252
2253 (1) #217 (1) #660 (2) #659 (2) #660 (1) #220 (1) #661 (2) #222 (2) #661
2502 (1) #217 (2) #217 (2) #659 (3) #659 (1) #221 (2) #221 (2) #222 (3) #222
2503 (1) #217 (2) #659 (2) #660 (3) #660 (1) #222 (2) #222 (3) #222 (3) #661
OPTIONAL RATIOS HLE & BHE

Notes:
Reduction Nominal Optional Ratios 1. Nominal ratios may vary up to ±4%.
Single Reduction 1.00, 1.23, 1.50, 2.03, 2.49, 3.04, 3.73, 4.57, 5.59, 6.85
2. The output torque rating for a unit with an
Double Reduction 8.39, 10.28, 12.59, 15.41, 18.88, 23.12, 28.32, 34.68 optional ratio is the same as that for the next
higher or next lower AGMA ratio of the unit,
Triple Reduction 34.68, 42.48, 52.03, 63.72, 78.04, 95.58, 117.1, 143.4, 175.6, 215.0, 263.4 whichever is the least.
OIL SEALS
All HLE & BHE reducers are equipped with spring loaded double
lip oil seals that effectively retain oil and resist the entry of dust.
Grease Purged Seals are available for operation in taconite or

similar dust laden atmospheres. The assembly below consists of
the two standard oil seals.
Phone: (605) 225-0360 Fax: (605) 225-0567

Spiral Bevel Reducers & Parallel Shafts

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Spiral Bevel Reducers & Parallel Shafts

Uploaded by

Copyright:

Available Formats

Table of Contents

PARALLEL SHAFT DESIGN ADVANTAGES . . . . . . . . . . . . . . . . . . . . . . .I2

E-mail: sales@footejones.com Web: www.footejones.com

I2 Parallel Shaft Reducer Design Advantages

• Easily Maintained – Adjustable without removing housing cover.

• Higher Capacity – Large surface areas provide increased thermal capacity.

Phone: (605) 225-0360 Fax: (605) 225-0567

Parallel Shaft Reducer Application Data I3

E-mail: sales@footejones.com Web: www.footejones.com

I4 Parallel Shaft Reducer Application Data

OPERATING SPEEDS Modifications such as special seals, heaters, heat exchangers,

Phone: (605) 225-0360 Fax: (605) 225-0567

Parallel Shaft Reducer Application Data I5

1 (U-D) 2 (U-U) 3 (U-UD)

E-mail: sales@footejones.com Web: www.footejones.com

I6 Parallel Shaft Reducer Ratings

1750 RPM INPUT (@ 1.0 S.F.)

0702 0802 0902 1002 1102 1202 1302

38.44 45 20 – 26.6 31 – 41.6 40 – 53.8 60 – 80.3 80 – 106 95 – 126 125 – 164

0703 0803 0903 1003 1103 1203 1303

Phone: (605) 225-0360 Fax: (605) 225-0567

Parallel Shaft Reducer Ratings I7

1750 RPM INPUT (@ 1.0 S.F.)

1402 1502 1602 1702 1802 1902 2002

1403 1503 1603 1703 1803 1903 2003

E-mail: sales@footejones.com Web: www.footejones.com

I8 Parallel Shaft Reducer Ratings

1750 RPM INPUT (@ 1.0 S.F.)

2102 2252 2402 2502 2652 2802 2982

9.30 188 2050 300 651 2330 300 741 – – – – – –

2103 2253 2403 2503 2653 2803 2983

238.4 7.4 90 – 730 100 – 820 120 – 984 132 – 1080

Phone: (605) 225-0360 Fax: (605) 225-0567

Parallel Shaft Reducer Ratings I9

1170 RPM INPUT (@ 1.0 S.F.)

0702 0802 0902 1002 1102 1202 1302

38.44 30 14 – 27.2 21 – 41.7 28 – 55.3 41 – 82.2 56 – 108 65 – 130 88 – 176

0703 0803 0903 1003 1103 1203 1303

E-mail: sales@footejones.com Web: www.footejones.com

I10 Parallel Shaft Reducer Ratings

1170 RPM INPUT (@ 1.0 S.F.)

1402 1502 1602 1702 1802 1902 2002

1403 1503 1603 1703 1803 1903 2003

Phone: (605) 225-0360 Fax: (605) 225-0567

Parallel Shaft Reducer Ratings I11

1170 RPM INPUT (@ 1.0 S.F.)

2102 2252 2402 2502 2652 2802 2982

31.39 37 438 – 703 500 – 801 563 – 924 613 – 1010

2103 2253 2403 2503 2653 2803 2983

38.44 30 453 – 893 503 – 991 600 – 1150 675 – 1300

57.66 20 300 – 875 327 – 957 400 – 1150 453 – 1300

194.6 6.0 88 – 854 96 – 934 107 – 1070 120 – 1190

238.4 4.9 60 – 735 70 – 859 80 – 981 88 – 1080

E-mail: sales@footejones.com Web: www.footejones.com

I12 Parallel Shaft Reducer Ratings

870 RPM INPUT (@ 1.0 S.F.)

0702 0802 0902 1002 1102 1202 1302

0703 0803 0903 1003 1103 1203 1303

Phone: (605) 225-0360 Fax: (605) 225-0567

Parallel Shaft Reducer Ratings I13

870 RPM INPUT (@ 1.0 S.F.)

1402 1502 1602 1702 1802 1902 2002

1403 1503 1603 1701 1803 1903 2003
