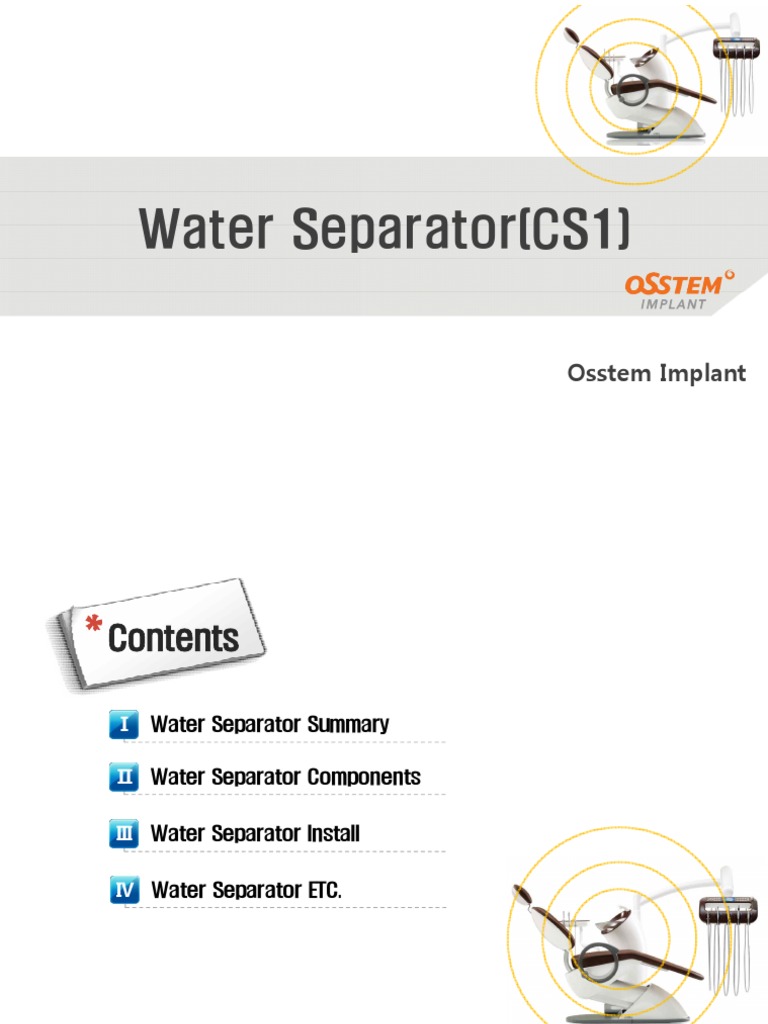

Water Separator(CS1)

Osstem Implant
 * Contents
Ⅰ Water Separator Summary

Ⅱ Water Separator Components

Ⅲ Water Separator Install

Ⅳ Water Separator ETC.

2/16
Ⅰ Water Separator Summary
Water Separator
Device for separate wastewater(bloods and spit) and air form suction
(Include Suction Valve)

CS1 Diagram Water Separator(CS1) Pipe Line

wastewater
Air and
wastewater
Air and

Drainage
Suction
A: Wastewater & Air
B: Suction Unit(Motor Suction)
C: Drainage

3/16
Ⅰ Water Separator Summary
Water Separator
K3 Unit + Water Separator(CS1)

K3 Unit System Configuration K3 Unit Internal Mounting

Wastewater
Spittoon & Air
Suction L / S
Water
Wastewater & Air

Separator Wastewater
(CS1) & Air

Dry
Suction
Air
suction

T-Pipe

Inside K3 Unit 배
수

4/16
Ⅱ Water Separator Components
Mechanic Parts #1
Image Name Code No. (DURR) Q’TY

7117-57 (CS 1
Combi-Sepamatic
Water Separator(CS1) 1
with place
selection valve)

DurrConnect20 Socket Ø=20mm 0700-720-20E 2

DurrConnect20 Socket Ø=17mm 0700-720-17E 2

DurrConnect20 Elbows 90° 0700-700-04E 3

5/16
Ⅱ Water Separator Components
Mechanic Parts #2
Image Name Code No. (DURR) Q’TY

DurrConnect20 Double connector 0700-700-13E 1

DurrConnect20 Extension piece 0700-700-17E 7

DurrConnect20 T-junction (3 Pieces)

0700-700-08E 1
with syphon 2 x plug, 1 x socket

CS1 BRK - 1

6/16
Ⅱ Water Separator Components
Electrical Parts
Image Name Code No. Q’TY

AC 24V power cable - 1

Suction valve cable - 1

7/16
Ⅲ Water Separator Install
Mechanic Part install #1

§ CS1 mounting location

<Pic.1> <Pic.2>
Air
regulator

Direction

M4 sems screw
Water Filter
1EA

<Pic.1>, separate water filter from gauge <Pic.2>, rotate air regulator about 30° to
bracket and move to front side of unit, re- the front side and avoid interfere with CS1
mounting water filter Ass’y.

8/16
Ⅲ Water Separator Install
Mechanic Part install #2

§ CS1 Ass’y mounting and connecting

<Pic.3> <Pic.4> Cut Suction filter hose
Mounting CS1 Ass’y & connect to CS1 inlet
to Unit frame

<Pic.4>, cut suction filter hose and connect

<Pic.3>, mounting CS1 Ass’y to unit frame
to CS1 inlet.

9/16
Ⅲ Water Separator Install
Mechanic Part install #3

§ Connect CS1 drainage

<Pic.5> <Pic.6>
Suction Valve Spittoon hose CS1 drainage

Dry Suction
Unit hose Drainage

<Pic.5>, connect Suction Valve(Place

<Pic.6>, connect CS1 drainage and spittoon
Selector Valve) and Dry Suction Unit(Motor
hise and drainage
Suction) hose

10/16
Ⅲ Water Separator Install
Electrical wiring
CN4

Operation Power
(24V DC)

<K3 UNIT Part> CS-1

Main PCB

~
CS-1 Main power(24V AC)

Transformer

suction(wet) unit
Suction start signal (On/Off))
<K3 CHAIR Part>

11/16
Ⅲ Water Separator Install
Electrical wiring (Caution)
§ Check require before wiring

① ②

Measuring
AC level SK6
suction unit
<K3 CHAIR Part> Power PCB
Suction start signal cable Remove

Check before wiring to Suction

① measure AC voltage level → suction power ON → measure suction start signal voltage level
② If value is within (±24~230V), remove spark killer(SK6) located in K3 chair power PCB

12/16
Ⅲ Water Separator Install
Electrical Wiring (Water Seperator Main Power line)

§ K3 Chair part
①

Remove

SK6
Transformer 24V AC outlet Spittoon Valve main power Cable

① Find power cable from Trans. AC 24V( ) and remove insulation.

13/16
Ⅲ Water Separator Install
Electrical Wiring (Water Seperator Main Power line)

§ K3 UNIT Part

② ③ ④

A B

Remove CS-1 cover Connect K3 main CN4 /connector cable

/ check socket location main power cable

② In K3 UNIT part, remove CS1 cover and check socket ‘A’, ’B’ location
(‘B’ socket already cable connected)
③ connect socket ‘A’ and main power cable( ), and cover CS1 cover
④ In K3 UNIT part, connect K3 Main PCB CN4 ( )and cable from socket ‘B’

14/16
Ⅳ Water Separator ETC.
CS1 DATA

15/16
