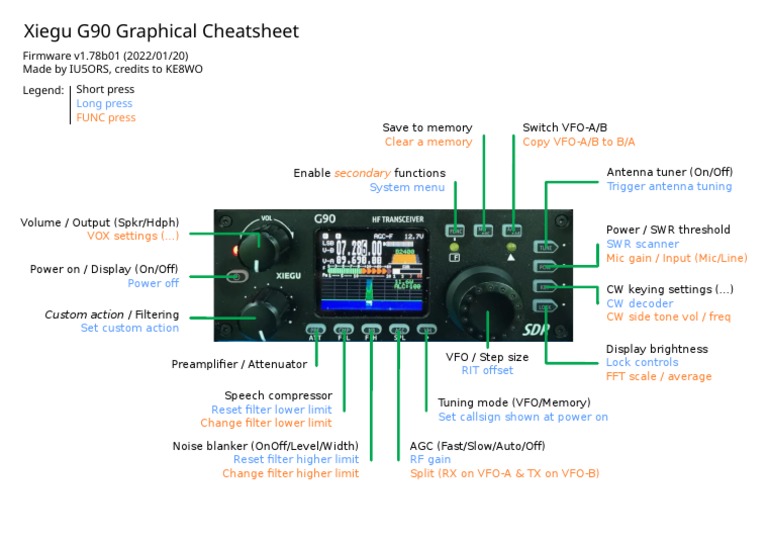

Xiegu G90 Graphical Cheatsheet

Firmware v1.78b01 (2022/01/20)


Made by IU5ORS, credits to KE8WO
Legend: Short press
Long press
FUNC press
Save to memory Switch VFO-A/B
Clear a memory Copy VFO-A/B to B/A

Enable secondary functions Antenna tuner (On/Off)


System menu Trigger antenna tuning

Volume / Output (Spkr/Hdph)


Power / SWR threshold
VOX settings (...)
SWR scanner
Mic gain / Input (Mic/Line)
Power on / Display (On/Off)
Power off
CW keying settings (...)
CW decoder
Custom action / Filtering CW side tone vol / freq
Set custom action
Display brightness
VFO / Step size
Preamplifier / Attenuator Lock controls
RIT offset
FFT scale / average
Speech compressor
Tuning mode (VFO/Memory)
Reset filter lower limit
Set callsign shown at power on
Change filter lower limit

Noise blanker (OnOff/Level/Width) AGC (Fast/Slow/Auto/Off)


Reset filter higher limit RF gain
Change filter higher limit Split (RX on VFO-A & TX on VFO-B)
