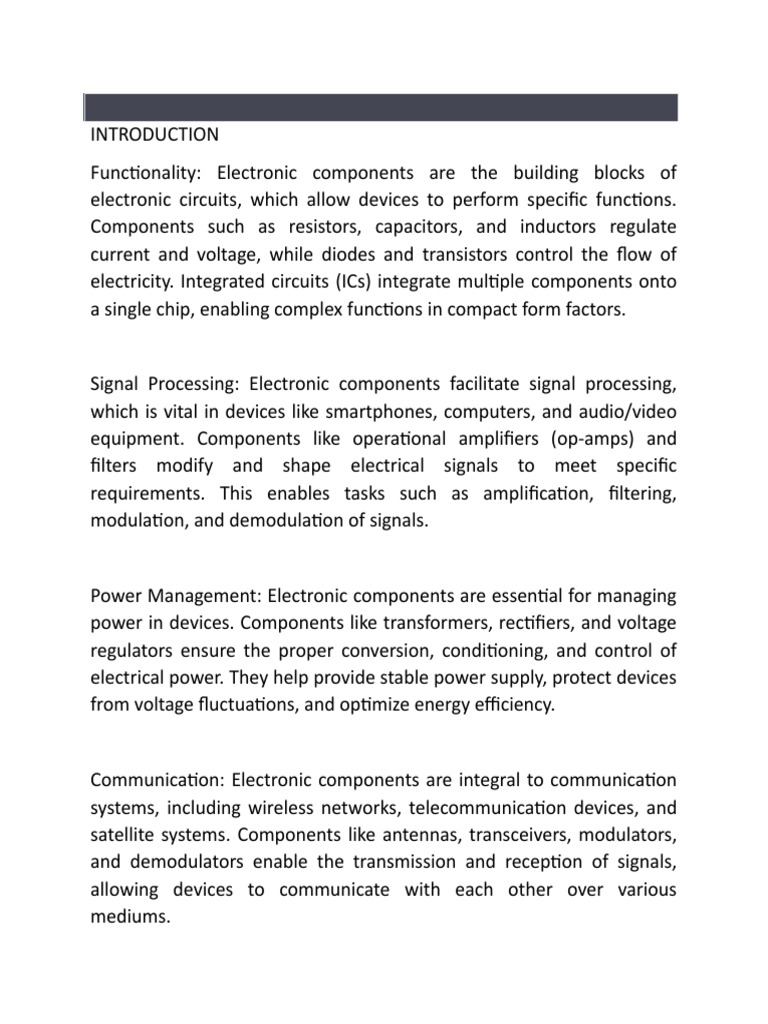

INTRODUCTION

Functionality: Electronic components are the building blocks of

electronic circuits, which allow devices to perform specific functions.
Components such as resistors, capacitors, and inductors regulate
current and voltage, while diodes and transistors control the flow of
electricity. Integrated circuits (ICs) integrate multiple components onto
a single chip, enabling complex functions in compact form factors.

Signal Processing: Electronic components facilitate signal processing,

which is vital in devices like smartphones, computers, and audio/video
equipment. Components like operational amplifiers (op-amps) and
filters modify and shape electrical signals to meet specific
requirements. This enables tasks such as amplification, filtering,
modulation, and demodulation of signals.

Power Management: Electronic components are essential for managing

power in devices. Components like transformers, rectifiers, and voltage
regulators ensure the proper conversion, conditioning, and control of
electrical power. They help provide stable power supply, protect devices
from voltage fluctuations, and optimize energy efficiency.

Communication: Electronic components are integral to communication

systems, including wireless networks, telecommunication devices, and
satellite systems. Components like antennas, transceivers, modulators,
and demodulators enable the transmission and reception of signals,
allowing devices to communicate with each other over various
mediums.
Control and Automation: Electronic components are used extensively in
control systems and automation. Microcontrollers and programmable
logic controllers (PLCs) integrate various electronic components to
control and monitor industrial processes, robotics, home automation,
and automotive systems. Sensors and actuators work in conjunction
with electronic components to sense inputs and initiate appropriate
actions.

Medical and Healthcare: Electronic components are critical in medical

devices and healthcare systems. They are used in diagnostic equipment,
patient monitoring systems, implantable devices, and prosthetics.
Components like sensors, amplifiers, and microcontrollers enable
accurate measurements, data processing, and device control, leading to
improved medical care and quality of life.

Consumer Electronics: Electronic components are pervasive in everyday

consumer electronics, such as smartphones, televisions, gaming
consoles, and wearable devices. They provide functionalities like user
interfaces, data storage, audio/video processing, and wireless
connectivity, enhancing our entertainment, communication, and
productivity experiences.
TYPES OF COMPONENTS:
Resistors:
Function: Resistors are passive electronic components that limit the
flow of electric current in a circuit. They are used to control current,
divide voltage, provide load resistance, and protect components from
excessive current.
Symbols: The symbol for a resistor in circuit diagrams is a zigzag line. It
is typically labeled with the resistance value.
Color Coding: Most resistors have color bands that indicate their
resistance value, tolerance, and sometimes temperature coefficient.
The color code follows a standardized pattern where each color
represents a specific digit or multiplier.
Capacitors:
Purpose: Capacitors store electrical energy and release it when needed.
They are used for various purposes, such as smoothing voltage
fluctuations, filtering noise, storing and releasing energy in timing
circuits, and blocking DC while allowing AC signals to pass.
Types: There are different types of capacitors, including electrolytic,
ceramic, tantalum, film, and variable capacitors. Each type has specific
characteristics suitable for different applications.
Electrolytic capacitors are polarized and provide high capacitance for
applications like power supply filtering.
Ceramic capacitors are commonly used for bypassing, decoupling, and
high-frequency applications due to their small size and low cost.
Inductors:
Description: Inductors are passive components that store energy in a
magnetic field when an electric current passes through them. They
resist changes in current and store energy in the form of a magnetic
field. Inductors are used in circuits for filtering, energy storage,
impedance matching, and inductance-based applications.
Symbols: The symbol for an inductor in circuit diagrams is a series of
loops or a coil. It is typically labeled with the inductance value.
Diodes:
Role: Diodes are electronic components that allow the flow of electric
current in one direction while blocking it in the opposite direction. They
are primarily used for rectification, converting AC to DC, and for
protection against reverse voltage. Diodes also have applications in
signal demodulation, voltage clamping, and switching circuits.
Transistors:
Functions: Transistors are active electronic components with three
layers of semiconductor material. They can act as amplifiers, controlling
larger currents or voltages with a smaller input signal. Transistors also
function as switches, either allowing or blocking the flow of current
based on the applied voltage.
Types: There are different types of transistors, including bipolar junction
transistors (BJTs) and field-effect transistors (FETs). BJTs use both
electron and hole currents, while FETs rely on the flow of majority
charge carriers (either electrons or holes) controlled by an electric field.
Transistors can be further classified into different configurations, such
as common emitter, common base, and common collector for BJTs.
Integrated Circuits (ICs):
Introduction: Integrated circuits, or ICs, are miniaturized electronic
circuits that incorporate multiple electronic components, such as
transistors, resistors, and capacitors, on a single chip of semiconductor
material. They provide complex functions in compact and reliable
packages.
Various Forms: ICs come in various forms, including microcontrollers,
operational amplifiers (op-amps), memory chips, digital logic circuits,
and specialized application-specific integrated circuits (ASICs). Each
form serves specific purposes, such as controlling devices, performing
mathematical operations, storing data, and executing specific tasks.
Advantages: ICs offer several advantages, such as miniaturization,
improved performance, reduced power consumption, increased
reliability, and cost-effectiveness. They have revolutionized the
electronics industry by enabling the development of advanced
technologies and devices.
Basic Electronic Component Circuits:

Series Resistor Circuit:

In a series circuit, resistors are connected end to end, creating a single
pathway for current to flow.
The total resistance (R_total) of a series resistor circuit is the sum of the
individual resistances (R1, R2, R3, etc.).
R_total = R1 + R2 + R3 + ...
For example, if you have three resistors in series with values R1 = 10
ohms, R2 = 20 ohms, and R3 = 30 ohms, the total resistance would be
R_total = 10 + 20 + 30 = 60 ohms.
Voltage Drops in Series Resistor Circuit:
In a series circuit, the total voltage (V_total) supplied by the power
source is divided among the resistors.
The voltage drop across each resistor is proportional to its resistance.
The voltage drop (V1, V2, V3, etc.) across each resistor can be calculated
using Ohm's Law: V = I * R, where V is the voltage drop, I is the current
flowing through the circuit, and R is the resistance.
The current flowing through all the resistors in a series circuit is the
same.
Therefore, the total voltage supplied by the power source (V_total) is
equal to the sum of the voltage drops across individual resistors.
V_total = V1 + V2 + V3 + ...
For example, if you have a power source supplying 12 volts in a series
circuit with three resistors, and the current flowing through the circuit is
2 amperes, you can calculate the voltage drops across the resistors
using Ohm's Law.
Now let's move on to parallel resistor circuits:

Parallel Resistor Circuit:

In a parallel circuit, resistors are connected side by side, providing

multiple pathways for current to flow.
The reciprocal of the total resistance (R_total) of a parallel resistor
circuit is equal to the sum of the reciprocals of the individual resistances
(1/R1 + 1/R2 + 1/R3 + ...)^-1.
1/R_total = 1/R1 + 1/R2 + 1/R3 + ...
For example, if you have three resistors in parallel with values R1 = 10
ohms, R2 = 20 ohms, and R3 = 30 ohms, the reciprocal of the total
resistance would be 1/R_total = 1/10 + 1/20 + 1/30 = 0.1167.
Taking the reciprocal of 0.1167, we find that the total resistance is
approximately R_total = 8.571 ohms.
Voltage Drops in Parallel Resistor Circuit:

In a parallel circuit, each resistor has the same voltage across it.
The total current (I_total) flowing through a parallel resistor circuit is
the sum of the currents through each individual resistor.
The current (I1, I2, I3, etc.) flowing through each resistor can be
calculated using Ohm's Law: I = V / R, where I is the current, V is the
voltage across the resistor, and R is the resistance.
The voltage across each resistor is the same as the total voltage
supplied by the power source.
For example, if you have a power source supplying 12 volts in a parallel
circuit with three resistors, and the resistances are R1 = 10 ohms, R2 =
20 ohms, and R3 = 30 ohms, you can calculate the current flowing
through each resistor using Ohm's Law.
Applications and Examples:

Telecommunications:
RF Amplifiers: Electronic components like transistors and integrated
circuits are used in RF amplifiers to boost weak signals in wireless
communication systems.
Modems: Capacitors, resistors, and integrated circuits are utilized in
modems for data encoding, decoding, and signal processing.
Antenna Tuners: Inductors and capacitors are used in antenna tuners to
match impedance and optimize signal transmission in wireless
communication systems.
Automotive:
Engine Control Units (ECUs): Microcontrollers and integrated circuits
play a vital role in ECUs, which control engine functions, fuel injection,
ignition timing, and emission systems.
Anti-lock Braking Systems (ABS): Electronic components such as
sensors, microcontrollers, and actuators are essential in ABS to monitor
wheel speed, detect skidding, and modulate brake pressure.
Infotainment Systems: Electronic components, including processors,
memory chips, displays, and audio amplifiers, are used in modern
infotainment systems for audio/video playback, navigation, and
connectivity.
Medical Devices:
Electrocardiogram (ECG) Systems: Capacitors, resistors, and integrated
circuits are used in ECG systems to acquire and process electrical signals
from the heart for diagnosis and monitoring.
Imaging Systems: Electronic components like diodes, transistors, and
integrated circuits are critical in medical imaging devices such as X-ray
machines, CT scanners, and MRI systems for signal amplification,
detection, and image processing.
Pacemakers: Integrated circuits, capacitors, and batteries are utilized in
pacemakers to regulate heart rhythm by delivering electrical impulses
to the heart.
Everyday Devices:
LED Flashers: Resistor-capacitor (RC) circuits, transistors, and LEDs are
used in LED flashers to create blinking patterns for indicators and
decorative lighting.
Audio Amplifiers: Integrated circuits, resistors, capacitors, and
transistors are employed in audio amplifiers for amplifying low-level
audio signals to drive speakers or headphones.
Power Supplies: Diodes, capacitors, transformers, and voltage
regulators are essential components in power supplies for converting
AC voltage to DC voltage and providing stable power to electronic
devices.

Future Trends and Advancements:

Miniaturization: The trend of miniaturization continues to advance, with
electronic components becoming smaller and more compact. This
allows for the development of smaller devices and integrated systems,
such as wearables, implantable medical devices, and portable consumer
electronics.

Wearable Electronics: The field of wearable electronics is rapidly

growing, driven by advancements in miniaturization and flexible
electronics. Electronic components like sensors, microcontrollers, and
flexible displays are integrated into clothing, accessories, and
healthcare devices, enabling monitoring of vital signs, fitness tracking,
and personalized healthcare.

Internet of Things (IoT): The IoT involves the interconnectivity of

everyday objects and devices through the internet. Electronic
components are essential in IoT devices, enabling communication,
sensing, data processing, and control. This technology trend
encompasses smart homes, industrial automation, agriculture,
healthcare monitoring, and more.

Graphene-based Components: Graphene, a single layer of carbon

atoms, is a promising material for electronic components. It exhibits
remarkable properties, such as high electrical conductivity, flexibility,
and transparency. Graphene-based components, including transistors,
sensors, and batteries, are being explored for their potential in various
applications, such as high-speed electronics, flexible displays, and
energy storage.

Flexible Electronics: Flexible electronics involves the use of flexible

substrates and materials to create bendable and stretchable electronic
components. This field enables the development of curved displays,
wearable devices, and conformable sensors. Advancements in flexible
circuitry, such as printed electronics and organic semiconductors, are
making these innovations possible.

Advanced Packaging Techniques: Packaging plays a crucial role in

protecting and interconnecting electronic components. Advancements
in packaging technologies, such as system-in-package (SiP), 3D
packaging, and chip-scale packaging, are enabling higher integration,
improved thermal management, and enhanced electrical performance
in electronic systems.
Energy Harvesting: Energy harvesting techniques are being developed
to capture and utilize ambient energy sources, such as solar, thermal,
and mechanical energy, to power electronic devices. Electronic
components, such as energy harvesting modules, efficient power
management circuits, and rechargeable batteries, enable the
implementation of self-powered wireless sensors and low-power IoT
devices.
