Systems Operation
320D Excavator Hydraulic System
Media Number -RENR7294-06 Publication Date -01/03/2009 Date Updated -12/03/2009

i03258385

Electronic Control System

SMCS - 1900

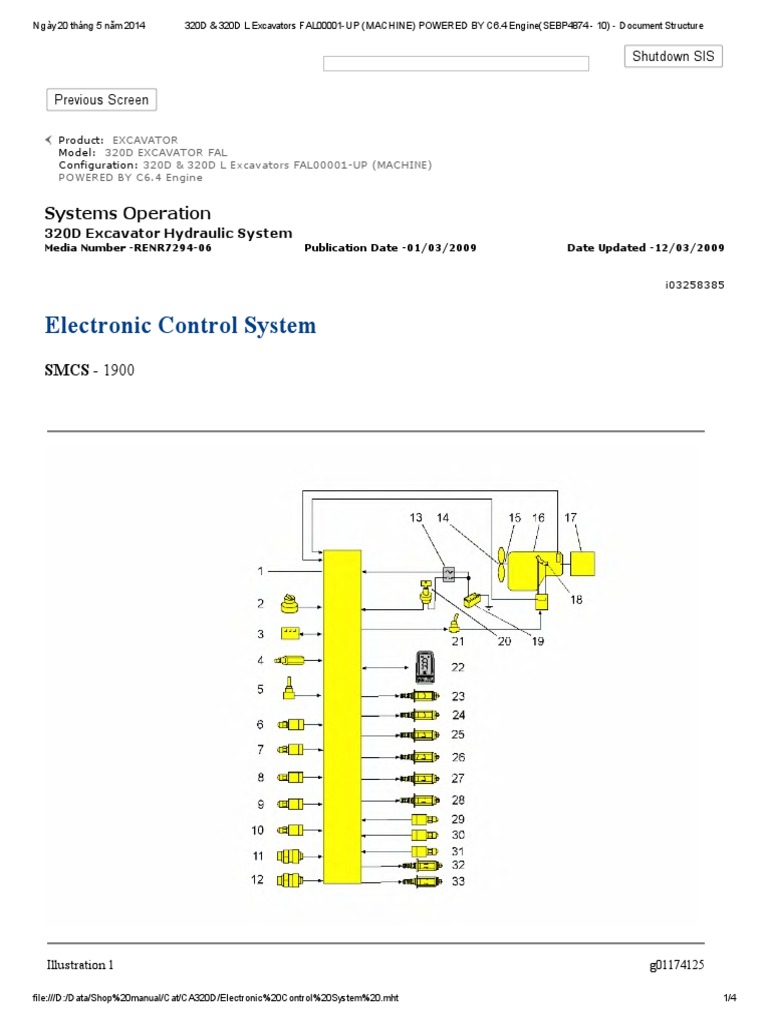

Illustration 1 g01174125

file:///D:/Data/Shop%20manual/Cat/CA320D/Electronic%20Control%20System%20.mht 1/4
Ngày 20 tháng 5 năm 2014 320D & 320D L Excavators FAL00001-UP (MACHINE) POWERED BY C6.4 Engine(SEBP4874 - 10) - Document Structure
(1) Machine ECM

(2) Engine speed dial

(3) Switch panel

(4) Clench pressure sensor (attachment)

(5) Manual low idle switch

(6) Implement pressure switch

(7) Swing pressure switch

(8) Right travel pressure switch

(9) Left travel pressure switch

(10) Straight travel pressure switch

(11) Drive pump pressure sensor

(12) Idler pump pressure sensor

(13) Fuse panel

(14) Viscous clutch

(15) Fan speed sensor

(16) Engine

(17) Main pumps

(18) Engine speed pickup

(19) Battery

(20) Engine start switch

(21) Backup switch

(22) Monitor

(23) Heavy lift solenoid valve

(24) Straight travel solenoid valve

(25) Travel speed solenoid valve

(26) Swing brake solenoid valve

(27) Hydraulic lockout solenoid

(28) Flow limiter valve (attachment pump)

(29) Pressure switch (attachment pump)

(30) Attachment pedal pressure switch (Left)

(31) Attachment pedal pressure switch (Right)

(32) Proportional reducing valve for auxiliary hydraulics

file:///D:/Data/Shop%20manual/Cat/CA320D/Electronic%20Control%20System%20.mht 2/4
Ngày 20 tháng 5 năm 2014 320D & 320D L Excavators FAL00001-UP (MACHINE) POWERED BY C6.4 Engine(SEBP4874 - 10) - Document Structure
(33) Power shift solenoid valve

Illustration 2 g01173858
(1) Machine ECM

Illustration 3 g01173869
(22) Monitor

The electronic control system consists of monitor (22) in the cab and the machine ECM (1) that is located in the
compartment behind the cab. The electronic control system controls the engine speed and the pumps through the
file:///D:/Data/Shop%20manual/Cat/CA320D/Electronic%20Control%20System%20.mht 3/4
Ngày 20 tháng 5 năm 2014 320D & 320D L Excavators FAL00001-UP (MACHINE) POWERED BY C6.4 Engine(SEBP4874 - 10) - Document Structure

machine ECM.

Machine ECM (1) receives input signals from various components on the machine. The machine ECM
continuously monitors the input signals in order to control the output flow rate of the main pumps, engine speed
and various components of the machine hydraulic systems.

The machine ECM has the following three major functions.

The electronic control system controls the output flow rate of the main pumps. The machine ECM sends
an electrical signal to the power shift solenoid that is based on engine speed and the position of the engine
speed dial. This allows the main pumps to supply the optimum output that matches the hydraulic load to
the machine and the engine speed. When a large load is placed on the machine, the system allows the
pumps to destroke. The system utilizes the available maximum engine horsepower.

The electronic control system controls the engine speed. This is called Automatic Engine Speed Control
(AEC). When there is a very small load condition or no load condition, the system automatically
decreases the engine speed. The AEC system is designed to reduce fuel consumption and noise.

The electronic control system controls various components of the machine hydraulic systems. The machine
ECM sends output signals to the swing brake solenoid valve, the travel speed solenoid valve and the
straight travel solenoid.

Note: If a problem occurs in the electronic control system, temporary operation of the machine is possible by
use of the backup switches that are located in the cab. For more information concerning the backup system,
refer to Operation and Maintenance Manual, "Backup Controls".

ReferenceFor more information concerning the operation of the electronic control system, refer to Systems
Operation/Testing and Adjusting, "Machine Electronic Control System".
