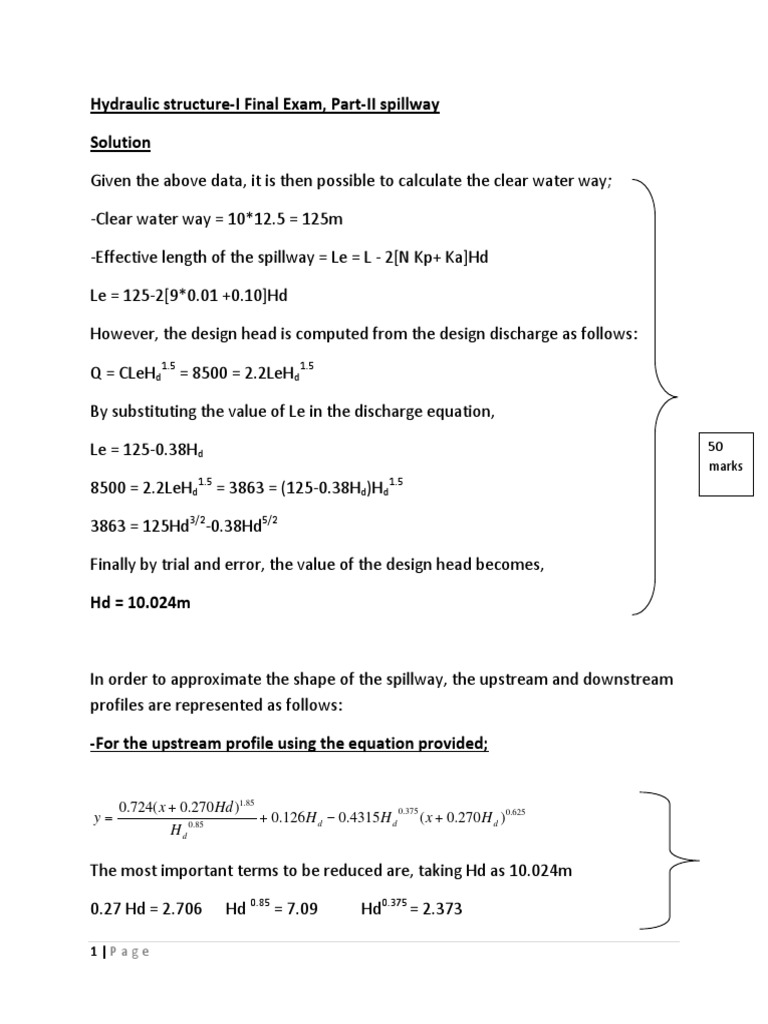

Hydraulic structure-I Final Exam, Part-II spillway

Solution

Given the above data, it is then possible to calculate the clear water way;

-Clear water way = 10*12.5 = 125m

-Effective length of the spillway = Le = L - 2[N Kp+ Ka]Hd

Le = 125-2[9*0.01 +0.10]Hd

However, the design head is computed from the design discharge as follows:

Q = CLeHd1.5 = 8500 = 2.2LeHd1.5

By substituting the value of Le in the discharge equation,

Le = 125-0.38Hd 50
marks
8500 = 2.2LeHd1.5 = 3863 = (125-0.38Hd)Hd1.5

3863 = 125Hd3/2-0.38Hd5/2

Finally by trial and error, the value of the design head becomes,

Hd = 10.024m

In order to approximate the shape of the spillway, the upstream and downstream
profiles are represented as follows:

-For the upstream profile using the equation provided;

0.724( x + 0.270 Hd )1.85


y= + 0.126 H d − 0.4315 H d ( x + 0.270 H d )0.625
0.375
0.85
Hd

The most important terms to be reduced are, taking Hd as 10.024m

0.27 Hd = 2.706 Hd 0.85 = 7.09 Hd0.375 = 2.373

1|Page
0.126 Hd = 1.264 0.4315 Hd0.375 = 1.024

Using the arithmetic value of the above, it is possible to approximate the equation
for the upstream face;
y = [{0.724 (x+2.706 )1.85}/ 7.09] + 1.264 - 1.024 (x + 2.706)0.625
Therefore, it is possible to locate the coordinates to the left of the origin with the
above equation to get the value of the ordinate for a selected abscissa points.

Alternatively, the value of R1 and R2 along with a and b can be used to draw
25
curvatures and locate corresponding extreme points respectively;
marks
R1 = 0.5 Hd = 0.5x 10.024= 5.012

and R2= 0.2 Hd = 0.2x10.024= 2.00048

b= 0.282 Hd = 2.827 a = 0.175 Hd = 1.754

-For the downstream profile

Since the upstream face is vertical, the values of k is 0.85 and 1.85 for n

From the equation of the downstream profile;

Xn = K (Hd)n-1 Y

X1.85 = 0.85(10.024)1.85-1Y = X1.85 = 0.85(10.024)0.85Y

X1.85 = 0.85(7.08)Y
25
1.85
X = 6.02Y marks

Y = 0.166X1.85----------------------the equation for the downstream profile equation


dy 1
Since the slope is = = 1.33
dx 0.75

Differentiating y with respect to x, dy/dx = 0.3071X0.85

0.3071X 0.85 = 1.33, the value of X = 5.58m

2|Page
Therefore, the tangent point of the profile is at a distance of 5.58m from the
origin

N.B.

Any student who has worked out on the coordinate fixing for both profiles as well
as a sketch, considerations can be possible.

Thanks,
Daniel A.

3|Page
