Germalloy

METALLURGY
INDUSTRIAL RESINS
GERMALLOY

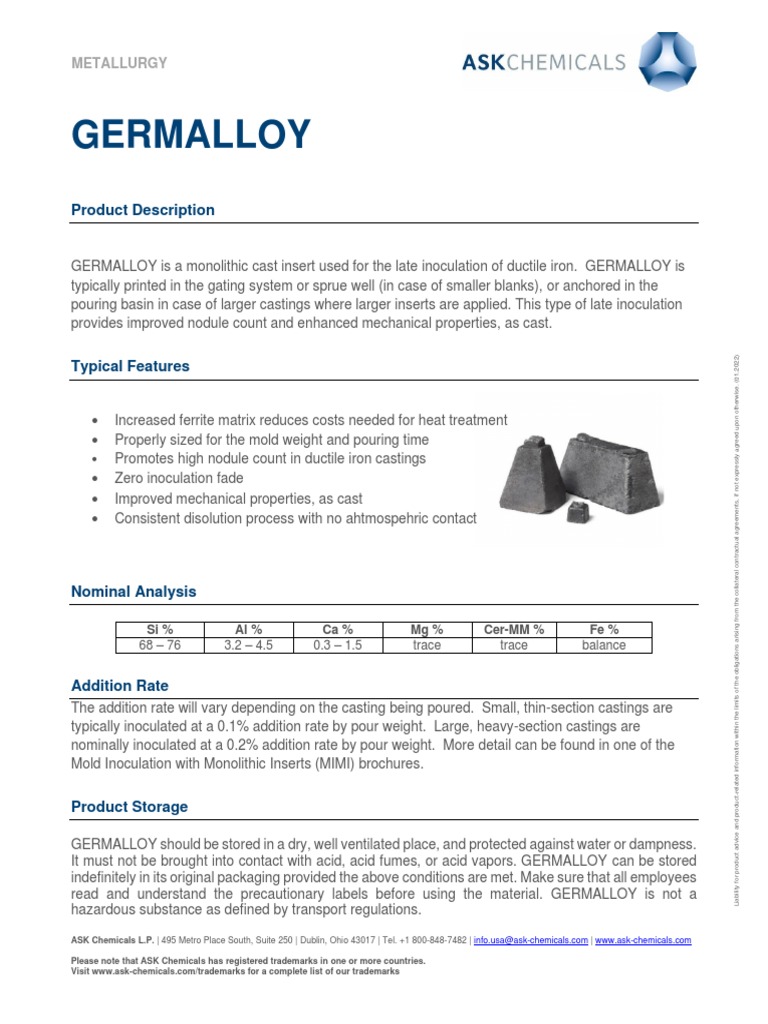

Product Description
GERMALLOY is a monolithic cast insert used for the late inoculation of ductile iron. GERMALLOY is
typically printed in the gating system or sprue well (in case of smaller blanks), or anchored in the
pouring basin in case of larger castings where larger inserts are applied. This type of late inoculation
provides improved nodule count and enhanced mechanical properties, as cast.
Liability for product advice and product-related information within the limits of the obligations arising from the collateral contractual agreements, if not expressly agreed upon otherwise. (01.2022)
Typical Features
• Increased ferrite matrix reduces costs needed for heat treatment

• Properly sized for the mold weight and pouring time
• Promotes high nodule count in ductile iron castings
• Zero inoculation fade
• Improved mechanical properties, as cast
• Consistent disolution process with no ahtmospehric contact
Nominal Analysis
Si % Al % Ca % Mg % Cer-MM % Fe %
68 – 76 3.2 – 4.5 0.3 – 1.5 trace trace balance
Addition Rate
The addition rate will vary depending on the casting being poured. Small, thin-section castings are
typically inoculated at a 0.1% addition rate by pour weight. Large, heavy-section castings are
nominally inoculated at a 0.2% addition rate by pour weight. More detail can be found in one of the
Mold Inoculation with Monolithic Inserts (MIMI) brochures.
Product Storage
GERMALLOY should be stored in a dry, well ventilated place, and protected against water or dampness.
It must not be brought into contact with acid, acid fumes, or acid vapors. GERMALLOY can be stored
indefinitely in its original packaging provided the above conditions are met. Make sure that all employees
read and understand the precautionary labels before using the material. GERMALLOY is not a
hazardous substance as defined by transport regulations.
ASK Chemicals L.P. | 495 Metro Place South, Suite 250 | Dublin, Ohio 43017 | Tel. +1 800-848-7482 | info.usa@ask-chemicals.com | www.ask-chemicals.com
Please note that ASK Chemicals has registered trademarks in one or more countries.
Visit www.ask-chemicals.com/trademarks for a complete list of our trademarks
METALLURGY
INDUSTRIAL RESINS
GERMALLOY
Sizing and Packaging
GERMALLOY is typically pakaged in 220 lb (100 Kg) open top PURPLE steel drums. Larger sizes
are packaged in palletized carton boxes of various weights.
K-type 220 lbs (100 kg) P-type* 220 lbs (100 kg)
open top drum open top drum
SAP code SAP code
K15 801492 P300* 801507
K20 801494 P500* 823773
K40 801496 P800* 801509
K60 801497 P2 801504
K80 801498 P5 801508
K110 802010 P10 801502
K150 801493 P20 803388
K200 801495 P50 -
F-type 220 lbs (100 kg) F-type 220 lbs (100 kg)
open top drum open top drum
SAP code SAP code
F15 823751 F80 801480
F20 801478 F110 802010
F40 801479 F150 801477
F20-C 858688
P-type P-
Carton Box Carton Box
type
SAP code SAP code
P15 801503 (725 kg) P5 852926 (725 kg)
P20 801505 (725 kg) P10 852927 (725 kg)
P30 801506 (720 kg) P50 816179 (500 kg)
METALLURGY
INDUSTRIAL RESINS
GERMALLOY
Nominal weight (g) and corresponding dissolution time (s) at typical pouring temperature 2500˚F –
2570˚F (1370˚C – 1401˚C) for blanks in sizes K15- K200, and 2410˚F – 2520˚F (1320˚C – 1380˚C) for
blanks in sizes P300-P50.
WEIGHT IN
RANGE FOR
INSERT SIZE GRAMS SHAPE MAX POURING TIME
POURED WEIGHT
(approx.)
Recommended 0.1% addition rate

K-15 15 Truncated Cone 30 - 33 lbs. 8 sec.
P-300 300 Truncated Pyramid 441 - 660 lbs. 23 sec.
Recommended 0.15% addition rate

P-500 500 Truncated Pyramid 661 – 735 lbs 27 sec.
P-800 800 Truncated Pyramid 736 - 1,200 lbs. 32 sec.
P-2 2,000 Pontoon 1,201 - 2,950 lbs. 44 sec.
P-5 5,000 Pontoon 2,951 - 7,400 lbs. 63 sec.
P-10 10,000 Pontoon 7,401 - 14,700 lbs. 82 sec.
P-15 15,000 Pontoon 14,701 - 22,000 lbs. 97 sec.
P-20 20,000 Pontoon 22,001 - 29,400 lbs. 110 sec.
P-50 50,000 Pontoon 29,401 – 73,500 lbs. 154 sec.
METALLURGY
INDUSTRIAL RESINS
GERMALLOY
F- type dimensions (mm)
F 20 F 40 F 80 F 110 F 150 F 250

H2 A 22 27.5 33.5 37 37.7 43
H1 B 13 23.5 29.5 33 30 35
B H1 24.5 19.5 24 27.5 41 54
H2 - 24.5 32 35.5 49 62
A
K- type dimensions (mm)
D3
K 20 K 40 K 60 K 80 K 110 K 150 K 200

H1 D4 H2 D1 Ø 20 23.5 26.5 29.5 28 36 36
D2 Ø 22 27.1 29.5 33.4 37 40 42.6
D1 D3 Ø 13 15 17.5 18 14 18 17
D4 Ø 14 16 20 21 16 21 21
D2 H1 22 26 33 31.5 42 42.5 50
H2 27 31 39.5 39.5 50 50.5 58
K- type core mark dimensions (mm)

K 15 K 20 K 40 K 60 K 80 K 110 K 150 K 200
H D1 Ø 18.7 20.5 24.5 27.1 30.8 30.9 37.5 40.0
D2 Ø 16.4 19.1 22.0 26.3 27.8 25.6 34.3 36.3
H 18.0 15.6 17.8 23.1 24.3 27.0 28.3 34.4
D2 H = section protruding out from sand mold
D1
METALLURGY
INDUSTRIAL RESINS
GERMALLOY
P-type dimensions (mm)
A B C D H
P 300 50 30 60
P 500 60 32 69
P 800 79 35 83
P2 165 75 133 45 75
P3 150 90 120 60 98
P5 221 101 170 53 110
P 10 260 135 210 85 140

P 15 330 150 295 120 120
P 20 310 170 260 115 165

P 30 350 195 295 135 190
P 50 340 250 270 175 250
