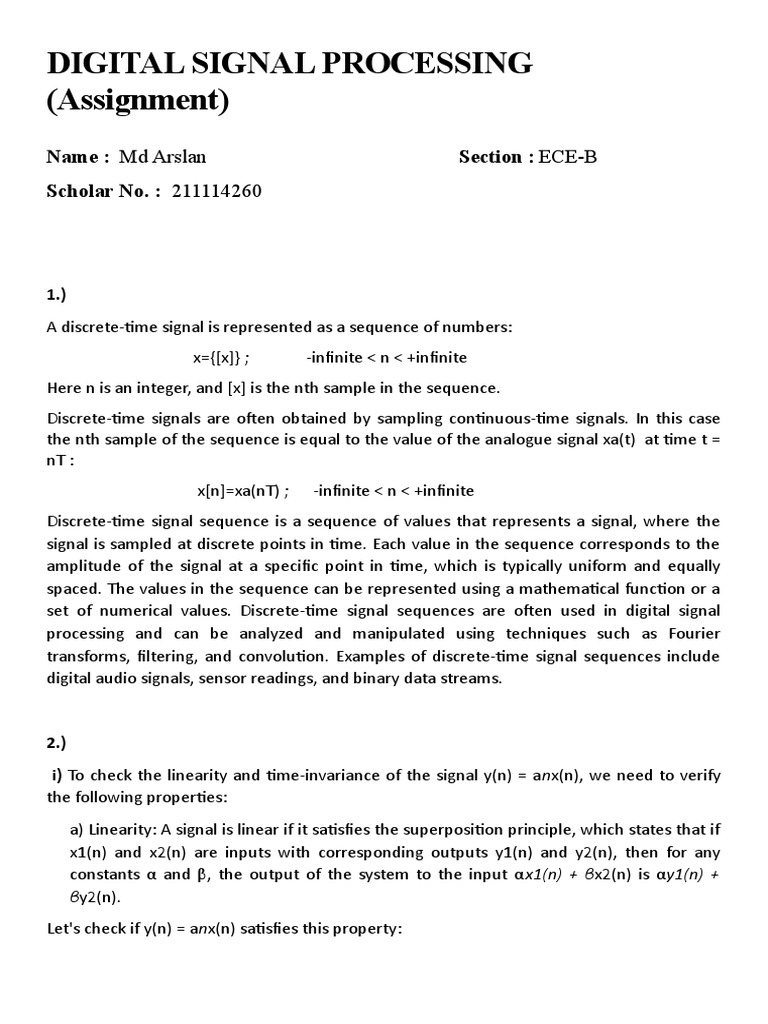

DIGITAL SIGNAL PROCESSING

(Assignment)
Name : Md Arslan Section : ECE-B
Scholar No. : 211114260

1.)
A discrete-time signal is represented as a sequence of numbers:
x={[x]} ; -infinite < n < +infinite
Here n is an integer, and [x] is the nth sample in the sequence.
Discrete-time signals are often obtained by sampling continuous-time signals. In this case
the nth sample of the sequence is equal to the value of the analogue signal xa(t) at time t =
nT :
x[n]=xa(nT) ; -infinite < n < +infinite
Discrete-time signal sequence is a sequence of values that represents a signal, where the
signal is sampled at discrete points in time. Each value in the sequence corresponds to the
amplitude of the signal at a specific point in time, which is typically uniform and equally
spaced. The values in the sequence can be represented using a mathematical function or a
set of numerical values. Discrete-time signal sequences are often used in digital signal
processing and can be analyzed and manipulated using techniques such as Fourier
transforms, filtering, and convolution. Examples of discrete-time signal sequences include
digital audio signals, sensor readings, and binary data streams.

2.)
i) To check the linearity and time-invariance of the signal y(n) = anx(n), we need to verify
the following properties:
a) Linearity: A signal is linear if it satisfies the superposition principle, which states that if
x1(n) and x2(n) are inputs with corresponding outputs y1(n) and y2(n), then for any
constants α and β, the output of the system to the input αx1(n) + βx2(n) is αy1(n) +
βy2(n).
Let's check if y(n) = anx(n) satisfies this property:
For input signals x1(n) and x2(n), and constants α and β, the outputs are: y1(n) = anx1(n)
y2(n) = anx2(n)
The output of the system to the input αx1(n) + βx2(n) is: y(n) = an(αx1(n) + βx2(n)) =
αanx1(n) + βanx2(n) = αy1(n) + βy2(n)
Therefore, the signal y(n) = anx(n) satisfies the superposition principle and is linear.
b) Time-invariance: A system is time-invariant if its output to an input x(n - k) is the same
as the output of x(n) delayed by k time units, for any value of k.
Let's check if y(n) = anx(n) satisfies this property:
For an input signal x(n - k), the output of the system is: y(n - k) = a*(n - k)*x(n - k)
If we delay the input by k time units, we get x(n) = x(n - k), and the output of the system is:
y(n) = anx(n) = a*(n - k + k)x(n - k) = a(n - k)*x(n)
Comparing the two expressions, we can see that the output is not the same for all values of
k. Therefore, the signal y(n) = anx(n) is time-varying.
In summary, the signal y(n) = anx(n) is linear but time-varying.

3.)
The necessary and sufficient condition for stability of a linear time-invariant (LTI) discrete-
time system is that its impulse response must be absolutely summable, i.e., the sum of the
magnitudes of its impulse response coefficients must be finite.
To prove this, let's consider the impulse response h(n) of an LTI system, which is the output
of the system when the input is a unit impulse at n=0. Let's denote the input signal as x(n),
and the output signal as y(n). Then, we have:
y(n) = x(n) * h(n) (where "*" denotes convolution)
The Fourier transform of the output signal Y(e^(jω)) and the input signal X(e^(jω)) are
related to the frequency response H(e^(jω)) of the system as follows:
Y(e^(jω)) = H(e^(jω)) X(e^(jω))
Therefore, the frequency response can be expressed as:
H(e^(jω)) = Y(e^(jω)) / X(e^(jω))
For a stable system, the output signal must be bounded for any bounded input signal. This
means that the frequency response must also be bounded for all values of ω. In other
words, we must have:
|H(e^(jω))| ≤ M for all ω, and for some finite constant M
Using the Parseval's theorem, we can relate the magnitude of the frequency response to
the energy of the impulse response as follows:
∑|h(n)|² = 1/2π ∫ |H(e^(jω))|² dω
If the impulse response is absolutely summable, i.e., if ∑|h(n)| < ∞, then the integral on the
right-hand side of the equation above is finite, and we have:
∑|h(n)|² < ∞
Therefore, if the impulse response of an LTI system is absolutely summable, then the
frequency response is bounded for all values of ω, and the system is stable.
Conversely, if the impulse response is not absolutely summable, i.e., if ∑|h(n)| = ∞, then
the integral on the right-hand side of the equation above diverges, and the frequency
response is unbounded for some values of ω. Therefore, the system is unstable.
Hence, the necessary and sufficient condition for stability of an LTI discrete-time system is
that its impulse response must be absolutely summable.

4)
To determine the causality of the system, we need to check if the output at any given time
depends only on the present and past values of the input. In this case, we have:
y(n) = x(n+1) + 3x(n) + 5x(n-1)
We can see that the output at time n depends on the present input x(n), as well as the past
inputs x(n-1) and x(n+1). Therefore, the system is not causal.
To determine the stability of the system, we need to check if any bounded input produces a
bounded output. We can use the z-transform to analyze the system's stability. Taking the z-
transform of the difference equation, we get:
Y(z) = zX(z) + 3X(z) + 5z^(-1)X(z)
Simplifying the equation, we get:
Y(z) = (z+3+5z^(-1))X(z)
The transfer function of the system is:
H(z) = Y(z)/X(z) = z+3+5z^(-1)
The poles of the transfer function are z = -3 and z = -1/5, both of which lie inside the unit
circle in the z-plane. Therefore, the system is stable.
To determine if the system is memoryless, we need to check if the output at any given time
depends only on the input at that same time. In this case, we have:
y(n) = x(n+1) + 3x(n) + 5x(n-1)
We can see that the output at time n depends on the input at times n, n-1, and n+1.
Therefore, the system has memory.
Finally, to determine if the system is time-invariant, we need to check if a delay in the input
results in a corresponding delay in the output. In other words, if we delay the input by k
time units, the output should also be delayed by k time units. In this case, if we delay the
input by k time units, we get:
y(n-k) = x(n-k+1) + 3x(n-k) + 5x(n-k-1)
This is not equivalent to the original equation, which implies that the system is not time-
invariant.
In summary, the system represented by the difference equation y(n) = x(n+1) + 3x(n) + 5x(n-
1) is not causal and not time-invariant, but it is stable and has memory.

5)
Advantages of Digital Signal Processing (DSP) over Analog Signal Processing:
1. Flexibility: DSP provides greater flexibility than analog signal processing as digital
signals can be easily manipulated, processed and modified using software tools.
2. Reproducibility: DSP algorithms can be programmed and replicated consistently,
whereas analog systems can be more prone to variations and inconsistencies in
performance.
3. Accuracy: DSP can achieve higher accuracy and precision than analog systems due to
the ability to process signals with high bit resolution.
4. Signal integrity: DSP can help to preserve the integrity of the signal, avoiding signal
degradation over time and through repeated processing stages.
5. Cost: DSP can be more cost-effective than analog signal processing as it eliminates the
need for expensive analog components, such as filters and amplifiers, which can be
replaced by software-based algorithms.
Disadvantages of Digital Signal Processing (DSP) over Analog Signal Processing:
1. Sampling errors: DSP is subject to sampling errors that can result in signal distortion
or loss of information, especially when the sampling rate is not high enough.
2. Latency: DSP can introduce a delay or latency in the processing of signals due to the
need for analog-to-digital conversion, signal processing algorithms, and digital-to-
analog conversion.
3. Complexity: DSP algorithms can be complex and require significant computational
power, which can result in higher system costs and longer development times.
 4. Quantization errors: DSP is subject to quantization errors, which can result in signal
distortion and loss of information, especially when the bit resolution is low.
5. Aliasing: DSP can be prone to aliasing, where high-frequency signals are
misrepresented due to undersampling, resulting in false low-frequency signals.
In conclusion, both analog and digital signal processing have their own advantages and
disadvantages, and the choice of which one to use depends on the specific application,
performance requirements, and cost considerations. However, with the advances in
technology, digital signal processing has become more prevalent due to its flexibility,
accuracy, and cost-effectiveness.

8)
There are four basic properties of discrete-time systems:
1. Linearity: A system is linear if it satisfies the superposition principle. That is, if x1(n)
and x2(n) are input signals and y1(n) and y2(n) are the corresponding outputs, then
the system is linear if:
a. For any constants a and b, the system satisfies the following property: y(n) = a x1(n) + b
x2(n) = a y1(n) + b y2(n)
b. The system satisfies the property of homogeneity, which means that if x(n) is an input
signal and y(n) is the corresponding output, then for any constant a, the output of the
system for the input signal ax(n) is ay(n).
2. Time-invariance: A system is time-invariant if its output to an input signal depends
only on the values of the input signal at the same time and earlier times. In other
words, if x(n) is an input signal and y(n) is the corresponding output, then a time-
invariant system satisfies:
y(n-k) = T{x(n-k)} for all n and k, where T denotes the system.
3. Causality: A system is causal if its output at any time depends only on the present and
past values of the input signal. That is, if x(n) is an input signal and y(n) is the
corresponding output, then a causal system satisfies:
y(n) = T{x(k)} for all k ≤ n, where T denotes the system.
4. Stability: A system is stable if its output is bounded for any bounded input signal. That
is, if x(n) is a bounded input signal and y(n) is the corresponding output, then a stable
system satisfies:
|y(n)| ≤ M for all n, where M is a finite constant.
Proofs:
 1. Linearity:
a. Let x1(n) and x2(n) be input signals, and let y1(n) and y2(n) be the corresponding outputs.
Then, we have:
T{a x1(n) + b x2(n)} = a T{x1(n)} + b T{x2(n)} (by the linearity of the system)
= a y1(n) + b y2(n) (by the assumption that T{x1(n)} = y1(n) and T{x2(n)} = y2(n))
Therefore, the system is linear.
b. Let x(n) be an input signal, and let y(n) be the corresponding output. Then, we have:
T{a x(n)} = a T{x(n)} (by the homogeneity of the system)
= a y(n) (by the assumption that T{x(n)} = y(n))
Therefore, the system is homogeneous.
2. Time-invariance:
Let x(n) be an input signal, and let y(n) be the corresponding output. Then, we have:
T{x(n-k)} = y(n-k) (by the assumption that T{x(n)} = y(n))
Therefore, the system is time-invariant.
3. Causality:
Let x(n) be an input signal, and let y(n) be the corresponding output. Then, we have:
y(n) = T{x(k)} for all k ≤ n (by the assumption that the system is causal)
Therefore, the system is causal.
4. Stability:
Let x(n) be a bounded input signal, and let y(n) be the corresponding output. Then, we
have:
|y(n)| ≤ M (by the assumption that the system is stable)
Therefore, the system is stable.

9)
To find the output of the LTI system given the input x(n) = 2δ(n) - δ(n-1), we can use the
convolution sum:
y(n) = x(n)*h(n) = ∑[k=-∞ to ∞] x(k) h(n-k)
However, since x(n) is zero for n < 0, we can simplify the above equation as follows:
y(n) = ∑[k=0 to ∞] x(k) h(n-k)
Now, we can substitute the given values for x(n) and h(n) to get:
y(n) = ∑[k=0 to ∞] (2δ(k) - δ(k-1))h(n-k)
Using linearity, we can split the above equation into two terms as follows:
y(n) = 2∑[k=0 to ∞] δ(k)h(n-k) - ∑[k=0 to ∞] δ(k-1)h(n-k)
Note that the second term can be simplified using the time-invariance property of the LTI
system, as follows:
∑[k=0 to ∞] δ(k-1)h(n-k) = ∑[k=0 to ∞] δ(k)h(n-1-k) = h(n-1)
Therefore, we can rewrite the above equation as:
y(n) = 2∑[k=0 to ∞] δ(k)h(n-k) - h(n-1)
Now, we can substitute the values of h(n) given in the problem statement to get:
y(n) = 2(1h(n) + 3h(n-1) + 2h(n-2) - 1h(n-3) + 1h(n-4)) - h(n-1)
y(n) = 2h(n) + 6h(n-1) + 4h(n-2) - 2h(n-3) + 2δ(n-1) - δ(n-2)
Substituting the given values for h(n), we get:
y(n) = 2δ(n) + 6δ(n-1) + 4δ(n-2) - 2δ(n-3) + 2δ(n-1) - δ(n-2)
y(n) = 2δ(n) + 8δ(n-1) + 3δ(n-2) - δ(n-3)
Therefore, the output of the given LTI system for the given input is y(n) = 2δ(n) + 8δ(n-1) +
3δ(n-2) - δ(n-3).

10)
a) An LTI (Linear Time-Invariant) system is a type of signal processing system that satisfies
two important properties: linearity and time-invariance.
Linearity means that the system responds to a linear combination of inputs in the same way
that it responds to each input separately. Mathematically, this can be expressed as:
y1(n) = H[x1(n)] y2(n) = H[x2(n)]
where H is the system, x1(n) and x2(n) are inputs, and y1(n) and y2(n) are the
corresponding outputs. Then, for any constants a and b, the output corresponding to the
input ax1(n) + bx2(n) is given by:
y(n) = H[ax1(n) + bx2(n)] = aH[x1(n)] + bH[x2(n)] = ay1(n) + by2(n)
Time-invariance means that the system's behavior does not change over time.
Mathematically, this can be expressed as:
y(n) = H[x(n)]
where x(n) is the input, and y(n) is the corresponding output. Then, if the input is delayed
by a fixed amount of time k, the output is also delayed by the same amount of time k:
y(n-k) = H[x(n-k)]
Now, let's consider the output of an LTI system for an input x(n). The output can be
expressed as:
y(n) = H[x(n)] = ∑[k=-∞ to ∞] h(k)x(n-k)
where h(n) is the impulse response of the system. This is known as the convolution sum of
the input sequence x(n) and the impulse response h(n).
To prove this, we can substitute the impulse response into the definition of the LTI system:
y(n) = H[x(n)] = H[∑[k=-∞ to ∞] δ(n-k)x(k)]
Using the linearity property of the LTI system, we can distribute the impulse response over
the input sequence:
y(n) = ∑[k=-∞ to ∞] h(k)H[δ(n-k)x(k)]
Since the system is time-invariant, we can rewrite the above equation as:
y(n) = ∑[k=-∞ to ∞] h(k)x(n-k)
which is the convolution sum of the input sequence x(n) and the impulse response h(n).
Therefore, we have shown that the output of an LTI system can be expressed as the
convolution of the input sequence and the impulse response.
b) To prove that the system defined by the given difference equation is an LTI system, we
need to show that it satisfies the two properties of linearity and time-invariance.
1. Linearity:
Let's assume that the input signal is a linear combination of two signals x1(n) and x2(n), i.e.,
x(n) = ax1(n) + bx2(n), where a and b are constants. Then, the output of the system can be
written as:
y(n) = x(n+1) - 3x(n) + x(n-1)
y(n) = [a x1(n+1) + b x2(n+1)] - 3[a x1(n) + b x2(n)] + [a x1(n-1) + b x2(n-1)]
y(n) = a [x1(n+1) - 3x1(n) + x1(n-1)] + b [x2(n+1) - 3x2(n) + x2(n-1)]
Here, we can see that the output of the system is a linear combination of the outputs
corresponding to the input signals x1(n) and x2(n). Hence, the system satisfies the linearity
property.
2. Time-invariance:
To show that the system is time-invariant, we need to prove that if we shift the input signal
by a fixed amount of time, the output signal is also shifted by the same amount of time.
Let's assume that the input signal is x(n-k), where k is a constant. Then, the output of the
system can be written as:
y(n-k) = x(n-k+1) - 3x(n-k) + x(n-k-1)
y(n-k) = x((n+1)-k) - 3x(n-k) + x((n-1)-k)
Here, we can see that the output of the system for the shifted input x(n-k) is equal to the
output corresponding to the original input x(n), except that it is shifted by k units. Hence,
the system satisfies the time-invariance property.
Therefore, we can conclude that the system defined by the given difference equation is an
LTI system.

11)
a) In digital signal processing, systems can be classified based on various criteria. Some of
the common classifications are as follows:
1. Based on linearity: A system is linear if it follows the superposition principle, i.e., the
output for a linear combination of input signals is equal to the same linear
combination of the outputs corresponding to each input signal. If the system does not
follow the superposition principle, it is called a nonlinear system.
2. Based on time-invariance: A system is time-invariant if its behavior does not change
with time. This means that the output for a shifted version of the input signal is equal
to the same shifted version of the output. If the system's behavior changes with time,
it is called a time-varying system.
3. Based on causality: A system is causal if its output depends only on the present and
past input values, i.e., the output for a given time n depends only on the input values
for time n and the past values (n-1, n-2, etc.). If the output depends on future input
values, it is called a non-causal system.
4. Based on memory: A system is memoryless if its output depends only on the present
input value and not on any past input values. If the output depends on past input
values, it is called a system with memory.
5. Based on stability: A system is stable if its output remains bounded for any bounded
input signal. If the output grows unbounded for certain input signals, it is called an
unstable system.
6. Based on frequency response: A system can be classified as low-pass, high-pass,
band-pass, or band-stop depending on how it affects the frequency components of
the input signal.
Understanding the different classifications of systems is important as it helps in analyzing
and designing digital signal processing systems for specific applications.

b) BIBO (Bounded-Input Bounded-Output) stability is a condition that ensures that the

output of a system remains bounded for any bounded input signal. The BIBO stability
criteria can be derived as follows:
Consider an LTI system with impulse response h(n) and input signal x(n). The output signal
y(n) of the system can be expressed as the convolution of the input signal x(n) and the
impulse response h(n), as follows:
y(n) = x(n) * h(n)
where '*' denotes the convolution operation.
Now, let us assume that the input signal x(n) is bounded, i.e., there exists a finite value B
such that |x(n)| <= B for all n. Then, we can express the output signal y(n) as follows:
|y(n)| = |x(n) * h(n)| <= |x(n)| * |h(n)|
where |h(n)| denotes the absolute value of the impulse response.
Since the input signal is bounded by B, we can write:
|y(n)| <= B * |h(n)|
Therefore, for the output signal y(n) to be bounded, the impulse response h(n) must be a
bounded sequence. In other words, the maximum absolute value of h(n) must be finite.
Hence, we can conclude that an LTI system is BIBO stable if and only if its impulse response
h(n) is absolutely summable, i.e.,
∑ |h(n)| < ∞
This condition ensures that the output of the system remains bounded for any bounded
input signal.
In summary, the BIBO stability criteria for an LTI system can be stated as follows: An LTI
system is BIBO stable if and only if the absolute sum of its impulse response is finite.
12)
a) In digital signal processing, discrete-time sequences are widely used to represent signals
in a discrete form. A discrete-time sequence is a set of values obtained by sampling a
continuous-time signal at discrete intervals. There are several types of discrete-time
sequences, each with unique properties and applications. Some of the commonly used
discrete-time sequences are:
 1. Unit impulse sequence: The unit impulse sequence, denoted by δ[n], is defined as
δ[n] = 1 for n = 0 and δ[n] = 0 for n ≠ 0. It represents an impulse of unit amplitude and
infinitesimal duration at time n = 0. It is used to study the behavior of LTI systems, as
the response of an LTI system to an impulse is equal to its impulse response.
2. Unit step sequence: The unit step sequence, denoted by u[n], is defined as u[n] = 1
for n ≥ 0 and u[n] = 0 for n < 0. It represents a step of unit amplitude at time n = 0. It
is used to represent the starting point of a signal or the onset of an event.
3. Ramp sequence: The ramp sequence, denoted by r[n], is defined as r[n] = n for n ≥ 0
and r[n] = 0 for n < 0. It represents a linearly increasing signal with a constant slope. It
is used to model linear systems or to approximate a signal with a linear function.
4. Exponential sequence: The exponential sequence, denoted by x[n] = α^n, where α is
a constant, represents a signal that grows or decays exponentially with time. It is used
to model systems with exponential response or to approximate signals with an
exponential function.
5. Sinusoidal sequence: The sinusoidal sequence, denoted by x[n] = A cos(ωn + φ),
represents a signal that oscillates with a sinusoidal waveform. It is used to model
periodic signals or to approximate signals with a sinusoidal function.
6. Random sequence: The random sequence, denoted by x[n], represents a signal with
random values at each time instant. It is used to model stochastic processes or to
simulate random events.
These are some of the commonly used discrete-time sequences in digital signal processing.
Each type of sequence has its unique properties and applications in various fields of signal
processing. Understanding the characteristics of these sequences is essential to analyze and
process signals in digital form.
13)
a) In the context of digital signal processing, the following terms are defined as:
1. Linearity: A system is said to be linear if it satisfies the superposition principle, which
states that if the input to the system is a linear combination of two or more signals,
then the output is the same linear combination of the individual outputs
corresponding to each signal. Mathematically, a system is linear if it satisfies the
following property: f(ax1(n)+bx2(n))=af(x1(n))+bf(x2(n)), where x1(n) and x2(n) are
input signals, a and b are constants, and f( ) is the system's output.
2. Time Invariance: A system is said to be time-invariant if its output for a given input
depends only on the input and the system's properties and not on the absolute time
at which the input is applied. Mathematically, a system is time-invariant if it satisfies
the following property: If x(n) is the input signal and y(n) is the corresponding output,
 then if the input is delayed by k samples to x(n-k), the output is also delayed by k
samples to y(n-k).
3. Stability: A system is said to be stable if its output remains bounded for any bounded
input. A bounded input signal is one whose amplitude is limited to a finite range.
Mathematically, a system is stable if it satisfies the following property: If x(n) is a
bounded input, then the corresponding output y(n) is also bounded.
4. Causality: A system is said to be causal if its output at any given time depends only on
the present and past values of the input signal and not on future values.
Mathematically, a system is causal if it satisfies the following property: If x(n)=0 for
n<0, then y(n)=0 for n<0.
These properties are essential for the analysis and design of digital signal processing
systems. A system that satisfies all four properties is called a Linear Time-Invariant (LTI)
system, which is a fundamental concept in digital signal processing.

14)
a) Signal Processing is the study of signals and their processing methods to extract useful
information, enhance their quality, or transform them for various applications. In digital
signal processing (DSP), signals are processed using digital techniques such as discrete
Fourier transform, digital filtering, and digital modulation. DSP finds applications in various
fields, including telecommunications, audio processing, biomedical engineering, radar and
sonar systems, and control systems.
Advantages of Digital Signal Processing:
1. Accuracy: Digital signals can be processed with high accuracy, allowing for precise
control and analysis of the signal.
2. Flexibility: Digital processing algorithms can be easily modified and updated to suit
changing needs, making DSP systems highly adaptable.
3. Noise immunity: Digital signals are less susceptible to noise and interference, making
it easier to obtain high-quality signal data.
4. Cost-effective: DSP hardware and software are readily available, and the cost of
implementation is relatively low.
5. Reproducibility: Digital signals can be stored and reproduced without loss of
information, making them useful for archival and other applications.
Limitations of Digital Signal Processing:
1. Sampling and quantization errors: Analog signals need to be sampled and quantized
before digital processing, which can lead to errors.
 2. Limited dynamic range: The dynamic range of digital signals is limited by the number
of bits used for quantization, which can result in signal distortion and loss of
information.
3. Computational complexity: Some DSP algorithms require significant computational
resources, which can be challenging to implement in real-time systems.
4. Aliasing: Improper sampling can result in aliasing, which can cause signal distortion.
Applications of Digital Signal Processing:
1. Audio processing: DSP is widely used in the production, mixing, and mastering of
audio signals for music and other applications.
2. Telecommunications: DSP is used extensively in the design and implementation of
communication systems such as cellular networks, Wi-Fi, and satellite systems.
3. Medical imaging: DSP is used in the analysis and processing of medical images, such
as MRI and CT scans.
4. Radar and sonar systems: DSP is used in radar and sonar systems for signal processing
and target detection.
5. Control systems: DSP is used in control systems for filtering and feedback control of
signals, such as in industrial automation and robotics.

b) Signals can be classified in various ways based on their characteristics, properties, and
applications. Here are some common ways to classify signals:
1. Continuous-time and Discrete-time Signals: Continuous-time signals are defined over
a continuous range of time, while discrete-time signals are defined only at discrete
time instants.
2. Analog and Digital Signals: Analog signals are continuous-time signals that can take on
any value within a certain range, while digital signals are discrete-time signals that
can take on only a finite number of values.
3. Periodic and Aperiodic Signals: Periodic signals repeat themselves over a fixed
interval of time, while aperiodic signals do not have any repetitive pattern.
4. Deterministic and Random Signals: Deterministic signals have a well-defined
mathematical expression or formula that can be used to predict their values at any
given time, while random signals are characterized by a probability distribution
function and have unpredictable values.
5. Energy and Power Signals: Energy signals have finite energy over an infinite period of
time, while power signals have finite power over an infinite period of time.
6. Real and Complex Signals: Real signals have real-valued amplitudes, while complex
signals have both real and imaginary parts.
7. Symmetric and Antisymmetric Signals: Symmetric signals are identical to their time-
reversed versions, while antisymmetric signals are negated versions of their time-
reversed versions.
8. Causal and Non-causal Signals: Causal signals have values only for the present and
past time instants, while non-causal signals can have values for the future as well.
These classifications are useful in understanding the properties of different types of
signals and designing appropriate signal processing techniques for various applications.

15)
a) Discrete-time sequences are mathematical representations of discrete-time signals,
which are signals that are defined only at specific points in time. These sequences are
widely used in various fields, including digital signal processing, communication systems,
control systems, and many other areas. Here are some of the most important discrete-
time sequences:
1. Unit Impulse Sequence: The unit impulse sequence is a sequence of zeros except for
one sample, which is equal to one. It is often used to represent a theoretical point
source of energy, and is widely used in signal processing and system analysis.
2. Unit Step Sequence: The unit step sequence is a sequence of zeros before a certain
sample, and ones from that sample on. This sequence is used to represent a sudden
change in a signal or system, such as turning on a switch or opening a valve.
3. Ramp Sequence: The ramp sequence is a sequence that increases linearly with time.
It is often used to model linear systems, such as mechanical or electrical systems, and
is also used in digital signal processing to smooth out a signal or to remove noise.
4. Sinusoidal Sequence: The sinusoidal sequence is a sequence that oscillates
sinusoidally with time. It is often used to represent periodic signals, such as audio or
radio signals, and is widely used in digital signal processing to filter out unwanted
frequencies or to generate new signals.
5. Exponential Sequence: The exponential sequence is a sequence that increases or
decreases exponentially with time. It is used to model systems that exhibit
exponential growth or decay, such as chemical reactions or population growth, and is
also widely used in digital signal processing to smooth out a signal or to remove
noise.
6. Random Sequence: The random sequence is a sequence of random numbers. It is
used in statistical signal processing to simulate noise or to generate random signals
for testing purposes.
Each of these discrete-time sequences has its own importance and is used in different
applications. For example, the unit impulse sequence is important for analyzing systems'
impulse response, the unit step sequence is useful for analyzing system's step response,
the ramp sequence is used for modelling linear systems, sinusoidal sequence is used to
represent periodic signals, exponential sequence is used to model growth and decay of
systems, and random sequence is important for generating random signals for testing
purposes.
b) An LTI (linear time-invariant) system is a system whose response to a given input
signal is linearly proportional to the input signal and is also time-invariant, meaning that
the response does not depend on when the input signal is applied. Mathematically, an
LTI system can be described by the convolution sum of its impulse response function h(n)
and the input sequence x(n).
The output response of an LTI system can be expressed as:
y(n) = x(n) * h(n)
where * denotes convolution operation.
The convolution operation is defined as:
y(n) = ∑[x(k) * h(n-k)]
where the summation is taken over all possible values of k such that the product x(k) *
h(n-k) is non-zero.
The above equation represents the output response of an LTI system for any input
sequence x(n) and impulse response function h(n).
To derive the expression for the output response, we can substitute the impulse
response function h(n) for x(n) in the above equation:
y(n) = ∑[h(k) * h(n-k)]
This expression is known as the convolution sum of the impulse response function h(n)
with itself, which is also called the impulse response of the LTI system.
Thus, the output response of an LTI system with impulse response function h(n) and
input sequence x(n) is given by the convolution of x(n) and h(n), as shown in the
equation:
y(n) = x(n) * h(n) = ∑[x(k) * h(n-k)]
16)
a) The operations of a signal are mathematical operations performed on a signal to
modify its characteristics. Three common operations on signals are time scaling,
amplitude scaling, and folding.
1. Time Scaling: Time scaling refers to the process of changing the time axis of a signal. If
we compress the time axis of a signal, the signal will appear to be running faster, and
if we stretch the time axis of a signal, the signal will appear to be running slower.
Mathematically, time scaling of a signal x(t) is given by:
y(t) = x(at)
where a is the scaling factor.
2. Amplitude Scaling: Amplitude scaling refers to the process of multiplying the
amplitude of a signal by a constant factor. If we multiply a signal by a positive
constant, the amplitude of the signal will increase, and if we multiply the signal by a
negative constant, the amplitude of the signal will invert. Mathematically, amplitude
scaling of a signal x(t) is given by:
y(t) = ax(t)
where a is the scaling factor.
3. Folding: Folding, also known as time reversal, is an operation that changes the sign of
the independent variable of a signal. This means that if we flip the signal along the y-
axis, we can create a new signal that is a mirror image of the original signal.
Mathematically, folding of a signal x(t) is given by:
y(t) = x(-t)
where y(t) is the folded signal.
These operations are useful in many signal processing applications, such as filtering,
modulation, and demodulation.

b) An LTI (Linear Time-Invariant) system is a type of system in which the output of the
system is a linear combination of the input signal and the system's impulse response. It is
called time-invariant because the system's response does not depend explicitly on time,
but only on the values of the input and the impulse response at that time.
Mathematically, the output of an LTI system can be represented as:
y(n) = ∑_{k=-∞}^{∞} x(k) h(n-k)
where x(n) is the input sequence, h(n) is the impulse response of the system, and y(n) is
the output sequence.
Now, let's consider the time-scaling property, which states that if we multiply the time
index of a signal by a constant factor a, the frequency of the signal is scaled by a factor of
1/a. Mathematically, if x(n) is a discrete-time signal, then the time-scaled signal is given
by:
x'(n) = x(an)
Now, if we apply the time-scaling property to the input of an LTI system, we get:
y(n) = ∑_{k=-∞}^{∞} x(ak) h(n-k)
= ∑_{k=-∞}^{∞} x'(k) h(n-k)
= y'(n)
where y'(n) is the output of the LTI system when the input is time-scaled by a factor of a.
We can see that the output of the LTI system is also time-scaled by a factor of a, which
means that the LTI system combined with the time-scaling property results in a time-
variant system. This is because the response of the LTI system depends on the scaling
factor a, which varies with time. Therefore, the output of the system changes with time,
making it a time-variant system.
In conclusion, the combination of an LTI system and the time-scaling property can result
in a time-variant system.

17)
a) Discrete-time sequences are mathematical representations of discrete-time signals,
which are signals that are defined only at specific points in time. These sequences are
widely used in various fields, including digital signal processing, communication systems,
control systems, and many other areas. Here are some of the most important discrete-
time sequences:
1. Unit Impulse Sequence: The unit impulse sequence is a sequence of zeros except for
one sample, which is equal to one. It is often used to represent a theoretical point
source of energy, and is widely used in signal processing and system analysis.
2. Unit Step Sequence: The unit step sequence is a sequence of zeros before a certain
sample, and ones from that sample on. This sequence is used to represent a sudden
change in a signal or system, such as turning on a switch or opening a valve.
3. Ramp Sequence: The ramp sequence is a sequence that increases linearly with time.
It is often used to model linear systems, such as mechanical or electrical systems, and
is also used in digital signal processing to smooth out a signal or to remove noise.
4. Sinusoidal Sequence: The sinusoidal sequence is a sequence that oscillates
sinusoidally with time. It is often used to represent periodic signals, such as audio or
 radio signals, and is widely used in digital signal processing to filter out unwanted
frequencies or to generate new signals.
5. Exponential Sequence: The exponential sequence is a sequence that increases or
decreases exponentially with time. It is used to model systems that exhibit
exponential growth or decay, such as chemical reactions or population growth, and is
also widely used in digital signal processing to smooth out a signal or to remove
noise.
6. Random Sequence: The random sequence is a sequence of random numbers. It is
used in statistical signal processing to simulate noise or to generate random signals
for testing purposes.
Each of these discrete-time sequences has its own importance and is used in different
applications. For example, the unit impulse sequence is important for analyzing systems'
impulse response, the unit step sequence is useful for analyzing system's step response,
the ramp sequence is used for modeling linear systems, sinusoidal sequence is used to
represent periodic signals, exponential sequence is used to model growth and decay of
systems, and random sequence is important for generating random signals for testing
purposes.
b) An LTI (linear time-invariant) system is a system whose response to a given input
signal is linearly proportional to the input signal and is also time-invariant, meaning that
the response does not depend on when the input signal is applied. Mathematically, an
LTI system can be described by the convolution sum of its impulse response function h(n)
and the input sequence x(n).
The output response of an LTI system can be expressed as:
y(n) = x(n) * h(n)
where * denotes convolution operation.
The convolution operation is defined as:
y(n) = ∑[x(k) * h(n-k)]
where the summation is taken over all possible values of k such that the product x(k) *
h(n-k) is non-zero.
The above equation represents the output response of an LTI system for any input
sequence x(n) and impulse response function h(n).
To derive the expression for the output response, we can substitute the impulse
response function h(n) for x(n) in the above equation:
y(n) = ∑[h(k) * h(n-k)]
This expression is known as the convolution sum of the impulse response function h(n)
with itself, which is also called the impulse response of the LTI system.
Thus, the output response of an LTI system with impulse response function h(n) and
input sequence x(n) is given by the convolution of x(n) and h(n), as shown in the
equation:
y(n) = x(n) * h(n) = ∑[x(k) * h(n-k)]

18)
a) Analog and digital systems are two types of systems that are used to process and
transmit signals. Here are some of the main differences between analog and digital
systems:
1. Representation of Signals: Analog systems use continuous signals, which means that
the signals vary smoothly and can take on any value within a certain range. On the
other hand, digital systems use discrete signals, which means that the signals can only
take on specific values, typically represented by binary numbers.
2. Accuracy: Analog systems can have a lower accuracy than digital systems because
they are subject to noise, interference, and other disturbances. Digital systems, on
the other hand, can have very high accuracy because they use error-correction
techniques and can perform precise calculations with a high degree of accuracy.
3. Processing: Analog systems use continuous-time processing, which means that the
signals are processed in real-time. Digital systems, on the other hand, use discrete-
time processing, which means that the signals are sampled and processed at discrete
intervals.
4. Complexity: Digital systems can be more complex than analog systems because they
involve more components, such as digital signal processors, microcontrollers, and
memory chips. Analog systems, on the other hand, can be simpler because they often
consist of only a few components, such as amplifiers, filters, and sensors.
5. Cost: Analog systems can be cheaper than digital systems because they use simpler
components and require less processing power. Digital systems, on the other hand,
can be more expensive because they require more components and more processing
power.
6. Maintenance: Analog systems can require more maintenance than digital systems
because they are more prone to wear and tear and can be affected by environmental
factors such as temperature and humidity. Digital systems, on the other hand, can be
 more reliable because they are less affected by these factors and can often be
remotely monitored and diagnosed.
In summary, analog systems use continuous signals, have lower accuracy, use
continuous-time processing, can be simpler and cheaper, but can require more
maintenance. Digital systems use discrete signals, have higher accuracy, use discrete-
time processing, can be more complex and expensive, but can be more reliable and
easier to maintain.

19)
a)
1. Frequency response: The frequency response of a system is a measure of how the
system responds to different frequencies of the input signal. It is the ratio of the
output amplitude to the input amplitude, as a function of frequency. The frequency
response can be represented using either the magnitude and phase or the real and
imaginary components of the system's transfer function. The frequency response is
an important property of many systems, such as filters and amplifiers, and can be
used to analyze and design these systems.
2. Magnitude spectrum: The magnitude spectrum of a signal is the plot of the
magnitude of the signal's Fourier transform versus frequency. It shows the amount of
each frequency component in the signal and is often used to analyze the frequency
content of a signal. The magnitude spectrum is usually plotted on a logarithmic scale,
with frequency on the x-axis and magnitude on the y-axis.
3. Phase spectrum: The phase spectrum of a signal is the plot of the phase angle of the
signal's Fourier transform versus frequency. It shows the phase shift of each
frequency component in the signal and is often used to analyze the phase response of
a system. The phase spectrum is usually plotted on a linear scale, with frequency on
the x-axis and phase angle on the y-axis.
4. Time delay: The time delay of a system is the amount of time it takes for the system
to respond to an input signal. It is often represented as a constant time shift in the
time domain, or as a phase shift in the frequency domain. The time delay is an
important property of many systems, especially those that involve signal processing
or communication, as it can affect the accuracy and timing of the system's output.
The time delay is usually measured in seconds or milliseconds, depending on the
application.
b) To determine the frequency response, magnitude response, and phase response of the
second-order system y(n) + 1/2 y(n-1) = x(n) - x(n-1), we can take the Z-transform of both
sides and solve for Y(z)/X(z), which gives us the transfer function H(z) of the system.
First, we can rewrite the difference equation as:
y(n) = x(n) - x(n-1) - 1/2 y(n-1)
Taking the Z-transform of both sides and rearranging, we get:
Y(z) = X(z) - z^-1 X(z) - 1/2 z^-1 Y(z)
Solving for Y(z)/X(z), we get:
Y(z)/X(z) = 1 / (1 + 1/2 z^-1)
This is the transfer function H(z) of the system, which we can rewrite in terms of the
frequency response, H(ω), using the substitution z = e^(jωT), where T is the sampling
period:
H(ω) = 1 / (1 + 1/2 e^(-jωT))
To find the magnitude response, |H(ω)|, we can take the absolute value of H(ω):
|H(ω)| = 1 / |1 + 1/2 e^(-jωT)|
To find the phase response, Φ(ω), we can take the argument of H(ω):
Φ(ω) = -arctan(2 sin(ωT) / (1 + cos(ωT)))
Therefore, the frequency response, magnitude response, and phase response of the
second-order system y(n) + 1/2 y(n-1) = x(n) - x(n-1) are given by:
H(ω) = 1 / (1 + 1/2 e^(-jωT))
|H(ω)| = 1 / |1 + 1/2 e^(-jωT)|
Φ(ω) = -arctan(2 sin(ωT) / (1 + cos(ωT)))

20)
a) ADC (Analog-to-Digital Converter) quantization noise is an important factor that can
affect the quality of a digitized signal. Quantization noise is the error that is introduced
when a continuous signal is sampled and then rounded to a discrete value that can be
represented by a binary number. This error can be modeled as additive white noise, which is
uniformly distributed over the quantization interval. The effect of ADC quantization noise on
signal quality can be discussed as follows:
1. Signal-to-Noise Ratio (SNR) degradation: The presence of quantization noise reduces
the SNR of the digitized signal. The SNR is defined as the ratio of the signal power to
the noise power. As the quantization noise power increases, the SNR decreases,
 which reduces the ability to accurately recover the original analog signal from the
digitized version.
2. Noise floor increase: Quantization noise increases the noise floor of the signal. The
noise floor is the level below which signals cannot be reliably detected. As the
quantization noise increases, the noise floor also increases, which means that smaller
signals may not be detectable above the noise level.
3. Signal distortion: Quantization noise can also cause signal distortion, which is the
deviation of the digitized signal from the original analog signal. Distortion can occur
when the quantization levels are not fine enough to represent the analog signal
accurately. This can result in a loss of information or artifacts in the digitized signal.
4. Non-linear behavior: Quantization noise can also cause non-linear behavior in the
digitized signal. This can occur when the quantization levels are not uniformly spaced
or when the ADC has a limited dynamic range. Non-linear behavior can result in
harmonic distortion, intermodulation distortion, and other types of signal distortion.
In summary, the effect of ADC quantization noise on signal quality is generally negative.
Quantization noise reduces the SNR, increases the noise floor, causes signal distortion, and
can lead to non-linear behavior in the digitized signal. Therefore, it is important to carefully
consider the design of ADCs and the sampling process to minimize the impact of
quantization noise on signal quality.
b) The FFT (Fast Fourier Transform) algorithm is a widely used algorithm for calculating the
Discrete Fourier Transform (DFT) of a discrete-time signal. However, its implementation on
digital systems can be subject to finite word length effects, which can degrade the accuracy
of the computed FFT results. The finite word length effects can arise due to the use of finite
precision arithmetic operations in the FFT algorithm. These effects can include:
1. Quantization error: Quantization error is the error that arises due to rounding off the
computed values to a fixed number of bits. This error can propagate throughout the
FFT algorithm, affecting the accuracy of the computed results.
2. Overflow and underflow: Overflow and underflow can occur when the computed
values exceed the maximum or minimum value that can be represented by the finite
word length. This can lead to errors in the computed results.
3. Round-off error: Round-off error is the error that arises due to the truncation of the
computed values to a fixed number of bits. This error can accumulate over the course
of the FFT algorithm, leading to a loss of accuracy in the computed results.
4. Windowing effects: Windowing is often used in conjunction with the FFT algorithm to
reduce the spectral leakage effect caused by the finite duration of the input signal.
However, the use of finite length windows can introduce additional finite word length
effects, leading to a loss of accuracy in the computed results.
To mitigate the finite word length effects in the FFT algorithm, several techniques can be
employed, such as:
1. Using higher precision arithmetic: Using higher precision arithmetic, such as double-
precision floating-point arithmetic, can reduce the impact of quantization and round-
off errors in the computed results.
2. Implementing scaling: Implementing scaling can prevent overflow and underflow by
scaling the input and output data to fit within the available range of the finite word
length.
3. Using optimized implementations: Optimized implementations of the FFT algorithm,
such as those that use fixed-point arithmetic or specialized hardware, can reduce the
impact of finite word length effects.
4. Choosing appropriate windowing functions: Choosing appropriate windowing
functions, such as those with lower side-lobe levels, can reduce the impact of
windowing effects on the computed results.
In conclusion, finite word length effects can significantly affect the accuracy of the
computed results in the implementation of the FFT algorithm. However, by using higher
precision arithmetic, implementing scaling, using optimized implementations, and choosing
appropriate windowing functions, the impact of these effects can be mitigated to a great
extent.

21)
a) The operations of a signal are mathematical operations performed on a signal to
modify its characteristics. Three common operations on signals are time scaling,
amplitude scaling, and folding.
2. Time Scaling: Time scaling refers to the process of changing the time axis of a signal. If
we compress the time axis of a signal, the signal will appear to be running faster, and
if we stretch the time axis of a signal, the signal will appear to be running slower.
Mathematically, time scaling of a signal x(t) is given by:
y(t) = x(at)
where a is the scaling factor.
3. Amplitude Scaling: Amplitude scaling refers to the process of multiplying the
amplitude of a signal by a constant factor. If we multiply a signal by a positive
constant, the amplitude of the signal will increase, and if we multiply the signal by a
negative constant, the amplitude of the signal will invert. Mathematically, amplitude
scaling of a signal x(t) is given by:
y(t) = ax(t)
where a is the scaling factor.
4. Folding: Folding, also known as time reversal, is an operation that changes the sign of
the independent variable of a signal. This means that if we flip the signal along the y-
axis, we can create a new signal that is a mirror image of the original signal.
Mathematically, folding of a signal x(t) is given by:
y(t) = x(-t)
where y(t) is the folded signal.
These operations are useful in many signal processing applications, such as filtering,
modulation, and demodulation.
b) An LTI (Linear Time-Invariant) system is a type of system in which the output of the
system is a linear combination of the input signal and the system's impulse response. It is
called time-invariant because the system's response does not depend explicitly on time,
but only on the values of the input and the impulse response at that time.
Mathematically, the output of an LTI system can be represented as:
y(n) = ∑_{k=-∞}^{∞} x(k) h(n-k)
where x(n) is the input sequence, h(n) is the impulse response of the system, and y(n) is
the output sequence.
Now, let's consider the time-scaling property, which states that if we multiply the time
index of a signal by a constant factor a, the frequency of the signal is scaled by a factor of
1/a. Mathematically, if x(n) is a discrete-time signal, then the time-scaled signal is given
by:
x'(n) = x(an)
Now, if we apply the time-scaling property to the input of an LTI system, we get:
y(n) = ∑_{k=-∞}^{∞} x(ak) h(n-k)
= ∑_{k=-∞}^{∞} x'(k) h(n-k)
= y'(n)
where y'(n) is the output of the LTI system when the input is time-scaled by a factor of a.
We can see that the output of the LTI system is also time-scaled by a factor of a, which
means that the LTI system combined with the time-scaling property results in a time-
variant system. This is because the response of the LTI system depends on the scaling
factor a, which varies with time. Therefore, the output of the system changes with time,
making it a time-variant system.
In conclusion, the combination of an LTI system and the time-scaling property can result
in a time-variant system.
22)
The Z-transform and the Discrete Fourier Transform (DFT) are two mathematical tools that
are commonly used in digital signal processing. They are related to each other through the
following equation:
X(e^(jω)) = X(z)|z=e^(jω)
where X(e^(jω)) is the DFT of a discrete-time signal x(n) evaluated at a frequency ω, and X(z)
is the Z-transform of the same signal evaluated at the point z = e^(jω).
In other words, the DFT can be thought of as a sampled version of the Z-transform
evaluated along the unit circle in the complex plane. This relationship is known as the
"sampling theorem in the Z-domain."
The inverse relationship is also true, and can be expressed as:
x(n) = (1/2π) ∫_(-π)^(π) X(e^(jω))e^(jωn) dω
where x(n) is the discrete-time signal, X(e^(jω)) is its DFT, and the integral is taken over the
interval [-π, π].
In practice, this relationship allows for the conversion between the time-domain
representation of a signal (in terms of its Z-transform) and its frequency-domain
representation (in terms of its DFT). This conversion is widely used in digital signal
processing applications, such as filtering, spectrum analysis, and system identification.

23)
Linear convolution and circular convolution are two methods for computing the convolution
of two signals.
Linear convolution involves sliding one signal over another, multiplying the overlapping
samples at each point, and summing the results. The resulting signal has a length equal to
the sum of the lengths of the two input signals minus one. Linear convolution assumes that
the signals are infinite in duration and zero-padded to avoid edge effects.
Circular convolution, on the other hand, involves treating the two input signals as periodic,
and performing a cyclic shift of one of the signals before computing the convolution. This is
equivalent to performing the convolution in the frequency domain using the DFT (Discrete
Fourier Transform) and then transforming the result back to the time domain using the
inverse DFT. The resulting signal has the same length as the input signals. Circular
convolution is useful for applications such as circular buffering and frequency domain
filtering.
The main difference between linear and circular convolution is that linear convolution
assumes that the input signals are zero-padded and infinite in duration, while circular
convolution assumes that the input signals are periodic. Circular convolution is equivalent to
linear convolution when the input signals are zero-padded to the same length as the sum of
their lengths minus one.
Another difference is that linear convolution produces a linear combination of the input
signals, while circular convolution can produce a non-linear combination due to the periodic
nature of the signals.
In summary, linear convolution is used when the input signals are assumed to be infinite
and zero-padded, while circular convolution is used when the input signals are periodic.
Linear convolution produces a linear combination of the input signals, while circular
convolution can produce a non-linear combination.
24)
We can prove that H(K) and H(N-K) are complex conjugates by using the definition of the
DFT and the properties of complex conjugates:
First, recall that the N-point DFT of a sequence h(n) is given by:
H(K) = ∑_(n=0)^(N-1) h(n) e^(-j2πKn/N)
Taking the complex conjugate of both sides, we get:
H*(K) = ∑_(n=0)^(N-1) h(n) e^(j2πKn/N)
Now, substituting N-K for K in the above equation, we get:
H*(N-K) = ∑_(n=0)^(N-1) h(n) e^(j2π(N-K)n/N)
Simplifying the exponent using Euler's formula, we get:
H*(N-K) = ∑_(n=0)^(N-1) h(n) [cos(2π(N-K)n/N) + j sin(2π(N-K)n/N)]
Since cosine is an even function and sine is an odd function, we can rewrite the above
equation as:
H*(N-K) = ∑_(n=0)^(N-1) h(n) [cos(2πKn/N) - j sin(2πKn/N)]
Finally, we can rearrange terms and factor out the complex conjugate to get:
H*(N-K) = [∑_(n=0)^(N-1) h(n) e^(-j2πKn/N)]*
Thus, we see that H(K) and H(N-K) are complex conjugates of each other.

25)
The Fast Fourier Transform (FFT) algorithm has several advantages over direct computation
of the Discrete Fourier Transform (DFT):
 1. Speed: The FFT algorithm is much faster than direct computation of the DFT,
especially for large input sizes. The computational complexity of the FFT is O(N log N),
whereas the complexity of direct computation is O(N^2).
2. Memory Efficiency: The FFT algorithm requires much less memory than direct
computation of the DFT, since it can reuse memory by reordering the input data in
place.
3. Numerical Stability: The FFT algorithm is more numerically stable than direct
computation of the DFT, since it avoids the accumulation of round-off errors that can
occur in direct computation.
4. Algorithmic Flexibility: The FFT algorithm can be adapted to exploit specific properties
of the input data, such as symmetry, periodicity, or sparsity, to further improve
efficiency.
5. Widely Available: The FFT algorithm is widely available in software libraries and
hardware implementations, making it easy to use in a wide range of applications.
In summary, the FFT algorithm provides a significant improvement in speed, memory
efficiency, numerical stability, and algorithmic flexibility over direct computation of the DFT,
making it a widely used and important tool in signal processing and other fields.

26)
The Z-transform is a mathematical tool used in digital signal processing to transform a
discrete-time signal into a complex-valued function of a complex variable z. The Z-transform
has several properties, which are listed below:
1. Linearity: The Z-transform is a linear operator, meaning that it obeys the
superposition principle.
2. Time shifting: A time shift of n samples in the time domain corresponds to a
multiplication by z^(-n) in the Z-domain.
3. Time scaling: A time scaling of a signal by a factor a corresponds to a substitution of
z^(±1) by z^(±1/a) in the Z-domain.
4. Convolution: The Z-transform of the convolution of two signals is the product of their
respective Z-transforms.
5. Initial value theorem: The Z-transform evaluated at z = infinity gives the initial value
of the sequence.
6. Final value theorem: The limit of the sequence as n approaches infinity is given by the
sum of the residues of the Z-transform at all poles inside the unit circle.
The Region of Convergence (ROC) of a Z-transform is a set of values of z for which the Z-
transform converges absolutely, meaning that the series converges regardless of the signal's
values. It is usually represented in the complex plane as a region or a set of disconnected
points. The ROC is important because it determines the set of signals for which the Z-
transform exists, and it is also related to the stability and causality of the corresponding
system. The ROC can be inside, outside or on the unit circle in the z-plane, and the choice of
the ROC depends on the properties of the signal and the system being analyzed.
27)
The Discrete Fourier Transform (DFT) of a sequence x(n) of length N is given by:
X(k) = ∑_(n=0)^(N-1) x(n) e^(-j2πnk/N)
For the sequence x(n) = {1,1,-2,-2}, we have N = 4. Therefore, the DFT can be calculated as
follows:
X(0) = ∑_(n=0)^(N-1) x(n) = 1+1-2-2 = -2
X(1) = ∑_(n=0)^(N-1) x(n) e^(-j2πnk/N) = 1 e^(-j2π10/4) + 1 e^(-j2π11/4) - 2 e^(-j2π12/4) - 2
e^(-j2π13/4) = 1 - 2j
X(2) = ∑_(n=0)^(N-1) x(n) e^(-j2πnk/N) = 1 e^(-j2π20/4) + 1 e^(-j2π21/4) - 2 e^(-j2π22/4) - 2
e^(-j2π23/4) = -4
X(3) = ∑_(n=0)^(N-1) x(n) e^(-j2πnk/N) = 1 e^(-j2π30/4) + 1 e^(-j2π31/4) - 2 e^(-j2π32/4) - 2
e^(-j2π33/4) = 1 + 2j
Therefore, the DFT of the sequence x(n) = {1,1,-2,-2} is given by X(k) = {-2, 1 - 2j, -4, 1 + 2j}.

28)
The Decimation-in-Time (DIT) FFT algorithm is a way to compute the DFT of a sequence
using a divide-and-conquer approach. The DIT FFT algorithm is based on the radix-2 Cooley-
Tukey FFT algorithm and it exploits the periodicity of the twiddle factors to reduce the
number of computations required.
The input sequence x(n) of length N is first divided into two smaller sequences, x_even(n)
and x_odd(n), which consist of the even-indexed and odd-indexed samples of x(n),
respectively. This can be written as:
x_even(n) = x(2n) x_odd(n) = x(2n+1)
The DFT of x(n) can be written as:
X(k) = ∑_(n=0)^(N-1) x(n) e^(-j2πnk/N)
Substituting the expressions for x_even(n) and x_odd(n) gives:
X(k) = ∑_(n=0)^(N/2-1) x_even(n) e^(-j2π2nk/N) + ∑_(n=0)^(N/2-1) x_odd(n) e^(-
j2π(2n+1)k/N)
The twiddle factor e^(-j2π2nk/N) is periodic with period N/2, which means that the first
sum can be computed by taking the DFT of the even-indexed samples of x(n) using an N/2-
point DFT. Similarly, the twiddle factor e^(-j2π(2n+1)k/N) is periodic with period N/2, which
means that the second sum can be computed by taking the DFT of the odd-indexed samples
of x(n) using an N/2-point DFT.
Therefore, the DIT FFT algorithm can be written recursively as follows:
1. Divide the input sequence x(n) into two smaller sequences, x_even(n) and x_odd(n),
consisting of the even-indexed and odd-indexed samples of x(n), respectively.
2. Compute the N/2-point DFT of x_even(n) using the same DIT FFT algorithm.
3. Compute the N/2-point DFT of x_odd(n) using the same DIT FFT algorithm.
4. Combine the results of the two N/2-point DFTs to obtain the N-point DFT of x(n).
The output sequence X(k) can be computed from the outputs of the two N/2-point DFTs as
follows:
X(k) = X_even(k) + e^(-j2πk/N) X_odd(k)
where X_even(k) and X_odd(k) are the N/2-point DFTs of x_even(n) and x_odd(n),
respectively. The twiddle factor e^(-j2πk/N) is a phase shift that accounts for the position of
the output sample in the frequency domain.
29)
There are two main types of filters based on impulse response:
1. Finite impulse response (FIR) filters: FIR filters have a finite impulse response, which
means that the output of the filter depends only on a finite number of input samples.
FIR filters are also known as non-recursive filters because they do not have feedback
loops in their signal flow.
2. Infinite impulse response (IIR) filters: IIR filters have an infinite impulse response,
which means that the output of the filter depends on an infinite number of input
samples. IIR filters are also known as recursive filters because they have feedback
loops in their signal flow.
FIR filters have several advantages over IIR filters, including linear phase response, stability,
and the ability to implement them using only addition and multiplication operations.
However, FIR filters require a larger number of filter taps to achieve the same level of
frequency selectivity as IIR filters. IIR filters, on the other hand, can achieve the same level
of frequency selectivity with fewer filter coefficients but are more prone to stability issues
and can exhibit nonlinear phase response.
30)
There are two main methods for designing digital filters from analog filters:
1. Analog to Digital Conversion: In this method, an analog filter with a desired frequency
response is designed using analog circuit techniques. The transfer function of this
analog filter is then converted to a digital filter transfer function using techniques
such as the impulse invariance method or the bilinear transform method.
 Impulse Invariance Method: In this method, the impulse response of the analog filter
is sampled at a sufficiently high rate and the resulting samples are used to construct
the impulse response of the digital filter. The transfer function of the digital filter is
then obtained by taking the discrete-time Fourier transform of its impulse response.
 Bilinear Transform Method: In this method, the transfer function of the analog filter is
mapped to the z-plane using the bilinear transform, which preserves the frequency
response of the analog filter. The resulting transfer function is then a digital filter
transfer function.
2. Digital Filter Design Techniques: In this method, digital filter design techniques such
as windowing, frequency sampling, and optimal design methods are used to design a
digital filter directly without the need for an analog prototype.
Both methods have their advantages and disadvantages, and the choice of method depends
on the specific application requirements and design constraints.

Thank You!
