Ping pong gun with bottom magazine of balls.

Assembly guide.

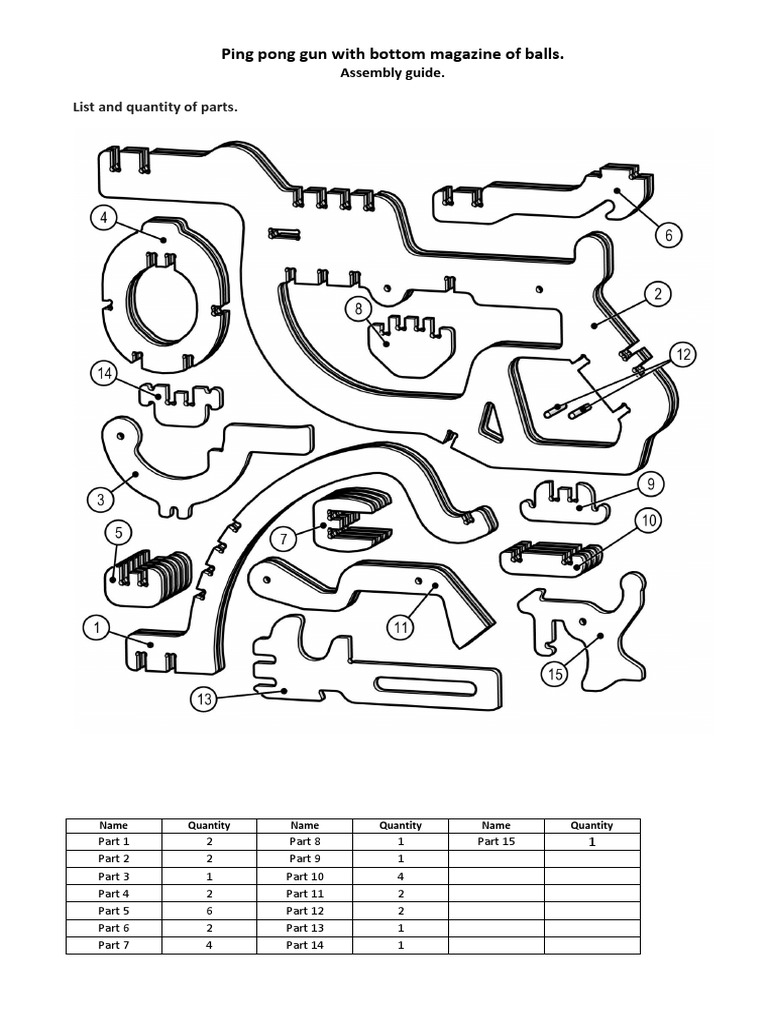

List and quantity of parts.

Name Quantity Name Quantity Name Quantity

Part 1 2 Part 8 1 Part 15 1
Part 2 2 Part 9 1
Part 3 1 Part 10 4
Part 4 2 Part 11 2
Part 5 6 Part 12 2
Part 6 2 Part 13 1
Part 7 4 Part 14 1
The parts need to be cut on the CNC machine from a sheet of plywood. The contours of the parts for
cutting are in the folder «DXF files».

The parts 12 need to be cut from 4mm diameter steel rod. The length of the parts 12 is 31 mm,
provided that the plywood parts are 6mm thick.

Plywood parts need be glued with PVA wood glue.

The gun assembly video https://youtu.be/5wDsWIEJ5sc

Step 1.

Step 2.
Step 3.

Step 4.
Step 5.

Step 6.
Step 7.

Step 8.
Step 9.
Put on rubber bands as in the photo.

Enjoy the game!
