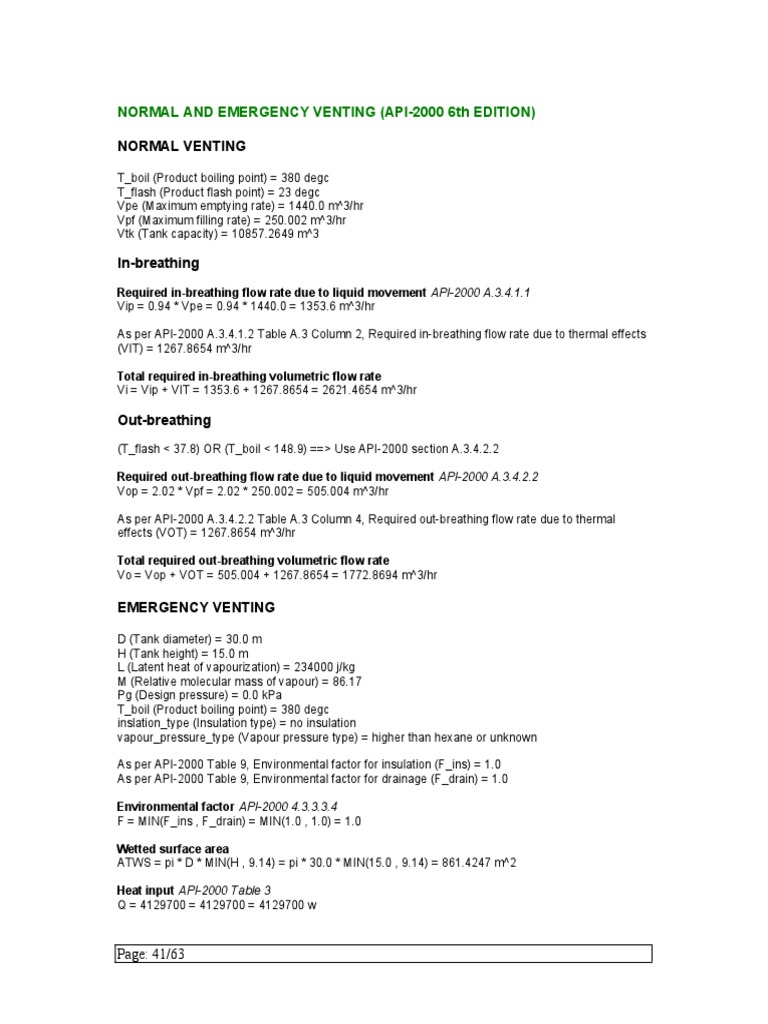

NORMAL AND EMERGENCY VENTING (API-2000 6th EDITION)

NORMAL VENTING

T_boil (Product boiling point) = 380 degc

T_flash (Product flash point) = 23 degc
Vpe (Maximum emptying rate) = 1440.0 m^3/hr
Vpf (Maximum filling rate) = 250.002 m^3/hr
Vtk (Tank capacity) = 10857.2649 m^3

In-breathing
Required in-breathing flow rate due to liquid movement API-2000 A.3.4.1.1
Vip = 0.94 * Vpe = 0.94 * 1440.0 = 1353.6 m^3/hr

As per API-2000 A.3.4.1.2 Table A.3 Column 2, Required in-breathing flow rate due to thermal effects
(VIT) = 1267.8654 m^3/hr

Total required in-breathing volumetric flow rate

Vi = Vip + VIT = 1353.6 + 1267.8654 = 2621.4654 m^3/hr

Out-breathing
(T_flash < 37.8) OR (T_boil < 148.9) ==> Use API-2000 section A.3.4.2.2

Required out-breathing flow rate due to liquid movement API-2000 A.3.4.2.2

Vop = 2.02 * Vpf = 2.02 * 250.002 = 505.004 m^3/hr

As per API-2000 A.3.4.2.2 Table A.3 Column 4, Required out-breathing flow rate due to thermal
effects (VOT) = 1267.8654 m^3/hr

Total required out-breathing volumetric flow rate

Vo = Vop + VOT = 505.004 + 1267.8654 = 1772.8694 m^3/hr

EMERGENCY VENTING

D (Tank diameter) = 30.0 m

H (Tank height) = 15.0 m
L (Latent heat of vapourization) = 234000 j/kg
M (Relative molecular mass of vapour) = 86.17
Pg (Design pressure) = 0.0 kPa
T_boil (Product boiling point) = 380 degc
inslation_type (Insulation type) = no insulation
vapour_pressure_type (Vapour pressure type) = higher than hexane or unknown

As per API-2000 Table 9, Environmental factor for insulation (F_ins) = 1.0

As per API-2000 Table 9, Environmental factor for drainage (F_drain) = 1.0

Environmental factor API-2000 4.3.3.3.4

F = MIN(F_ins , F_drain) = MIN(1.0 , 1.0) = 1.0

Wetted surface area

ATWS = pi * D * MIN(H , 9.14) = pi * 30.0 * MIN(15.0 , 9.14) = 861.4247 m^2

Heat input API-2000 Table 3

Q = 4129700 = 4129700 = 4129700 w

Page: 41/63
Required emergency venting capacity API-2000 4.3.3.3.2 eq(11)
q = 906.6 * ((Q * F) / L) * ((T_boil / M)^0.5)
= 906.6 * ((4129700 * 1.0) / 234000) * ((653.15 / 86.17)^0.5)
= 44050.088 m^3/hr.

Nozzle Size Calculation:

Max. Volumetric flow = 44050.088 m^3/hr. =12.236 m^3/s

Velocity = 16 m/s.
Cross section Area required A = 12.236 / 16 = 0.765 m2.
D = ((0.765*4 / Pie)^0.5) = 0.98687 m = 38.85 inch

= 38.85 / 4 = 9.71 inch

Take 4 Nos 10 inch vent nozzle on tank roof.

Page: 42/63
PLAN VIEW APPURTENANCE

INSIDE
CUST. OUTSIDE RADIUS REF
MARK DESCRIPTION PROJ ORIENT REMARKS
MARK PROJ (mm) (mm) DWG
(mm)
600NB ROOF
RM01 M6 281mm 0mm 285' 12000mm M6 RM01
MANWAY
600NB ROOF
RM01 M3 281mm 0mm 15' 12000mm M3 RM01
MANWAY
600NB ROOF
RM01 M4 281mm 0mm 105' 12000mm M4 RM01
MANWAY
600NB ROOF
RM01 M5 281mm 0mm 195' 12000mm M5 RM01
MANWAY
200NB ROOF
RN01 150mm 0mm 270' 5000mm RN01
NOZZLE
200NB ROOF
RN01 150mm 0mm 270' 14000mm RN01
NOZZLE
25NB ROOF
RN02 150mm 0mm 270' 10500mm RN02
NOZZLE
250NB ROOF
RN03 150mm 0mm 90' 5500mm RN04
NOZZLE
80NB ROOF
RN04 150mm 0mm 100' 5500mm RN03
NOZZLE
100NB ROOF
RN05 150mm 0mm 0' 0mm RN05
NOZZLE
200NB ROOF
RN06 200mm 0mm 0' 0mm RN07
NOZZLE
80NB ROOF
RN07 150mm 0mm 115' 850mm RN06
NOZZLE
WR01A RAIL WINGRAIL -- -- 103' 14923mm RHAN WR01
WS01AB S BOTTOM SUMP -- -- 0' 0mm S

ELEVATION VIEW APPURTENANCE

OUTSIDE INSIDE
CUST. ELEVATION REF
MARK DESCRIPTION PROJ PROJ ORIENT REMARKS
MARK (mm) DWG
(mm) (mm)
NP01A NP-1 STD API -- -- 35' 1016mm NP-1 NP01
150NB PIPE
PF01A 610mm 0mm 150' 15255mm PF01
OVERFLOW
ROOF
RPA01A -- -- 0' -- PLT-R RPA01
PLATFORM
ROOF
RW01A WALKWAY -- -- 103' -- WAKWAY RW01
WITH STEPS

Page: 43/63
