    @shraddha_pawankar Date: 1/8/2023

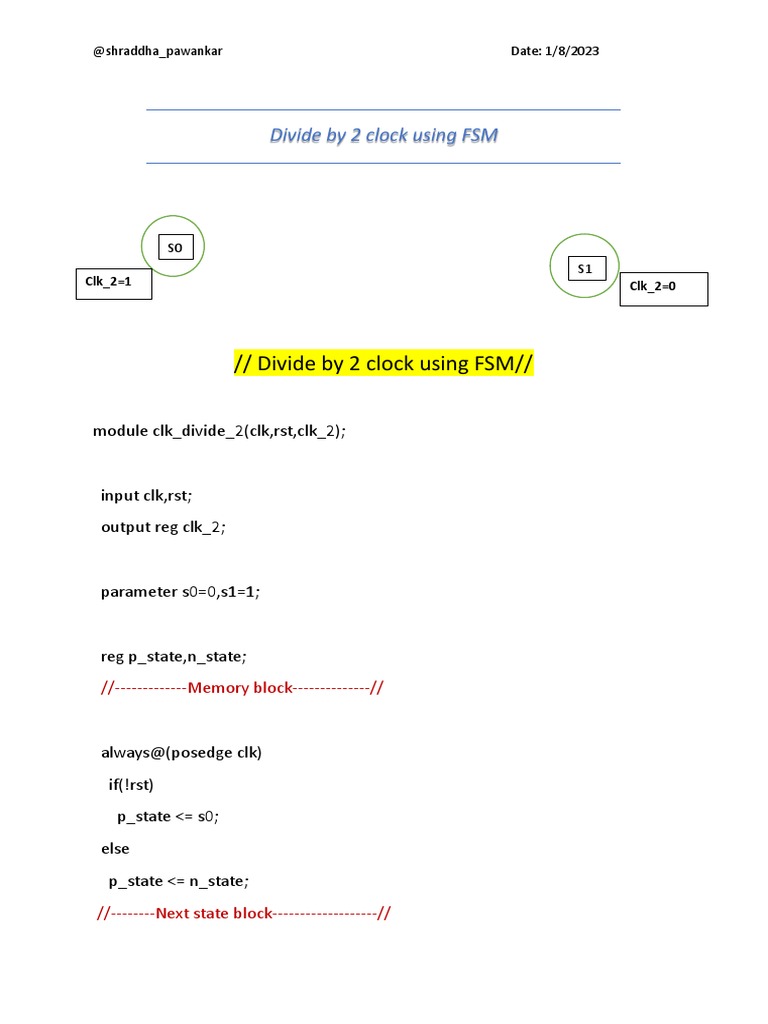

    Divide by 2 clock using FSM

    S0
    00 S1
    Clk_2=1 Clk_2=0

    // Divide by 2 clock using FSM//

    module clk_divide_2(clk,rst,clk_2);

    input clk,rst;
    output reg clk_2;

    parameter s0=0,s1=1;

    reg p_state,n_state;
    //-------------Memory block--------------//

    always@(posedge clk)
    if(!rst)
    p_state <= s0;
    else
    p_state <= n_state;
    //--------Next state block-------------------//
    @shraddha_pawankar Date: 1/8/2023

    always@(p_state)
    case(p_state)
    s0 : n_state = s1;
    s1 : n_state = s0;
    default : n_state = s0;
    endcase
    //--------output block-------------------//
    always@(p_state)
    case(p_state)
    s0 : clk_2=1;
    s1 : clk_2=0;
    default : clk_2 = 0;
    endcase
    endmodule

    https://www.edaplayground.com/x/tGD5

    33% duty cycle using FSM


    @shraddha_pawankar Date: 1/8/2023

    S0
    S1
    Clk_out =1
    Clk_out=0

    S2

    Clk_out=0

    Program:

    module clk_33_duty_cycle(clk,rst,clk_out);

    input clk,rst;
    output reg clk_out;
    reg[1:0] p_state,n_state;
    parameter s0=2'b00,s1=2'b01,s2=2'b10;

    //--------------Memory block-------------//

    always@(posedge clk)
    begin
    @shraddha_pawankar Date: 1/8/2023

    if(!rst)
    p_state <= s0;
    else

    p_state<= n_state;
    end
    //---------Next state block-----------//

    always@(p_state)

    begin
    case(p_state)
    s0: n_state = s1;
    s1: n_state = s2;
    s2: n_state = s0;

    default: n_state = s0;


    endcase
    end

    //-------output block-------------//

    always@(p_state)
    begin
    case(p_state)
    s0 : clk_out=1;
    s1 : clk_out=0;

    s2 : clk_out=0;
    default : clk_out=0;
    endcase
    end
    endmodule

    https://www.edaplayground.com/x/uLkr
    @shraddha_pawankar Date: 1/8/2023

    DIVIDE BY 3 CLOCK USING FSM

    S0
    Clk_1 = 1 S1
    clk_2=1 Clk_1 = 0
    clk_2=0

    S2

    Clk_1 = 0
    clk_2=0

    //Divide by 3 clock using FSM//


    module clk_divide_3(clk,rst,clk_3);
    input clk,rst;
    output reg clk_3;
    reg[1:0] p_state_1,n_state_1,p_state_2,n_state_2;

    reg clk_1,clk_2;
    parameter s0=2'b00,s1=2'b01,s2=2'b10;
    @shraddha_pawankar Date: 1/8/2023

    //------Memory block for clk_1---------//

    always@(posedge clk)

    begin
    if(!rst)
    p_state_1 <= s0;
    else
    p_state_1 <= n_state_1;

    end
    //--------define next state block for clk_1--------//

    always@(p_state_1)
    begin

    case(p_state_1)
    s0 : n_state_1 = s1;
    s1 : n_state_1 = s2;
    s2 : n_state_1 = s0;
    default : n_state_1 = s0;

    endcase
    end
    //------output block for clk_1------------//

    always@(p_state_1)

    begin
    case(p_state_1)
    s0 : clk_1 = 1;
    s1 : clk_1 = 0;
    s2 : clk_1 = 0;
    default: clk_1 = 0;
    @shraddha_pawankar Date: 1/8/2023

    endcase
    end
    //------Memory block for clk_2---------//

    always@(posedge clk)
    begin
    if(!rst)
    p_state_2 <= s0;
    else

    p_state_2 <= n_state_2;


    end
    //---------Next state block clk_2--------//
    always@(p_state_2)
    begin

    case(p_state_2)
    s0 : n_state_2 = s1;
    s1 : n_state_2 = s2;
    s2 : n_state_2 = s0;
    default : n_state_2 = s0;

    endcase
    end
    //------output block for clk_2------------//
    always@(p_state_2)
    begin

    case(p_state_2)
    s0 : clk_2 = 1;
    s1 : clk_2 = 0;
    s2 : clk_2 = 0;
    default : clk_2=0;
    endcase
    @shraddha_pawankar Date: 1/8/2023

    // combining clk_1 and clk_2


    assign clk_3 = clk_1 | clk_2;

    end
    endmodule

    https://www.edaplayground.com/x/rgxM
