T920D560

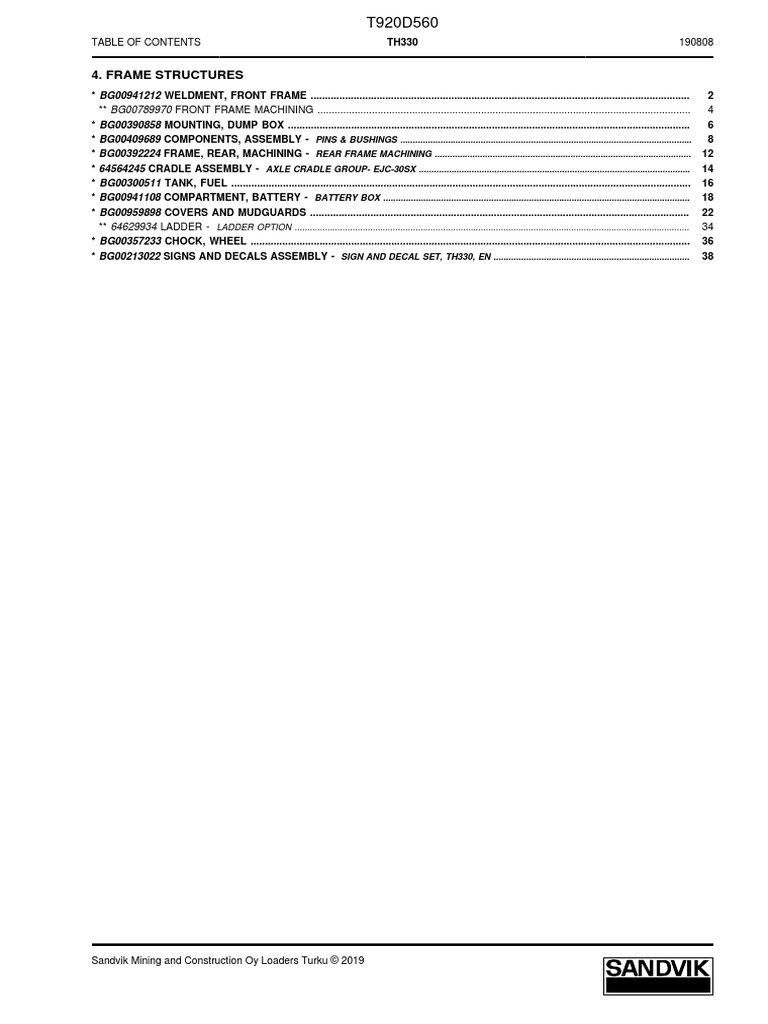

TABLE OF CONTENTS TH330 190808

4. FRAME STRUCTURES
* BG00941212 WELDMENT, FRONT FRAME .................................................................................................................................... 2
** BG00789970 FRONT FRAME MACHINING .................................................................................................................................. 4
* BG00390858 MOUNTING, DUMP BOX ............................................................................................................................................ 6
* BG00409689 COMPONENTS, ASSEMBLY - PINS & BUSHINGS .................................................................................................................... 8
* BG00392224 FRAME, REAR, MACHINING - REAR FRAME MACHINING ...................................................................................................... 12
* 64564245 CRADLE ASSEMBLY - AXLE CRADLE GROUP- EJC-30SX ............................................................................................................ 14
* BG00300511 TANK, FUEL ................................................................................................................................................................ 16
* BG00941108 COMPARTMENT, BATTERY - BATTERY BOX .......................................................................................................................... 18
* BG00959898 COVERS AND MUDGUARDS .................................................................................................................................... 22
** 64629934 LADDER - LADDER OPTION ............................................................................................................................................................. 34
* BG00357233 CHOCK, WHEEL ......................................................................................................................................................... 36
* BG00213022 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN .............................................................................. 38

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00941212 bB
1 (61) WELDMENT, FRONT FRAME 190808

32 2

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00941212 bB
190808 WELDMENT, FRONT FRAME 2 (61)

Ref. Part no. Name Description Qty

e
1 BG00789970 FRONT FRAME MACHINING SEE PAGE 4-4 1
2 64202392 BUSHING 3
32 BG00362529 WEAR PLATE SET 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00789970 aA
3 (61) FRONT FRAME MACHINING 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00789970 aA
190808 FRONT FRAME MACHINING 4 (61)

Ref. Part no. Name Description Qty

e
2 64269402 PLATE, RETAINER 4
3 64261832 BUSHING 4
4 64546893 SLEEVE 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00390858 bB
5 (61) MOUNTING, DUMP BOX 190808

8 6 5 4 3 9 7 1 2 3

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00390858 bB
190808 MOUNTING, DUMP BOX 6 (61)

Ref. Part no. Name Description Qty

e
1 06429305 PLATE, MOUNTING STAUFF SP-2, 14-18 2
2 AF00500781 SCREW, SOCKET HEAD, HEXAGON M16X50 6
3 AF00101338 SCREW, HEXAGON HEAD, FULL THREAD M20X30 4
4 56017811 SHIM S=3 4
5 56017796 SHIM S=1 2
. . . . .
6 56040350 SHIM S=6 2
7 56017798 DAMPER 1
8 BG00390880 LIMITER 2
9 AF02300011 WASHER, PLAIN, NORMAL M20 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00409689 eC
7 (61) COMPONENTS, ASSEMBLY - PINS & BUSHINGS 190808

46

21 32 16 5 23 28

26 41
19
5

30 27

26

35

32 16 3 5

46

1 5 3 4 32
2

12

34 33 22

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00409689 eC
190808 COMPONENTS, ASSEMBLY - PINS & BUSHINGS 8 (61)

Ref. Part no. Name Description Qty

e
1 64552133 PIN 2
2 64547632 PIN 2
3 64548043 PLATE 6
4 64404517 HEXAGON HEAD BOLT (HALF THREAD) M20X35 4
5 64800138 NIPPLE, GREASE 14
. . . . .
6 64548691 SCREW 16MM X 35MM 6
12 AF01000392 SCREW, SET, SOCKET, HEXAGON, CUP POINT M24X30 6
16 64549314 SCREW M20 X 2.5- 40MM 6
19 BG00357235 PIN, TOWING 1
21 64548015 PLATE 4
. . . . .
22 64552244 RETAINING PLATE 2
23 64552257 PIN 2
26 64552287 WASHER, THRUST 4
27 64552289 WASHER, THRUST 4
28 64552290 WASHER, THRUST 4
. . . . .
30 64552299 PIN 2
32 06582412 WASHER, SPRING M 20 212-38 10
33 06582409 WASHER A 12 , TES212-38 2
34 64404001 SCREW M12X30 2
35 BG00356751 PIN, TOWING 1
. . . . .
46 06530441 HEXAGON HEAD SCREW (FULL THREAD) M12X30 - 8.8, ISO 4017 8
48 BG00946652 PLATE TANK INSTALLATION 2

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00409689 eC
9 (61) COMPONENTS, ASSEMBLY - PINS & BUSHINGS 190808

29

29

24

39
40
4 32

3
20
38 11

25

44
14 36 17
43
8
16 21 32
10
18
13 15
17 5
7
42
5
9

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00409689 eC
190808 COMPONENTS, ASSEMBLY - PINS & BUSHINGS 10 (61)

Ref. Part no. Name Description Qty

e
3 64548043 PLATE 6
4 64404517 HEXAGON HEAD BOLT (HALF THREAD) M20X35 4
5 64800138 NIPPLE, GREASE 14
7 AF04000002 PIN, LINCH 5X32 1
8 AF04000006 PIN, LINCH 8X42 2
. . . . .
9 64549148 PIPE PROP TUBE MACHINING 1
10 64546742 RING 4
11 BR00051352 PIN PIN - DUMP CYL.- UPPER 2
13 64548734 PIN 1
14 64101553 BEARING 2
. . . . .
15 64549053 PIN 1
16 64549314 SCREW M20 X 2.5- 40MM 6
17 64547931 RING 4
18 64547872 PIN 2
20 64800237 PIN, SPLIT 1
. . . . .
21 64548015 PLATE 4
24 56209318 LOCKING DEVICE, ARTICULATION, FRAME 1
25 56209488 PIN 1 3/4X5 1/2 1
32 06582412 WASHER, SPRING M 20 212-38 10
36 64553493 RING, RETAINING 2
. . . . .
38 64577455 NUT, HEXAGON HEX NUT 1_3/4--5_UNC 1
39 56209491 SCREW 1 3/4X9 1
40 64110892 CHAIN CHAIN 3/16" 18
41 64579363 WASHER, THRUST 2
42 06567008 LINCH PIN 8X30 2
. . . . .
43 04808200 CLAMP, CABLE 2
44 08001494 WIRE 6MM2, D4,8MM, RED, -55/+145C (-35/ 1
+120C) BETATHERM
47 64568958 RING SPACER 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00392224 eD
11 (61) FRAME, REAR, MACHINING - REAR FRAME MACHINING 190808

1 3

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00392224 eD
190808 FRAME, REAR, MACHINING - REAR FRAME MACHINING 12 (61)

Ref. Part no. Name Description Qty

e
1 64803749 BEARING SELF ALIGNING BALL 2
3 64552158 SLEEVE 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 64564245 00
13 (61) CRADLE ASSEMBLY - AXLE CRADLE GROUP- EJC-30SX 190808

9 9

7 6 12

14 15
13

16
3
12

13

16 2 10 4
11 5 2

Sandvik Mining and Construction Oy Loaders Turku © 2019

 64564245 00
190808 CRADLE ASSEMBLY - AXLE CRADLE GROUP- EJC-30SX 14 (61)

Ref. Part no. Name Description Qty

e
1 64564246 CRADLE AXLE CRADLE MACHINING- EJC-30SX 1
2 00767720 PIN, CLEVIS 2
3 00689390 BUSHING, BEARING 1
4 00003630 BUSHING, BEARING 1
5 02697490 FLANGE 1
. . . . .
6 00824820 FLANGE 1
7 00824830 FLANGE 1
8 00847660 FLANGE 1
9 09373230 SEAL, V V 170 A 4
10 09370084 O-RING 99,5X3 , NBR , 70 SHORE A 1
. . . . .
11 06590385 CIRCLIP I 125X4 DIN 472 2
12 04910193 HEXAGON HEAD BOLT (HALF THREAD) M16X180 - 8.8, ISO 4014 22
13 00803890 SCREW 6
14 06532045 HEXAGON SOCKET HEAD SCREW (FULL THREAD) M12X50 - 8.8, ISO 4762 12
15 06532043 HEXAGON SOCKET HEAD SCREW (FULL THREAD) M12X40 - 12.9, ISO 4762 6
. . . . .
16 06581411 WASHER, PLAIN 16, SFS 2041 8

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00300511 dD
15 (61) TANK, FUEL 190808

5
4
1

9 11

6 10

2 12

13 12

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00300511 dD
190808 TANK, FUEL 16 (61)

Ref. Part no. Name Description Qty

e
1 BG00300513 TANK, FUEL WELDT, WIGGINS FILL 1
2 64256548 PLATE, COVER 1
3 64547905 GAUGE, LEVEL LIQUID LEVEL GAUGE 1
4 65823042 CAP,FILLING 1
5 64800343 PIPE "COUNTERSUNK PIPE PLUG(2"")" 1
. . . . .
6 AF02300006 WASHER, PLAIN, NORMAL M10 8
9 AF02300011 WASHER, PLAIN, NORMAL M20 9
10 AF00100526 SCREW, HEXAGON HEAD, FULL THREAD M10X25 8
11 AF00101339 SCREW, HEXAGON HEAD, FULL THREAD M20X35 9
12 64112654 O-RING 1
. . . . .
13 04700274 PLUG PART TEMPLATE 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00941108 bB
17 (61) COMPARTMENT, BATTERY - BATTERY BOX 190808

10

7 15 16

10

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00941108 bB
190808 COMPARTMENT, BATTERY - BATTERY BOX 18 (61)

Ref. Part no. Name Description Qty

e
1 BG00941686 WELDING ASSEMBLY BATTERY SLIDE WELDMENT 1
2 BG00941160 STUD STUD 2
3 AF01400007 NUT, HEXAGON M12 2
4 AF02300007 WASHER, PLAIN, NORMAL M12 2
5 06575109 NUT, HEXAGON, NYLOC M12 - 8 , DIN 985 2
. . . . .
7 AF02300006 WASHER, PLAIN, NORMAL M10 5
8 64404521 SCREW FSCS M6 X 16MM 14
9 06530421 HEXAGON HEAD SCREW (FULL THREAD) M10X20 - 8.8, ISO 4017 2
10 08731305 BATTERY 2
10.1 56020750 BATTERY WITHOUT ACID. ORDER AS A SPARE 2
PART.
. . . . .
12 BG00941759 WELDING ASSEMBLY COVER WELDT 145AH BATTERY 1
15 AF00100528 SCREW, HEXAGON HEAD, FULL THREAD M10X30 3
16 56027500 SHEET, RUBBER 2

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00941108 bB
19 (61) COMPARTMENT, BATTERY - BATTERY BOX 190808

10

8 3

4 5 2

12

12
777

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00941108 bB
190808 COMPARTMENT, BATTERY - BATTERY BOX 20 (61)

Ref. Part no. Name Description Qty

e
1 BG00941686 WELDING ASSEMBLY BATTERY SLIDE WELDMENT 1
2 BG00941160 STUD STUD 2
3 AF01400007 NUT, HEXAGON M12 2
4 AF02300007 WASHER, PLAIN, NORMAL M12 2
5 06575109 NUT, HEXAGON, NYLOC M12 - 8 , DIN 985 2
. . . . .
7 AF02300006 WASHER, PLAIN, NORMAL M10 5
8 64404521 SCREW FSCS M6 X 16MM 14
9 06530421 HEXAGON HEAD SCREW (FULL THREAD) M10X20 - 8.8, ISO 4017 2
10 08731305 BATTERY 2
10.1 56020750 BATTERY WITHOUT ACID. ORDER AS A SPARE 2
PART.
. . . . .
12 BG00941759 WELDING ASSEMBLY COVER WELDT 145AH BATTERY 1
15 AF00100528 SCREW, HEXAGON HEAD, FULL THREAD M10X30 3
16 56027500 SHEET, RUBBER 2

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
21 (61) COVERS AND MUDGUARDS 190808

73 61
32

59 71

69 63

76 70 71 55 21 50 64 69

15

69 62
62 69

72

1 2 3 65 69

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
190808 COVERS AND MUDGUARDS 22 (61)

Ref. Part no. Name Description Qty

e
1 BG00959924 HATCH 1 COVER WELDT- BELLY PAN 1
2 BG00959926 HATCH 2 COVER WELDT- BELLY PAN 1
3 BG00960166 HATCH 3 COVER WELDT- BELLY PAN 1
8 64552999 BRACKET, MOUNTING REAR HINGE FRAME WELDMENT 1
15 64587940 PLATE 1
. . . . .
21 BG01294216 PLATE PLATE 1
32 64800006 CLAMP, HOSE 3.62 - 3.82 2
50 64118794 SEAL 71
55 AF00100523 SCREW, HEXAGON HEAD, FULL THREAD M10X12 9
59 AF00100526 SCREW, HEXAGON HEAD, FULL THREAD M10X25 37
. . . . .
61 AF00100529 SCREW, HEXAGON HEAD, FULL THREAD M10X35 75
62 64404000 SCREW M12X25 - 10.9 25
63 64404001 SCREW M12X30 4
64 64404004 SCREW M12X45 4
65 64404103 SCREW SHCS 12MM X 25MM 12.9 10
. . . . .
69 06582409 WASHER A 12 , TES212-38 43
70 AF02300005 WASHER, PLAIN, NORMAL M8 6
71 AF02300006 WASHER, PLAIN, NORMAL M10 150
72 AF02300007 WASHER, PLAIN, NORMAL M12 59
73 06582408 WASHER 10 106
. . . . .
76 AF00100320 SCREW, HEXAGON HEAD, FULL THREAD M8X16 3

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
23 (61) COVERS AND MUDGUARDS 190808

42
75 71
27
31
73
5
23
24

17

14

50 20 50 19 6 72

66
72
40
61 73 43
74

48

71

54

72 74

39

55

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
190808 COVERS AND MUDGUARDS 24 (61)

Ref. Part no. Name Description Qty

e
5 64548309 BRACKET BRACKET WELDMENT- HOOD SUPPORT 1
6 64551662 BRACKET FENDER BRACKET 1
14 64585678 BRACKET 1
17 BG00269558 COVER, SIDE WELDMENT- ACCESS DOOR 1
19 BG01294226 PLATE PLATE 1
. . . . .
20 BG01294236 PLATE PLATE 1
23 64630159 PLATE HINGE CHANNEL WELDMENT 1
24 64630181 SUPPORT BRACE WELD'T- COVER SUPPORT 1
27 64630200 COVER COVER WELD'T- ENGINE 1
31 64630357 SUPPORT SUPPORT FRAME WELDMENT 1
. . . . .
39 BG00359212 HOLDER 2
40 08900502 MIRROR 2
42 BG00359247 PIPE 1
43 BG00359252 PIPE 1
48 64246633 HINGE WELD'T HINGE 21
. . . . .
50 64118794 SEAL 71
54 AF00100845 SCREW, HEXAGON HEAD, PARTIAL THREAD M12X80 6
55 AF00100523 SCREW, HEXAGON HEAD, FULL THREAD M10X12 9
61 AF00100529 SCREW, HEXAGON HEAD, FULL THREAD M10X35 75
66 64404501 SCREW 10
. . . . .
71 AF02300006 WASHER, PLAIN, NORMAL M10 150
72 AF02300007 WASHER, PLAIN, NORMAL M12 59
73 06582408 WASHER 10 106
74 AF01900006 NUT, HEXAGON, PREVAILING TORQUE M12 18
75 AF01400006 NUT, HEXAGON M10 49
. . . . .

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
25 (61) COVERS AND MUDGUARDS 190808

7 13 72 69 63 18
12
62

69 62 11
58 68
59 73

71
72 30 9

10 70

73 71 59

46
26
27

29

73 59 25 23
28
72 66

48

61 71 73 75

48

74

61

75 73 71

66 72

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
190808 COVERS AND MUDGUARDS 26 (61)

Ref. Part no. Name Description Qty

e
4 64547634 PLATE, MOUNTING 1
7 BG00358352 COVER, REAR REAR HOOD WELDMENT 1
9 64585400 COVER COVER WELDMENT-EXP TANK 1
10 64585418 COVER COVER WELDMENT- EXHAUST 1
11 64585420 WELDING ASSEMBLY COVER WELDMENT- INTAKE 1
. . . . .
12 64585422 WELDING ASSEMBLY COVER WELDMENT- INTAKE 1
13 64585453 HOOD CENTER HOOD 1
18 64596640 PLATE 1
23 64630159 PLATE HINGE CHANNEL WELDMENT 1
25 BG00352065 FRAME HINGE FRAME WELD'T 1
. . . . .
26 64630198 COVER COVER WELD'T- ENGINE 1
27 64630200 COVER COVER WELD'T- ENGINE 1
28 BG00352447 DOOR DOOR WELD'T- R/H 1
29 BG00350740 DOOR DOOR WELDMENT- R/H 1
30 64630355 COVER COVER WELDMENT- ENGINE 1
. . . . .
46 BG00763748 COVER SIDE R/H 1
48 64246633 HINGE WELD'T HINGE 21
58 AF00100322 SCREW, HEXAGON HEAD, FULL THREAD M8X20 3
59 AF00100526 SCREW, HEXAGON HEAD, FULL THREAD M10X25 37
61 AF00100529 SCREW, HEXAGON HEAD, FULL THREAD M10X35 75
. . . . .
62 64404000 SCREW M12X25 - 10.9 25
63 64404001 SCREW M12X30 4
66 64404501 SCREW 10
68 06582407 WASHER A 8, TES212-38 3
69 06582409 WASHER A 12 , TES212-38 43
. . . . .
70 AF02300005 WASHER, PLAIN, NORMAL M8 6
71 AF02300006 WASHER, PLAIN, NORMAL M10 150
72 AF02300007 WASHER, PLAIN, NORMAL M12 59
73 06582408 WASHER 10 106
74 AF01900006 NUT, HEXAGON, PREVAILING TORQUE M12 18
. . . . .
75 AF01400006 NUT, HEXAGON M10 49

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
27 (61) COVERS AND MUDGUARDS 190808

30 13

34
57 37

71 38

73 61

41
34
52

44
48

56 72 74
72 51

48
45
71 75

61

67

74
45

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
190808 COVERS AND MUDGUARDS 28 (61)

Ref. Part no. Name Description Qty

e
7 BG00358352 COVER, REAR REAR HOOD WELDMENT 1
13 64585453 HOOD CENTER HOOD 1
30 64630355 COVER COVER WELDMENT- ENGINE 1
34 56019007 LATCH SPRING LATCH, ZINKED STEEL, RED 4
KNOB
37 BG00356547 PLATE, LOCKING 1
. . . . .
38 BG00356411 PLATE, LOCKING 1
41 BG00359048 PLATE, LOCKING 1
44 BG00353150 LEVER LOCKING 1
45 BG00360453 PLATE, SUPPORT LOCKING DEVICE 1
48 64246633 HINGE WELD'T HINGE 21
. . . . .
51 06530442 HEXAGON HEAD SCREW (FULL THREAD) M12X35 - 8.8, ISO 4017 2
52 06530440 HEXAGON HEAD SCREW (FULL THREAD) M12X25 - 8.8, ISO 4017 2
56 AF00100847 SCREW, HEXAGON HEAD, PARTIAL THREAD M12X90 1
57 AF00100130 SCREW, HEXAGON HEAD, FULL THREAD M6X10 16
61 AF00100529 SCREW, HEXAGON HEAD, FULL THREAD M10X35 75
. . . . .
67 06589454 WASHER, PLAIN 1/2, DIN 9021 1
71 AF02300006 WASHER, PLAIN, NORMAL M10 150
72 AF02300007 WASHER, PLAIN, NORMAL M12 59
73 06582408 WASHER 10 106
74 AF01900006 NUT, HEXAGON, PREVAILING TORQUE M12 18
. . . . .
75 AF01400006 NUT, HEXAGON M10 49

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
29 (61) COVERS AND MUDGUARDS 190808

22

60 73 75
73

75 60

24

47

75 73 71 61 34

29
34

24 57

57

35

36

47

46

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
190808 COVERS AND MUDGUARDS 30 (61)

Ref. Part no. Name Description Qty

e
22 64630046 SUPPORT BRACE WELD'T- COVER SUPPORT 1
24 64630181 SUPPORT BRACE WELD'T- COVER SUPPORT 1
29 BG00350740 DOOR DOOR WELDMENT- R/H 1
34 56019007 LATCH SPRING LATCH, ZINKED STEEL, RED 4
KNOB
35 BG00351818 PLATE, ANGLE 1
. . . . .
36 BG00351990 PLATE, LOCKING 1
46 BG00763748 COVER SIDE R/H 1
47 BG00905610 PLATE 4
57 AF00100130 SCREW, HEXAGON HEAD, FULL THREAD M6X10 16
60 AF00100528 SCREW, HEXAGON HEAD, FULL THREAD M10X30 4
. . . . .
61 AF00100529 SCREW, HEXAGON HEAD, FULL THREAD M10X35 75
71 AF02300006 WASHER, PLAIN, NORMAL M10 150
73 06582408 WASHER 10 106
75 AF01400006 NUT, HEXAGON M10 49

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
31 (61) COVERS AND MUDGUARDS 190808

33

32

16

71

73

53 75

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00959898 cC
190808 COVERS AND MUDGUARDS 32 (61)

Ref. Part no. Name Description Qty

e
16 BG00359462 BRACKET WELDMENT- INTAKE BRACKET 1
32 64800006 CLAMP, HOSE 3.62 - 3.82 2
33 64629934 LADDER SEE PAGE 4-34 1
53 06530424 HEXAGON HEAD SCREW (FULL THREAD) M10X35 - 8.8, ISO 4017 2
71 AF02300006 WASHER, PLAIN, NORMAL M10 150
. . . . .
73 06582408 WASHER 10 106
75 AF01400006 NUT, HEXAGON M10 49

Sandvik Mining and Construction Oy Loaders Turku © 2019

 64629934 11
33 (61) LADDER - LADDER OPTION 190808

9 9

2 4 6

8 8
10

3 5 7

2 4 6

Sandvik Mining and Construction Oy Loaders Turku © 2019

 64629934 11
190808 LADDER - LADDER OPTION 34 (61)

Ref. Part no. Name Description Qty

e
1 06574409 NUT, HEXAGON M12 - 8, ISO 4032 4
2 64403992 SCREW HHCS 10MM X 30MM C8 8
3 64404000 SCREW M12X25 - 10.9 4
4 64404395 WASHER M10 8
5 64404396 WASHER 12 4
. . . . .
6 64404407 WASHER 10 8
7 64404408 WASHER 4
8 64550990 NUT, WING WING NUT WELDMENT 4
9 64630027 HANDLE HANDLE WELD'T- R/H 2
10 64630036 LADDER, ASSEMBLY LADDER WELD'T 1
. . . . .

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00357233 aA
35 (61) CHOCK, WHEEL 190808

7
3
5
2
7
6

5
2 7

3 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00357233 aA
190808 CHOCK, WHEEL 36 (61)

Ref. Part no. Name Description Qty

e
1 64568560 CHOCK, WHEEL 2
2 64800236 PIN, SPLIT 4
3 64103451 CHAIN CHAIN-1/8 40
4 64594438 BRACKET, MOUNTING WHEEL CHOCK L/H 1
5 64404501 SCREW 4
. . . . .
6 06575109 NUT, HEXAGON, NYLOC M12 - 8 , DIN 985 4
7 64404408 WASHER 8

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
37 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 38 (61)

Ref. Part no. Name Description Qty

e
1 56213215 SIGN VEHICLE ID 1
3 56049287 SIGN ROPS, CHINA 1
5 56035975 DECAL SANDVIK-LOGO, LARGE 1
6 BG00229381 DECAL MACHINE TYPE DECAL, GREY, TH330 1
7 02830300 DECAL FIRE EXTINGUISHER 2
. . . . .
8 56004224 DECAL CENTER OF GRAVITY 2
10 02813322 LABEL, INSTRUCTION HYDRAULIC TANK 1
12 56036361 DECAL EXPL.HAZ.-PRE CHARGE 80 BAR 3
14 56024640 SIGN PART TEMPLATE 1
15 64551911 SIGN LABEL - BRAKE TEST INSTRUCTIONS 1
. . . . .
16 04910301 TAPE 102MM 4X60', ROLL 1
17 00299510 DECAL REFLECTIVE, 240 MM 4
18 56039388 DECAL, WARNING DUST HAZARD 1
19 56035897 DECAL HEARING PROTECTORS 1
20 BG00240091 DECAL KUUMAT PINNAT 1
. . . . .
21 64120732 SIGN LABEL - TOWING WARNING 1
22 BG00229379 DECAL MACHINE TYPE DECAL, WHITE, TH330 3
23 64592236 DECAL DECAL_GREY_STRIPE 2
24 BG00344359 DECAL WINDSCREEN WASHER TANK 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
39 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 40 (61)

Ref. Part no. Name Description Qty

e
101 BG00279254 DECAL ROLL OVER HAZARD, TH330, EN 1
102 56036192 DECAL CRUSHING DANGER, EN 2
103 56036190 DECAL HOT SURFACE, EN 3
104 56036198 DECAL CUTTING HAZARD, EN 2
105 56036193 DECAL SLIPPING HAZARD 2
. . . . .
106 56036194 DECAL HAZARDOUS BOX MOTION, EN 3
107 56036191 DECAL HIGH PRESS. OIL HAZARD, EN 2
108 56036196 DECAL BODY CRUSH HAZARD, EN 2
109 56036197 DECAL SPLASHING HAZARD, EN 1
110 56037562 DECAL BATTERY COVER, EN 1
. . . . .
111 56037261 DECAL RESTRICTED VISIBILITY, EN 1
112 56036412 DECAL INSTRUCTIONS, EN 1
113 BG00407909 DECAL CLOSE THE DOOR, TRUCK 2
114 56038793 DECAL PARKING INSTRUCTION 1
115 56036414 DECAL SAFETY INSTRUCTIONS, EN 1
. . . . .
116 02867902 DECAL NOTE, TRUCKS 1
118 02868820 DECAL ENGINE OIL 1
119 02868830 DECAL TRANSMISSION OIL 1
120 02814490 DECAL HYDRAULIC OIL TANK 1
121 02814520 DECAL FUEL TANK 1
. . . . .
122 56037927 DECAL JACKING POINT 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
41 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 42 (61)

Ref. Part no. Name Description Qty

e
1 56213215 SIGN VEHICLE ID 1
3 56049287 SIGN ROPS, CHINA 1
5 56035975 DECAL SANDVIK-LOGO, LARGE 1
6 BG00229381 DECAL MACHINE TYPE DECAL, GREY, TH330 1
7 02830300 DECAL FIRE EXTINGUISHER 2
. . . . .
8 56004224 DECAL CENTER OF GRAVITY 2
10 02813322 LABEL, INSTRUCTION HYDRAULIC TANK 1
12 56036361 DECAL EXPL.HAZ.-PRE CHARGE 80 BAR 3
14 56024640 SIGN PART TEMPLATE 1
15 64551911 SIGN LABEL - BRAKE TEST INSTRUCTIONS 1
. . . . .
16 04910301 TAPE 102MM 4X60', ROLL 1
17 00299510 DECAL REFLECTIVE, 240 MM 4
18 56039388 DECAL, WARNING DUST HAZARD 1
19 56035897 DECAL HEARING PROTECTORS 1
20 BG00240091 DECAL KUUMAT PINNAT 1
. . . . .
21 64120732 SIGN LABEL - TOWING WARNING 1
22 BG00229379 DECAL MACHINE TYPE DECAL, WHITE, TH330 3
23 64592236 DECAL DECAL_GREY_STRIPE 2
24 BG00344359 DECAL WINDSCREEN WASHER TANK 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
43 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 44 (61)

Ref. Part no. Name Description Qty

e
101 BG00279254 DECAL ROLL OVER HAZARD, TH330, EN 1
102 56036192 DECAL CRUSHING DANGER, EN 2
103 56036190 DECAL HOT SURFACE, EN 3
104 56036198 DECAL CUTTING HAZARD, EN 2
105 56036193 DECAL SLIPPING HAZARD 2
. . . . .
106 56036194 DECAL HAZARDOUS BOX MOTION, EN 3
107 56036191 DECAL HIGH PRESS. OIL HAZARD, EN 2
108 56036196 DECAL BODY CRUSH HAZARD, EN 2
109 56036197 DECAL SPLASHING HAZARD, EN 1
110 56037562 DECAL BATTERY COVER, EN 1
. . . . .
111 56037261 DECAL RESTRICTED VISIBILITY, EN 1
112 56036412 DECAL INSTRUCTIONS, EN 1
113 BG00407909 DECAL CLOSE THE DOOR, TRUCK 2
114 56038793 DECAL PARKING INSTRUCTION 1
115 56036414 DECAL SAFETY INSTRUCTIONS, EN 1
. . . . .
116 02867902 DECAL NOTE, TRUCKS 1
118 02868820 DECAL ENGINE OIL 1
119 02868830 DECAL TRANSMISSION OIL 1
120 02814490 DECAL HYDRAULIC OIL TANK 1
121 02814520 DECAL FUEL TANK 1
. . . . .
122 56037927 DECAL JACKING POINT 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
45 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 46 (61)

Ref. Part no. Name Description Qty

e
1 56213215 SIGN VEHICLE ID 1
3 56049287 SIGN ROPS, CHINA 1
5 56035975 DECAL SANDVIK-LOGO, LARGE 1
6 BG00229381 DECAL MACHINE TYPE DECAL, GREY, TH330 1
7 02830300 DECAL FIRE EXTINGUISHER 2
. . . . .
8 56004224 DECAL CENTER OF GRAVITY 2
10 02813322 LABEL, INSTRUCTION HYDRAULIC TANK 1
12 56036361 DECAL EXPL.HAZ.-PRE CHARGE 80 BAR 3
14 56024640 SIGN PART TEMPLATE 1
15 64551911 SIGN LABEL - BRAKE TEST INSTRUCTIONS 1
. . . . .
16 04910301 TAPE 102MM 4X60', ROLL 1
17 00299510 DECAL REFLECTIVE, 240 MM 4
18 56039388 DECAL, WARNING DUST HAZARD 1
19 56035897 DECAL HEARING PROTECTORS 1
20 BG00240091 DECAL KUUMAT PINNAT 1
. . . . .
21 64120732 SIGN LABEL - TOWING WARNING 1
22 BG00229379 DECAL MACHINE TYPE DECAL, WHITE, TH330 3
23 64592236 DECAL DECAL_GREY_STRIPE 2
24 BG00344359 DECAL WINDSCREEN WASHER TANK 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
47 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 48 (61)

Ref. Part no. Name Description Qty

e
101 BG00279254 DECAL ROLL OVER HAZARD, TH330, EN 1
102 56036192 DECAL CRUSHING DANGER, EN 2
103 56036190 DECAL HOT SURFACE, EN 3
104 56036198 DECAL CUTTING HAZARD, EN 2
105 56036193 DECAL SLIPPING HAZARD 2
. . . . .
106 56036194 DECAL HAZARDOUS BOX MOTION, EN 3
107 56036191 DECAL HIGH PRESS. OIL HAZARD, EN 2
108 56036196 DECAL BODY CRUSH HAZARD, EN 2
109 56036197 DECAL SPLASHING HAZARD, EN 1
110 56037562 DECAL BATTERY COVER, EN 1
. . . . .
111 56037261 DECAL RESTRICTED VISIBILITY, EN 1
112 56036412 DECAL INSTRUCTIONS, EN 1
113 BG00407909 DECAL CLOSE THE DOOR, TRUCK 2
114 56038793 DECAL PARKING INSTRUCTION 1
115 56036414 DECAL SAFETY INSTRUCTIONS, EN 1
. . . . .
116 02867902 DECAL NOTE, TRUCKS 1
118 02868820 DECAL ENGINE OIL 1
119 02868830 DECAL TRANSMISSION OIL 1
120 02814490 DECAL HYDRAULIC OIL TANK 1
121 02814520 DECAL FUEL TANK 1
. . . . .
122 56037927 DECAL JACKING POINT 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
49 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 50 (61)

Ref. Part no. Name Description Qty

e
1 56213215 SIGN VEHICLE ID 1
3 56049287 SIGN ROPS, CHINA 1
5 56035975 DECAL SANDVIK-LOGO, LARGE 1
6 BG00229381 DECAL MACHINE TYPE DECAL, GREY, TH330 1
7 02830300 DECAL FIRE EXTINGUISHER 2
. . . . .
8 56004224 DECAL CENTER OF GRAVITY 2
10 02813322 LABEL, INSTRUCTION HYDRAULIC TANK 1
12 56036361 DECAL EXPL.HAZ.-PRE CHARGE 80 BAR 3
14 56024640 SIGN PART TEMPLATE 1
15 64551911 SIGN LABEL - BRAKE TEST INSTRUCTIONS 1
. . . . .
16 04910301 TAPE 102MM 4X60', ROLL 1
17 00299510 DECAL REFLECTIVE, 240 MM 4
18 56039388 DECAL, WARNING DUST HAZARD 1
19 56035897 DECAL HEARING PROTECTORS 1
20 BG00240091 DECAL KUUMAT PINNAT 1
. . . . .
21 64120732 SIGN LABEL - TOWING WARNING 1
22 BG00229379 DECAL MACHINE TYPE DECAL, WHITE, TH330 3
23 64592236 DECAL DECAL_GREY_STRIPE 2
24 BG00344359 DECAL WINDSCREEN WASHER TANK 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
51 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 52 (61)

Ref. Part no. Name Description Qty

e
101 BG00279254 DECAL ROLL OVER HAZARD, TH330, EN 1
102 56036192 DECAL CRUSHING DANGER, EN 2
103 56036190 DECAL HOT SURFACE, EN 3
104 56036198 DECAL CUTTING HAZARD, EN 2
105 56036193 DECAL SLIPPING HAZARD 2
. . . . .
106 56036194 DECAL HAZARDOUS BOX MOTION, EN 3
107 56036191 DECAL HIGH PRESS. OIL HAZARD, EN 2
108 56036196 DECAL BODY CRUSH HAZARD, EN 2
109 56036197 DECAL SPLASHING HAZARD, EN 1
110 56037562 DECAL BATTERY COVER, EN 1
. . . . .
111 56037261 DECAL RESTRICTED VISIBILITY, EN 1
112 56036412 DECAL INSTRUCTIONS, EN 1
113 BG00407909 DECAL CLOSE THE DOOR, TRUCK 2
114 56038793 DECAL PARKING INSTRUCTION 1
115 56036414 DECAL SAFETY INSTRUCTIONS, EN 1
. . . . .
116 02867902 DECAL NOTE, TRUCKS 1
118 02868820 DECAL ENGINE OIL 1
119 02868830 DECAL TRANSMISSION OIL 1
120 02814490 DECAL HYDRAULIC OIL TANK 1
121 02814520 DECAL FUEL TANK 1
. . . . .
122 56037927 DECAL JACKING POINT 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
53 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 54 (61)

Ref. Part no. Name Description Qty

e
1 56213215 SIGN VEHICLE ID 1
3 56049287 SIGN ROPS, CHINA 1
5 56035975 DECAL SANDVIK-LOGO, LARGE 1
6 BG00229381 DECAL MACHINE TYPE DECAL, GREY, TH330 1
7 02830300 DECAL FIRE EXTINGUISHER 2
. . . . .
8 56004224 DECAL CENTER OF GRAVITY 2
10 02813322 LABEL, INSTRUCTION HYDRAULIC TANK 1
12 56036361 DECAL EXPL.HAZ.-PRE CHARGE 80 BAR 3
14 56024640 SIGN PART TEMPLATE 1
15 64551911 SIGN LABEL - BRAKE TEST INSTRUCTIONS 1
. . . . .
16 04910301 TAPE 102MM 4X60', ROLL 1
17 00299510 DECAL REFLECTIVE, 240 MM 4
18 56039388 DECAL, WARNING DUST HAZARD 1
19 56035897 DECAL HEARING PROTECTORS 1
20 BG00240091 DECAL KUUMAT PINNAT 1
. . . . .
21 64120732 SIGN LABEL - TOWING WARNING 1
22 BG00229379 DECAL MACHINE TYPE DECAL, WHITE, TH330 3
23 64592236 DECAL DECAL_GREY_STRIPE 2
24 BG00344359 DECAL WINDSCREEN WASHER TANK 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
55 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 56 (61)

Ref. Part no. Name Description Qty

e
101 BG00279254 DECAL ROLL OVER HAZARD, TH330, EN 1
102 56036192 DECAL CRUSHING DANGER, EN 2
103 56036190 DECAL HOT SURFACE, EN 3
104 56036198 DECAL CUTTING HAZARD, EN 2
105 56036193 DECAL SLIPPING HAZARD 2
. . . . .
106 56036194 DECAL HAZARDOUS BOX MOTION, EN 3
107 56036191 DECAL HIGH PRESS. OIL HAZARD, EN 2
108 56036196 DECAL BODY CRUSH HAZARD, EN 2
109 56036197 DECAL SPLASHING HAZARD, EN 1
110 56037562 DECAL BATTERY COVER, EN 1
. . . . .
111 56037261 DECAL RESTRICTED VISIBILITY, EN 1
112 56036412 DECAL INSTRUCTIONS, EN 1
113 BG00407909 DECAL CLOSE THE DOOR, TRUCK 2
114 56038793 DECAL PARKING INSTRUCTION 1
115 56036414 DECAL SAFETY INSTRUCTIONS, EN 1
. . . . .
116 02867902 DECAL NOTE, TRUCKS 1
118 02868820 DECAL ENGINE OIL 1
119 02868830 DECAL TRANSMISSION OIL 1
120 02814490 DECAL HYDRAULIC OIL TANK 1
121 02814520 DECAL FUEL TANK 1
. . . . .
122 56037927 DECAL JACKING POINT 4

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
57 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 58 (61)

Ref. Part no. Name Description Qty

e
1 56213215 SIGN VEHICLE ID 1
3 56049287 SIGN ROPS, CHINA 1
5 56035975 DECAL SANDVIK-LOGO, LARGE 1
6 BG00229381 DECAL MACHINE TYPE DECAL, GREY, TH330 1
7 02830300 DECAL FIRE EXTINGUISHER 2
. . . . .
8 56004224 DECAL CENTER OF GRAVITY 2
10 02813322 LABEL, INSTRUCTION HYDRAULIC TANK 1
12 56036361 DECAL EXPL.HAZ.-PRE CHARGE 80 BAR 3
14 56024640 SIGN PART TEMPLATE 1
15 64551911 SIGN LABEL - BRAKE TEST INSTRUCTIONS 1
. . . . .
16 04910301 TAPE 102MM 4X60', ROLL 1
17 00299510 DECAL REFLECTIVE, 240 MM 4
18 56039388 DECAL, WARNING DUST HAZARD 1
19 56035897 DECAL HEARING PROTECTORS 1
20 BG00240091 DECAL KUUMAT PINNAT 1
. . . . .
21 64120732 SIGN LABEL - TOWING WARNING 1
22 BG00229379 DECAL MACHINE TYPE DECAL, WHITE, TH330 3
23 64592236 DECAL DECAL_GREY_STRIPE 2
24 BG00344359 DECAL WINDSCREEN WASHER TANK 1

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
59 (61) SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 190808

Sandvik Mining and Construction Oy Loaders Turku © 2019

 BG00213022 cC
190808 SIGNS AND DECALS ASSEMBLY - SIGN AND DECAL SET, TH330, EN 60 (61)

Ref. Part no. Name Description Qty

e
101 BG00279254 DECAL ROLL OVER HAZARD, TH330, EN 1
102 56036192 DECAL CRUSHING DANGER, EN 2
103 56036190 DECAL HOT SURFACE, EN 3
104 56036198 DECAL CUTTING HAZARD, EN 2
105 56036193 DECAL SLIPPING HAZARD 2
. . . . .
106 56036194 DECAL HAZARDOUS BOX MOTION, EN 3
107 56036191 DECAL HIGH PRESS. OIL HAZARD, EN 2
108 56036196 DECAL BODY CRUSH HAZARD, EN 2
109 56036197 DECAL SPLASHING HAZARD, EN 1
110 56037562 DECAL BATTERY COVER, EN 1
. . . . .
111 56037261 DECAL RESTRICTED VISIBILITY, EN 1
112 56036412 DECAL INSTRUCTIONS, EN 1
113 BG00407909 DECAL CLOSE THE DOOR, TRUCK 2
114 56038793 DECAL PARKING INSTRUCTION 1
115 56036414 DECAL SAFETY INSTRUCTIONS, EN 1
. . . . .
116 02867902 DECAL NOTE, TRUCKS 1
118 02868820 DECAL ENGINE OIL 1
119 02868830 DECAL TRANSMISSION OIL 1
120 02814490 DECAL HYDRAULIC OIL TANK 1
121 02814520 DECAL FUEL TANK 1
. . . . .
122 56037927 DECAL JACKING POINT 4

Sandvik Mining and Construction Oy Loaders Turku © 2019
