M3 Bore Idler No Teeth M3 Bore Idler

M3 Bore Idler With Teeth M3 Bore Idler No Teeth Belt Retention

With Teeth M3 x 12
Tensioning Plate x 2
Bolt

Belt Retention
Wedge x 4

LH XY Joiner RH XY Joiner Belt Tensioning Assembly

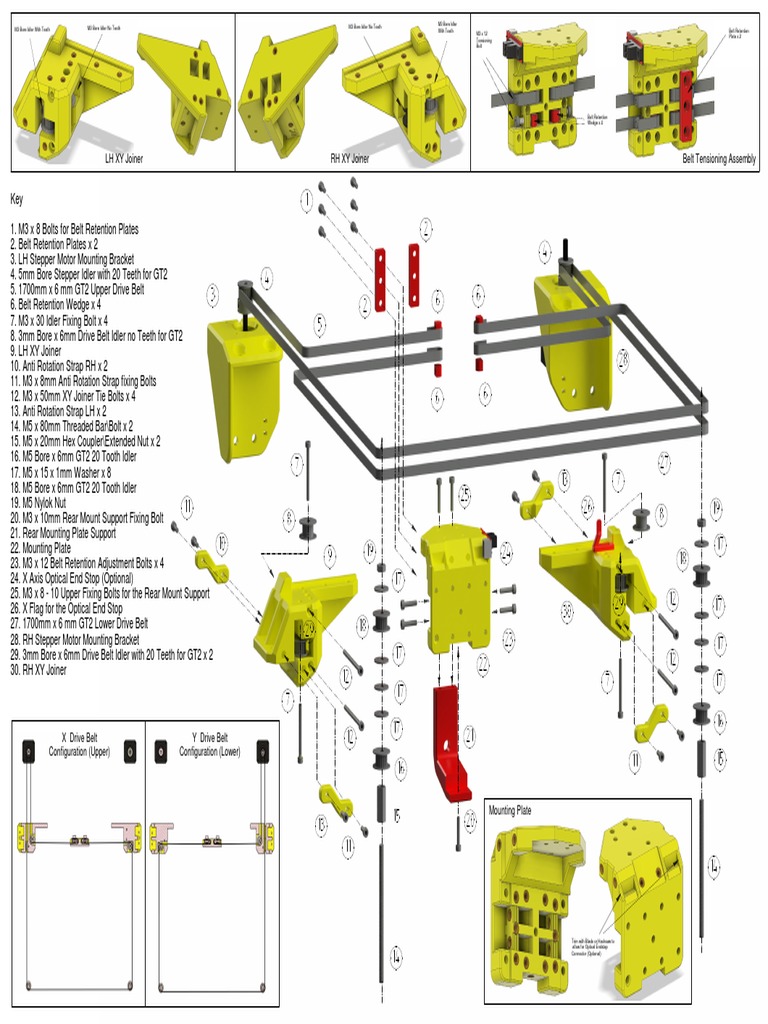

Key

1. M3 x 8 Bolts for Belt Retention Plates

2. Belt Retention Plates x 2
3. LH Stepper Motor Mounting Bracket
4. 5mm Bore Stepper Idler with 20 Teeth for GT2
5. 1700mm x 6 mm GT2 Upper Drive Belt
6. Belt Retention Wedge x 4
7. M3 x 30 Idler Fixing Bolt x 4
8. 3mm Bore x 6mm Drive Belt Idler no Teeth for GT2
9. LH XY Joiner
10. Anti Rotation Strap RH x 2
11. M3 x 8mm Anti Rotation Strap fixing Bolts
12. M3 x 50mm XY Joiner Tie Bolts x 4
13. Anti Rotation Strap LH x 2
14. M5 x 80mm Threaded Bar\Bolt x 2
15. M5 x 20mm Hex Coupler\Extended Nut x 2
16. M5 Bore x 6mm GT2 20 Tooth Idler
17. M5 x 15 x 1mm Washer x 8
18. M5 Bore x 6mm GT2 20 Tooth Idler
19. M5 Nylok Nut
20. M3 x 10mm Rear Mount Support Fixing Bolt
21. Rear Mounting Plate Support
22. Mounting Plate
23. M3 x 12 Belt Retention Adjustment Bolts x 4
24. X Axis Optical End Stop (Optional)
25. M3 x 8 - 10 Upper Fixing Bolts for the Rear Mount Support
26. X Flag for the Optical End Stop
27. 1700mm x 6 mm GT2 Lower Drive Belt
28. RH Stepper Motor Mounting Bracket
29. 3mm Bore x 6mm Drive Belt Idler with 20 Teeth for GT2 x 2
30. RH XY Joiner

X Drive Belt Y Drive Belt

Configuration (Upper) Configuration (Lower)

Mounting Plate

Trim with Blade or Hacksaw to

allow for Optical Endstop
Connector (Optional)
