Doc. No.

3D LASER SCANNING (Rev No.)

METHOD STATEMENT Issue Date
2023
Rev. Date NA
Method statement for laser scanning and survey works
Pages 1 of 7

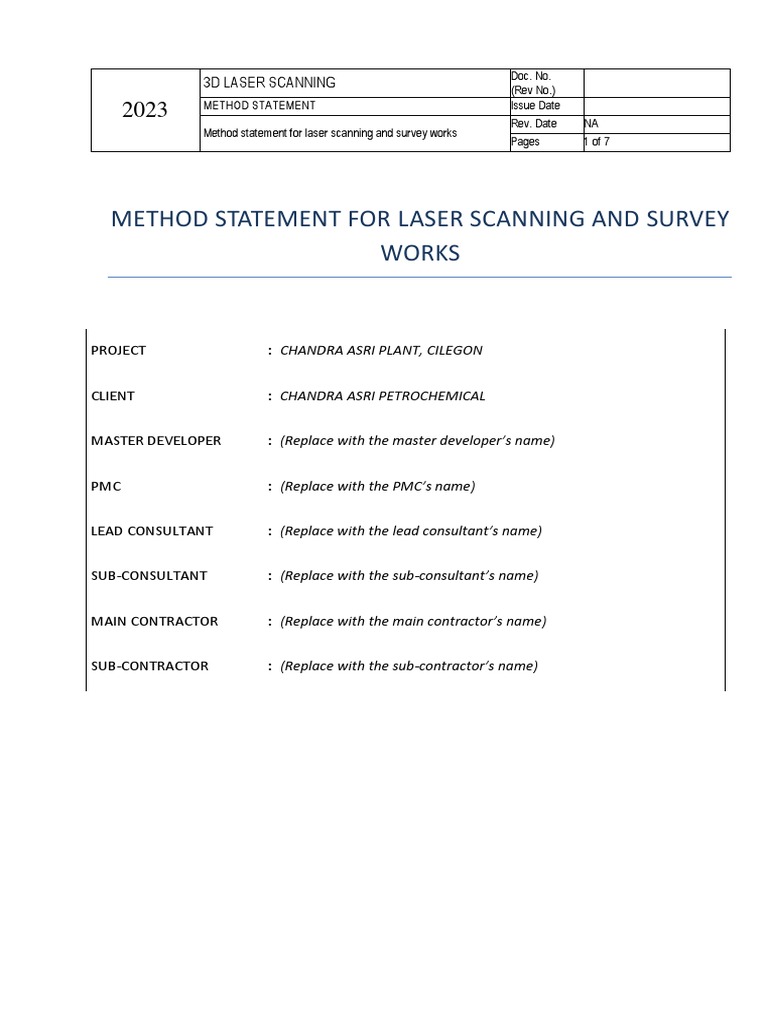

METHOD STATEMENT FOR LASER SCANNING AND SURVEY

WORKS

PROJECT : CHANDRA ASRI PLANT, CILEGON

CLIENT : CHANDRA ASRI PETROCHEMICAL

MASTER DEVELOPER : (Replace with the master developer’s name)

PMC : (Replace with the PMC’s name)

LEAD CONSULTANT : (Replace with the lead consultant’s name)

SUB-CONSULTANT : (Replace with the sub-consultant’s name)

MAIN CONTRACTOR : (Replace with the main contractor’s name)

SUB-CONTRACTOR : (Replace with the sub-contractor’s name)

 Doc. No.
PLANT 3D LASER SCANNING (Rev No.)
METHOD STATEMENT Issue Date
2023
Rev. Date NA
Method statement for laser scanning and survey works
Pages 2 of 7

TABLE OF CONTENTS
1. REVISION RECORD .......................................................................................................................................... 3
2. PURPOSE .......................................................................................................................................................... 4
3. SCOPE ............................................................................................................................................................... 4
4. REFERENCES ................................................................................................................................................... 4
5. RESPONSIBILITIES .......................................................................................................................................... 4
6. MANPOWER/MATERAIL/EQUIPMENT REQUIREMENTS .............................................................................. 5
6.1. Manpower...................................................................................................................................................... 5
6.2. Material requirements .................................................................................................................................. 5
6.3. Equipment requirement ............................................................................................................................... 5
7. PROCEDURE / METHOD TO BE EMPLOYED ................................................................................................. 5
7.1. Survey control .............................................................................................................................................. 5
7.1.1. Horizontal Reference ............................................................................................................................... 5
7.1.3. Vertical Reference.................................................................................................................................... 5
7.2. As built 3D Laser Scanning surveys .......................................................................................................... 6
7.3. Instrument calibration.................................................................................................................................. 6
8. HEALTH, SAFETY AND ENVIRONMENT ......................................................................................................... 6
8.1. Training ......................................................................................................................................................... 7
8.2. Working hours .............................................................................................................................................. 7
8.3. Housekeeping............................................................................................................................................... 7
 Doc. No.
PLANT 3D LASER SCANNING (Rev No.)
METHOD STATEMENT Issue Date
2023
Rev. Date NA
Method statement for laser scanning and survey works
Pages 2 of 7

1. REVISION RECORD
This page is a record of all revisions of the document identified below by number and title. All previous revisions are
hereby superseded and are to be destroyed.
Rev Date By Chkd. Approved Description of Revisions

0 First issue

Signature field

Revision
Revision
Number→
Date→
Prepared by Checked by

Reviewed
By→ Construction Technical QA/QC MEP Co-
Manager Manager Engineer HSE Officer ordinator Sub-contractor

Approved
By Project
Manager
 Doc. No.
PLANT 3D LASER SCANNING (Rev No.)
METHOD STATEMENT Issue Date
2023
Rev. Date NA
Method statement for laser scanning and survey works
Pages 2 of 7

2. PURPOSE
The purpose of Survey work will include, but not be limited, to the following;
Tujuan dari pekerjaan ini termasuk, tapi tidak terbatas, antara lain:
1. To capture 3D data of as-built structures, piping, and equipment for initial input to 3D modelling
Untuk perekaman data 3D as-built struktur, pipa, dan peralatan sebagai masukan awal dalam membuat
model 3D.
2. Set out control network and datum reference.
Penentuan jaring kontrol dan datum acuan.

3. SCOPE
The scope of this method statement is for the 3D laser scan survey of the Chandra Asri Petrochemical plant at
area PP Plant, PE Plant, OSBL Plant, BD Plant and SM Plant.
Lingkup dari pekerjaan ini adalah melakukan survey 3D dengan metode Laser Scan di Plant PT. Chandra Asri
Petrochemicals area PP Plant, PE Plant, OSBL Plant, BD Plant dan SM Plant.

4. REFERENCES
1. Project Technical Specification .
Spesifikasi Teknis pekerjaan.
2. Equipment datasheet.
Datasheet peralatan.

5. RESPONSIBILITIES
1. The Construction Manager is over all responsible for the implementation of method statement and
ensures that his team of Engineers and surveyor are aware of this method statement and the all
resources – human, material and equipment’s are available to carry out the work as planned and
without any delay.
Manajer Konstruksi bertanggungjawab terhadap keseluruhan implementasi dari method statement
dan memastikan semua tim Engineer dan surveyor memahami method statemen ini dan ketersediaan
semua sumberdaya – personel, material dan peralatan untuk melakukan pekerjaan tanpa ada
penundaan.
2. The Project Engineer is responsible to carry out the work as per the approved shop drawings, method
statements, contract spec. and documents.
Project Engineer bertanggungjawab untuk memastikan pekerjaan sesuai dengan gambar, method
statement, kontrak, maupun dokumen-dokumen yang telah disetujui.
3. Surveyors are responsible for all the setting out done on site, As– built surveys and the details given
for submission.
Surveyor bertanggungjawab dalam pelaksanaan survey di lokasi, survey As-built dan detail-detail yang
telah disepakati untuk diserahkan.
 Doc. No.
PLANT 3D LASER SCANNING (Rev No.)
METHOD STATEMENT Issue Date
2023
Rev. Date NA
Method statement for laser scanning and survey works
Pages 2 of 7

6. MANPOWER/MATERAIL/EQUIPMENT REQUIREMENTS
6.1. Manpower
1. Laser scanner operator
2. Surveyor

6.2. Material requirements

1. Scan Target, Marker, Adhesion tape, Measurement tape.
2. Target Pole, Spray paint, warning tape.

6.3. Equipment requirement

The following are the major items of survey equipment that will be used:
1. Laser Scanner, Laser Class 1 (in accordance with IEC 60825-1:2014), 1550nm (invisible), accuracy
1.9mm @10meters.
2. Total Station, accuracy angular 3 seconds, distance 1mm 1.5ppm.
3. Tripods
4. All equipment will be checked and calibrated on a regular basis.

7. PROCEDURE / METHOD TO BE EMPLOYED

7.1. Survey control
7.1.1. Horizontal Reference
Horizontal Coordinate Reference will be established from the Plant existing control if available. If its
unavailable, surveyor shall establish control network with orientation and coordinate system agreed by
Construction Manager. The control points will be necessarily transferred to covered all scanning
location with tolerances  3mm.
Acuan Koordinat Horisontal ditentukan dari Plant kontrol yang ada apabila telah tersedia. Jika Plant
kontrol tidak tersedia, surveyor akan membuat jaring kontrol dengan orientasi dan sistem koordinat
yang telah disetujui oleh Manajer Konstruksi. Titik-titik kontrol akan ditransfer seperlunya untuk agar
mencakup semua target scanning dengan toleransi  3mm.

7.1.2. Vertical Reference

Vertical/Height Reference will be established from the Plant existing datum if available. If its
unavailable, surveyor shall establish the height datum control agreed by Construction Manager.
Vertical Control tolerances will be  3mm.
Acuan Vertikal/Tinggi akan ditentukan dari Plant datum yang ada apabila telah tersedia. Jika Plant
datum tidak tersedia, surveyor akan menentukan datum ketinggian yang disetujui oleh Manajer
Konstruksi. Toleransi Kontrol vertikal adalah  3mm.
 Doc. No.
PLANT 3D LASER SCANNING (Rev No.)
METHOD STATEMENT Issue Date
2023
Rev. Date NA
Method statement for laser scanning and survey works
Pages 2 of 7

7.2. As built 3D Laser Scanning surveys

As built 3D Laser Scanning surveys will be carried out as follows:
Survey As-built 3D laser scanning akan mencakup berikut ini
1. Structures
2. Piping
3. Equipments

7.3. Instrument calibration

1. Equipment Calibration certificate will be submitted before the project execution.
Sertifikat Kalibrasi alat akan diserahkan sebelum dimulai pelaksanaan proyek.
2. 3D Laser Scanner will be checked before the mobilization and a day before commencing the scanning.
3D Laser Scanner akan dicheck sebelum mobilisasi dan sehari sebelum dimulai scanning.
3. Horizontal and Vertical collimation on each total station should be checked at least every week and in
particular if the instrument has been knocked.
Pengecekan Kolimasi horisontal dan vertikal dari Total Station dilakukan minimal seminggu sekali atau
sebelum seminggu jika dirasa perlu karena goncangan.

8. HEALTH, SAFETY AND ENVIRONMENT

Survey staff shall comply with all on-site safety procedures as set out and updated from time to time. In
addition the following items have been identified as job specific for the survey team:
Staff survey harus memenuhi prosedur keselamatan site dan update setiap waktu. Sebagai tambahan berikut
item-item yang telah diidentifikasi dalam pekerjaan khusus untuk team survey:
1. Potential hazard using aluminium poles near overhead electrical cables – all personnel to check each
location prior to commencing the survey.
Potensi bahaya dengan penggunaan pole aluminium saat berada di sekitar kabel listrik – semua
personel harus memeriksa sebelum memulai survey.
2. Potential hazard in moving materials or siding to clear a line of sight – target, surveyor to liaise with
site foreman prior to moving any material.
Potensi bahaya terhadap material bergerak atau menghalangi pandangan target, surveyor
menghubungi site foreman sebelum memindah material yang menghalangi.
3. Potential hazards from material falling down lift shafts - person to be stationed at the upper end of all
shafts when internal surveys are in progress.
Potensi bahaya benda yang jatuh dari pekerja diatas ketika survey sedang berlangsung.
4. Potential hazard on slippery area during the moving between survey station.
Potensi bahaya area yang licin selama berpindah antar stasiun survey.
 Doc. No.
PLANT 3D LASER SCANNING (Rev No.)
METHOD STATEMENT Issue Date
2023
Rev. Date NA
Method statement for laser scanning and survey works
Pages 2 of 7

8.1. Training
All personnel will be trained, prior to start concrete work related HSE / Quality Control / Method statement.

8.2. Working hours

Site working hours start from 07:00 hrs to 17:00 hrs. However, if work demands survey work can be
commenced based site conditions (lighting arrangement, etc.).

8.3. House keeping

1. Safety Engineer shall ensure to maintain safety for all aspects.
2. Safety assistant are allocated all the site locations to maintain housekeeping.
