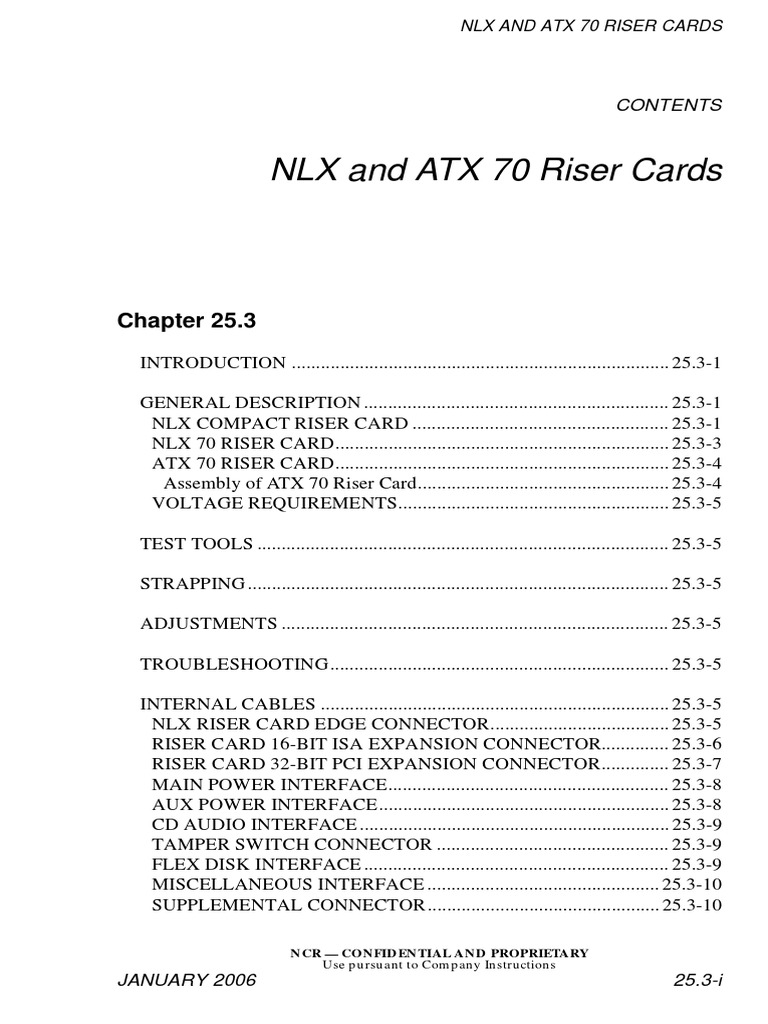

NLX AND ATX 70 RISER CARDS

CONTENTS

NLX and ATX 70 Riser Cards

Chapter 25.3

INTRODUCTION .............................................................................. 25.3-1

GENERAL DESCRIPTION ............................................................... 25.3-1

NLX COMPACT RISER CARD ..................................................... 25.3-1
NLX 70 RISER CARD..................................................................... 25.3-3
ATX 70 RISER CARD..................................................................... 25.3-4
Assembly of ATX 70 Riser Card.................................................... 25.3-4
VOLTAGE REQUIREMENTS........................................................ 25.3-5

TEST TOOLS ..................................................................................... 25.3-5

STRAPPING ....................................................................................... 25.3-5

ADJUSTMENTS ................................................................................ 25.3-5

TROUBLESHOOTING...................................................................... 25.3-5

INTERNAL CABLES ........................................................................ 25.3-5

NLX RISER CARD EDGE CONNECTOR..................................... 25.3-5
RISER CARD 16-BIT ISA EXPANSION CONNECTOR.............. 25.3-6
RISER CARD 32-BIT PCI EXPANSION CONNECTOR.............. 25.3-7
MAIN POWER INTERFACE.......................................................... 25.3-8
AUX POWER INTERFACE............................................................ 25.3-8
CD AUDIO INTERFACE ................................................................ 25.3-9
TAMPER SWITCH CONNECTOR ................................................ 25.3-9
FLEX DISK INTERFACE ............................................................... 25.3-9
MISCELLANEOUS INTERFACE ................................................ 25.3-10
SUPPLEMENTAL CONNECTOR................................................ 25.3-10

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
JANUARY 2006 25.3-i
NLX AND ATX 70 RISER CARDS

IDE INTERFACE CONNECTOR..................................................25.3-11

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
25.3-ii JANUARY 2006
 NLX and ATX 70 RISER CARDS

CONTENTS

Chapter 25.3

NLX and ATX 70 Riser Cards

INTRODUCTION
This chapter describes the riser card used in NLX PC cores and in
the ATX 70 PC core in NCR ATMs. There are three types of riser
card:

Riser Card PC Core Used in

NLX Compact Riser Card NLX Compact Core 56XX and Personas XX except
5670 and Personas 70/73/73e

NLX 70 Riser Card NLX 70 Core 5670 and Personas 70/73/73e

ATX 70 Riser Card ATX 70 Core Personas 70/73/73e

GENERAL DESCRIPTION

NLX COMPACT RISER CARD

The NLX compact riser card is a double sided, four-layer pcb that
provides:
Three 16-bit ISA expansion slots
One 32-bit PCI expansion slot
Two shared ISA/PCI expansion slots*
NLX motherboard connection (for Pentium and Pentium II
motherboards)
NLX power supply connection
One flex. disk connection
Primary and secondary IDE connection
CD audio connection
Beeper amplifier
Hard disk activity indicator LED
Tamper switch connection.

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
JANUARY 2006 25.3-1
NLX and ATX 70 RISER CARDS

NOTE: * On the NLX Compact Riser card the two shared ISA/PCI
slots can only be populated with either an ISA or a PCI plug-in
card per slot.

Front of Board

Rear of Board

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
25.3-2 JANUARY 2006
 NLX and ATX 70 RISER CARDS

NLX 70 RISER CARD

The NLX 70 riser card is a double sided, four-layer pcb that
provides:
Two16-bit ISA expansion slots
One 32-bit PCI expansion slot
One shared ISA/PCI expansion slot†
NLX motherboard connection (for Pentium and Pentium II
motherboards)
NLX power supply connection
One flex disk connection
Primary IDE connection
Beeper amplifier
Hard disk activity indicator LED
CD audio connection

NOTE: † On the NLX 70 Riser card the shared ISA/PCI slot can
only be populated with either an ISA or a PCI plug-in card.

Front of Board

Rear of Board
ISA Expansion Slot

J10

J15
Hard
J18 Disk
LED
J17

Beeper
Volume

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
JANUARY 2006 25.3-3
NLX and ATX 70 RISER CARDS

ATX 70 RISER CARD

The ATX 70 riser card is a double sided, four-layer pcb that
provides:
One 16-bit ISA expansion slot
One 32-bit PCI expansion slot
One shared ISA/PCI expansion slot†

NOTE: † On the ATX 70 Riser card the shared ISA/PCI slot can
only be populated with either an ISA or a PCI plug-in card.

Assembly of ATX 70 Riser Card

PCI Slots
FT 1 (One PCI/ISA Shared Slot)

ATX 70 Riser Card

ISA Slot (Spare)

ISA Slot for SSPA Board

ISA 70 Bridge

PCI 70
Breakout
Connects to
Motherboard

Connects to Motherboard

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
25.3-4 JANUARY 2006
 NLX and ATX 70 RISER CARDS

VOLTAGE REQUIREMENTS
The NLX Compact Riser card has the following voltage and current
requirements:

Supply Maximum
Limits
Voltage Current
+3.3 V ± 0.132 V 9.2 A
+5 V ± 0.25 V 16 A
+12 V ± 1.2 V 1.4 A
-12 V ± 1.2 V 0.2 A

TEST TOOLS
None

STRAPPING
None

ADJUSTMENTS
VR1 on the NLX riser card adjusts the beeper volume. Use the ATM
BEEPER test on either the S4 Diagnostic Test menu (See Chapter
4.3.11) or the Device Diagnostics/Monitor menu (Windows NT or
XP), to sound the beeper while adjusting VR1.

TROUBLESHOOTING
None

INTERNAL CABLES
Schematic diagrams of the logic cables between modules inside the
NLX PC Core are in chapter 6.2.25. This section shows pinouts of
the connectors on the riser card.

NLX RISER CARD EDGE CONNECTOR

The NLX Riser card plugs into the motherboard via a 340-way edge
connector (J11 on the NLX Compact riser and J7 on the NLX 70
Riser). This provides the connections for the PCI, ISA, Primary
IDE, Secondary IDE, flex disk, miscellaneous and front panel
signals.
The pinout of the edge connector is not given in this manual.
NCR — CONFIDENTIAL AND PROPRIETARY
Use pursuant to Company Instructions
JANUARY 2006 25.3-5
NLX and ATX 70 RISER CARDS

RISER CARD 16-BIT ISA EXPANSION CONNECTOR

The ISA expansion connectors are J1, J2, J3, J4, and J5 on the NLX
Compact riser card; J2, J3, and J10 on the NLX 70 riser card; and
J3, J4 and J5 on the ATX 70 riser card.

GND B1 A1 IO_CH_CHKb IRQ3 B25 A25 SA6

RESET_DRV B2 A2 SD7 DACK2b B26 A26 SA5

+5 V B3 A3 SD6 T_C B27 A27 SA4

IRQ9 B4 A4 SD5 BALE B28 A28 SA3

-5 V B5 A6 SD4 +5 V B29 A29 SA2

DREQ2 B6 A6 SD3 OSC B30 A30 SA1

-12 V B7 A7 SD2 GND B31 A31 SA0

EXT_OWSb B8 A8 SD1 MEM_CS16b D1 C1 SBHEb

+12 V B9 A9 SD0 IO_CS16b D2 C2 LA23

GND B10 A10 IO_CH_RDY IRQ10 D3 C3 LA22

SMEMWb B11 A11 SAEN IRQ11 D4 C4 LA21

SMEMRb B12 A12 SA19 IRQ12 D5 C5 LA20

IOWb B13 A13 SA18 IRQ15 D6 C6 LA19

IORb B14 A14 SA17 IRQ14 D7 C7 LA18

DACK3b B15 A15 SA16 DACK0b D8 C8 LA17

DREQ3 B16 A16 SA15 DREQ0 D9 C9 MEMRb

DACK1b B17 A17 SA14 DACK5b D10 C10 MEMWb

DREQ1 B18 A18 SA13 DREQ5 D11 C11 SD8

REFRESHb B19 A19 SA12 DACK6b D12 C12 SD9

BSYSCLK B20 A20 SA11 DREQ6 D13 C13 SD10

IRQ7 B21 A21 SA10 DACK7b D14 C14 SD11

IRQ6 B22 A22 SA9 DREQ7 D15 C15 SD12

IRQ5 B23 A23 SA8 +5 V D16 C16 SD13

IRQ4 B24 A24 SA7 MASTERb D17 C17 SD14

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
25.3-6 JANUARY 2006
 NLX and ATX 70 RISER CARDS

RISER CARD 32-BIT PCI EXPANSION CONNECTOR

The PCI connectors are J6, J7, and J8 on the NLX Compact riser
card; J5 and J6 on the NLX 70 riser card; and J1 and J2 on the ATX
70 riser card.

+5 V A62 B62 +5 V GND A30 B30 AD19

+5 V A61 B61 +5 V AD20 A29 B29 AD21

+5 V A60 B60 +5 V AD22 A28 B28 GND

+5 V A59 B59 +5 V N/C A27 B27 AD23

AD0 A58 B58 AD1 AD31/AD29/AD27 A26 B26 C_BE3b

AD2 A57 B57 GND AD24 A25 B25 N/C

GND A56 B56 AD3 GND A24 B24 AD25

AD4 A55 B55 AD5 AD26 A23 B23 AD27

AD6 A54 B54 N/C AD28 A22 B22 GND

N/C A53 B53 AD7 N/C A21 B21 AD29

C_BE0b A52 B52 AD8 AD30 A20 B20 AD31

KEY PMb A19 B19 +5 V

AD9 A49 B49 GND GND A18 B18 REQ0b/1b/2b

GND A48 B48 AD10 GNT0b/1b/2b A17 B17 GND

AD11 A47 B47 AD12 +5 V A16 B16 PCLK0/1/2

AD13 A46 B46 GND RESETb A15 B15 GND

N/C A45 B45 AD14 N/C A14 B14 N/C

AD15 A44 B44 C_BE1b N/C A13 B13 GND

PAR A43 B43 N/C GND A12 B12 GND

GND A42 B42 SERRb N/C A11 B11 N/C

SB0b A41 B41 N/C +5 V A10 B10 N/C

SDONE A40 B40 PERRb N/C A9 B9 N/C

N/C A39 B39 PLOCKb +5 V A8 B8 INTDb/Ab/Bb

STOPb A38 B38 GND INTCb/Db/Ab A7 B7 INTBb/Cb/Db

GND A37 B37 DEVSELb INTAb/Bb/Cb A6 B6 +5 V

TRDYb A36 B36 N/C +5 V A5 B5 +5 V

GND A35 B35 IRDYb N/C A4 B4 N/C

FRAMEb A34 B34 GND N/C A3 B3 GND

N/C A33 B33 C_BE2b +12 V A2 B2 N/C

AD16 A32 B32 AD17 N/C A1 B1 -12 V

AD18 A31 B31 N/C GND A30 B30 AD19

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
JANUARY 2006 25.3-7
NLX and ATX 70 RISER CARDS

NOTE: Where a pin has multiple signal names (as for example, on
pin A6) this denotes the name of the signal on that pin in PCI
slot 1, slot 2, and slot 3. All PCI signals (except PCI Clocks) are
terminated with a 33 ohm resistor between the edge connector
and the first PCI slot.

MAIN POWER INTERFACE

The NLX riser cards route the +3.3 V, +5 V, +12 V, -12 V, and +5 V
supplies to the motherboard, bus slots, flex and IDE disk drives as
appropriate via 20-way Main Power connector J15.

+3.3 V 11 1 +3.3 V
-12 V 12 2 +3.3 V
GND 13 3 GND
PS_ON 14 4 +5 V
GND 15 5 GND
GND 16 6 +5 V
GND 17 7 GND
-5 V 18 8 PWOK
+5 V 19 9 +5 VSB
+5 V 20 10 +12 V

AUX POWER INTERFACE

An auxiliary power interface is tracked on the boards but not
populated. This interface supplies ancillary functions such as,
power supply fan monitoring, fan control, 1394 power, and isolated
return path to the power supply and remote 3.3 V sense line. The
Aux Power connector position is numbered J16.

1394_GND 4 1 FAN_TACH2
1394_PWR 5 2 FAN_CTL
RESERVED 6 3 3.3V_SENSE

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
25.3-8 JANUARY 2006
 NLX and ATX 70 RISER CARDS

CD AUDIO INTERFACE
A 4-way header connector J9 on the riser cards supports CD audio
input signals. The connector is numbered J9 on the NLX Compact
Riser and J4 on the NLX 70 Riser

CD_IN_LEFT 1
CD_IN_GND 2
CD_IN_GND 3
CD_IN_RIGHT 4

TAMPER SWITCH CONNECTOR

The 3-way tamper switch connector J13 on the NLX Compact riser
card provides connections for the disk security tamper switch.

TAMP_A 1
TAMP_B 2
N/C 3

FLEX DISK INTERFACE

Through connection for the flex disk interface is provided on the
NLX riser cards at 34-way header connector J18.

GND 1 2 DENSEL
GND 3 4 N/C
GND 5 6 DRATE0
GND 7 8 INDXb
GND 9 10 FDME1b
GND 11 12 FDS0b
GND 13 14 FDS1b
GND 15 16 FDME0b
MSEN1 17 18 DIRb
GND 19 20 STEPb
GND 21 22 WRDATAB
GND 23 24 WEb
GND 25 26 TRK0b
MSEN0 27 28 WPb
GND 29 30 RDDATAb
GND 31 32 HEAD_SELb
GND 33 34 DSKCHGb
NCR — CONFIDENTIAL AND PROPRIETARY
Use pursuant to Company Instructions
JANUARY 2006 25.3-9
NLX and ATX 70 RISER CARDS

MISCELLANEOUS INTERFACE
The 10-way header connector (J12 on the NLX Compact riser and
J8 on the NLX 70 Riser) provides a connection for miscellaneous
signals. These signals are taken to the SSPA board (connector J1)
in high end systems and to the PELE Motherboard (connector JP8)
in low end systems).
Beeper
Tamper switch (not on NLX 70 core)
Power good
Front panel reset.

AMP_BEEP_A 1 2 AMP_BEEP_B
TAMP_A 3 4 TAMP_B
GND 5 6 FP_RSTb
GND 7 8 PWOK
GND 9 10 SOFT_ONb

SUPPLEMENTAL CONNECTOR
The supplemental connector (J10 on the NLX Compact Riser Card
and J1 on the NLX 70 Riser Card) provides a means of connecting
CD audio from the CD ROM to the motherboard. The connector is a
26-way edge card connector with the following pinout:

CD_IN_RIGHT B1 A1 CD_IN_LEFT
CD_IN_GND B2 A2 AGND
N/C B3 A3 N/C
N/C B4 A4 N/C
N/C B5 A5 N/C
N/C B6 A6 N/C
N/C B7 A7 GND
N/C B8 A8 N/C
GND B9 A9 RESERVED
N/C B10 A10 RESERVED
N/C B11 A11 RESERVED
N/C B12 A12 AGND
N/C B13 A13 N/C

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
25.3-10 JANUARY 2006
 NLX and ATX 70 RISER CARDS

IDE INTERFACE CONNECTOR

Through connection for a primary IDE interface is made on the
NLX riser card at 40-way header connector J17. The NLX Compact
Riser also has a secondary IDE interface connector J14 which is a
40-way right angled header. The pinout of J14 is the same as that of
J17 (shown below) except that the signals are named IDEB.

IDEA_RESb 1 2 GND
IDEA_DD7 3 4 IDEA_DD8
IDEA_DD6 5 6 IDEA_DD9
IDEA_DD5 7 8 IDEA_DD10
IDEA_DD4 9 10 IDEA_DD11
IDEA_DD3 11 12 IDEA_DD12
IDEA_DD2 13 14 IDEA_DD13
IDEA_DD1 15 16 IDEA_DD14
IDEA_DD0 17 18 IDEA_DD15
GND 19 20 N/C
IDEA_DMARQ 21 22 GND
IDEA_DIOWb 23 24 GND
IDEA_DIORb 25 26 GND
IDEA_IORDY 27 28 IDEA_CSEL
IDEA_DMACKb 29 30 GND
IDEA_INTRQ 31 32 IDEA_RESRV
IDEA_DA1 33 34 RESERVED
IDEA_DA0 35 36 IDEA_DA2
IDEA_CS0b 37 38 IDEA_CS1b
IDEA_DASPb 39 40 GND

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
JANUARY 2006 25.3-11
NLX and ATX 70 RISER CARDS

NCR — CONFIDENTIAL AND PROPRIETARY

Use pursuant to Company Instructions
25.3-12 JANUARY 2006
