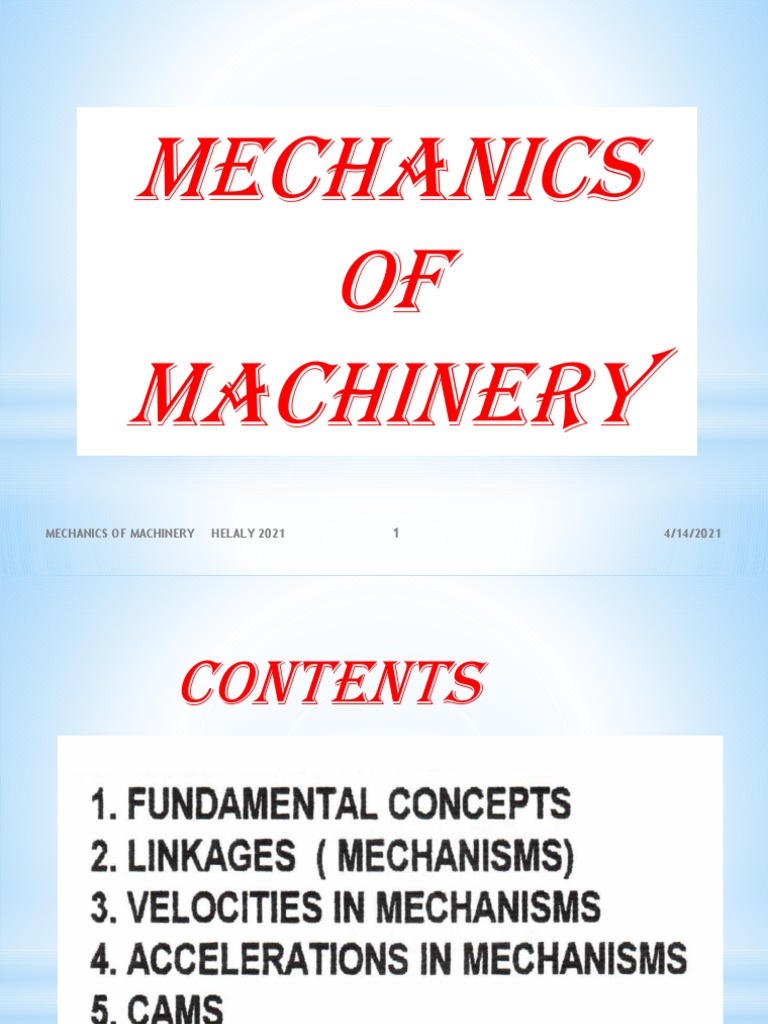

mechanics

OF
Machinery
MECHANICS OF MACHINERY HELALY 2021 1 4/14/2021
 Contents

MECHANICS OF MACHINERY HELALY 2021 2 4/14/2021

 KINEMATICS OF MACHINES
FUNDAMENTAL CONCEPTS
KINEMATICS
. Study of relative motions:- displ,
vel, accel.
DYNAMICS Study of motion due to forces
MACHINES Device for transferring energy
KINEMATIC The machine parts skeleton with
DIAGRAM dimensions
Mechanism A system of rigid elements
arranged to transmit motion
MECHANICS OF MACHINERY HELALY 2021 3 4/14/2021
 *Mechanism
Machines are mechanical devices used to
accomplish work. A mechanism is a heart of a
machine. It is the mechanical portion of the
machine that has the function of transferring
motion and forces from a power source to an
output.
Mechanism is a system of rigid elements
(linkages) arranged and connected to transmit
motion in a predetermined fashion.
Mechanism consists of linkages and joints.
MECHANICS OF MACHINERY HELALY 2021 4/14/2021
4
 KINEMATIC DIAGRAM

MECHANICS OF MACHINERY HELALY 2021 5 4/14/2021

 Mechanism

Mechanism (constrained kinematic chain

MECHANICS OF MACHINERY HELALY 2021 6 4/14/2021
 PAIRING Two bodies in contact
Lower P = surface contact
Higher P = point or line contact

MECHANICS OF MACHINERY HELALY 2021 7 4/14/2021

MECHANICS OF MACHINERY HELALY 2021 8 4/14/2021
MECHANICS OF MACHINERY HELALY 2021 9 4/14/2021
MECHANICS OF MACHINERY HELALY 2021 10 4/14/2021
 * Example of Mechanism

Can crusher
Simple press

Rear-window wiper

MECHANICS OF MACHINERY HELALY 2021 11 4/14/2021

 * Example of Mechanisms
Moves packages from an assembly
bench to a conveyor

Microwave carrier to assist

Lift platform people on wheelchair
MECHANICS OF MACHINERY HELALY 2021 12 4/14/2021
 * Example of Mechanisms

Lift platform

Front loader

Device to close the

top flap of boxes

MECHANICS OF MACHINERY HELALY 2021 13 4/14/2021

 * Example of Mechanisms

Rowing type exercise machine

Conceptual design for an

exercise machine

MECHANICS OF MACHINERY HELALY 2021 14 4/14/2021

 * Example of Mechanisms

Extension position

Flexed position

Six-bar linkage prosthetic

knee mechanism
MECHANICS OF MACHINERY HELALY 2021 15 4/14/2021
 * Four-Bar Linkage

MECHANICS OF MACHINERY HELALY 2021 16 4/14/2021

 * Four-Bar Linkage Categories

MECHANICS OF MACHINERY HELALY 2021 17 4/14/2021

 * Four-Bar Linkage Categories

MECHANICS OF MACHINERY HELALY 2021 18 4/14/2021

MECHANICS OF MACHINERY HELALY 2021 19 4/14/2021
 * Higher Order Joints

MECHANICS OF MACHINERY HELALY 2021 20 4/14/2021

 *Slider-Crank Mechanism
The mechanism
has a stroke B1B2
equal twice the
crank length r2.
Locations B1 and
B2 are called the
extreme positions
(limiting) of the
slider
In-line slider crank mechanism

MECHANICS OF MACHINERY HELALY 2021 21 4/14/2021

 *Slider-Crank Mechanism

Offset slider-crank mechanism

MECHANICS OF MACHINERY HELALY 2021 22 4/14/2021

 * Straight Line Mechanism

MECHANICS OF MACHINERY HELALY 2021 23 4/14/2021

 *Scotch Yoke Mechanism

MECHANICS OF MACHINERY HELALY 2021 24 4/14/2021

 *Geneva Mechanism

MECHANICS OF MACHINERY HELALY 2021 25 4/14/2021

 *Linear Geneva Mechanism

MECHANICS OF MACHINERY HELALY 2021 26 4/14/2021

 *Ratchet Mechanism

MECHANICS OF MACHINERY HELALY 2021 27 4/14/2021

 *Straight Beam Walking
Mechanism

MECHANICS OF MACHINERY HELALY 2021 28 4/14/2021

MECHANICS OF MACHINERY HELALY 2021 29 4/14/2021
 *Roller and Flat Follower Cams

MECHANICS OF MACHINERY HELALY 2021 30 4/14/2021

 *Cylindrical Cam Mechanism

MECHANICS OF MACHINERY HELALY 2021 31 4/14/2021

 *Gears – Rack and Pinion

MECHANICS OF MACHINERY HELALY 2021 32 4/14/2021

 *Gears
Bevel gears
Worm Gear Sets Planetary Gear set

MECHANICS OF MACHINERY HELALY 2021 33 4/14/2021

 * V-8 Engine

MECHANICS OF MACHINERY HELALY 2021 34 4/14/2021

 * Type of Motion and Mechanisms
Most power sources that are readily available today are either of
the pure rotational motion type, such as electric motor or hand
crank, or of the pure translational type, such as pneumatic or
hydraulic cylinder.
Translation to Translation

MECHANICS OF MACHINERY HELALY 2021 35 4/14/2021

 * Type of Motion and Mechanisms
Rotational to Rotational

MECHANICS OF MACHINERY HELALY 2021 36 4/14/2021

 * Type of Motion and Mechanisms
Rotation to Translation

MECHANICS OF MACHINERY HELALY 2021 37 4/14/2021

 *Degrees of Freedom
(DOF)
The definition of the DOF
of a mechanism is the
number of independent
relative motions among
the rigid bodies
(MOBILITY).
MECHANICS OF MACHINERY HELALY 2021 38 4/14/2021
 Mobility
*Mobility is the number of degrees of freedom
of a mechanism.
*The Kutzbach criterion,

M = 3(n − 1) − 2 j1 − j2
Where
m = total degrees of freedom of the mechanism
n = number of links (including the frame)
j1 = number of full joints (one degree of freedom joints)
j2 = number of half joints (two degrees of freedom joints)

MECHANICS OF MACHINERY HELALY

4/14/2021 39
2021
 *

M=3(8-1)-2x10-0=1

MECHANICS OF MACHINERY HELALY

4/14/2021 40
2021
 *
M=3(6-1)-2x7-
1=0

MECHANICS OF MACHINERY HELALY

4/14/2021 41
2021
 Mechanisms and Structures

The number of degrees of freedom of an assembly

of links completely predicts its character.
There are only three possibilities:

1. If the DOF is positive, it will be a mechanism.

2. If the DOF is exactly zero, then it will be a
structure, and no motion is possible.
3. If the DOF is negative, then it is a preloaded
structure, which means that no motion is
possible and some stresses may also be
presented at the time of assembly.
MECHANICS OF MACHINERY HELALY 2021 42 4/14/2021
 M=3(3-1)-2x3-0=0 M=3(2-1)-2x2-0=-1
M=3(4-1)-2x4-0=1

• According to the transformation of motion

– There are about 262 different mechanisms
MECHANICS OF MACHINERY HELALY 2021 43 4/14/2021
MECHANICS OF MACHINERY HELALY 2021 44 4/14/2021
•Draw the bath of point A (mid point on link 3) on the shown mechanism
•Find the DOF for the shown mechanisms
•Draw a complete cycle for the drivers of 4 – bar mechanism in the following
cases:-

S+l < p+q (between

origins) double crank S+l = p+q parallelogram linkage

MECHANICS OF MACHINERY HELALY 2021 45 4/14/2021

 S+l > p+q double rocker

S+l < p+q ( s = driven) rocker – crank

S+l < p+q ( s = driver) crank - rocker

MECHANICS OF MACHINERY HELALY 2021 46 4/14/2021

 S+l < p+q S+l < p+q S+l > S+l = p+q
(between ( s = driven) p+q parallelogram
origins) double rocker – double linkage
crank crank rocker

S+l < p+q ( s = driven) rocker – crank

MECHANICS OF MACHINERY HELALY 2021 47 4/14/2021

 Radial accel ar
Tangential accel at

MECHANICS OF MACHINERY HELALY 2021 48 4/14/2021

MECHANICS OF MACHINERY HELALY 2021 49 4/14/2021
MECHANICS OF MACHINERY HELALY 2021 50 4/14/2021
MECHANICS OF MACHINERY HELALY 2021 51 4/14/2021
MECHANICS OF MACHINERY HELALY 2021 52 4/14/2021
 Linear Circular
motion motion
Mass m Mom of I (I)
Velocity(v) Angl vel (w)
Accel (a) Angl accel (a)
Force (F) Torque (T)

MECHANICS OF MACHINERY HELALY 2021 53 4/14/2021
