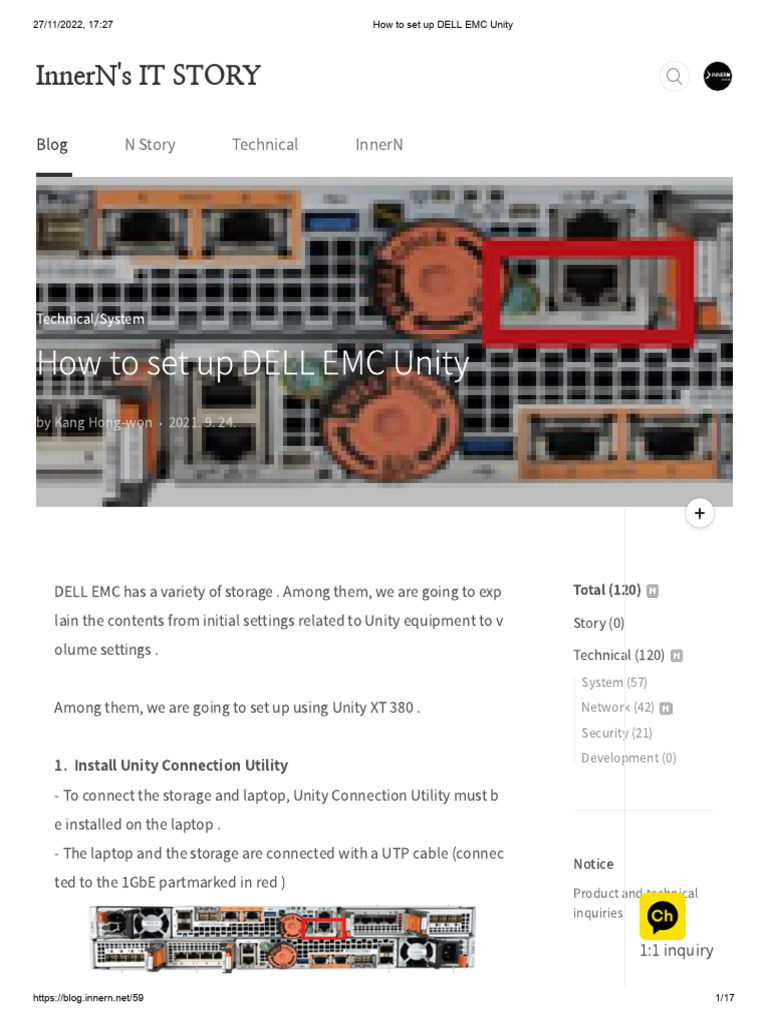

How to set up DELL EMC Unity
by Kang Hong-won 2021. 9. 24.

DELL EMC has a variety of storage . Among them, we are going to exp Total (120)
lain the contents from initial settings related to Unity equipment to v Story (0)
olume settings . Technical (120)
System (57)
Among them, we are going to set up using Unity XT 380 . Network (42)
Security (21)
1. Install Unity Connection Utility Development (0)
- To connect the storage and laptop, Unity Connection Utility must b
e installed on the laptop .
- The laptop and the storage are connected with a UTP cable (connec Notice
ted to the 1GbE partmarked in red ) Product and technical
inquiries
1:1 inquiry
https://blog.innern.net/59 1/17
27/11/2022, 17:27 How to set up DELL EMC Unity

2. Run Unity Connection Utility and setstorage IP Recent Posts

Popular Posts
cisco ipv6
configura…
2022.11.24
What is an
SSD? And…
2022.10.21
HP Server
Vmware…
2022.09.22
Installing
wordpres…
2022.08.19
Reset
Centos 7…
2022.08.08
first run screen
recent comments
Hello, I saw your post. ...
The Unity series uses t...
hello! I have a questio...
The article above help...
A typo has occurred. t...

tag
security vulnerability,
Dell, AIX, zoning,
security,
HMC installation,
AIX HMCs, CISCO, lv,
Bonding, N5K, system,
SSD Classification,
Check the serial number of the storage server, track, hmc,
1:1 inquiry
https://blog.innern.net/59 2/17
27/11/2022, 17:27 How to set up DELL EMC Unity

Cisco, Nexus, DSR,

How to install HMC

total visitors
118,551
Today : 12
Yesterday: 110

IP settings for storage

3. Connect to the connected laptop by entering the correspondin

g storage IP through Chrome or Edge.
( In this process, the laptop must also set the same IP range as the st
orage )
- Connection screen (default ID/PW admin/Passowrd123#)

4. Unity Initial Settings

1:1 inquiry
https://blog.innern.net/59 3/17
27/11/2022, 17:27 How to set up DELL EMC Unity

initial screen

- Storage password setting

- Click Install Licensees to register

1:1 inquiry
https://blog.innern.net/59 4/17
27/11/2022, 17:27 How to set up DELL EMC Unity

Select file to install license file

completion
** Intermediate DNS, Proxy Server, NTP Server, Alert Settings, iS
CSI, NAS, etc. can be set and used . At this time , in the case of NA
S , you must check whether the corresponding model supports N
AS before using it . We omitted it because we set up basic storage
.

1:1 inquiry
https://blog.innern.net/59 5/17
27/11/2022, 17:27 How to set up DELL EMC Unity

Complete initial setup

5. Storage Pool creation process

1) After selecting STORAGE-Pools from the menu on the right , click t
he + button to go to the Pool setting screen .

2) Set the poolname

1:1 inquiry
https://blog.innern.net/59 6/17
27/11/2022, 17:27 How to set up DELL EMC Unity

3) Raid settinguse (Unity version automatically recommends it .)

1:1 inquiry
disk check
https://blog.innern.net/59 7/17
27/11/2022, 17:27 How to set up DELL EMC Unity

Final confirmation of settings

completion
6. Hosts Settings
1) After selecting ACCESS-Hosts in the right menu, press the + button
.

1:1 inquiry
https://blog.innern.net/59 8/17
27/11/2022, 17:27 How to set up DELL EMC Unity

2) Set the Host name .

3) After checking the connected server WWN , set it .

1:1 inquiry
https://blog.innern.net/59 9/17
27/11/2022, 17:27 How to set up DELL EMC Unity

completion

7. LUN settings
1) After selecting STOTAGE-Block in the right menu, press the + butto
n.

1:1 inquiry
https://blog.innern.net/59 10/17
27/11/2022, 17:27 How to set up DELL EMC Unity

2) Set the LUNnumber,name,poolusedsize. (Select and set the thinp

art as needed.)

3) Map the host .

1:1 inquiry
https://blog.innern.net/59 11/17
27/11/2022, 17:27 How to set up DELL EMC Unity

Click the + button to check the host

check the host

1:1 inquiry
https://blog.innern.net/59 12/17
27/11/2022, 17:27 How to set up DELL EMC Unity

check again

Later, if you check if the volume has been successfully uploaded to th

e server, install the path for each OS and server, and mount the volu
me, you can complete the server and storage settings.
