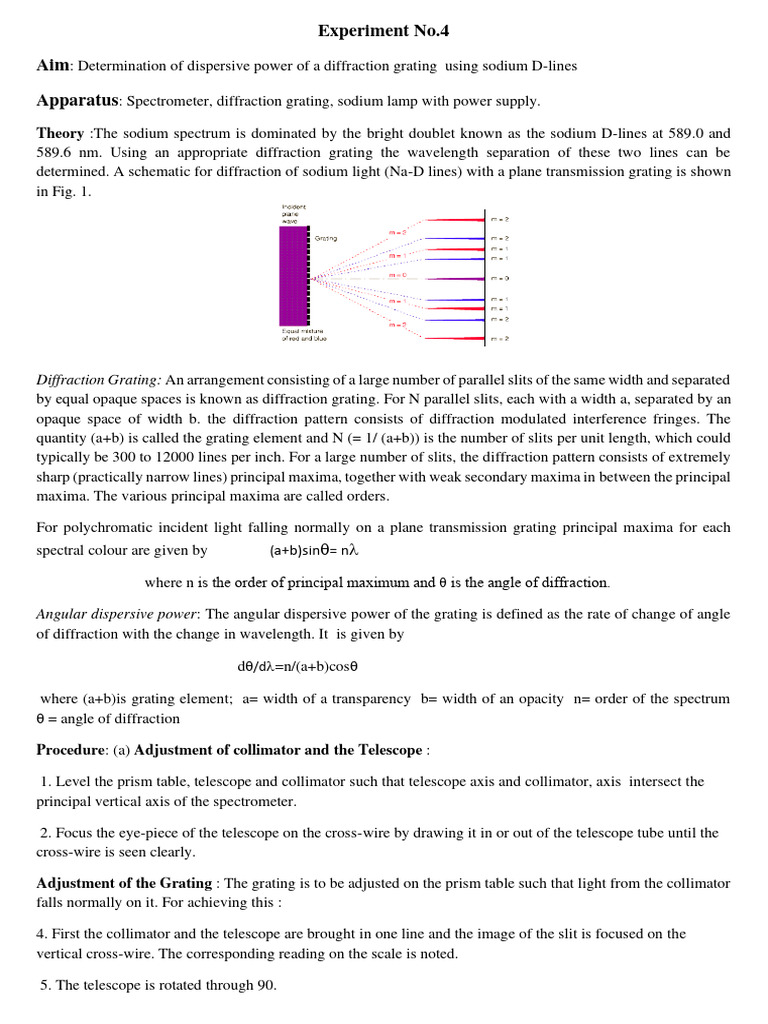

Diffraction Grating: An arrangement consisting of a large number of parallel slits of the same width and separated
by equal opaque spaces is known as diffraction grating. For N parallel slits, each with a width a, separated by an
opaque space of width b. the diffraction pattern consists of diffraction modulated interference fringes. The
quantity (a+b) is called the grating element and N (= 1/ (a+b)) is the number of slits per unit length, which could
typically be 300 to 12000 lines per inch. For a large number of slits, the diffraction pattern consists of extremely
sharp (practically narrow lines) principal maxima, together with weak secondary maxima in between the principal
maxima. The various principal maxima are called orders.
For polychromatic incident light falling normally on a plane transmission grating principal maxima for each
spectral colour are given by (a+b)sin= n
Angular dispersive power: The angular dispersive power of the grating is defined as the rate of change of angle
of diffraction with the change in wavelength. It is given by
d/d=n/(a+b)cos
where (a+b)is grating element; a= width of a transparency b= width of an opacity n= order of the spectrum
= angle of diffraction
1. Level the prism table, telescope and collimator such that telescope axis and collimator, axis intersect the
principal vertical axis of the spectrometer.
2. Focus the eye-piece of the telescope on the cross-wire by drawing it in or out of the telescope tube until the
cross-wire is seen clearly.
Adjustment of the Grating : The grating is to be adjusted on the prism table such that light from the collimator
falls normally on it. For achieving this :
4. First the collimator and the telescope are brought in one line and the image of the slit is focused on the
vertical cross-wire. The corresponding reading on the scale is noted.
7. Turn the prism table from this position through 45ᵒ or 135ᵒ, so that ‘writing’ on the grating is away from the
collimator. In this position, the grating is normal to the incident beam
8. The slit is rotated in its place till the spectral lines are very sharp and bright. This brings the slit parallel to
the lines of grating.
9. Set the telescope on the yellow line of the sodium light spectrum, not down the reading.
10. Rotate the telescope on either side of central position of the telescope for the first and second order in
succession and record these readings
11. The average of difference between theta values of central-first and second order maxima gives the values of
first and second order diffraction maxima.
Diagram:
Least count:
Formula used:
(a+b)sin= n
Dispersive power=d/d=n/(a+b)cos
Observation table
n=1
Θ1=(r1+l1)/2
n=2
Θ1=(r2+l2)/2
(a+b)=1/300 mm
(𝑎+𝑏)𝑠𝑖𝑛𝜃1
𝜆1 = (Å)
1
(𝑎+𝑏)𝑠𝑖𝑛𝜃2
𝜆2 = (Å)
2
N=1
𝑑𝜃 1
= (𝑎+𝑏)𝑐𝑜𝑠𝜃 rad/mm
𝑑𝜆 1
N=2
𝑑𝜃 2
= (𝑎+𝑏)𝑐𝑜𝑠𝜃 rad/mm
𝑑𝜆 2
ERROR :
d/d=n/(a+b)cos
Let d/d= P
𝑑𝑃 𝑑𝑛 𝑑(𝑎+𝑏) 𝑑𝑐𝑜𝑠𝜃
= − −
𝑃 𝑛 (𝑎+𝑏) 𝑐𝑜𝑠𝜃
𝑑𝑃
=(0 −0 − 𝑡𝑎𝑛𝜃𝑑𝜃)×100
𝑃
PRECAUTIONS: 1. Once the collimator and the telescope are adjusted for parallel rays, their focusing should
not be disturbed throughout the experiment.
3. While taking measurements at different positions of the telescope. It must always be in locked condition.
4. While rotating the telescope arm if the vernier crosses over 0º (360º) on the circular main scale take the
angular difference appropriately.
Result:
Dispersive power for first and second order diffraction is:
