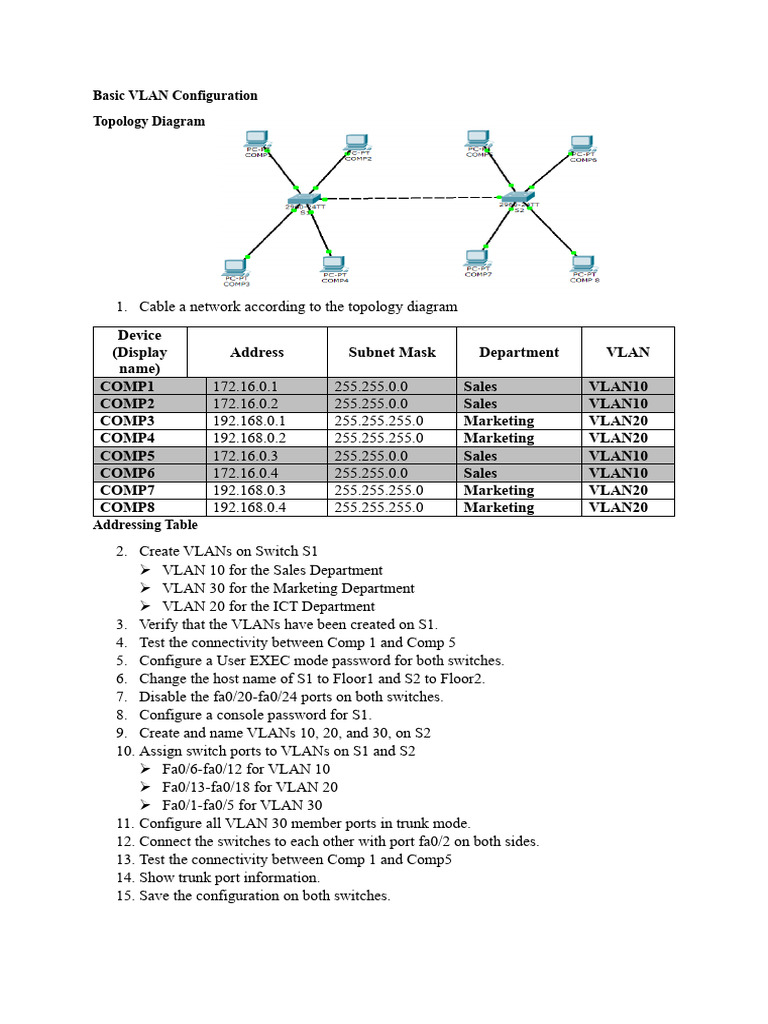

Basic VLAN Configuration

Topology Diagram

1. Cable a network according to the topology diagram

Device
(Display Address Subnet Mask Department VLAN
name)
COMP1 172.16.0.1 255.255.0.0 Sales VLAN10
COMP2 172.16.0.2 255.255.0.0 Sales VLAN10
COMP3 192.168.0.1 255.255.255.0 Marketing VLAN20
COMP4 192.168.0.2 255.255.255.0 Marketing VLAN20
COMP5 172.16.0.3 255.255.0.0 Sales VLAN10
COMP6 172.16.0.4 255.255.0.0 Sales VLAN10
COMP7 192.168.0.3 255.255.255.0 Marketing VLAN20
COMP8 192.168.0.4 255.255.255.0 Marketing VLAN20
Addressing Table

2. Create VLANs on Switch S1

 VLAN 10 for the Sales Department
 VLAN 30 for the Marketing Department
 VLAN 20 for the ICT Department
3. Verify that the VLANs have been created on S1.
4. Test the connectivity between Comp 1 and Comp 5
5. Configure a User EXEC mode password for both switches.
6. Change the host name of S1 to Floor1 and S2 to Floor2.
7. Disable the fa0/20-fa0/24 ports on both switches.
8. Configure a console password for S1.
9. Create and name VLANs 10, 20, and 30, on S2
10. Assign switch ports to VLANs on S1 and S2
 Fa0/6-fa0/12 for VLAN 10
 Fa0/13-fa0/18 for VLAN 20
 Fa0/1-fa0/5 for VLAN 30
11. Configure all VLAN 30 member ports in trunk mode.
12. Connect the switches to each other with port fa0/2 on both sides.
13. Test the connectivity between Comp 1 and Comp5
14. Show trunk port information.
15. Save the configuration on both switches.
