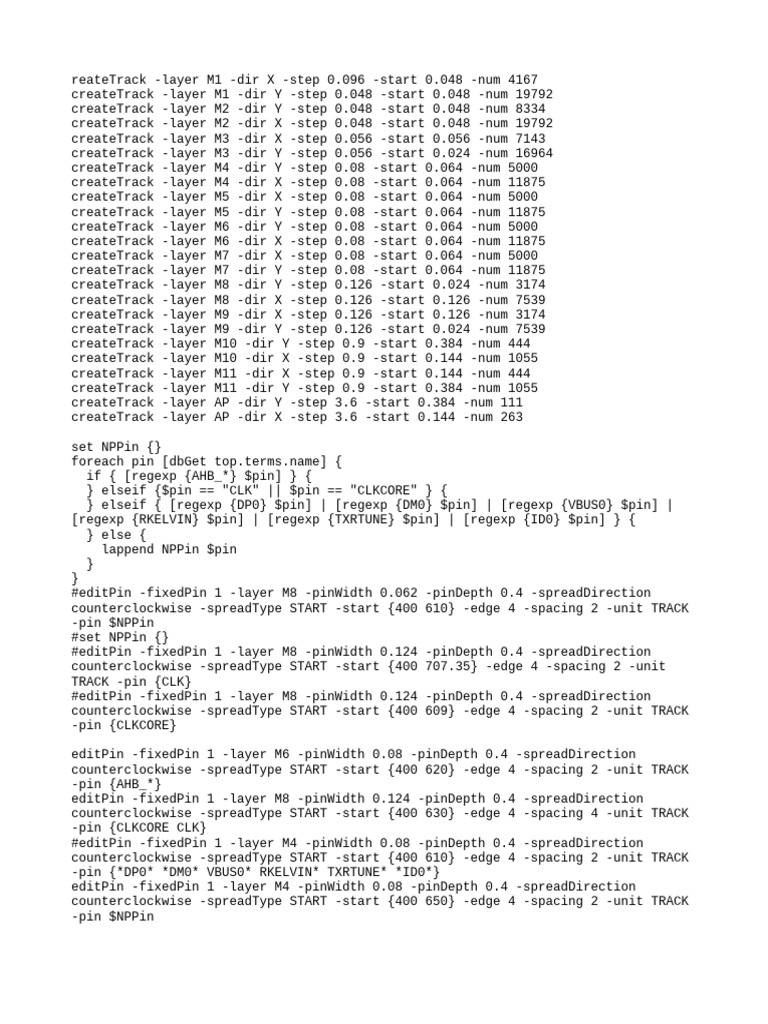

reateTrack -layer M1 -dir X -step 0.096 -start 0.

048 -num 4167


createTrack -layer M1 -dir Y -step 0.048 -start 0.048 -num 19792
createTrack -layer M2 -dir Y -step 0.048 -start 0.048 -num 8334
createTrack -layer M2 -dir X -step 0.048 -start 0.048 -num 19792
createTrack -layer M3 -dir X -step 0.056 -start 0.056 -num 7143
createTrack -layer M3 -dir Y -step 0.056 -start 0.024 -num 16964
createTrack -layer M4 -dir Y -step 0.08 -start 0.064 -num 5000
createTrack -layer M4 -dir X -step 0.08 -start 0.064 -num 11875
createTrack -layer M5 -dir X -step 0.08 -start 0.064 -num 5000
createTrack -layer M5 -dir Y -step 0.08 -start 0.064 -num 11875
createTrack -layer M6 -dir Y -step 0.08 -start 0.064 -num 5000
createTrack -layer M6 -dir X -step 0.08 -start 0.064 -num 11875
createTrack -layer M7 -dir X -step 0.08 -start 0.064 -num 5000
createTrack -layer M7 -dir Y -step 0.08 -start 0.064 -num 11875
createTrack -layer M8 -dir Y -step 0.126 -start 0.024 -num 3174
createTrack -layer M8 -dir X -step 0.126 -start 0.126 -num 7539
createTrack -layer M9 -dir X -step 0.126 -start 0.126 -num 3174
createTrack -layer M9 -dir Y -step 0.126 -start 0.024 -num 7539
createTrack -layer M10 -dir Y -step 0.9 -start 0.384 -num 444
createTrack -layer M10 -dir X -step 0.9 -start 0.144 -num 1055
createTrack -layer M11 -dir X -step 0.9 -start 0.144 -num 444
createTrack -layer M11 -dir Y -step 0.9 -start 0.384 -num 1055
createTrack -layer AP -dir Y -step 3.6 -start 0.384 -num 111
createTrack -layer AP -dir X -step 3.6 -start 0.144 -num 263

set NPPin {}
foreach pin [dbGet top.terms.name] {
if { [regexp {AHB_*} $pin] } {
} elseif {$pin == "CLK" || $pin == "CLKCORE" } {
} elseif { [regexp {DP0} $pin] | [regexp {DM0} $pin] | [regexp {VBUS0} $pin] |
[regexp {RKELVIN} $pin] | [regexp {TXRTUNE} $pin] | [regexp {ID0} $pin] } {
} else {
lappend NPPin $pin
}
}
#editPin -fixedPin 1 -layer M8 -pinWidth 0.062 -pinDepth 0.4 -spreadDirection
counterclockwise -spreadType START -start {400 610} -edge 4 -spacing 2 -unit TRACK
-pin $NPPin
#set NPPin {}
#editPin -fixedPin 1 -layer M8 -pinWidth 0.124 -pinDepth 0.4 -spreadDirection
counterclockwise -spreadType START -start {400 707.35} -edge 4 -spacing 2 -unit
TRACK -pin {CLK}
#editPin -fixedPin 1 -layer M8 -pinWidth 0.124 -pinDepth 0.4 -spreadDirection
counterclockwise -spreadType START -start {400 609} -edge 4 -spacing 2 -unit TRACK
-pin {CLKCORE}

editPin -fixedPin 1 -layer M6 -pinWidth 0.08 -pinDepth 0.4 -spreadDirection


counterclockwise -spreadType START -start {400 620} -edge 4 -spacing 2 -unit TRACK
-pin {AHB_*}
editPin -fixedPin 1 -layer M8 -pinWidth 0.124 -pinDepth 0.4 -spreadDirection
counterclockwise -spreadType START -start {400 630} -edge 4 -spacing 4 -unit TRACK
-pin {CLKCORE CLK}
#editPin -fixedPin 1 -layer M4 -pinWidth 0.08 -pinDepth 0.4 -spreadDirection
counterclockwise -spreadType START -start {400 610} -edge 4 -spacing 2 -unit TRACK
-pin {*DP0* *DM0* VBUS0* RKELVIN* TXRTUNE* *ID0*}
editPin -fixedPin 1 -layer M4 -pinWidth 0.08 -pinDepth 0.4 -spreadDirection
counterclockwise -spreadType START -start {400 650} -edge 4 -spacing 2 -unit TRACK
-pin $NPPin
