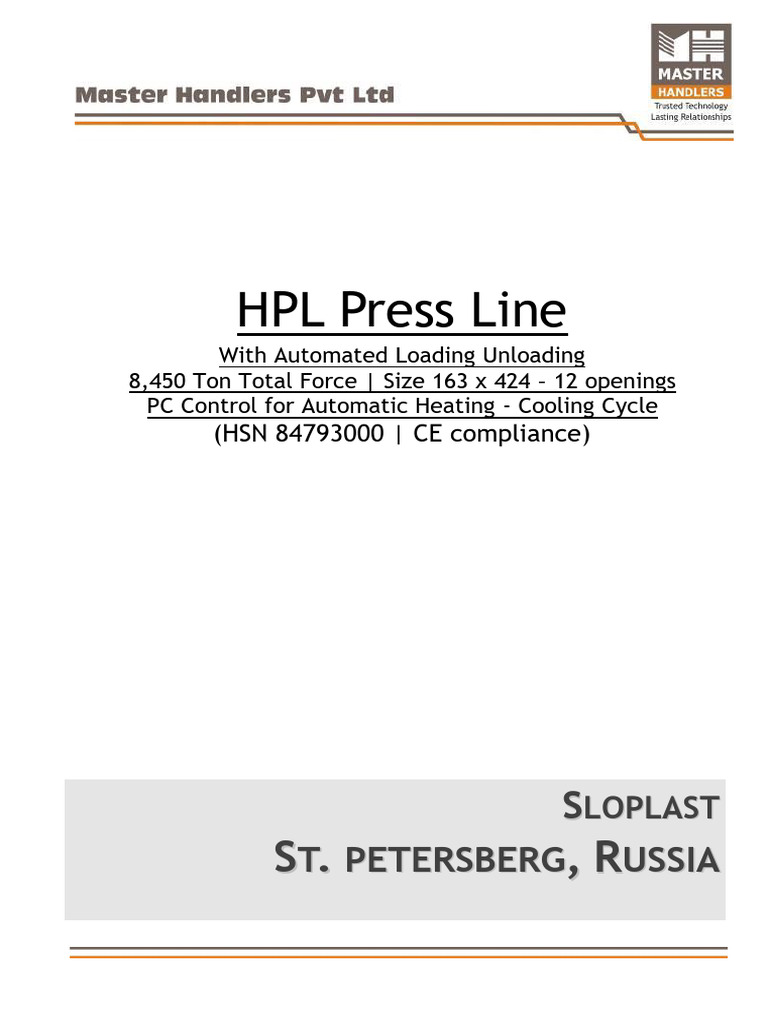

HPL Press Line

With Automated Loading Unloading

8,450 Ton Total Force | Size 163 x 424 – 12 openings
PC Control for Automatic Heating - Cooling Cycle
(HSN 84793000 | CE compliance)

SLOPLAST
ST. PETERSBERG, RUSSIA
Quotation 202111210 Date 29th December 2020
Customer SLOPLAST
Address 84, Shosse Revolutsii, Saint-Petersburg, Russia 195248
Email bobrov@zsp.spb.ru Mobile: +7 (921)372-29-26
Product HPL Press Line 163 x 424 - 12 Op
Kind Attn. Mr. Bobrov Sergey

Dear Sir,
Thank you for your enquiry for HPL press line
Enclosed please find our offer with specifications as required
Multi Opening High Pressure Lamination Press Line
 To manufacture HPL and Compact with phenol impregnated Kraft & melamine impregnated décor papers
 Press with hydraulic and automation for heating-cooling; Curing cycle – 60 minutes as standard for 1.0 mm
laminate with 8 press-plates and 16 Laminates for each opening. Alternately 12 mm Compact with 2
press-plates and 1 Compact for each opening
 Cycle time will depend on the production plan and resin technologies
 Automatic loading-unloading of press with storages cages and puller-pusher arm
 Automatic loading-unloading of books into and from storage cages with elevators & conveyors
 Automatic transfer of press plates between stripping and forming stations and stacking of compact by
Vacuum Acrobat
 Automatic cleaning of Bottom side of press plates during transfer from stripping to forming station
 Heating-Cooling automation with PC; & data recording, visualisation & alarm annunciation (We have shared
a typical screen of automatic heating / cooling with SCADA)
Layout and design: Ref drawing No 103000016
 Layout enclosed is for 14 Openigs. For 12 Openings layout will not change; press height will reduce
accordingly
 As you are planning to make multiple sizes in this Press; we have suggested storage system for mechanised
storage & retrieval for change of mould plates. During storage you can assign position for Press plate by HMI
provided for easy retrival. The data about design based storage is maintained in PC.
 Also included bottom brushing (motorised rotating brush) station
 2 stations in between stripping - forming & additional station under the Vacuum Acrobat for finish compact;
these stations can be used for purpose of change of mould plates; if storage is not ordered
 Acrobat support structure is designed to suit feeding of phenol, décor and other papers by operators.
Vacuum acrobat is extended accordingly to accommodate storage retrieval
 Also suggested additional station for inspection of compact; bottom side & thickness measurement. Quality
Data login facility on HMI
CONTENTS
1. Technical main data of the plant
2. Technical data of the raw material
3. Consumption data (approximate values)
4. Technical specification of the line
5. Scope of supply of the line
6. Delivery exclusions & local supply for the press line
7. Terms of sales
8. Terms of conditions of supply

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

1. TECHNICAL MAIN DATA OF THE PLANT
1.1 Laminating Process:
The plant is designed to manufacture single and double-sided laminates. The process is pressing multiple layers
of raw-material simultaneously, with pre-planned heating-cooling reciepe.
Raw-material assembled on forming station with multiple mould-plates in a book
Number of press plates that can be assembled in a book depends on thickness of finish laminate/compact
1.2 Main Data of the Press
Laminate Size - Length 4,240 mm – Max | 3,070 mm
Laminate Size - Width 1,630 mm - Max | 1,325 mm| 1,320 mm
Laminate Size – Thickness 0.5 mm – 25 mm
Press Plate Size + 20 ~ 30 mm Compared to Finished laminate
Top Cover – if used + 20 ~ 30 mm Compared to Finished laminate
Bottom Carrier 1,770 x 4,500 mm
No. of Opening 12
Book Wt (Considering 7 Mould Plates & Bottom carrier) 2,000 kg (Includes 14 Laminates & Cushion)

Press system Multi-opening - Up stroke

Heating plate size 1,760 x 4,400 mm
Charging & Retrieval system from press Puller-pusher arm – on same side
Total press pressure 8,450 Tons
Spec. Press pressure - Max 120 kg/cm2
related to a press-plate size 1,650 x 4,260 mm
Curing temperature - Max Max. 160 °C
Cooling temperature 50 °C
Top of the first hot plate 1000 mm
Installation of Press In pit on machined, stress releved beams
Working height at stripping & forming Approx. 800 mm
Maximum stack height – compact (if any) 300 mm
Bought out Components According to list attached in scope of supply
Heating – Cooling medium High pressure hot water – cold water
Colour machinery RAL 1015
Colour switch cabinets and control panels RAL 7032 Siemens (pebble) grey
Language, name plates, visualization English

1.2.1 Electrical Data

Power supply 400 V + 6% - 50 Hz + 2%
Electric control PLC make SIEMENS S7 – 1500 (Can offer 300 on request)
Control voltage 24 V
Cabling of connection cables To be done by customer’s contractor under MH supervision

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

1.3 Output and Capacity of the Plan
1.3.1. Mechanical Cycle Time for charging
Press plate/carrier transfer from stripping to forming 24 sec
Press loading-unloading excluding press opening & closing – minimum possible 200 sec
Total stripping & forming time considering Nos 7 mould plates (for 1 mm 14 Laminate Sheet),
carrier plates for 12 openings 3,000 sec
Striping opening time for compact will be less than 3,000 Sec
o It is considered that paper is placed and finish laminates are removed manually by operators before transfer
of press plate by acrobat; & acrobat does not wait at parking
o Compact will be removed from striping & stacked by acrobat
1.3.2. Mechanically possible Cycle Time for Complete Line
Min Cycle (depending on type of board, papers & press plate) 60 minutes = maximum 22 pressings/day
Basis:
o Separate cages and elevators for loading & unloading
o Carrier plate size 1,450 x 3,300 + mushroom
o Operator match press plate transfer time
Any arising idle times (down time) for
o Change of press plates for new finish | change of film pallets/finished board stacks
o lack of material available | faulty material (raw boards/films) | change of production type/batch
o standstill times due to failures of local facilities & other times which are beyond the manufacturer's
responsibility
Are not considered in the above mentioned capacity figures.
1.3.3. Receiving film pallets
o This is not in MH scope; Position is provided at the beginning of acrobat; named as raw material
1.3.4. Stripping & Lay-up Method
o Carrier plate is transferred from stripping to forming by acrobat; Acrobat uses mechanical grapplers instead
of vacuum pads for lifting carrier. Carrier + bottom cushion + bottom press plate
o In case of Compact, the above transfer can include bottom press plate
o Phenol, décor & other films are laid on the carrier by operators
o Acrobat will bring press-plate and place it on the assembly of films; Bottom cleaning station is provided with
anti-static brushes to clean bottom side of press plate during transfer
o Next layer of paper films will be laid by the operator
o The process will continue for planned number of press-plates
o At the end of the forming, cover plate/top cushion/separating screen will be picked up from parking and
placed on forming. (Operator will cover; cover plate by Kraft paper before pickup by vacuum pads – if cover
plate is used)
o After completion forming book is indexed to elevator A for further transfer to cage A
o After receiving cured material at stripping, top cover will be transferred to parking by acrobat
o In case of compact, the compact laminate is picked up by acrobat and placed on finish laminate station to
form a stack
1.3.5. Press Plates & Films
Press plates Minimum = + 20 mm on length & width of final laminate size
Films = Press plate + Minimum 10 mm in length & width

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

1.3.6. Alignment accuracy of press plate in forming stations
Press-plate transfer is automatic by acrobat.
In order to press a laminate properly alignment accuracy of both edges = ± 2
1.3.7. Pressing Cycle
The pressing period or hardening time depends on the resin composition, which in turn is partly governed by the
type of plant, the available heating and cooling capacity (max & min temperature and heating-cooling capacity),
the desired production quantity, the core material and similar factors. It is impossible to quote a generally valid
rule for pressing time.
However for standard production (7 press-plates & 14 no laminate of 1 mm) can be considered as ~ 60 minutes;
compact time will depend on thickness of finished product
o Consider start of cycle when the press starts closing after loading of all the books by PPA
o Pre-heating will start by hot water from energy saver
o On completion of pre-heating; valves will be operated to receive heat from the accumulator
o 3/2 valve PID control will maintain temperature during heating part of the curing cycle
o Pre-cooling by water from energy saver
o Final cooling to desired temperature by cold water from heat exchanger. Heat exchanger will be cooling
circulating water with the help of water from cooling tower or chiller.
o After reaching final cooling temperature; Press will open
1.3.8. Press Plate Change (Optional)
System with 2 storage cages, 2 storage elevators with transfer devices & 2 belts under the acrobat
o It is advisable to store press-plates in the right quantity in a storage compartment
o Empty carrier plate can be provided on one of the conveyors
o A stack of new press plates with a carrier plate is ready on the other conveyor
o The acrobat will remove the press-plate at the stripping station and place on the empty carrier plate
o The acrobat will pick up the new press plate from newly provided stack on the other conveyor and place it on
the forming station after centering
o The cycle will be repeated for desired number of press-plate changes
o Padding paper will be added between press-plates while preparing stack for storage
o The stack of press-plate received from stripping will be transferred to the elevator with transfer device and
the transfer device will store plate in storage compartments
o A new stack can be withdrawn from the storage compartment and brought under the acrobat by reverse
process
o For the press line we recommend use of 2 storage cages of 16 compartments each
o Additional time required for stripping and assembly with change of press-plate as 50-60 minutes
o HMI is provided to register type of plate stored in storage cage compartments.

1.4 Indications concerning the Sequences of Operation

1.4.1 Pressing sizes in the Press
All sizes under pos. 2.1.2 with one laminate size at a time
1.4.2 In-feed of Raw Boards into the Line
All sizes under Pos. 2.2 as single stack
o Operator @ forming will acknowledge by a push button provided that films have been placed at forming. The
films are laid with reference of two edges considered as core or alignment edges
o Acrobat will bring press plate; if the operator acknowledgement has not come in time; the acrobat will wait
with the press-plate in parking position
o Similarly after operator will acknowledge by a push-button after removal of finish laminate
o Operators are provided with emergency lockable push-button for safety

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

o After book is ready at forming, operator will acknowledge completion; pneumatic bridge will
come between the forming station & the assembly elevator to facilitate book transfer
o Similarly, stripping side operator will acknowledge and receive cured material from breakdown elevator;
Pneumatic bridge will come between breakdown elevator and stripping station to facilitate transfer
o Acrobat will come to pick up press plate; if the operator acknowledgement has not come in time; the acrobat
will wait in parking position
o Transfer from elevator to cage on assembly side and cage to elevator on break-down side are fully automatic
o Selection is provided on control cabinet for fully automatic loading-unloading of press. Same can be done by
operating cage & puller-pusher arm by manual control
o Following important press parameters are fed through PC/HMI -
o Curing temperature
o Pre-heating time
o Curing time
o Pre-cooling time
o Cooling temperature before press opening
1.4.3 Inspection of Compact (Option)
This can be discussed for compact and additional station provided under acrobat – Not Offered
o Acrobat will take the compact to the extra station and Place for inspection of Thickness
o HMI can be provided to feed thickness data after checking. Thickness checking is manual
o The inspector will enetr quality information in HMI
1.4.4 Press Plate Cleaning (Bottom)
o Acrobat will transfer plate from stripping to Assembly; Bottom cleaning during transfer by motorised rotating
brushes
o Top side cleaning manual
1.4.5 Stacking of Finished compact
All Laminates (> 4 mm Thick) are stacked by the acrobat at finish laminate station.
o The compact is transported to the finished laminate station
o This can be on a trolley & trolley can be taken to the finishing section
Alternately
o Compact is placed on Quality station; in the next cycle compact can be transferred to finished boards on
command from quality inspector
1.4.6 Removal of the Finished Laminate Stack
Stack of finish compact is formed on a trolley. The trolley can be removed at the end of a press cycle & new trolley
introduced for the next press cycle. Alternately roller conveyor can be provided to transferß
1.4.7 In-/Out Press-plates
Two options are available
o There is space for 2 stations between the stripping & forming
o One of these stations (parking) can be be occupied by a moving trolley & 2nd station provided beyond the
finished laminate station (extra station) can be used
o The trolley can be used for bringing in fresh press-plate for the first time
o Acrobat will pick up the plate and transfer to storage/assembly
o Similarly, another trolley can be used for removing press-plate from this system
Alternately – Offered – Storage System as per Layout Drawing
o The storage conveyors in front of storage elevator and cages can be used for in-out of press plates
Normally the press-plates are brought to the line or removed by trolley or another means of transportation.
The transport of the press-plate from/into the storage cage and back takes place by means of a acrobat

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

2. TECHNICAL DATA OF THE RAW MATERIAL
2.1. Paper film
2.1.1. Film Dimensions/Stack Heights etc
Length mm 4,300 Max
Width mm 1,700; Max
Height excluding pallet mm Core – 300, Décor – 100, Overlay – 70
Remark:
- Additional times are not included in the production time. These films and finish laminates can be transported
mechanically. However, the responsibility for their processing is left to the customer.
Film feeding system needs discussion
Max. single compact weight (16 mm thick) Kg 250
Stack height of; Finished compact Max mm 300 max

2.2. Film pallets (System pallets)

Length mm 4,400
Width mm 1,700

2.3. Finished Laminate Sizes

Length x Width mm 1325 x 3070 | 1330 x 4240 | 1630 x 4240

2.4. Carrier plate

MH will provide drawing for the carrier plates
o Plates are specially designed for easy & smooth movement of books through the handling system and press
o MH has offered for MS carrier for Press & storage
3. CONSUMPTION DATA (approximate)
Heat requirement - during pre-heating & heating kCal 1,600,000
0
Hot water inlet temperature C 190 Max
System pressure & Delta P supply-return min mlc 23
Total Installed Power
Press hydraulics with Low pressure, medium & high pressure & sustaining pumps kW 80
Handling System Including Storage & Bottom Cleaning kW 40
Storage System (Option) kW 15
circuits for heating and cooling – Hot water Pump (second pump is standby) (Controls) kW -
3
Compressed Air consumption m /h 15 at 7 Bar
Water supply for heat exchanger – cooling of hydraulic – water temp. 300 C m3/h 20 @ 25 mlc
The above-mentioned consumption figures are to be considered as estimated values only and will be reviewed
during the construction work.
Battery Limits :
Hot fluid connection [inlet] 16” NB header with dish ends
Hot fluid connection [outlet] 16” NB header with dish ends
Electrical connection To suit 130 kW
Compressed air ¾” BSP Nos. 5. Points to be informed
Water cooling (Hydraulic Power Pack) 2½” BSP inlet Flange

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Water cooling (Hydraulic Power Pack) 2½” BSP outlet Flange
4. TECHNICAL SPECIFICATION OF THE LINE
Press Machine No. L01
Specification :
Daylight Gap / Opening mm 100
Max Pressure (hydraulics) kg /cm2 320
Hot Plate (Platen) mm 1,750 x 4,400
No. of Hot Plates nos. 13
Heating Fluid Hot Water
Cooling Media Cold Water @ 300 C
Closing Speed mm /min 1,000
Flexible Hoses S S Wire Braided Flexible Hose
Loading Side mm 1,300

Technical execution:
Foundation Beams
Stress relived & fully machined foundation beams for long lift & quick installation; provided with leveling for each
frame individually; to be carried out by MH trained team only
Press frame:
The press frames are made of high tensile steel. Each frame is a closed unit, and the frames are bolted together so
as to be torsion-rigid. The frames are manufactured in one piece from high tensile steel.
Untouched by welding to avoid residual thermal stresses – leads to long life of the frame
All Frames plates machined to close tolerances (better than 0.1 – window opening) to achieve accuracy and best
alignment
Support faces for pistons and heating plates are CNC machine to parallelism tolerance is +/- 0,1 mm. The
arrangement of the closed frame units together with that of the press pistons and thick hot plates ensure uniform
distribution of the pressure.
Fully machined step-ladder; made in 4 levels will be mounted on main frame without welding. Support lugs to
platens will be keyed and bolted. Key effect will remove complete load from bolts.

Heating plates
The hot plates are made from solid steel ST 52.3 (Mn Steel); wear resistant steel.
They are equipped with bored heating channels. The channels are arranged in 3 channels
Inlet of one channel is next to outlet of the other channel to ensure that the press plate surface is evenly heated.
Provided with machined mounting for ladder for stoppers and 4 corner guides
Parallelism tolerance is +/- 0,1 mm/meter length

Entry guide for carrier plates:

Hot plates are provided with anti chamfers for easy entry of carrier plates (with entry bend)
All hot plates provided with entry guide rolls and entry chamfer
All hot plates provided with holes for temperature probe mounting at a convenient situation

Parallel-guidance:
Hot plates and bolsters are guided at 4 corners with taper guides.

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Bolsters
Top and bottom bolsters are made from solid steel.
The bolsters - parallelism tolerance is +/- 0,1 mm/meter length
Press cylinders:
The press cylinders are made of a single piece of special steel and are fixed to two press frames. The press cylinders
are sealed against the press pistons by means an easily changeable sealing system.
Press pistons:
The press pistons are made from steel with a hardened surface that ensures high resistances against wear. The wear
of the seals is reduced to a minimum due to hard piston. Piston hardened to depth of 8-10 mm
Floating type Sealing System is imported from Western Europe. Do not need any pre Loading/presetting. Equal
loading sharing by all the bolts
Seal life guaranteed as more than 5 years
No need to remove ram / cylinder from position while replacing seals of cylinders
Cylinder bushes of special material giving better lubricating and hence wear resistance.
Insulation:
high-pressure & high temperature resistant insulation from Germany; paralalism of insulation surfaces
better than 0.1 mm
Insulation life grauanteed as more than 5 years
Piston insulation Between pistons and bottom surface of the bottom bolster
Heating platens be maximum Hot plate & bolsters top & bottom
Heating line:
The heating line within the press consists of distribution and collection lines with the respective special hoses and
tubes to the heating plates of the press. The press can be heated up with hot water up to a max. temperature of
160 °C. The isolation of the connecting lines to headers has to be provided locally.
Pos. 3.2 - 1 (one) Hydraulic Line for the Press
Function:
Closing the press, press pressure build-up & control pressure during pressing, decompression & press opening.
Time & pressure setting is available on the touch screen
Technical Data:
Working pressure max. 320 bar
Installed power approx. 80 kW
Hydraulic oil Viscosity 68
Technical Execution
Complete hydraulic PU,  low pressure high discharge pump – 1100 LPM – 2 Nos
including
 Double high pressure pump for quick rise of pressure after closing (relief set
@ 55 & 210 Bar)
 Sustain pump to maintain pressure with minimal electrical power
 oil tank on top of pumping stations for gravity feed for pumps
 Additional hand-pump
 valve control, complete with valve block for fast closing, quick pressurize and
sustain
 Pressure control by pressure transducer through PLC
 Duplex filtration system with electrical signal connected to PLC
 Oil level & temperature indicators connected to PLC
 Magnetic oil-separator

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

  PLC program for alarm signals
 oil cooling device connected on cooling water system
The required hydraulic oil for the hydraulic unit and the oil tank and cooling water system must be supplied locally
Heating-cooling piping
Large size headers with nozzles for platen connection
SS wire-bladed hoses for high-pressure temperature for connection to hot plate header
A vent plug with each Platen on outlet side of platen header
Pos. 3.3 - 1 (one) Heating- cooling controls with Industrial PC
Function:
Please note that this is an offer for only control system of Heatimng & Cooling Cycle
Parameter setting
Controlling of valves & pumps (Heating-cooling)
Complete control of pumps, heat exchanger, heat saver and connection to hot water accumulator
Complete cycle control including pre-heating, heating, pre-cooling & cooling
Temperature, pressure and timers regulation/adjustment takes place via the visualisation in the operator panel of
the press section
Technical Data:
Max. press temperature 160 °C
Temperature accuracy ±3K
Installed power Depends on heating cooling pumping system
Heating-cooling medium High pressure hot-water temperature of 195°C @ min. 2 - 3 bar at the circuit
Cooling water of 30 °C @ min. 2 - 3 bar at the circuit
Temp Sensor & recording 13 Platen + 12 Material = 27 | 7 points for accumulator & heat saver
Pumping considered 30 – 50 kW – 2 nos with VFD
Controls considered All valves as per your control circuit for heating & cooling
6 valves with actuator & 1 valve with PID

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Hardware (Customer scope) considered for full automation of press cycle
Hot Water Pumps ~ 200 m3/h 2 Nos
Cooling water pumps 2 Nos
3/2 Temperature Control Valve – Motorised Servo 1 Nos
Valves with actuators 6 Nos
Manual Valve for Service 4 Nos
Plate-type Heat Exchanger 1 No
Heat Saver – 16 m3 1 No
All above material except heat saver can be mounted on common skid
We have offered complete Software/Auto control for heating-cooling control circuit including pumps, valves for
automation, heat exchanger, heat saver & sensors with PC control for total automation & visualisation of heating
cooling cycle
Hardware components have been conidered as per standard practice in India. However, if you have different P&I
Diagram; MH can provide PC/PLC control fully integrated with the Press
Sample screen shot is provided here (This is for 22 Opening press)

Local supply:
Mechinical hardware as listed above, Hot water generator, accumalator, heat saver, piping of above components,
cooling towr & cooling water pumps
All connection pipes between the press and the temperature regulating unit
All connection with insulation from the heating net to the temperature regulation unit.
All insulation of the piping from the press to the temperature regulation unit.
Quick-action stop valve for securing the circuit against overheating exceeding 200 °C local supply
Puller Pusher Arm Machine No.L02
Function :

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Pushes all the material into press together from cage (A Side) while loading as well pulls all material
together from press into cage (B-Side) while unloading.
Specification :
Stroke mm 5,200
Speed mm/sec 80 ~ 90
Drive Chain & Geared Motor
Erection Guide supported on press frame
 Special construction of PPA for heavy loads; pulling pushing at centre of arm
 Sturdy construction with X-Y guiding by heavy roller bearings
 Pneumatically operated grappler arms
Cage: Forming & Stripping – separate cages Machine No. LO3 & L07
Function :
Assembly cage receives material from elevator conveyor and stores material to be pressed. Brake down side
receives material from press and stores cooked books
Specifications :
No. of Compartments nos. Each Machine
Pitch mm 160
Capacity kg 25,000 - each
Drive kW 1.5 geared brake motor – each - VFD
Stroke mm 3,100 (Max.)
Speed mm /sec 80 ~ 90
Erection On ground, on rails in front of press – rail top flush with ground level
Design :
 Cage rollers – non metallic – longer life of carrier plates
 Heavy Base with sturdy shaft, Chain drive and helical reduction geared brake motor
 Brake motor for accurate stopping, wheels with spherical roller bearings
 Rigid super structure with Gussets and tie members for rigidity
 Swivel arrests for stability during loading-unloading
 Side guide rolls are to guide incoming material from elevators /press
Elevator Assembly with Conveyor Machine No. L04
Function :
Receives material (book) from assembly table and transfer the book into empty compartment of cage.
Specifications :
a) Conveyor:
Load Capacity kg 2,100
Type Belt conveyor with pneumatic pusher – longer life of carrier plates
Power [each] kW 1.1 geared motor - VFD
Linear Speed mm/sec 275 (Variable – inverter drive)
b) Lift:
Load Capacity kg 2,700
Lift mm 2,500

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

 Lift drive kW 3.7 geared motor
Speed mm/ sec 45
Design :
 Main frame made of sturdy closed sections of steel.
 Main conveyor with belt and pneumatic pusher.
 Non-contact linear Encoder to monitor for up down
 Four-corner lifting ensures that while lifting level of the table is not disturbed.
 Excellent station control in manual & automatic lift
 Extra safety switches for over running of conveyor
Assembly Conveyor Machine No. L05
Function :
Operator forms new book to be on this table. Conveyor transfers material from this table to elevator.
Specifications :
Capacity kg 2,100
Type Belt conveyor – longer life of carrier plates
Speed mm/sec 275 (Variable – invert drive)
Power kW 1.1 - VFD
Erection On ground.
Design :
 Tubular frame for rigid construction
 Direct drive for easy maintenance
 Side guide for protection
 Pneumatic bridge for transfer of book to elevator. Interlocked for operator safety
Vacuum Acrobat Machine No. L06 & L06
Function :
Transfer mould plates, carrier plates for L06
Operation between stripping station & top cover parking
Specifications :
Drive kW 5 kW (Servo) with feedback loop & positioning mode
Travel Stroke 4 - working station –
Forming,
Stripping,
Parking – 1 Positions between Forming & Stripping,
Finish laminate station
Add 2 stations for Storage of press plates after stacking for Storage
Traverse Speed mm/sec 1,000 Average
Hoist speed mm /sec 150; motorized belt with 2-speed action for smooth pick-up
Hoist stroke mm 300
Erection Columns grouted
Design :
 Hollow tube section frame for light weight and rigidity

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

 Rubber suction pads for carrying mould plates. Back up vacuum tank provided for suction pads.
 Very heavy hollow section for gantry
 Grapplers for bottom carrier.
 Well guided trolley with smooth and fast drive (servo with position control) for traverse,
 Column Structure Support and beam for tracks. Special construction for easy movement of raw material,
finished boards & press plate change,
 User-friendly control desk conveniently mounted.
Elevator Brake Down with Conveyor Machine No. L08
a) Conveyor:
Load Capacity kg 2,100
Type Belt conveyor with pneumatic pusher – longer life of carrier plates
Power [each] kW 1.1 geared motor
Linear Speed mm/sec 275 (Variable – inverter drive)
b) Lift :
Load Capacity kg 2,700
Lift mm 2,500
Lift drive kW 3.7 geared brake motor
Speed mm/ sec 45
Design :
 Mainframe made of sturdy closed sections of steel.
 Main conveyor chain will be with friction pads.
 Four-corner lifting ensure that while lifting level of the table is not disturbed.
 Excellent station control in manual & automatic lift
 Extra safety switches for over running of conveyor
Brake Down Conveyor Machine No. L09
Function :
Receives material from elevator conveyor and is used as brake down table.
Specifications :
Capacity kg 2,100
Type Belt conveyor – longer life of carrier plates
Speed mm/sec 275 (Variable – invert drive )
Power kW 1.1
Erection On ground
Design :
 Tubular frame for rigid construction
 Direct drive for easy maintenance
 Side guide for protection
 Pneumatic bridge for transfer of book to elevator. Interlocked for operator safety
Bottom Side Cleaning Machine No. L011
Functions:
Cleans press plate from bottom side

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Specifications :
Capacity size 3,080 x 1,330
Speed rpm 150 (Variable – invert drive)
Brush Dia 180 with anti-static property
Power kW 0.75
Up – Down control Pneumatic with guided cylinder & synchronization
Erection On ground
Design :
 Up-down stroke for withdrawing during transfer of carrier plate. Pneumatic with guides
 Tubular frame for rigid construction
 Direct drive for easy maintenance
 Side scrappers to clean short edges
Control Panel Machine No. L10
Function :
Electrical control of the above described machinery and equipment automatically or alternatively manually
operated.
Specifications :
As per project specifications
- Cabinet for Press & Handling system
- Cabinet for Heating-Cooling system with Industrial PC
- Control desks as required
Design :
MCCB, indicators, push buttons, timers, temperature indicators etc. provided on door. Fuses, overload relays and
contractors of makes [CE marked] provided. All machines are wired with proper termination as per standard
norms and all connections to the machine through Junction Boxes.
All Manual Controls and Auto Controls Provided
All interlocks to ensure no accidents even if operator pushes wrong push button.
Elevator, Elevator Conveyors and cage loading/unloading is completely automatic.
Push button for calling mould plate/carrier plate by Vacuum Acrobat with the assembler putting papers and
operator removing finished boards
Electrical cabinet houses contractors, MCCB, ELCBS, meters, transformer, fuses etc. for controlling auto/manual
operation cycle.
All drives and operations controlled through push operations push buttons on control desks.
PLC with Ethernet communication
Industrial PC with view software – 10 screens to take care of all requirement of annunciation, mimic, parameter
setting and reporting
Delivery:
 Switch cabinets, with programmable control - PLC - for the control elements, with processor, in- and output
cards.
 PLC with CPUs; for the line & heating – cooling system
 Switch cabinet for the elements with fuses, motor contactors, frequency converters for the drives etc.
 Control desks for the complete line. HMI at press plate storage station.
Emergency-Off button at all operating panels of the line.
Switch-off push button for each section and multi-function "traffic light" for indicating the operating state of the
line.

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Cabling of all components of the line to terminal boxes.
Equipment components:
As per our make list as listed in Section 5
PLC documentation:
Reference list in English
5. SCOPE OF SUPPLY OF THE LINE
Standard Makes :
Geared motor Bonfiglioli | SEW
Hydraulic pump & DC Valve Rexroth | Dennison | Settima
Inverter – VFD & Servo Siemens | SEW
Limit switch Telemechanique/ Siemens
Switch gear Siemens
PLC & Touch Screen with ProfiNet Siemens – 1500
Press Insulation, Piston seals Western European make
Pneumatics SMC | Western European
Vacuum Pump Busch, Germany

HPL Line - 163 x 424 cm – 12 Opening Layout Drawing No 103000016

L01 Press
Hydraulic unit
Heating – Cooling controls as described; PC based control for complete press cycle (Option)
L02 Puller Pusher Arm
Pushes all the material into press together for loading as well pulls all material together from press
while unloading.
L03 Cage A: Forming
Assembly cage receives material from elevator conveyor and stores material to be pressed.
L04 Elevator A - Forming - With Conveyors
Receives material (book) from assembly [forming] table and transfer the book into empty compartment
of cage.
L05 Forming Conveyor
Operators form new book on this table Conveyor transfers material from this table to elevator.
L06 Vacuum Acrobat – Brake down (Stripping)
Transfer mould plates to Cleaning Belt Conveyor L09.2 & carrier plates to Fixed Conveyor L05.1. Station
for new plate entry and plate exit added
L07 Cage B: Stripping
Brake down side receives material from press and stores cooked books.
L08 Elevator B – Stripping - With Conveyor
Receives material from brake down side of cage lowers it to level of stripping table and transfer to
stripping conveyor

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

L11.1 Bottom Cleaning
To Clean press plate from bottom side during transfer from striping to top cleaning.
L09 Stripping Conveyor
Receives material from brake down elevator through transfer fixed conveyor L0 9.1. Finished boards are
removed manually; press plate & carrier plates are transferred by vacuum acrobat L 06
L10 Control Panel
Electrical control of the above described machinery and equipment automatically or alternatively
manually operated.
Press Plate Storing & Changing System (Option)
Press plate will be assembled on a carrier plate similar to press carrier plate –included in our scope
L31 Press Plate Change Conveyor 1
Positioned under Vacuum Acrobat to receive/send Press Plates
L32 Press Plate Change Conveyor 2
Positioned under Vacuum Acrobat to receive/send Press Plates
L33 Storage Elevator with Cage Loader – Un-loader 1
To receive/send Press Plate stack between cage compartment and conveyor under vacuum Acrobat
L34 Storage Elevator with Cage Loader – Un-loader 2
To receive/send Press Plate stack between cage compartment and conveyor under vacuum Acrobat
L35 Storage Cage with 2 x 16 Compartments
To store press plates stack made on carrier plate
Carrier Plate (MOC Mild Steel - 5 mm Thick)– 25 nos - for Press

6. DELIVERY EXCLUSIONS AND LOCAL SUPPL Y FOR THE PRESS LINE

Unless otherwise stated above, the following equipment and work is excluded from our scope of supply:
Buildings / Foundations / Delivery / Transport
• The complete production building with space heating, lighting equipment etc.
• All foundation & civil work including bolts for fixing of machines etc.,
• Cable ducts, covering, safety guards & walkways
• The floor rails for all movable and tilting components of the line.
• Delivery, off loading & appropriate storage of machinery & transport of the machines to the place of
installation.
• Crane, fork lift, lifting gear, tools for offloading, transport in the factory and assembly of the line.
• The lighting equipment for the inspection station and other necessary positions
• 1 site place with telephone, internet to be used free of charged by the installation team
Tools / Auxiliaries for Operating the Line
• The necessary Chrome plates with clamping lugs and press cushions.
• System pallets for impregnated papers.
• The protection board/system protection pallets for the raw board stack
• The protection board/system protection pallets for the finished board stack
• The raw material required for the test runs such as particleboard, papers, etc. in
• sufficient quantity. The costs for the test material, the energy supply as well as operating and supervision
personnel at site during the period of the test runs are to the buyer's account.
• Crane systems, fork lift trucks, cranes and elevators , tools for operating the line
• All necessary cutting tools such as saw blades, chipping machine etc.

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

• Laboratory equipment/workshop equipment
• All transitions and platforms, maintenance scaffold incl. guard rails, ladders and security fences etc. which
are required to prevent accidents while operating the line.
Heatinq System / Hydraulics of the Line
• The heating system for the press with chimney and power supply (hot water supply)
• The supply and distribution lines including insulation as well as the fittings of the pipe work between the
press, temperature regulating system and heating aggregate respectively heating system.
• The insulation for the supply and distribution lines at the press and temperature regulating system
• The oil filling for the press and the heating aggregate and system for heating medium thermal oil
• The oil filling for the hydraulic drive of the press
• The nitrogen filling for the hydraulic accumulator of the oil-hydraulic drive of the press.
Compressed Air / Outgoing Air / Water
• The air compressor with all supply lines to the individual sections of the line for dried, oil-free compressed
air
• The extraction aggregate including the supply and return pipes to the individual sections of the press line
• Suction hood above the press or other components of the line
• Water connection (hose connection) to the cooling aggregate for the press hydraulic as well connection lines
aggregate - press hydraulic
• Outlet of the outgoing air to the outside resp. supply of fresh air from/to the cooling aggregate (if desired
resp. necessary)
Electrics / Data Transmission
• The distribution board with adequately designed U5P and the main power supply to the individual switch
cabinets in the complete line as well as the electric control for all local supply line components.
• The earthing of the complete line.
• Cable links/cable racks and their installation/preparation for the connection cables between the main
switch cabinets and the control panels etc.
• The programming unit (printer, production data acquisition unit etc.), if the line is equipped with a
programmable logical control (PLC).
• Modem for the On-Line-supervision of the PLC program flow.
• One communication and one data line.
Safety Devices
• All special safety systems such as lock-up chains etc. requested by the local authorities and which go beyond
the CE conform protection.
• All measures requested by the local authorities or local specifications/regulations for reasons of
environment protection as well as installations against noise, annoyance caused by bad smell,
contamination of the ground, water and air.
• Fire protection equipment
• The possibly necessary sound insulation cabins for separating saws, trimming aggregates etc.
Software and License
• Any software packages and licences for the development and maintenance of the PLC program, the
visualisation projects and switching diagrams and any following Updates and Upgrades.
• Interface to existing controls or external installations as well as the necessary hardware components.
• Maintenance and service software for drive converter
• Inventory management software as well as soft- and hardware interface to the
• Local inventory and order management systems.
• Internet-based remote maintenance systems as well as the relative licence and hardware components
7. TERMS OF SALES

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Price basis:
Particulars Euro
Supply of the Complete HPL Press Line – 130 x 305 – 16 openings – 4,070 Ton – as per scope of
supply
– Automation of loading-unloading of press
– Stripping & forming automation with acrobat & conveyors
– Bottom Cleaning System for Press Plate
– Controls with Servo & other control 1,040,000
– Press with automatic control for heating-cooling with PC & PLC 85,000
– Carrier (25 Nos) 16,000
– Press plate storage system as described above 90,000
– Carrier for 12 high storage system (25 Nos) 16,000
Supervision of Erection & Commissioning 45,000
Delivery :
34 Weeks from date of down payment
Price :
Prices FOB, Mumbai Port in seaworthy packing
Payment :
40% of the Total Contract value to be paid as Down Payment immediately (within one week) on signing of the
Contract in our account given below
Payment
1. Down Payment on signing of the Contract 40%
All the bank charges other than State Bank Of India (Seller’s bank) related to remittance, to your account

60% of the Contract value By confirmed, irrevocable, transferable, divisible letter of credit valid for 52 weeks
(approximately 3 months over and above the execution period) by First Class Bank, confirmed by European Bank
to be opened within 30 days after contract signature in our favor;
Payment
2. Available on pro-rata basis at sight against the presentation of - 55%
a) Bill of lading
b) Commercial invoice
c) Certificate of origin
d) Packing lists
3. On start up of the line against presentation of commissioning within 30 5%
days from date of start up OR within 120 days from date of last Bill Of
Lading whichever is earlier
All the bank charges other than State Bank Of India (Seller’s bank) related to remittance
 Lodgment to the negotiating bank in India unto 30 days from the bill of lading
 All the above remittance to be made by SWIFT to State Bank of India, Deccan Gymkhana Branch, PMT
Building 5th Floor, Jangli Maharaj road, Pune – 411 004, India SWIFT No. SBININBB600 for onward credit to
account of Master Handlers Pvt. Ltd., Pune, India and Account No. 37653852664.
 L/C to be advices through State Bank of India, Deccan Gymkhana Branch, PMT Building 5 th Floor Jangli
Maharaj road, Pune – 411 004, Maharashtra, India
 L/C Negotiable at any Bank in India

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Payment schedule is the essence of contract
Bank Account Details :
Account name & number Master Handlers Pvt Ltd; Account No 37653852664
Bank name & IFSC code State Bank of India, Deccan Gymkhana; IFSC –SBIN0001110
Bank Address Shirole Bhavan, PMT Building, Jangli Maharaj Road, Pune
Swift Code SBININBB218
Freight & Insurance :
Ocean Freight & Marine Insurance entirely to sellers Account.
Documentation: 2 copies in English language
Delivery of Press Manufacturer's certificate
Supervision of Erection & Commissioning:
 MH will give detailed note about preparation to the customer. Customer is responsible to keep foundation,
utilities, oil, etc. and casual manpower ready.
 Buyer to bear all costs traveling (air fare for to & fro) to site, visa formalities (if applicable), lodging &
boarding at site & during traveling, local conveyance, medical treatment etc. which should be reasonable
and respectable for erection personnel
 Buyers to provide at their cost Erection Tools, Tackles & Casual laborers to carry out work at project site.
List of Erection Tools & Tackles to be provided by Sellers to the Buyer.
 Installation time: 8 weeks
 Commissioning, Training & Production trial: 3 weeks
MH will give detailed note about preparation to the customer. Customer is responsible to keep foundation,
utilities, oil, etc and casual manpower ready.
Buyer to bear all costs traveling (air fare for to & fro) to site, visa formalities (if applicable), lodging & boarding
at site & during traveling, local conveyance, which should be reasonable and respectable for Erection
personnel
The Buyer will make available following support
 2 mechanically skilled fitters
 2 skilled workers as future operators of the machine
 1 skilled person for automation
 1 skilled electrician
 Heavy tools, a fork lift truck with a carrying load of 10 tons with driver,
 Welding machine.
Charges at Buyers account for Erection and Commissioning
 Traveling expenses from and to India by Airplane
 Transport expenses for required tools to be carried from India
 Reasonable lodging & boarding including Laundry
 Technicians to be picked up at the nearest airport and dropping back when they leave
 Daily expenses for transportation of technician from the hotel to work site and back
 Medical treatments at a reasonable Hospital, medication in case of illness or accident as well as traveling
expenses to return to India in case of emergency
The supervision of erection & commissioning team can be alternatively deputed at an extra charge on per day
basis as follows:
Support Team Member Euro/day
Mechanical Engineer 250
Software Engineer 300
50% of estimated cost to be paid in advance

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

Erection Tools, Tackles & Casual Labors:
Buyers to provide at their cost Erection Tools, Tackles & Casual laborers to carry out work at project site. List
of Erection Tools & Tackles to be provided by Sellers to the Buyer
Warranty :
The product is guaranteed against manufacturing defects for a period of 15 months from the date of dispatch or
12 months from the date of commissioning, whichever is earlier.
Will expire at 18 months from date of information of readiness

Thanking you, awaiting your comments and invitation for final discussion.
Yours faithfully,
For Master Handlers Pvt. Ltd.

Pradeep Chapalgaonkar – Director

Encl. – Terms & Conditions of Supply

8. TERMS & CONDITIONS OF SUPPLY

Definition MHPL (Seller) refers to Master Handlers Pvt. Ltd. and customer refers to Purchaser (buyer) to whom the offer has been
made or to whom the materials will be shipped to.

Scope of Supply All components, parts & accessories to constitute the product as per technical specifications detailed in our offer and
prices indicated otherwise accepted by MHPL in writing.

Conditions applicable This offer is subject to Master Handlers Conditions of Contract, to be read together with and incorporating the
following clauses.

Compliance of offer We have complied with the customer enquiry where possible and economically viable. Our offer is completely defined
in the attached documentation and no assumptions can be made to compliance with customer standard specifications
should there be no clause-by-clause comment provided. Therefore our offer will have precedence over any
documentation included or referred to in the enquiry documentation.

Prices Prices EX Works unpacked in USD

Terms of Payment As agreed to expressly by MHPL in writing through demand draft or cheque payable at Pune; or Swift transfer to our
bank account as detailed in the Offer/contract. All payments have to be made at MHPL without any deductions. All
charges for issuance of cheque or demand draft or remittance to our bank shall be to customers account. Any delay in
payment beyond due date shall attract a penal charge of 2% of the order value for every month or part thereof, unless
expressly condoned by MHPL in writing.

Validity This offer is valid for acceptance for 30 days from the offer date unless otherwise specifically mentioned. However, it
is subject to reconfirmation from MHPL thereafter.

Delivery Ex Works unpacked in USD. Such a period shall only commence after receipt of the following:
 A technically clear order
 The approval drawings with your approval signature certifying that the configuration as well as all overall
dimensions, clearances and technical details are clear and acceptable
 All commercial pre-requisites including advance are met

Sales Tax / VAT No taxes are applicable that are payable to the Indian Government.

Drawing approval Only mechanical general arrangement drawings and layout will be submitted for approval. Drawing approval must be
affected within 5 calendar days to ensure that the delivery program can be adhered to. Any delay in the drawing
approval will have a direct influence on the delivery of the project. LC/ contract validity will be amended by you
accordingly.

Delayed Delivery Unless agreed to expressly in writing by MHPL, no variation in delivery period shall be reckoned. If delivery is made
after the agreed contractual date at your request or due to non-readiness of site we will store the material providing
the 100 % payment is made. However it must be appreciated that storage facilities are not readily available at the
port or at place of local supply and that the cost of hiring a suitable building including transport and mobile crane-age
for offloading will be for your account. We cannot accept responsibility for weather deterioration to paintwork,
exposed cables, etc. Any restoration charges will be for your account. . LC / contract validity will be amended by you
accordingly.

Transportation Consignment shall be shipped through MHPL approved freight forwarder. Should the customer specified transporter /
freight forwarder not accepting the material, MHPL reserves the right to ship the material through any MHPL
transporter without any further intimation to the customer.

Transit Insurance Transit Insurance will be arranged by buyer.

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20

 Force Majeure No liability shall result to MHPL from delay in performance or non performance, including but not limited to acts of
God, fire, flood, war, Government regulations, direction or requests, accident, strikes, lock-outs, labor trouble or
shortage or inability to obtain necessary raw materials, equipment or transportation.

Warranty MHPL undertakes at its option and reasonable discretion to rectify or replace free of charge any such parts as may be
materially impaired or rendered unserviceable for faulty design, inferior material or poor workmanship within 9 months
from Date of supply, provided that the equipment is operated in accordance with MHPL’s Operation and Maintenance
Instructions.
Customer shall notify in writing to MHPL immediately upon discovery. Any parts removed for replacement shall become
the property of MHPL.
No guarantee shall be assumed against defects resulting from the following:-
Improper or inexpert use, faulty erection or startup by customer or third person, natural wear and tear.
Improper or negligent handling, excessive loading, faulty civil engineering work, extreme atmospheric conditions,
chemical, electro-chemical, electrical and other natural influences unless these are due to a fault which MHPL have
assumed responsibility in writing.

Termination Incase of termination of Contract / Purchase order, arising out of buyer's request, the cost arising out of termination
before receipt of termination intimation shall be to buyer's account as per the standard conditions of MHPL taking into
account the scope of work completed, work in process, material procured, materials for which purchase commitments
have been made, reasonable overhead and expenses and fair profit for MHPL.
In case of the termination of Contract / Purchase order is revoked, fresh Contract / Purchase order value may be
reworked jointly between MHPL and the buyer.

Arbitration MHPL and the buyer shall make every attempt to resolve in an amicable way any dispute concerning the interpretation
of the offer and the order the Customer may place on MHPL. Any dispute, which in course of time, cannot be resolved
by MHPL and the Customer and any controversy or claim otherwise arising out of or in connection with this offer / the
customer's order or breach thereof, shall be finally settled by arbitration according to the rules of conciliation and
Arbitrations. Reference to Arbitration shall be subject to the provision of the Indian Arbitration Act, 1940 and
subsequent modifications thereto. Place of Arbitrations shall be Pune India; Arbitrations shall be conducted in English
Language.

Indivisibility Our offer is based on the complete package as offered except where items are clearly identified as optional extras. We
reserve the right to adjust our prices should only a part of the package offered be ordered.

Consequential Damages The rights and obligations of the parties are finally and conclusively limited to those expressly provided for in the
contract. It is expressly agreed that under no circumstances shall either of the parties be liable for economic loss or
consequential or indirect damages of any kind suffered by the other party, including but not limited to, loss of
anticipated profit, loss of contract or any other type of loss.

Documentation In case of the customer placing the order on MHPL, General arrangement (GA) drawings wherever applicable and
required shall be prepared by MHPL and submitted to the buyer as the binding layout. Due to on going technical and
other developments MHPL reserves the right to make changes in the GA drawings pursuant to the order from the
documents with the offer.
MHPL further reserves the right to correct the prices for modification and changes due to revision in technical
specifications, for which MHPL is not responsible.

Order placement In case of order placement, order is to be addressed to the address mentioned in the offer
Master Handlers Private Limited,
Gat No. 307, Kondhapuri, Taluka Shirur, Dist- Pune, Pin – 412 209.

Contract Contract to be treated like order placement

20211210 HPL 163 x 424 12 Op – Sloplast, Russia Dec 20
