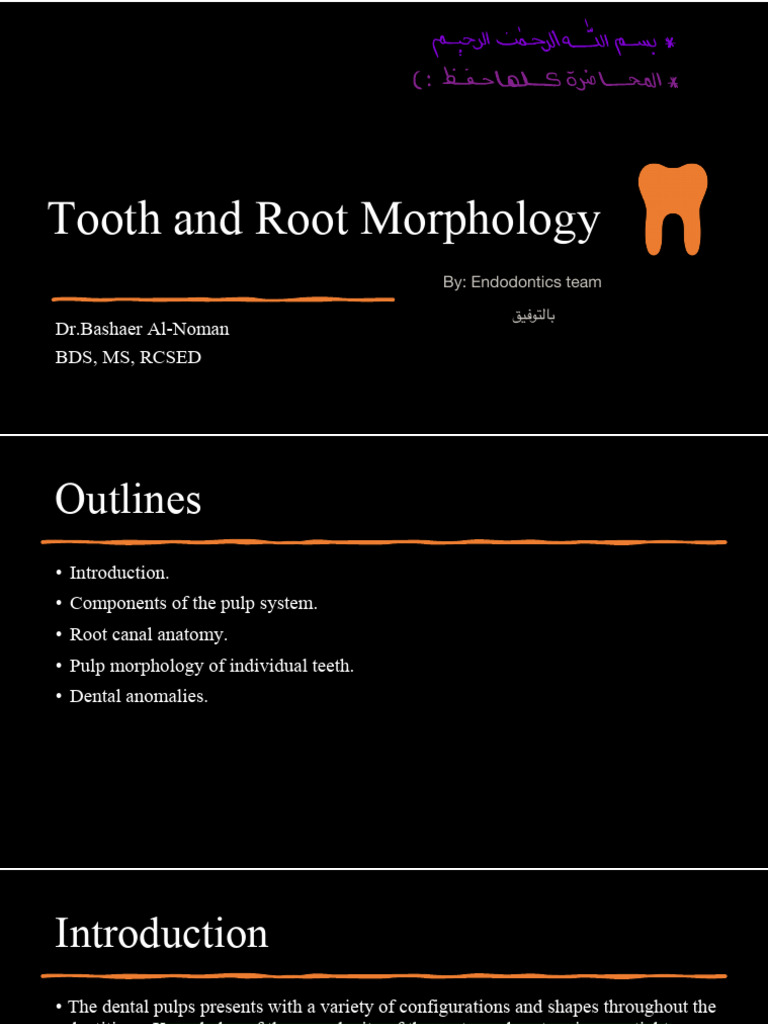

Dr.Bashaer Al-Noman
BDS, MS, RCSED
Outlines
• Introduction.
• Components of the pulp system.
• Root canal anatomy.
• Pulp morphology of individual teeth.
• Dental anomalies.
Introduction
• The dental pulps presents with a variety of configurations and shapes throughout the
dentitions. Knowledge of the complexity of the root canal system is essential to
understand the principles and problems encountered in access preparation.
• Initial anatomical evaluation of the pulpal anatomy is achieved with careful evaluation
of two or more periapical radiographs exposed at different angulations. The detailed
reading and interpretation of each radiograph before and during root canal treatment is
necessary because many teeth present with unusual canal morphology.
9 8 a I É g Li s
Components of The Pulp System
The pulp cavity is divided into two main portions:
:
1- coronal- the pulp chamber, located in or extending
to just below the anatomic crown of the tooth.
* pulp cavity ①
②
pulp Chamber
Root canal
·
• Pulp chamber: the roof of pulp chamber consists of dentin covering the pulp chamber occlusally or
incisally.
• The floor of pulp chamber merges into the root canal at the orifices. Thus, canal orifices are the
openings in the floor of pulpechamber leading into the root canals.
• Pulp Horns: pulp horns are landmarks present occlusal to pulp chamber. They may vary in height
and location.
Pulp horn tends to be single horn associated with each cusp of posterior teeth and mesial and distal
in anterior teeth.
The occlusal extent of pulp horn corresponds to the height of contour in young permanent teeth.
Other notable features are the pulp horns; accessory, lateral, and furcation canals;
• Canal Orifice: canal orifices are openings in the floor of pulp chamber leading into root canals.
O O WS
Cusp s I
80
Components of The Pulp System
Radicular portion of the pulp:
• Root Canal
• The root canal extends from canal orifice to the apical foramen.
• in most cases, the number of root canals corresponds to the number of roots; however, an
-
straight or merged 05
0
Ba *
Opening Sa $*
Access · 1-
Radicular portion of the pulp: · 3
I!d il
-
-
⑦
...
⑦
↳
• Apical Root Anatomy: minor diameters)
-
-
It is based on following anatomic and histological landmarks in the apical part of the root canal.
& or minorconstrector
• Apical ConstrictionS (Minor Diameter) : the AC generally is considered the part of the root canal with
a
JW Fox
the smallest diameter short of the apical foramina or radiographic apex.
I ; it also is the reference point clinicians most often use as the apical termination for enlarging,
wa shaping, cleaning, disinfecting, and filling. Violation of this area with instruments or filling materials
t
-
is not recommended for long-term, successful outcomes. It may or may not coincide with CDJ.
sit *
at CD J D Ie I
8M
I
25
O
784
-$ *
time
We Wil bid I
ending t Types
&
B *
• Cementodentinal Junction: the CDJ is the point in the canal where cementum meets
dentin; it is also the point where pulp tissue ends and periodontal tissues begin. The
location of the CDJ in the root canal varies considerably. It generally is not in the
same area as the AC, and estimates place it approximately -
1 mm from the AF.
Major
-
CDI
Components of The Pulp System
Radicular portion of the pulp:
Accessory canal
Canals anastomoses or ramifications:
multiple foramina, delta, isthmus, c-shaped canal.
Ramifications are found in:
116g *
73.5% in the apical part
↳
Accessory canals that are present in the bifurcation or trifurcation of multirooted teeth are
referred to as furcation canals (or chamber canals). These channels form as a result of the
entrapment of periodontal vessels during the fusion of the diaphragm, which becomes the
pulp chamber floor.
Br *
• Apical Delta: are multiple accessory canals that branch out from the main canal at or near the
root apex .It is a triangular area of root surrounded by main canal, accessory canals and
periradicular tissue. j1 *
- -
d
F I
By
Components of The Pulp System
* i. - *
·
Isthmus: narrow, ribbon- shaped communications between two root canals that
contain pulp tissue, or they may midroot portion of the canal.
y
19
Isthmuses are found in 15% of anterior teeth; in maxillary premolar teeth, they are
found in 16% at the 1-mm level from the apex and in 52% at the 6-mm level, which
puts them primarily in the middle third of the canal.
15% in anterior teeth.
“Anterior teeth have a 15% chance of isthmuses, while maxillary premolar teeth may have 16% near the apex and a higher 52%
chance in the middle third.”
At the junction of the middle and apical thirds of this root, the prevalence of an isthmus increases.
Initially, it’s found in 30% of cases, but this percentage rises to 50% near that junction.
About 80% of the time, these communications are found at the junction of the apical and middle thirds of the root.
In the distal root of mandibular first molars, isthmuses are primarily located in the apical third of the root.
Components of The Pulp System
The prevalence of an isthmus increases in the mesiobuccal root of the maxillary first
molar, from 30% to 50% near the junction of middle and apical thirds of the root. Eighty
percent of the mesial roots of mandibular first molars have these communications at the
apical to middle third junction, with the distal root display more in the apical third.
I
Identification:
An isthmus can be identified by using methylene blue dye.
specifically
Mesiobuccal root
Components of The Pulp System
Bacterial -j
a
-
- -A
&
- -
-- is
·- 9j5
5
- -
• Commonly isthmus is found between two canals present in one root like mesial
root of mandibular molars.
**
• Isthmus has shown to be main causative agent responsible for failed root canals
(bacterial reservoir). So, it is always mandatory to clean, shape and fill the isthmus
area by orthograde or retrograde filling of root canals.
* .
9 5.*
*
Canals
2 Root
i
I --
-
I
dr
S.*E Es *
⑤ *
- is Canals.
Si,
-
*
connection .
&A
↳ E
Isthmus Classification
Classification AN
(classifications described by Kim and colleagues)
-*
I .
⑤ . 9 PDL J1.
1. Accessory Canals in the Apical Third:
Contain vessels but may not supply enough blood to the pulp.
4. Clinical Significance:
- - *
--
↳I
>
• Various researches have been conducted to study normal and variations in normal
anatomy of pulp cavity, Vertucci established eight different forms of pulp anatomy
in 1984.
• A supplemental root canal configurations to those of vertucci represented by
Gulabivala et al 2001.
1 : -190 *
Type I: A single canal extends from the pulp chamber to the apex (1).
Type I
ago Type II
Type II: Two separate canals leave the pulp chamber and join short of the apex to
form one canal (2-1).
Anatomy Type IV
Type IV: Two separate, distinct canals extend from the pulp chamber to the apex (2).
Type V: One canal leaves the pulp chamber and divides short of the apex into two
Type V separate, distinct canals with separate apical foramina (1-2).
- &dis1 *
Type VIII: Three separate, distinct canals extend from the pulp chamber to the apex
i
Type VIII (3).
↓
31
A
1 E
I
>
3 32
1 24 31
2[
2 2[
1[
=
[
2 2[
↓ s 2[ [
855618
-5
8
Si
- =
8
W
!Is a
$91 %1 : - .
1. Type I: One straight canal from the pulp chamber to the tip (1).
2. Type II: Two canals from the pulp chamber merge before the tip (2-1).
3. Type III: One canal divides in the root, then merges again before the tip (1-2-1).
4. Type IV: Two separate canals from the pulp chamber to the tip (2).
5. Type V: One canal divides before the tip into two separate canals (1-2).
6. Type VI: Two canals from the pulp chamber merge, then split again before the tip (2-1-2).
7. Type VII: One canal divides, rejoins, and splits again before the tip (1-2-1-2).
8. Type VIII: Three separate canals from the pulp chamber to the tip (3).
Root Canal Anatomy
Factors affecting the shape and size of the root
canal:
• Age of the patient
• Irritating factors such as: caries, attrition, abrasion,
erosion, periodontal disease, cavity preparation or
other operative procedure that may stimulate dentin
formation.
• Resorption
• Calcification old
young *
*
I
& j5 * patienI patient
shapess Size /
RC 31
Pulp Morphology of Individual Teeth
Maxillary Central Incisor
• Average Tooth Length: the average length of the maxillary central incisor is 22.5 mm. andthe
rootcanal
• Pulp Chamber: it is located in the center of the crown.
Mesiodistally, pulp chamber follows outline of the crown and it is ovoid in shape.
• Buccopalatally the pulp chamber is narrow as it transforms into the root canal with a constriction just
apical to the cervix. In young patient, central incisor has three pulp horns that correspond to enamel
mamelons on the incisal edge.
↓to
" -
*
Pulp Morphology of Individual Teeth
K Maxillary Central Incisor
⑪
Root Canal
type I vertuci
• Central incisor has one root with one root canal (100%) - & *
a
• Coronally or cervically, the canal shape is large ovoid in cross-
- -
is J
section, middle is ovoid and in apical region, the canal is round.
• Usually lateral canals are found in apical third.
• Most of the time, the root of central incisor is found to be straight (75%).
• Root apex and apical foramen are located distolabially.
EIA 86
I
Pulp Morphology of Individual Teeth
② Maxillary lateral incisor
• Average Tooth Length: the average length of the maxillary central incisor is 22 mm.
Pulp Chamber:
• The shape of pulp chamber of maxillary lateral incisor is similar to that of maxillary central incisor but there are few differences.
• Lateral incisor has two pulp horns or no pulp horns, corresponding to the development mammelons.
E
Pulp Morphology of Individual Teeth
Maxillary lateral incisor
Root Canal
• Root canal has finer diameter than that of central incisor though shape is similar to that.
• Canal is slightly ovoid labiopalatally in cervical third, ovoid in middle third and round in apical third. -
5 8
$ *
O
Pulp Morphology of Individual Teeth
⑤ Maxillary Canine
• Average time of eruption is 10-12 years.
I I *
• Average Tooth Length Longest tooth: It is the longest tooth with an average length of 26.5 mm
Pulp chamber:
o
• Labiopalatally, the pulp chamber is almost triangular shape with apex pointed incisally.
Root Canal
• Normally there is single root canal which is wider labiopalatally than in mesiodistal
aspect.
• Cross-section at cervical and middle third show its oval shape, at apex it becomes
round.
• Canal is usually straight but may show a distal apical curvatur (32%)
y
O
j
Pulp Morphology of Individual Teeth
.
! A
S
· 2 Roots
P
Pulp Morphology of Individual Teeth
Maxillary First Premolar
*
3 Roots
molar dis
Pulp Morphology of Individual Teeth
⑤ Maxillary Second Premolar
Pulp Chamber:
• Maxillary second premolar usually has one root with a single canal, with 2 or 3 root canals.
Root Canal
• In more than 90 percent of cases single root with single canal is found. 77% fused root palatally and
2% with well developed roots
• If there are two canals, they may be separated or distinct along the entire length of the root or they
may merge to form a single canal as they approach apically.
I
• Canal is wider buccopalatally forming a ribbon like shape.
• At cervix, cross-section shows ovoid and narrow shape, at middle third and apical third are round.
single
got
Pulp Morphology of Individual Teeth - - *
s
⑥ Maxillary First Molar on
&Is 5
-
• Average Tooth Length: the average tooth length of Buccal roots is 20.5 mm and
23mm for platal root. ->* paltal root
J
Pulp Chamber
• Largest pulp chamber: Maxillary first molar has the largest pulp chamber with
near four pulp horns (mesiobuccal, mesiopalatal, distobuccal and distopalatal).
• Rhomboid or triangular in shape with the base in the buccal side and apex at the
palatal side.
Pulp Morphology of Individual Teeth
Maxillary First Molar
• Bulk of pulp chamber lies mesial to the oblique ridge across the surface of the tooth
k
• Orifices of root canals are located in the three angles of the floor
• Palatal orifice is largest and easiest to locate and appears funnel like in the floor of
pulp chamber.
A
* • MB2 is located 2 to 3 mm palatal to the MB1 canal, on an imaginary line connecting
* MB1 and palatal canal.
- 8 S1 *
- st!
Pulp Morphology of Individual Teeth
Maxillary First Molar
Root Canal
• Maxillary first molar has generally three roots with three or four canals.
of
• The Mesial root is broad buccopaltally.
• Two canals in mesiobuccal root are closely interconnected and sometimes merge into one canal.
4
• Mesiobuccal canal is the narrowest of the three canals, flattened in mesiodistal direction at
cervix but becomes round as it reaches apically.
• The palatal root canal has largest diameter, ovoid in cross section.
• Lateral canals are found in 40 percent of the molars at apical third and at
trifurcation area (furcal canals).
MBI
2
j
MB II
paltal Canal
Pulp Morphology of Individual Teeth
7 Maxillary Second Molar
• Average Tooth Length: the average tooth length of Buccal roots is 20.5 mm and 22-23mm for platal
root.
so
molar *
• It is similar to maxillary first molar except that it is narrower mesiodistally
• Mesiobuccal and distobuccal canal orifices lie very close to each other
___A A
• Rhomboid in shape (4 canals), triangular in shape (3 canals), oval in shape (2 canals).
2canals J E B
But molar Zanels
Pulp Morphology of Individual Teeth
Maxillary Second Molar
• Similar to first molar except that in maxillary second molar roots tend to be less
divergent and may be fused
Root Canal
• Various root canal formations have been seen in mandibular incisors. There can be a single
canal from orifice to apex or a single canal by bifurcate into two canals or sometimes two
separate canals are also found. Incidence of two canals can be as high as 41 percent.
• Cross-section of root canals show wider dimension in labiolingual direction making it ovoid(
hourglass) shape whereas round in the middle and apical third.
• Since canal is flat and narrow mesiodistally and wide buccopalatally, tapered incisally.
Pulp Morphology of Individual Teeth
Mandibular Lateral Incisor
Pulp Chamber:
Root Canal
Pulp chamber:
• On viewing labiolingually, the pulp chamber tapers to a point in the incisal third of the crown.
• Coronally, the root canal is oval in cross-section, becomes round in the middle and
apical region.
Pulp chamber:
• Pulp chamber has two pulp horns, the buccal horn being
more prominent.
Root canal:
• Mandibular first premolar has one root and one canal. Sometimes presence of second canal can be
seen. Moreover, mandibular first premolar may present with three roots trifurcating at mid root and
it’s appeared to occur with different racial groups.
• Cervical cross-sections tend to be oval, but in middle the two branches are round and apical area, it
become round.
Pulp Morphology of Individual Teeth
Mandibular Second Premolar
Pulp chamber:
• It is similar to that of mandibular first premolar
except that lingual pulp horn is more prominent.
Pulp Morphology of Individual Teeth
Mandibular Second Premolar
Root Canal:
• Usually has one root and one canal but in some cases, a second canal can be seen.
• Buccolingually, it is wider than that of mandibular first premolar.
Pulp chamber:
• There may be presence of four or five pulp horns. Three distinct orifices (MB,ML, D).
• The shape is triangular (with three orifices), and rhomboid (with four orifices).
• The mesiolingual orifice is located in a depression formed by mesial and the lingual walls.
Usually a connecting groove is present between mesiobuccal and mesiolingual orifices.
Pulp Morphology of Individual Teeth
Mandibular First Molar
• Distal orifice is the widest of all three canals. It is oval in shape with greater
diameter in buccolingual direction.
Pulp Morphology of Individual Teeth
Mandibular First Molar
Root Canal:
• Mandibular first molar has two roots with three canals. But teeth with three roots and four
or five canals have also been reported.
• Mesial root has two canals, mesiobuccal and mesiolingual which may exit in two foramina
(> 41% cases), single foramen (30%) and in different pattern.
• Distal root generally has one canal (> 70% cases), but two canals are also seen in some
cases.
Pulp Morphology of Individual Teeth
Mandibular First Molar
• A single distal canal is ribbon shaped and has larger diameter buccolingually. But
when two canals are present in distal root, they tend to be round in the cross-
section.
• A variation in root morphology is the presence of an extra distolingual root. The
radix entomolaris (RE) is a supernumerary root located distolingually in
mandibular molars, whereas the radix paramolaris (RP) is an extra root located
mesiobuccally.
Pulp Morphology of Individual Teeth
Mandibular Second Molar
Pulp chamber:
• It is similar to that of mandibular first molar except that it is smaller in size.
• Root canal orifices are smaller and lie closer.
Pulp Morphology of Individual Teeth
Mandibular Second Molar
Root canal:
• Usually mandibular second molar has two roots with three canals but variations are also
seen.
• There may be only one mesial canal. The mesial and distal canals may lie in midline of
the tooth.
• C-shaped canals are also seen, i.e. mesial and distal canals become fused into a fin.
