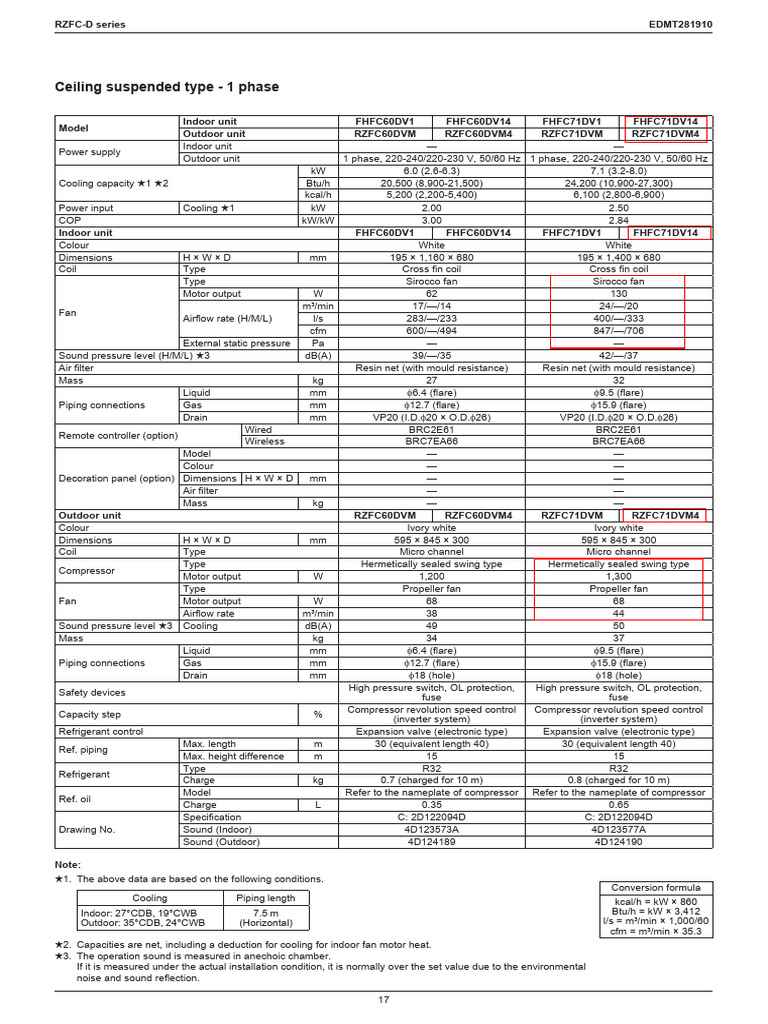

RZFC-D series EDMT281910

Ceiling suspended type - 1 phase

Indoor unit FHFC60DV1 FHFC60DV14 FHFC71DV1 FHFC71DV14

Model
Outdoor unit RZFC60DVM RZFC60DVM4 RZFC71DVM RZFC71DVM4
Indoor unit — —
Power supply
Outdoor unit 1 phase, 220-240/220-230 V, 50/60 Hz 1 phase, 220-240/220-230 V, 50/60 Hz
kW 6.0 (2.6-6.3) 7.1 (3.2-8.0)
Cooling capacity H1 H2 Btu/h 20,500 (8,900-21,500) 24,200 (10,900-27,300)
kcal/h 5,200 (2,200-5,400) 6,100 (2,800-6,900)
Power input Cooling H1 kW 2.00 2.50
COP kW/kW 3.00 2.84
Indoor unit FHFC60DV1 FHFC60DV14 FHFC71DV1 FHFC71DV14
Colour White White
Dimensions H×W×D mm 195 × 1,160 × 680 195 × 1,400 × 680
Coil Type Cross fin coil Cross fin coil
Type Sirocco fan Sirocco fan
Motor output W 62 130
m³/min 17/—/14 24/—/20
Fan
Airflow rate (H/M/L) l/s 283/—/233 400/—/333
cfm 600/—/494 847/—/706
External static pressure Pa — —
Sound pressure level (H/M/L) H3 dB(A) 39/—/35 42/—/37
Air filter Resin net (with mould resistance) Resin net (with mould resistance)
Mass kg 27 32
Liquid mm f6.4 (flare) f9.5 (flare)
Piping connections Gas mm f12.7 (flare) f15.9 (flare)
Drain mm VP20 (I.D.f20 × O.D.f26) VP20 (I.D.f20 × O.D.f26)
Wired BRC2E61 BRC2E61
Remote controller (option)
Wireless BRC7EA66 BRC7EA66
Model — —
Colour — —
Decoration panel (option) Dimensions H × W × D mm — —
Air filter — —
Mass kg — —
Outdoor unit RZFC60DVM RZFC60DVM4 RZFC71DVM RZFC71DVM4
Colour Ivory white Ivory white
Dimensions H×W×D mm 595 × 845 × 300 595 × 845 × 300
Coil Type Micro channel Micro channel
Type Hermetically sealed swing type Hermetically sealed swing type
Compressor
Motor output W 1,200 1,300
Type Propeller fan Propeller fan
Fan Motor output W 68 68
Airflow rate m³/min 38 44
Sound pressure level H3 Cooling dB(A) 49 50
Mass kg 34 37
Liquid mm f6.4 (flare) f9.5 (flare)
Piping connections Gas mm f12.7 (flare) f15.9 (flare)
Drain mm f18 (hole) f18 (hole)
High pressure switch, OL protection, High pressure switch, OL protection,
Safety devices fuse fuse
Compressor revolution speed control Compressor revolution speed control
Capacity step % (inverter system) (inverter system)
Refrigerant control Expansion valve (electronic type) Expansion valve (electronic type)
Max. length m 30 (equivalent length 40) 30 (equivalent length 40)
Ref. piping
Max. height difference m 15 15
Type R32 R32
Refrigerant
Charge kg 0.7 (charged for 10 m) 0.8 (charged for 10 m)
Model Refer to the nameplate of compressor Refer to the nameplate of compressor
Ref. oil
Charge L 0.35 0.65
Specification C: 2D122094D C: 2D122094D
Drawing No. Sound (Indoor) 4D123573A 4D123577A
Sound (Outdoor) 4D124189 4D124190

Note:
+1. The above data are based on the following conditions.
Conversion formula
Cooling Piping length kcal/h = kW × 860
Indoor: 27°CDB, 19°CWB 7.5 m Btu/h = kW × 3,412
Outdoor: 35°CDB, 24°CWB (Horizontal) l/s = m³/min × 1,000/60
cfm = m³/min × 35.3
+2. Capacities are net, including a deduction for cooling for indoor fan motor heat.
+3. The operation sound is measured in anechoic chamber.
If it is measured under the actual installation condition, it is normally over the set value due to the environmental
noise and sound reflection.

17
