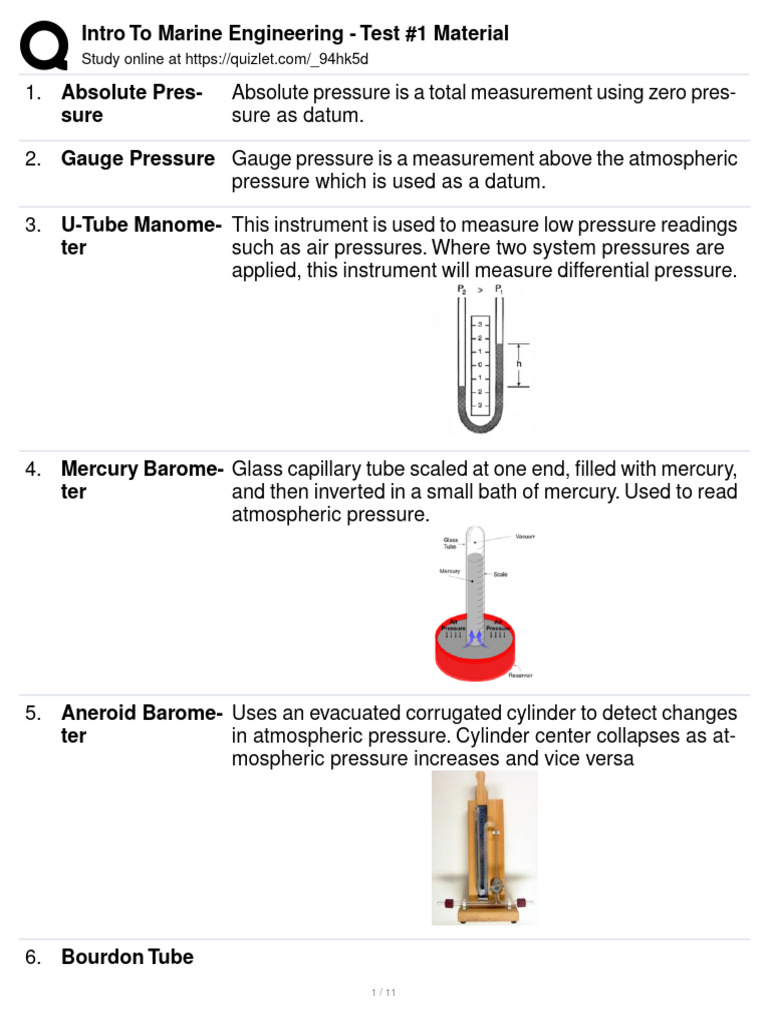

Intro To Marine Engineering - Test #1 Material

Study online at https://quizlet.com/_94hk5d

1. Absolute Pres- Absolute pressure is a total measurement using zero pres-

sure sure as datum.

2. Gauge Pressure Gauge pressure is a measurement above the atmospheric

pressure which is used as a datum.

3. U-Tube Manome- This instrument is used to measure low pressure readings

ter such as air pressures. Where two system pressures are
applied, this instrument will measure differential pressure.

4. Mercury Barome- Glass capillary tube scaled at one end, filled with mercury,
ter and then inverted in a small bath of mercury. Used to read
atmospheric pressure.

5. Aneroid Barome- Uses an evacuated corrugated cylinder to detect changes

ter in atmospheric pressure. Cylinder center collapses as at-
mospheric pressure increases and vice versa

6. Bourdon Tube
1 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d
Made up of an elliptical section tube formed into a C-shape
and sealed at one end. This gauge can be used to read
vacuum pressure values.

7. Diaphragms/Bel- These can be used to measure gauge or differential pres-

lows sure.

8. Liquid In Glass Each liquid has its own different ranges.

Thermometer -Mercury - (-35*C to +350*C
-Alcohol - (-80*C to +70*C
An increase in temperature causes the liquid to rise up the
tube.

* = Degrees symbol

9. Liquid In Metal The use of a metal bulb and capillary bourdon tube filled
Thermometer with liquid offers advantages of robustness and a wide
temperature range.
-Mercury - (-39*C to +650*C)

* = Degrees symbol

2 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d
10. Bimetallic Strip Made up of two different metals firmly bonded together.
Thermometer Temperature increase = metal expansion. Since the two
metals have a different rate of expansion it will cause a
bending or twisting of the strip.

11. Thermocouple Type of electrical thermometer. bi-metal solution where the

current flowing through the metals determine the temper-
ature. Ranges from (-200*C to +1400*C)

* = Degrees symbol

12. Radiation Pyrom- Considered to be a high-temperature measuring ther-

eter mometer. radiated heat signals go into a current fed
through a filament lamp which is them measured into
temperature.

13. Thermistor Electrical thermometer that uses resistance change to

measure temperature. Made up of finely divided copper
to which is added cobalt, nickel, and manganese oxides.
A change in temperature causes a fall in the resistance
which can be measured in an electrical circuit. Ranges
from (-250*C to +1500*C)

* = Degrees symbol

14. Float operated Usually a hollow ball or cylinder whose movement as the
Level Measure- liquid surface rises or falls is transmitted to an indicator.
ment

15. Used to see the liquid level in storage tanks

3 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d
Sight or Gauge
Glasses

16. Pneumatic Uses a mercury manometer in conjunction with a hemi-

Gauge spherical bell and piping to measure tank level.

17. When did CMA September 1994

receive the
TSGB?

18. What was the USNS Maury

TSGB called be-
fore CMA re-
ceived it?

19. What was the To gather geophysical data and ocean surveys
purpose of the
TSGB when it
was first built?

20. What happened The main crankshaft in one main engine broke and was
to the sister ship put out of service
of the TSGB?

21. what does the -First # tells us which deck we are on

first, middle, and
last numbers tell -Middle # tells us what frame of the ship we are at
you about where
you are on the -Last # tells us which side of the boat we are on. Even
ship? numbers are port and Odd numbers are starboard

22. What does a Sacks, cartons, crates, drums, pallets, bags

Break Bulk ship
carry?

23. What is a RO/RO (Roll on/Roll off)

Neo-Bulk ship Lumber, paper, steel, autos
and what does it
carry?

4 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d
24. What is a Con- LO/LO (Lift on/Lift off)
tainerized ship Containers
and what does it
carry?

25. What does a Liq- LNG, petroleum, molasses, chemicals, vegetable oil
uid Bulk ship car-
ry?

26. What does a Dry Grain, sand & gravel, scrap metal, coal/coke, clinker, fer-
Bulk ship carry? tilizer

27. What does TEU Twenty foot Equivalent Unit. 20x8x8 foot container
stand for and
what is it?

28. How many 188 1 foremost, 188 aftmost.

frames are on the
TSGB?

29. What is the or- Tropical Fresh

der of the load Fresh
line freeboard Tropical
draught from top Summer
to bottom? Winter
Winter North Atlantic

30. Whats the differ- A plumb bob goes to the bottom of the tank and measures
ence between a how full the tank is. The ullage bob drops down to the top
plumb and ullage of the liquid within the tank to measure how empty the tank
bob? is.

31.
5 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d
What are the 4 Pressure, temp, flow, level
things we need to PRESSURE
measure aboard PSIA, PSIG, BAR, PASCAL, inHG (Inchs of Mercury),
the ship? MMHG (Vacuum Inches of Mercury)

TEMPERATURE
Fahrenheit and Celsius
(Remember: Fahrenheit = (9/5 x C) + 32)

FLOW
GPM/ LPM

LEVEL
Low to High, and anything in between

32. Differential Pres- Tells you the difference in pressure between the input/inlet
sure Gauge and outlet/discharge of a filter. ...and the difference is
shown on the black needle (the red needle reads noth-
ing...it is a marker to indicate the maximum differential
allowed). If the differential pressure gauge above: read
80, then you know the water pressure differential going
through the filter is 80 psi in this case, an 80 psi drop. The
filter would be causing an 80 psi "restriction"

33. What can a com- pressure and vacuum readings. usually in Mpa and Bar
pound gauge
read?

34. AHTS Anchor Handling Tug Supply

6 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d

35. Inboard Toward the center of the ship

36. port Left side of ship when you are facing forward

37. starboard side the right side of a ship. facing forward

38. Athwartships Across the vessel, that is, from side to side. trans-
verse Said of cargo stowed in this way, as opposed to
length-wise.

39. Amidships in the middle portion of the ship, along the line of the keel
from aft to forward, longitudinal, transverse

40. Outboard Away from the center of the ship

41. What did MAR- Fuel storage in double bottom.

POL 73/78 forbid
in 2007?

42. Transverse Fram- A method of framing a ship characterized by many closely

ing spaced transverse frames.

43. Longitudinal A method of framing a ship characterized by many smaller,

Frame closely spaced longitudinal stiffeners.

7 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d

44. Frame #1 on the The first continuous from to include main deck all the way
TSGB is to the lowermost deck

45. How are decks 01,02, 02 etc

above the main
deck labeled?

46. Names two con- Butt (vertical) seam (horizontal)

nection types for
plates on a ship

47. transverse bulk-

head

48. tanks are iden- lower deck

tified by their
_____

8 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d

49. XX-XXX-XX - Deck - Forward most FRAME in compartment - center

what do the first, (starts with 0) starboard(odd), port (even)
second, and third
numbers stand
for?

50. load lines Marks on the side of the ship that indicate how low a
ship can be in the water, depending on the season and
conditions.

51. Plimsoll

52. Load Line Certifi-

cate

53. draft marks numbers marked on each side of the bow and stern of the
vessel. show if load is even.

9 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d
54. How do you The draft numbers shown in the figure are 6 inches high
measure draft and 6 inches apart. The bottom of each number shows the
marks? foot draft mark.

55. Goose neck tank Has a float and flame vent. float allows out but not in.
vent

56. Striker Plate minimizes impact from sounding tube in the bilge well

57. vacuum is gener- negative pressure

ally considered

58. If the actual pres- positive otherwise if it is less than atmospheric pressure
sure is more its value will be negative . ... This negative gauge pressure
than atmospher- can be called vacuum pressure.
ic pressure, than
its gauge pres-
sure will be ...

59. vacuum gauges: differential pressure. In vacuum terms, this means that
Hg is that it is a "Hg is the difference between the ambient atmospheric
measurement of
10 / 11
 Intro To Marine Engineering - Test #1 Material
Study online at https://quizlet.com/_94hk5d
pressure and the vacuum that has been created in an
application.

60. larger gauges are more sensitive and more accurate.

61. Duplex gauge t reads differential pressure via a black needle and a red
needle and you do the math. if the red needle indicated
and output pressure of 100 psi and the Black needle
indicated an outlet pressure of 20 psi then the differential
pressure would be 80 psi.

11 / 11
