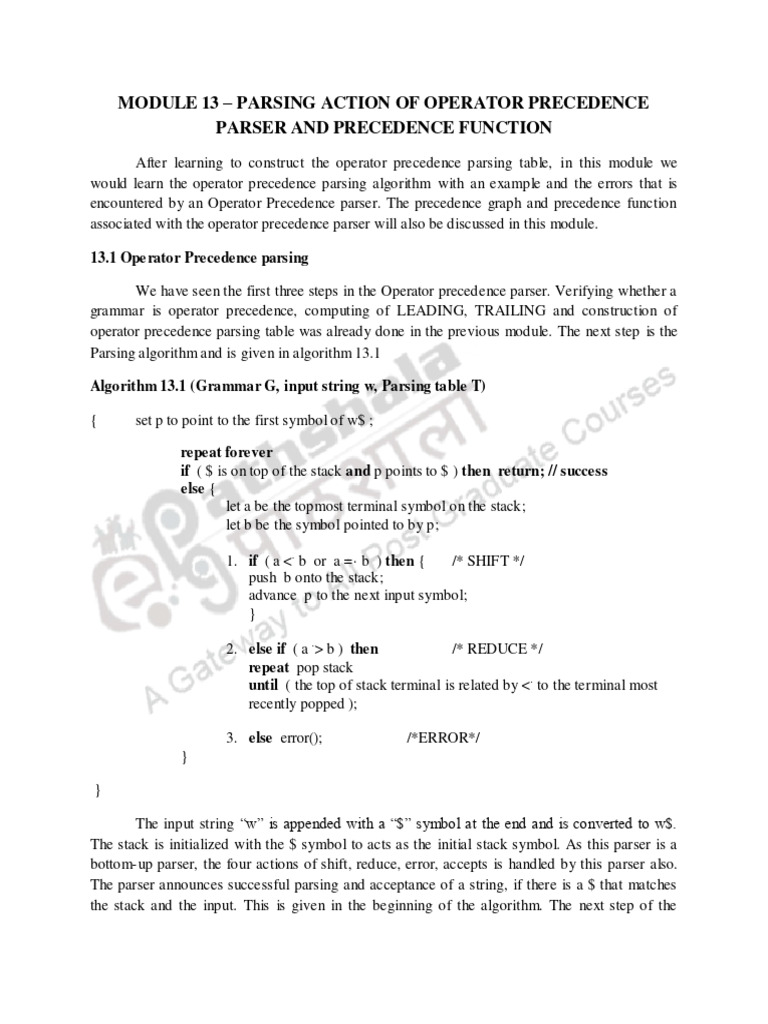

MODULE 13 – PARSING ACTION OF OPERATOR PRECEDENCE

PARSER AND PRECEDENCE FUNCTION

After learning to construct the operator precedence parsing table, in this module we
would learn the operator precedence parsing algorithm with an example and the errors that is
encountered by an Operator Precedence parser. The precedence graph and precedence function
associated with the operator precedence parser will also be discussed in this module.

13.1 Ope rator Precedence parsing

We have seen the first three steps in the Operator precedence parser. Verifying whether a
grammar is operator precedence, computing of LEADING, TRAILING and construction of
operator precedence parsing table was already done in the previous module. The next step is the
Parsing algorithm and is given in algorithm 13.1

Algorithm 13.1 (Grammar G, input string w, Parsing table T)

{ set p to point to the first symbol of w$ ;

repeat forever
if ( $ is on top of the stack and p points to $ ) then return; // success
else {
let a be the topmost terminal symbol on the stack;
let b be the symbol pointed to by p;

1. if ( a <. b or a =· b ) then { /* SHIFT */

push b onto the stack;
advance p to the next input symbol;
}

2. else if ( a .> b ) then /* REDUCE */

repeat pop stack
until ( the top of stack terminal is related by < . to the terminal most
recently popped );

3. else error(); /*ERROR*/

}

The input string “w” is appended with a “$” symbol at the end and is converted to w$.
The stack is initialized with the $ symbol to acts as the initial stack symbol. As this parser is a
bottom- up parser, the four actions of shift, reduce, error, accepts is handled by this parser also.
The parser announces successful parsing and acceptance of a string, if there is a $ that matches
the stack and the input. This is given in the beginning of the algorithm. The next step of the
 algorithm loops until the existence of a string. The stack symbol is compared with the input
symbol for precedence relation in the parsing table. If the precedence relation is lesser than or
equal to, then the input character is pushed on to the stack and thus making the input pointer
advances by one position to the right. If the precedence relation is greater than, then we reduce
by popping the stack till the top of stack terminal is related by < . to the terminal most recently
popped. If there is no relation defined between the symbols in the stack and input, we announce
an error action.

Example 13.1 Consider the input string id + id * id and let us see how the parsing action is
carried out by the Operator precedence parser. For quick reference, the parsing table is given
table 13.1 and the parsing action is given in Table 13.2

Table 13.1 Parsing table

id + * $

. . .
Id > > >

+ <. .
> <. .
>

* <. .
> .
> .
>

$ <. <. <.

Table 13.2 Parsing action

Stack Input Action Comments

$ id + id * id$ $ <. id shift As $ is lesser than id, we shift

$id +id*id$ id .> + reduce E  id id is greater than +, so we pop as E  id ,

will lead to id as a handle
$ +id*id$ Shift
$+ id*id$ Shift
$ + id *id$ id .> * reduce E  id
$+ * id $ Shift
$+* id $ Shift
$ + * id $ id .> $ reduce E  id
.
$+ * $ * > $ reduce E  E*E *, + has greater than relation with $. So we
keep popping the symbols and they
correspond to the handles E*E, E+E and it
 leaves the stack with just the $ symbol
.
$+ $ + > $ reduce E  E+E The input is already consumed thus
announcing a successful parsing.
$ $ Accept

13.2 Issues in Operator Precedence parsing.

Operator-Precedence parsing cannot handle the unary minus if the grammar has binary
subtraction operator. The best approach to solve this problem is to tackle the unary operator at
the lexical phase using one or both of the following approaches:

• The lexical analyzer can be made to return two different tokens for the unary minus and
the binary minus.

• The lexical analyzer will need a lookahead to distinguish the binary minus from the unary
minus.

After identifying this, we then define the precedence of the all operators in comparison with
unary- minus as follows:

 For any operator , we set  <. unary- minus

 We then modify the relation,
o if unary- minus has higher precedence than , we set unary-minus .> 
o if unary- minus has lower (or equal) precedence than  , we set unary- minus <. 

After constructing the precedence table based on the rules discussed in this section, the parsing
action is similar to what has been already discussed.

13.3 Precedence Functions

The operator precedence parsers usually do not store the precedence table with the relations,
rather they are implemented in a special way. Operator precedence parsers use precedence
functions that map terminal symbols to integers, and so the precedence re lations between the
symbols are implemented by numerical comparison. Not every table of precedence relations has
precedence functions but in practice for most grammars such functions can be designed.

The precedence table is typically stored as a precedence function. The precedence table is
coded as two functions f() and g() corresponding to the row and table. The idea behind the
precedence functions is to define nodes and edges for all the terminals of a grammar in terms of
the functions f() and g(). For symbols ‘a’ and ‘b’ we define the functions f(a) and g(b) based on
the precedence between the operators ‘a’ and ‘b. The following is used as the basis.

 if a <. b then f(a) < g(b)

  if a =· b, then f(a) = g(b)
 if a .> b, then f(a) > g(b)

The algorithm for constructing the precedence function is given in Algorithm 13.2 where the
input will be the precedence table.

Algorithm 13.2

Precedence_Function(Precedence table T, Precedence Function f)

1. Create symbols fa and gb for each ‘a’ that is a terminal or $.

2. Partition the created symbols into as many groups as possible, in such a way that if a =. b,
then fa and gb are in the same group.

3. Create a directed graph whose nodes are the groups found in the previous step. For any
‘a’ and ‘b’, if a <.b , place an edge from the group of gb to the group of fa. If a .> b, place
an edge from the group of fa to that of gb.

4. If the graph constructed has a cycle, then no precedence functions exist. If there are no
cycle, let f(a) be the length of the longest path beginning at the group of fa ; let g(a) be the
length of the longest path beginning at the group of ga.

Algorithm 13.2 lists the steps involved in constructing the precedence graph. After constructing
the precedence graph the precedence function computes the length of the longest path for all the
terminals.

Example 13.2 Consider the expression grammar containing the terminals +. *, id and $ whose
precedence table is defined in Table 13.1.

By step 2 of the algorithm, we could define the following functions for f() and g()

 f+, f* , fid, f$ are the four functions of ‘f’

• g+, g* , gid, g$ are the four function of ‘g’

Since, there is no equal precedence relation in this table, f() and g() for all the terminals will not
be in the same group. Using step 3 of the algorithm 13.2 we construct the edges and is given in
figure 13.1
 gid fid

f* g*

g+ f+

f$ g$

Figure 13.1 Precedence graph

From figure 13.1, we could see that there is an edge from gid to f+, because we know from the
table 13.1 “id” has lesser precedence that “+”. We look at the precedence relation table and
construct the graph. As it can be seen from figure 13.1, there is no cycle in the graph. Then using
step 4 of the algorithm, the longest path is computed. We begin from every node and find all
possible paths. As there is no cycle, the path will terminate at the last node. From the available
paths, the length of the longest path is chosen and is updated in a precedence function table. For
example, consider fid. fid has multiple paths. Some of them are listed below:

 fid, g* , f+, g$ - length is 3

 fid, g$ - length is 1
 fid, g+, f$ - length is 2
 fid, g* , f$ - length is 2
 fid, g* , f+, g+, f$ - length is 4

As the longest path happens to be 4, we update that in precedence function table and is given in
Table 13.3. Similarly we compute for all f(a) and g(b), where “a” and “b” are terminals

Table 13.3 Precedence function table.

+ * id $

f 2 4 4 0

g 1 3 5 0
13.4 Error handling in Operator Precedence Parser

The operator precedence parser can handle only a small class of grammars. However, it cannot
handle the unary minus (the lexical analyzer should handle the unary minus). The issues in
Operator precedence parser is it finds difficulty in deciding the language of the grammar. This
parser cannot have a relation between the terminal on the top of stack and the next input symbol.
A handle is found (reduction step), but there is no production with this handle as RHS.

However, to handle the small class of grammar the operator precedence parser has to perform
error recovery by one of the following tasks:

1. As in the LL(1) parser, each empty entry in the precedence table is filled with a pointer to
an error routine.

2. Matches what the popped handle resembles which right hand side of the production and
tries to recover from that situation.

In order to recover, we must modify (insert/change)

• Stack or
• Input or
• Both
The error recovery routines can be grouped into four scenarios as described below:

e1: Scenario: Entire expression is missing: To handle this case, we insert “id” to the input and
issue a message - ‘missing operand’ or ‘no input’

e2: Scenario: Expression begins with a right parenthesis: To handle this case, we delete ‘)’ from
the input and issue message - ‘unbalanced right parenthesis’

e3: Scenario: Expression has, id or ) is followed by id or (. To handle this situation insert + to the
input and issue message - ‘missing operator’

e4: Scenario: expression ends with a left parenthesis. To handle this case, pop ( from the stack
and issue message: ‘missing right parenthesis’

The various scenarios are depicted in Table 13.4

Table 13.4 Precedence parsing table with error scenarios

id ( ) $

. .
id e3 e3 > >
 ( <. <. =. e4

. .
) e3 e3 > >

$ <. <. e2 e1

Example 13.3 Consider the following grammar and find the parsing table using operator
precedence parser.

S  iC t S e S | a

Cb

Two productions for S , would result in two symbols “i" and “a” for LEADING. For C there is
only one production which would result in only one symbol in LEADING. For TRAILING,
again we have two productions resulting in two symbols for S, and one symbol for C.

Leading (S) = { a, i }, Trailing (S) = { e, a}.

Leading (C) = {b}, Trailing (C ) = {b}

Consider the construction of Parsing table and using the algorithm specified in the previous
module, the parsing table is shown in Table 13.5

Table 13.5 – Parsing table for if-then grammar

i t e a b $

i =· <. .
>

t <. =· <. .
>

e <. .
> <. .
>
. .
a > >
. .
b > >

Consider the string, ibtaea, the parsing action is shown in Table 13.6
 Stack Input Action
$ ibtaea$ $ <. i , shift
$i btaea$ i <. b, shift
$ ib taea$ b .> t, reduce
$i taea$ i =· t, shift
$it aea$ t <. a, shift
$ita ea$ a .> e, reduce
.
$ita ea$ a > e, reduce
$it ea$ t =· e, shift
.
$ite a$ e < a, shift
.
$itea $ a > $, reduce
.
$ite $ all > $, reduce

Summary: This module discussed the parsing action of an Operator Precedence Parser. We also
discussed precedence functions and some error recovery strategies of the operator precedence
parser.
