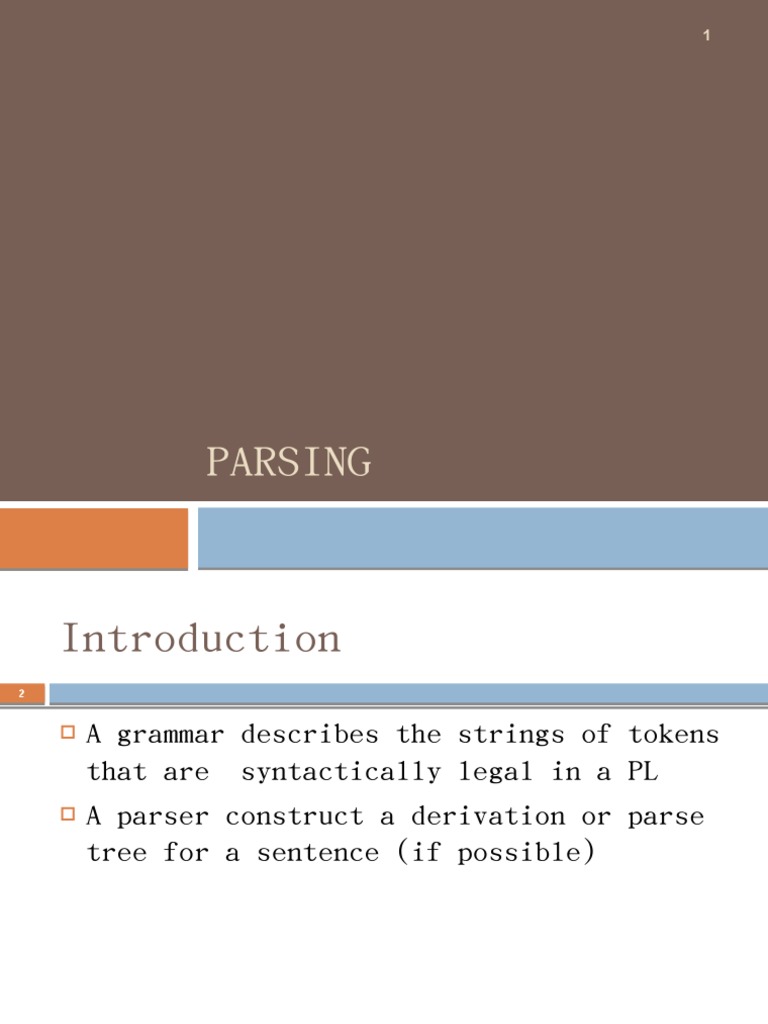

1

PARSING
 Introduction
2

 A grammar describes the strings of tokens

that are syntactically legal in a PL
 A parser construct a derivation or parse
tree for a sentence (if possible)
 Types of Parsing
3

 Top Down Parsing:

 starts constructing the parse tree at the to
p (root) of the parse tree and move down tow
ards the leaves. Easy to implement by hand,
but work with restricted grammars.
 examples:
 Predictive parsers
 Bottom Up Parsing:
 Bottom-up parsing reduces a string to the st
art symbol by inverting productions
 shift-reduce parser
 4

TOP-DOWN PARSIN
G
 Creating a top-down parser
5

 Top-down parsing can be viewed as the pro

blem of constructing a parse tree for the
input string, starting form the root and
creating the nodes of the parse tree in p
reorder.

 An example follows.
 Creating a top-down parser
(Cont.)
6

 Given the grammar :

 E → TE’
 E’ → +TE’ | λ
 T → FT’
 T’ → *FT’ | λ
 F → (E) | id
 The input: id + id * id
 Creating a top-down parser
(Cont.)
7
 Top-down parsing
8

 A top-down parsing program consists of a s

et of procedures, one for each non-termina
l.

 Execution begins with the procedure for th

e start symbol, which halts and announces
success if its procedure body scans the en
tire input string.
 LL(1) Parsers
9

 The first “L” stands for scanning input

from left to right. The second “L” for p
roducing a leftmost derivation. The “1”
for using one input symbol of look-ahead a
t each step to make parsing decisions.
 Model of a table-driven predictive parser
10
 The parsing table
11

 FIRST and FOLLOW

FIRST FOLLOW
 S -> ABCDE {a,b,c} {$}
 A -> a|€ {a, €} {b,c}
 B -> b| € {b, €} {c}
 C->c {c} {d,e,$}
 D -> d | € {d, €} {e,$}
 E -> e| € {e, €} {$}
 FIRST and FOLLOW Example 1
12

FIRST FOLLOW
 S -> Bb | Cd {a,b,c,d} {$}
 B -> aB| € {a, € } {b}
 C -> cC | € {c, €} {d}
 FIRST and FOLLOW Example 2
13

FIRST FOLLOW
 E -> TE’ {id,(} {$,)}
 E’ -> +TE’|€ {+, €} {$,)}
 T -> FT’ {id,(} {+,$,)}
 T’ -> * FT’|€ {*, €} {+,$,)}
 F -> id|(E) {id,(} {*,+,$,)}
 FIRST and FOLLOW Example 3
14

FIRST FOLLOW
S->ACB|CbB|Ba {d,g,h,€,b,a} {$}
A -> da|BC {d,g,h, €} {h,g,$}
B-> g| € {g, €} {$,a,h,g}
C->h| € {h, €} {g,$,b,h}
15

How to construct parsing tab

le?
 FIRST FOLLOW
 E -> TE’ {id,(} {$,)}
 E’ -> +TE’|€ {+, €} {$,)}
 T -> FT’ {id,(} {+,$,)}
 T’ -> * FT’|€ {*, €} {+,$,)}
 F -> id|(E) {id,(} {*,+,$,)}

Non- Input symbol

terminal
ID + * ( ) $
E E->TE’ E->TE’
E’ E’->+TE’ E’->€ E’->€

T T->FT’ T->FT’
T’ T’->€ T’->*FT’ T’->€ T’->€
F16 F->id F->(E)
 How does parsing table help
17
in parsing process?
 S->(S) | € $ S
NT Input symbol
$ ) S (
( ) $
S S->(S) S->€ S->€ $ ) S

$ ) ) S (

( ( ) ) $ $ ) ) S

$ ) )

$ )

Stack Input Symbol Moves

Exercise
Construct the LL(1) table for the following
grammar:
S->aABb
A->c/€
B-d/€

Also parse the following input string:

acdb$
Exercise
Construct the LL(1) table for the following
grammar:
1 Expr → - Expr
2 Expr → (Expr)
3 Expr → Var ExprTail
4 ExprTail → - Expr
5 ExprTail → λ
6 Var → id VarTail
7 VarTail → (Expr)
8 VarTail → λ
Solution
First(Expr) = {-, (, id}
First(ExprTail) = {-, λ}
First (Var) = { id}
First (VarTail) = { (, λ}

Follow (Expr) = Follow (ExprTail) = {$,

) }
Follow (Var)
= {$, ), -}
Follow (VarTail)
= {$, ), -}
Exercise 1 Solution (Cont.)
Non- Input Symbol
Terminal

- ( id ) $

Expr 1 2 3

ExprTail 4 5 5

Var 6

VarTail 8 7 8 8
Exercise 2
 Given the grammar:
 S → i E t S S’ | a
 S’ → e S | λ
 E → b

 1. Find the first set and follow set.

 2. Build the parsing table.

22
 Exercise 2 Solution
23

First(S) = {i, a}
First(S’) = {e, λ}
First (E) = {b}

Follow (S) = Follow (S’) = {$, e}

Follow (E) = {t}
 Exercise 2 Solution (Cont.)
24

Non- Input Symbol

Terminal
a b e i t $

S 2 1
S’ 3/4 4
E 5

As First(S’) contains λ and Follow (S’) = {$, e} So rule 4 is added to e, $.

3/4 (rule 3 or 4) means an error. This is not LL(1) grammar.
