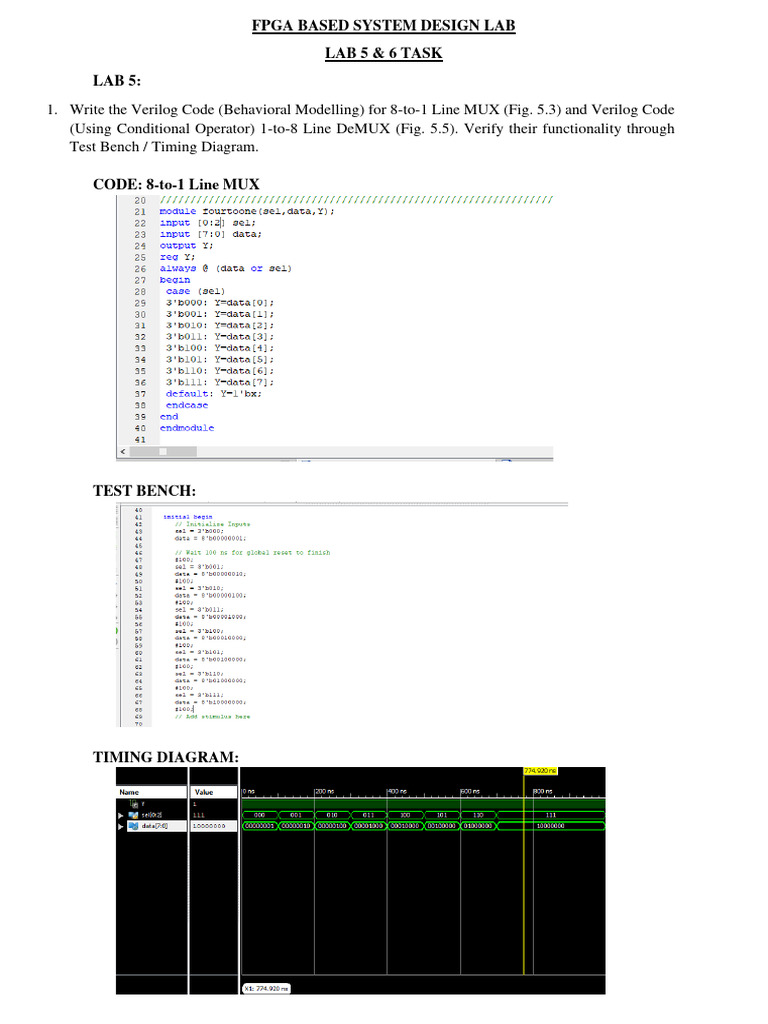

FPGA BASED SYSTEM DESIGN LAB

LAB 5 & 6 TASK

LAB 5:
1. Write the Verilog Code (Behavioral Modelling) for 8-to-1 Line MUX (Fig. 5.3) and Verilog Code
(Using Conditional Operator) 1-to-8 Line DeMUX (Fig. 5.5). Verify their functionality through
Test Bench / Timing Diagram.

CODE: 8-to-1 Line MUX

TEST BENCH:

TIMING DIAGRAM:
CODE: 1-to-8 Line DE-MUX

TEST BENCH:

TIMING DIAGRAM:
2. Write the Verilog Code (Behavioral Modelling) for 16-to-1 Line MUX and Verilog Code (Using
Conditional Operator) 1-to-16 Line DeMUX. Verify their functionality through Test Bench /
Timing Diagram.

CODE: 16-to-1 Line MUX

TESH BENCH:

TIMING DIAGRAM:
CODE: 1-to-16 Line DE-MUX

TESH BENCH:

TIMING DIAGRAM:
3. Write the Verilog Code for 64-to-1 Line MUX by using 8-to-1 MUX. Verify their functionality
through Test Bench / Timing Diagram.

CODE:

TESTBENCH:

TIMING DIARGAM:
 LAB 6:
1. Write the Verilog Code (Behavioral Modelling) for 16 into 4 Line Encoder. Verify their
functionality through Test Bench / Timing Diagram.

TRUTHTABLE:

CODE:
module encoder(d,Q);
input [15:0]d;
output reg [3:0]Q;
always @(d)
begin
if(d[15]==1) Q=4'b1111;
else if(d[14]==1) Q=4'b1110;
else if(d[13]==1) Q=4'b1101;
else if(d[12]==1) Q=4'b1100;
else if(d[11]==1) Q=4'b1011;
else if(d[10]==1) Q=4'b1010;
else if(d[9]==1) Q=4'b1001;
else if(d[8]==1) Q=4'b1000;
else if(d[7]==1) Q=4'b0111;
else if(d[6]==1) Q=4'b0110;
else if(d[5]==1) Q=4'b0101;
else if(d[4]==1) Q=4'b0100;
else if(d[3]==1) Q=4'b0011;
else if(d[2]==1) Q=4'b0010;
else if(d[1]==1) Q=4'b0001;

else
Q=4'b0000;
end
endmodule
TESTBENCH:

TIMING DIAGRAM:
2. Write the Verilog Code (Behavioral Modelling) for 4 into 16 Line Encoder. Verify their
functionality through Test Bench / Timing Diagram.

TRUTH TABLE:

CODE:
module DECODER(d0,d1,d2,d3,Q);
input d0,d1,d2,d3;
output reg [15:0]Q;
always @(d0,d1,d2,d3)
begin
if(d3==1'b0 & d2==1'b0 & d1==1'b0 & d0==1'b0 ) Q=16'b0000000000000001;
else if(d3==1'b0 & d2==1'b0 & d1==1'b0 & d0==1'b1 ) Q=16'b0000000000000010;
else if(d3==1'b0 & d2==1'b0 & d1==1'b1 & d0==1'b0 ) Q=16'b0000000000000100;
else if(d3==1'b0 & d2==1'b0 & d1==1'b1 & d0==1'b1 ) Q=16'b0000000000001000;
else if(d3==1'b0 & d2==1'b1 & d1==1'b0 & d0==1'b0 ) Q=16'b0000000000010000;
else if(d3==1'b0 & d2==1'b1 & d1==1'b0 & d0==1'b1 ) Q=16'b0000000000100000;
else if(d3==1'b0 & d2==1'b1 & d1==1'b1 & d0==1'b0 ) Q=16'b0000000001000000;
else if(d3==1'b0 & d2==1'b1 & d1==1'b1 & d0==1'b1 ) Q=16'b0000000010000000;
else if(d3==1'b1 & d2==1'b0 & d1==1'b0 & d0==1'b0 ) Q=16'b0000000100000000;
else if(d3==1'b1 & d2==1'b0 & d1==1'b0 & d0==1'b1 ) Q=16'b0000001000000000;
else if(d3==1'b1 & d2==1'b0 & d1==1'b1 & d0==1'b0 ) Q=16'b0000010000000000;
else if(d3==1'b1 & d2==1'b0 & d1==1'b1 & d0==1'b1 ) Q=16'b0000100000000000;
else if(d3==1'b1 & d2==1'b1 & d1==1'b0 & d0==1'b0 ) Q=16'b0001000000000000;
else if(d3==1'b1 & d2==1'b1 & d1==1'b0 & d0==1'b1 ) Q=16'b0010000000000000;
else if(d3==1'b1 & d2==1'b1 & d1==1'b1 & d0==1'b0 ) Q=16'b0100000000000000;
else if(d3==1'b1 & d2==1'b1 & d1==1'b1 & d0==1'b1 ) Q=16'b1000000000000000;

else Q=16'bxxxxxxxxxxxxxxxx;
end
endmodule
TESTBENCH:

TIMING DIAGRAM:
3. Write the Verilog Code for converting 4 bit gray code to binary code. Verify their
functionality through Test Bench / Timing Diagram.

TRUTH TABLE:

CIRCUIT:

CODE:
module graytobinary( G0,G1,G2,G3,B0,B1,B2,B3);
input G0,G1,G2,G3;
output B0,B1,B2,B3;

buf(B3,G3);//for single or direct input/output connection

xor( B2,G3,G2);
xor( B1,B2,G1);
xor( B0,B1,G0);
endmodule
RTL:

TESTBENCH:

TIMING DIAGRAM:
4. Write the Verilog Code for 2 bit magnitude comparator. Verify their functionality through
Test Bench / Timing Diagram.

TRUTH TABLE:

K-MAP and EQs:

A greater than B:

A=B:

A less than B:
CODE:
module COMPARATOR(input [1:0] A,B, output A_less_B, A_equal_B, A_greater_B);
wire a,b,c,d,e,f,g,h;

// A = B output
xnor (a,A[1],B[1]);
xnor (b,A[0],B[0]);
and u3(A_equal_B,a,b);

// A less than B output

assign c = (~A[0])& (~A[1])& B[0]; // A_less_B = A0 A1 B0 + A1 B1 + B1 B0 A0
assign d = (~A[1])& B[1];
assign e = (~A[0])& B[1]& B[0];
assign A_less_B = c | d | e;
// A greater than B output
assign f = (~B[0])& (~B[1])& A[0]; //A_greater_B = B0 B1 A0 + B1 A1 + A1 A0 B0
assign g = (~B[1])& A[1];
assign h = (~B[0])& A[1]& A[0];
assign A_greater_B = f | g | h;
endmodule
TESTBENCH:

TIMING DIAGRAM:
