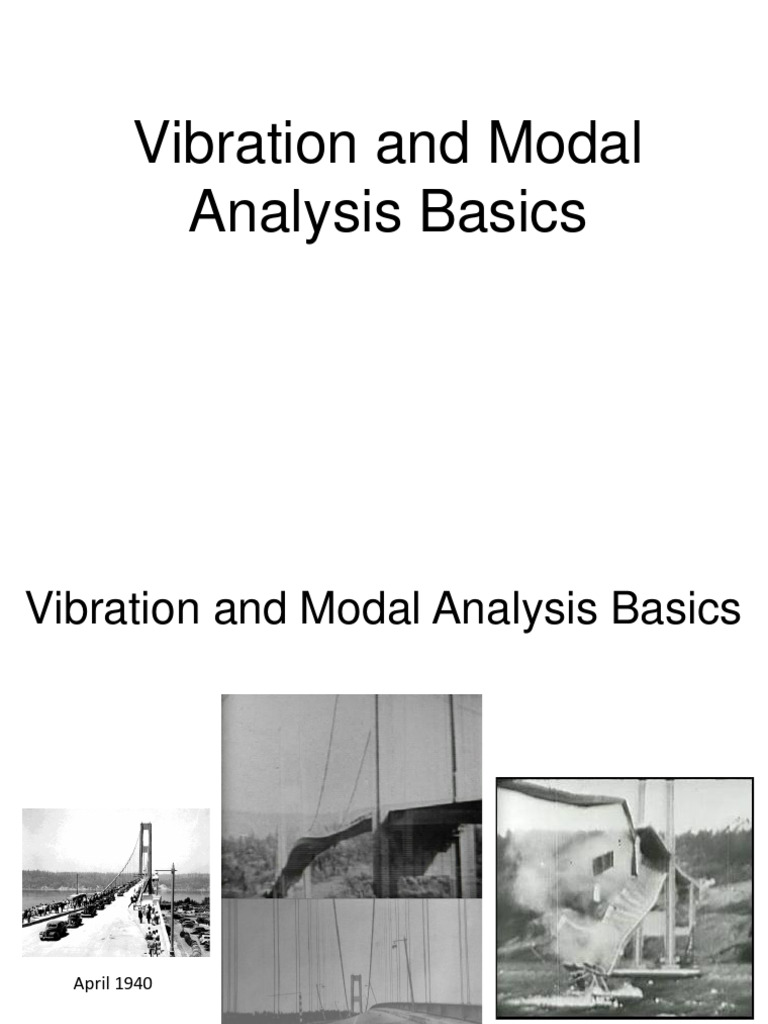

Vibration and Modal

Analysis Basics

J. Matalevich
Vibration and Modal Analysis Basics

April 1940

November 1940

J. Matalevich USPAS SRF Course Jan. 2015 2

Vibration and Modal Analysis Basics
Objectives
• Why study vibrations?
– So my machine doesn’t get screwed up
• What is modal analysis?
▪ Analytical Modal Analysis (Calculations)
▪ Experimental Modal Analysis (Measurements)

J. Matalevich USPAS SRF Course Jan. 2015 3

Vibration and Modal Analysis Basics
What is vibration?
• Stored energy within a structure is Max Potential Energy Max Kinetic Energy
transformed between potential
(elastic deformation) and kinetic
(moving mass) energy. The
oscillatory motion is vibration.

• The stored energy results in

standing waves (modes) at
inherent natural frequencies.

J. Matalevich USPAS SRF Course Jan. 2015 4

 Types of Vibrations

Vibrations

Free (natural) Forced

f(t)= 𝐹0 cosωft

Undamped Damped Undamped Damped

Undamped Damped
• Idealized • Real Structures
• No friction • Energy is dissipated
• No energy dissipation • Viscous Damping (linear models)
• Perpetual Motion – Damping Force proportional to velocity

J. Matalevich USPAS SRF Course Jan. 2015 5

 SDOF System Model
Single Degree of Freedom (SDOF) Mechanical System Model

Newton

Equation of Motion

Acceleration Velocity Displacement

J. Matalevich USPAS SRF Course Jan. 2015 6

 SDOF System Model
➢ Undamped Free Vibrations 𝑐=0 𝑓 𝑡 =0

𝑑2𝑥
𝑚 = −k𝑥
𝑑𝑡2

➢ Solution
𝑣0
𝑥 𝑡 = 𝑥0 cos 𝜔𝑡 + sin 𝜔𝑡
𝜔
𝑥 𝑡 = 𝐴 cos 𝜔𝑡 − 𝜙

𝑣0 2 𝑣0
𝐴= 𝑥02 + 𝜙= tan−1
𝜔𝑥0 𝜔𝑥0

𝑘 𝑟𝑎𝑑
𝜔= Angular Natural Frequency 𝑠𝑒𝑐
𝑚 The initial conditions (displacement, velocity) do not
affect the natural frequency. (Just the amplitude)
𝜔
𝑓= Linear Natural Frequency ℎ𝑒𝑟𝑡𝑧
2𝜋
J. Matalevich USPAS SRF Course Jan. 2015 7
 SDOF System Model
𝑓 𝑡 =0
➢ Damped Free Vibrations
𝑑2𝑥 𝑑𝑥
𝑚 +𝑐 + 𝑘𝑥 = 0
𝑑𝑡2 𝑑𝑡
Linear, 2nd order differential equation
▪ homogeneous

➢ General Solution
x (t) = 𝐴 e𝑟1𝑡 + 𝐵 e𝑟2𝑡 ➢ A & B from initial conditions

−𝑐 𝑐 2 𝑘
r1, r2 = ± −
2𝑚 2𝑚 𝑚
➢ 3 Distinct Solution Sets
𝑐 𝑐 Correspond to the Damping Ratio
𝜁= = 1. Underdamped 𝜁<1
2𝑚𝜔 𝑐 Damping Ratio
𝑐𝑟𝑖𝑡𝑖𝑐𝑎𝑙
2. Overdamped 𝜁>1
3. Critically Damped 𝜁 = 1
r1, r2 = -ζ𝜔 ± 𝜔 𝜁2 − 1

J. Matalevich USPAS SRF Course Jan. 2015 8

 SDOF System Model
𝑓 𝑡 =0
➢ Damped Free Vibrations
▪ Underdamped 𝜁<1

➢𝑥 𝑡 =𝑒 − 𝜁𝜔𝑡 𝑣0+𝜁𝜔𝑥 0 sin 𝜔𝑡 1 − 𝜁2 + 𝑥0 cos 𝜔𝑡 1 − 𝜁2

2
𝜔 1−𝜁

Damped Natural Frequency

𝜔𝑑 = 𝜔 1 − 𝜁 2

J. Matalevich USPAS SRF Course Jan. 2015 9

 SDOF System Model
➢ Damped Free Vibrations
▪ Critically Damped 𝜁=1 𝑥 𝑡 = 𝑣0 + 𝜔𝑥0 𝑡𝑒 − 𝜔𝑡 + 𝑥0𝑒 − 𝜔𝑡

−𝜁+ 𝜁 2 −1 𝜔𝑡 −𝜁− 𝜁 2 −1 𝜔𝑡
▪ Overdamped 𝜁>1 𝑥 𝑡 = 𝐴𝑒 + 𝐵𝑒
𝑣0 + 𝜁 + 𝜁2 − 1 𝜔𝑥0 −𝑣0− 𝜁− 𝜁2−1 𝜔𝑥 0
𝐴= B=
2𝜔 𝜁2 − 1 2𝜔 𝜁2−1

J. Matalevich USPAS SRF Course Jan. 2015 10

 SDOF System Model
➢ Damped Forced Vibrations
𝑑2𝑥 𝑑𝑥
𝑚 +𝑐 + 𝑘𝑥 = 𝐹0 sin 𝜔𝑓𝑡
𝑑𝑡2 𝑑𝑡

➢ Solution consists of a complementary (transient) and a particular

(steady state) solution
➢ Complementary F0=0; homogeneous DE 𝐹0
𝐷=
2 2
𝑥 𝑡 = 𝑥𝑐 𝑡 + 𝑥 𝑝 𝑡 𝑘 − 𝑚𝜔𝑓 2 + 𝜔𝑓

𝑥𝑝 𝑡 = 𝐷 sin 𝜔𝑡 − 𝜙 𝑐𝜔𝑓
𝜙= tan−1
𝑘 − 𝑚𝜔𝑓2

𝐷 1
𝛽𝑑 = =
Damped Magnification Factor 𝐹0
𝜔𝑓 2 2 𝜔𝑓 2
𝑘 1− + 2𝜁 𝜔
𝜔

J. Matalevich USPAS SRF Course Jan. 2015 11

 SDOF System Model
➢ Forced Response of a SDOF System
▪ How much energy is leaving before next force input?

RESONANCE Energy is readily absorbed by a

system near its natural frequency
Transmissibility

𝐹𝑡𝑟𝑎𝑛𝑠𝑚𝑖𝑡𝑡𝑒𝑑 𝜔𝑓 2
𝑇𝑅 = = 𝛽𝑑 1 + 2𝜁
𝐹𝑎𝑝𝑝𝑙𝑖𝑒𝑑 𝜔

𝜷𝒅
Amplification Ratio

𝑑𝑖𝑠𝑝𝑙𝑎𝑐𝑒𝑚𝑒𝑛𝑡𝑡𝑟𝑎𝑛𝑠𝑚𝑖𝑡𝑡𝑒𝑑
𝐴𝑅 = = TR
𝑑𝑖𝑠𝑝𝑙𝑎𝑐𝑒𝑚𝑒𝑛𝑡𝑎𝑝𝑝𝑙𝑖𝑒𝑑

𝝎𝒇
Frequency Ratio
𝝎

J. Matalevich USPAS SRF Course Jan. 2015 12

 MDOF System
Multiple Degree of Freedom (MDOF) Mechanical System Model

• Equation of Motion for 2 DOF system

▪ Model Complex Systems

▪ Approximate Continuous Real Systems

• Matrix Formulation
𝑀 𝑥 + 𝐶 𝑥 + 𝐾 𝑥 = 𝐹
J. Matalevich USPAS SRF Course Jan. 2015 13
 MDOF System
𝑀 𝑥 + 𝐶 𝑥 + 𝐾 𝑥 = 𝐹
➢ An eigensolution yields eigenvalues (frequency) and
eigenvectors (mode shapes) for each mode of the system.

➢ Modal Transformation Equation is used to uncouple the

𝑥 = 𝑈 𝑝
set of highly coupled equations

𝑀 𝑥 + 𝐶 𝑥 + 𝐾 𝑥 = 𝐹 𝑀 𝑝 + 𝐶 𝑝 + 𝐾 𝑝 = 𝑈 𝑇
𝐹

Independent SDOF Systems

+ + +

1. Natural Frequency
2. Damping
3. Mode Shape

J. Matalevich USPAS SRF Course Jan. 2015 14

 Vibration and Fourier Analogy
What is modal analysis?
• The process of characterizing the dynamic response of a
system in terms of its modes of vibration.
• Any periodic function can be represented
as a series of sinusoidal functions.
• Each individual sinusoid is define by its
amplitude, frequency and phase.

• Vibration of a real structure can be represented

as a series of modal contributions.
• Each mode is defined by its natural frequency,
damping, and mode shape.

J. Matalevich USPAS SRF Course Jan. 2015 15

 Analytical Modal Analysis
➢ Modal Analysis is the process of characterizing the dynamic
response of a system in terms of its modes of vibration.

➢ Analytical Modal Analysis depends on the generation of the

equations of motion of a system through a finite element model.

▪ 3D model typically generated with CAD tool

▪ Import & mesh with FEA tool

▪ Requires good material property info

▪ Application of accurate boundary

conditions is vitally important for
reasonable results

1000’s of simultaneous equations are common for FEA modal models

J. Matalevich USPAS SRF Course Jan. 2015 16

 Analytical Modal Analysis
➢ Output is an ordered list of frequencies and the corresponding mode shapes

5 Hz 12 Hz

32 Hz 44 Hz

J. Matalevich USPAS SRF Course Jan. 2015 17

 Analytical Modal Analysis

100 Hz & 142 Hz

275 Hz & 572 Hz

➢ Note,
▪ The individual mode animations do NOT reflect an expected deflection shape

▪ The modes are a function of the inherent mass and stiffness of the structure (no loads are applied)

J. Matalevich USPAS SRF Course Jan. 2015 18

 Experimental Modal Analysis
➢ Modal Analysis is the process of characterizing the dynamic
response of a system in terms of its modes of vibration.

➢ Experimental Modal Analysis depends on parameter estimation

techniques to extract modal information from experimental data.

Frequency Response Function (FRF)

▪ Ratio of the output response of a structure to the applied force
▪ The applied force and structure response are measured simultaneously
▪ Time domain data is transformed to frequency domain (FFT)

J. Matalevich USPAS SRF Course Jan. 2015 19

 Experimental Modal Analysis
➢ Components used to take measurements Accelerometer - a(t)
▪ Want to accurately measure force and response simultaneously

Shaker - F(t) Hammer - F(t)

J. Matalevich USPAS SRF Course Jan. 2015 20

 Experimental Modal Analysis
➢ FRFs are used to generate modal data
▪ Consider Simple 3DOF beam model
▪ 3 possible locations for force application
▪ 3 locations for response measurement
▪ 9 possible FRFs; organized in matrix form
▪ Notation convention
▪ hrow,column houtput,input

Drive Point FRF Cross FRF

-Excitation and measurement at same location -Excitation and measurement at different location

Images from Peter Avitabile [2]

J. Matalevich USPAS SRF Course Jan. 2015 21

 Experimental Modal Analysis
➢ Due to the Fast Fourier Transformation the FRFs are complex valued quantities
▪ Magnitude & Phase or Real & Imaginary

➢ FRFs matrix used to determine

1. Natural Frequency
2. Damping
3. Mode Shape

1st Mode
Magnitude Real

2nd Mode
Phase Imaginary
Images from Peter Avitabile [2]

J. Matalevich USPAS SRF Course Jan. 2015 22

 Experimental Modal Analysis
➢ FRFs
▪ Reference points cannot be located at the node of a mode.

Imaginary
Images from Peter Avitabile [2]

J. Matalevich USPAS SRF Course Jan. 2015 23

 Experimental Modal Analysis
➢ FRFs
▪ Roving Impact ▪ Roving Response
• Force input is moved • Force input is stationary
• Transducer stationary • Transducer is moved

Images from Peter Avitabile [2]

J. Matalevich USPAS SRF Course Jan. 2015 24

 Experimental Modal Analysis
➢ Practical Considerations
▪ Theoretically no difference between shaker test and impact (hammer) test
▪ Ideal
• No interaction between applied force and the structure
• Massless transducer
▪ Reality
• Collecting data on the structure plus all the measurement apparatus
• Structure supports
• Mass of transducers
• Stiffening effects of shaker attachment
▪ Impact tests
• Typically faster, lower cost, and easier to implement
• Hammer tip hardness must be matched to the frequency range of modes desired
• Windowing (zoom) required (less accuracy in predicting damping)
▪ Shaker tests
• Better precision, enables frequency sweep (targeted investigations)
• Setup is timely and can be difficult

J. Matalevich USPAS SRF Course Jan. 2015 25
