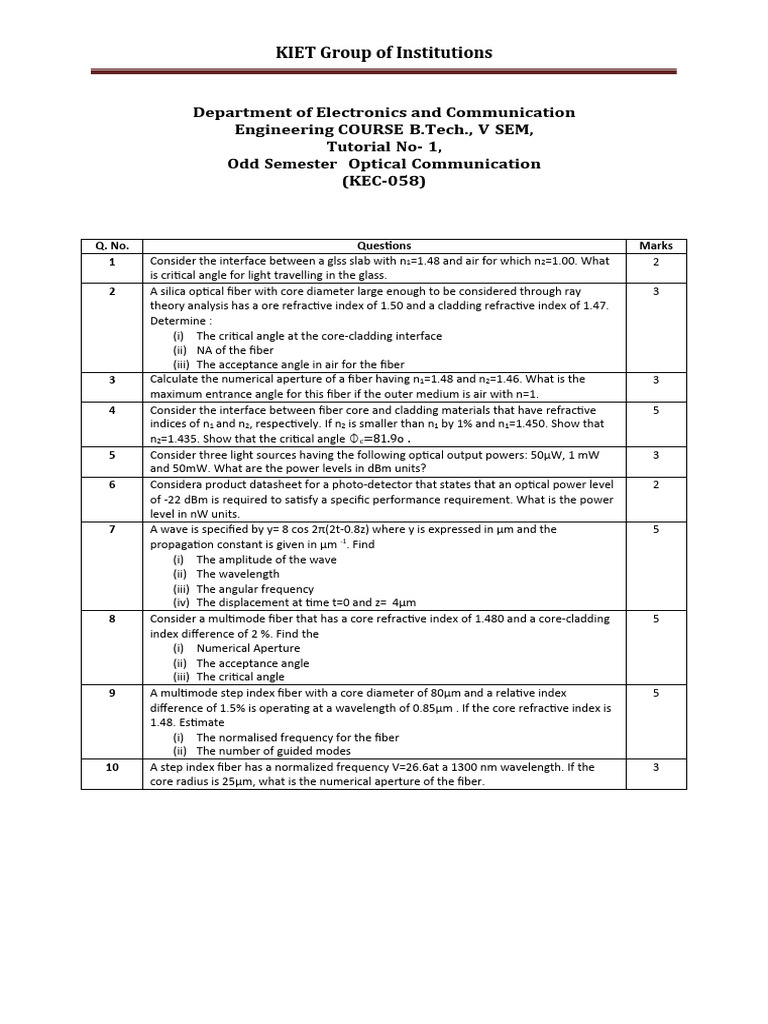

Engineering COURSE B.Tech., V SEM, Tutorial No- 1, Odd Semester Optical Communication (KEC-058)
Q. No. Questions Marks
1 Consider the interface between a glss slab with n1=1.48 and air for which n2=1.00. What 2 is critical angle for light travelling in the glass. 2 A silica optical fiber with core diameter large enough to be considered through ray 3 theory analysis has a ore refractive index of 1.50 and a cladding refractive index of 1.47. Determine : (i) The critical angle at the core-cladding interface (ii) NA of the fiber (iii) The acceptance angle in air for the fiber 3 Calculate the numerical aperture of a fiber having n1=1.48 and n2=1.46. What is the 3 maximum entrance angle for this fiber if the outer medium is air with n=1. 4 Consider the interface between fiber core and cladding materials that have refractive 5 indices of n1 and n2, respectively. If n2 is smaller than n1 by 1% and n1=1.450. Show that n2=1.435. Show that the critical angle ⏀c=81.9o . 5 Consider three light sources having the following optical output powers: 50µW, 1 mW 3 and 50mW. What are the power levels in dBm units? 6 Considera product datasheet for a photo-detector that states that an optical power level 2 of -22 dBm is required to satisfy a specific performance requirement. What is the power level in nW units. 7 A wave is specified by y= 8 cos 2π(2t-0.8z) where y is expressed in µm and the 5 propagation constant is given in µm -1. Find (i) The amplitude of the wave (ii) The wavelength (iii) The angular frequency (iv) The displacement at time t=0 and z= 4µm 8 Consider a multimode fiber that has a core refractive index of 1.480 and a core-cladding 5 index difference of 2 %. Find the (i) Numerical Aperture (ii) The acceptance angle (iii) The critical angle 9 A multimode step index fiber with a core diameter of 80µm and a relative index 5 difference of 1.5% is operating at a wavelength of 0.85µm . If the core refractive index is 1.48. Estimate (i) The normalised frequency for the fiber (ii) The number of guided modes 10 A step index fiber has a normalized frequency V=26.6at a 1300 nm wavelength. If the 3 core radius is 25µm, what is the numerical aperture of the fiber.
