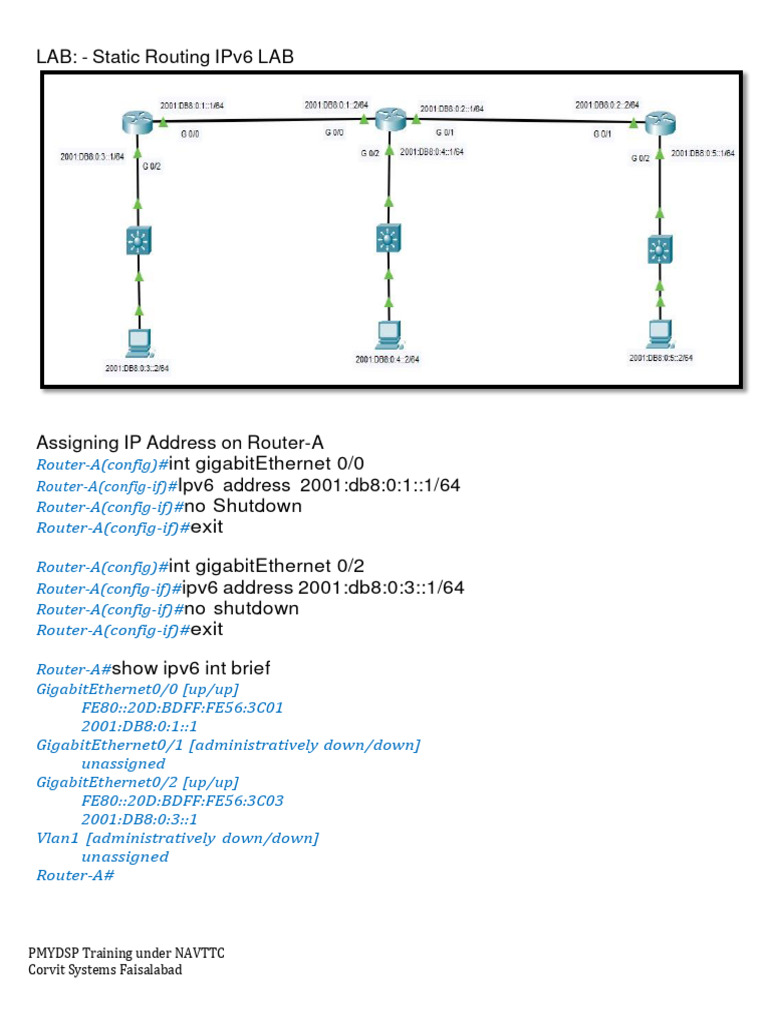

LAB: - Static Routing IPv6 LAB

Assigning IP Address on Router-A

Router-A(config)#int gigabitEthernet 0/0
Router-A(config-if)#Ipv6 address 2001:db8:0:1::1/64
Router-A(config-if)#no Shutdown
Router-A(config-if)#exit

Router-A(config)#int gigabitEthernet 0/2

Router-A(config-if)#ipv6 address 2001:db8:0:3::1/64
Router-A(config-if)#no shutdown
Router-A(config-if)#exit

Router-A#show ipv6 int brief

GigabitEthernet0/0 [up/up]
FE80::20D:BDFF:FE56:3C01
2001:DB8:0:1::1
GigabitEthernet0/1 [administratively down/down]
unassigned
GigabitEthernet0/2 [up/up]
FE80::20D:BDFF:FE56:3C03
2001:DB8:0:3::1
Vlan1 [administratively down/down]
unassigned
Router-A#

PMYDSP Training under NAVTTC

Corvit Systems Faisalabad
 Assigning IP Address on Router-B
Router-B(config)#int gigabitEthernet 0/0
Router-B(config-if)#ipv6 address 2001:db8:0:1::2/64
Router-B(config-if)#no shutdown
Router-B(config-if)#exit
Router-B(config)#int gigabitEthernet 0/1
Router-B(config-if)#ipv6 address 2001:db8:0:2::1/64
Router-B(config-if)#no shutdown
Router-B(config-if)#exit
Router-B(config)#int gigabitEthernet 0/2
Router-B(config-if)#ipv6 address 2001:db8:0:4::1/64
Router-B(config-if)#no shutdown
Router-B(config-if)#exit

Router-B#show ipv6 int brief

GigabitEthernet0/0 [up/up]
FE80::260:5CFF:FE11:7701
2001:DB8:0:1::2
GigabitEthernet0/1 [up/up]
FE80::260:5CFF:FE11:7702
2001:DB8:0:2::1
GigabitEthernet0/2 [up/up]
FE80::260:5CFF:FE11:7703
2001:DB8:0:4::1
Router-B#

Assigning IP Address on Router-C

Router-C(config)#int gigabitEthernet 0/1
Router-C(config-if)#ipv6 address 2001:db8:0:2::2/64
Router-C(config-if)#no shutdown
Router-C(config-if)#exit
Router-C(config)#int gigabitEthernet 0/2
Router-C(config-if)#ipv6 address 2001:db8:0:5::1/64
Router-C(config-if)#no shutdown
Router-C(config-if)#exit

Router-C#show ipv6 int brief

GigabitEthernet0/1 [up/up]
FE80::260:5CFF:FE80:7C02
2001:DB8:0:2::2
GigabitEthernet0/2 [up/up]
FE80::260:5CFF:FE80:7C03
2001:DB8:0:5::1
Vlan1 [administratively down/down]
unassigned
PMYDSP Training under NAVTTC
Corvit Systems Faisalabad
 Router-C#

PMYDSP Training under NAVTTC

Corvit Systems Faisalabad
 Router-C#show ipv6 route
S 2001:DB8:0:1::/64 [1/0]
via 2001:DB8:0:2::1
C 2001:DB8:0:2::/64 [0/0]
via GigabitEthernet0/1, directly connected
L 2001:DB8:0:2::2/128 [0/0]
via GigabitEthernet0/1, receive
S 2001:DB8:0:3::/64 [1/0]
via 2001:DB8:0:2::1
S 2001:DB8:0:4::/64 [1/0]
via 2001:DB8:0:2::1
C 2001:DB8:0:5::/64 [0/0]
via GigabitEthernet0/2, directly connected
L 2001:DB8:0:5::1/128 [0/0]
via GigabitEthernet0/2, receive
L FF00::/8 [0/0]
via Null0, receive
Router-C#

Static Route on Router-A

Router-A(config)#ipv6 unicast-routing
Router-A(config)#ipv6 route 2001:db8:0:2::/64 2001:db8:0:1::2
Router-A(config)#IPv6 Route 2001:db8:0:4::/64 2001:db8:0:1::2
Router-A(config)#IPv6 Route 2001:db8:0:5::/64 2001:db8:0:1::2
Router-A(config)#end

Static Route on Router-B

Router-B(config)#ipv6 unicast-routing
Router-B(config)#ipv6 Route 2001:db8:0:3::/64 2001:DB8:0:1::1
Router-B(config)#ipv6 Route 2001:db8:0:5::/64 2001:DB8:0:2::2

Static Route on Router-C

Router-C(config)#ipv6 unicast-routing
Router-C(config)#ipv6 Route 2001:DB8:0:1::/64 2001:DB8:0:2::1
Router-C(config)#ipv6 Route 2001:db8:0:4::/64 2001:DB8:0:2::1
Router-C(config)#ipv6 Route 2001:db8:0:3::/64 2001:DB8:0:2::1

PMYDSP Training under NAVTTC

Corvit Systems Faisalabad
 LAB IPv6 RIPng

Assign IP Address on Router A

A(config)#interface serial 1/0
A(config-if)#ipv6 address 2001:0000:0000:0003:0000:00000:0000:0001/64
A(config-if)#encapsulation ppp
A(config-if)#no shutdown

A(config)#interface fastEthernet 2/0

A(config-if)#ipv6 address 2001:0:0:1:0:0:0:1/64
A(config-if)#no shutdown

Assign IP Address on Router B

b(config)#interface serial 1/0
b(config-if)#ipv6 address 2001:0:0:3::2/64
b(config-if)#encapsulation ppp
b(config-if)#no shutdown

b(config)#interface fastEthernet 2/0

b(config-if)#ipv6 address 2001:0:0:2::1/64
b(config-if)#no shutdown

PMYDSP Training under NAVTTC

Corvit Systems Faisalabad
 Running RIP on Router A
A(config)#ipv6 unicast-routing

A(config)#interface serial 1/0

A(config-if)#ipv6 rip 0 enable

A(config-if)#interface fastEthernet 2/0

A(config-if)#ipv6 rip 0 enable

Running RIP on Router B

b(config)#ipv6 unicast-routing

b(config)#interface serial 1/0

b(config-if)#ipv6 rip 0 enable

b(config)#interface fastEthernet 2/0

b(config-if)#ipv6 rip 0 enable

Verification
B#show ipv6 route
B#show ipv6 interface brief
