The document provides instructions for tool offsetting on a CNC lathe. It discusses setting the z-axis coordinate for tool #1 by manually facing a workpiece with the tool until it is positioned correctly, then using the offset function and work shift option to set the current z position as z0. This syncs the tool's z offset to the workpiece. The same process would be repeated for each tool used in the encoded part program to ensure precise cutting based on the program coordinates.
The document provides instructions for tool offsetting on a CNC lathe. It discusses setting the z-axis coordinate for tool #1 by manually facing a workpiece with the tool until it is positioned correctly, then using the offset function and work shift option to set the current z position as z0. This syncs the tool's z offset to the workpiece. The same process would be repeated for each tool used in the encoded part program to ensure precise cutting based on the program coordinates.
The document provides instructions for tool offsetting on a CNC lathe. It discusses setting the z-axis coordinate for tool #1 by manually facing a workpiece with the tool until it is positioned correctly, then using the offset function and work shift option to set the current z position as z0. This syncs the tool's z offset to the workpiece. The same process would be repeated for each tool used in the encoded part program to ensure precise cutting based on the program coordinates.

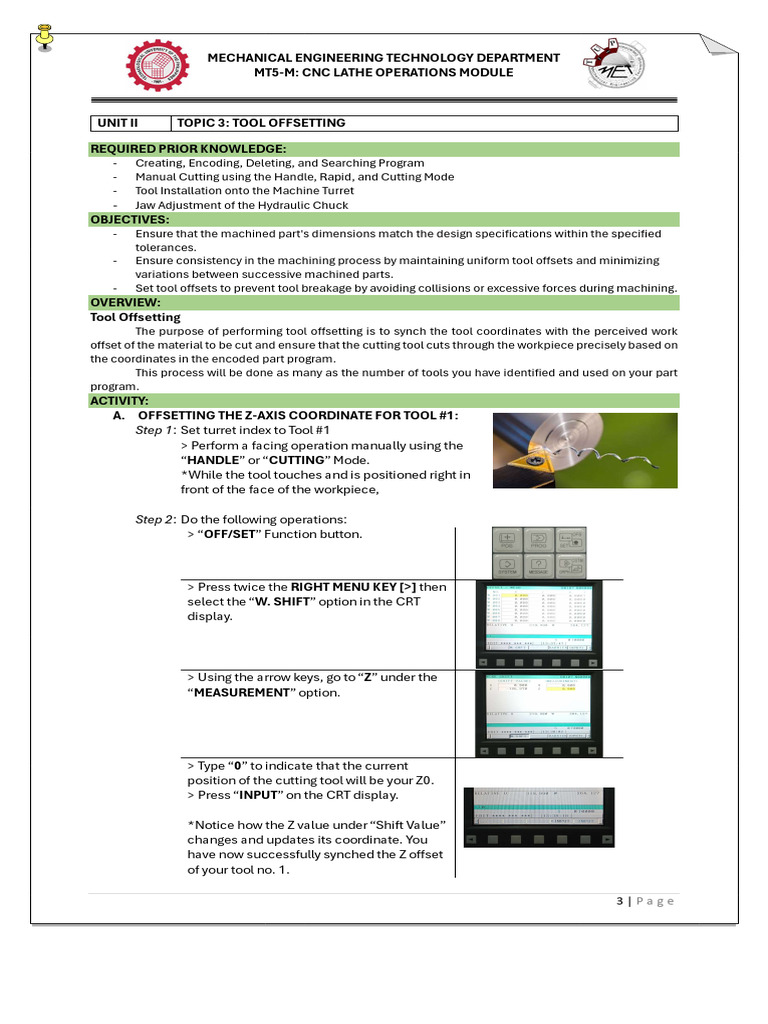

- Creating, Encoding, Deleting, and Searching Program - Manual Cutting using the Handle, Rapid, and Cutting Mode - Tool Installation onto the Machine Turret - Jaw Adjustment of the Hydraulic Chuck OBJECTIVES: - Ensure that the machined part's dimensions match the design specifications within the specified tolerances. - Ensure consistency in the machining process by maintaining uniform tool o sets and minimizing variations between successive machined parts. - Set tool o sets to prevent tool breakage by avoiding collisions or excessive forces during machining. OVERVIEW: Tool O setting The purpose of performing tool o setting is to synch the tool coordinates with the perceived work o set of the material to be cut and ensure that the cutting tool cuts through the workpiece precisely based on the coordinates in the encoded part program. This process will be done as many as the number of tools you have identified and used on your part program. ACTIVITY: A. OFFSETTING THE Z-AXIS COORDINATE FOR TOOL #1: Step 1: Set turret index to Tool #1 > Perform a facing operation manually using the “HANDLE” or “CUTTING” Mode. *While the tool touches and is positioned right in front of the face of the workpiece,
Step 2: Do the following operations:
> “OFF/SET” Function button.
> Press twice the RIGHT MENU KEY [>] then
select the “W. SHIFT” option in the CRT display.
> Using the arrow keys, go to “Z” under the
“MEASUREMENT” option.
> Type “0” to indicate that the current
position of the cutting tool will be your Z0. > Press “INPUT” on the CRT display.
*Notice how the Z value under “Shift Value”
changes and updates its coordinate. You have now successfully synched the Z o set of your tool no. 1.
