Federal TVET Institute

Department of Electrical/Electronic Technology

Electropneumatic Laboratory practice #4

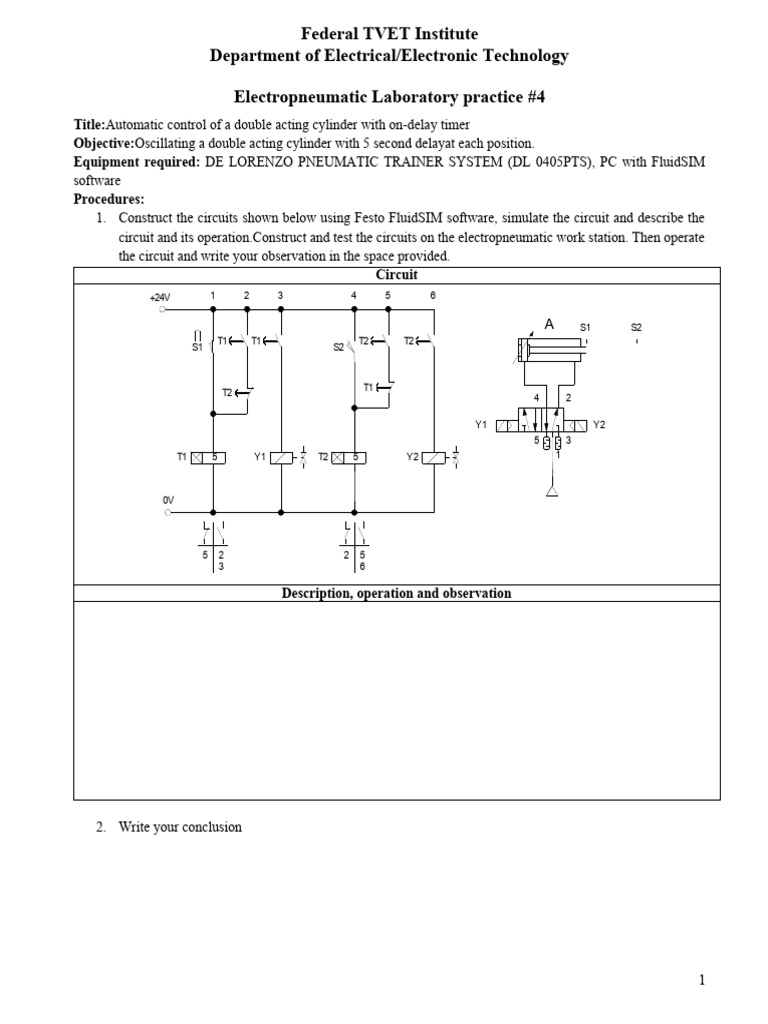

Title:Automatic control of a double acting cylinder with on-delay timer
Objective:Oscillating a double acting cylinder with 5 second delayat each position.
Equipment required: DE LORENZO PNEUMATIC TRAINER SYSTEM (DL 0405PTS), PC with FluidSIM
software
Procedures:
1. Construct the circuits shown below using Festo FluidSIM software, simulate the circuit and describe the
circuit and its operation.Construct and test the circuits on the electropneumatic work station. Then operate
the circuit and write your observation in the space provided.
Circuit
+24V 1 2 3 4 5 6

A S1 S2
T1 T1 T2 T2
S1 S2

T1
T2 4 2

Y1 Y2
5 3
T1 5 Y1 T2 5 Y2 1

0V

5 2 2 5
3 6

Description, operation and observation

2. Write your conclusion
