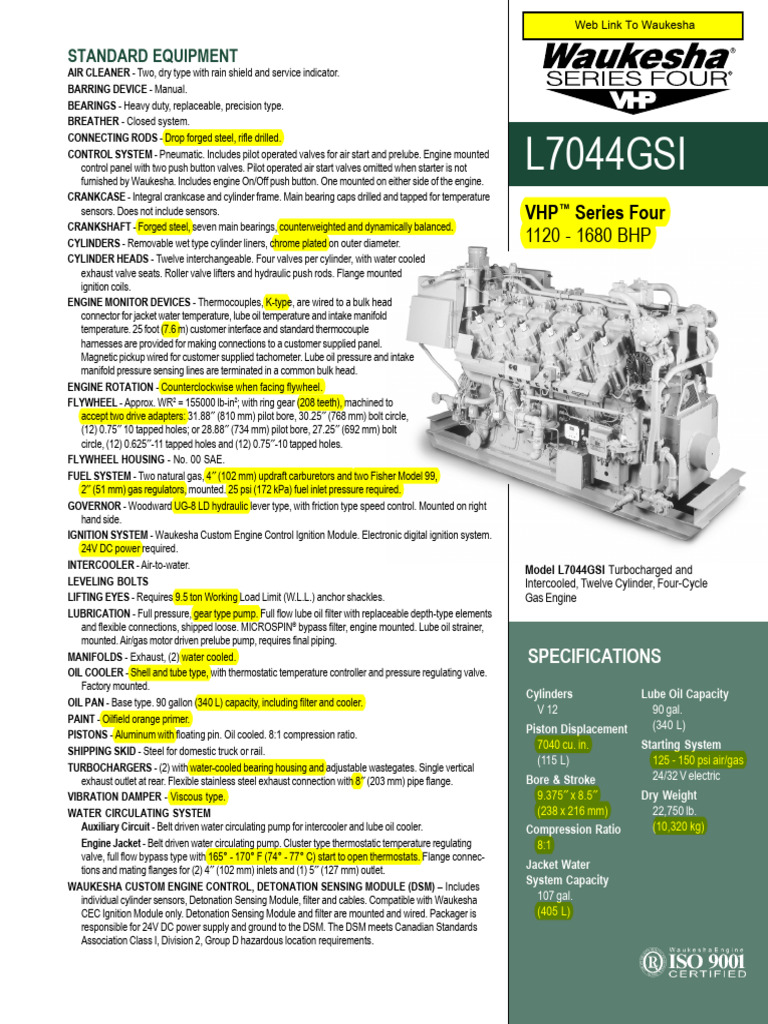

STANDARD EQUIPMENT
AIR CLEANER - Two, dry type with rain shield and service indicator.
BARRING DEVICE - Manual.
BEARINGS - Heavy duty, replaceable, precision type.
BREATHER - Closed system.
L7044GSI
CONNECTING RODS - Drop forged steel, rifle drilled.
CONTROL SYSTEM - Pneumatic. Includes pilot operated valves for air start and prelube. Engine mounted
control panel with two push button valves. Pilot operated air start valves omitted when starter is not
furnished by Waukesha. Includes engine On/Off push button. One mounted on either side of the engine.
CRANKCASE - Integral crankcase and cylinder frame. Main bearing caps drilled and tapped for temperature
sensors. Does not include sensors. VHP™ Series Four
CRANKSHAFT - Forged steel, seven main bearings, counterweighted and dynamically balanced.
CYLINDERS - Removable wet type cylinder liners, chrome plated on outer diameter. 1120 - 1680 BHP
CYLINDER HEADS - Twelve interchangeable. Four valves per cylinder, with water cooled
exhaust valve seats. Roller valve lifters and hydraulic push rods. Flange mounted
ignition coils.
ENGINE MONITOR DEVICES - Thermocouples, K-type, are wired to a bulk head
connector for jacket water temperature, lube oil temperature and intake manifold
temperature. 25 foot (7.6 m) customer interface and standard thermocouple
harnesses are provided for making connections to a customer supplied panel.
Magnetic pickup wired for customer supplied tachometer. Lube oil pressure and intake
manifold pressure sensing lines are terminated in a common bulk head.
ENGINE ROTATION - Counterclockwise when facing flywheel.
FLYWHEEL - Approx. WR2 = 155000 lb-in2; with ring gear (208 teeth), machined to
accept two drive adapters: 31.88″ (810 mm) pilot bore, 30.25″ (768 mm) bolt circle,
(12) 0.75″ 10 tapped holes; or 28.88″ (734 mm) pilot bore, 27.25″ (692 mm) bolt
circle, (12) 0.625″-11 tapped holes and (12) 0.75″-10 tapped holes.
FLYWHEEL HOUSING - No. 00 SAE.
FUEL SYSTEM - Two natural gas, 4″ (102 mm) updraft carburetors and two Fisher Model 99,
2″ (51 mm) gas regulators, mounted. 25 psi (172 kPa) fuel inlet pressure required.
GOVERNOR - Woodward UG-8 LD hydraulic lever type, with friction type speed control. Mounted on right
hand side.
IGNITION SYSTEM - Waukesha Custom Engine Control Ignition Module. Electronic digital ignition system.
24V DC power required.
INTERCOOLER - Air-to-water. Model L7044GSI Turbocharged and
LEVELING BOLTS Intercooled, Twelve Cylinder, Four-Cycle
LIFTING EYES - Requires 9.5 ton Working Load Limit (W.L.L.) anchor shackles. Gas Engine
LUBRICATION - Full pressure, gear type pump. Full flow lube oil filter with replaceable depth-type elements
and flexible connections, shipped loose. MICROSPIN® bypass filter, engine mounted. Lube oil strainer,
mounted. Air/gas motor driven prelube pump, requires final piping.
MANIFOLDS - Exhaust, (2) water cooled. SPECIFICATIONS
OIL COOLER - Shell and tube type, with thermostatic temperature controller and pressure regulating valve.
Factory mounted.
Cylinders Lube Oil Capacity
OIL PAN - Base type. 90 gallon (340 L) capacity, including filter and cooler.
V 12 90 gal.
PAINT - Oilfield orange primer.
Piston Displacement (340 L)
PISTONS - Aluminum with floating pin. Oil cooled. 8:1 compression ratio.
SHIPPING SKID - Steel for domestic truck or rail.
7040 cu. in. Starting System
(115 L) 125 - 150 psi air/gas
TURBOCHARGERS - (2) with water-cooled bearing housing and adjustable wastegates. Single vertical
exhaust outlet at rear. Flexible stainless steel exhaust connection with 8″ (203 mm) pipe flange. Bore & Stroke 24/32 V electric
VIBRATION DAMPER - Viscous type. 9.375″ x 8.5″ Dry Weight
WATER CIRCULATING SYSTEM (238 x 216 mm) 22,750 lb.
Auxiliary Circuit - Belt driven water circulating pump for intercooler and lube oil cooler. Compression Ratio (10,320 kg)
Engine Jacket - Belt driven water circulating pump. Cluster type thermostatic temperature regulating 8:1
valve, full flow bypass type with 165° - 170° F (74° - 77° C) start to open thermostats. Flange connec-
tions and mating flanges for (2) 4″ (102 mm) inlets and (1) 5″ (127 mm) outlet. Jacket Water
WAUKESHA CUSTOM ENGINE CONTROL, DETONATION SENSING MODULE (DSM) – Includes System Capacity
individual cylinder sensors, Detonation Sensing Module, filter and cables. Compatible with Waukesha 107 gal.
CEC Ignition Module only. Detonation Sensing Module and filter are mounted and wired. Packager is (405 L)
responsible for 24V DC power supply and ground to the DSM. The DSM meets Canadian Standards
Association Class I, Division 2, Group D hazardous location requirements.
CONTINUOUS POWER RATINGS: L7044GSI VHP SERIES FOUR
Brake Horsepower (kWb Output)
I.C. Water Inlet Temp.
Model °F (°C) (Tcra) C.R. 800 rpm 900 rpm 1000 rpm 1100 rpm 1200 rpm
L7044GSI 130° (54°) 8:1 1120 (836) 1260 (940) 1400 (1044) 1540 (1149) 1680 (1253)
Rating Standard: All models: Ratings are based on ISO 3046/1-1995 with mechanical efficiency of 90% and auxiliary water temperature Tcra (clause 10.1) as specified
above limited to ± 10° F (± 5° C). Ratings are also valid for SAE J1349, BS5514, DIN6271 and AP17B-11C standard atmospheric conditions.
ISO Standard Power/Continuous Power Rating: The highest load and speed which can be applied 24 hours a day, seven days a week, 365 days per year except
for normal maintenance. It is permissible to operate the engine at up to 10% overload, or maximum load indicated by the intermittent rating, whichever is lower, for
two hours in each 24 hour period.
All natural gas engine ratings are based on a fuel of 900 Btu/ft3 (35.3 MJ/nm3) SLHV value, with a 91 Waukesha Knock Index®.
For conditions or fuels other than standard, the Waukesha Engine Sales Engineering Department.
Pre-Catalyst
Pre-Catalyst
Settings
Settings
Low Fuel
Low Fuel
NOTES:
1) Fuel consumption and exhaust emissions are based on ISO 3046/1-1995 standard reference conditions and commercial quality natural gas of 900 Btu/ft3
(35.38 MJ/m3 [25, V(0; 101.325)]) saturated lower heat value, Waukesha Knock Index® of 91 and 93% methane content by volume. ISO 3046/1-1995 standard
reference conditions are 77°F (25°C) ambient temperature, 29.54 inches Hg (100 kPa) barometric pressure, 30% relative humidity (1kPa/0.3 inches Hg water vapor
pressure).
2) S.I. exhaust emissions are corrected to 5% O2 (0°C and 101.325 kPa).
3) Data will vary due to variations in site conditions. For conditions and/or fuels other than standard, consult the Waukesha Engine Sales Engineering Department.
83.33² 142.75²
(2117mm) (3626mm)
93.73²
(2381mm)
WAUKESHA ENGINE WAUKESHA ENGINE Consult your local Waukesha Distributor for system
application assistance. The manufacturer reserves the
DRESSER, INC. DRESSER INDUSTRIAL PRODUCTS, B.V.
right to change or modify without notice, the design or
1000 West St. Paul Avenue Farmsumerweg 43, Postbus 330 equipment specifications as herein set forth without
Waukesha, WI 53188-4999 9900 AH Appingedam, The Netherlands incurring any obligation either with respect to
Phone: (262) 547-3311 Fax: (262) 549-2795 Phone: (31) 596-652222 Fax: (31) 596-628111 equipment previously sold or in the process of
waukeshaengine.dresser.com construction except where otherwise specifically
guaranteed by the manufacturer.
Bulletin 7045 0102
Waukesha, VHP, Series Four, Microspin, and Waukesha Knock Index are trademarks/registered trademarks of Waukesha Engine, Dresser, Inc. Copyright 2002 Dresser, Inc.
SPECIFICATIONS 1
INDEX – MODEL L7042, L7044GSI
Reference Revision
Number Date Subject Model
S5585 7/01 Basic Model Specifications L7042G
Bearings – Main
Bearings – Crankpin
Cooling System
Exhaust System
Fuel System
Induction System
Lubrication System
Starting System
Miscellaneous
1/02 Page 1 of 1
SPECIFICATIONS
MODEL — L7042G
1
BASIC MODEL SPECIFICATIONS
Type.............................................................................................................................................................................. 4-cycle, overhead valve
Aspiration................................................................................................................................................................................................Natural
Number of cylinders ....................................................................................................................................................................................V-12
Bore x stroke.................................................................................................................................................... 9.375 x 8.50 in. (238 x 216 mm)
Displacement .............................................................................................................................................................. 7040 cu. in. (115.4 liters)
Compression ratio - natural gas standard ratio / HD-5 propane..................................................................................................................... 8:1
Compression ratio - natural gas high ratio................................................................................................................................................... 10:1
Speed range ....................................................................................................... 400 - 1200 rpm continuous / 400 - 1200 rpm intermittent duty
Mean piston speed @ 1200 rpm ................................................................................................................................ 1700 ft./min. (8.64 m/sec)
Low idle................................................................................................................................................................................................. 450 rpm
Flywheel housing - SAE No............................................................................................................................................................................ 00
BEARINGS - MAIN
Number............................................................................................................................................................................................................ 7
Diameter x width (front).................................................................................................................................... 6.25 x 4.125 in. (159 x 105 mm)
Diameter x width (intermediate) ........................................................................................................................... 6.25 x 3.00 in. (159 x 76 mm)
Diameter x width (center) ................................................................................................................................. 6.25 x 4.125 in. (159 x 105 mm)
Diameter x width (rear)..................................................................................................................................... 6.25 x 4.125 in. (159 x 105 mm)
Total main bearing projected area.............................................................................................................................. 152.3 sq. in. (982 sq. cm)
BEARING - CRANKPIN
Diameter x width .................................................................................................................................................. 6.25 x 2.50 in. (159 x 64 mm)
Total crankpin projected area................................................................................................................................... 187.5 sq. in. (1210 sq. cm)
COOLING SYSTEM
Jacket capacity, engine only ................................................................................................................................................ 100 gal. (379 liters)
Maximum jacket water pump, inlet head .........................................................................................................................50 ft. (15.24 m) of H2O
Normal jacket water temperature out of engine............................................................................................................................180° F (82° C)
Jacket water inlet, two connections, hose ID............................................................................................................................ 4.0 in. (102 mm)
Jacket water outlet, hose ID..................................................................................................................................................... 5.0 in. (127 mm)
EXHAUST SYSTEM
Maximum permissible backpressure ..............................................................................................................................18 in. (457 mm) of H2O
Exhaust outlet, pipe flange.............................................................................................................................................. 8.0 in. (203 mm) ANSI
FUEL SYSTEM
Natural gas pressure at regulator ................................................................................................................................ 5 - 10 psi (34.5 - 69 kPa)
Natural gas inlet, pipe size ...................................................................................................................................................... 2.0 in. (50.8 mm)
AIR INDUCTION SYSTEM (DUCTING, FILTER & SILENCER)
Maximum permissible restriction .................................................................................................................................15.0 in. (381 mm) of H2O
LUBRICATION SYSTEM
Approximate capacity including sump, filters, and cooler ....................................................................................................... 90 gal. (340 liters)
Normal lube oil pressure .............................................................................................................................................55 ± 5 psi (380 ± 35 kPa)
STARTING SYSTEM
Regulated starting air ..........................................................................................................................................................120 psi (827 kPa) (1)
Electric start ...........................................................................................................................................................................................24 VDC
MISCELLANEOUS
Recommended minimum spacing between engines ................................................................................................................. 36 in. (914 mm)
Recommended minimum overhead clearance ...................................................................................................................................... (Note 2)
Engine dry weight ...............................................................................................................................................................20,500 lb. (9299 kg)
Heaviest engine part, top overhaul, cylinder head assembly ........................................................................................................205 lb. (93 kg)
Heaviest engine part, cylinder block assembly.......................................................................................................................4965 lb. (2252 kg)
NOTES:
1. Pressure is based on 50° F (10° C) lubricating oil temperature.
2. Sufficient height to permit use of a chain hoist for removal of heavier components.
Page 1 of 1
NOTES:
1. Reduce maximum permissible backpressure by:
1.0 in (25.4 mm) H2O for each 100 rpm reduction in rated speed below 1200 rpm.
1.0 in (25.4 mm) H2O for each 10 BMEP reduction rated load below 160 BMEP.
Do not apply reductions below an exhaust backpressure of 4 in. (102 mm) H2O.
2. Pressure is based on 50° F (10° C) lubricating oil temperature.
3. Sufficient height to permit use of a chain hoist for removal of heavier components.
Page 1 of 1
NOTES:
1. Reduce maximum permissible backpressure by:
1.5 in. (38 mm) H2O for each 100 rpm reduction in rated speed below 1200 rpm.
1.5 in. (38 mm) H2O for each 10 BMEP reduction in rated load below 180 BMEP.
Do not apply reduction below an exhaust backpressure of 4 in. (102 mm) H2O.
2. Pressure is based on 50° F (10° C) lubricating oil temperature.
3. Sufficient height to permit use of a chain hoist for removal of heavier components.
Page 1 of 1
NOTES:
1. The maximum Series Four® engine jacket water temperature is 180° F (82° C).
2. Reduce maximum permissible backpressure by:
1.5 in. (38 mm) H2O for each 100 rpm reduction in rated speed below 1200 rpm.
1.5 in. (38 mm) H2O for each 10 BMEP reduction in rated load below 173 BMEP.
Do not apply reductions below an exhaust backpressure of 4 in. (102 mm) H2O.
3. Pressure is based on 50° F (10° C) lubricating oil temperature.
4. Sufficient height to permit use of a chain hoist for removal of heavier components.
Page 1 of 1
Reference Intercooler
Curve Revision Water Temp
Number Date Engine Model Fuel °F °C Remarks
C270D 10/81 L7042G Natural Gas — — 8:1 Compression Ratio
NOTE: For low BTU Fuel Applications, refer to S3955-11 (or latest version) in the General Data Binder, Fuels &
Lubrication Tab.
4/02 Page 1 of 1
RATINGS & STANDARDS
COMPRESSION RATIO 8:1 — CARBURETOR 4″ UPDRAFT
2
CURVE B: INTERMITTENT RATING OF ENGINE WITHOUT ACCESSORIES
CURVE C: CONTINUOUS RATING OF ENGINE WITHOUT ACCESSORIES
NATURAL GAS
900 BTU/Ft3 (35.38 MJ/m3) SLHV
Page 1 of 1
Page 1 of 1
HD-5 PROPANE
2335 BTU/Ft3 (91.79 MJ/m3) SLHV
Page 1 of 1
NOTES:
1. Engine carburetors adjusted to stoichiometric air/fuel ratio (Lambda = 1).
2. Standard engine turbocharger match for 600-1200 rpm.
Page 1 of 1
Page 1 of 1
P a rt L o a d F u e l C o n s u m p tio n
W a s te g a te s S e t F o r C o n tin u o u s P o w e r R a tin g
9200 13000
12600
8800
12200
8400
11800
1200 R PM
11400
8000
11000
7600 1000 R PM
700 R PM 900 R PM 10600
800 R PM
7200 10200
400 600 800 1000 1200 1400 1600 1800 2000
BHP
NOTES:
1. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90%
and auxiliary water temperature, Tcra, of 130° F (54° C) limited to ± 10° F (± 5.5° C).
2. Reference Heat Rejection and Operating Data Standard Sheet S-6124-76, latest version.
3. Engine set to an exhaust carbon monoxide (CO) concentration of 0.38% to provide stoichiometric air/fuel ratio
operation at rated speed and ISO Standard Power at standard 20° BTDC ignition timing.
4. The maximum Series Four® engine jacket water temperature is 180° F (82° C).
Page 1 of 1
P a rt L o a d F u e l C o n s u m p tio n
W a s te g a te s S e t F o r C o n tin u o u s P o w e r R a tin g
9000 12700
12300
8500
11900
7000 9900
400 600 800 1000 1200 1400 1600 1800 2000
BHP
NOTES:
1. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90%
and auxiliary water temperature, Tcra, of 130° F (54° C) limited to ± 10° F (± 5.5° C).
2. Reference Heat Rejection and Operating Data Standard Sheet S-6124-77.
3. Engine set to an exhaust carbon monoxide (CO) concentration of 0.38% to provide stoichiometric air/fuel ratio
operation at rated speed and ISO Standard Power at ignition timing determined by the Engine System Manager™
(ESM™) map based on load, speed and WKI™.
4. The maximum Series Four® engine jacket water temperature is 180° F (82° C).
Page 1 of 1
NOTES:
1. Engine set for NOx emission level of 2.0 Grams/BHP-HR or less.
2. Standard engine high speed turbocharger match for 1001 – 1200 RPM.
3. Standard engine low speed turbocharger match for 700 – 1000 RPM.
4. No overload available.
Page 1 of 1
NOTES:
1. Engine set for NOx emission level of 2.0 Grams/BHP-HR or less.
2. Standard engine high speed turbocharger match for 1001 – 1200 RPM.
3. Low Pressure (Draw-Through-Carburetion) Fuel System.
Page 1 of 1
NOTES:
1. Engine set for NOx emission level of 2.0 Grams/BHP-HR or less.
2. Standard engine high speed turbocharger match for 1001 – 1200 RPM.
3. Low Pressure (Draw-thru Carburetion) Fuel System.
Page 1 of 1
S6175-45 6/78 L7042GSI Natural Gas 85/130 29/54 Heat Rejection to Jacket Water
From Water Cooled Turbocharger
1/02 Page 1 of 1
HEAT REJECTION 3
HEAT BALANCE DATA — MODEL L7042G NATURAL GAS 10:1 CR
ENGINE SPEED — RPM
BMEP
600 700 800 900 1000 1100 1200
110 587 684 782 880 978 1075 1173
100 533 622 711 800 889 978 1067
90 480 560 640 720 800 880 960
80 427 493 569 640 711 782 853
HORSEPOWER
70 374 436 498 560 622 685 747
60 320 373 427 480 533 587 640
50 267 311 356 400 445 489 534
40 213 249 284 320 356 391 427
110 70473 81766 93089 104977 116846 129099 141023
100 65463 75689 86135 96800 107924 119070 130087
90 60614 69662 79131 88921 98981 109037 119072
FUEL 80 55887 64008 72560 81301 90479 99789 108793
CONSUMPTION
(BTU/MIN) 70 51163 58232 65988 73766 82160 90475 98467
60 46235 52643 59530 66468 73705 81083 88148
50 41364 46995 52810 59056 65599 71902 78140
40 36295 41328 46236 51816 57429 62838 68160
110 22775 26539 30341 34144 37946 41710 45512
100 21055 24569 28084 31600 35115 38631 42145
90 19440 22680 25920 29160 32400 35640 38880
HEAT REJECTION
TO 80 17934 20916 23898 26880 29862 32844 35826
JACKET WATER 70 16456 19184 21912 24640 27368 30140 32868
(BTU/MIN)
60 14848 17307 19812 22272 24731 27236 29696
50 13216 15394 17622 19800 22027 24205 26433
40 11416 13346 15222 17152 19081 20957 22887
110 15477 18325 21109 24473 27812 31621 35014
100 14660 17054 19668 22527 25794 29107 32294
90 12898 15810 18151 20797 23721 26641 29524
HEAT REJECTION
TO 80 13003 14641 16711 18969 21702 24494 27015
EXHAUST 70 12183 13454 15376 17382 19918 22322 24500
(BTU/MIN)
60 11311 12578 14234 16032 18123 20275 22200
50 10454 11654 12919 14716 16755 18566 20254
40 9574 10749 11907 13628 15385 17044 18508
110 3433 4001 4574 5148 5721 6288 6862
100 3251 3794 4337 4880 5422 5965 6508
90 3024 3528 4032 4536 5040 5544 6048
HEAT REJECTION 80 2946 3436 3926 4416 4905 5395 5885
TO OIL
(BTU/MIN) 70 2767 3226 3685 4144 4602 5069 5527
60 2608 3039 3480 3912 4343 4784 5216
50 2456 2861 3275 3680 4094 4498 4912
40 2374 2776 3166 3568 3969 4359 4761
Page 1 of 2
NOTES:
1. 12 Cylinder 9-3/8 in. Bore x 8-1/2 in. stroke, 7040 cu. in. displacement, water cooled exhaust manifold.
520
2. LB/MIN EXH. = CFM , 0.0745 x
EXH.TEMP.+ 460
Page 2 of 2
Page 1 of 2
Page 2 of 2
NOTES:
1. All data are based on standard conditions of 29.54 inches Hg. (100 kPa) barometric pressure, 77° F
(25° C) ambient and induction air temperature, 30% relative humidity (0.3 inches Hg. / 1 kPa water
vapor pressure) and 180° F (82° C) engine jacket water outlet temperature, and standard ignition
timing.
2. Data are average values at the standard conditions and will vary for individual engines and with
operating and ambient conditions and with changes to ignition timing. An adequate reserve should be
used for cooling system or heat recovery calculations. See also Cooling System Guidelines S6699-6.
3. For heat rejection changes due to engine jacket water outlet temperature different from standard (Note
1), refer to S7613-2.
4. Exhaust flow, (English): ACFM = (Exh. Flow, lb/hr) x (Exh. Temp. °F + 460°)
2275
5. Reference C976-17.
6. Low pressure (draw-thru) fuel system.
Page 1 of 1
NOTES:
1. All data are based on standard conditions of 29.54 inches Hg. (100 kPa) barometric pressure, 77° F
(25° C) ambient and induction air temperature, 30% relative humidity (0.3 inches Hg. / 1 kPa water
vapor pressure) and 180° F (82° C) engine jacket water outlet temperature, and standard ignition
timing.
2. Data are average values at the standard conditions and will vary for individual engines and with
operating and ambient conditions and with changes to ignition timing. An adequate reserve should be
used for cooling system or heat recovery calculations. See also Cooling System Guidelines S6699-6.
3. For heat rejection changes due to engine jacket water outlet temperature different from standard (Note
1), refer to S7613-2.
4. Exhaust Flow rate (English): ACFM = (Exh. Flow, lb/hr) x (Exh. Temp. °F + 460°)
2275
5. Reference C976-18.
6. Low pressure (draw-thru) fuel system.
Page 1 of 1
Page 1 of 6
Page 2 of 6
Page 3 of 6
Page 4 of 6
Page 5 of 6
Page 6 of 6
Page 1 of 6
Page 2 of 6
Page 3 of 6
Page 4 of 6
Page 5 of 6
Page 6 of 6
Page 1 of 4
NOTES:
1. All data are based on standard conditions of 29.54 inches Hg. (100 kPa) barometric pressure, 77° F (25° C) ambient and
induction air temperature, 30% relative humidity (0.3/1 kPa inches Hg. water vapor pressure) and 180° F (82° C) engine
jacket water outlet temperature, and standard 10° BTDC ignition timing.
2. Data are average values at the standard conditions and will vary for individual engines and with operating and ambient
conditions and with changes to ignition timing or air/fuel ratio. An adequate reserve should be used for cooling system or
heat recovery calculations. See also Cooling System Guidelines S6699-7.
3. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90% and
Tcra of 130° F (54° C) limited to ± 10° F (± 5.5° C).
4. Fuel rating standard; dry natural gas, 900 Btu/std. cu. ft. saturated lower heating value (SLHV), minimum 90 WKI.
5. For heat rejection changes due to engine jacket water outlet temperature higher than standard (Note 1), refer to S7613-3.
6. Total Exhaust Energy includes both recoverable and non-recoverable heat. For a procedure to calculate recoverable heat
refer to S8117.
7. Exhaust oxygen concentration set to 9.8% at rated speed and load at standard timing to provide 1.5 g/bhp-hr NOx, or less.
This level is to be measured at the port located in the exhaust manifold, upstream of the turbocharger, for GL engines.
8. Reference curve C968-19.
9. Exhaust flow rate ar nominal 29.54″ Hg. (100 kPa) barometric pressure:
ACFM = Exh. flow, lb/hr x (Exh. temp. °F + 460°)
2275
Page 2 of 4
Page 3 of 4
NOTES:
1. All data are based on standard conditions of 100 kPa (29.54 inches Hg.) barometric pressure, 25° C (77° F) ambient and
induction air temperature, 30% relative humidity (1 kPa / 0.3 inches Hg. water vapor pressure) and 82° C (180° F) engine
jacket water outlet temperature, and standard 10° BTDC ignition timing.
2. Data are average values at the standard conditions and will vary for individual engines and with operating and ambient
conditions and with changes to ignition timing or air/fuel ratio. An adequate reserve should be used for cooling system or
heat recovery calculations. See also Cooling System Guidelines S6699-7.
3. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90% and
Tcra of 54° C (130° F) limited to ± 5.5° C (± 10° F).
4. Fuel rating standard; dry natural gas, 900 Btu/std. cu. ft. saturated lower heating value (SLHV), minimum 90 WKI.
5. For heat rejection changes due to engine jacket water outlet temperature higher than standard (Note 1), refer to S7613-3.
6. Total Exhaust Energy includes both recoverable and non-recoverable heat. For a procedure to calculate recoverable heat
refer to S8117.
7. Exhaust oxygen concentration set to 9.8% at rated speed and load at standard timing to provide 1.5 g/bhp-hr NOx, or less.
This level is to be measured at the port located in the exhaust manifold, upstream of the turbocharger, for GL engines.
8. Reference curve C968-19.
9. Exhaust flow rate ar nominal 100 kPa (29.54″ Hg.) barometric pressure:
Flow rate (Metric): m3/h = (Exh. flow, Kg/h) x (Exh. temp. °C + 273°)
336.66
Page 4 of 4
Page 1 of 6
Page 2 of 6
NOTES:
1. All data are based on ISO standard conditions of 29.54 inches Hg. barometric pressure, 77° F ambient and induction
air temperature, 30% relative humidity 0.3 inches Hg. water vapor pressure, 180° F engine jacket water outlet
temperature, and standard ignition timing of 20° BTDC.
2. All data are average values at the standard conditions and will vary for individual engines and with operating and
ambient conditions and with changes to ignition timing or air/fuel ratio. An adequate reserve should be used for
cooling system or heat recovery calculations. See also Cooling System Guidelines, S-6699-7, latest version.
3. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90%
and auxiliary water temperature, Tcra, of 130° F limited to ± 10° F.
1. Fuel standard: dry natural gas, 900 BTU/scf saturated lower heating value (SLHV), with a minimum Waukesha
Knock Index of 91. Refer to S-7884-7, latest version, for the full fuel specification.
5. 8.0:1 compression ratio.
®
6. The maximum Series Four engine jacket water temperature is 180° F.
7. Total Exhaust Energy includes both recoverable and non-recoverable heat. For a procedure to calculate recoverable
heat refer to S-8117-2, latest version.
8. Exhaust carbon monoxide (CO) concentration set to 0.38% (with exhaust oxygen concentration of 0.30%) for
stoichiometric operation at rated speed and load at standard ignition timing of 20° BTDC. This CO level is measured
at the port located in the exhaust manifold upstream of the turbocharger.
9. Reference Engine Ratings and Fuel Consumption Curve Sheet C-278-12, latest version.
10. Exhaust flow at nominal 29.54 inches Hg. atmospheric pressure:
(Exh. Flow, lb/hr) x (Exh. Temp °F + 460°)
Flow rate: ACFM =
2250
Page 3 of 6
Page 4 of 6
— METRIC —
HEAT REJECTION AND OPERATING DATA EN: 126029 Ref.
MODEL L7044GSI S
54° C AUX. WATER TEMPERATURE DATE: 1/02
6124-76
82° C JACKET WATER TEMPERATURE
HEAT REJECTION
— METRIC —
3
HEAT REJECTION AND OPERATING DATA
MODEL L7044GSI
BMEP ENGINE SPEED — RPM
(bar) 700 800 900 1000 1100 1200
11.95 — 174 185 195 206 215
10.86 160 171 182 193 203 213
HEAT TO 9.66 156 167 178 189 199 208
RADIATION
(kW) 8.28 150 161 172 183 193 202
6.90 143 154 165 175 184 194
5.52 135 145 155 165 174 184
11.95 — 695 821 951 1088 1227
10.86 529 638 753 872 996 1123
TOTAL ENERGY 9.66 474 572 674 781 892 1005
IN EXHAUST
(kW) 8.28 409 494 582 675 770 868
6.90 343 414 489 567 647 730
5.52 276 335 396 460 526 594
11.95 — 577 596 613 628 642
10.86 552 573 591 609 624 638
EXHAUST TEMP
9.66 544 565 584 602 617 632
AFTER TURBINE
(± 30° C) 8.28 532 553 572 590 606 621
6.90 517 538 557 576 592 607
5.52 497 519 539 557 574 589
11.95 — 2605 2964 3322 3680 4036
10.86 2077 2407 2738 3068 3399 3729
INDUCTION 9.66 1881 2183 2484 2784 3085 3385
AIR FLOW
(nm3/hr) 8.28 1657 1923 2189 2455 2722 2988
6.90 1426 1659 1891 2123 2355 2587
5.52 1193 1390 1588 1786 1983 2181
11.95 — 3583 4075 4566 5058 5549
10.86 2854 3309 3764 4218 4673 5127
EXHAUST 9.66 2588 3001 3414 3827 4241 4654
GAS FLOW
(kg/hr) 8.28 2277 2644 3010 3376 3742 4108
6.90 1961 2280 2599 2918 3237 3556
5.52 1639 1911 2183 2455 2727 2998
Continued
Page 5 of 6
— METRIC —
HEAT REJECTION AND OPERATING DATA EN: 126029 Ref.
MODEL L7044GSI S
54° C AUX. WATER TEMPERATURE DATE: 1/02
6124-76
82° C JACKET WATER TEMPERATURE
HEAT REJECTION
— METRIC —
13
HEAT REJECTION AND OPERATING DATA
MODEL L7044GSI
BMEP ENGINE SPEED — RPM
(bar) 700 800 900 1000 1100 1200
11.95 — 4.6 4.7 4.8 4.8 4.9
10.86 4.7 4.8 4.9 5.0 5.1 5.2
NOX 9.66 4.7 4.9 5.0 5.1 5.3 5.4
EMISSION
(g/nm3 at 5% O2) 8.28 4.8 4.9 5.1 5.3 5.4 5.6
6.90 4.8 5.0 5.1 5.3 5.5 5.7
5.52 4.7 4.9 5.1 5.3 5.5 5.8
11.95 — 2.0 2.3 2.5 2.8 3.2
10.86 2.0 2.1 2.3 2.6 2.9 3.2
CO 9.66 2.1 2.2 2.4 2.6 2.9 3.2
EMISSION
3
(g/nm at 5% O2) 8.28 2.2 2.3 2.5 2.7 2.9 3.2
6.90 2.4 2.4 2.6 2.7 2.9 3.2
5.52 2.5 2.5 2.6 2.8 3.0 3.2
11.95 — 0.09 0.09 0.10 0.10 0.10
10.86 0.09 0.09 0.10 0.10 0.10 0.10
NMHC 9.66 0.10 0.10 0.10 0.10 0.10 0.10
EMISSION
(g/nm3 at 5% O2) 8.28 0.10 0.10 0.10 0.10 0.09 0.09
6.90 0.11 0.10 0.10 0.10 0.09 0.09
5.52 0.11 0.11 0.10 0.10 0.09 0.09
11.95 — 0.78 0.80 0.83 0.86 0.89
10.86 0.80 0.81 0.82 0.83 0.85 0.86
THC 9.66 0.85 0.84 0.84 0.84 0.83 0.83
EMISSION
(g/nm3 at 5% O2) 8.28 0.91 0.89 0.86 0.84 0.81 0.79
6.90 0.97 0.93 0.89 0.84 0.80 0.76
5.52 1.03 0.97 0.91 0.84 0.78 0.72
NOTES:
1. All data are based on ISO standard conditions of 100 kPa barometric pressure, 25° C ambient and induction air
temperature, 30% relative humidity 1 kPa water vapor pressure, 82° C engine jacket water outlet temperature, and
standard ignition timing of 20° BTDC.
2. All data are average values at the standard conditions and will vary for individual engines and with operating and
ambient conditions and with changes to ignition timing or air/fuel ratio. An adequate reserve should be used for
cooling system or heat recovery calculations. See also Cooling System Guidelines, S-6699-7, latest version.
3. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90%
and auxiliary water temperature, Tcra, of 54° C limited to ± 5.5° C.
4. Fuel standard: dry natural gas, 35.38 MJ/m3 [25, V (0; 101.325)] saturated lower heating value (SLHV), with a
minimum Waukesha Knock Index of 91. Refer to S-7884-7, latest version, for the full fuel specification.
5. 8.0:1 compression ratio.
®
6. The maximum Series Four engine jacket water temperature is 82° C.
7. Total Exhaust Energy includes both recoverable and non-recoverable heat. For a procedure to calculate recoverable
heat refer to S-8117-2, latest version.
8. Exhaust carbon monoxide (CO) concentration set to 0.38% (with exhaust oxygen concentration of 0.30%) for
stoichiometric operation at rated speed and load at standard ignition timing of 20° BTDC. This CO level is measured
at the port located in the exhaust manifold upstream of the turbocharger.
9. Reference Engine Ratings and Fuel Consumption Curve Sheet C-278-12, latest version.
10. Exhaust flow at nominal 100 kPa atmospheric pressure:
3 (Exh. Flow, kg/hr) x (Exh. Temp °C + 273°)
Flow rate: m /hr =
332.96
Page 6 of 6
— METRIC —
HEAT REJECTION AND OPERATING DATA EN: 126029 Ref.
MODEL L7044GSI S
54° C AUX. WATER TEMPERATURE DATE: 1/02
6124-76
82° C JACKET WATER TEMPERATURE
HEAT REJECTION
HEAT REJECTION AND OPERATING DATA
3
MODEL L7044GSI WITH ESM™
BMEP ENGINE SPEED — RPM
(PSI) 700 800 900 1000 1100 1200
173 — 1232 1386 1540 1694 1848
158 980 1120 1260 1400 1540 1680
HORSEPOWER 140 871 996 1120 1244 1369 1493
(BHP) 120 747 853 960 1067 1173 1280
100 622 711 800 889 978 1067
80 498 569 640 711 782 853
173 — 7378 7473 7566 7683 7761
158 7357 7486 7584 7672 7774 7847
BRAKE SPEC 140 7486 7622 7726 7814 7902 7971
FUEL CONSUMPTION
(BTU/BHP-HR) 120 7661 7811 7926 8017 8097 8165
100 7882 8054 8188 8292 8375 8448
80 8184 8394 8558 8691 8799 8887
173 — 9090 10360 11650 13015 14340
158 7210 8385 9555 10740 11970 13185
FUEL CONSUMPTION 140 6520 7590 8655 9725 10815 11905
(BTU/HR X 1000) 120 5720 6665 7610 8550 9500 10450
100 4905 5730 6550 7370 8190 9010
80 4075 4775 5475 6180 6885 7585
173 — 2795 3155 3500 3845 4170
158 2225 2595 2930 3255 3585 3890
HEAT TO 140 2025 2370 2685 2990 3290 3575
JACKET WATER
(BTU/HR X 1000) 120 1800 2110 2400 2680 2960 3220
100 1575 1855 2120 2375 2625 2860
80 1347 1600 1835 2065 2290 2505
173 — 371 422 475 525 580
158 307 361 412 464 515 569
HEAT TO 140 293 345 396 448 499 553
LUBE OIL
(BTU/HR X 1000) 120 272 322 373 424 475 529
100 247 294 343 393 445 499
80 216 261 308 357 409 462
173 — 90 115 143 173 203
158 49.5 73.5 96.5 122 150 178
HEAT TO 140 33.5 54.5 76.5 99.5 124 150
INTERCOOLER
(BTU/HR X 1000) 120 15 33.5 53 73.5 95 118
100 -4 12 29.5 47.5 66 86.5
80 -23 -9 6 21.5 37.5 55.5
Continued
Page 1 of 6
Page 2 of 6
NOTES:
1. All data are based on ISO standard conditions of 29.54 inches Hg. barometric pressure, 77° F ambient and induction
air temperature, 30% relative humidity (0.3 inches Hg. water vapor pressure), 180° F engine jacket water outlet
temperature, and ignition timing determined by the Engine System Manager (ESM™) map based on load, speed,
and WKI™.
2. All data are average values at the standard conditions and will vary for individual engines and with operating and
ambient conditions and with changes to ignition timing or air/fuel ratio. An adequate reserve should be used for
cooling system or heat recovery calculations. See also Cooling System Guidelines, S-6699-7, latest version.
3. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90%
and auxiliary water temperature, Tcra, of 130° F limited to ± 10° F.
1. Fuel standard: dry natural gas, 900 BTU/scf saturated lower heating value (SLHV), with a minimum Waukesha
Knock Index of 91. Refer to S-7884-7, latest version, for the full fuel specification.
5. 8.0:1 compression ratio.
®
6. The maximum Series Four engine jacket water temperature is 180° F.
7. Total Exhaust Energy includes both recoverable and non-recoverable heat. For a procedure to calculate recoverable
heat refer to S-8117-2, latest version.
1. Engine set to an exhaust carbon monoxide (CO) concentration of 0.38% to provide stoichiometric air/fuel ratio
operation at rated speed and ISO Standard Power at ignition timing determined by the Engine System Manager™
(ESM™) map based on load, speed and WKI™. This CO level is measured at the port located in the exhaust
manifold upstream of the turbocharger.
9. Reference Engine Ratings and Fuel Consumption Curve Sheet C-278-13, latest version.
10. Exhaust flow at nominal 29.54 inches Hg. atmospheric pressure:
Page 4 of 6
— METRIC —
HEAT REJECTION AND OPERATING DATA EN: 126029 Ref.
MODEL L7044GSI WITH ESM™ S
54° C AUX. WATER TEMPERATURE DATE: 1/02
6124-77
82° C JACKET WATER TEMPERATURE
HEAT REJECTION
— METRIC —
3
HEAT REJECTION AND OPERATING DATA
MODEL L7044GSI
BMEP ENGINE SPEED — RPM
(bar) 700 800 900 1000 1100 1200
11.95 — 168 179 191 205 216
10.86 155 166 176 187 200 210
HEAT TO 9.66 151 162 172 182 193 203
RADIATION
(kW) 8.28 146 156 166 175 185 195
6.90 139 149 158 167 176 185
5.52 131 140 150 158 167 174
11.95 — 669 795 929 1082 1232
10.86 508 614 726 847 980 1114
TOTAL ENERGY 9.66 454 549 649 754 868 984
IN EXHAUST
(kW) 8.28 391 473 558 647 742 839
6.90 326 395 467 542 619 699
5.52 261 318 377 438 501 566
11.95 — 566 586 605 627 644
10.86 543 562 581 599 618 635
EXHAUST TEMP 9.66 534 554 572 589 607 623
AFTER TURBINE
(± 30° C) 8.28 522 542 560 577 593 608
6.90 507 527 545 561 577 591
5.52 488 508 527 543 558 572
11.95 — 2562 2919 3283 3668 4043
10.86 2032 2363 2693 3028 3374 3715
INDUCTION 9.66 1838 2138 2439 2741 3048 3355
AIR FLOW
(nm3/h) 8.28 1612 1878 2144 2410 2678 2945
6.90 1382 1614 1846 2077 2309 2539
5.52 1148 1346 1543 1742 1940 2137
11.95 — 3523 4014 4515 5043 5557
10.86 2794 3249 3703 4162 4639 5108
EXHAUST 9.66 2527 2941 3353 3768 4192 4613
GAS FLOW
(kg/h) 8.28 2217 2583 2948 3314 3681 4050
6.90 1901 2219 2538 2856 3173 3492
5.52 1578 1850 2122 2395 2667 2938
Continued
Page 5 of 6
— METRIC —
HEAT REJECTION AND OPERATING DATA EN: 126029 Ref.
MODEL L7044GSI WITH ESM™ S
54° C AUX. WATER TEMPERATURE DATE: 1/02
6124-77
82° C JACKET WATER TEMPERATURE
HEAT REJECTION
— METRIC —
13
HEAT REJECTION AND OPERATING DATA
MODEL L7044GSI
BMEP ENGINE SPEED — RPM
(bar) 700 800 900 1000 1100 1200
11.95 — 4.7 4.7 4.8 4.8 4.9
10.86 4.8 4.9 5.0 5.0 5.1 5.2
NOX 9.66 5.0 5.1 5.2 5.3 5.4 5.5
EMISSION
(g/nm3 at 5% O2) 8.28 5.1 5.3 5.4 5.6 5.7 5.8
6.90 5.2 5.4 5.6 5.7 5.9 6.1
5.52 5.2 5.4 5.6 5.8 6.1 6.3
11.95 — 2.1 2.3 2.5 2.8 3.2
10.86 2.0 2.1 2.3 2.6 2.9 3.2
CO 9.66 2.1 2.2 2.4 2.6 2.9 3.2
EMISSION
3
(g/nm at 5% O2) 8.28 2.3 2.4 2.5 2.7 2.9 3.2
6.90 2.4 2.5 2.6 2.8 3.0 3.2
5.52 2.5 2.6 2.7 2.8 3.0 3.2
11.95 — 0.09 0.09 0.10 0.10 0.10
10.86 0.09 0.09 0.09 0.10 0.10 0.10
NMHC 9.66 0.09 0.10 0.10 0.10 0.10 0.10
EMISSION
(g/nm3 at 5% O2) 8.28 0.10 0.10 0.10 0.10 0.10 0.09
6.90 0.10 0.10 0.10 0.10 0.09 0.09
5.52 0.11 0.11 0.10 0.10 0.09 0.09
11.95 — 0.75 0.79 0.83 0.86 0.89
10.86 0.76 0.78 0.81 0.83 0.85 0.86
THC 9.66 0.81 0.82 0.83 0.83 0.83 0.83
EMISSION
(g/nm3 at 5% O2) 8.28 0.88 0.86 0.85 0.83 0.82 0.80
6.90 0.94 0.90 0.87 0.84 0.80 0.77
5.52 1.00 0.94 0.89 0.84 0.79 0.73
NOTES:
1. All data are based on ISO standard conditions of 100 kPa barometric pressure, 25° C ambient and induction air
temperature, 30% relative humidity (1 kPa water vapor pressure), 82° C engine jacket water outlet temperature, and
ignition timing determined by the Engine System Manager (ESM™) map, load, speed, and WKI™.
2. All data are average values at the standard conditions and will vary for individual engines and with operating and
ambient conditions and with changes to ignition timing or air/fuel ratio. An adequate reserve should be used for
cooling system or heat recovery calculations. See also Cooling System Guidelines, S-6699-7, latest version.
3. ISO Standard (continuous) power ratings conform to ISO 3046/1, latest version, with a mechanical efficiency of 90%
and auxiliary water temperature, Tcra, of 54.5° C limited to ± 5.5° C.
3
1. Fuel standard: dry natural gas, 35.38 MJ/m [25, V (0; 101.325)] saturated lower heating value (SLHV), with a
minimum Waukesha Knock Index of 91. Refer to S-7884-7, latest version, for the full fuel specification.
5. 8.0:1 compression ratio.
®
6. The maximum Series Four engine jacket water temperature is 82° C.
7. Total Exhaust Energy includes both recoverable and non-recoverable heat. For a procedure to calculate recoverable
heat refer to S-8117-2, latest version.
1. Engine set to an exhaust carbon monoxide (CO) concentration of 0.38% to provide stoichiometric air/fuel ratio
operation at rated speed and ISO Standard Power at ignition timing determined by the Engine System Manager™
(ESM™) map based on load, speed and WKI™. This CO level is measured at the port located in the exhaust
manifold upstream of the turbocharger.
9. Reference Engine Ratings and Fuel Consumption Curve Sheet C-278-13.
10. Exhaust flow at nominal 100 kPa atmospheric pressure:
— METRIC —
HEAT REJECTION AND OPERATING DATA EN: 126029 Ref.
MODEL L7044GSI WITH ESM™ S
54° C AUX. WATER TEMPERATURE DATE: 1/02
6124-77
82° C JACKET WATER TEMPERATURE
HEAT REJECTION
HEAT REJECTION TO JACKET WATER
3
FROM WATER-COOLED T18 TURBOCHARGER
85 – 130° F INTERCOOLER WATER
MODEL F3521GSI & L7042GSI
Page 1 of 1
EN: 100412
HEAT REJECTION AND JACKET WATER FROM Ref.
WATER-COOLED TURBOCHARGER DR: K.J.G. S
MODELS F3521GSI & 7042GSI
DATE: 6/78 6175-45
COOLING SYSTEMS 4
INDEX – MODEL L7042, L7044GSI
Reference Revision
Number Date Engine Model Remarks
Engines built before June 1, 1998
S5136-25 9/00 L7042G, GSI, GL Jacket Water Pump Performance – 10" Engine Drive Pulley
S5136-34 4/01 L7044GSI Jacket Water Pump Performance – 10" Drive Pulley
S5136-26 9/00 L7042G, GSI, GL Jacket Water Pump Performance – 13" Engine Drive Pulley
S6370-6 8/81 L7042G Auxiliary Water Pump Performance – 10" Drive Pulley
S6370-7 8/81 L7042G Auxiliary Water Pump Performance – 13" Drive Pulley
S6543-7 8/80 L7042GSI Auxiliary Water Pump Performance – 13" Drive Pulley. Special for
Gas Compressor Service (For Accessory Codes 4352A & 1109A)
S6543-8 8/80 L7042GSI Auxiliary Water Pump Performance – 13" Drive Pulley. Special for
Gas Compressor Service (For Accessory Codes 4352B & 1109A)
S6543-10 9/80 L7042G Auxiliary Water Pump Performance – 10" Drive Pulley. For Torque
Converter Cooling
S6543-13 4/81 L7042GSI Auxiliary Water Pump Performance – 10" Drive Pulley
S6543-17 11/82 L7042GSI Auxiliary Water Pump Performance – 13" Drive Pulley
S6543-20 3/85 L7042G Auxiliary Water Pump Performance. Special For Gas Compressor
Service (For Accessory Code 4352A)
S6543-21 7/90 L7042GSI Auxiliary Water Pump Performance. Special For Gas Compressor
Service (For Accessory Code 4352B)
S6543-27 3/92 L7042GL Auxiliary Water Pump Performance with Intercooler Turbulators –
10" Drive Pulley
S5136-34 4/01 L7044GSI Jacket Water Pump Performance – 10" Drive Pulley
S6543-28 3/92 L7042GL Auxiliary Water Pump Performance with Intercooler Turbulators –
10" Drive Pulley. Special for Gas Compressor Service. (For
Accessory Code 4352B).
S6543-27 3/92 L7042GL Auxiliary Water Pump Performance with Intercooler Turbulators –
10" Drive Pulley
S6370-9 3/98 L7042G Auxiliary Water Pump Performance – 10" Drive Pulley
4/02 Page 1 of 2
COOLING SYSTEMS 4
INDEX – MODEL L7042, L7044GSI
Reference Revision
Number Date Engine Model Remarks
Engines built after June 1, 1998 (continued)
S6370-11 3/98 L7042G Auxiliary Water Pump Performance – 13" Drive Pulley
S6543-30 3/98 L7042G Auxiliary Water Pump Performance – 13" Drive Pulley. Special for
Gas Compressor Service (For Accessory Codes 4352A & 1109A)
S6543-31 7/99 L7042GSI Auxiliary Water Pump Performance – 13" Drive Pulley. Special for
Gas Compressor Service (For Accessory Codes 4352B & 1109A)
S6543-32 4/01 L7042GSI Auxiliary Water Pump Performance – 10" Drive Pulley
L7044GSI
S6543-33 3/98 L7042GSI Auxiliary Water Pump Performance – 13" Drive Pulley
S6543-35 3/98 L7042G Auxiliary Water Pump Performance –10" Drive Pulley. Special for
Gas Compressor Service. (For Accessory Code 4352A)
S6543-36 7/99 L7042GSI Auxiliary Water Pump Performance –10" Drive Pulley. Special for
L7044GSI Gas Compressor Service. (For Accessory Code 4352B).
S6543-37 4/02 L7042GL Auxiliary Water Pump Performance with Intercooler Turbulators –
10" Drive Pulley. Special for Gas Compressor Service.
S6543-38 4/02 L7042GL Auxiliary Water Pump Performance with Intercooler Turbulators –
10" Drive Pulley. Special for Gas Compressor Service. (For
Accessory Code 4352B).
4/02 Page 2 of 2
COOLING SYSTEMS
L7042G
4
AUXILIARY WATER PUMP PERFORMANCE
OIL COOLER CIRCUIT
WATER PUMP #208540-D; 10 INCH DRIVE PULLEY; 2.6:1 DRIVE RATIO
OIL COOLER #211859
50.0
MAX. SYSTEM
40.0 RESTRICTION
1100 RPM
MAX. FLOW
900 RPM
700 RPM
10.0
600 RPM
ENGINE
RESTRICTION
0.0
0 20 40 60 80 100 120 140 160
FLOW (gpm)
NOTES: 1. Pump flows are based on a positive suction pressure at the pump inlet.
2. PSI x 68.95 = mBar. PSI x 6.895 = kPa.
3. GPM x 3.785 = l/min.
4. Maximum auxiliary circuit flow = 127 GPM.
Page 1 of 1
40
M A X. SYSTEM
1000 ENGINE RPM RESTRICTION
TOTAL HEAD - RESTRICTION (psi)
M A X. FLOW
30 900 R P M
800 R P M
20
700 R P M
600 R P M
10
500 R P M
400 R P M ENGINE
RESTRICTION
0
0 20 40 60 80 100 120 140 160
FLOW (gpm)
NOTES: 1. Pump flows are based on a positive suction pressure at the pump inlet.
2. PSI x 68.95 = mBar. PSI x 6.895 = kPa.
3. GPM x 3.785 = l/min.
4. Maximum auxiliary circuit flow = 127 GPM.
Page 1 of 1
80.0
TOTAL HEAD - RESTRICTION (psi)
900 RPM
800 RPM
40.0
700 RPM
600 RPM
20.0
ENGINE
RESTRICTION
0.0
0 20 40 60 80 100 120
FLOW (gpm)
NOTES: 1. Pump flows are based on a positive suction pressure at the pump inlet.
2. PSI x 68.95 = mBar. PSI x 6.895 = kPa.
3. GPM x 3.785 = l/min.
4. Maximum auxiliary circuit flow = 127 GPM.
5. For use with accessory Code 4352A when used with Code 1109A.
Page 1 of 1
80.0
MAX. SYSTEM
RESTRICTION
MAX. FLOW
TOTAL HEAD - RESTRICTION (psi)
60.0
1000 RPM
40.0
800 RPM
ENGINE
RESTRICTION
0.0
0 20 40 60 80 100 120 140
FLOW (gpm)
NOTES: 1. Pump flows are based on a positive suction pressure at the pump inlet.
2. PSI x 68.95 = mBar. PSI x 6.895 = kPa.
3. GPM x 3.785 = l/min.
4. Maximum auxiliary circuit flow = 127 GPM.
5. For use with accessory code 4352A.
Page 1 of 1
SAFETY INTRODUCTION
The following safety precautions are published for your
information. Waukesha Engine, Dresser, Inc., does This symbol identifies information about immedi-
not, by the publication of these precautions, imply or in ate hazards. Disregarding this information will
any way represent that they are the sum of all dangers result in SEVERE PERSONAL INJURY OR DEATH.
present near industrial engines or fuel rating test units.
If you are installing, operating, or servicing a Wauke- SAFETY TAGS AND DECALS
sha product, it is your responsibility to ensure full com-
pliance with all applicable safety codes and
requirements. All requirements of the Federal Occupa-
tional Safety and Health Act must be met when To avoid severe personal injury or death, all warn-
Waukesha products are operated in areas that are ing tags and decals must be visible and legible to
under the jurisdiction of the United States of America. the operator while the equipment is operating.
Waukesha products operated in other countries must
be installed, operated, and serviced in compliance EQUIPMENT REPAIR AND SERVICE
with any and all applicable safety requirements of that
country. Proper maintenance, service and repair are important
to the safe, reliable operation of the unit and related
For details on safety rules and regulations in the equipment. Do not use any procedure not recom-
United States, contact your local office of the Occupa- mended in the Waukesha Engine manuals for this
tional Safety and Health Administration (OSHA). equipment.
The words "danger", "warning", "caution", and "note"
are used throughout this manual to highlight important
information. Be certain that the meanings of these
alerts are known to all who work on or near the equip- To prevent severe personal injury or death, always
ment. stop the unit before cleaning, servicing, or repair-
ing the unit or any driven equipment.
NOTE: This symbol identifies information which is
NECESSARY TO THE PROPER OPERATION, Place all controls in the OFF position and disconnect
MAINTENANCE OR REPAIR OF THE EQUIPMENT: or lock out starters to prevent accidental restarting. If
possible, lock all controls in the OFF position and take
FORM 6300
SAFETY
CHEMICALS
GENERAL
To avoid severe personal injury or death, ensure
that all tools and other objects are removed from
the unit and any driven equipment before restart-
ing the unit. Always read and comply with safety labels on all
containers. Do not remove or deface the container
labels. lmproper handling or misuse could result
in severe personal injury or death.
Allow the engine to cool to room temperature CLEANING SOLVENTS
before cleaning, servicing or repairing the unit.
Hot components or fluids can cause severe per-
sonal injury or death.
Comply with the solvent manufacturer's recom-
Some engine components and fluids are extremely hot mendations for proper use and handling of sol-
even after the engine has been shut down. Allow suffi- vents. improper handling or misuse could result in
cient time for all engine components and fluids to cool severe personal injury or death. Do not use
to room temperature before anem~ting any service line, paint thinners or other highly volatile fluids
procedure. for cleaning.
a WARNING
Comply with the acid manufacturer's recommen-
I
Comply with the liquid nitrogenIDry Ice manufac-
dations for proper use and handling of acids. turer's recommendations for proper use and han-
lmproper handling or misuse could result i n dling of liquid nitrogen1Dry Ice. lmproper handling
severe personal injury or death. or use could result i n severe personal injury or
death.
BATTERIES
COMPONENTS
I a WARNING
Comply with the battery manufacturer's recom-
HEATED OR FROZEN
a WARNING
Always wear OSHA approved body, sight, hearing
sonal injury or death.
INTERFERENCE FIT
and respiratory system protection. Never wear
loose clothing, jewelry, or long hair around an
engine. The use of improper attire or failure to use
Always wear protective equipment when installing
protective equipment may result i n severe per-
or removing components with an interference fit.
sonal injury or death.
Installation or removal of interference components
may cause flying debris. Failure to use protective
equipment may result in severe personal injury or
death.
Always wear protective clothing when venting, Do not inhale engine exhaust gases. Exhaust
flushing or blowing down the cooling system. gases are highly toxic and could cause severe per-
Operational coolant temperatures can range from sonal injury or death.
-
180' 250' F (82O- 121' C). Contact with hot cool-
ant or coolant vapor can cause severe personal h-~sureadmust systems are leak free and that all
injury or death. exhaust gases are properly vented.
a WARNING I aWARNING
Ensure that there are no leaks i n the fuel supply.
Disconnect all electrical power supplies before Engine fuels are highly combustible and can ignite
making any connections or servicing any part of Or explode causing severe personal injury or
the electrical system. Electrical shock can cause death-
severe personal injury or death.
GASEOUS
IGNITION
I a WARNING
Do not inhale gaseous fuels. Some components of
I
Avoid contact with ignition units and wiring. Igni- fuel gas are odorless, tasteless, and highly toxic.
tion system components can store electrical Inhalation of gaseous fuels can cause severe per-
energy and i f contacted can cause electrical sonal or death.
shock. Electrical shock can cause severe personal
injury or death.
I a WARNING
Shut off the fuel supply if a gaseous engine has
I
been cranked excessively without starting. Crank
Properly discharge any electrical component that the engine to Purge the cylinders and exhaust SYs-
has the capability to store electrical energy before accumulated unburned fuel- Failure t o
connecting or servicing that component. Electrical Purge accumulated unburned fuel in the engine
shock can cause severe personal injury or death. and exhaust system can result i n an explosion
resulting in severe personal injury or death.
I a WARNING
Use protective equipment when working with liq-
1 It is the responsibility of the engine owner to spec-
ify and provide guarding. Refer to OSHA standards
on "machine guarding" for details on safety rules
uid fuels and related components. Liquid fuel can
and regulations concerning guarding techniques.
be absorbed into the body resulting in severe per-
sonal injury or death. SPRINGS
INTOXICANTS AND NARCOTICS
PNEUMATIC WELDING
a WARNING
Do not install, set up, maintain, or operate any
GENERAL
WEIGHT ON ENGINE
I I aCAUTION I
Ensure that the welder
I a WARNING
Always consider the weight of the item being lifted
is properly grounded
before attempting to weld on or near an engine.
Failure to properly ground the welder could result
and use only properly rated lifting equipment and i n severe engine damage.
approved lifting methods. Failure to take adequate
precautions can result i n serious personal injury
or death.
IaCAUTION 1 Disconnect the igni-
tion harness and elec-
tronically controlled devices before welding with
an electric arc welder on or near an engine. Failure
to disconnect the harnesses and electronically
controlled devices could result in severe engine
Never walk or stand under an engine or compo- damage.
nent while it i s suspended. Failure to adhere t o
this could result i n severe personal injury or
death.
I a WARNING
To avoid severe personal injury or death, follow
approved rigging procedures to ensure that no
undue strain is placed on the lifting eyes and
hoisting chainstcable sling when the engine is
raised. Use the proper spreader beam to avoid
Figure 1.lo-1 Typical Lifting Shackle damage to the engine.
-
Figure 1.lo-2 Correct Method Of Lifting Engine 6 Cylinder - Side Views
Figure 1.10-3 Correct Method Of Lifting Engine - Figure 1.10-4 Correct Method Of Lifting Engine -
6 Cylinder - Rear View 12 Cylinder - Rear View
Refer to Figure 1.15-4 through Figure 1.15-9 for BASIC ENGINE DESCRIPTION
engine identification views.
The crankcase is gray cast iron. The main bearings
FEATURES AND BENEFITS are replaceable. The counterweighted crankshaft is
This publication provides procedures to maintain the made of forged steel and has seven main bearing jour-
unique aspects of VHP Series Four engines. VHP nals. Each engine is equipped with a viscous vibration
Series Four engines offer increased power while using damper.
components that have proven reliability. Some of the There are interchangeable cylinder heads, each with
unique aspects of VHP Series Four engines are: two intake and two exhaust valves. Both exhaust and
waukesham Engine System Manager (ESM~),a intake valve seats are replaceable. Roller type valve
total engine management system designed to opti- lifters and hydraulic push rods are standard. The cam-
mize engine performance and maximize uptime. shaft is heavy duty for long life. The connecting rods
are made from drop forged steel and are rifle-drilled.
Completely new robust cylinder head assembly The cylinders have replaceable wet cylinder liners.
offering improved reliability and durability.
The pistons use a full floating piston pin. The flywheel CRANKCASE
is machined and has a ring gear attached.
The crankcase is a gray iron casting. For assembled
The exhaust driven turbocharger compresses intake rigidity, the main bearing caps are attached to the
air. This compressed air is cooled in the intercooler crankcase with both vertical studs and lateral tie bolts.
and then enters the carburetor and mixes with pressur- This feature makes the crankcase assembly more rigid
ized fuel. The turbocharged airlfuel mixture enhances and lengthens the life of the main bearings.
the engine's power and performance.
CRANKSHAFT
The pressurized lubricating system consists of an oil
The underslung crankshaft is made of a low alloy, high
sump, pump, piping network, full flow centrifugal
tensile strength forged steel. The crankshaft is counter
bypass filters, strainers, and cooler. The full flow oil fil-
weighted to achieve a near perfect balance of rotating
ter is externally mounted, separate from the engine.
forces.
The system has water pumps' The main
A viscous vibration damper is installed on the forward
water pump circulates the jacket water of the engine.
end of the crankshaft along with a gear that drives the
The auxiliary water pump circulates water for the oil
front end gear train and accessories. The flywheel,
cooler and the intercooler. The engine jacket, cylinder
with ring gear, is installed on the rear end of the crank-
heads, exhaust manifold, oil, and charged intake air
shaft and is machined to accept several options.
are all water-cooled.
INTAKE MANIFOLD(S)
COMPONENT DESCRIPTIONS
The airlfuel mixture passes through the intake mani-
CYLINDER HEAD AND VALVES fold(~),where it is distributed to the individual cylin-
The PIN 205002 series cylinder heads are standard ders.
on VHP Series Four engines. Each cylinder head has EXHAUST MANIFOLD(S), .
four valves, two intake and two exhaust (see
Figure 1.15-2).The new cylinder heads offer the fol- The exhaust port of each cylinder head is connected
lowing features: to one water-cooled segment of the exhaust manifold.
The water-cooled exhaust manifold(s) assembly is
* Improved cooling composed of individual segments (one for each cylin-
Superior valve life der head). Each exhaust manifold segment is joined to
the next by a manifold pilot.
Increased overhaul interval
CONNECTING RODS
Rigid valve bridge assembly
The connecting rods are machined to ensure maxi-
mum strength, precise balance and consistent weight
between cylinders. They are made of a low alloy, high
tensile strength forged steel, and are rifle-drilled to
supply pressurized lube oil from the crankshaft to the
piston pin bushings. The split line of the rod and cap
allows for removal of the connecting rod assembly up
through the cylinder liner bore.
The serrated split line ensures precise alignment and
transfer of loads. The caps and rods are match num-
bered to ensure that each cap is mated with the cor-
rect blade during reassembly.
The connecting rod cap fasteners, like all critical fas-
teners used on the engine, are torqued to specific val-
ues.
FORM 6300
GENERAL INFORMATION
of the parts results from the negative air pressure at automatic engine shutdown if potentially harmful tem-
the air measuring valves, which is communicated to peratures, pressure, or overspeed conditions exist.
the back of each diaphragm through two small holes.
SERIAL NUMBERS AND ENGINE NAMEPLATE
ENGINE SAFETY SHUTDOWNS
For ease in identification, the engine model, serial, and
specification numbers are stamped on a nameplate
(see Figure 1.15-3).
Switches for alarms and automatic engine shut- The engine nameplate provides the following informa-
down'must be supplied by the customer. The sen- tion: model number, serial number, date inspected,
sors provided are for measuring and monitoring special application approval number (power approval),
temperatures and WILL NOT shut the engine down valve clearance, compression ratio, firing order, gov-
if potentially harmful temperatures are reached. erned speed, elevation limit at which an engine derate
Disregarding this information could result in takes place, primary and secondary fuel ratings which
severe personal injury or death. show the fuel, minimum WKI@ value, ignition timing,
rated output in horsepower and kilowatts, and overload
Engine instrument and safety shutdowns are not sup- rating in horsepower and kilowatts. This nameplate is
plied as standard equipment, due to the wide variety of located on the lower left side of the crankcase, adja-
customer needs. Instruments and safety shutdowns cent to the front of the engine.
are the customer's responsibility. Oil pressure, intake
manifold pressure, water temperature, exhaust tem- When requesting information, you will need to refer-
perature, main bearing, overspeed, and oil tempera- ence both the engine model and serial numbers. If the
ture are the minimum required for engine protection. nameplate is defaced or detached, the serial number
Switches should be wired to an alarm to warn of high may be obtained directly from the crankcase. To locate
temperatures and low pressure as well as provide for it, look directly above the nameplate location, on the
cylinder head deck of the crankcase.
[ aCAUTION ISLHV). Refer to Gaseous W Specification Sheet S7884-7 and Lube Oil Rec-
Alarm and shutdown values are based on dry natural gas (900 Btulcu. ft.
ommendations Service Bulletin 12-18802 or latest revisions for typical changes in operation temperatures
for jacket water and oil when running on landfill or digester gas fuels. Disregarding this information could
result in product damage.
Soeed ranoe
I
I
I I
I
Low idle 1 700 rpm
Lubrication System
Sump capacity, including 72 gallons (273 litres) 90 gallons (341 litres) 90 gallons (341 litres) 90 gallons (341 litres)
filter and cooler
Oil pan (Low level mark) 35 gallons (132.5 litres) 35 gallons (132.5 liters) 35 gallons (132.5 liters) 35 gallons (132.5 litres)
Oil pan (High level mark) 45 gallons (170.3 litres) 45 gallons (170.3 liters)) 45 gallons (170.3 liters)) 45 gallons (170.3 litres)
Oil filter capacity 20 gallons (75.7 litres) 36 gallons (136.3 litres) 36 gallons (136.3 litres) 36 gallons (136.3 litres)
(7.25 in. x 38 in.) (7.25 in. x 52 in.) (7.25 in. x 52 in.) (7.25 in. x 52 in.)
Oil cooler capacity 4 gallons (15 litres) 5 gallons (19 litres) 5 gallons (19 litres) 5 gallons (19 litres)
15 micron at 15 micron at 15 micron at 15 micron at
Main filter 90% efficiency 90% efficiency 90% efficiency 90% efficiency
15 micron at 15 micron at 15 micron at 15 micron at
Micro-fiberglassfilter 90% efficiency 90% efficiency 90% efficiency 90% efficiency
Strainer screen 74 micron 74 micron 74 micron 74 micron
AirlGas Starter
I 205" F (96" C) 205" F (96" C)
I
I Air starter oil reservoir
lubricator
1 2 0 pint (0.9 litre) ( 2.0 pint (0.9 litre) 1 2.0 pint (0.9 litre) 1 2.0 pint (0.9 litre) I
Pneumatic prelube motor, 0,5 pint (0.2 litre) 0.5 pint (0.2 litre) 0.5 pint (0.2 litre) 0.5 pint (0.2 litre)
inline lubricator
I Cooling System (Jacket Water And Auxiliary System) I
IStandard air cooler inlet
temperature I
FORM 6300 1.15-11
GENERAL INFORMATION
Intercooler water capacity 2.75 gallons (10.4 litres) 5.50 gallons (21 litres) 5.50 gallons (21 litres) 5.50 gallons (21 litres)
Oil cooler water capacity 5 gallons (19 litres) 6.5 gallons (24.6 litres) 6.5 gallons (24.6 litres) 6.5 gallons (24.6 litres)
Exhaust System
Maximum permissible backpressure @ rated load and See Table 4.35-1, "MaximumAllowable Exhaust Backpressure"
speed
Crankcase Breather System
Crankcase vacuum I -1 [negative] to 0 in. (-25.4 [negative] to 0 mm) H20
Jacket Water Outlet Temperature
Normal: 180" F (82" C) for continuous and intermittent rating
Standard cooling system Alarm: ESM monitored
Shutdown: ESM monitored
lntake Manifold Temperature
Normal: Up to 10" F (-12" C) above design intercooler water inlet temperature
GSI & LT engines Alarm: ESM monitored
Shutdown: ESM monitored
lntake Manifold Pressure
Contact Waukesha Engine Sales Engineering Department
(See Fuel System Adjustments - GSI Engines and Fuel System Adjustments - LT Engines)
Fuel System
Natural gas pressure at regulator %SIn models 24 - 50 psi (165 - 345 kPa)
Natural gas pressure at regulator "LT models 35 - 50 psi (241 - 345 kPa)
Natural gas pressure at regulator "Low Fuel Pressure"
6 in. (152 mm)
models
Air Induction System
Maximum permissible restriction @ rated load and speed 15 in. (381 mm) of HO
,
Required filtering efficiency (coarse dust test per SAE726C) 99.7%
Starting System
Electric starting 24 volts DC
Air starting pressure 150 psi (1034 kPa) (MAX) Pressure is based on 50" F (10" C) oil temperature
starter SAE 10W oil at 32" F (0" C) and above. Use No. 2 Diesel Oil when ambient temperatures fall below 32" F (0° C)
lubr~cant
lnline lubricator lubricant SAE 10W oil at 32" F (0" C) and above. Use No. 2 Diesel Oil when ambient temperatures fall below 32" F (Oo C)
Miscellaneous
Spark plug gap See Table 1.15-3 13/16 Inch Reach Spark Plugs For PIN 205002 Series Cylinder Heads
Engine timing Refer To Engine Nameplate
Main bearing tempera- 250" F (121" C)
ture shut down
Overspeed shutdown 10% over governed speed/ESM monitored
Valve Train
Valve clearance - hydrau-
lic lifters See Table 4.55-1 Valve Setting Order 6 And 12 Cylinder VHP Series Four Engines
NOTE: Total capacity of oil system. Fill oil pan, filter, cooler, etc., run engine, then add oil as required to bring oil level in oil pan back to high
mark. Record total amount for future reference.
1 aCAUTION 1
With 'IN
13/16 inch reach spark
plugs must be used
*05002 series cylinder heads. Failure
SERVICE TOOLS LIST
See Form M-398B Waukesha Special Tools Catalog
for a complete listing of tools available for your engine.
use the proper reach 'park plugs will cause dam- To order these tools, contact your local Waukesha
age to equipment. Engine Distributor. In some instinces, substitute items
may be used but only if specifically approved by
Table 1.15-3 13/16 Inch Reach Spark Plugs For Waukesha.
PIN 205002 Series Cylinder Heads
ENGINE
0.015 in.
609992
(0.381 mm)
0.011 in.
69919 (0.28mm)
I CAUTION 1
Detonation i s NOT
allowed at any time dur-
ing engine operation, regardless of the specified
timing. If detonation occurs at the specified timing,
a timing adjustment must be made to retard the
ignition timing until NO audible detonation exists.
Engine damage may result if detonation occurs.
- --
GENERAL INFORMATION
TORQUE VALUES
Table 1 .I 5-4 lists the standard torque values required for VHP Series Four engines.
na CAUTION
13/16inch reach spark plugs must be used with PIN 205002
series cylinder heads. Failure to use the proper reach spark
plugs will cause damage to equipment.
32 - 38 43 - 52
engine speed with desired engine speed and GOVERNOR INPUTS AND CALIBRATIONS
responds by adjusting the throttle position of the
engine. An electric actuator is used to convert the The actual inputs required for the ECU depend on the
electrical signal from the ECU into motion to change governing control desired.
the amount of air and fuel delivered to the engine Required external inputs are programmed to the ECU
through the throttle. from a customer's local control panel or PLC. These
inputs include remote speedlload setting, remote
speed setting enable, rated speedlidle speed, and an
auxiliary rpm input for load control. Using these cus-
tomer inputs, the ESM speed governing system is set
to run in either speed control mode or load control
mode.
Governing control is further customized for location
requirements through user-selectable parameters
describing the driven load. Custom control adjust-
ments to the ESM speed governing system are made
with ESP.
The rotating moment of inertia of the driven equipment
must be programmed in ESP. Further gain calibrations
may be made through ESP. The correct governor gain
-- depends on the rotating moment of inertia of the
Figure 2.00-3 Magnetic Pickup engine and driven equipment. By inputting the rotating
moment of inertia of the driven equipment, the gain is
SPEED GOVERNING MODES preset correctly aiding rapid startup of the engine. The
NOTE: Refer to the Waukesha ESM Operation & rotating moment of inertia of the engine and the driven
Maintenance Manual, Form 6295, Second Edition (or equipment are used in predicting throttle position.
current edition) for more information on ESM's speed The ESM speed governing system also allows the
governing feature and programming steps. customer to calibrate the system to use other govern-
Using inputs from the user's panel or PLC, the ESM ing control features including feedforward control (load
system is set to run in one of two modes: speed con- coming control) and synchronizer control (alternate
trol or load control. dynamics).
Speed Control FEEDFORWARD CONTROL (LOAD
Speed control mode allows the engine operator to COMING CONTROL)
choose a setpoint speed, and the governor will run at Feedforward control (load coming) is a proactive rather
that speed. The control can be either isochronous or than a reactive feature that allows the engine to accept
droop. larger load additions than would normally be allowed
lsochronous control means that the governor will without this feature. Feedforward works by immedi-
maintain a constant engine rpm regardless of load ately opening the throttle by a user-calibrated amount
(within the capacity of the engine). when a digital input goes high (8.6 - 36 volts). One
example of where this feature will help the perfor-
The governor can also operate in a droop mode, which mance of the engine is when starting a large electric
means that the governor will allow the engine to slow motor that is operating in island electric power genera-
down slightly under load. Droop is used to simulate the tion mode. Either at the moment the electric motor is
situation with mechanical governor where the engine started or a second or two before, the feedforward dig-
will run at a slightly higher rpm than the setpoint when ital input is raised high, and the ESM system opens
no load is placed on the engine. This feature can be the throttle to produce more power. Unlike standard
used to synchronize the output of multiple generator governing, the ESM system does not have to wait for
sets driving an isolated electrical grid. the engine speed to drop before opening the throttle.
Load Control
Load control mode is used when a generator set is
synchronized to a grid. In this case the grid controls
speed, and the ESM speed governing system controls
the engine load using signals from an external device.
ESM SPEED GOVERNING SYSTEM DESCRIPTION
LT ENGINES
On LT engines, higher compression ratio pistons
cause the fuel mixture to be burned in a highly efficient
manner, resulting in lower combustion emissions. LT
engines may be identified by the engine nameplate.
LOW FUEL PRESSURE SYSTEM ENGINES
Low fuel pressure "draw-thru" engines are capable of
using low pressure fuel by having the turbocharger
draw the airffuel mixture from the carburetor that is
mounted above the air cleaner housing. Characteris-
tics that are unique to these engines are listed below:
Main fuel gas pressure regulator(s) mounted off
engine (see Figure 2.05-3)
Carburetor(s) mounted in plenum(s) on top of the air
filter housing(s) (see Figure 2.05-4)
Unique piping for the system delivers the airlfuel
mixture to the intake manifold
The ESM system controls spark plug timing with a dig- To prevent misleading vibration signals that may
ital capacitive discharge ignition system. The ignition exist at light loads from being incorrectly construed
system uses the capacitor discharge principle that pro- as knock, the ESM system does not monitor for det-
vides a high variable energy, precision-timed spark for onation at loads less than 50% of manufacturer's
maximum engine performance. The ESM ignition sys- rated load. This prevention also avoids unnecessary
tem provides accurate and reliable ignition timing shutdowns while the engine is warming up or run-
resulting in optimum engine operation. ning at low loads.
The ESM ignition system uses the ECU as its central If detonation is detected and the engine is shut
processor or "brain." Two magnetic pickups are used to down, the ECU records in the fault log that detona-
input information to the ECU. One pickup reads a tion occurred even if a PC was not connected.
magnet on the camshaft and the other senses refer- When a PC is connected to the ECU and the Elec-
ence holes in the flywheel. tronic Service Program (ESP) software is active, the
A separate module, the Ignition Power Module with ESP software displays when detonation is occur-
Diagnostic capability (IPM-D), is needed to fire the ring. If the engine is shut down due to detonation,
spark plug at the required voltage (see Figure 2.1 0-5). the shutdown and number of detonating cylinders
The IPM-D is CSA approved for Class I, Division 2, are recorded in the fault log. ESP provides a simple
Group D (T4 temperature rating), hazardous location user interface for viewing engine status and trouble-
requirements. shooting information during engine detonation.
lntake Manifold(s)
Air Filtration System - Air Cleaner(s)
Intercooler(s)
CARBURETOR(S) AND INTAKE MANIFOLD(S)
Both the carburetor(s) and air intake manifold(s) are
mounted to the outside of the cylinder bank(s). The
carburetor produces a combustible mixture by auto-
Figure 2.15-2 12 Cylinder Carburetor And lntake
matically mixing air and fuel in the proper proportions Manifold - Right Bank
(see Figure 2.15-1 and Figure 2.15-2).
The intake manifold(s) connects the intake ports of the
cylinders and equally distributes the aidfuel mixture to Six cylinder engines have one turbocharger (see
each. Figure 2.15-3); 12 cylinder engines have two turbo-
chargers, one for each bank (see Figure 2.1 5-4).
- Oil Cooler
- Auxiliary Water Temperature Control Valve
- Auxiliary Water Heat Transfer Device Figure 2.25-1 Water Outlet Elbow
(Customer-Supplied)
JACKET WATER HEADERJJACKET WATER
The cooling water passageways in both the crankcase
and cylinder heads comprise the jacket water system.
The jacket water header is integrally cast within the
crankcase. Cooling water circulates around the cylin-
der liners inside the cylinder block. Water flows up
through the water passage openings in the deck of
each cylinder head, flows around the valve seats and
exhaust guides, and up to the water-cooled exhaust
manifold(s).
JACKET WATER PUMP The thermostats start to open as the engine warms up
to its normal operating temperature. A portion of the
A belt driven water pump is mounted on the front of the
coolant is diverted to the remote heat transfer device,
engine (see Figure 2.25-2 and Figure 2.25-3). Cooling
which absorbs the heat and directs the coolant back to
water exiting the pump is piped to the jacket water
the jacket water pump. The coolant supply from the
headers.
heat transfer device mixes with that portion of the cool-
WATER MANIFOLD ant which continues to flow down the bypass tube(s) to
provide a blend that is within the normal range.
The water manifold (see Figure2.25-2 and
Figure 2.25-3) receives the cooling water flowing out AUXILIARY WATER PUMP
of each segment of the exhaust manifold and routes it
All auxiliary water pumps are belt driven. The 6 cylin-
to the cluster thermostat housing.
der auxiliary water pump is located on the lower right
REMOTE HEAT TRANSFER DEVICE front of the engine (see Figure 2.25-4), while 12 cylin-
der engine auxiliary water pumps are located on the
The remote heat transfer device may be a radiator,
lower left front side (see Figure 2.25-3).
cooling fan, cooling tower, heat exchanger, or some
other device.
AUXILIARY WATER REMOTE HEAT lRANSFER
DEVICE
The auxiliary, or secondary, heat transfer device may
be a radiator, cooling fan, cooling tower, heat
exchanger, or some other device. The heat transfer
device provides cooling for the auxiliary system cool-
ant.
OIL COOLER
The coolant flows from the intercooler(s) to the oil
cooler. The oil cooler is a tube and baffle type assem-
bly (see Figure 2.25-6 and Figure 2.25-7). While the
coolant flows through a bundle of tubes in the oil
cooler, the lube oil circulates around them. Heat from
the oil passes through the tubes to the coolant, which
carries it to a heat.transfer device for dissipation. From
the heat transfer device, the coolant passes back to
the auxiliary water pump to repeat the circuit.
LUBRICATION SYSTEM DESCRIPTION The flow of oil passes from the main bearing journals
into the T-drilled crankshaft and then up through drilled
The lubrication system consists of the following com- passages in the connecting rods. After lubricating the
ponents: connecting rod bearing, piston pin bushing, and piston
Oil Pan And Pickup Screen pin, the pressurized oil passes through an opening in
the top of the rod. The oil spray exiting the rod cools
Oil Pump the underside of the piston crown and drains back to
Oil Cooler the oil pan.
Temperature Control Valve Oil supply tubes tapped off of the internal oil passage
leading to the front main bearing, supply a continuous
Pressure Regulating Valve spray of oil to the gear train.
Full-Flow Oil Filter Internal passages in the crankcase casting also direct
Filter Relief Valve(s) the flow of pressurized oil to the camshaft bearing sad-
dles to provide lubrication of the main camshaft bear-
Oil Strainer ings (bushings). Oil flows through holes in the cam
External Piping (Customer-Supplied) bearing caps and down passageways in the valve lifter
housing. Oil lubricates the roller followers and cam
PRELUBE SYSTEM COMPONENTS lobes, after which it drops back to the oil pan.
Prelube PumpIMotor An external oil supply line off the main oil header car-
Prelube Operation ries oil to a separate external rocker arm oil header.
Supply tubes from the rocker arm oil header direct the
Pilot-Operated Prelube Valve flow of oil to the rocker arm assemblies and valves.
lnline Lubricator Excess oil drains down a cored passage in the cylinder
Oil Pressure Gauge head and runs down the outside of the pushrod tubes
to a drainage passage in the valve lifter guides. The
INTERNAL OIL CONTROL passage directs the flow of oil to a drainage hole in the
The main oil header is an integral part of the crank- valve lifter housing, where it flows back to the oil pan
case casting (see Figure 2.30-1). lnternal passages in via the camshaft recess.
the crankcase direct the flow of pressurized oil to the The flow of pressurized oil through the fixed valve lifter
main bearings via drillings in the main bearing sad- screws of the rocker arm assemblies also supplies oil
dles. to the lifters, where the excess oil joins the flow from
the cored passage in the cylinder head.
The flow of pressurized oil through the external system
is depicted in Figure 2.30-2.
LUBRICATION SYSTEM DESCRIPTION
,TURBOCHARGER
2.30-2
FORM 6300
LUBRICATION SYSTEM DESCRIPTION
I I
Figure 2.30-2 External Oil System Schematic
%
G3 @,
OIL PAN AND PICKUP
OIL COOLER
The oil cooler (see Figure 2.30-5 and Figure 2.30-6) is
a tube and baffle type assembly. The auxiliary water
pump circulates coolant through the oil cooler tube
bundle. The oil circulates around the tube bundle. Heat
from the oil passes through the tubes to the coolant,
which then carries it to a heat transfer device for dissi-
pation.
OIL PUMP
The gear-driven oil pump is externally mounted. On
VHP Series Four engines the oil pump is located on
the front of the engine, below the crankshaft (see
Figure 2.30-4).
PRELUBE OPERATION
PRELUBE VALVE
The prelube valve opens to admit air from a branch of
the main airlgas supply line, which turns the prelube
pump air motor to activate the prelube pump (see
If the oil level should drop for any reason, the float will
also drop, opening the float valve and allowing make-
up oil to be added to the crankcase. A contact is avail-
able for a customer-supplied low oil warning or shut-
down system.
- - -
---
1 LUBRICATION SYSTEM DESCRIPTION
SECTION 2.35
EXHAUST SYSTEM DESCRIPTION
I a WARNING
Do not inhale engine exhaust gases. Do not open
I
exhaust system while the engine i s running.
Exhaust gases are highly toxic and could cause
severe personal injury or death.
I a WARNING
Removal of exhaust heat shields will result i n
I
reduced service life on engine components. Disre-
garding this information could result i n product
damage and/or personal injury.
Figure 2.35-1 Turbocharger, Exhaust Manifold And
The exhaust system consists of the following compo- -
Wastegate 6 Cylinder
nents (see Figure 2.35-1):
EXHAUST MANIFOLD(S)
Exhaust Manifold(s)
Each water-cooled exhaust manifold assembly is com-
posed of individual segments (see Figure 2.35-1). The
Exhaust Wastegate(s) exhaust port of each cylinder head is connected to one
water-jacketed segment of the exhaust manifold.
Exhaust Piping and Flexible Connections Water outlet elbows (see Figure 2.35-2) connect the
(Customer-Supplied) water outlet hole in each cylinder head with the
exhaust manifold segments.
--- - -
Venturi Extractor
Crankcase Pressure Relief Valves
SEPARATORSCREENMAINTENANCE
On 6 cylinder engines, the separator screen is located
in the top surface of the crankcase at the rear of the
engine under the separator piping (see Figure 2.40-1).
On 12 cylinder engines, the separator screen is
located in the rear right side of the crankcase, under
the separator piping (see Figure 2.40-2).
- - -
1 CRANKCASE BREATHER SYSTEM DESCRIPTION
OIL SEPARATOR(S)
Six cylinder engines have one oil separator located at
the rear of the engine (see Figure 2.40-3).
--
As the crankcase vapors and oil mist pass through the
Figure 2.40-3 Oil Separator Assembly - oil separator, much of the oil adheres to the steel mesh
6 Cylinder element contained in the inlet side of the separator
housing. This surplus oil condenses, drops into the
Twelve cylinder engines have two oil separators. One base of the separator, and returns to the oil pan
oil separator is connected by an elbow to the vent in through a drain tube in the base of the separator hous-
the gear housing cover on the front left side of the ing (see Figure 2.40-6). The crankcase vapors pass
engine (see Figure 2.40-5). The second oil separator into the venturi extractor where they are drawn into the
is mounted above the crankcase at the rear right side exhaust stack and discharged into the atmosphere.
of the engine (see Figure 2.40-4). This oil separator is
connected by a breather tube to the crankcase sepa- NOTE: Drain must be piped back to the crankcase to
rator screen in the top of the crankcase. prevent oil from collecting in the separator canister.
RETAINING CRANKCASE
VAPOR OUTLET
CELLULAR
m-\
12 Cylinder
DRAIN
STEEL MESH
SEPARATOR ELEMENT
HOUSING CRANKCASE VAPOR
AND OIL INLET
FORM 6300
CRANKCASE BREATHER SYSTEM DESCRIPTION
CHOKE VALVEIVACUUM VALVE The venturi extractor (see Figure 2.40-9) creates a
vacuum at the exhaust pipe connection to draw the
The choke valveladjusting valve allows the crankcase crankcase vapors from the oil separator(s) into the
pressure to be adjusted externally. Refer to exhaust stack.
Section 4.40 Crankcase Breather System Mainte-
nance for procedures to adjust the crankcase pres-
sure.
On 6 cylinder engines, crankcase pressure is adjusted
with either an ejector breatherladjusting valve assem-
bly (see Figure 2.40-7) or a venturiladjusting screw
assembly (see Figure 2.40-8).
BREATHER REGULATOR
The crankcase breather regulator assembly (see
Figure 2.40-1 0) automatically performs fine adjust-
ments to maintain a negative crankcase pressure as
Figure 2.40-7 Ejector BreatherlAdjustingValve the engine changes speed and load. Maintaining a
Assembly - 6 Cylinder negative crankcase pressure is important to prevent oil
Standard 12 cylinder GSI and L5774LT models are leaks and vacate harmful vapors, but too much pres-
equipped with a breather venturi on the exhaust outlet sure pulls in environmental dust and dirt. With less
(see Figure 2.40-8). load, less vacuum is required to vacate crankcase
vapors.
CRANKCASE PRESSURE RELIEF VALVES - The valve incorporates an internal flame trap to retard
OPTIONAL the emission of flame while the valve is venting. The
flame trap is of an oil-wetted wire gauze design. The
cooling capacity of the gauze is doubled when oil wet-
ted, a condition effected by the oil mist that normally
The number of pressure relief valves used on the exists in the crankcase or by oil spray from the con-
engine depends on the volume of the crankcase. necting rod bearings. The valve incorporates the flame
When using this option, never operate the engine trap as a single unit, and the O-ring construction elimi-
without the proper number of valves o n the nates oil leakage.
engine. The ability of the system to function i s
dependent upon the proper number of relief
valves. Operation without the proper type and
number of relief valves, or if the relief valves are
not properly maintained, can result in severe per-
sonal injury or death.
-
Figure 2.45-2 Prelube Pump /Motor 12 Cylinder Engine
SECTION 2.50
ESM ENGINE PROTECTION SHUTDOWN SYSTEM DESCRIPTION
ESM STANDARD COMPONENTS The ESM system includes the following engine
mounted and wired sensors (see Figure 2.50-2,
The ESM system including the modules and cables Figure 2.50-3, and Figure 2.50-4):
meets Canadian Standards Association (CSA) Class I,
Division 2, Group D, hazardous location requirements. Oil pressure sensor (1)
The ESM system includes as standard equipment: Oil temperature sensor (1)
Engine Control Unit (ECU) Intake manifold pressure sensor(s)
Ignition Power Module with Diagnostics (IPM-D) Intake manifold temperature sensor (1)
PC-based Electronic Service Program (ESP) Jacket water temperature sensor (1)
Electric throttle actuator Magnetic pickups (2)
Knock sensors
JACKET WATER
TEMPERATURESENSOR
KNOCK SENSORS
OIL PRESSURE
SENSOR
ESM ENGINE PROTECTION SHUTDOWN SYSTEM DESCRIPTION
INTAKE MANIFOLD
PRESSURE SENSOR
INTAKE MANIFOLD
TEMPERATURE SENSOR
I I
I I
-
Figure 2.50-4 ESM Sensors Rear Side
THERMOCOUPLE
LEADS
RIGHT BANK
-
Figure 2.50-5 Exhaust Thermocouples Arrangement 12 Cylinder Engine
K-TYPE THERMOCOUPLES
Thermocouples are used to measure oil temperature
(see Figure 2.50-6), jacket water temperature (see
Figure 2.50-7), and intake manifold (left and right bank
on vee engines) exhaust temperature (see
Figure 2.50-8). These thermocouples are wired
through a bulkhead connector to a remote mounted
instrument panel (customer supplied or as a Wauke-
sha option).
--
ESM ENGINE PROTECTION SHUTDOWN SYSTEM DESCRIPTION
THERMOCOUPLE CONNECTIONS
The function of the thermocouple connections is to
provide the customer with one easy location to con-
nect wiring between the engine thermocouples and
the customer's control panel (see Figure 2.50-10).
CONTENTS
FORM 6300
SECTION 3.00
ENGINE STARTUP AND SHUTDOWN
PRESTART INSPECTION
[ a C A U T I O N 1shut
If the engine i s being
down for an
extended period of time, cap the exhaust pipe to
prevent moisture or contaminants from entering
the engine. Failure to follow these instructions
could cause severe engine damage and/or per-
sonal injury.
EMERGENCY SHUTDOWN
- - ----
CHAPTER 4 - MAINTENANCE AND STORAGE
CONTENTS
FORM 6300
- --- - -
CHAPTER 4 - MAINTENANCE AND STORAGE
SECTION 4.00
SPEED GOVERNING SYSTEM MAINTENANCE
ESM SPEED GOVERNING SYSTEM To perform maintenance to the throttle actuator link-
MAINTENANCE age/governor linkage, complete the following:
1. Shut down engine.
NOTE: Refer to the Waukesha ESM Operation &
Maintenance Manual, Form 6295, Second Edition (or 2. Verify jam nuts on both ends of throttle actuator
current edition) for more information. linkage are secure (see Figure 4.00-2). Inspect rod
GOVERNOR MAINTENANCE ends. Replace if worn.
Throttle Actuator Inspection And Maintenance 3. Inspect throttle actuator rod for straightness and
damage.
4. Lubricate grease fittings on both ends of governor
rod at each oil change. Clean off any excess grease.
Always read and comply with safety labels on all Use ClTGO Lithoplex Grease NLG12 [service temper-
containers. DO not remove or deface the container ature range 200 - 2500 F (-70 - 121" c)]or equivalent
labels. Improper handling or misuse could result (see Figure 4.00-2).
in severe personal injury or death.
5. Verify proper operation of throttle actuator by per-
Every year or as needed the throttle actuator link- forming a manual calibration of actuator using ESP.
linkage must be inspected and lubri-
d (see Figure 4.00-1 ).
ACTUATOR ROD
GREASE FITTING
ORIFICE
Inside Diameter
0.052" (1.3 mm)
I
Figure 4.05-81nline Regulator (Left Bank)
CARTRIDGE REMOVAL
1. Depressurize pilot and main valve. Unscrew and
remove cartridge (see Figure 4.05-9).
CARTRIDGE INSTALLATION
Figure 4.05-9Cartridge Assembly 1. Assemble cartridge by placing O-ring on bottom
cap; then install return spring, orifice, spring, stem
2. Remove stem O-ring from pilot body using suitable guide, plug and stem, orifice and O-ring, and back-up
tool (a paper clip works well). Do not scratch O-ring washer (see Figure 4.05-15).
groove (see Figure 4.05-10).
2. Install bottom cap assembly into body insert.
NOTE: The loading and inlet ports are interchangeable Return spring will force orifice into position as cap
with one another. assembly is screwed into body insert (see
Figure 4.05-1 2). Tighten to 5 ft-lbs (6.8 N.m).
-STEM O-RING
~ : : - I O - ~ - ~
g-
Do not overtighten (see Figure 4.05-10 and Figure 4.05-14).
I
ORIFICE
PLUG AND
STEM ASSEMBLY
Y
STEM
GUIDE
/
RETURN
/ SPRING
Figure 4.05-14 Cartridge Assembly
*-. ORIFICE
SPRING
BOTTOM CAP
FLOWMETER
WATER TRAP
7
FORM 6300
FUEL SYSTEM MAINTENANCE
+
Z
W
0
a
W
P
w 2
I
3
9
re
n
.38
'14 15 16 17 18 19 20 21
(-88) (.93) ((1.0)
(1.06) (1.12) (1.18) (124) (1.31)
RICH SPINM M LEAN
EMISSION LEVELS ARE GIVEN FOR
PRE-CATALYSTMEASUREMENTS.
NOTE: *L5774LT and L5794LT emission levels are based on 1000 - 1200 rpm operation. For information at all other speeds, contact
Waukesha'sSales Engineering Department.
NOTE: Table 4.05-4 indicates emission levels that are valid for new engines for the duration of the standard warranty period and are attainable
by an engine in good operating condition running on commercial quality natural gas of 900 ~tuh'?(35.38 Mj/m3 [25, V(0; 101.325)l)SLHK WKI
value of 91 or higher, 93% methane content by volume, and at IS0 standard conditions. Emissions are based on standard engine timing at
91 WKI value with an absolute humidity of 42 grainsdb. Refer to engine specific WKI Power & Timing curves for standard timing. Unless
otherwise noted, these emission levels can be achieved across the continuous duty speed range and from 75% to 110% of the IS0 Standard
Power (continuous duty) rating. Contact your local Waukesha representative or Waukesha's Sales Engineering Department for emission values
which can be obtained on a case-by-case basis for specific ratings, fuels, and site conditions.
TYPICAL ADJUSTMENT AND HOOKUP Initial setting is a stem length of approximately 2.75 in.
LOCATIONS (6.98 cm) measured from adjuster housing fitting
(Figure 4.05-6).
The carburetor adjusting screw is located on the car-
buretor body andis used during fuel system adjust-
ment procedure (see Figure 4.05-17).
FORM 6300
FUEL SYSTEM MAINTENANCE
- as possible.
Customer to supply 0.40 inch ID minimum regu-
lator balance line(s) to carburetor(s).
2. Adjust the carburetor metering valve clockwise,
toward "lean" until the intake manifold pressure just
begins to increase. Note the lowest reading.
** Customer to supply gas pressure top location(s) 3. Continue to turn the metering valve clockwise, far
for instrumenting gaslair pressure differential. enough to increase the intake manifold pressure
0.5 in. (12.7 mm) of Hg.
-
Governor Linkage Adjustment
Checkladjust governor to throttle control linkage
to assure that throttle plate(s) is closed when the
4. Tighten locking nuts on carburetor metering
valve(s).
governor is in the minimum stroke position. Carburetor Adjustment (Each Bank Of 12 Cylinder
When the governor goes to full stroke, the throt- Engine) - Rich Burn
tle plate(s) must not overtravel the wide open, 1. Apply rated load at rated speed, or maximum avail-
straight up-and-down position. Up to 5" toward able load if less than rated load. A load that produces
closing is preferred. a positive intake manifold pressure is preferred for
response to mixture adjustments.
[ a WARNING
Do not inhale gaseous fuels. Some components of I aCAUTlo I Since the vee engines
are "cross blown," car-
fuel gas are odorless, tasteless, and highly toxic. buretor adjustment on one bank affects perfor-
Inhalation of gaseous fuels can cause severe per- mance of the opposite bank cylinders. In other
sonal injury or death. words, adjustment of the left bank carburetor will
change the oxygen level and temperature of the
Fuel System Adjustment Prior To Engine
exhaust in the right bank (and vice versa). (For
Startup GSI- example: An oxygen level of 11% is measured in
1. Turn carburetor metering valve(s) to 30". the right bank exhaust. To lower this oxygen level
2. Install a water manometer to measure the gaslair back to the specified 9.8%, the left bank carburetor
pressure differential between the carburetor gas inlet metering valve will have to be adjusted.)
and the carburetor air inlet. A manometer should be
installed on both banks on vee engines. 2. On either bank, turn carburetor metering valve
clockwise, toward "lean," until intake manifold pressure
Preliminary Settings After Engine Startup - begins to increase, then slightly counterclockwise to
Rich Burn return to minimum pressure. Note reading. Repeat for
1. At idle speed and no load, adjust the main regula- opposite bank.
tor(~)to the gaslair pressure listed below. On 12 cylin- 3. On one bank at a time, turn metering valve farther
der engines, each cylinder bank should be within clockwise until intake manifold pressure increases
0.5 in. (12.7 mm) of water column. 0.25 in. (6.35 mm) of Hg.
FORM 6300
1 FUEL SYSTEM MAINTENANCE
4. Intake manifold pressure on each bank should now FUEL SYSTEM ADJUSTMENTS -
be 0.5 in. (12.7 mm) of Hg higher than readings noted LT ENGINES
for Step 2. If not, adjust each bank by half the differ-
ence until values are correct. L5774LT AND L5794LT ENGINES WITH IMPCO
1 - 1 Do not attempt to
equalize bank to bank
pressures by adjusting throttle plates out of syn-
A 2-inch pipe size Mooney regulator. Two regulators
on 12 cylinder engines.
The regulator must have a restrictor orifice located
chronization.
in the pilot inlet supply connection. Orifice diameter
5. Check the intake manifold pressures on both is 0.052 in. (1.3 mm) (# 55 drill).
banks. If the difference is greater than 0.5 in. The regulator is to be mounted as close to the car-
(12.7 mm) of Hg, recheck fuel settings.
buretor as possible.
6. Tighten locking nuts on carburetor metering H 318 inch ID minimum balance line to carburetor
valves.
air horns.
NOTE: I ) These instructions apply to sales andlor
The regulators are to be mounted as close to the
field gas with a Low Heat Value (LHV) of 850 -
carburetors as possible.
900 ~ t u / f ?(33.4 - 37.3 Mj). 2) Gas/airpressure at the
carburetor(s) may be less at full load than at the initial Fuel System Adjustment Prior To Engine Startup
idle setting. This drop should not be more than 1.5 in.
1. Check governor linkage to ensure it is properly
(38.1 mm) of H20. Any more pressure drop would
adjusted. The butterfly valves must be closed when
indicate insufficient supply pressure to the regulator,
the governor is in the minimum stroke position. Both
undersize piping, incorrect regulator orifice size,
throttle plates must be synchronized to open and close
inadequate regulator capacity, or a malfunctioning
at the same time.
regulator.
NOTE: Piping to the engine must be properly sized so
I aCAUTloN Always verify that all
]cylinders are firing
before adjusting the carburetor. Exhaust manifold
that 43 - 60 psi (296 - 4 14 kPa) fuel pressure will be
provided at the inlet to the Mooney regulators across
the entire load range. Maximum pressure allowed is
thermocouples (optional equipment) will assist in 75 psi (5 17 kPa).
diagnosing misfiring cylinders. Unstable or high
2. Set the primary or "line" regulator to provide 43 - 60 psi
exhaust O2 levels may also indicate misfires. Fail-
(296 - 414 kPa) at inlet of engine-mounted regulators.
ure to do so may cause serious engine damage.
3. Turn both carburetor mixture adjustment screws
full clockwise, then back out four to five full turns
(counterclockwise).
4. lnstall a sample line with an ONIOFF valve to mea-
sure exhaust manifold oxygen (02)concentration.
Install sample line onto fitting located between exhaust
manifold and turbocharger connection on both banks.
5. lnstall a water manometer to measure gaslair
pressure differential between carburetor gas inlets and
carburetor air horns on both banks.
6. lnstall a mercury manometer (or differential pres-
sure gauge) to measure throttle reserve between inter-
cooler air inlet plenum (turbocharger compressor
discharger) and intake manifold of both banks.
FORM 6300
FUEL SYSTEM MAINTENANCE
Fuel System Adjustment Settings After Engine 5. Check intake manifold pressure on both banks. If
Startup this difference is greater than 1 inch of Hg, recheck
throttle plate synchronization.
1. At idle speed and no load, adjust engine-mounted
+
Mooney regulators to 6 0.5 in. (152 f 13 mm) of Wastegate Backpressure Adjustment
water column (H20). Banks must be within 0.5 inch of
The wastegate backpressure regulator is adjusted to
water column (H20).
control throttle reserve. This adjustment is intended for
2. Bring engine up to rated speed (1200 rpm) and engines located in elevations above 5000 ft (1520 m).
+
100 BMEP or approximately 8 0.5 in. (203 f 13 mm) The wastegate must be already set to specification
of Hg gauge intake manifold pressure or 38 in. (965 f before performing this adjustment. See Section 4.20
13 mm) of HgA intake manifold pressure (HgA = Turbocharger System Maintenance for instructions.
Barometer plus intake manifold pressure expressed as
1. Before engine startup close the wastegate back
inches of Hg). If unable to obtain 100 BMEP, adjust
pressure regulator by turning the adjusting screw
carburetor mixture screws to obtain O2 level of
clockwise to seat it completely in (Figure 4.05-23).
+
7.5% 0.1 % (L5794LT) or 7.7% f 0.1 % (L5774LT)
measured before the turbocharger on both banks. Turn
adjustment screw in (clockwise) to increase O2 level or USTING SCREW
out (counterclockwise) to decrease O2level.
NOTE: Throttle reserve is measured with a mercury
manometer (or differential pressure gauge) and is the
pressure difference between the intercooler air inlet
plenum (turbocharger compressor discharger) and
intake manifold of both banks.
3. With engine set at rated speed (1200 rprn) and
100 BMEP, adjust wastegate adjusting screws to
+
obtain throttle reserve of 15 f 1 in. (381 25 mm)
+
(L5794LT) or 14% 0.1% (L5774LT) of Hg on both
banks. Turn screw in (clockwise) to increase throttle
reserve or out (counterclockwise) to decrease throttle
reserve. Always turn the adjusting screws the same
number of turns for both banks. Figure 4.05-23 LT Series Wastegate Backpressure
Regulator - Left Bank
4. With engine at rated speed (1200 rpm) and load,
(165 BMEP for L5794, 142 BMEP for L5774) verify NOTE: Throttle reserve is measured with a mercury
+ +
gaslair is within 5 1 in. (127 25 mm) of water col- manometer (or differential pressure gauge) and is the
umn (H20) tolerance. If gaslair is not within specified pressure difference between the intercooler air inlet
limits at rated speed and load, it will be necessary to plenum (turbocharger compressor discharger) and
bring engine back to idle conditions and readjust gas intake manifold of both banks.
regulators. When gaslair is within tolerance at rated 2. With the engine at rated load and speed, open the
speed and load, adjust carburetor mixture screws if wastegate backpressure regulator by turning the
+
required, to obtain nameplate O2 level of 0.1%, mea- screw out (counterclockwise) until the throttle reserve
sured before turbocharger on both banks. begins to drop. The throttle reserve should not fall
NOTE: The gas over air (gadair) adjustment is below 12 in. (305 mm) of Hg on either bank.
controlled by adjusting the stem screw and lock nut
located at the bottom of the pilot assembly (see
Figure 4.05- 18). Turning the stem screw clockwise will
increase spring tension increasing the gadair. Turning Do not operate the engine at loads of 200 BMEP or
the screw counterclockwise will reduce spring tension greater. Engine damage may occur.
and reduce the gadair setting. Initial setting is a stem
length of approximately 2.75 in. (6.98 cm) measured
from adjuster housing fitting.
-
Main Fuel Supply
The gas supply pressure and regulation system
must be capable of supplying 6 in. (152 mm) of
engines.
5. Install a mercury manometer (or equivalent differ-
ential pressure gauge) to measure throttle reserve
water column (H20) gas pressure to the carbure- between the intercooler air inlet plenum (turbocharger
- tor(~).
Fuel supply to comply with Waukesha's Gaseous
Fuel Specification, S7884-7 or the most current
compressor discharger) and the intake manifold of
both banks.
6. Close the wastegate backpressure regulator by
- version.
Gas regulator sizing information:
- Use the Waukesha Technical Data to obtain
turning the adjusting screw clockwise to seat it com-
pletely (Figure 4.05-23).
Fuel System Adjustment Settings After Engine
Startup
the engine fuel flow requirement (Heat Rejec-
tion Section). 1. At idle speed and no load, adjust the engine
- Select a regulator control spring capable of
mounted FisherTM +
99 regulators to 6.5 0.5 in.
(165f 13 mm) of water column (H20). The banks
providing 6.5 f 5 in. (165 f 127 mm) gas over
must be within 0.5 in. (13 mm) of water column (H20).
air (gaslair) pressure at rated load. An adjust-
ment range of approximately f 3 in. (76 mm) 2. Bring the engine to rated speed and 100 BMEP or
of H20 from nominal is desirable. approximately 8 f 0.5 in. (203 f 13 mm) of Hg gauge
intake manifold pressure or 38 in. (965 f 13 mm) of
- The regulator drop should be less than 1 inch HgA intake manifold pressure (HgA = Barometer plus
FORM 6300
FUEL SYSTEM MAINTENANCE
4. Check intake manifold pressure on both banks. If 3. Determine maximum power of the engine at wide-
this difference is greater than 1 in. (25 mm) of Hg, open throttle, which should be about 115% - 120% of
recheck throttle plate synchronization. full load (190 - 195 BMEP), or 36 - 40 in. (914 -
1016 mm) Hg gauge (approximately 68 in. (1727 mm)
Wastegate Backpressure Adjustment
of HgA) maximum intake manifold pressure (about 30
The wastegate backpressure regulator is adjusted to inches Hg IMP for L5774LT). If the throttle is not wide-
control throttle reserve. This adjustment is intended for open at maximum power, readjust the wastegate back-
engines located in elevations above 5000feet pressure regulator adjusting screw valve until the
(1520 meters). The wastegate must be already set to throttle reserve at maximum power is 4 1 in. +
specification before performing this adjustment. See +
(102 25 mm) Hg gauge on both banks. Check that
Section 4.20 Turbocharger System Maintenance for throttle reserve at rated speed is 12 in. (305 mm) Hg
instructions. or greater on both banks [6in. (152 mm) throttle
reserve for 1000 rpm].
1. Before engine startup close the wastegate back-
pressure regulator by turning the adjusting screw
clockwise to seat it completely (Figure 4.05-24).
IGNITION MAINTENANCE
Table 4.10-1 Spark Plug Troubleshooting
--- -
I Poor oil CO%OI
rincs
around valve guides and Piston ,nspect and replace worn parts as necessary
Poor oil control around valve guides and piston Replace worn parts as necessary
Black oil fouling deposits rings
Engine too lightly loaded Adjust engine load
I
-
Gap bridging
--
I Contaminated or "dirty" fuel gas
-
( ACAUTlON 1
Do not pressure wash
or steam clean any
electronic devices including the Engine Control
Unit (see Figure 4.10-1). Pressure washing or
steam cleaning can damage the electronics.
1 a WARNING
Disconnect all electrical power supplies before
I
making any connections or servicing any part of
the electrical system. Electrical shock can cause
severe personal injury or death.
I
I
TOOL PIN
475037
TOOL DESCRIPTION
Spark Plug Socket (NEW)
(718" Socket 15-112" long wlrubber O-ring insert)
I SPARK PLUG INSTALLATION
I 1 I
475075 Spark Plug Extension Puller
A CAUTION 13/16 inch reach spark
plugs must be used
with the new cylinder head assemblies, or damage
1. Disconnect spark plug connector from coil.
t o equipment will result.
2. Remove three nuts, lock washers, coil, and O-ring
from valve cover. 1. Obtain a set of new 13/16 inch spark plugs. Always
use the correct size spark plug. See CAUTION above.
IGNITION SYSTEM MAINTENANCE
BOOT O-RING
CONNECTOR
I aCAUTION I The spark plug gasket 6. Apply a light coat of Krytox@ GPL-206
must be P ~ O P ~ ~ I YP
seated to seal the combustion chamber and trans-
(N
I 489341) grease (or equivalent) on OD of spark
plug ceramic h~sulatorthat will contact spark plug
fer heat from the plug. Disregarding this informa- (see Figure 4.10-5).
t i o n could result i n product damage and/or
personal injury.
ENGINE P/N GAP 7. lnstall spark plug in spark plug carrier with spark
GSI 609992 0.015 in (0.381mm) plug tool (PIN 475037).
LT 69919 0.011 in (0.28mm)
NOTE: ' 13/16 inch reach spark plugs are used with PIN 205002
series cylinder heads.
IacAuTloN Exercise caution to
l a v o i d bumping the
electrodes into the spark plug carrier. Bumping the
electrodes against the spark plug carrier may
I CAUTION 1
The presence of oil or
grease on the ceramic
insulator of the spark plug can cause flashover.
change the spark plug gap.
VALVE
COVER WASHER
12. Position coil with the word "TOP on the flange ori-
ented toward exhaust manifold. Install coil on valve
cover with O-ring, three nuts, and lock washers.
Tighten nuts to 132 - 156 in-lb (15 - 17.6 N.m) oiled.
13. Connect the shielded primary cable to coil (see
Figure 4.1 0-6). Figure 4.10-7 Valve Cover
VALVE COVER INSTALLATION 2. Remove center capscrew and flat washer from
center of each rocker arm assembly (see
NOTE: Install valve cover gasket in groove 2 - 3 in.
Figure 4.10-9).
(50 - 75 mm) at a time. Hold gasket in position with
one hand while squeezing gasket down and toward 3. Remove remaining four capscrews and lock wash-
the first with your other hand. This will ensure that ers from ends of rocker arm assemblies, and remove
there is no excess gasket left as you complete the assemblies from cylinder heads. Move rocker arm
installation around the valve cover. assemblies to a suitable workbench (see
Figure 4.10-9).
1. Install valve 'cover gasket in groove (see
Figure 4.1 0-8).
NOTE: Do not mix parts between rocker arm 8. If applicable, clean GE Red RTV 106 from bottom
assemblies. Lift both sides of the rocker arm of spark plug carrier extension and top of spark plug
assemblies off together. sleeve.
9. Remove two remaining nuts from spark plug
I aCAUTION 1 Always remove t h e
center capscrew first
when removing rocker arm assemblies to prevent
sleeve (see Figure 4.1 0-10).
10. Using a (PIN 474039) Spark Plugllgniter Sleeve
damage to parts. Remover Tool, remove spark plug sleeve from cylinder
head.
11. Remove and discard four O-rings from spark plug
sleeve (see Figure 4.1 0-10).
IGNITION SYSTEM MAINTENANCE
APPLY
SEALANT
SPARK PLUG
SLEEVE
i
0
O-RINGS
0
0
0 Figure 4.1 0-12 Cylinder Head Cutaway View
Figure 4.10-10 Spark Plug Sleeve And 0-Rings
3. Apply permatex@Aviation ~ o r m - A - ~ a s k e tSeal-
@
12- Remove and discard 'Ieeve sealfrom bottom of ant to bottom of spark plug sleeve, then install sleeve
spark plug sleeve bore. seal (see Figure 4.10-13).
SPARK PLUG SLEEVE AND SPARK PLUG
CARRIER EXTENSION INSTALLATION
1. Lubricate four O-rings with Parker Super 0-LubeTM
and install them on spark plug sleeve (see
Figure 4.10-11).
SPARK PLUG
SLEEVE
O-RING
i"o - -
I aCAUTloN I Use caution when
installing the spark
plug sleeve to avoid damaging or displacing the
seal. The seal must be seated properly, or damage
Figure 4.10-1 1 Spark Plug Sleeve And 0-Rings to equipment could result.
SLEEVE
0
Figure 4.10-15 Spark Plug Sleeve And 0-Rings
IPM-D MAGNETIC PICKUP INSTALLATION 3. Thread pickup into camshaft housing until it makes
contact with housing (see Figure 4.10-19).
The ESM ignition system uses the ECU as its central
processor or "brain." Two magnetic pickups are used to 4. Using a grease pencil, place a reference "mark"
input information to the ECU. One pickup reads an across pickup extending onto camshaft housing.
index magnet located on the camshaft gear and the
5. Using reference back out pickup 3,4 turn
other senses 36 reference holes in the flywheel.
(see Figure 4.1 0-19). Tighten jam nut while holding
Camshaft Gear Magnetic Pickup pickup. This is the equivalent of 040 in. (1.02 mm)
clearance between pickup and camshaft.
1. The camshaft magnetic pickup is located on the
top front of the engine (see Figure 4.10-17 and 6. Tighten jam nut while holding pickup.
Figure 4.10-18).
PRECLEANER
\
AIR RESTRICTION
INDICATOR
FILTER ELEMENT
FRAME
SHIELD
easily damage the pleated paper of the main air fil- NOTE: Affer the restriction problem is corrected, reset
ter element. the indicator by depressing the black button on the
plastic housing.
C. Air dry element. Do not use compressed air.
2. Carefully examine element after cleaning. If dam-
aged, replace.
--
AIR INTAKE SYSTEM MAINTENANCE
PRECLEANER MAINTENANCE
Optional heavy duty air precleaners (inertia separa-
The location of the air restriction indicator relative tors) may be installed as an engine option in areas
to the intake manifold causes it to be subjected to where extreme dust conditions are present.
high pressure if the engine backfires. A restriction 1. To remove dust accumulation in precleaner, press
filter must be installed in the indicator air passage open the rubber orifice at the bottom of precleaner
to dampen high pressure surges which would oth- (see Figure 4.1 5-4).
erwise damage the indicator. Through the projec-
tion of broken material, damage to the indicator 2. If heavy accumulations of dust begin to clog the
might pose a potential danger to persons standing passages of the precleaners, they may be removed
nearby. The restriction filter also protects against from the engine and cleaned with soap and water.
the entrance of dust and dirt in the event that the
restriction indicator is broken off or removed. Dis-
regarding this information could result i n severe
personal injury or death.
TURBOCHARGER SYSTEM
MAINTENANCE I aCAUTION 1 Do not run the engine
if the air cleaner is not
operating efficiently or if leaks exist in the ducting.
TURBOCHARGER INSPECTION Dust leaking into the air ducting can damage the
a WARNING
Turbocharger components are extremely hot.
I engine and the turbochargers and/or cause per-
sonal injury.
1 L5794LT I Up to 3000 (914) 1 295645R 1 31.1 (805.18) at 1200 rpm 165 psi (1138 kPa) BMEP @ 7.8% O2 1
Table 4.20-2 Wastegate Adjustment For Elevation - F3514GS1, F3524GS1, And L7044GSI
F3514GSI Up to 5000 (1524) 295645M 21.0 (533.40) at 1200 rpm 158 psi (1089 kPa) BMEP
F3524GSI Up to 7000 (2134) 295645M 23.0 (584.20) at 1200 rpm 158 psi (1089 kPa) BMEP
Up to 8000 (2438) 295645M 24.0 (609.60) at 1200 rpm 158 psi (1089 kPa) BMEP
Up to 3000 (914) 2956451. 23.5 (596.90) at 1200 rpm 158 psi (1089 kPa) BMEP
Up to 5000 (1524) 295645L 26.0 (660.40) at 1200 rpm 158 psi (1089 kPa) BMEP
L7044GSI
Up to 7000 (2134) 295645R 28.0 (711.20) at 1200 rpm 158 psi (1089 kPa) BMEP
Up to 8000 (2438) 295645R 29.0 (736.60) at 1200 rpm 158 psi (1089 kPa) BMEP
1 WARNING
If the prelube oil pressure reaches or exceeds
5 psi (35 kPa), oil flows through the supply line
check valve into the turbocharger housings. Start-
ing the engine may blow accumulated oil into the
intake manifold and carburetor, resulting i n oily
deposits that gum up internal surfaces. On the tur-
bine side, oil leakage around the turbine housing
poses a potential fire hazard. Disregarding this
information could result in severe personal injury
or death.
Table 4.25-2 Water Versus Glycol Concentration NOTE: Customer-supplied fuel shutoff type safety
equipment must be provided to prevent engine
COMMENTS damage and possible personal injury
Minimum Glycol for Adequate Engine overheating, as evidenced by high jacket water
temperatures, may be caused by one or more of the
following conditions:
Restricted airflow through the radiator
With heat exchanger cooling systems, it should be
remembered that the circulation of ethylene glycol Defective thermostats
solution only protects the closed system coolant.
Worn jacket water pump
Therefore, the heat exchanger water supply, as well as
the auxiliary cooling water circuit, must also be pro- Excessive jacket water pump suction
tected.
Blown head gasket
Propylene Glycol
Faulty temperature gauge
Propylene glycol has similar cooling properties when
Low coolant level
compared to ethylene glycol. Ethylene glycol has the
advantage of lower viscosity than propylene glycol at Overloaded engine
temperatures less than 0" F (-17"C). Propylene glycol
Air bound system
has a low toxicity, and it may be less stringently regu-
lated than ethylene glycol. Propylene glycol also has Insufficient air circulation
been proven to alleviate cavitation erosion that may be
Exhaust recirculation
experienced when using ethylene glycol solutions.
Cooling System Recommendations
Other treatments the engine operator should consider
are (see Table 4.25-3): 1. Ensure the rise in coolant temperature does not
Table 4.25-3 Other Cooling System Treatments exceed 10" F (5.6" C).
2. Maintain drop in system pressure at 8 - 15 psi
TREAT-
MENT
COMMENTS (55 - 103 kPa). Low pressure promotes cavitation ero-
Deionized. Although a maximum hardness of 200 ppm is
sion and high pressure causes water pump seals to
Distilled, or acceptable for initial fill and make-up, use only soft- leak.
Softened ened water, where the insolubles may be as low as
Water 0.5 ppm. 3. Analyze raw water chemistry to verify water does
not contain contaminants and is not too hard. Use only
Efsr Iron and steel corrosion inhibitor.
soft water where insolubles are as low as 0.5 ppm.
Molybdate Slows the growth of bacteria. Hard water accelerates the formation of scale depos-
Tolyltriazole Copper corrosion inhibitor. its.
~$~~~~
Prevents hard scale buildup. 4. Analyze cooling water chemistry every month to
Borax Buffer Corrects the water pH to 8.5. verify it contains proper inhibitor and additive concen-
General corrosion inhibitor; over 0.1% concentra- trations.
tion is not recommended for industrial engines. A
Silicates concentration that is too high can cause the cooling 5. Measure antifreeze content according to lowest
water in the radiator to gel, resulting in solid depos- anticipated temperature; refill as needed with same
its. High silicate inhibitor concentration is used pri-
marily for high speed aluminum engines. brand.
6. Maintain cooling water pH between 8.5 and 10.5;
COOLING SYSTEM SPECIFICATIONS AND an acidic coolant with a pH of less than 7 will speed
RECOMMENDATIONS corrosion of cast iron, aluminum, and steel, and a pH
Cooling System Specifications of 11 or higher will accelerate corrosion of aluminum
and solder.
Ensure that the temperature of the cooling water leav-
ing the engine (as indicated by the temperature 7. Check cooling system level each day or consider
gauge)
- - . does not exceed 220" F (104" C).
installation of a coolant low level shutdown switch.
Even if a high coolant temperature switch is provided,
Refer to Table 1.15-2 for the jacket water outlet tem- it will not engine down if system runs low on cool-
perature alarm and safety shutdown setpoints. ing water.
1 IA CAUTION I
Air i n the cooling sys-
a WARNING
Always install a pipe plug into the ball valve after
tem speeds up the for-
mation of rust, increases corrosion, and produces
hot spots within the engine.
the hose connection is removed. If the lever of the
ball valve i s inadvertently bumped open, the 8. Bleed trapped air (see "Cooling Water System -
absence of a plug will cause the coolant to drain. Air Bleed").
During operation, loss of any coolant may result in
catastrophic engine damage. Escaping steam 9. .Top off surge tank or radiator.
andlor hot water can cause severe burns or severe
personal injury or death.
COOLING WATER SYSTEM AIR BLEED -
Air bleed the jacket water and auxiliary cooling water
7. Apply perma-LOP Heavy Duty Pipe Sealant with circuits at least once each day. Open and close the air
~eflon@
to pipe plug threads. Install plug in ball valve. bleed petcocks in the sequence that they are listed in
Table 4.25-4, starting at the lowest petcock in the sys-
I aCAUTION I Air i n the cooling sys-
tem speeds up the for-
mation of rust, increases corrosion, and produces
tem and ending at the highest. Bleed one petcock at a
time. The number of air bleed petcocks and their loca-
tions are listed.
hot spots within the engine.
1. Initial Bleed
8. Bleed trapped air (see "Cooling Water System - - Open each air bleed petcock prior to engine
Air Bleed"). startup. A hissing sound often accompanies
9. Top off surge tank or radiator. the escape of trapped air. Close the petcock
when the hissing stops and water begins to
AUXILIARY COOLING WATER CIRCUIT - INITIAL flow out in a solid, steady stream.
FILL
NOTE: The following description is not applicable to
permanent vent systems. I a WARNING
Always wear protective clothing when bleeding the
I
1. Open air bleed petcocks in intercooler cooling cooling system on a heated engine. Slowly loosen
water inletloutlet bonnets. the air bleed petcock t o relieve any excess pres-
2. Open air bleed petcocks on intercooler water inlet sure. Escaping steam and/or hot water can result
and outlet tubes located behind venturi extractor. i n severe burns.
3. Open air bleed petcocks in inlet side of wastegate 2. Check Bleed
water return tubes.
- Start the engine and reopen each petcock.
4. From top of surge tank or radiator, add treated Close the petcock when the hissing stops and
cooling water to auxiliary cooling water circuit. water begins to flow out in a solid, steady
5. Continue filling circuit with coolant until it flows stream.
from petcock(s) located on intercooler inieffoutlet bon- 3. Final Bleed
net(~).Close petcock(s) when water begins to flow out
in a solid, steady stream. - Once the temperature of the jacket water cir-
cuit has stabilized (as indicated by the panel-
6. Continue filling auxiliary water circuit with coolant mounted temperature gauge), reopen each
until it flows from petcocks located on intercooler water petcock. Close the petcock when the water
supply and inlet side of wastegate water return tubes. begins to flow out in a solid, steady stream.
Close petcocks when water begins to flow out in a
solid, steady stream. See Table 1.15-2 for the capaci-
ties of the various auxiliary water system components. I ACAUTION 1 Air can be drawn into
the engine through
small leaks in the jacket water system. The prob-
NOTE: Customer-supplieditems and connections not
lem i s compounded when the void created by the
included. Waukesha supplied items include the
auxiliary water pump, intercooler, oil cooler, and the loss of coolant i s filled by more air. If aeration
engine-mounted intercooler water supply and return causes the coolant t o foam, the probability of
piping. engine damage due t o overheating i s greatly
increased.
7. Continue filling auxiliary cooling water circuit until
level of coolant reaches top of surge tank or radiator.
FORM 6300
COOLING SYSTEM MAINTENANCE
4. Carefully inspect jacket water system for coolant Table 4.25-5 Water Drain Petcocks
leaks while engine is running.
NUMBER OF
Table 4.25-4 Air Bleed Petcocks WATER
PETCOCKS LOCATION
CIRCUIT
4 Intercooler (rear, left, and right)
FORCE SCALE
I WARNING
Always install the safety guards after completing
I IDLER LEVER
HEX HEAD
CAPSCREW
I ACAUTlON An accumulation of
[ d i r t i n the sheave
grooves impairs traction and accelerates belt
wear. Disregarding this information could result in
product damage and/or personal injury.
I a WARNING
Always install the safety guards after completing
NOTE: Since the circumference of new belts is
somewhat smaller, reuse of the setting established for
any service operation. Never operate the engine the discarded drive belts will result in belts that are too
with the safety guards removed. Disregarding this tight.
information could result in product damage,
severe personal injury, or death.
3. To loosen drive belts, back upper thin hex lock nut stop) on each side of adjusting lever are properly tight-
on threaded rod away from adjusting lever. Pivot point ened.
of idler lever follows adjusting lever in a counterclock-
wise direction. Downward movement of idler pulley
releases drive belt tension.
4. When correct tension is obtained, thread 318 inch
I a WARNING
Always install the safety guards after completing
1
elastic stop lock on upper end of threaded rod toward service Never Operate the engine
adjusting lever. Be sure lock nuts (thin hex and elastic with the guards Disregarding this
stop) on each side of adjusting lever are properly tight- result in product
ened. severe personal injury, or death.
5. lnspect belts for proper seating. V-belts should ride 10- Install safety guards.
on sides of pulley sheaves, not on bottom of groove. JACKETIAUXILIARY WATER PUMP INSPECTION
6. Because of initial stretching, recheck belt tension
Jacket Water Pump Inspection
after 10 minutes run time. Check belt tension again
after first 30 minutes run time and then every 1. Remove safety guard.
250 hours thereafter.
2. lnspect "weep hole" in casting located below water
I a WARNING
Always install the safety guards after completing
1
any service operation. Never operate the engine
with the safety guards removed. Disregarding this
information could result in product damage,
severe personal injury, or death.
[ aCAUTloN 1
Filter must be filled mark. Both marks on the dipstick are "static lines." The
with lubricating oil dipstick does not indicate oil level with engine running.
before first start and after each element change. When checking the oil level, carefully examine the con-
Disregarding this information could result in prod- dition of the oil on the dipstick. Replace the oil any time
uct damage. it appears diluted, thickened by sludge, or otherwise
deteriorated. The useful life of the oil depends on a
6. Depress bypass valve plunger located inside filter number of factors, which include the engine load, tem-
to allow air to escape. Before first startup, vent air perature, fuel quality, atmospheric dirt, moisture, and
through cover vent while prelube pump is still running. the level of maintenance. If oil performance problems
A continuous flow of oil from the vent line is required arise, consult your oil supplier.
and indicates all air has been removed from the oil
system. Always pay close attention to engine operating tem-
peratures. If engine jacket water and oil temperatures
7. Run prelube pump until pressure is indicated on oil are maintained according to engine specifications,
pressure gauge. Stop prelube pump and allow oil to particularly during periods of light load operation, the
drain back into crankcase. Check dipstick and add oil problems resulting from condensation of corrosive
to oil pan until level returns to "full" mark. vapors in the crankcase can be minimized.
8. Install oil filler cap, start engine, and allow oil to When using an engine oil for which there is no previ-
warm up to its normal operating temperature. Shut ous operating experience, a detailed oil analysis by
engine down and allow oil to drain back into pan. qualified professionals is strongly recommended. A
Check dipstick and add oil to oil pan until level returns well monitored maintenance program also should be
to ''full" mark. established for the first year of usage and the perfor-
9. Check crankcase oil level daily before engine is mance of the engine should be carefully observed
started. Blade of dipstick is marked "lown and "full." against all external operating conditions. This proce-
Always maintain oil level at "full" mark. Both marks on dure will help to determine if the selected oil is really
dipstick are "static lines." The dipstick does not indi- suitable for your particular operation.
cate oil level with engine running. NOTE: If any questions arise with regard to the
OIL COOLER AND OIL FILTER INSTALLATION foregoing information, call the Waukesha Product
REQUIREMENTS Support or Sales Engineering Departments. The
engine operator may also wish to refer to Service
1. All piping connections to and from the engine and Bulletin 12-18802, or latest revision, for more
between lubrication system accessories are to be sup- information on lubricating oils.
plied by the customer. If applicable, the oil cooler and
oil filter assemblies should be secured as close as OIL CHANGE
possible to the engine. All customer connections to the
engine must be flexible.
2. Verify oil lines between engine, oil filter, and oil
I a WARNING
Hot oil can cause severe burns. Allow oil to cool
I
cooler are clean and free from scale. prior to working on oil system components. Wear
3. Filter must be filled with lubricating oil before first protective equipment and use caution while work-
start and after element change. Depress bypass valve ing on oil system components. Failure to follow
plunger located inside filter to allow air to escape. proper procedures could cause severe personal
Before first startup, vent air through cover vent while injury or death.
prelube pump is running. A continuous flow of oil from
the vent line is required and indicates all air has been To change oil, drain oil pan and all oil system accesso-
removed. ries: oil cooler, full-flow oil filter, and oil strainer. Pro-
ceed as follows:
4. Refer to "Oil Pressure Adjustment" and adjust oil
pressure. NOTE: Drain oil when warm for best results.
FORM 6300
LUBRICATION SYSTEM MAINTENANCE
6. Refer to "Oil Pan Maintenance" and clean oil pan. 3. A small pool of oil about 314 inch deep will nor-
mally accumulate on each end of the oil pan where the
I a WARNING
Hot oil can cause severe burns. Allow oil to cool
I
prior to working on oil system components. Wear
protective equipment and use caution while work-
ing o n oil system components. Failure t o follow
proper procedures could cause severe personal
injury or death.
-- -
LUBRICATION SYSTEM MAINTENANCE
I I
Figure 4.30-5 Oil Pickup Screen Assembly -
12 Cylinder
I 2. Remove pickup screen assembly from oil pan. 4. Verify both elbow flanges are clean. Old gasket
I a WARNING I 1 a WARNING
Hot oil can cause severe burns. Allow oil to cool
1
Compressed air can pierce the skin and cause prior to working on oil system components. Wear
severe injury. Never use your hand to check for protective equipment and use caution while work-
leaks or to determine air flow rates. Wear safety ing on oil system components. Failure to follow
glasses to shield your eyes from flying dirt and proper procedures could cause severe personal
debris. Disregarding this information could result injury or death.
in severe personal injury or death.
Drain oil from oil cooler at each oil change.
2. Thoroughly dry all parts with low pressure com-
Clean and inspect oil cooler annually. lnspect oil cooler
pressed air.
sooner if an increase in oil temperature cannot be
3. lnspect pickup screen for tears or holes. Replace traced to a malfunctioning auxiliary water pump, loose
screen if damaged. belts, a faulty thermostat, or excessive engine load.
Plugged tubes or scale deposits inhibit the flow of
4. lnspect baffle box for broken welds, split seams, or
coolant, which reduces oil cooling effectiveness.
cracks around oil tube holes. Replace baffle if dam-
aged. NOTE: Schedule the oil cooler cleaning during a
regular oil change interval, since it is necessary to
Oil Pickup Screen Installation- 12 Cylinder
drain the oil pan and oil system accessories.
1. Apply a fast-setting gasket adhesive, such as 3M
~ c o t c h - ~Rubber
r i ~ ~ And Gasket Adhesive, on oil
tube flanges. Position new gaskets on flanges.
2. Install oil tubes in screening element. Place baffle
over screen, aligning holes with those in flange gas-
kets.
3. Obtain two new gaskets for elbows and apply gas-
ket adhesive to one side. Press adhesive side of gas-
ket onto baffle aligning holes with those in box.
OIL SYSTEM AIR BLEED pressure differential, subtract the reading of the oil fil-
ter outlet pressure gauge from the reading of the inlet
pressure gauge. When the pressure differential rises
to 12 -1 5 psi (83 - 103 kPa), the filter elements are
Hot oil can cause severe burns. Allow oil to cool clogged and must be replaced.
prior to working on oil system components. Wear
protective equipment and use caution while work-
ing on lube oil system components. Failure to fol-
low proper procedures could cause severe
I a WARNING
Hot oil can cause severe burns. Allow oil'to cool
I
personal injury or death. prior to working on oil system components. Wear
protective equipment and use caution while work-
Air bleed the oil system at least once each day. Pro- ing on lube oil system components. Failure to fol-
ceed as follows: low proper procedures could cause severe
NOTE: The petcock on the full-flow oil filter cover is personal injury or death.
the only air bleed through which the oil system may be
NOTE: If oil filter inlet and outlet pressure gauges are
purged of air pockets.
not provided, they may be ordered from Waukesha
1. Initial Bleed Engine.
Start prelube pump and open filter cover 1. Drain both chambers of full-flow oil filter. Oil filter
petcock. housing has two drain plugs (see Figure 4.30-6).
Remove upper plug to drain sludge and dirty oil from
2. Close petcock when oil begins to flow out in a
filter element chamber. Remove lower plug to drain oil
steady stream.
from clean oil chamber.
3. Check Bleed
Start engine and reopen filter cover petcock.
4. Close petcock when oil begins to flow out in a
I a WARNING
The cover compresses powerful springs on the fil-
I
steady stream. ter element posts. Use special care to remove the
oil filter cover, to avoid severe personal injury or
5. Final Bleed death.
Once engine is running at normal operating
temperature, reopen filter cover petcock. NOTE: To remove the oil filter cover safely, locate the
longest bolts. The long bolts extend about 1- 1/4 in.
6. Close petcock when oil begins to flow out in a (30 mm) below the flange at the top of the oil filter
steady stream. housing. The short bolts are flush with the bottom of
OIL FILTER MAINTENANCE the flange (see Table 4.30-2).
NOTE: Based on environmental and engine operating Table 4.30-2 Oil Filter Capscrew Pattern
conditions, the lubrication oil may require changes that
are much more frequent than those recommended by
Waukesha Engine. Many variables are involved in
determining the proper time between oil changes,
some of which may not even be known until after a
problem develops. The oil type, the severity of the
12 Cylinder 120"
environment, and the internal condition of the engine
are only a few of many variables that have a direct 2. Remove short bolts, working in a clockwise direc-
effect on the frequency at which the oil must be tion. Leave long bolts in place.
changed.
Oil Filter Element Replacement
Full-flow oil filter elements should be replaced when- Alternately loosen the long bolts of the filter cover
ever engine oil is changed and may often require more an equal amount of turn. Failure to follow this pro-
frequent replacement. cedure could cause the filter cover to spring up,
When the filter is new, the drop in oil pressure through causing severe personal injury or death.
the filter is approximately 2 - 3 psi (14 - 21 kPa) under
normal operating temperatures. To determine the
FORM 6300
LUBRICATION SYSTEM MAINTENANCE
I I I
L,-----,,--,----,-------------J
Figure 4.30-7 Full-Flow Oil Filter
L----.-.-------.-.---.-.--J
Figure 4.30-6 Oil Filter
I ENGINE
r--6kyTnie ;-,------
'
!
ELEMENT
POSTS
4
!
ELEMENTS
REQUIRED
-I-------- 4 1
I
12 Cylinder 7 7
4. Remove oil filter elements (see Figure 4.30-7).
L-------A--.------l---.----J
Inspect bypass relief valve for wear. Refer to "Oil Filter
Relief Valve Inspection" for more information. 6 CYLINDER ENGINE
= ELEMENT - RELIEF
I I
Figure 4.30-8 Filter ElementIRelief
Valve Configuration - 6 Cylinder
= ELEMENT - RELIEF
- VALVE
Hot oil can cause severe burns. Allow oil to cool
Figure 4.30-9 Filter ElementIRelief prior to working on oil system components. Wear
Valve Configuration - 12 Cylinder protective equipment and use caution while work-
ing on oil system components. Failure to follow
(
-
aCAUTION 1
- --
Those filter elements
that are stamped with
an arrow must be installed with the arrow pointing
proper procedures could cause severe personal
injury or death.
down. Elements that have a band around the ten- 1. Remove relief valve assembly from bypass tube
ter may be installed with either end pointing down. (see Figure 4.30-7).
Disregarding this information could result in prod- 2. Remove reducing bushing from relief valve body, if
uct damage. provided.
6. Replace drain plugs in oil filter housing. 3. Remove retaining ring, washer, spring, and piston
from relief valve body (see Figure 4.30-1 0).
7. Fill filter assembly with clean engine oil; see
Table 4.30-1 for capacities.
8. Allow air to escape by depressing bypass relief
valve piston(s).
9. Reinstall oil filter cover. Filter cover O-ring should
be replaced every 1500 hours, any time it has taken a
permanent set or if it appears damaged, whichever
comes first. Tighten filter cover capscrews to 35 -
37 ft-lb (47 - 50 N.m) in a crisscross pattern.
10. Release remaining air, start prelube pump, and
open filter cover petcock. Close petcock when oil flows
out in a steady stream.
NOTE: Air bleed the oil circuit at least once each day
The petcock on the full-flow oil filter cover is the only
location where the oil system may be purged of air
pockets.
NOTE: Waukesha highly recommends adding the
Microspin filtration system to the standard full-flow oil
filter.
~~
LUBRICATION SYSTEM MAINTENANCE
I STRAINER /
I
HEAD
RETAINER
I
I
I SEAL,
I
I
I0 ROD
'MAGNET'c
I
I
I
I
I I
I
I
I --ELEMENT
I
I HOUSING
I
I DRAIN PLUG
I
!L,-,------------,----------------------J
Figure 4.30-1 1 Oil Strainer Assembly
Figure 4.30-10 Oil Filter Relief
Valve Assembly 2. Detach element housing by removing four cap-
screws and washers from strainer head.
4. Remove O-ring from relief valve piston. Inspect
area above O-ring for excessive wear. Replace if 3. Remove rubber seal from inside groove at top of
gouged or deeply scratched. element housing.
-
5. Install new 0-rina on relief valve is ton. 4. Pull down on stainless steel wire mesh element to
detach it from head.
6. Install piston, spring, washer, and retaining ring in
to relief valve body. 5. Remove two band retainers and two magnetic rods
externally mounted on element.
- -
7. Install reducina bushina on relief valve bodv.
6. Clean element in solvent. Flushing element from
8. Install relief valve assembly on bypass tube. inside out produces best results.
OIL STRAINER MAINTENANCE
Clean oil strainer element at each oil change. I a WARNING
Compressed air can pierce the skin and cause
dh WARNING
Hot oil can cause severe burns. Allow oil to cool
I severe personal injury or death. Never use your
hand to check for leaks or to determine airflow
rates. Wear safety glasses to shield your eyes from
prior to working on oil system components. Wear flying dirt and debris. Disregarding this informa-
protective equipment and use caution while work- tion could result i n severe personal injury or
ing on oil system components. Failure to follow death.
proper procedures could cause severe personal
r-------------------
injury or death. 7 High pressure com-
I ACAUTION pressed air may dam-
1. Drain strainer assembly of oil by removing 318 inch
plug located at bottom of element housing (see
~;~;;~,~;g-;~~ent. Disregarding this
Figure 4.30-1 1). information could result in product damage and/or
personal injury.
LUBRICATION SYSTEM MAINTENANCE
INLINE LUBRICATOR
Refer to Section 4.45 Starting System Maintenance
"InLine Lubricatoffor information on this component.
MAGNETIC PLUG MAINTENANCE Figure 4.30-13 Turbocharger Oil Supply
Magnetic Plug - 6 Cylinder
I a WARNING
Hot oil can cause severe burns. Allow oil to cool
I 2. Cylinder head oil supply header has magnetic
plugs on each end (see Figure 4.30-1 4).
prior to working on oil system components. Wear
protective equipment and use caution while work-
ing on oil system components. Failure to follow
proper procedures could cause severe personal
injury or death.
--
LUBRICATION SYSTEM MAINTENANCE
Maximum organic halide content, expressed as There are increasing claims for filtration and absorp-
chloride, (TOHICI) in landfill gas is limited to tion by various companies manufacturing and promot-
150 micrograms per liter (pgll). ing these types of products. Waukesha makes no
Maximum liquid fuel hydrocarbons at the coldest endorsement of these products or services. Their per-
formance is solely the responsibility of the manufactur-
expected engine-mounted regulator fuel outlet tem-
ers.
perature are limited to 2% total by gaseous volume.
Maximum permissible free hydrogen content is 12% RECOMMENDATIONS FOR FUEL GAS
FILTRATION OF SOLIDS AND LIQUIDS
by volume.
Maximum total siloxanes for engine models with a Solid Particulate Removal
prechamber fuel system is 25 pgll. If greater than Coalescer shall have an absolute rating of 5 microns
25 pgll total siloxanes are present at the inlet to the (0.3 microns for landfill applications) for solid particu-
engine-mounted fuel regulator, clean commercial late removal.
quality natural gas must be supplied to the pre-
Liquid And Aerosol Removal From Fuel Gas
chamber fuel system. Waukesha currently does not
limit total siloxane content in the fuel gas to engines Coalescer shall remove entrained liquid and aerosol
which do not have a prechamber fuel system. contaminants of 0.3 pm (micron) or larger.
When dealing with halogens or halogen compounds in Fuel gas compressor lubricating oil carryover must
landfill gas, the subject becomes far too complicated be removed from the fuel stream. A coalescing filter
to address here as it relates to the selection of a lubri- with a 0.3 micron rating is adequate in most cases.
cating oil, used oil analysis, and drain interval. It fol- Even though this oil is hydrocarbon based and com-
lows that those customers operating on landfill gas bustible, it contains an additive package with cal-
review Waukesha Engine's Fuel Specification S7884-7 cium and other undesirable elements and
(or current revision) to fully understand the ramifica- compounds. Failure to remove this carryover oil can
tions of operating an engine on landfill gas. This docu- lead to fuel regulator problems, excessive spark
ment (as well as Service Bulletin 9-2701) prescribes plug and combustion chamber deposits, cylinder
specific fuel gas sampling techniques, fuel gas analy- varnish, ring sticking, and other problems.
sis, handling of abrasive fuel constituents, and limita- Liquid water is not allowed in the fuel because it fre-
tions on total organic halide as chloride, to achieve
quently results in fouling and corrosion. Particular
reasonable engine life. Lubricating oil requirements
attention must be paid to landfill and digester gases
change as the TOHICI increases.
since these gases are commonly received saturated
RECOMMENDED ENGINE OILS FOR LANDFILL with water. Due to extremely small clearances in the
GAS APPLICATIONS admission and check valves, absolutely no water
can be tolerated in a prechamber fuel system. To
Table 4.30-6 Recommended Engine Oils Landfill Gas ensure that no liquid water forms in the fuel system,
Applications Waukesha specifies that the dew point of the fuel
PERCENT OF
gas should be at least 20" F (11 C) below the mea-
BRAND sured temperature of the gas before all engine-
mounted regulators and engine remote regulator
pilot valves (if so equipped). On engines without
prechamber fuel systems, saturated, (100% relative
humidity) fuel gas at the carburetor inlet is accept-
Waukesha recommends lubricating oils specifically able. A 0.3 micron coalescing filter will remove any
formulated for landfill gas. However, care must be liquid water droplets being carried along with the
taken that oils formulated for a particular fuel type not fuel stream. The water content of the gas can then
be used beyond their recommendations. When used be reduced to an acceptable level by several meth-
outside of their recommendations, some landfill gas ods.
formulated lube oils can cause excessive buildup of A. Condensation of excess moisture by refrigerat-
abnormal ash deposits in the combustion chamber. ing the fuel gas to no higher than 40" F (4" C)
Landfill gas engine oils should only be used for followed by filtering to remove the liquids and
engines applied to landfill gas operation, not digester reheating of the gas to 85" - 95" F (29" -
gas operation. 35" C). This process will also remove significant
The best approach would be to filter or absorb corro- amounts of halogenated and heavy hydrocar-
sives in the fuel gas before they reach the engine. bons and volatile siloxanes.
FORM 6300
LUBRICATION SYSTEM MAINTENANCE
B. Selective stripping with a chemical process. The method of measuring TBN in used oil must
be ASTM-D2896.
C. By heating - If the gas is 30" F (17" C) or more
above the ambient temperature, it can be ** Dexsil Corporation has developed the Q2000
cooled by passing it through a heat exchanger field test kit as a test for chlorine contamination
or refrigeration system, then reheated, in a man- of engine oil exposed to chlorine containing
ner similar to Step A. If the gas is 20" F (11" C) fuels, as in landfill gas. This field test kit is highly
or more below the ambient temperature, it can accurate and allows the operator to obtain timely
be heated. In both cases, the fuel system after test results in the field. The oil must be sampled
the heating operation should be insulated. Heat- every 50 hours, in order to establish a "trend."
ing of the fuel gas is limited to the maximum Waukesha has experienced good results with
allowable temperature of 140" F (60" C). this kit. Order information may be obtained from
Glycol is not permitted in fuel gas because it can Dexsil Corporation, One Hamden Park Drive,
Hamden, CT 06517.
affect the engine in adverse ways. The lubricating
qualities of the oil may be reduced, resulting in bear- TOHICI does not affect
ing failure, piston ring sticking, excessive wear, and
other problems. A 0.3 micron rated coalescing filter
[ A CAUTION ] TBN ievels the same as
sulfur compounds. Therefore, the 70% depletion
will remove liquid glycol from the fuel stream. as an indicator of a change interval only applies to
Design Criteria the applications where fuel gas does not contain
halides. Disregarding this information could result
Coalescer Filter Housing is to be of the cylindrical
in product damage andlor personal injury.
type, vertically mounted. The housing shall contain
two sump chambers, such that the lower sump collects Recommendation #3
heavier liquid dropouts immediately downstream of the
gas inlet, while the upper sump collects liquids drain- ** Increase the jacket water temperature to 210" -
ing off the coalescer cartridge(s). 235" F (99" - 113" C) and oil temperatures to
185" - 200" F (85" - 93" C). Increased tempera-
The coalescer design shall use an inside-to-outside tures will reduce condensation, which will reduce
gas flow path through the coalescer cartridge. the concentration of acids within the crankcase.
Recommended Coalescing Filter High temperature thermostats are available for
Pall Process Filtration Company
Model CC3LG7A - most models.
if you have any question on lubricants to be used
with alternate fuel gases, contact the Field Ser-
The following recommendations will minimize corro- vice Department or Sales Engineering Depart-
sion problems normally encountered with fuel gas con- ment prior to selecting a lubricating oil.
taining H2S and TOHICI:
ENGINE OIL CONDEMNING LIMITS
-
Recommendation # I
Select a gas engine lubricating oil with a high
alkalinity reserve, 7 to 13 TBN (Total Base Num- I a WARNING I
ber). Alkalinity reserve in the lube oil is mea- Engine oil is extremely hot and is under pressure.
sured in TBN. The higher the TBN, the more Use caution when sampling engine oil for analysis.
reserve. Failure to follow proper procedures could cause
severe personal injury or death.
** Contact your oil supplier or consult the EMA
Engine Fluids Data Book for an appropriate Lubricating oil condemning limits are established by
choice. Also follow the appropriate ash content the engine manufacturer's experience andlor used oil
percent by weight for the specific engine model. testing.
-
Recommendation #2
Used oil analysis is mandatory for alternate fuel
applications. Lube oil change periods are deter-
mined by TBN, TAN (Total Acid Number), oxida-
tion, and nitration level in the used oil samples.
The user must change the oil when the TBN
level falls to 30% of the new oil value or TAN
increases by 2.5 - 3.0 above the new oil value.
FORM 6300
LUBRICATION SYSTEM MAINTENANCE
Laboratory testing will determine the used oil's suit- Elevated jacket water temperature 212" - 235" F
ability for continued use. Used oil testing should cover (100" - 113" C).
the data shown in Table 4.30-7.
** Elevated lube oil temperature to 185" - 200" F
Table 4.30-7 Used Oil Testing And Condemnation (85" - 93" C).
** Use of high TBN oil (7.0 - 13.0).
** Bypass lubrication oil filtration. Waukesha
Engine has introduced the Microspin cleanable
lube oil filtering system. The Microspin system
30% of New Oil Valu
uses the cleaning capabilities of a centrifuge,
coupled with cleanable filter elements. The
Microspin system uses Waukesha's current lube
oil filtration canister for the cleanable elements.
The centrifuge is installed as a bypass system,
working in conjunction with the cleanable filter
elements.
TOHICI above 150 micrograms chloridellitre require
pre-treatment of the fuel in order to make it suitable
for use in a reciprocating engine.
Reasonable life can be expected if Total Organic The operating temperature of the oil in the sump or
Halide as Chloride Concentration (TOHICI) of the header is the best guide for selecting the proper SAE
fuel does not exceed 150 micrograms per litre (ygll). grade of oil. When the oil temperature is unknown, add
Total Organic Halide as Chloride (TOHICI) equals 120" F (67" C) to the ambient temperature to obtain
the sum of all halogenated compounds expressed the estimated sump oil temperature.
as chloride in microgramsllitre as chloride (pCI1L) at Table 4.30-8 VGFNHP Sump And Header Temperatures
STP (Standard Temperature and Pressure). Rea- And SAE Number
sonable life can also be expected with increased
TEMPERATURES SAE
maintenance and operating adjustments to the
engine. SUMP HEADER NUMBER
160" - 230" F 160" - 195" F
Typical changes in maintenance and operation at (71"-110°C) (71"-91°C) 40
-
this level are:
Decreased oil change interval (150 hours to
Below 160" F
(71' C)
Below 160" F
(71"C) 30
- start).
Condemn oil when 900 ppm chlorine level in
used oil is reached. This will aid in establishing
NOTE: Do not operate engines with an oil header
temperature below 140" F (60" C). Engines that
exceed 195" F (91" C) header temperature or 215" F
an oil change interval. (102" C) sump temperature should have reduced oil
change intervals.
a Lubricating oil analysis every 50 hours maxi-
mum.
-
LUBRICATION SYSTEM MAINTENANCE
Table 4.30-10 Recommended Oil Change Intervals For Engines Receiving Normal Maintenance
I I I
EBULLIENTCOOLED- - / I --- I
I S 0 STANDARD OR ENGINES OR HOT WATER
ENGINE IN LIGHT LOAD SYSTEM WlTH ENGINE STANDBY
CONTINUOUS
MODEL EXCESS OF OPERATION WATER TEMPERATURE DUTY
I S 0 STD POWER 200" F 193" C)
I I 1
OR ABOVE ' I
FOR ENGINES OPERATING WlTH OIL HEADER TEMPERATURES 195" F 191" C) OR BELOW
VHP
Natural Gas, Normal 1500 hours 500 hours 1500 hours 250 hours or
(Extended 2100 hours*) 500 hours annually
HD-5 Propane
NOTE: Change oil filter elements when oil is changed.
* Extended oil drain intervals listed are acceptable ifa Microspin centrifuge in conjunction with a Waukesha supplied oil filtration
system is used, and an oil analysis program is followed.
Table 4.30-1 1 Recommended Oil Change Intervals For Engines Receiving Normal Maintenance And Using Gaseous
Fuel Containing H2S
EBULLIENT COOLED
ENGINES OR HOT WATER
IS' STANDARD OR
ENGINE OPERATED IN LIGHT LOAD SYSTEM WITH ENGINE STANDBY
PRIME POWER
MODEL EXCESS OF OPERATION WATER TEMPERATURE DUTY
RATING
IS0 STD POWER 200" F (93" C)
OR ABOVE
FOR ENGINES OPERATING WITH ELEVATED OIL SUMP TEMPERATURE
VHP SERIES 360 hours 250 hours 360 hours 360 hours 250 hours or
annually
NOTE: Change oil filter elements when oil is changed.
ISO STANDARD OR The highest load and speed which can be applied 24 hours a day, 7 days a week, 365 days per year,
except for normal maintenance. It is permissible to operate the engine at up to ten percent overload or
CONTINUOUS maximum load indicated by the intermittent rating, whichever is lower, for two hours in each 24 hour
RATING period.
G E ~ ~ R A TSTANDB~
O~ In a system used as a backup or secondary source of electrical power, this rating is the output the engine
will produce continuously (no overload), 24 hours per day, for the duration of the prime power source out-
POWER RATING age.
INTERMITTENT POWER This rating is the highest load and speed that can be applied in variable speed mechanical system appli-
RATING cation only. Operation at this rating is limited to a maximum of 3500 hours per year.
GENERATOR PEAK Peak shaving is operation of an engine for a limited time to meet short term peak power requirements.
SHAVING Speed, loading, and hours per year of operation will affect the recommended oil change interval.
LIGHT LOAD OPERATION Power levels less than 50% of the maximum continuous power rating.
SECTION 4.35
EXHAUST SYSTEM MAINTENANCE
CRANKCASEBREATHERSYSTEM
MAINTENANCE
NOTE: After cleaning, servicing, or replacing any
component of the crankcase breather system, recheck
the crankcase pressure to verify that it is within
specification and that all system components are
functioning properly
SEPARATOR SCREEN MAINTENANCE
On 6 cylinder engines, the separator screen is located
in the top surface of the crankcase at the rear of the
engine under the separator piping (see Figure 4.40-1).
On 12 cylinder engines, the separator screen is
located in the rear right side of the engine on the right
bank surface of the crankcase under the separator pip-
. .
ing (see Figure 4.40-2). Figure 4.40-2 Crankcase Separator Screen -
12 Cylinder
BREATHER TUBE
I a WARNING
Compressed air can pierce the skin and cause
I oil separator is connected by an elbow to the vent in
the gear housing cover on the front left side of the
engine (see Figure 4.40-8). The second oil separator
severe injury. Never use your hand t o check for is mounted above the crankcase at the rear right side
leaks o r t o determine airflow rates. Wear safety of the engine (see Figure 4.40-9). This oil separator is
glasses to shield your eyes from flying dirt and connected by a breather tube to the crankcase sepa-
debris. Disregarding this information could result rator screen in the top of the crankcase.
in severe personal injury or death.
FORM 6300
CRANKCASE BREATHER SYSTEM MAINTENANCE
SEPARATOR CRANKCASE
LID VAPOR OUTLET
ELEMENT
RANKCASE VAPOR
AND OIL INLET
SHUTOFF
Crankcase Pressure Adjustment - 6 Cylinder 3. On 12 cylinder engines, loosen hex nut and turn
adjusting screw until -1 - 0 in. (-25.4 - 0 mm) crank-
On 6 cylinder models, crankcase pressure is adjusted
case pressure reads on manometer. On 6 cylinder
with either a venturifadjusting screw assembly or an
engines turn valve until -1 - 0 in. (-25.4 - 0 mm)
ejector breatherladjusting valve assembly (see
crankcase pressure reads on manometer.
Figure 4.40-14).
4. Remove engine load.
5. Measure crankcase pressure again. Readjust if is
not within specification.
6. Retest at rated speed and load. If crankcase pres-
sure is within specification, tighten hex nut to hold set-
ting.
7. If adjustment of manual control devices fails to
properly regulate crankcase pressure:
A. Clean crankcase separator screen.
B. Clean crankcase oil separators.
C. Clean all breather tubes.
D. Clean and inspect crankcase breather regulator
Figure 4.40-14 VenturilAdjusting Screw Assembly - assembly.
6 Cylinder E. Clean and inspect venturi extractor assembly.
Crankcase Pressure Adjustment - 12 Cylinder F. inspect air cleaner prefilter pads and main filter
elements. Clean or replace as necessary.
On 12 cylinder models, crankcase pressure is
adjusted with a choke valve located on the end of the G. Measure exhaust backpressure. Excessive
venturi extractor (see Figure 4.40-15). backpressure reduces breather system effec-
tiveness.
NOTE: After cleaning, servicing, or replacing any
component of the crankcase breather system, recheck
the crankcase pressure to verij/ that it is within
specification and that all system components are
functioning properly
CRANKCASEBREATHERREGULATOR
MAINTENANCE
The crankcase breather regulator assembly is above
the water manifold and connected to the venturi
extractor through a tee and pipe nipple arrangement
(see Figure 4.40-16).
[ ACAUTlON ]
If replacement of the
breather regulator
housing or valve assembly i s necessary, be sure
@--
/---",-
VALVEPLATE
t o order the correct part numbers. Since airflow
requirements vary between engine models and
applications, the housings and valves are sized or
weighted differently and are not interchangeable.
Disregarding this information could result in prod-
uct damage.
I a WARNING
Compressed air can pierce the skin and cause
I
severe injury. Never use your hand to check for
leaks or t o determine airflow rates. Wear safety
glasses to shield your eyes from flying dirt and
debris. Disregarding this information could result @\ LOCK NUT
in severe personal injury or death.
Figure 4.40-17 Breather Regulator Assembly
1. Thoroughly wash all parts in a non-volatile clean-
1. Shut down engine and allow it to cool.
ing solution or solvent to remove accumulations of
dust, dirt, grease, and grit (see Figure 4.40-17). Dry 2. Lift valve off its seat to verify plate is free to move
with low pressure compressed air. (see Figure 4.40-18).
2. lnspect regulator housing for cracks.
3. lnspect regulator rod for scratches or burrs.
4. lnspect O-ring for cuts, tears, or loss of elasticity.
5. lnspect valve plate for nicks, cracks, or damage.
6. Replace any parts that are damaged or worn.
a WARNING
The number of pressure relief valves used on the
engine depends on the volume of the crankcase.
When using this option, never operate the engine
without proper number of valves on the engine.
The ability of the system to function is dependent
upon the proper number of relief valves. Operation
without the proper type and number of relief
valves, or if the relief valves are not properly main-
tained, can result in severe personal injury or
death.
- -
Visit our internet site,
waukeshaengine.dresser.com to locate the
Waukesha Engine distributor nearest you.
ESM
--> File --> Preferences --> General. All sales and information herein supplied subject to Standard
Terms of Sale, including limitation of liability.
Make sure "Use Greek Text Below WAUKESHA, DRESSER, ESM, SERIES FOUR, and WKI are reg-
istered trademarks of Dresser, Inc. VHP and DRESSER logo are
____ Pixels" is deselected. trademarks of Dresser, Inc. All other trademarks, service marks,
logos, slogans, and trade names (collectively “marks”) are the
properties of their respective owners. Dresser, Inc., disclaims any
proprietary interest in these marks owned by others.
FORM 6295
Copyright 2001, 2003, 2005
Waukesha Engine
Dresser, Inc.
Waukesha, Wisconsin 53188
All rights reserved. Printed in U.S.A. 07/18
CONTENTS
CHEMICALS
WARNING GENERAL
To avoid severe personal injury or death, ensure
that all tools and other objects are removed from
the unit and any driven equipment before restart-
WARNING
ing the unit. Always read and comply with safety labels on all
containers. Do not remove or deface the container
labels. Improper handling or misuse could result
WARNING in severe personal injury or death.
Allow the engine to cool to room temperature CLEANING SOLVENTS
before cleaning, servicing, or repairing the unit.
Hot components or fluids can cause severe per-
sonal injury or death. WARNING
Comply with the solvent manufacturer’s recom-
Some engine components and fluids are extremely hot mendations for proper use and handling of sol-
even after the engine has been shut down. Allow suffi- vents. Improper handling or misuse could result in
cient time for all engine components and fluids to cool severe personal injury or death. Do not use gaso-
to room temperature before attempting any service line, paint thinners, or other highly volatile fluids
procedure. for cleaning.
ACIDS LIQUID NITROGEN/DRY ICE
WARNING WARNING
Comply with the acid manufacturer’s recommen- Comply with the liquid nitrogen/Dry Ice manufac-
dations for proper use and handling of acids. turer’s recommendations for proper use and han-
Improper handling or misuse could result in dling of liquid nitrogen/Dry Ice. Improper handling
severe personal injury or death. or use could result in severe personal injury or
death.
BATTERIES
COMPONENTS
WARNING HEATED OR FROZEN
Comply with the battery manufacturer’s recom-
mendations for procedures concerning proper bat-
tery use and maintenance. Improper maintenance
WARNING
or misuse could result in severe personal injury or Always wear protective equipment when installing
death. or removing heated or frozen components. Some
components are heated or cooled to extreme tem-
BODY PROTECTION peratures for proper installation or removal. Direct
contact with these parts could cause severe per-
sonal injury or death.
WARNING
INTERFERENCE FIT
Always wear OSHA approved body, sight, hearing,
and respiratory system protection. Never wear
loose clothing, jewelry, or long hair around an WARNING
engine. The use of improper attire or failure to use Always wear protective equipment when installing
protective equipment may result in severe per- or removing components with an interference fit.
sonal injury or death. Installation or removal of interference components
may cause flying debris. Failure to use protective
equipment may result in severe personal injury or
death.
COOLING SYSTEM
WARNING
WARNING Properly discharge any electrical component that
has the capability to store electrical energy before
Always wear protective clothing when venting,
connecting or servicing that component. Electrical
flushing, or blowing down the cooling system.
shock can cause severe personal injury or death.
Operational coolant temperatures can range from
180° – 250° F (82° – 121° C). Contact with hot cool-
EXHAUST
ant or coolant vapor can cause severe personal
injury or death.
WARNING
Do not inhale engine exhaust gases. Exhaust
WARNING gases are highly toxic and could cause severe per-
Do not service the cooling system while the sonal injury or death.
engine is operating or when the coolant is hot.
Operational coolant temperatures can range from Ensure exhaust systems are leak free and that all
180° – 250° F (82° – 121° C). Contact with hot cool- exhaust gases are properly vented.
ant or vapor can cause severe personal injury or
death. WARNING
ELECTRICAL Do not touch or service any heated exhaust com-
ponents. Allow sufficient time for exhaust compo-
GENERAL n e n t s t o c o o l t o ro o m t e m p e r a t u r e b e f o r e
attempting any service procedure. Contact with
WARNING hot exhaust system components can cause severe
personal injury or death.
Explosion Hazard – Do not disconnect equipment
unless power has been switched off or the area is FIRE PROTECTION
known to be non-hazardous.
WARNING
WARNING Refer to local and federal fire regulations for
Do not install, set up, maintain, or operate any guidelines for proper site fire protection. Fires can
electrical components unless you are a technically cause severe personal injury or death.
qualified individual who is familiar with the electri-
cal elements involved. Electrical shock can cause FUELS
severe personal injury or death. GENERAL
WARNING WARNING
Disconnect all electrical power supplies before Ensure that there are no leaks in the fuel supply.
making any connections or servicing any part of Engine fuels are highly combustible and can ignite
the electrical system. Electrical shock can cause or explode causing severe personal injury or
severe personal injury or death. death.
IGNITION GASEOUS
WARNING WARNING
Avoid contact with ignition units and wiring. Igni- Do not inhale gaseous fuels. Some components of
tion system components can store electrical fuel gas are odorless, tasteless, and highly toxic.
energy and if contacted can cause electrical Inhalation of gaseous fuels can cause severe per-
shocks. Electrical shock can cause severe per- sonal injury or death.
sonal injury or death.
PROTECTIVE GUARDS
WARNING
Shut off the fuel supply if a gaseous engine has WARNING
been cranked excessively without starting. Crank
Provide guarding to protect persons or structures
the engine to purge the cylinders and exhaust sys-
from rotating or heated parts. Contact with rotat-
tem of accumulated unburned fuel. Failure to
ing or heated parts can result in severe personal
purge accumulated unburned fuel in the engine
injury or death.
and exhaust system can result in an explosion
resulting in severe personal injury or death. It is the responsibility of the engine owner to specify
and provide guarding. Refer to OSHA standards on
LIQUID
“machine guarding” for details on safety rules and reg-
ulations concerning guarding techniques.
WARNING SPRINGS
Do not ingest liquid fuels or breathe in their
vapors. Liquid fuels may be highly toxic and can
result in severe personal injury or death. WARNING
Use appropriate equipment and protective gear
when servicing or using products that contain
WARNING springs. Springs, under tension or compression,
Use protective equipment when working with liq- can eject if improper equipment or procedures are
uid fuels and related components. Liquid fuel can used. Failure to take adequate precautions can
be absorbed into the body resulting in severe per- result in serious personal injury or death.
sonal injury or death.
TOOLS
INTOXICANTS AND NARCOTICS ELECTRICAL
WARNING WARNING
Do not allow anyone under the influence of intoxi- Do not install, set up, maintain, or operate any
cants and/or narcotics to work on or around indus- electrical tools unless you are a technically quali-
trial engines. Workers under the influence of fied individual who is familiar with them. Electrical
intoxicants and/or narcotics are a hazard to both tools use electricity and if used improperly could
themselves and other employees and can cause cause severe personal injury or death.
severe personal injury or death to themselves or
others. HYDRAULIC
PRESSURIZED FLUIDS/GAS/AIR
WARNING
Do not install, set up, maintain, or operate any
WARNING hydraulic tools unless you are a technically quali-
Never use pressurized fluids/gas/air to clean cloth- fied individual who is familiar with them. Hydraulic
ing or body parts. Never use body parts to check tools use extremely high hydraulic pressure and if
for leaks or flow rates. Pressurized fluids/gas/air used improperly could cause severe personal
injected into the body can cause severe personal injury or death.
injury or death.
Always follow recom-
Observe all applicable local and federal regulations CAUTION mended procedur es
relating to pressurized fluid/gas/air. w h e n u s i n g hy d r a ul i c t e n s i o ni n g d ev i c e s .
Improper use of hydraulic tensioning tools can
cause severe engine damage.
PNEUMATIC
WARNING
Do not install, set up, maintain, or operate any
pneumatic tools unless you are a technically quali-
fied individual who is familiar with them. Pneu-
matic tools use pressuriz ed air and if used
improperly could cause severe personal injury or
death.
WEIGHT
WARNING
Always consider the weight of the item being lifted
and use only properly rated lifting equipment and
approved lifting methods. Failure to take adequate
precautions can result in serious personal injury
or death.
WARNING
Never walk or stand under an engine or compo-
nent while it is suspended. Failure to adhere to
this could result in severe personal injury or
death.
WELDING
GENERAL
WARNING
Comply with the welder manufacturer’s recom-
mendations for procedures concerning proper use
of the welder. Improper welder use can result in
severe personal injury or death.
ON ENGINE
Ensure that the welder
CAUTION is properly grounded
before attempting to weld on or near an engine.
Ground welder as close to work area as possible.
Failure to properly ground the welder could result
in severe engine damage.
ENGLISH/METRIC CONVERSIONS
Inch Pounds to Newton-meters Inch pounds multiplied by 0.113 equals 360 in-lb = 360 x 0.113 = 40.7 N⋅m
Newton-meters.
Foot Pounds to Newton-meters Foot pounds multiplied by 1.3558 equals 145 ft-lb = 145 x 1.3558 = 197 N⋅m
Newton-meters.
Pounds per square inch multiplied by 0.0690
Pounds per Square Inch to Bars 9933 psi = 9933 x 0.0690 = 685 bar
equals bars.
Pounds per Square Inch to Pounds per square inch multiplied by 0.0703 45 psi = 45 x 0.0703 = 3.2 kg/cm2
Kilograms per Square Centimeter equals kilograms per square centimeter.
Pounds per Square Inch to Pounds per square inch multiplied by 6.8947 45 psi = 45 x 6.8947 = 310 kPa
Kilopascals equals kilopascals.
Pounds force x inches x squared seconds mul-
Rotating Moment of Inertia (Force) tiplied by 0.112985 equals kilograms x 123.9 lbf x in x sec2 = 123.9 x 0.112985 = 14 kg x m2
squared meters.
Rotating Moment of Inertia (Mass) Pounds mass x squared feet multiplied by 332.2 lbm x ft2 = 332.2 x 0.04215 = 14 kg x m2
0.04215 equals kilograms x squared meters.
Fluid Ounces to Cubic Centimeters Fluid ounces multiplied by 29.57 equals 8 oz. = 8 x 29.57 = 237 cc
cubic centimeters.
US Gallons to Litres US Gallons multiplied by 3.7853 equals litres. 148 gal. = 148 x 3.7853 = 560 L
Degrees Fahrenheit to Degrees Degrees Fahrenheit minus 32 divided by 1.8 212° F – 32 ÷ 1.8 = 100° C
Centigrade equals degrees Centigrade.
Newton-meters to Foot Pounds Newton-meters multiplied by 0.7375 equals 197 N⋅m = 197 x 0.7375 = 145 ft-lb
foot pounds.
Bars multiplied by 14.5 equals pounds per
Bars to Pounds per Square Inch 685 bar = 685 x 14.5 = 9933 psi
square inch.
Kilopascals to Pounds per Square Kilopascals multiplied by 0.145 equals pounds 310 kPa = 310 x 0.145 = 45.0 psi
Inch (psi) per square inch.
Kilograms x squared meters multiplied by
Rotating Moment of Inertia (Force) 8.85075 equals pounds force x inches x 14 kg x m2 = 14 x 8.85075 = 123.9 lbf x in x sec2
squared seconds.
Kilograms x squared meters multiplied by
Rotating Moment of Inertia (Mass) 14 kg x m2 = 14 x 23.725 = 332.2 lbm x ft2
23.725 equals pounds mass x squared feet.
Cubic centimeters multiplied by 0.0338 equals
Cubic Centimeters to Fluid Ounces 236 cc = 236 x 0.0338 = 7.98 oz.
fluid ounces.
Litres to US Gallons Litres multiplied by 0.264 equals US gallons. 560 L = 560 x 0.264 = 148 gal.
Degrees Centigrade to Degrees Degrees Centigrade multiplied by 1.8 plus 32 100° C = 100 x 1.8 + 32 = 212° F
Fahrenheit equals degrees Fahrenheit.
TORQUE VALUES
SAE
GRADE GRADE 1 OR 2 GRADE 5 GRADE 8
NUMBER
TORQUE TORQUE TORQUE
in-lb (N⋅m) in-lb (N⋅m) in-lb (N⋅m)
THREADS DRY OILED PLATED DRY OILED PLATED DRY OILED PLATED
1/4–20 62 (7) 53 (6) 44 (5) 97 (11) 80 (9) 159 (18) 142 (16) 133 (15) 124 (14)
1/4–28 71 (8) 62 (7) 53 (6) 124 (14) 106 (12) 97 (11) 168 (19) 159 (18) 133 (15)
5/16–18 133 (15) 124 (14) 106 (12) 203 (23) 177 (20) 168 (19) 292 (33) 265 (30) 230 (26)
5/16–24 159 (18) 142 (16) 124 (14) 230 (26) 203 (23) 177 (20) 327 (37) 292 (33) 265 (30)
3/8–16 212 (24) 195 (22) 168 (19) 372 (42) 336 (38) 301 (34) 531 (60) 478 (54) 416 (47)
ft-lb (N⋅m) ft-lb (N⋅m) ft-lb (N⋅m)
3/8–24 20 (27) 18 (24) 16 (22) 35 (47) 32 (43) 28 (38) 49 (66) 44 (60) 39 (53)
7/16–14 28 (38) 25 (34) 22 (30) 49 (56) 44 (60) 39 (53) 70 (95) 63 (85) 56 (76)
7/16–20 30 (41) 27 (37) 24 (33) 55 (75) 50 (68) 44 (60) 78 (106) 70 (95) 62 (84)
1/2–13 39 (53) 35 (47) 31 (42) 75 (102) 68 (92) 60 (81) 105 (142) 95 (129) 84 (114)
1/2–20 41 (56) 37 (50) 33 (45) 85 (115) 77 (104) 68 (92) 120 (163) 108 (146) 96 (130)
9/16–12 51 (69) 46 (62) 41 (56) 110 (149) 99 (134) 88 (119) 155 (210) 140 (190) 124 (168)
9/16–18 55 (75) 50 (68) 44 (60) 120 (163) 108 (146) 96 (130) 170 (230) 153 (207) 136 (184)
5/8–11 83 (113) 75 (102) 66 (89) 150 (203) 135 (183) 120 (163) 210 (285) 189 (256) 168 (228)
5/8–18 95 (129) 86 (117) 76 (103) 170 (230) 153 (207) 136 (184) 240 (325) 216 (293) 192 (260)
3/4–10 105 (142) 95 (130) 84 (114) 270 (366) 243 (329) 216 (293) 375 (508) 338 (458) 300 (407)
3/4–16 115 (156) 104 (141) 92 (125) 295 (400) 266 (361) 236 (320) 420 (569) 378 (513) 336 (456)
7/8–9 160 (217) 144 (195) 128 (174) 395 (535) 356 (483) 316 (428) 605 (820) 545 (739) 484 (656)
7/8–14 175 (237) 158 (214) 140 (190) 435 (590) 392 (531) 348 (472) 675 (915) 608 (824) 540 (732)
1.0–8 235 (319) 212 (287) 188 (255) 590 (800) 531 (720) 472 (640) 910 (1234) 819 (1110) 728 (987)
1.0–14 250 (339) 225 (305) 200 (271) 660 (895) 594 (805) 528 (716) 990 (1342) 891 (1208) 792 (1074)
NOTE: Dry torque values are based on the use of clean, dry threads.
Oiled torque values have been reduced by 10% when engine oil is used as a lubricant.
Plated torque values have been reduced by 20% for new plated capscrews.
Capscrews that are threaded into aluminum may require a torque reduction of 30% or more.
The conversion factor from ft-lb to in-lb is ft-lb x 12 equals in-lb.
Oiled torque values should be reduced by 10% from dry when nickel-based antiseize compound is used as a lubricant.
Oiled torque values should be reduced by 16% from dry when copper-based antiseize compound is used as a lubricant.
Table 1.05-4 Metric Standard Capscrew Torque Values (Untreated Black Finish)
COARSE THREAD CAPSCREWS (UNTREATED BLACK FINISH)
ISO
PROPERTY 5.6 8.8 10.9 12.9
CLASS
TORQUE TORQUE TORQUE TORQUE
SIZE
N⋅m in-lb N⋅m in-lb N⋅m in-lb N⋅m in-lb
M3 0.6 5 1.37 12 1.92 17 2.3 20
M4 1.37 12 3.1 27 4.4 39 10.4 92
M5 2.7 24 10.5 93 15 133 18 159
M6 4.6 41 10.5 93 15 133 10.4 92
M7 7.6 67 17.5 155 25 221 29 257
M8 11 97 26 230 36 319 43 380
M10 22 195 51 451 72 637 87 770
N⋅m ft-lb N⋅m ft-lb N⋅m ft-lb N⋅m ft-lb
M12 39 28 89 65 125 92 150 110
M14 62 45 141 103 198 146 240 177
M16 95 70 215 158 305 224 365 269
M18 130 95 295 217 420 309 500 368
M20 184 135 420 309 590 435 710 523
M22 250 184 570 420 800 590 960 708
M24 315 232 725 534 1020 752 1220 899
M27 470 346 1070 789 1519 1113 1810 1334
M30 635 468 1450 1069 2050 1511 2450 1806
M33 865 637 1970 1452 2770 2042 3330 2455
M36 1111 819 2530 1865 3560 2625 4280 3156
M39 1440 1062 3290 2426 4620 3407 5550 4093
FINE THREAD CAPSCREWS (UNTREATED BLACK FINISH)
ISO
PROPERTY 8.8 10.9 12.9
CLASS
TORQUE TORQUE TORQUE
SIZE
N⋅m ft-lb N⋅m ft-lb N⋅m ft-lb
M8 x 1 27 19 38 28 45 33
M10 x 1.25 52 38 73 53 88 64
M12 x 1.25 95 70 135 99 160 118
M14 x 1.5 150 110 210 154 250 184
M16 x 1.5 225 165 315 232 380 280
M18 x 1.5 325 239 460 339 550 405
M20 x 1.5 460 339 640 472 770 567
M22 x 1.5 610 449 860 634 1050 774
M24 x 2 780 575 1100 811 1300 958
NOTE: The conversion factors used in these tables are as follows: One N⋅m equals 0.7375 ft-lb and one ft-lb equals 1.355818 N⋅m.
Table 1.05-5 Metric Standard Capscrew Torque Values (Electrically Zinc Plated)
COARSE THREAD CAPSCREWS (ELECTRICALLY ZINC PLATED)
ISO
PROPERTY 5.6 8.8 10.9 12.9
CLASS
TORQUE TORQUE TORQUE TORQUE
SIZE
N⋅m in-lb N⋅m in-lb N⋅m in-lb N⋅m in-lb
M3 0.56 5 1.28 11 1.8 16 2.15 19
M4 1.28 11 2.9 26 4.1 36 4.95 44
M5 2.5 22 5.75 51 8.1 72 9.7 86
M6 4.3 38 9.9 88 14 124 16.5 146
M7 7.1 63 16.5 146 23 203 27 239
M8 10.5 93 24 212 34 301 40 354
M10 21 186 48 425 67 593 81 717
N⋅m ft-lb N⋅m ft-lb N⋅m ft-lb N⋅m ft-lb
M12 36 26 83 61 117 86 140 103
M14 58 42 132 97 185 136 220 162
M16 88 64 200 147 285 210 340 250
M18 121 89 275 202 390 287 470 346
M20 171 126 390 287 550 405 660 486
M22 230 169 530 390 745 549 890 656
M24 295 217 675 497 960 708 1140 840
M27 435 320 995 733 1400 1032 1680 1239
M30 590 435 1350 995 1900 1401 2280 1681
M33 800 590 1830 1349 2580 1902 3090 2278
M36 1030 759 2360 1740 3310 2441 3980 2935
M39 1340 988 3050 2249 4290 3163 5150 3798
FINE THREAD CAPSCREWS (ELECTRICALLY ZINC PLATED)
ISO
PROPERTY CLASS 8.8 10.9 12.9
INTRODUCTION
The Waukesha Engine System Manager (ESM) is a
total engine management system designed to optimize
engine performance and maximize uptime (see
Figure 1.10-1 and Figure 1.10-2). The ESM system
integrates spark timing control, speed governing, deto-
nation detection, start-stop control, air/fuel control
(AFR equipped), diagnostic tools, fault logging, and Figure 1.10-1 Engine System Manager (ESM) Installed
engine safeties. ESM system automation and monitor- On A VHP Series Four 12 Cylinder Engine
ing provides:
• Better engine performance
• Extensive system diagnostics
• Rapid troubleshooting of engines
• Local and remote monitoring capability used to
trend engine performance
• Easy integration into an extensive data acquisition
system
In addition, the ESM system has safety shutdowns
such as low oil pressure, engine overspeed, high
intake manifold air temperature, high coolant outlet
temperature, and uncontrolled detonation (not all
L5774LT engines include detonation detection).
User interface to the ESM system can be as simple as Figure 1.10-2 Close-Up Of ESM System Installed
switches, potentiometers, and light bulbs, or as sophis- On Engine
ticated as a PLC with a touch screen and remote data
acquisition controlled by a satellite link.
See Figure 1.10-3 for a block diagram of the complete
ESM system.
ESM SYSTEM COMPONENTS The ESM system includes the following engine
mounted and wired sensors (see Figure 1.10-4,
The ESM system including the modules and cables Figure 1.10-5, and Figure 1.10-6):
meets Canadian Standards Association (CSA) Class I,
• Oil pressure sensor (1)
Division 2, Group D, hazardous location requirements.
• Oil temperature sensor (1)
The ESM system includes the following equipment:
• Intake manifold pressure sensor(s)
• Engine Control Unit (ECU)
• Intake manifold temperature sensor (1)
• Ignition Power Module with Diagnostics (IPM-D) • Jacket water temperature sensor (1)
• PC-based Electronic Service Program (ESP) • Magnetic pickups (2)
• Electric throttle actuation • Knock sensors (L5774LT engines are not equipped
with detonation detection so knock sensors are not
• Stepper(s) for the gas regulator (one per engine
included)
bank) (AFR equipped)
• Oxygen sensor(s) (AFR equipped)
• Exhaust temperature sensor(s) (AFR equipped)
Once the fault is corrected, the Status LEDs on the NOTE: Refer to Section 3.00 Introduction To ESP for
ECU will remain flashing until one of two things hap- information on ESP PC requirements, conventions
pens: (1) the LEDs are cleared using the ESM Elec- used, and information on saving.
tronic Service Program or (2) the engine is restarted.
USER INTERFACE PANELS These panels display system and component status,
current pressure and temperature readings, alarms,
The ESM ESP software displays engine status and
ignition status, governor status, air/fuel control status
information on six panels (eight panels if AFR
(AFR equipped), and programmable adjustments.
equipped):
Each of the panels is viewed by clicking the corre-
[F2] Engine Panel [F6] AFR Primary Fuel Panel*
sponding tab or by pressing the corresponding func-
[F3] Start-Stop Panel [F8] AFR Setup Panel* tion key ([F#]) on the keyboard. The following
paragraphs describe each of these panels.
[F4] Governor Panel [F10] Status Panel
NOTE: Refer to Section 3.05 ESP Panel Descriptions
[F5] Ignition Panel [F11] Advanced Panel for a complete description of each panel.
[F2] ENGINE: The Engine Panel displays engine [F4] GOVERNOR: The Governor Panel displays
speed and current system readings of pressure and engine speed, throttle position, and governor operat-
temperature (see Figure 1.10-9). If a sensor or wiring ing status (see Figure 1.10-11). This panel also allows
failure is detected, the status bar, under the affected the user to make governor adjustments by calibrating
sensor, will change from teal to yellow, and a message gain, droop, load inertia, and other ESM system gov-
will appear in the status bar telling the user to check erning control features such as synchronization speed
sensor and wiring for proper operation. Also, the and feedforward adjustments.
“Engine Alarm” field in the upper right corner will
change from gray (deactivated/no engine alarm) to yel-
low (alarm). In case of a shutdown, the deactivated
(gray) status bar under the “Eng Set Point RPM” field
turns red and a message signals the user of the emer-
gency shutdown.
[F6] AFR PRI: (AFR equipped) The AFR Primary Fuel [F10] STATUS: The Status Panel displays the number
Panel is used to monitor AFR system performance of faults occurring in the system, engine speed, ECU
(see Figure 1.10-13). This panel displays actual step- hours, and other fault signals (see Figure 1.10-15).
per position, stepper position setpoints, stepper oper- This panel also makes it possible for the user to view a
ating mode, oxygen and exhaust sensor status, and log of all the current and historical faults. See “Fault
AFR operating mode (automatic or manual). This Log” in this section for more information.
panel also allows the user to change from automatic to
manual mode and adjust stepper position using the
arrow buttons.
FAULT LOG
The ESM system features extensive engine diagnos-
tics capability. The ECU records system faults as they
occur. A “fault” is any condition that can be detected by
the ESM system that is considered to be out-of-range,
unusual, or outside normal operating conditions. One
method of obtaining diagnostic information is by view-
ing the Fault Log using the ESM ESP software (see
Figure 1.10-17). ESP displays the data provided by
the ECU.
• Shutdown occurs and the red Status LED on the START-STOP CONTROL
front of the ECU lights and flashes a code.
The ESM system manages the start, stop, and emer-
• Alarm or shutdown signal is transmitted over the gency stop sequences of the engine including pre- and
customer interface (RS-485 MODBUS and digital postlube. Logic to start and stop the engine is built into
output). the ECU, but the customer supplies the user interface
(control panel buttons, switches, touch screen) to the
SAFETY SHUTDOWNS ESM system.
The ESM system provides numerous engine safety The ESM system’s start-stop process is controlled by
shutdowns to protect the engine. These engine safety three digital inputs: a start signal that is used to indi-
shutdowns include: cate to the ECU that the engine should be started and
two shutdown signals (normal and emergency) that
• Low oil pressure
are used to give “permission” to run the engine. For
• Engine overspeed the engine to start, the start signal must be “high”
(8.6 – 36 volts) for at least 1/2 second (not to exceed
•• 10% overspeed instantaneous
1 minute) and the shutdown signals must both be
•• Waukesha-calibrated to run no more than rated “high” (8.6 – 36 volts). Although the start signal must
speed go “low” (< 3.3 volts) after starting, the shutdown sig-
nals must remain “high” for the engine to run. If either
•• User-calibrated driven equipment overspeed
shutdown signal goes “low” (< 3.3 volts), even for a
• Engine overload (based on percentage of engine fraction of a second, the engine will stop.
torque) During the “start” sequence, the ESM system per-
• Uncontrollable knock (a safety shutdown on all ESM forms the following steps:
engines except L5774LT engines) 1) Prelubes engine (programmable from 0 –
10,800 seconds using ESP software)
• High intake manifold air temperature
2) Engages starter motor (programmable rpm
• High jacket water coolant temperature range using ESP software)
• Internal ECU faults 3) Turns fuel on (programmable above a certain
rpm and after a user-calibrated purge time
• Failure of magnetic pickup
using ESP software)
When a safety shutdown occurs, several internal 4) Turns ignition on (after a user-calibrated
actions and external visible effects take place. Each purge time using ESP software)
safety shutdown will cause the following actions to
During the normal “stop” sequence, the ESM system
occur:
performs the following steps:
• Ignition spark stops instantaneously. 1) Begins cool down period (programmable
• Gas shutoff valve is closed. using ESP software)
2) Shuts off fuel
• The digital output from the ECU to the customer is
3) Stops ignition when engine stops rotating
changed to indicate to the customer’s driven equip-
ment or PLC that the ESM system has shut down 4) Postlubes engine (programmable from 0 –
the engine and something is not operating as 10,800 seconds using ESP software)
expected. 5) Actuator auto calibration (if desired, program-
mable using ESP software)
• Red Status LED on the front of the ECU flashes the
shutdown fault code. During the “emergency stop” sequence, the ESM sys-
tem performs the following step:
• Shutdown signal is transmitted over the customer
1) Simultaneously shuts off fuel and ignition
interface (RS-485 MODBUS and digital output).
NOTE: If the engine is being used in a “standby”
• An entry is added to the fault log and can be read electric power generation application and the engine
using the ESM ESP software. See “Fault Log” on must not prelube on startup, the customer is
page 1.10-11 for more information. responsible for controlling the prelube motor to
automatically prelube the engine. Refer to Section 3 of
Chapter 5 “Lubrication System” in the Installation Of
Waukesha Engines & Enginator Systems Manual
(Form 1091) for lubrication requirements in standby
applications.
DESCRIPTION OF IGNITION SYSTEM The ECU is the “brain” of the ignition system. The ECU
controls spark timing with information preprogrammed
The ESM system controls spark plug timing with a dig- at the factory. The spark timing is determined by cali-
ital capacitive discharge ignition system. The ignition bration and can vary with engine speed, intake mani-
system uses the capacitor discharge principle that pro- fold pressure, the WKI value, and several other
vides a high variable energy, precision-timed spark for variables that optimize engine performance.
maximum engine performance. The ESM ignition sys-
tem provides accurate and reliable ignition timing The ECU also controls spark timing with the
resulting in optimum engine operation. information from the engine-mounted knock sensors.
When a knock signal exceeds the detonation
The ESM ignition system uses the ECU as its central threshold, the ECU retards timing incrementally on
processor or “brain.” Two magnetic pickups are used to an individual cylinder basis to keep the engine
input information to the ECU. One pickup reads a mag- out of detonation. See “Detonation Detection” on
net on the camshaft and the other senses reference page 1.10-15 for more information.
holes in the flywheel. See Figure 1.10-20 for the ESM
ignition system diagram. NOTE: Not all L5774LT engines include detonation
detection.
A separate module, the Ignition Power Module with
Diagnostic capability (IPM-D), is needed to fire the Based on the preprogrammed information and
spark plug at the required voltage (see readings, the ECU sends an electronic signal to the
Figure 1.10-19). The IPM-D is CSA approved for IPM-D that energizes the ignition coils to “fire” the
Class I, Division 2, Group D (T4 temperature rating), spark plug. The IPM-D provides automatically
hazardous location requirements. controlled dual voltage levels. During normal engine
operation, the IPM-D fires at a Level 1 (normal) ignition
energy. The IPM-D fires at a Level 2 (high) ignition
IPM-D
energy on engine startup or as a result of spark plug
wear. See “Ignition Diagnostics” on page 1.10-14 for
more information.
The IPM-D is a high energy, capacitor discharge
solid-state ignition module. The power supply voltage
is used to charge the energy storage capacitor. This
voltage is then stepped up by the ignition coils. A sig-
nal from the ECU triggers the IPM-D to release the
energy stored in the capacitor. When the IPM-D
receives the signal, the energy in the ignition coil is
used to fire the spark plug.
ESM engines have an index disc mounted on the cam- IGNITION DIAGNOSTICS
shaft gear and a magnetic pickup mounted on the gear
IPM-D provides diagnostic information for both the pri-
cover of the engine (see Figure 1.10-21). The index
mary and secondary sides of the ignition coil. The
disc is always fixed at the same angular location for
IPM-D detects shorted spark plugs and ignition leads,
every engine with the ESM system. The index disc has
as well as spark plugs that require a boosted energy
one magnet: the index magnet. The camshaft mag-
level to fire or do not fire at all. The diagnostic informa-
netic pickup determines which part of the four-stroke
tion is provided through a Controller Area Network
cycle the engine is in. Since the camshaft disc rotates
(CAN) link between the ECU and IPM-D, and then to
at half the engine speed, the crankshaft must rotate
the customer’s local control panel via MODBUS.
twice for the cycle to end.
Predictive diagnostics based on a spark reference
number for each cylinder is used to monitor each
spark plug’s life. The spark reference number is an
arbitrary number based on relative voltage demand.
The spark reference number is displayed for each cyl-
inder on the [F5] Ignition Panel in ESP. Spark refer-
ence numbers can be used to represent spark plug
electrode wear (gap) and can be monitored (for exam-
ple, with MODBUS) and trended to predict the time of
spark plug failure.
If sufficient spark plug wear is identified, IPM-D raises
the power level of the ignition coil. As a result, the
IPM-D’s automatically controlled dual voltage levels
maximize spark plug life. During normal engine opera-
tion, the IPM-D fires at a Level 1 (normal) ignition
energy. The IPM-D fires at a Level 2 (high) ignition
Figure 1.10-21 Magnetic Pickup Located On Gear energy on engine startup or as a result of spark plug
Cover
wear. If the ignition energy is raised to Level 2 (except
Another magnetic pickup is used to sense 36 refer- on startup), an alarm is triggered to alert the operator
ence holes in the flywheel (see Figure 1.10-22). This that the plugs are wearing.
magnetic pickup signals to the ECU: (1) the angular The ignition system has four levels of alarm: primary,
position of the crankshaft and (2) engine speed (rpm). low voltage, high voltage, and no spark. A primary
alarm indicates a failed ignition coil or faulty ignition
wiring. A low voltage alarm indicates a failed spark
plug or shorted ignition coil secondary wire. A high
voltage alarm indicates that a spark plug is getting
worn and will need to be replaced soon. A no spark
alarm indicates that a spark plug is worn and must be
replaced. Each of these alarms can be remedied using
the troubleshooting information in E-Help.
NOTE: Using the [F5] Ignition Panel in ESP, the user
can adjust the faults’ alarm and shutdown points to
compensate for site conditions.
DETONATION DETECTION The following are the main features of the ESM sys-
tem’s detonation detection:
DESCRIPTION OF DETONATION DETECTION
• The ESM system monitors for knock during every
NOTE: Not all L5774LT engines include detonation combustion event.
detection.
• A per-event measure of the knock level is compared
The ESM system includes detonation detection and to a reference level to determine if knock is present.
protects Waukesha Engine spark ignited gas engines
from damage due to detonation. • Action taken by the ESM system when knock is
detected is proportional to the knock intensity
Detonation is the autoignition of the unconsumed end identified.
gas after the spark plug has fired during a normal
flame-front reaction in an engine’s combustion cham- • To prevent misleading vibration signals that may
ber. When this happens, pressure waves, created by exist at light loads from being incorrectly construed
multiple flame-fronts, slam together creating a high as knock, the ESM system does not monitor for det-
pressure pulse that causes engine components to onation at loads less than 50% of manufacturer’s
vibrate. This vibration results in an audible “ping” or rated load. This prevention also avoids unnecessary
“knock” known as detonation. Avoiding detonation con- shutdowns while the engine is warming up or run-
ditions is critical since detonation is typically destruc- ning at low loads.
tive to engine components. • The ESM system requires no calibration of the deto-
Detonation is caused by site conditions and/or engine nation detection system by on-site personnel. The
misadjustment, not the engine. The conditions that ESM system’s detonation detection system is
promote detonation are extremely complex. See “Det- self-calibrating.
onation Theory” for a definition of detonation and • If detonation is detected and the engine is shut
examples of detonation promoters and reducers. down, the ECU records in the fault log that detona-
The ESM system detects detonation by monitoring tion occurred even if a PC was not connected.
vibrations at each cylinder with engine-mounted knock • When a PC is connected to the ECU and the ESP
sensors (see Figure 1.10-23). When a signal exceeds software is active, the ESP software displays when
a detonation threshold, the ESM system retards timing detonation is occurring. If the engine is shut down
incrementally on an individual cylinder basis to keep due to detonation, the shutdown and number of det-
the engine and each cylinder out of detonation or from onating cylinders are recorded in the fault log. ESP
“knocking.” provides a simple user interface for viewing engine
status and troubleshooting information during
engine detonation.
DETONATION THEORY
Detonation has been a known adversary of engine
operation for many years. Avoiding detonation condi-
tions is critical since detonation is typically destructive
to engine components. Severe detonation often dam-
ages pistons, cylinder heads, valves, and piston rings.
Damage from detonation will eventually lead to com-
plete failure of the affected part. Detonation can be
prevented; however, the conditions that promote deto-
nation are extremely complex and many variables can
promote detonation at any one time. This section
defines detonation and gives examples of detonation
promoters and reducers.
Figure 1.10-23 Knock Sensor During normal combustion, the forward boundary of
the burning fuel is called the “flame-front.” Research
has shown that combustion in a gaseous air/fuel
homogeneous mixture ignited by a spark is character-
ized by the more or less rapid development of a flame
that starts from the ignition point and spreads continu-
ally outward in the manner of a grass fire. When this
spread continues to the end of the chamber without
abrupt change in its speed or shape, combustion is METHOD OF DETONATION DETECTION AND
called “normal.” When analyzing detonation, however, TIMING CONTROL
combustion is never normal.
The ESM system senses detonation with a technique
The end gas is that part of the air/fuel charge that called “windowing.” This technique allows the ESM
has not yet been consumed in the normal flame-front system to look for detonation only during the combus-
reaction. Detonation is due to the autoignition of the tion time when detonation could be present.
end gas after spark ignition has occurred. When deto-
The “window” opens shortly after the spark plug fires
nation occurs, it is because compression of the end
to eliminate the effects of ignition noise. This noise is
gas by expansion of the burned part of the charge
caused from the firing of the spark plug and subse-
raises its temperature and pressure to the point where
quent “ring-out” of coils. This “sample” window is
the end gas autoignites. If the reaction of autoignition
closed near the end of the combustion event at a pre-
is sufficiently rapid and a sufficient amount of end gas
determined angle after top dead center (ATDC) in
is involved, the multiple flame-fronts will collide with
crankshaft degrees (see Figure 1.10-24).
sufficient force to be heard. This sound is referred to
as audible “ping” or “knock.” During detonation a unique vibration called “knock”
frequency is produced. Knock frequency is just one of
The tendency to detonate will depend on the humidity
many frequencies created in a cylinder during engine
of intake air and the temperature and pressure of the
operation. The knock sensors mounted at each cylin-
end gas in the combustion chamber. Any change in
der convert engine vibrations to electrical signals that
engine operating characteristics that affects end gas
are routed to the ECU. The ECU removes the electri-
temperature will determine whether combustion will
cal signals that are not associated with detonation
result with or without detonation. The greater the end
using a built-in filter. When the filtered signal exceeds
gas pressure and temperature and the time to which
a predetermined limit (detonation threshold), the ESM
the end gas is exposed to this severe stress, the
system retards the ignition timing for the cylinder asso-
greater will be the tendency for the fuel to detonate.
ciated with that sensor by communicating internally
Detonation is an extremely complex subject when with the ignition circuitry that controls the IPM-D. The
dealing with internal combustion engines. The number amount the timing is retarded is directly proportional to
of unpredictable variables in actual field running the knock intensity. So when the intensity (loudness) is
engines can be enormous. Table 1.10-1 lists the pro- high, the ignition timing is retarded more than when
moters and reducers of detonation. the knock intensity is low.
PROMOTERS REDUCERS
OPEN SAMPLE
Higher Cylinder Temperature Lower Cylinder Temperatures WINDOW DETONATION
Lower WKI Fuels Higher WKI Fuels
More Advanced Spark Timing Less Advanced Spark Timing
END OF SAMPLE
Higher Compression Ratios Lower Compression Ratios WINDOW
Higher Inlet Pressure Lower Inlet Pressure IGNITION
Higher Coolant Temperatures Lower Coolant Temperatures SPARK
Higher Intake Manifold Air Lower Intake Manifold Air
Temperatures Temperatures
Lower Engine Speeds Higher Engine Speeds
Lower Atmospheric Humidity Higher Atmospheric Humidity
Higher Engine Load Lower Engine Load
Stoichiometric Air/Fuel Ratio Lean Or Rich Air/Fuel Ratios
(Rich Burn Engine) (Without Engine Overload)
Rich Air/Fuel Ratio
Lean Air/Fuel Ratios
(Lean Burn Engine) TDC
Cylinder Misfire On
Neighboring Cylinders Figure 1.10-24 Windowing Chart
The ESM system controls timing between two prede- GOVERNING THEORY
termined limits: the maximum advanced timing and the
When governing, two values are needed: 1) the
most retarded timing. The maximum advanced timing
desired engine speed and 2) the current speed of the
is variable and depends on rpm, load, and the WKI
engine.
value. The most retarded timing is a predetermined
limit. The ESM speed governing system is responsible for
modifying the engine torque to produce the desired
The maximum advanced timing value is used in two
engine speed. The desired speed can be set by
different ways. First, under normal loads the maximum
means of calibrations and/or external inputs. The dif-
advanced timing is the timing limit. Second, when the
ference between the current speed and the desired
engine is under light load and cannot be knocking, it is
speed (or the speed error) is used to modify the torque
used as the timing for all cylinders.
to maintain the desired speed.
In the event the ESM system senses detonation that
To determine current engine speed, the ESM system
exceeds the detonation threshold, the ignition timing
uses a magnetic pickup that senses 36 reference
will be retarded at an amount proportional to the inten-
holes in the flywheel. As the holes pass the end of the
sity of detonation sensed. Ignition timing will then be
magnetic sensor, a signal wave is generated. The fre-
retarded until either the signal from the knock sensor
quency of the signal is proportional to engine speed.
falls below the detonation threshold or the most
Based on the electrical signal from the magnetic
retarded timing position is reached. As soon as condi-
pickup, the governor compares current engine speed
tions permit, the ESM system will advance spark tim-
with desired engine speed and responds by adjusting
ing to the maximum setpoint at a predetermined rate.
the throttle position of the engine. An electric actuator
However, if after a predetermined time conditions
is used to convert the electrical signal from the ECU
do not permit timing to be advanced from the most
into motion to change the amount of air and fuel deliv-
retarded timing position, a fault is logged indicating the
ered to the engine through the throttle (see
detonating cylinder(s), the red Status LED will blink the
Figure 1.10-25).
uncontrollable knock fault code on the ECU, and the
engine will shut down after a short predetermined
time.
If the customer directs the analog/digital outputs from
the ECU to the local panel or PLC, steps can be taken
to bring the engine out of detonation before engine
shutdown. Using the digital or analog outputs from the
ECU, a signal can be sent to a local panel or PLC indi-
cating that detonation is occurring. This signal can be
used to reduce the load on the engine to help bring the
engine out of detonation. Should detonation continue,
shutdown will occur.
Isochronous control means that the governor will speed setting enable, rated speed/idle speed, and an
maintain a constant engine rpm regardless of load auxiliary rpm input for load control. Using these cus-
(within the capacity of the engine). tomer inputs, the ESM speed governing system is set
to run in either speed control mode or load control
The governor can also operate in a droop mode, which
mode.
means that the governor will allow the engine to slow
down slightly under load. Droop is used to simulate the Governing control is further customized for location
situation with mechanical governors where the engine requirements through user-selectable parameters
will run at a slightly higher rpm than the setpoint when describing the driven load. Custom control adjust-
no load is placed on the engine. This feature can be ments to the ESM speed governing system are made
used to synchronize the output of multiple generator with ESP.
sets driving an isolated electrical grid.
The rotating moment of inertia of the driven equipment
Load Control must be programmed in ESP. Further gain calibrations
may be made through ESP. The correct governor gain
Load control mode is used when a generator set is
depends on the rotating moment of inertia of the
synchronized to a grid. In this case the grid controls
engine and driven equipment. By inputting the rotating
speed, and the ESM speed governing system controls
moment of inertia of the driven equipment, the gain is
the engine load using signals from an external device.
preset correctly aiding rapid startup of the engine. The
GOVERNOR INPUTS AND CALIBRATIONS rotating moment of inertia of the engine and the driven
equipment are used in predicting throttle position.
Figure 1.10-26 illustrates the types of inputs to the
ESM system for speed governing control. The actual The ESM speed governing system also allows the
inputs required to the ECU depend on the governing customer to calibrate the system to use other govern-
control desired. ing control features including feedforward control (or
load coming control) and synchronizer control (or
Required external inputs are programmed to the ECU
alternate dynamics).
from a customer’s local control panel or PLC. These
inputs include remote speed/load setting, remote
ESM SPEED
GOVERNING SYSTEM
(INSIDE ECU)
NOTE: The actual inputs required to the ECU depend on the governing control desired.
Alternate dynamics or synchronizer mode is used to The ESM AFR control adds to the basic ESM configu-
rapidly synchronize an engine to the electric power ration (for each bank of the engine) an exhaust oxygen
grid by using cylinder timing to maintain constant sensor, a stepper for the gas regulator, and an exhaust
engine speed. During the time the alternate dynamics temperature sensor. In addition, other sensor inputs
input is high, the field is green and signals the user it is already available to the ESM system, such as intake
ON. During the time the alternate dynamics input is manifold pressure, are used. The oxygen sensor con-
low, the field is gray and signals the user it is OFF. The tinually reports the concentration of oxygen in the
lower gain values can be used to minimize actuator exhaust to the AFR routine in the ECU. The ECU con-
movement when the engine is synchronized to the grid trols the stepper to adjust the gas/air pressure and to
and fully loaded to maximize actuator life. affect air/fuel ratio in order to maintain the desired con-
centration of oxygen in the exhaust. The exhaust tem-
Raising a high digital input (8.6 – 36 volts) to the ECU perature sensor reports post turbine exhaust
puts the ESM speed governing system in synchronizer temperature to the ECU. See Figure 1.10-27 for a dia-
control. The user can program a small speed offset to gram of the AFR control inputs and outputs.
aid in synchronization.
INPUTS OUTPUTS
LEFT
EXHAUST OXYGEN
EXHAUST TEMPERATURE
STEPPER HOME POSITION
USER PROGRAMMABLE LIMITS LEFT
STEPPER POSITION
RIGHT (VEES ONLY)
EXHAUST OXYGEN
EXHAUST TEMPERATURE RIGHT (VEES ONLY)
STEPPER HOME POSITION STEPPER POSITION
USER PROGRAMMABLE LIMITS
1.000
0.998
0.996
LAMBDA
0.995
CATALYST SETTING
0.994
0.992
0.990
0.988
15.922 15.942 15.962 15.982 16.002 16.022 16.042 16.062 16.082 16.102
AIR/FUEL RATIO
Stepper
A stepper motor is used to bias the output pressure of
the gas regulator (see Figure 1.10-31 and
Figure 1.10-32). It was designed for performance and
reliability. All electronics are neatly packaged with the
stepper motor in an integral enclosure. The proximity
switch is located inside the stepper housing to prevent
accidental breakage, and no external wiring is added
for the switch. A powerful, high torque stepper motor
prevents the loss of steps, even under the most Figure 1.10-31 AFR Stepper (Fisher Regulator)
demanding conditions.
RICH LIMIT
STEPPER POSITION
ACTUAL
AIR/FUEL RATIO
STEPPER POSITION
LEAN LIMIT
Another user setting required is that of the start posi- Calibration: Since the ESM system is designed to
tion. This position is determined by an adjustment pro- work with various Waukesha engine families and con-
cedure for correct air/fuel ratio during engine start, and figurations, an ECU is factory-calibrated to work with a
then is used to automatically set the stepper whenever specific engine model. For example, an ECU used on
the engine is being started. The stepper position will a VHP 7044 engine could not be used on an VHP
remain within the programmable limits after startup 5794 engine without being recalibrated. The ECU con-
while the AFR control is in automatic mode (see tains thousands of calibrations such as the number of
Figure 1.10-33). If a limit is reached, an alarm will be cylinders, timing, sensor default values, high/low limi-
raised. When in manual mode, the user can adjust the tations, and necessary filters (used to eliminate engine
stepper position outside the programmable limits. Dith- noise). An ECU calibration cannot be edited by the
ering, start position left, and start position right are user.
programmed using the [F8] AFR Setup Panel in ESP CAN: Controller Area Network. A serial bus network
(see Figure 1.10-35). of microcontrollers that connects devices, sensors,
and actuators in a system for real-time control applica-
tions like the ESM system. Since messages in a CAN
are sent through the network with unique identifiers
(no addressing scheme is used), it allows for uninter-
rupted transmission if one signal error is detected. For
example, if a stepper signal error is detected, the sys-
tem will continue to control the other steppers and
sensors.
CD-ROM: Compact Disk-Read Only Memory. A com-
pact disc format used to hold text, graphics, and hi-fi
stereo sound. It is like an audio CD but uses a different
format for recording data. The ESM ESP software
(including E-Help) is available in CD-ROM format.
DB Connector: A family of plugs and sockets widely
used in communications and computer devices. DB
connectors come in 9, 15, 25, 37, and 50-pin sizes.
The DB connector defines the physical structure of the
Figure 1.10-35 AFR Setup Panel in ESP connector, not the purpose of each line.
Detonation: Detonation is the autoignition of the
DEFINITIONS unconsumed end gas after the spark plug has fired
NOTE: The terms defined in this manual are defined during a normal flame-front reaction in an engine’s
as they apply to Waukesha’s ESM system ONLY. combustion chamber. When this happens, pressure
Definitions are not general definitions applicable to all waves, created by multiple flame-fronts, slam together
situations. creating a high pressure pulse that causes engine
components to vibrate. This vibration results in an
Air/Fuel Ratio: Air/fuel ratio (AFR) is a term used to audible “ping” or “knock” known as detonation. A good
define the amount of air (in either weight or mass) in comparison is a grass fire. Normal combustion is simi-
relation to a single amount of fuel. lar to a grass fire. It begins at one end of a field, and
Alternate Dynamics: See definition for “Synchronizer the flame-front progresses in an orderly manner
Control.” through the field. When all of the grass is burned, the
combustion stops. During “grass-detonation,” the grass
Analog Signals: A voltage or current signal propor-
would begin burning normally, but before the flames
tional to a physical quantity.
could sweep through the length of the field, some por-
Baud Rate: The baud rate is the number of signaling tion of the unburned grass would burst into flames.
elements that occur each second. The baud indicates
Detonation Threshold: The detonation threshold is a
the number of bits per second (bps) that are transmit-
self-calibrating limit to determine if a cylinder is deto-
ted. In ESP, baud rate can be programmed to 1200,
nating. Once a cylinder exceeds the detonation thresh-
2400, 9600, or 19,200 bps.
old, the ESM system retards ignition timing for the
Bus: A collection of wires through which data is trans- cylinder in detonation.
mitted from one part of a computerized system to
another. A bus is a common pathway, or channel,
between multiple devices.
Digital Signals: Signals representing data in binary Fault Log: The ECU records faults as they occur into
form that a computer can understand. The signal is a 0 the fault log. The fault log is viewed using the ESM
or a 1 (off or on). ESP software.
Dithering: An option available to the user to fine-tune Feedforward Control: Feedforward control (also
AFR emissions control. Dither steps allow the AFR called “Load Coming”) is a governing feature that
system to oscillate around the stepper’s normal move- allows the engine to accept larger load additions than
ments plus or minus a user programmed number of would normally be possible. Feedforward works by
steps. This method widens the Lambda range that can immediately opening the throttle by a user calibrated
be used in order to maintain required emissions. In amount when a digital input goes high.
ESP, dither steps are programmed on the [F8] AFR Free Wheeling Diode: A free wheeling diode is
Setup Panel. Program “0” to disable dithering. added across the coils of a relay or solenoid to sup-
Droop: When a governor operates in droop mode, it press the high induced voltages that may occur when
means that the governor will allow the engine to slow equipment is turned off.
down slightly under load. Droop is used to simulate the Function Keys: A set of special keys on a computer
situation with mechanical governors where the engine keyboard that are numbered F1 – F12 which perform
will run at a slightly higher rpm than the setpoint when special functions depending on the application pro-
no load is placed on the engine. gram in use.
E-Help: ESP-Help. E-Help is the name of the elec- Graphical User Interface (GUI): An interface that is
tronic help file included with the ESM ESP software. considered user-friendly because pictures (or icons)
E-Help provides general system and troubleshooting accompany the words on the screen. The use of icons,
information. pull-down menus, and the mouse make software with
Electronic Service Program (ESP): ESP is the a graphical user interface easier to work with and
PC-based service program (software) that is the pri- learn.
mary means of obtaining information on ESM system Hard Drive: The primary computer storage medium
status. ESP provides a graphical (visual) interface in a normally internally sealed inside a PC. Typically, soft-
Microsoft Windows 98 SE/Me/NT4 based environ- ware programs and files are installed on a PC’s hard
ment. ESP is the means by which the information that drive for storage. Also referred to as the hard disk.
the ECU logs can be read. The PC used to run the
ESP software connects to the ECU via an RS-232 High Signal: A digital signal sent to the ECU that is
serial cable. between 8.6 – 36 volts.
Engine Control Unit (ECU): The Engine Control Unit Home Position: Home position is where the adjust-
(ECU) is the central module, or “hub” of the ESM sys- ing nut in the stepper is in its fully retracted position.
tem. The entire ESM system interfaces with the ECU. When the home button on the [F6] or [F8] panel is
All ESM system components, the PC with Electronic clicked, ESM AFR control moves the stepper to the
Service Program software, and customer-supplied home position and then back to the start position. The
data acquisition devices, connect to the ECU. stepper motor can be reset to the home position only
while the engine is shutdown.
Fault: A fault is any condition that can be detected by
the ESM system is considered to be out-of-range, Icon: A small picture on a PC screen that represents
unusual, or outside normal operating conditions. files and programs. Files and programs open when the
Included are the following: user double-clicks the icon.
• Scale High: A scale high fault indicates the value of Ignition Power Module with Diagnostic Capability
the sensor is higher than its normal operating range. (IPM-D): The IPM-D is an electronic, digital-circuit
ignition module that uses the high-energy, capacitor
• Scale Low: A scale low fault indicates the value of discharge principle. The ECU through its digital logic
the sensor is lower than its normal operating range. directs the IPM-D when to fire each spark plug.
• Short or Open Circuit: A short or open circuit indi- Isochronous: When the governor control is isochro-
cates that the value of the sensor is outside the valid nous, it means that the governor will control at a con-
operating range and is most likely due to a dam- stant engine speed regardless of load (steady state).
aged sensor or wiring. Knock: See definition for “Detonation.”
• Stuck Sensor: A stuck sensor fault indicates the Knock Frequency: The unique vibration or frequency
value of the sensor has not changed within a that an engine exhibits while in detonation.
pre-determined time limit and is most likely due to a
damaged sensor.
Knock Sensor: Converts engine vibration to an elec- MODBUS: MODBUS is a protocol or a set of rules
trical signal to be used by the ECU to isolate the governing the format of messages that are exchanged
“knock” frequency. between computers which is widely used to establish
Lambda: Lambda is defined as the excess air/fuel communication between devices. MODBUS defines
ratio and is calculated as: Lambda = actual AFR / the message structure that the ESM system and cus-
stoichiometric AFR. The ESM AFR routine controls tomer controllers will recognize and use, regardless of
engine air/fuel ratio by maintaining a constant Lambda the type of networks over which they communicate.
over various speed, load, fuel, and environmental The protocol describes the process a controller uses
conditions. to request access to another device, how it will
respond to requests from the other devices, and how
Lean Limit: The most “retracted” stepper position or errors will be detected and reported. MODBUS
lowest gas/air that is user programmed at which the establishes a common format for the layout and con-
engine can be safely operated in automatic mode. A tent of messages.
more retracted stepper position allows less fuel to
pass to the engine. Stepper operation is permitted only Modem: Modulator Demodulator. A device that con-
between the rich and lean limits (except during startup verts data from digital computer signals to analog sig-
or manual mode). The minimum stepper position is nals that can be sent over a telephone line. This is
programmed on the [F8] AFR Setup Panel. called modulation. The analog signals are then con-
verted back into digital data by the receiving modem.
LED: Light Emitting Diode. A semiconductor that This is called demodulation.
emits light (not a light bulb) and is used as power,
alarm, and shutdown indicators located on the front of NVRAM: Non-Volatile Random Access Memory. This
the ECU. is a type of RAM memory that retains its contents
when power is turned off. When new values are saved
Load Coming: See definition for “Feedforward Control.” in ESP, they are permanently saved to NVRAM within
Load Control: The ESM load control mode is used the ECU. When values are saved to NVRAM, the infor-
when an engine is synchronized to a grid and/or other mation is not lost when power to the ECU is removed.
units. In this case the grid controls speed. The user can save unlimited times to ECU NVRAM
(permanent memory).
Load Inertia: Programming the load inertia or rotating
mass moment of inertia of the driven equipment sets Open Circuit: An open circuit indicates that the signal
the governor gain correctly, aiding rapid setup of the being received by the ECU is outside the valid operat-
engine. If this field is programmed correctly, there ing range and is most likely due to a damaged sensor
should be no need to program any of the gain adjust- or wiring.
ment fields. The rotating mass moment of inertia must Panel: ESP displays engine status and information on
be known for each piece of driven equipment and then six panels (eight panels if AFR equipped): Engine,
added together. Start-Stop, Governor, Ignition, AFR Primary Fuel, AFR
Log File Processor: The “Start Logging All” and Setup, Status, and Advanced. These panels display
“Stop Logging All” buttons on the F11 panel are used system and component status, current pressure and
to log all active system parameters during a temperature readings, alarms, ignition status, gover-
user-determined period of time. The file that is saved nor status, air/fuel control status (AFR only), and pro-
is a binary file (extension .ACLOG) that must be grammable adjustments.
extracted into a usable file format. Using the Log File PC: Personal Computer. Refers to the IBM compatible
Processor program installed with ESP, the binary file is PC used for monitoring and troubleshooting the engine
converted into a Microsoft Excel-readable file ( .TSV) with the ESM ESP software. The PC used to run the
or a text file ( .TXT). Once the data is readable as a ESP software connects to the ECU via an RS-232
.TSV or .TXT file, the user can review, chart, and/or serial cable.
trend the data logged as desired.
PLC: Programmable Logic Controller. A microproces-
Low Signal: A digital signal sent to the ECU that is sor used in process control applications. PLC micro-
less than 3.3 volts. processors are designed for high-speed, real-time,
Magnetic Pickup: A two-wire electrical device that and rugged industrial environments.
produces a voltage and current flow as steel teeth or RAM: Random Access Memory. RAM, temporary
holes move by the face of the pickup. ECU memory, is used to evaluate programmed values
Master-Slave Communications: Communications in before storing them to the ECU’s permanent memory.
which one side, called the “master,” initiates and con- When a programmable value is edited in ESP, the
trols the session. The “secondary” is the other side edited (but unsaved) value is stored in RAM. The con-
that responds to the master’s commands. tents of RAM are lost whenever power to the ECU is
removed; however, the contents remain in ECU RAM Start Position: Start position is a programmable
even if the PC loses power or is disconnected from the stepper position used to set gas/air at a value that is
ECU. favorable for engine starting. This is the stepper posi-
Rich Limit: The most “advanced” stepper position or tion ESM AFR control will move the stepper to before
highest gas/air that is user programmed at which the engine startup or after the stepper is sent to the home
engine can be safely operated in automatic mode. position. Although the preprogrammed value should
Since a more extended stepper position results in be reasonable, some modification to the start position
more fuel being delivered to the engine, this is the may be required to facilitate engine starting. Start
maximum stepper position or “rich limit.” Stepper oper- position is programmed on the [F8] AFR Setup Panel.
ation is permitted only between the rich and lean limits Step: One “step” of the stepper motor equals 1/400 of
(except during startup or manual mode). The maxi- 1 revolution of the stepper motor. This small change in
mum stepper position is programmed on the [F8] AFR position results in 0.00025 inch of linear travel of the
Setup Panel. adjusting nut within the stepper. This increases or
RS-232: Recommended Standard-232. One of a set decreases the fuel regulator spring pressure and
of standards from the Electronics Industries Associa- correspondingly changes the gas/air pressure to the
tion for hardware devices and their interfaces. RS-232 carburetor.
is a well-known standard for transmitting serial data Stepper: A stepper is installed onto each regulator to
between computers and peripheral devices (modem, adjust the fuel flow to the engine (AFR only). Within
mouse, etc.). In the case of the ESM system, an the stepper resides a motor that adjusts the regulator
RS-232 cable transmits data from the ECU to the PC setting by increasing or decreasing the spring pres-
and vice versa. sure acting on the regulator diaphragm.
RS-485: Recommended Standard-485. One of a set Stepper Motor: This specially designed electric
of standards from the Electronics Industries Associa- motor that resides in the stepper produces a precise
tion for hardware devices and their interfaces. RS-485 “step-wise” rotation of the motor shaft instead of the
is used for multi-point communications lines and is a “traditional” continuous rotation of most electric
specialized interface. The typical use for RS-485 is a motors.
single PC connected to several addressable devices Stuck Sensor: A stuck sensor fault indicates the
that share the same cable. Think of RS-485 as a value of the sensor has not changed within a
“party-line” communications system. pre-determined time limit and is most likely due to a
Sample Window: A predetermined start and end damaged sensor.
time in which each cylinder will be looked at for deto- Synchronizer Control: Synchronizer control (also
nation. The window is used so that detonation is only known as “Alternate Dynamics”) is governor dynamics
looked for during the combustion event. used to rapidly synchronize an engine generator to the
Scale High: A scale high fault indicates the value of electric power grid.
the sensor is higher than its normal operating range. Training Tool: A software program, separate from
Scale Low: A scale low fault indicates the value of the ESP, that is loaded on a PC during ESP installation
sensor is lower than its normal operating range. and is for training use only. An ECU cannot be pro-
Short or Open Circuit: A short or open circuit indi- grammed using the Training Tool but allows the user to
cates that the value of the sensor is outside the valid open ESP without an ECU connected.
operating range and is most likely due to a damaged User Interface: The means by which a user interacts
sensor or wiring. with a computer. The interface includes input devices
Slave Communications: A computer or peripheral such as a keyboard or mouse, the computer screen
device controlled by another computer. For example, and what appears on it, and program/file icons.
since the ESM system has MODBUS slaves VGA: Video Graphics Array. A video display standard
communications capability, one “master” computer or for color monitors. VGA monitors display 16 colors at a
PLC could communicate with multiple ESM resolution of 640 x 480 pixels, the minimum standard
MODBUS slaves over the two-wire RS-485 network. display.
Speed Control: The ESM speed control mode allows Windowing: A technique that allows the ESM system
the engine operator to chose a setpoint speed, and the to look for detonation only during the combustion time
governor will control the engine at that speed. The when detonation could be present.
control can be either isochronous or droop.
POWER REQUIREMENTS the engine will stop. This ESM system alarm feature is
similar to the “Low Fuel” light in cars. Although a car
will operate for 25 – 50 miles (40 – 80 km) after the
WARNING “Low Fuel” light turns on, the operator is warned that
Do not install, set up, maintain, or operate any additional fuel is needed soon or the car will run out of
electrical components unless you are a technically gas.
qualified individual who is familiar with the electri- NOTE: The 21 VDC ALM454 trip point was chosen
cal elements involved. Electrical shock can cause because a lead-acid battery is at approximately 10%
severe personal injury or death. state of charge at 21 VDC.
Batteries are the preferred method of supplying the
WARNING ESM system with clean, stable power. In addition, bat-
teries have the advantage of continued engine opera-
Disconnect all electrical power supplies before tion should there be a disruption in the source of
making any connections or servicing any part of electric power. The batteries should be wired directly
the electrical system. Electrical shock can cause to the Power Distribution Box using the largest cable
severe personal injury or death. that is practical (00 AWG is the largest size that the
Power Distribution Box can accommodate).
Disconnect all engine
CAUTION harnesses and elec- The alternator is not to be connected directly to the
tronically controlled devices before welding with Power Distribution Box. The optional Waukesha alter-
an electric arc welder on or near an engine. Failure nator is connected to the alternator junction box. The
to disconnect the harnesses and electronically battery cables are connected to the positive and nega-
tive studs in the alternator junction box then to the bat-
controlled devices could result in severe engine
teries. The batteries filter the ripple output of the
damage.
alternator.
The ESM system requires 18 – 32 VDC. The maxi- Power can also be supplied to the ESM system by
mum voltage ripple is 10% peak-to-peak at 100 Hz. connecting a DC power supply directly to the Power
NOTE: The label on the ECU lists a voltage Distribution Box. The disadvantage of the DC power
requirement of 12 – 36 VDC. That range is the power supply is that if the AC power is lost, the engine shuts
requirement for the ECU only. For proper operation of down immediately. In addition, there is no noise filter-
the ESM system, it requires 18 – 32 VDC. ing done by a battery so a more expensive power sup-
ply may be needed.
The ESM system will run on 18 – 32 VDC but if the
voltage drops below 21 VDC, the ESM system will trig- See Figure 2.00-1, Figure 2.00-2, and Figure 2.00-3
ger an alarm (ALM454). ALM454 is triggered when the for wiring diagrams.
battery voltage is soon to be or is out of specification. NOTE: The wiring diagrams in this manual are to be
ALM454 is a warning to the operator that some action used as a reference only.
must be taken to prevent possible future power loss
below 18 VDC and engine shutdown. When ALM454 Refer to Section 2.05 Power Distribution Box Connec-
is active, the engine continues to operate as long as tions “24 VDC Power” for information on connecting
the supply voltage continues to power components on power inside the Power Distribution Box.
the engine. For example, fuel valves typically require
18 VDC to open, so if the voltage falls below this level,
POWER
ALT BOX DISTRIBUTION
BOX
1/2 INCH
GROUND STUD
ALT
ENGINE
POWER
DISTRIBUTION
BOX
1/2 INCH
GROUND STUD
24 VDC
POWER SUPPLY
ENGINE
2.00-3
2.00-4
ELECTRIC START
WITH ALTERNATOR
POWER
DISTRIBUTION
BOX STARTER
1/2 INCH
GROUND STUD
ENGINE
ALT
STARTER
Table 2.00-1 Battery Cable Lengths For 24 Or 32 Volt DC Starting Motor Circuits
STARTING STARTING
MOTOR MOTOR
CONTACTOR CONTACTOR
(C) (C)
2 2 (B)
STARTING STARTING
MOTOR MOTOR
(A) (B)
(A)
- -
+ +
BATTERY BATTERY
NOTE 1: Information based on 0.002 ohm total cable resistance for 24 or 32 volt systems. Consult factory if ambient
temperature is below 50° F (10° C) or above 120° F (49° C).
2 NOTE 2: When contactor is an integral part of starting motor, a bus connection is used.
(A) + (B) will then be total cable length.
SELECT SIZE OF CABLE FROM LISTING BELOW USING FIGURE POINTS A, B, AND C ABOVE:
TOTAL CABLE LENGTH (A + B + C) USE SIZE OF CABLE
Less than 16 ft. (4.9 m) #0
16 – 20 ft. (4.9 – 6.1 m) #00
20 – 25 ft. (6.1 – 7.6 m) #000
25 – 32 ft. (7.6 – 9.8 m) #0000 or (2) #0
32 – 39 ft. (9.8 – 11.9 m) (2) #00
39 – 50 ft. (11.9 – 15.2 m) (2) #000
50 – 64 ft. (15.2 – 19.5 m) (2) #0000
Table 2.05-3 Recommended Wire Sizes (AWG) Vs. Round Trip Length Between Battery And Power Distribution Box
ROUND TRIP
LENGTH OF MAXIMUM CURRENT (AMPS)
CONDUCTOR
FT M 5 10 15 20 25 30 40 50 60 70 80 90 100
10 3.0 18 18 16 14 12 12 10 10 10 8 8 8 6
15 4.6 18 16 14 12 12 10 10 8 8 6 6 6 6
20 6.1 18 14 12 10 10 10 8 6 6 6 6 4 4
25 7.6 16 12 12 10 10 8 6 6 6 4 4 4 4
30 9.1 16 12 10 10 8 8 6 6 4 4 4 2 2
40 12.2 14 10 10 8 6 6 6 4 4 2 2 2 2
50 15.2 12 10 8 6 6 6 4 4 2 2 2 1 1
60 18.3 12 10 8 6 6 4 4 2 2 1 1 0 0
70 21.3 12 8 6 6 4 4 2 2 1 1 0 0 2/0
80 24.4 10 8 6 6 4 4 2 2 1 0 0 2/0 2/0
90 27.4 10 8 6 4 4 2 2 1 0 0 2/0 2/0 3/0
100 30.5 10 6 6 4 4 2 2 1 0 2/0 2/0 3/0 3/0
110 33.5 10 6 6 4 2 2 1 0 0 2/0 3/0 3/0 4/0
120 36.6 10 6 4 4 2 2 1 0 2/0 3/0 3/0 4/0 4/0
130 39.6 8 6 4 2 2 2 1 0 2/0 3/0 3/0 4/0 4/0
140 42.7 8 6 4 2 2 1 0 2/0 3/0 3/0 4/0 4/0 –
150 45.7 8 6 4 2 2 1 0 2/0 3/0 3/0 4/0 4/0 –
160 48.8 8 6 4 2 2 1 0 2/0 3/0 4/0 4/0 4/0 –
Do not power the This feature can be used by the customer to reduce
CAUTION engine using the current draw of the ESM system’s actuator while the
+24VFOR U wire in the Local Control Option Har- engine is shut down and in standby mode. Connecting
ness. The +24VFOR U wire is for customer use to GOVSD+24V and GOV SD+ with a 10 kW resistor will
provide 24 VDC power to other equipment. Incor- put the actuator in a low current draw standby mode.
NEVER connect GOVSD+24V and GOV SD+ with a
rectly powering the engine using the +24VFOR U
10 kΩ resistor while the engine is operating.
wire could result in product damage.
OPS 3 OPS 4
Wire OPS 3 is an optional indicator that the oil pres- Connect OPS 4 to local
sure has reached 15 psi (105 kPa) and is used only for CAUTION c o n t ro l p a n e l s h u t -
continuous prelube for standby power applications down when option code 6010 is specified. Cus-
where the ESM system is not controlling the prelube tomer must make this connection to local panel.
pump. OPS 3 is at battery voltage until 15 psi No action is taken by the ESM system. Failure to
(105 kPa) oil pressure is reached and the oil pressure
connect OPS 4 could result in severe engine dam-
switch opens the circuit. Customer must connect
age.
OPS 3 to local control panel to use this function.
Wire OPS 4 is used only when option code 6010 is
specified. The purpose of option code 6010 is to pro-
vide a shutdown when the main bearing temperature
exceeds 253° F (123° C). When the main bearing tem-
perature exceeds 253° F (123° C), wire OPS 4 is con-
nected to ground.
GOVAUXSHD Used
as shield for compatible load
Harness Shield Shield SLVR 46 18 20
sharing input.
Alternate governor dynamics. Used
for power generation applications Alternate Governor
GOVALTSYN Digital I/P YEL 10 18 20
only to obtain a smooth idle for fast Dynamics
paralleling to the grid.
Digital input to the ECU that
changes the operating rpm of the
engine. Used for power generation
GOVHL IDL applications only. When using Rated Speed/Idle
GOVREMSEL, the input status of Digital I/P YEL 37 18 20
Speed select
GOVHL IDL must be checked. See
information on setting this input to a
“safe mode” in Table 2.10-2.
Digital input to the ECU that
switches between either remote
speed setting input or high/low idle Remote Speed
GOVREMSEL input. Must be used to enable select
Digital I/P YEL 22 18 20
remote speed input. Not typically
used for power generation.
Table 2.10-1 Customer Interface Harness Loose Wire Identification (Continued), (Part 2 of 3)
Table 2.10-1 Customer Interface Harness Loose Wire Identification (Continued), (Part 3 of 3)
REQUIRED CONNECTIONS The input is also disabled when the ECU is not pow-
ered. Therefore, if the current source is powered
Table 2.10-2 lists required connections of the untermi-
before the ECU, it will initially output a high voltage to
nated wires of the Customer Interface Harness that
try to make the current flow. The 4 – 20 milliamp inputs
are necessary for the ESM system to enable
are all enabled briefly when the ECU is powered. If the
the ignition and fuel. All digital inputs and outputs
input source continues to supply a high voltage
are referenced to battery negative. Digital High Side
(greater than 4.4 volts) for longer than
Driver (HSD) outputs can drive a maximum of 1 amp.
500 microseconds, the ECU input will be disabled
All 4 – 20 milliamp inputs to the ECU are across
again. The fault can be cleared by removing power to
an internal 200 Ω resistance. The input source
both the ECU and the current source, then powering
common must be connected to Customer Reference
the ECU before the current source.
Ground for proper operation (see Figure 2.10-1). This
also applies when a 0.875 – 4.0 volt input is used. All It is recommended that the ECU remain powered at
4 – 20 milliamp outputs from the ECU are internally all times if possible. If not, always restore power to
powered with a maximum drive voltage of 8 volts. the ECU before powering the current source.
NOTE: A high signal is a digital signal sent to the ECU
that is between 8.6 – 36 volts. A low signal is a digital
signal sent to the ECU that is less than 3.3 volts.
All the 4 – 20 milliamp inputs have the ability to disable
under fault conditions. If the input current exceeds
22 milliamps (or the output voltage exceeds 4.4 volts),
the input is disabled to protect the ECU. When a cur-
rent source becomes open circuit, it typically outputs a
high voltage to try and keep the current flowing. This
can lead to the situation where the ECU protection cir-
cuit remains disabled because it is sensing a high volt-
age (greater than 4.4 volts). In practice, this should
only occur when a genuine fault develops, in which
case the solution is to cycle the ECU power after
repairing the fault.
CUSTOMER
INTERFACE HARNESS 4 – 20 mA SIGNAL -
GOVREMSP- 27
NEGATIVE
COMMON
LOGIC GND 4
Engine OK / Emergency Shutdown Digital signal output from ECU goes from open circuit to +24 VDC nominal (battery
voltage – 1 volt) when ECU performs an emergency shutdown. ENG ESD
Digital signal output from ECU goes from open circuit to +24 VDC nominal (battery
Engine Alarm voltage – 1 volt) when ECU detects engine problem. Output remains +24 VDC nominal
while an alarm is active. As soon as alarm condition is resolved, digital signal returns to
open circuit. ENG ALM
A 4 – 20 milliamp input to the ECU that allows the customer to change the input fuel qual-
WKI Value ity (WKI) in real time. (4 mA = 20 WKI; 20 mA = 135 WKI) WKI+ and WKI-
Digital signal output from ECU goes from open circuit to +24 VDC nominal (battery
Uncontrolled Knock voltage – 1 volt) when ECU cannot control engine knock. Allows customer knock control
strategy such as load reduction instead of the ECU shutting down the engine. KNK ALM
Current Operating Torque A 4 – 20 milliamp output from the ECU that represents the current engine torque output
on a 0 – 125% of rated engine torque scale. ACT LOAD%
A 4 – 20 milliamp output from the ECU that represents the desired operating torque of the
Desired Operating Torque engine. Always indicates 100% of rated engine torque unless there is an engine fault such
as uncontrollable knock. AVL LOAD%
A ±2.5 volt input to the ECU used for compatibility to Woodward generator control prod-
Aux Speed Input ucts (or other comparable control products). GOVAUXSIG and GOVAUXGND
Digital signal input to the ECU when +24 VDC nominal (8.6 – 36 volts) allows synchro-
Synchronizer Mode/Alternate Governor Dynamics nizer mode/alternate governor dynamics. User can program a small speed offset to aid in
synchronization. GOVALTSYN
Digital signal input to the ECU when +24 VDC nominal (8.6 – 36 volts) is applied, signals
the ECU that a large load will be applied to the engine. This input can be used to aid in
Load Coming
engine load acceptance. User can program delay time from receipt of digital signal to
action by the ECU and amount of throttle movement action. LRG LOAD
Four digital signal inputs to the ECU when +24 VDC nominal (8.6 – 36 volts) is applied
allows user to wire alarm and/or shutdown digital outputs of the local control into ESM.
Four Digital Inputs The purpose of these four digital inputs to the ECU is to aid in troubleshooting problems
with the driven equipment. USER DIP 1 through USER DIP 4
NOTE: BOLD letters in table match wire label names.
A shipped loose, Local Control Option Harness has The governor actuator is always drawing power so if
been included with your engine [standard harness you have battery-powered ignition, power is being
length = 25 ft (8 m); optional harness length = 50 ft drawn from the battery even with the engine shut
(15 m)]. The terminated end of the harness connects down. To remedy this you can pull the battery or you
to the Power Distribution Box. Customer optional con- could put the battery in reduced power mode, but
nections are made with the unterminated wires in the power will still be drawn from the battery. The
harness. Table 2.10-4 provides information on each of GOVSD+24V and GOV SD+ wires of the Local Control
the wires in the unterminated end of the Local Control Option Harness can be used as a way to reduce
Option Harness. power demand from the battery. See wiring schematic.
Never activate GOVSD+24V while the engine is
running. Do so will disengage the actuator and it
will no longer control air/fuel causing the engine to
overspeed and shut down.
WIRE SOCKET
WIRE LABEL SIGNAL NAME SIGNAL TYPE FROM PIN WIRE SIZE CONNECTOR
COLOR SIZE
+24VFOR U User Power +24 VDC nominal RED B 12 12 PDB-CF
GND FOR U User Ground Ground BLK E 12 12 PDB-CF
Emergency Stop Depends on
ESTOP SW Switch, Normally hardware wired to TAN L 16 16 PDB-CF
Open switch
Emergency Stop Depends on
ESTOP SW Switch, Normally hardware wired to TAN M 16 16 PDB-CF
Open switch
Switch, Governor
GOV SD+ Actuator, G Shutdown input PUR G 16 12 PDB-CF
Oil Pressure
OPS 3 Switch – Prelube +24 VDC nominal TAN U 16 16 PDB-CF
Motor Relay
Oil Pressure
Switch – Main
OPS 4 Bearing Temper-
Ground TAN V 16 16 PDB-CF
ature Sensors
The ESM system’s start-stop process is controlled by The starter motor is de-energized at an rpm calibrated
three mandatory digital inputs: a start signal that is by Waukesha Engine factoring in a user offset rpm (+).
used to indicate to the ECU that the engine should be If the run/stop digital input to the ECU goes low and
started and two shutdown signals (normal and emer- after a user-calibrated cool down period, the engine is
gency) that are used to give “permission” to run the stopped by first de-energizing the main fuel and then
engine. The three signals are: Start, Run/Stop, and de-energizing the ignition as the engine speed drops
Emergency Stop. to zero. If the engine fails to stop in a preprogrammed
period of time (typically less than one minute) after the
For the engine to start, the start signal must be config- fuel valve has been de-energized, the ignition is de-
ured as a momentary event such that it goes “high” energized, forcing a shutdown. If the emergency stop
(8.6 – 36 volts) for at least 1/2 second (not to exceed digital input to the ECU goes low, then the fuel and
1 minute). In addition, to start the engine the shutdown ignition are de-energized simultaneously. When the
signals must both be “high” (8.6 – 36 volts). Although engine stops after a normal shutdown, it is postlubed
the start signal must go “low” (< 3.3 volts) after start- for a user-calibrated period of time.
ing, the shutdown signals must remain high for the
engine to run. If either shutdown signal goes low, even If the ESM system detects a serious engine fault and
for a fraction of a second, the engine will stop. shuts the engine down, it will energize a digital output
from the ECU so that the user control knows the ESM
After receiving a start signal with the emergency stop system shut the engine down. After a emergency shut-
and run/stop signals high, the ECU first prelubes the down and RPM is zero, ESD input should be raised to
engine for a user-calibrated period of time. high to reset the ESM. If ESD input remains low, ESM
Once the prelube is complete, the starter is activated. reset will be delayed and engine may not start for up to
The ignition is energized after the engine has rotated 1 minute.
through a minimum of two complete engine revolutions If the ESM system detects a fault with the engine or
and a user-calibrated purge timer has expired. When the ESM system’s components that is not serious
the engine speed reaches an rpm determined by enough to shut the engine down, a different digital out-
Waukesha Engine factoring in a user offset rpm (±), put will be energized so that the user control knows of
the main fuel valve is energized. The engine then the alarm.
increases speed until it reaches its governed rpm.
If the engine is being used for standby electric power
Once the starter is activated, a timing circuit begins generation and needs to be producing power within a
that causes a shutdown on overcrank if the engine short period of time after a start signal is received,
does not reach a minimum speed within an amount of then it is the packager’s responsibility to control the
time calibrated by Waukesha Engine. prelube motor and to prelube the engine. In this situa-
tion the user pre- and postlube times must be set to
zero.
AIR PRELUBE
• Using ESP, program the “Purge Time” field on the VALVE
[F3] Start-Stop Panel to the maximum time of
1800 seconds (30 minutes). Then begin the start
sequence. After 16 seconds of engine rotation the
ESD231 Overcrank shutdown fault will trip and the
engine will stop cranking. Repeat again if neces-
sary. Be sure to reprogram the purge time to the
previous value and save to permanent memory.
• If using an air-start system, hand activate the valve
for the required time.
Figure 2.15-1 Air Valves
ESD FAULT
ECU PERFORMS
IMMEDIATE SHUTDOWN
SEQUENCE COMPLETE
GOVERNOR/SPEED CONTROL See Figure 2.20-1 for a logic diagram showing fixed
speed.
This section discusses the ESM system’s governing
and speed control. The digital signal input to the ECU must be connected
to +24 VDC nominal (8.6 – 36 volts) for rated speed,
The ESM speed governing system provides speed open circuit for idle speed, and remote speed setting
and load control using information based on digital and enable (GOVREMSEL) must be open circuit. When
analog inputs from the customer. The ESM system’s using the Remote Speed/Load Setting, GOVHL IDL
governor has two different operating modes: speed should be set to a safe mode. “Safe mode” means that
control and load control. In speed control mode, the if the wire that enables remote rpm operation
governor will control the engine speed by increasing or (GOVREMSEL) fails, the speed setpoint will default to
decreasing the engine power output. In load control the GOVHL IDL idle value. Consider all process/driven
mode, the speed is controlled by an exterior force such equipment requirements when programming idle
as the electrical grid and the load is varied by a gener- requirements.
ator control product.
Variable Speed
SPEED CONTROL MODE
Connecting the GOVREMSEL digital input to the ECU
The engine speed setpoint can be controlled to a fixed at +24 VDC nominal enables variable speed mode.
value or can be varied in response to a process vari- The speed setpoint can then be varied with either a
able such as desired flow rate of gas if the engine is 4 – 20 mA or a 0.875 – 4.0 volt input (see
powering a gas compressor. Figure 2.20-2).
Fixed Speed The ESM system checks for an out-of-range input that
is less than 2 mA, greater than 22 mA, or less than
WARNING 0.45 volts, or greater than 4.3 volts. If an out-of-range
speed setpoint is detected, the engine will then run at
Never set the high idle speed above the safe the speed indicated by the status of the high idle/low
working limit of the driven equipment. If the idle digital input. The engine speed setpoint range is
GOVREMSP signal goes out of range or the already preadjusted to go from minimum to maximum
GOVREMSEL signal is lost, then the engine will engine speed using the 4 – 20 mA input (see
run at the speed determined by the status of Table 2.20-1). See Figure 2.20-3 for a logic diagram
GOVHL IDL and calibrated low or high idle speeds. showing variable speed.
Disregarding this information could cause severe
personal injury and/or product damage. Table 2.20-1 Engine Speed Range
There are two fixed speeds available: low idle and high ENGINE SPEED RANGE
idle. Low idle speed is the default and high idle is MODEL (4 – 20 mA RANGE)
obtained by connecting a digital input to the ECU of VHP F3514GSI/F3524GSI 700 – 1204 rpm
+24 VDC nominal. Low idle speed is preset for each VHP L7042GSI/L7044GSI 700 – 1204 rpm
engine family, but by using ESP the low idle speed can VHP L5774LT 800 – 1204 rpm
be offset lower or higher than the preset value. High VHP L5794GSI 700 – 1204 rpm
idle speed is also adjustable directly using ESP but is VHP L5794LT 800 – 1204 rpm
constrained to be higher than low idle speed and no
higher than the maximum rated speed of the engine.
RPM DROOP
WOODWARD LOAD GOVAUXSIG
SHARING MODULE GOVAUXGND
P/N 9907-173
INITIAL + MODIFIED +
RPM RPM
+ +
+
TARGET RPM
CALIBRATED
LOW IDLE RPM
LIMIT (RAMP)
RPM CHANGE
CALIBRATED AD
LO
HIGH IDLE RPM
CALIBRATED
G
LR
RAMP TIME
SYNC RPM
X 39 GOV REMSP +
NO CONNECTION
X 27 GOV REMSP -
CUSTOMER INTERFACE HARNESS
0.875 – 4.0 V SIGNAL + 40 GOV 40
RPM DROOP
REMOTE SPEED SELECTION GOVREMSEL
DIGITAL INPUT
SEE NOTE
LIMIT THE
RPM VALUE
LIMIT (RAMP)
RPM CHANGE
CALIBRATED
RAMP TIME
GOVAUXGND
GOVAUXSHD
GOVAUXSIG
as an electric grid. To run in load control mode the
engine must be first synchronized to the electric grid.
The ESM system has a unique feature for easier syn-
chronization to the grid by better controlling idle speed
by using the spark timing in addition to the throttle.
Synchronizer or alternate dynamics mode can be
enabled by bringing a digital input on the ECU to 29 28 46
The fuel valve should be a 24 VDC energized-to-open Once the WKI value is known, it can be entered into
valve. Relay #3 in the Power Distribution Box supplies the ECU using the ESP software. This is important
the fuel valve with battery voltage at a maximum of since spark timing and engine derate curves as a func-
either 3 amps with the CSA approved Power Distribu- tion of the WKI value are stored in the ECU. See
tion Box, or 10 or 15 amps with the non-CSA approved Section 3.10 ESP Programming “Programming WKI
Power Distribution Box. Value” for more information.
NOTE: All inductive loads such as a fuel valve For applications with changing fuel conditions, such as
must have a suppression diode installed across a wastewater treatment plant with natural gas backup,
the valve coil as close to the valve as is practical. the ESM system can be signaled about the fuel’s
changing WKI value in real-time using the two WKI
A fuel control harness is prewired to the Power Distri- analog input wires in the Customer Interface Harness.
bution Box through connector Start/Lean Burn on the The calibration of the Customer Interface Wires, WKI+
side of the box. The other end of the harness is coiled and WKI-, is shown in Table 2.25-1. An input less than
and tie-wrapped to the engine. The fuel valve harness 2 mA or greater than 22 mA indicates a wiring fault,
is 10 ft. (3 m) long so the fuel valve can be located and the default WKI value is used instead.
10 ft. (3 m) from the center of the right side of the Table 2.25-1 Calibration Of Remote WKI Input
engine. Two wires are provided on the Start Harness
from the Power Distribution Box. It is the packager’s ANALOG USER INPUT 4 mA 20 mA
responsibility to connect the Start Harness wires to the WKI Fuel Quality Signal 20 WKI 135 WKI
fuel valve. The harness provided by Waukesha
Individual safety shutdowns are discussed in this sec- The ESM system is calibrated by Waukesha Engine to
tion. Should any of the safety shutdowns below be both alarm and shut down on low oil pressure. The
activated, a digital output from the ECU will go from alarm and shutdown points are listed in S-8382-2 (or
open circuit to +24 VDC nominal. The cause of engine latest revision) or Service Bulletin 1-2620D (or latest
shutdown can be seen with the flashing LED code, revision) for each engine family. The ESM system uses
with ESP, and through MODBUS. Refer to several techniques to avoid falsely tripping on low oil
Section 4.00 Troubleshooting “ESM System Fault pressure when either starting or stopping the engine.
Codes” for a list of ESM system alarm and shutdown The low oil pressure alarm and shutdown points are a
codes. function of engine speed. In addition, low oil pressure
alarm and shutdowns are inhibited for a period of time
ENGINE OVERSPEED calibrated by Waukesha Engine after engine start.
The ESM system is calibrated by Waukesha Engine COOLANT OVER TEMPERATURE
(not user programmable) to perform an immediate
emergency shutdown upon detection of engine speed The ESM system is calibrated by Waukesha Engine to
greater than 110% of rated rpm. In addition, the ESM both alarm and shut down upon high coolant tempera-
system will shut down an engine that is consistently ture detection. The alarm and shutdown points are
run above rated rpm. For example, running a listed in S-8382-2 (or latest revision) or Service Bulle-
1200 rpm VHP engine at 1230 rpm, will cause a shut- tin 1-2620D (or latest revision) for each engine family.
down after a period of time calibrated by Waukesha High coolant temperature alarm and shutdowns are
Engine. inhibited for a period of time calibrated by Waukesha
Engine after engine start or stop.
In addition to the engine overspeed calibrated by
Waukesha Engine, the user has the option to program INTAKE MANIFOLD OVER TEMPERATURE
an engine overspeed shutdown to protect driven The ESM system is calibrated by Waukesha Engine to
equipment for situations where the driven equipment is both alarm and shut down upon high intake manifold
rated at a lower speed than the engine. Driven equip- temperature detection. The alarm and shutdown
ment overspeed is programmable from 0 to 2200 rpm points are listed in S-8382-2 (or latest revision) or Ser-
on the [F3] Start-Stop Panel in ESP. If the pro- vice Bulletin 1-2620D (or latest revision) for each
grammed value of user overspeed for the driven equip- engine family. High intake manifold temperature alarm
ment exceeds engine overspeed, the engine and shutdowns are inhibited for a period of time cali-
overspeed value takes precedence. For example, a brated by Waukesha Engine after engine start or stop.
VHP has a factory-programmed engine overspeed trip
point of 1320 rpm. If the driven equipment overspeed ENGINE EMERGENCY STOP BUTTONS
is set to 1500 rpm, and the engine speed exceeds When either of the red emergency stop buttons
1320 rpm, the engine will be shut down. If the driven mounted on the side of the engine is pressed, the
equipment overspeed is set to 1100 rpm and the engine will perform an emergency stop. In addition, if
engine speed exceeds 1100 rpm, but is less than the IPM-D power fails, the engine will perform an
1320 rpm, the engine will be shut down. emergency stop.
10010 User Digital Input 2 Whether user digital input 2 is high 1 = User DIP 2 High
0 = User DIP 2 Inactive
10011 User Digital Input 3 Whether user digital input 3 is high 1 = User DIP 3 High
0 = User DIP 3 Inactive
10012 User Digital Input 4 Whether user digital input 4 is high 1 = User DIP 4 High
0 = User DIP 4 Inactive
Whether the engine-driven alternator is 1 = Alternator OK
10013 Alternator
operating correctly 0 = Alternator Not OK
10014 AFR Manual/Automatic Whether the air/fuel ratio control is in 1 = Automatic Mode
Status (Left Bank) manual or automatic mode 0 = Manual Mode
10015 AFR Manual/Automatic Whether the air/fuel ratio control is in 1 = Automatic Mode
Status (Right Bank) manual or automatic mode 0 = Manual Mode
10016 Reserved For Future Use
10017 Reserved For Future Use
40033 Desired engine load 16-bit unsigned integer that goes from 0 to 2304
(0 – 112%)
16-bit unsigned integer that goes from 0 to 2560
40034 Actual engine load (0 – 125%)
16-bit unsigned integer that goes from 0 to
40035 Position of stepper motor 1
20,000
16-bit unsigned integer that goes from 0 to
40036 Position of stepper motor 2
20,000
40037 Reserved For Future Use
40038 Reserved For Future Use
40039 Reserved For Future Use
40040 Reserved For Future Use
40041
Current engine operating hours (in seconds) 32-bit unsigned integer – full range
40042
40043 Rich stepper maximum motor limit of active fuel (left bank) 16-bit unsigned integer that goes from 0 to
20,000
40044 Lean stepper minimum motor limit of active fuel (left bank) 16-bit unsigned integer that goes from 0 to
20,000
Rich stepper maximum motor limit of active fuel (right 16-bit unsigned integer that goes from 0 to
40045
bank) 20,000
Lean stepper minimum motor limit of active fuel (right 16-bit unsigned integer that goes from 0 to
40046
bank) 20,000
40047 Reserved For Future Use
40048 Reserved For Future Use
40049 Reserved For Future Use
40050 Reserved For Future Use
NOTE: * For a description of the MODBUS fault code behavior, see “Fault Code Behavior” on page 2.35-2.
(Spark timing + 15) * 16 of 1st cylinder in 16-bit unsigned integer that goes from
30009 Spark timing 1
the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing +15) * 16 of 2nd cylinder in 16-bit unsigned integer that goes from
30010 Spark timing 2
the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 3rd cylinder in 16-bit unsigned integer that goes from
30011 Spark timing 3
the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 4th cylinder in 16-bit unsigned integer that goes from
30012 Spark timing 4 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 5th cylinder in 16-bit unsigned integer that goes from
30013 Spark timing 5 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 6th cylinder in 16-bit unsigned integer that goes from
30014 Spark timing 6 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 7th cylinder in 16-bit unsigned integer that goes from
30015 Spark timing 7
the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 8th cylinder in 16-bit unsigned integer that goes from
30016 Spark timing 8
the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 9th cylinder in 16-bit unsigned integer that goes from
30017 Spark timing 9 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 10th cylinder in 16-bit unsigned integer that goes from
30018 Spark timing 10 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 11th cylinder in 16-bit unsigned integer that goes from
30019 Spark timing 11 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 12th cylinder in 16-bit unsigned integer that goes from
30020 Spark timing 12 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 13th cylinder in 16-bit unsigned integer that goes from
30021 Spark timing 13
the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 14th cylinder in 16-bit unsigned integer that goes from
30022 Spark timing 14 the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 15th cylinder in 16-bit unsigned integer that goes from
30023 Spark timing 15
the firing order 0 to 960 (-15 – 45° BTDC)
(Spark timing + 15) * 16 of 16th cylinder in 16-bit unsigned integer that goes from
30024 Spark timing 16 the firing order 0 to 960 (-15 – 45° BTDC)
16-bit unsigned integer that goes from
30025 Desired spark timing (Spark timing + 15) * 16
0 to 960 (-15 – 45° BTDC)
16-bit unsigned integer that goes from
30026 Battery voltage Battery voltage * 16
0 to 640 (0 – 40 VDC)
Intake manifold air (Intake manifold air temperature in C + 16-bit unsigned integer that goes from
30027
temperature (left bank) 40) * 8 0 to 1520 (-40 – 150° C)
16-bit unsigned integer that goes from
30028 Oil temperature (Oil temperature in C + 40) * 8 0 to 2048 (-40 – 216° C)
16-bit unsigned integer that goes from
30029 First exhaust temperature (1st exhaust temperature in C + 40) * 2 0 to 1840 (-40 – 880° C)
Second exhaust 16-bit unsigned integer that goes from
30030 (2nd exhaust temperature in C + 40) * 2
temperature 0 to 1840 (-40 – 880° C)
30031 Reserved For Future Use
30032 Reserved For Future Use
30044 Rich burn Lambda actual 1 Lamda * 4096 16-bit unsigned integer that goes from
(left bank) 0.9000 to 1.1000
30045 Rich burn Lambda actual 1 Lamda * 4096 16-bit unsigned integer that goes from
(right bank) 0.9000 to 1.1000
30046 Reserved For Future Use
30047 Reserved For Future Use
16-bit unsigned integer that goes from
30048 WKI value (WKI -16) *16
0 to 2048 (16 – 144 WKI)
30049 Reserved For Future Use
30050 Reserved For Future Use
30051 Reserved For Future Use
30052 Reserved For Future Use
30053 Reserved For Future Use
30054 Reserved For Future Use
30055 Reserved For Future Use
30056 Reserved For Future Use
30057 Reserved For Future Use
16-bit unsigned integer that goes from
30058 The ECU temperature (Temperature in Centigrade + 40) * 8
0 to 1120 (-40 – 100° C)
The voltage from the first 16-bit unsigned integer that goes from
30059 rich burn oxygen sensor Volts * 1024 0 to 1536 (0 – 1.5 VDC)
The voltage from the
30060 second rich burn oxygen Volts * 1024 16-bit unsigned integer that goes from
0 to 1536 (0 – 1.5 VDC)
sensor
The rpm modification value
16-bit unsigned integer that goes from
30061 from a Woodward (rpm + 250) * 4
0 to 2000 (-250 – 250 rpm)
Generator control
30062 Reserved For Future Use
30063 Reserved For Future Use
Spark reference number 16-bit unsigned integer that goes from
30064 cyl. #1 in firing order
Value * 1 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30065 cyl. #2 in firing order
Value * 1 0 to 255
30066 Spark reference number Value * 1 16-bit unsigned integer that goes from
cyl. #3 in firing order 0 to 255
30068 Spark reference number Value * 1 16-bit unsigned integer that goes from
cyl. #5 in firing order 0 to 255
30069 Spark reference number Value * 1 16-bit unsigned integer that goes from
cyl. #6 in firing order 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30070 cyl. #7 in firing order Value * 1 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30071 Value * 1
cyl. #8 in firing order 0 to 255
30072 Spark reference number Value * 1 16-bit unsigned integer that goes from
cyl. #9 in firing order 0 to 255
30073 Spark reference number Value * 1 16-bit unsigned integer that goes from
cyl. #10 in firing order 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30074 Value * 1
cyl. #11 in firing order 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30075 Value * 1
cyl. #12 in firing order 0 to 255
30076 Spark reference number Value * 1 16-bit unsigned integer that goes from
cyl. #13 in firing order 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30077 cyl. #14 in firing order Value * 1 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30078 Value * 1
cyl. #15 in firing order 0 to 255
Spark reference number 16-bit unsigned integer that goes from
30079 Value * 1
cyl. #16 in firing order 0 to 255
30080 Rich burn setpoint lamba Lambda * 4096 16-bit unsigned integer that goes from
0.9000 to 1.1000
NOTE: Engine firing order is stamped on the engine nameplate. The VHP Series Four 6 cylinder engine firing order is: 1, 5, 3, 6, 2, 4. The
VHP Series Four 12 cylinder engine firing order is: 1R, 6L, 5R, 2L, 3R, 4L, 6R, 1L, 2R, 5L, 4R, 3L.
Example 1:
00 03
00 04
00 2
00 06
00 9
00 0 7
00 05
1
00 8
0 0 14
00 13
00 12
00 0
00 1
0 0 15
0 0 16
00
00
00
00
01
01
0
0
0
0
0
0
0
0
0
0
In this example, one 16-bit number is used to repre-
00
sent the status of the first 16 1XXXX messages. First 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1
the value of register 30039 must be converted from
LEAST SIGNIFICANT DIGIT
decimal to binary code. If the value of register 30039 =
4105, then that value, 4105, must be converted to a
“ON” corresponds to a 1, and “OFF” corresponds to a
binary number. In binary code, 4105 =
0 (zero). So addresses 00001 and 00003 are “ON.”
1000000001001.
This means that referring to Table 2.35-4 on
MOST SIGNIFICANT DIGIT page 2.35-3 in this section, the Main Fuel Valve is on
and the engine is running. All other 0XXXX
MODBUS messages are off or inactive.
1000000001001
LOCAL CONTROL PANEL
LEAST SIGNIFICANT DIGIT
This section describes how the ESM system interacts
Each 0 or 1 represents a 1XXXX MODBUS address with a local customer-supplied control panel. With the
starting with the least significant digit. ESM system, the packager may choose any compati-
ble control panel providing the packager flexibility.
MODBUS ADDRESSES
LOCAL DISPLAYS SUCH AS A TACHOMETER
10 0 3
10 04
10 2
10 06
1
10 9
10 8
10 07
10 14
10 13
10 12
10 1 0
10 1
10 15
1 0 16
00
00
00
00
01
0
0
0
0
0
0
0
0
0
0
0
10
Table 2.35-8 Calibration Of Analog Outputs The following examples explain how the USER DIP
inputs can be used in the field.
ANALOG WIRE
4 mA 20 mA Example 1
OUTPUT NAME
Average rpm PROG OP1 0 rpm 2016 rpm An example using one of these USER DIP inputs
0 kPa 690 kPa would be to wire an oil level alarm into the ESM sys-
Oil pressure PROG OP2
(0 psig) (100 psig)
tem. This level sensor is of the Normally Open type,
Coolant 0° C 160° C
temperature
PROG OP3
(32° F) (320° F) where the contacts are open when the oil is at proper
Intake manifold 0 kPa Abs. 504 kPa Abs. level, and the contacts close to complete a signal path
PROG OP4
absolute pressure (0 in-hg Abs.) (149 in-hg Abs.) when the oil level falls too low (see Figure 2.35-1).
Percentage of
rated torque the When the oil level is low, the contacts complete a
engine is
ACT LOAD% 0% 125% +24 VDC signal into the USER DIP and ALM541 for
producing
(not applicable for USER DIP 1 is activated. Also, the yellow Status LED
7042 engines) on the ECU flashes the alarm code.
USER DIGITAL INPUTS NOTE: The negative side of the 24 VDC supply must
be connected to the customer reference ground wire
There are four digital inputs labeled USER DIP 1, labeled LOGIC GND.
USER DIP 2, USER DIP 3, and USER DIP 4 in the
Customer Interface Harness. When a +24 VDC signal Example 2
is applied to one of these inputs, ALM541 is activated If a solid state level sensor is used, of the type that
by the ESM system. The alarm is recorded in the ESP completes a path to ground (called an open collector),
Fault Log and the yellow Status LED on the front of the when the oil falls below a certain level, the logic must
ECU flashes the alarm code. be inverted. Remember that the USER DIP needs
The purpose of these four digital inputs is to provide +24 VDC to activate an alarm condition. A Normally
system diagnostic capability for customer-supplied Open relay contact is used to generate the correct sig-
equipment. Since non-volatile memory is not always nal. This example is shown in Figure 2.35-2.
available with the local control package, the When the oil level is high, the sensor does not acti-
USER DIP makes it possible to wire external signals vate, so it holds the base of the relay coil at supply
into the ESM system so that a service technician can voltage. The relay contacts remain open, and the
more quickly find the source of customer equipment USER DIP is low. When the oil level becomes low, the
problems. Note that only an alarm signal is acti- sensor completes the circuit to ground by sinking cur-
vated—no other control action is taken by the ESM rent, and the relay coil energizes. This causes the con-
when one of the USER DIPs goes high! tacts to close and +24 VDC is applied to the
USER DIP and ALM541 is activated. Also, the yellow
Status LED on the ECU flashes the alarm code.
24 VDC
(+) (–)
OIL LEVEL
SWITCH
ECU
USER DIP 1
Figure 2.35-1 Example: User Digital Input Used With Oil Level Switch (Normally Open Type)
24 VDC
(+) (–)
RELAY
ECU
USER DIP 1
OIL
LEVEL
SWITCH
Figure 2.35-2 Example: User Digital Input Used With Solid State Level Sensor (Open Collector)
Example 3 When the oil level becomes low, the relay is energized
as in the previous example, and the ESD input is
The oil level sensor can also be used to trigger an
opened, resulting in an engine shutdown and shut-
engine shutdown. Since the ESD digital input must
down code, ESD222. Also, the red Status LED on the
remain at +24 VDC for the engine to run, and opening
ECU flashes the shutdown code.
the circuit will cause a shutdown, inverted logic can be
used with a Normally Closed relay contact to properly NOTE: The engine cannot be restarted until the fault
manipulate the signal. This example is shown in condition, in this example the low oil level, is
Figure 2.35-3. corrected.
24 VDC
(+) (–)
RELAY
USER DIP 1
ECU
ESD
OIL
LEVEL
SWITCH
Figure 2.35-3 Example: User Digital Input Used To Trigger An Engine Shutdown
ELECTRONIC SERVICE PROGRAM (ESP) The PC-based ESM Electronic Service Program
(ESP) is the primary means of obtaining information
DESCRIPTION OF ESP on system status. ESP provides a user-friendly, graph-
ical interface in a Microsoft Windows 98
WARNING SE/Me/NT4 based environment (see Figure 3.00-1). If
the user needs help, system information, or trouble-
Explosion Hazard – Do not disconnect equipment shooting information while using the ESP software, an
unless power has been switched off or the area is electronic help file is included.
known to be non-hazardous.
ESP is a diagnostic tool and is the means by which the
information recorded to the ECU fault logs can be
read. Minimal site-specific programming is required.
The PC used to run the ESP software connects to the COLOR MEANING
ECU via a serial cable (RS-232) supplied by Wauke- Grey Off (No Alarm)
sha Engine. This serial cable has a standard 9-pin Readings and Settings
Teal (General operating information such as temper-
RS-232 connection that plugs into the PC and an 8-pin ature and pressure readings)
plastic Deutsch connector that plugs into the ECU. White Dials and Gauges
A CD-ROM contains the ESP software and E-Help Green On or Normal System Operation
that is to be installed on the PC’s hard drive. Pink Low, Warmup, or Idle Signal
Yellow Alarm or Sensor/Wiring Check
The minimum PC requirements are:
Red Warning or Shutdown
• 700 MHz processor User Programmable
(Very little programming is required for ESM sys-
• 128 MB RAM Dark Blue tem operation – see Section 3.10 for program-
ming information)
• 200 MB free hard disk space
• Microsoft Windows 98 SE/Me/NT4 (SP6) INFORMATION ON SAVING ESM SYSTEM
See NOTE below. CALIBRATIONS
• Microsoft Internet Explorer 5.0 The ESM system is designed to be used with various
Waukesha engine families and configurations. Conse-
• 800 x 600 Color VGA Display quently, it must be tailored to work with site-specific
• RS-232 Serial Port information. This is achieved by calibrating (program-
ming) an ECU with information that is appropriate for
• CD-ROM Drive the engine and the site-specific application.
• Mouse or other pointing device recommended but The ECU is programmed for the engine, using the
not required ESP software on a PC at the engine site. Although
CONVENTIONS USED WITH ESM ESP ESP is saved on a PC, all programmed information is
PROGRAMMING saved to, and resides in, the ECU. You do not need to
have a PC connected with ESP running to operate
The following is a list of conventions used in the ESP an engine with the ESM system. ESP is only the
software and documentation: software used to monitor engine operation, trouble-
• All commands enclosed in brackets, [ ], are found on shoot faults, log data, and load new calibrations to the
the PC keyboard. ECU.
• Menu names and menu options are in bold type. The ECU contains both volatile (non-permanent) ran-
dom access memory (RAM) and non-volatile (perma-
• Panel names and dialog box names begin with nent) random access memory (NVRAM).
Uppercase Letters.
Once an engine is programmed in ESP, the values are
• Field and button names begin with Uppercase Let- saved in RAM in the ECU and become the active val-
ters and are enclosed in quotes (“ ”). ues. RAM is used to evaluate programmed values
• ESP panels can be accessed by pressing the corre- before storing them to the ECU’s permanent memory.
sponding function key ([F2], [F3], etc.), or by clicking The contents of RAM are lost whenever power to the
on the tab of the panel with the mouse. ECU is removed. The contents remain in ECU RAM
even if the PC loses power or is disconnected from the
• E-Help can be accessed by pressing [F1]. ECU.
• The [Return] key is the same as the [Enter] key (on
some keyboards [Return] is used instead of [Enter]).
• The fields on the ESP user interface screens are
color-coded to provide an easy-to-understand
graphical interface. See Table 3.00-1 for color key.
To permanently save programmed values, the user [F2] ENGINE: The Engine Panel displays engine
must complete the steps in ESP necessary to save to speed and current system readings of pressure and
the ECU. The new values are then saved permanently temperature (see Figure 3.00-2). If a sensor or wiring
to NVRAM. When values are saved to NVRAM, the failure is detected, the status bar, under the affected
information is not lost when power to the ECU is sensor, will change from teal to yellow, and a message
removed. Once the values are saved to permanent will appear in the status bar telling the user to check
memory, the previous save to permanent memory can- sensor and wiring for proper operation. Also, the
not be retrieved. The user can save unlimited times to “Engine Alarm” field in the upper right corner will
ECU NVRAM (permanent memory). change from gray (deactivated/no engine alarm) to
yellow (alarm). In case of a shutdown, the deactivated
USER INTERFACE PANELS
(gray) status bar under the “Engine Setpoint” field
NOTE: Complete ESP user interface panel turns red and a message signals the user of the emer-
descriptions are provided in Section 3.05 ESP Panel gency shutdown.
Descriptions. The descriptions provided in this section
provide only a general overview of each panel.
The ESM ESP software displays engine status and
information:
[F2] Engine Panel [F6] AFR Primary Fuel Panel*
[F4] GOVERNOR: The Governor Panel displays [F6] AFR PRI: (AFR equipped) The AFR Primary Fuel
engine speed, throttle position, and governor operat- Panel is used to monitor AFR system performance
ing status (see Figure 3.00-4). This panel also allows (see Figure 3.00-6). This panel displays actual stepper
the user to make governor adjustments by calibrating position, stepper position setpoints, stepper operating
gain, droop, load inertia, and other ESM system gov- mode, oxygen and exhaust sensor status, and AFR
erning control features such as synchronization speed operating mode (automatic or manual). This panel also
and feedforward adjustments. allows the user to change from automatic to manual
mode and adjust stepper position using the arrow but-
tons.
[F5] IGNITION: The Ignition Panel displays engine Figure 3.00-6 AFR Primary Fuel Panel
speed, ignition timing for each cylinder, ignition status,
and knock detection (see Figure 3.00-5). This panel [F8] AFR SETUP: (AFR equipped) The AFR Setup
also allows the user to make IPM-D adjustments by Panel is used to program and fine-tune the AFR sys-
calibrating high voltage, low voltage, and no spark lim- tem (see Figure 3.00-7). This panel displays intake
its. In addition, the WKI value is calibrated on the Igni- manifold pressure, target Lambda, actual Lambda,
tion Panel. and actual stepper position. This panel also is used to
calibrate the oxygen target Lambda offset, the mini-
mum/maximum stepper positions, dither steps, gain,
and the start (or home) position. In addition, the user
can change from automatic to manual mode and
adjust stepper position using the arrow buttons.
[F10] STATUS: The Status Panel displays the number FAULT LOG
of faults occurring in the system, engine speed, engine
The ESM system features extensive engine diagnos-
hours, and other fault signals (see Figure 3.00-8). This
tics capability. The ECU records system faults as they
panel also makes it possible to view a log of all the cur-
occur. A “fault” is any condition that can be detected by
rent and historical faults. See “Fault Log” in this section
the ESM system that is considered to be out-of-range,
for more information.
unusual, or outside normal operating conditions. One
method of obtaining diagnostic information is by view-
ing the Fault Log using the ESM ESP software (see
Figure 3.00-10). ESP displays the data provided by
the ECU.
E-HELP
ESP contains an electronic help file named E-Help
(see Figure 3.00-11 for a sample screen). E-Help pro-
vides general system and troubleshooting information
in an instant, as long as you are using the PC with the
ESP software. You can quickly and easily move
around in E-Help through electronic links (or hypertext
links) from subject to subject. E-Help is automatically
installed when the ESP software is installed.
To access the help file at any time while using the ESP
software, press the [F1] function key on the keyboard
or select Help Contents… from the Help menu in
ESP. As an additional aid in troubleshooting, dou-
ble-clicking a fault listed in the Fault Log will open
E-Help directly to the troubleshooting information for
Figure 3.00-11 E-Help Screen
that fault.
This section, Section 3.05 ESP Panel Descriptions, pro- [F5] Ignition Panel Description................... Page 3.05-14
vides a description of each ESP panel and the fields and [F6] AFR Primary Fuel Panel Description.. Page 3.05-20
buttons found on each panel. Figure 3.05-1 identifies
and describes the common features found on the ESP [F8] AFR Setup Panel Description............. Page 3.05-26
panels. [F10] Status Panel Description .................. Page 3.05-30
[F2] Engine Panel Description ..................... Page 3.05-2 [F11] Advanced Panel Description............. Page 3.05-36
[F3] Start-Stop Panel Description ................ Page 3.05-4 Fault Log Description................................. Page 3.05-38
The ESP Title Bar lists the ESP version The Communication Icon indicates whether or not there is
number, ECU serial number, engine serial communication between the ECU and ESP. The icon
number, and calibration part number. shown here is indicating communication. When there is no
communication, the icon has a red circle with a bar over it.
1 9
2 10
3 5 6 7 11
6 “Percent Rated Load” This field displays an 11 “Oil Temp” This field displays the engine’s oil
approximation of percent rated torque (load). temperature in the main oil header. Units are °F
The approximation is based on ECU inputs and engine (°C). If an oil temperature sensor or wiring fault occurs,
operating factors. Not applicable for 7042 engines. the status bar beneath this field signals an alarm
(turns yellow) and provides the user a message to fix
the sensor or wiring. NOTE: When a sensor or wiring
fault is detected, the field displays a default value, not
the actual value.
1 2 3 4 5
6 7 8
9 10 11
12
13
14 16 18 19 20
15 17 21 22 23
24
1 5 6 7
4
2 8 9
3 10 11
12
15 18 20
13 16 19
14 17
22
21 23 24
25 26 27 29
28
1 2 3 4 5 6 7
8 9 10
11 12
13 15 17
14 16 18
19 20
21 22 23
24
1 2 3
13
4 5
6 14
9
7 8
10 12
11
4 “Intake Mnfld” This field displays the engine’s 11 “Arrow Buttons” and “Home” The AFR sys-
left bank intake manifold pressure. Units are tem must be in manual mode for the user to use
in-Hg absolute (kPa absolute). If an intake manifold the left bank arrow buttons. The double arrow buttons
pressure sensor or wiring fault occurs, the status bar (<< >>) move the stepper motor up or down in 400-
beneath this field signals an alarm (turns yellow) and step increments. The single arrow buttons (< >) move
provides a message to fix the sensor or wiring. NOTE: the stepper motor up or down in 25-step increments.
When a sensor or wiring fault is detected, the field dis- The home button moves the stepper motor to the
plays a default value, not the actual value. home position and then back to the start position only
when the engine is not running. If the user clicks on
5 “Exhaust Temp” This field displays the the home button while the engine is running, an error
post-turbine, left bank, exhaust temperature. message appears.
Units are °F (°C). If an exhaust sensor or wiring fault
occurs, the status bar beneath this field signals an 12 “Oxygen Sensor” This field displays the volt-
alarm (turns yellow) and provides a message to fix the age of the left bank oxygen sensor. If an oxygen
sensor or wiring. NOTE: When a sensor or wiring fault sensor or wiring fault occurs, the status bar beneath
is detected, the field displays a default value, not the this field signals an alarm (turns yellow) and provides
actual value. a message to fix the sensor or wiring. NOTE: When a
sensor or wiring fault is detected, the field displays a
6 “Actual Lambda” This field displays actual default value, not the actual value.
Lambda. Lambda is equal to the amount of air
13 “Engine Speed” This field displays current
present relative to that of a stoichiometric mixture. For
engine speed (rpm).
example, a Lambda of 1.0000 is equal to an air/fuel
ratio of approximately 16:1. Slightly rich of stoichiome-
14 “Target Lambda” This field displays the target
try, or a Lambda of 0.995, is the typical setpoint of cat-
Lambda setpoint the AFR system is adjusting
alyst engines.
the stepper position to maintain. The target Lambda is
7 “Min Position” This field displays the minimum based on a Waukesha-calibrated value and a user off-
left bank stepper position that is programmed on set programmed on the [F8] AFR Setup Panel.
the [F8] AFR Setup Panel. The value displayed is the
minimum stepper motor position at the engine’s cur- Field descriptions continued on next page...
rent intake manifold pressure level.
15 16 17
18 19
20
21
22 23
25
24
26
[F6] AFR PRIMARY FUEL PANEL DESCRIPTION CONTINUED – REFER TO FIGURE 3.05-12
15 “Start” This field signals when the engine is in it will only move stepper position with user adjustment.
its starting mode and the right bank stepper Check mark is ON; no check mark is OFF.
motor is held at a user-defined start position pro-
22 “Min Position” This field displays the minimum
grammed on the [F8] AFR Setup Panel. When the
right bank stepper position that is programmed
engine is not in start mode, the field is gray.
on the [F8] AFR Setup Panel. The value displayed is
the minimum stepper motor position at the engine’s
16 “Automatic” This field signals that the ESM
current intake manifold pressure level.
AFR system is automatically controlling stepper
movement. When the AFR system is not in automatic
23 “Max Position” This field displays the maxi-
control, the field is gray.
mum right bank stepper position that is pro-
grammed on the [F8] AFR Setup Panel. The value
17 “Manual” This field signals that the user has
displayed is the maximum stepper motor position at
selected to be in manual mode. Manual mode
the engine’s current intake manifold pressure level.
allows the user to adjust stepper position using the
arrow buttons (<< < > >>). When in manual mode, the
24 “Oxygen Sensor” This field displays the volt-
AFR system does not perform any automatic stepper
age of the right bank oxygen sensor. If an oxy-
adjustments; it will only move stepper position with
gen sensor or wiring fault occurs, the status bar
user adjustment. When the AFR system is not in
beneath this field signals an alarm (turns yellow) and
manual mode, the field is gray.
provides the user a message to fix the sensor or wir-
ing. NOTE: When a sensor or wiring fault is detected,
18 “Exhaust Temp” This field displays the
the field displays a default value, not the actual value.
post-turbine, right bank, exhaust temperature.
Units are °F (°C). If an exhaust sensor or wiring fault 25 “Primary Right Stepper Position” This field
occurs, the status bar beneath this field signals an displays the current position of the right bank
alarm (turns yellow) and provides the user a message stepper motor.
to fix the sensor or wiring. NOTE: When a sensor or
wiring fault is detected, the field displays a default 26 “Arrow Buttons” and “Home” The AFR sys-
value, not the actual value. tem must be in manual mode for the user to use
the right bank arrow buttons. The double arrow but-
19 “Intake Mnfld” This field displays the engine’s
tons (<< >>) move the stepper motor up or down in
right bank intake manifold pressure. Units are
400-step increments. The single arrow buttons (< >)
in-Hg absolute (kPa absolute). If an intake manifold
move the stepper motor up or down in 25-step incre-
pressure sensor or wiring fault occurs, the status bar
ments. The home button moves the stepper motor to
beneath this field signals an alarm (turns yellow) and
the home position and then back to the start position
provides the user a message to fix the sensor or wir-
only when the engine is not running. If the user clicks
ing. NOTE: When a sensor or wiring fault is detected,
on the home button while the engine is running, an
the field displays a default value, not the actual value.
error message appears.
27 28 29
30
[F6] AFR PRIMARY FUEL PANEL DESCRIPTION CONTINUED – REFER TO FIGURE 3.05-13
27 “Stop Editing – Currently Editing” This but-
ton must be clicked prior to editing programma-
ble (dark blue) fields in ESP. Clicking this button puts
ESP in “editing mode.” The user will not be able to
enter new values if ESP is not in editing mode. While
in editing mode, the button will read, “Stop Editing-Cur-
rently Editing.” When the editing mode is off, the but-
ton will read “Start Editing.” See Section 3.10 ESP
Programming “Basic Programming In ESP” for more
information.
2
1 3
4 5 11
6 7 12
8 10 13
14 15
16 17
18 19
20
21 22 23
24
1 2 3 4 5
6 7 8 9 10
5 “Security Header” This button allows the user 10 “Engine Start” This field indicates system
to view the serial number(s) and calibration readiness to start. If there is no ESM system
number of the ECU and engine. This information is related reason not to start the engine, the field is gray
provided to verify that the ECU is calibrated correctly and signals the user that the engine is OK to start. If
for the engine on which it is installed. there is anything preventing the engine from starting,
the field is red and signals the user NO START is pos-
sible.
11
12 13 14 15 16
17 18 19 20 21
22
23 24 25 26 27 28
1 2 3 4 5
6 7 8
FAULT LOG DESCRIPTION fault occurred in the lifetime of the ECU. All the fault
information is resettable except for the total number of
One method of obtaining diagnostic information is by times the fault occurred during the lifetime of the ECU.
viewing the Fault Log in ESP. ESP displays the data
provided by the ECU. The Fault Log can be displayed The faults listed in the Fault Log can be sorted by click-
either to list only the active faults or to list the history of ing on a column name. For example, clicking on “Fault”
all the faults that occurred in the lifetime of the ECU. will sort alarms/shutdowns in numerical order based
on the fault code. Clicking on “First Occurrence” will
The Fault Log displays the name of the fault, the first sort alarms/shutdowns in order of occurrence.
time the fault occurred since the fault was reset (in
ECU hours:minutes:seconds), the last time the fault As an additional aid in troubleshooting, double-clicking
occurred since reset, the number of times the fault a fault listed in the Fault Log will open E-Help directly
occurred since reset, and the total number of times the to the troubleshooting information for that fault.
1 2 3 4 5
This is the only “active” fault listed in the Fault Log. The alarm condition is
indicated on the [F10] Status Panel and with flashing LEDs on the ECU. To
troubleshoot this alarm, the user would double-click the fault description.
6 7 8 9 10 11 12
Programming NOx Level – Lean Burn Engine 2. Install ESP and related workspace files to the hard
Applications Only ................................. page 3.10-18 drive.
Provides the steps necessary to program the NOx
3. Apply power to the ESM system.
level. (For use with lean burn engines only.)
4. Connect your PC to the ECU and start ESP.
Changing Units – U.S. Or Metric ......... page 3.10-19
Provides the steps necessary to change all the ESP 5. Go through each ESP panel. Determine what
panel fields to display in either U.S. or Metric mea- fields need to be programmed based on user prefer-
surement units. ence and engine performance (such as pre-postlube,
high/low idle).
Reset Status LEDs On ECU ................. page 3.10-19
Provides the steps necessary to reset the status LEDs 6. Be sure to program the following fields (these
on the ECU. fields must be programmed):
Copying Fault Log Information To The Clipboard • “Load Inertia” field on the [F4] Governor Panel
............................................................... page 3.10-20
• “User WKI” field on the [F5] Ignition Panel
Provides the steps necessary to copy to the PC’s clip-
board information from the Fault Log that can be • Rich and lean limits on the [F8] AFR Setup Panel
pasted in Microsoft Word or another word processing (AFR equipped engines).
program.
NOTE: If you are using ESP version E1.3b, the WKI
Taking Screen Captures Of ESP Panels field is on the [F3] Start-Stop Panel.
............................................................... page 3.10-20
7. Save values to permanent memory.
Provides the steps necessary to take a screen capture
of an ESP panel that can be saved and printed in 8. Perform a manual calibration of the throttle actua-
Microsoft Word or another word processing program. tor.
Logging System Parameters............... page 3.10-21 9. Start engine.
Provides the steps necessary to log system parame-
10. Observe engine performance. Make changes as
ters that can be read in Microsoft Word or Excel.
necessary.
Programming Baud Rate ..................... page 3.10-24
11. Save all changes to permanent memory.
Provides the steps necessary to program the baud
rate when using MODBUS. PREPROGRAMMING STEPS
Programming ECU Identification Number Before applying power to the ESM system and with the
............................................................... page 3.10-24 engine shut down:
Provides the steps necessary to program an identifica-
tion number to an ECU when using MODBUS. 1. Review Section 3.00 Introduction To ESP for PC
requirements, ESP program description, and saving
Programming Remote ECU For Off-Site Personnel information.
............................................................... page 3.10-25
Provides the steps necessary to program an identifica- 2. Review Section 3.05 ESP Panel Descriptions for a
tion number to a remote ECU for off-site personnel. detailed explanation of each of the panels in ESP.
5. Using a digital voltmeter, measure the voltage Table 3.10-1 ESP Desktop Icons
between the power terminals in the Power Distribution
DESCRIPTION ICON
Box. Verify that the power supply voltage is within the
specification provided in Section 2.00 Power Require- ESP Modem Access Icon: Double-clicking this icon
opens a version of ESP that allows use of ESP with
ments. a modem and requires modem cables for use (See
“Using A Modem” on page 3.10-28).
INSTALLING ESP TO HARD DRIVE
Log File Processor Icon: Double-clicking this icon
The ESM ESP CD contains an installation program to opens a program that converts ESP log files into a
file format read by Microsoft Excel (See “Logging
automatically load ESP on the hard drive of your PC. System Parameters” on page 3.10-21).
Complete the steps that follow to load the ESP soft-
ware using the installation program. CONNECTING PC TO ECU
1. Make sure your PC meets the system require- An RS-232 serial cable (P/N 740269) supplied by
ments listed in Section 3.00 Introduction To ESP “Mini- Waukesha Engine is used to connect the PC to the
mum Recommended Computer Equipment For ESM ECU. This cable has a 9-pin RS-232 connection that
ESP Operation”. plugs into the PC and an 8-pin Deutsch connector
2. Start Microsoft Windows 98 SE/Me/NT4 on your that plugs into the ECU.
PC. NOTE: The PC can be connected to the ECU via a
3. Close any other applications that may be open on modem connection. See “Using A Modem” on
your PC’s desktop. page 3.10-28 for more information on modem
connections and ESP startup information.
4. Insert the ESP CD into the CD drive of your PC.
NOTE: If the ESP software and associated
• If Autorun is enabled on your PC system, installation workspace files are not saved to your PC’s hard drive,
starts automatically approximately 30 seconds after complete the steps under the section See “Installing
the CD is inserted. Continue with Step 7. ESP To Hard Drive” on page 3.10-3.
• If the Autorun is disabled on your PC system, con- 1. Locate the RS-232 serial cable supplied by
tinue with Step 5. Waukesha Engine.
5. From the Start menu, select Run.... 2. Connect the 9-pin end of the RS-232 serial cable
6. Type d:\ESP_Setup14SP4 and click “OK” (if “D” is to the PC’s communication port. Typically, this is port 1
not the letter of your CD drive, type in the appropriate (also referred to as COM 1, serial a, or serial 1) (see
letter). Figure 3.10-1).
7. Follow the instructions that appear on the screen 3. Connect the 8-pin Deutsch connector of the
until installation is complete. serial cable to the “Service Interface” connection on
the side of the ECU (see Figure 3.10-1).
NOTE: By default, the ESP software is installed in
C:\Program Files\ESM. 4. Make sure all connections are secure.
8. When installation is complete, four ESP-related
icons will appear on your desktop (see Table 3.10-1).
Table 3.10-1 ESP Desktop Icons
DESCRIPTION ICON
SERIAL CABLE
(P/N 740269)
9-PIN
CONNECTOR
The other fields can be programmed to set user prefer- 4. Once the new value is entered, press [Enter].
ences and to fine-tune engine operation like Once [Enter] is pressed the new value becomes
pre-postlube and low/high idle. Go through each ESP “active,” meaning the ECU is using the new value to
panel. Determine what fields need to be programmed operate the ESM system. The new value, however, is
based on user preference and engine performance. temporarily saved to RAM in the ECU.
Section 3.05 provides a description of all the fields on
NOTE: The contents of RAM (temporary memory) are
each of the panels.
lost whenever power to the ECU is removed or on
NOTE: For more information on governor engine shutdown.
programming, see “Governor Programming” on
5. Since an entered value is active as soon as [Enter]
page 3.10-13.
is pressed, it is possible that you will notice a brief
1. Click on the “Start Editing” button. While in editing engine disruption as the engine adjusts to the new
mode, the button will read, “Stop Editing – Currently value. If a new value could cause brief engine disrup-
Editing.” tion, a dialog box will appear notifying you of the
potential for a brief engine disruption. Click “OK” to
continue.
3. If you exit ESP without saving to the ECU, a dialog • “Discard All Changes Since Last Save” Click this
box appears with four options: “Save Changes to button to reset the ECU to the programmed parame-
ECU,” “Keep Changes in Temporary Memory,” “Discard ters that were last saved to permanent memory in
All Changes Since Last Save,” and “Cancel.” the ECU. Since all the “active” values used by the
ECU will be reset to those last saved, it is possible
that you will notice a brief engine disruption as the
engine adjusts to the new value. Click “Continue.”
3. Double-click the “User WKI” field or highlight the The “Load Inertia” field on the [F4] Governor Panel in
currently programmed WKI value. ESP must be programmed by the operator for proper
engine operation. By programming the load inertia or
rotating moment of inertia of the driven equipment, the
governor gain is preset correctly, aiding rapid startup
of the engine.
The rotating moment of inertia must be known for each
piece of driven equipment and then added together.
4. Enter the WKI value of the fuel. The WKI value Rotating moment of inertia is needed for all driven
must be based on the composition of a fuel sample equipment. Rotating moment of inertia is not the
taken from the engine site and analyzed using the weight or mass of the driven equipment.
Windows-based software program or as dictated on
NOTE: The rotating moment of inertia of driven
a Special Application Approval (SAA). Contact your
equipment is an inherent property of the driven
local Distributor for additional information.
equipment and does not change with engine speed or
5. Press [Enter]. Once [Enter] is pressed, the new load. Contact the coupling or driven equipment
value becomes “active,” meaning the ECU is using the manufacturer for the moment of inertia value.
new value to operate the ESM system. The changed
To determine the rotating moment of inertia for ALL
value is temporarily saved to the ECU.
driven equipment, you must determine the rotating
NOTE: The contents of RAM (temporary memory) are moment of inertia for each piece of driven equipment
lost whenever power to the ECU is removed. (being consistent with U.S./English and Metric units).
Once you have the value for each piece of driven
6. Click the “Stop Editing” button. While the editing
equipment, you sum all the values. The summed value
mode is OFF, the button will read “Start Editing.”
is what is programmed on the [F4] Governor Panel in
ESP.
Complete the steps on the following page to program
the rotating moment of inertia.
NOTE: Setting the rotating moment of inertia (or load
7. Save value to permanent memory. Click the “Save inertia) with ESP is part of setting up an engine with
To ECU” button. the ESM system and must be done with the engine
not rotating.
1. Shut down engine but do not remove power from NOTE: If your driven equipment is not listed in these
the ECU. tables, contact the coupling or driven equipment
manufacturer for the moment of inertia value.
2. Determine the rotating moment of inertia for each
piece of driven equipment. Refer to the tables identi- 3. Add together all the moment of inertia values of
fied below for typical generator, compressor, and cou- the driven equipment to determine the moment of iner-
pling moment of inertia values: tia value to be programmed in ESP. See example num-
ber 1 on the following page.
• Table 3.10-3 lists typical rotating moments of inertia
for generator sets. 4. For driven equipment including either a speed
increaser or a speed reducer you must square the
• Table 3.10-4 lists typical rotating moments of inertia
ratio of the speed increase and multiply that by the
for compressors.
rotating moment of inertia of the driven equipment that
• Table 3.10-5 lists typical rotating moments of inertia is not running at engine speed. See example number 2
for couplings. on the following page.
Changing
Stepper Positions
8. On Vee engines, the gas/air reading between the Complete the following:
left and right banks should be within ± 1/2 in. of one
1. View the [F4] Governor Panel in ESP.
another.
9. Uncheck manual mode box to run in automatic
mode.
ACTUATOR CALIBRATION
To work correctly, the ESM system must know the fully
closed and fully open end points of throttle actuator
movement. To establish the fully closed and fully open
end points, the throttle actuator must be calibrated.
4. From the drop-down menu, select “On” or “Off.”
The throttle actuator can be automatically calibrated
on each engine shutdown (except on Emergency 5. When selection is made, click the “Stop Editing”
Shutdown) through ESP programming, or the actuator button. While the editing mode is OFF, the button will
can be calibrated manually. Automatic calibration is read “Start Editing.”
strongly recommended. For automatic calibration, see
“Programming Automatic Calibration”. For manual cali-
bration, See “Performing Manual Calibration” on
page 3.10-12.
NOTE: On initial engine startup, perform a manual 6. To save setting to permanent memory, click the
calibration of the actuator. “Save To ECU” button.
PROGRAMMING AUTOMATIC CALIBRATION
Using ESP, the ESM system can be programmed on
the [F4] Governor Panel to automatically calibrate the 7. When asked are you sure you want to save to the
throttle actuator each time the engine stops (except on ECU, click “Yes.”
Emergency Shutdown). During the automatic calibra-
tion, the ECU “learns” the fully closed and fully open
end points of throttle actuator. The benefits to calibrat-
ing the actuator automatically are (1) performing the
calibration when the actuators are hot, and (2) if any
actuator problems are detected, they are found on
engine shutdown and not startup.
FORM 6295 Third Edition 3.10-11
ESP PROGRAMMING
PERFORMING MANUAL CALIBRATION 5. Click “Actuator AutoCal” from the dialog box.
To manually verify that the ECU knows the fully closed
and fully open end points of throttle actuator move-
ment, run an actuator calibration using ESP. A manual
calibration can be performed when the engine is not
rotating and after postlube and the ESM system’s
post-processing is complete. If an emergency shut-
down is active, a manual calibration cannot be com-
pleted.
NOTE: On initial engine startup, perform a manual
calibration of the actuator.
Complete the following:
NOTE: The “LBS AutoCal” feature is not used with
1. Shut down engine but do not remove power from
this release of the ESM system.
the ECU.
6. If the engine is stopped and has completed
2. View each of the six ESP panels. If any E-Stop
postlube and post-processing, a dialog box appears,
fields or shutdown fields are active (shown in red), you
verifying the ESM system is ready to perform the cali-
will not be able to perform a manual calibration until
bration. Click “OK.”
they are corrected. Refer to Section 4.00 Trouble-
shooting for information on how to troubleshoot the
ESM system using the electronic help file, E-Help.
3. View the [F4] Governor Panel in ESP.
The following fields on the [F4] Governor Panel should Low idle speed is the default and high idle is obtained
be reviewed to make sure they are correctly pro- by connecting a digital input on the ECU to +24 VDC
grammed for variable speed application: nominal. When the voltage signal goes high (8.6 –
36 volts), high idle speed is active. Low idle speed is
• “Load Inertia”: This field must be programmed by
preset for each engine family, but by using ESP the
the operator for proper engine operation. See “Pro-
low idle speed can be offset lower or higher than the
gramming Load Inertia” on page 3.10-7 for program-
preset value. High idle speed is also adjustable using
ming information.
ESP, but is constrained to be higher than low idle
• “High Idle”: This field allows the user to program speed and no higher than the maximum rated speed
the high idle rpm. Although customer connections of the engine.
determine the rpm setpoint in variable speed appli-
The following fields on the [F4] Governor Panel should
cations, the high idle setting must be programmed
be reviewed to make sure they are correctly pro-
to a “safe” value in case an out-of-range speed set-
grammed for fixed speed application.
point is detected or if the wire that enables remote
rpm operation fails. The high idle rpm can be pro- • “Load Inertia”: This field must be programmed by
grammed from 800 – 2200 rpm (not to exceed a the operator for proper engine operation. See “Pro-
preprogrammed maximum speed). Internal calibra- gramming Load Inertia” on page 3.10-7 for program-
tions prevent the engine from running faster than ming information.
rated speed +10%. See “Basic Programming In
• “High Idle”: This field allows the user to program
ESP” on page 3.10-4 if this field requires program-
the high idle rpm. The high idle setting is used when
ming.
the rated speed/idle speed digital input is high (8.6 –
• “Low Idle” and “Low Idle Adjust”: These fields 36 volts) and the “Remote RPM” field is OFF. The
allow the user to view and program the low idle rpm high idle rpm can be programmed from 800 –
setting. Although customer connections determine 2200 rpm (not to exceed a preprogrammed maxi-
the rpm setpoint in variable speed applications, the mum speed). Internal calibrations prevent the
low idle setting must be programmed to a “safe” engine from running faster than rated speed +10%,
value in case an out-of-range speed setpoint is See “Basic Programming In ESP” on page 3.10-4 if
detected or if the wire that enables remote rpm high idle requires programming.
operation fails. The teal “Low Idle RPM” field dis-
• “Low Idle” and “Low Idle Adjust”: These fields
plays the actual programmed low idle rpm setting.
allow the user to view and program the low idle rpm
The dark blue “Low Idle Adj” field allows the user to
setting. The low idle setting is used when the rated
adjust the actual setting by entering a value from
speed/idle speed digital input is low (less than
-50 to +100 rpm. When an adjustment is entered,
3.3 volts) and the “Remote RPM” field is OFF. The
the actual “Low Idle RPM” is updated to reflect the
teal “Low Idle RPM” field displays the actual pro-
adjustment. (NOTE: The low idle rpm cannot be set
grammed low idle rpm setting. The dark blue “Low
higher than the high idle rpm.) See “Basic Program-
Idle Adj” field allows the user to adjust the actual
ming In ESP” on page 3.10-4 if low idle requires
setting by entering a value from -50 to +100 rpm.
programming.
When an adjustment is entered, the actual “Low Idle
• “Droop”: This field allows the user to adjust the RPM” is updated to reflect the adjustment. (NOTE:
percent of droop. Droop allows steady state speed The low idle rpm cannot be set higher than the high
to drop as load is applied. Droop is expressed as a idle rpm.) See “Basic Programming In ESP” on
percentage of normal average speed. Droop can be page 3.10-4 if low idle requires programming.
programmed from 0 to 5%. See “Basic Program-
• “Droop”: This field allows the user to adjust the
ming In ESP” on page 3.10-4 if this field requires
percent of droop. Droop allows steady state speed
programming.
to drop as load is applied. Droop is expressed as a
• “Auto Actuator Calibration”: It is recommended percentage of normal average speed. Droop can be
that ESP be programmed to perform an automatic programmed from 0 to 5%. See “Basic Program-
throttle actuator calibration on normal shutdown. ming In ESP” on page 3.10-4 if this field requires
See “Actuator Calibration” on page 3.10-11 for pro- programming.
gramming information.
• “Auto Actuator Calibration”: It is recommended
FIXED SPEED APPLICATIONS that ESP be programmed to perform an automatic
throttle actuator calibration on normal shutdown.
There are two fixed speeds available: low idle and high
See “Actuator Calibration” on page 3.10-11 for pro-
idle.
gramming information.
IPM-D provides diagnostic information for both the pri- Once Level 2 energy is applied, the spark reference
mary and secondary sides of the ignition coil. The number will decrease initially but the Fault Log will
IPM-D detects shorted spark plugs and ignition leads, indicate the cylinder number of the spark plug that is
as well as spark plugs that require a boosted energy wearing out.
level to fire or do not fire at all. The diagnostic informa-
NOTE: When using MODBUS the cylinder number
tion is provided through a Controller Area Network
is in firing order. For example, if cylinder #5 triggers an
(CAN) link between the ECU and IPM-D, and then to
alarm for having a worn out spark plug, the user
the customer’s local control panel via MODBUS.
should check the spark plug of the fifth cylinder in the
Four thresholds calibrated by Waukesha Engine have firing order. Engine firing order is stamped on the
been programmed into the ECU to trigger four different engine nameplate. The VHP Series Four 6 cylinder
levels of alarm: engine firing order is: 1, 5, 3, 6, 2, 4. The VHP Series
Four 12 cylinder engine firing order is: 1R, 6L, 5R,
• Primary: Indicates a failed ignition coil or faulty igni-
2L, 3R, 4L, 6R, 1L, 2R, 5L, 4R, 3L.
tion wiring
MONITORING SPARK REFERENCE NUMBER
NOTE: Another possible cause of a Primary alarm
would be the activation of the red lockout or E-stop The spark reference number is an arbitrary number
(emergency stop) button on the side of the engine based on relative voltage demand at the spark plug
while the engine is running. and is calculated each time the cylinder fires.
• Low Voltage: Indicates a failed spark plug or The usefulness of the spark reference number lies in
shorted ignition coil secondary wire how much a number changes over time as a spark
plug erodes. Based on a thorough trend analysis of
• High Voltage: Indicates that a spark plug is getting
the spark reference numbers, the user may want to
worn and will need to be replaced
adjust the high, low, or no spark voltage limits. It will
• No Spark: Indicates that a spark plug is worn and take some testing and adjustment to obtain thresholds
must be replaced that optimize the use of these features. For maximum
benefit, the spark reference number for each cylinder
When the spark reference number reaches one of the
should be recorded at normal operating load with new
four programmed thresholds, an alarm is triggered.
spark plugs installed and then monitored over a period
Three of these four thresholds (low voltage, high volt-
of time for changes.
age, and no spark) were designed to be adjustable so
the user can customize IPM-D predictive diagnostics The “Left Bank Spark Reference #” and “Right Bank
to fit the specific needs of each engine. Using the Spark Reference #” fields on the [F5] Ignition Panel
[F5] Ignition Panel in ESP, the user can adjust the display the spark reference number for each cylinder.
faults’ alarm and shutdown points to compensate for As the voltage increases, the spark reference number
site conditions and minor variations in spark reference also increases. A gradual increase in the spark refer-
numbers between individual coils. ence number is expected over time as the spark plug
wears. The closer to end of spark plug life, the faster
NOTE: The IPM-D default values are appropriate for
the spark reference number will increase.
all engine applications.
HIGH VOLTAGE ADJUSTMENT
NOTE: Improper use of these adjustments may limit
the effectiveness of IPM-D diagnostics. NOTE: Improper use of the High Voltage Adjustment
may limit the effectiveness of IPM-D diagnostics.
MONITORING IGNITION ENERGY FIELD
The “High Voltage Adj.” and “High Voltage Limit” fields
The “Ignition Energy” field on the [F5] Ignition Panel
allow the user to view and adjust the high voltage
indicates at what level of energy the IPM-D is firing the
alarm limit setting. The high voltage limit is based on
spark plugs: Level 1 (low) or Level 2 (high). The pink
the spark reference number. When a cylinder's spark
“Ignition Energy” field will signal the user whether the
reference number exceeds the high voltage limit, the
ignition level is LEVEL 1 or LEVEL 2.
ignition energy is raised to a Level 2 (high) ignition
During normal engine operation, the IPM-D fires at a energy and an alarm is triggered. Based on a thorough
Level 1 (normal) ignition energy. The IPM-D fires at a trend analysis of the spark reference numbers, the
Level 2 (high) ignition energy on engine startup or as a user may want to adjust the high voltage limit to fit the
result of spark plug wear. When sufficient spark plug specific needs of the engine. Improper use of this
wear is monitored, IPM-D raises the power level of the adjustment may limit the effectiveness of IPM-D diag-
ignition coil. If the ignition energy is raised to Level 2 nostics.
(except on startup), an alarm is triggered to alert the
operator.
Programming the “High Voltage Adj.” to a positive When a cylinder’s spark reference number goes below
number will delay triggering the high voltage limit the low spark limit, an alarm is triggered, identifying a
alarm until the spark plugs are more worn. Likewise, low voltage demand condition that may have resulted
reducing the “High Voltage Adj.” will advance triggering from a shorted coil or secondary lead, deposit buildup,
the high voltage limit alarm, allowing more time or a failed spark plug (failure related to “balling” or
between when an alarm is triggered and spark plug shorting). Based on a thorough trend analysis of the
failure. spark reference numbers, the user may want to adjust
the low voltage limit to fit the specific needs of the
• The teal “High Voltage Limit” field displays the
engine. Improper use of this adjustment may limit the
actual programmed high voltage limit setting. The
effectiveness of IPM-D diagnostics. Typically this
dark blue “High Voltage Adj.” field allows the user to
limit is not adjusted.
adjust the actual setting by entering a value from
-30 to +30. When an adjustment is entered, the • The teal “Low Voltage Limit” field displays the actual
actual “High Voltage Limit” is updated to reflect the programmed low voltage limit setting. The dark blue
adjustment. See “Basic Programming In ESP” on “Low Voltage Adj.” field allows the user to adjust the
page 3.10-4 if this field requires programming. actual setting by entering a value from -30 to +30.
When an adjustment is entered, the actual “Low
Voltage Limit” is updated to reflect the adjustment.
See “Basic Programming In ESP” on page 3.10-4 if
this field requires programming.
The “Low Voltage Adj.” and “Low Voltage Limit” fields NO SPARK ADJUSTMENT
allow the user to view and adjust the low voltage alarm NOTE: Improper use of the No Spark Adjustment may
limit setting. The low spark limit is based on the spark limit the effectiveness of IPM-D diagnostics.
reference number.
The “No Spark Adj.” and “No Spark Limit” fields allow
the user to view and adjust the no spark alarm limit
setting. The no spark limit is based on the spark refer-
ence number.
When a cylinder’s spark reference number exceeds However, the actual NOx output of the engine will not
the no spark limit, an alarm is triggered, indicating that always match the programmed NOx level for several
a spark plug is worn and must be replaced. Based on reasons. First, the ESM system calculates NOx based
a thorough trend analysis of the spark reference num- on a combination of sensor readings logged by the
bers, the user may want to adjust the no spark limit to ECU and Waukesha-calibrated values. Two examples
fit the specific needs of the engine. Improper use of of Waukesha-calibrated values are humidity and
this adjustment may limit the effectiveness of IPM-D exhaust oxygen since the ESM system does not mea-
diagnostics. Typically this limit is not adjusted. sure these variables. Also, the ESM system includes a
preprogrammed correction factor to allow for statistical
The teal “No Spark Limit” field displays the actual pro-
variations with the engine. As a result, the engine in
grammed no spark limit setting. The dark blue “No
most cases will emit less NOx than the actual pro-
Spark Adj.” field allows the user to adjust the actual
grammed NOx level.
setting by entering a value from -25 to +25. When an
adjustment is entered, the actual “No Spark Limit” is Complete the following steps to program the NOx
updated to reflect the adjustment. See “Basic Pro- level.
gramming In ESP” on page 3.10-4 if this field requires
1. View the [F5] Ignition Panel in ESP.
programming.
4. Paste the image into the file by selecting Edit then 5. When you want to stop logging data, click the
Paste from the Microsoft Word menu. “Stop Logging All” button.
5. The Microsoft Word or Excel file can then be
saved and/or printed.
3. The “Start Logging All” button becomes inactive • If you want to create a .TSV file, continue with “Cre-
and the “Stop Logging All” button becomes active. At ate .TSV File.”
this point data is being logged onto the PC’s hard CREATE TEXT FILE
drive.
The following steps explain how to extract a logged file
(a file with the extension .AClog) into a .TXT file that
can be opened in Microsoft Word or another word
processing program.
1. Click the “Create Text File” button.
4. Allow the engine to run while the data is logged. It
is recommended that 1 – 2 hours be the maximum
amount of time that is allowed to log data. Microsoft
Excel has a maximum number of columns/rows and if
too much engine data is logged, capacity will be
exceeded.
2. The Log File Processor needs you to locate the log 5. Close the “Log File Format Extractor” dialog box by
file needing extraction. All log files are saved to C:\Pro- clicking “X” in upper right corner. The Log File Proces-
gram File\Esm\Logs. Within the directory “Logs” there sor program is now closed.
is a subdirectory (or subdirectories) named with the
6. Open Microsoft Word or another word processing
engine serial number. The log file is saved in the sub-
program.
directory of the appropriate engine.
7. Locate the text file that was just created. The text
file will be in the same subdirectory as the .AClog file.
Click desired .TXT file to be opened. Click “Open.”
NOTE: To view .TXT files, change the “Files of type”
to read “All Files.”
.ACLOG FILE TO BE
CONVERTED
2. The Log File Processor needs you to locate the log 7. Locate the .TSV file that was just created. The
file needing extraction. All log files are saved to C:\Pro- .TSV file will be in the same subdirectory as the .AClog
gram Files\Esm\Logs. Within the directory “Logs” there file. Click desired .TSV to be opened. Click “Open.”
is a subdirectory (or subdirectories) named with the NOTE: To view .TSV files, change the “Files of type”
engine serial number. The log file is saved in the sub- to read “All Files.”
directory of the appropriate engine.
.ACLOG FILE TO BE
CONVERTED
NOTE: Refer to Figure 3.10-3, Figure 3.10-4, and NOTE: If the correct LEDs on the modem are not lit,
Figure 3.10-6 for Steps 3 – 11. check all connections and LEDs. Connections must be
correct. If LEDs still do not light, contact Waukesha
3. Plug the circular connection of the ECU Power Parts Department for assistance.
Cable (P/N 740299) into the connection named
“Power/Outputs” on the side of the ECU. 13. The connection is complete and you are ready for
downloading. Contact your Customer Service
4. Plug the other end of the ECU Power Cable into an Representative at Waukesha Engine to complete
outlet. The ECU Power Cable can plug into a 100 – remote programming. Waukesha Engine will
240 V, 50/60 Hz power source; however, a plug download the ECU Program from the factory to
adapter may be required. your site via a modem.
5. Verify power LED on front of ECU is lit. If the LED NOTE: After the Waukesha Engine representative
on the ECU is not lit, make sure the ECU Power establishes connection with your modem but before
Cable is connected correctly to the actual downloading begins, the CD (“Carrier Detect”)
“Power/Outputs” connection on the side of the and ARQ/FAX (“Fax Operations”) LEDs will be lit.
ECU and make sure outlet has power.
14. During download, the RD (“Received Data”) and
6. Plug the 8-pin connector of the Modem Cable into SD (“Send Data”) LEDs on the modem will
the connection named “Service Interface” on the be flashing. The download will take approximately
side of the ECU. 5 – 10 minutes. When finished, the Waukesha
7. Plug the 25-pin connector of the Modem Cable into representative will verify that download is complete
the back of the modem. and successful.
ON/OFF
SWITCH
INDICATOR LEDS:
AA (AUTO ANSWER MODE)
CD (CARRIER DETECT)
RD (RECEIVED DATA)
SD (SEND DATA)
TR (DATA TERMINAL READY)
CS (CLEAR TO SEND)
ARQ/FAX (FAX OPERATIONS DATA MODE)
ESM ECU
MODEM CABLE
P/N 740269A
MODEM
TELEPHONE
LINE CORD
OUTLET
PHONE
JACK ECU POWER CABLE
P/N 740299
MODEM’S POWER
CORD
B0 E1 L4 M1 N5 Q0 V1 X5
&B1 &C1 &D2 &G0 &H3 &J0 &K4 &L0 &M0 &N0 &P0 &R1 &S0 &X &Y1
*B0 *C0 *D0 *E0 *F0 *G0 *I0 *L0 *M0 *P9 *Q2 *S0
OK
10. If your modem dials but does not connect with the CONNECTING MODEM TO ECU AND PC
answering modem, or if you have problems getting or
staying connected, you might need to adjust the An RS-232 serial cable (P/N 740269A), available from
modem initialization string. Click the “Advanced Set- Waukesha Engine, is used to connect a modem to the
tings” check box on the “Modem Connection Wizard” ECU. This cable has a 25-pin RS-232 connection that
dialog box. plugs into the modem and an 8-pin Deutsch connec-
tor that plugs into the ECU.
Complete the following:
1. Obtain an RS-232 serial cable (P/N 740269A) from
Waukesha Engine for modem use.
2. Connect the 25-pin end of the RS-232 serial cable
to the external modem (see Figure 3.10-7). Connect to
the “dedicated” modem you set up for use with the
ECU following the steps in the section “Setting Up
Modem To ECU For Proper Connection”.
3. Connect the 8-pin Deutsch connector of the
serial cable to the “Service Interface” connection on
the side of the ECU.
4. Connect PC to modem (see Figure 3.10-7 for sam-
ple setup).
5. Make sure all connections are secure.
“SERVICE INTERFACE”
CONNECTION
SERIAL CABLE
(P/N 740269A)
EXTERNAL
MODEM
SERIAL
CABLE
INTERNAL/EXTERNAL (SHOWN) MODEM
WHERE TO BEGIN
STATUS LEDs
To begin troubleshooting an engine due to an ESM
system alarm or shutdown, you must first determine
the alarm or shutdown code(s). A code can be deter-
mined from reading the Status LEDs on the ECU or by
viewing the Fault Log accessed from the [F10] Status
Panel in ESP. Figure 4.00-1 ECU Status LEDs
All fault codes have three digits and each digit can be At the start of the code sequence, both the red and
a number from 1 to 5. There is a set of codes for yellow LEDs will flash three times simultaneously. If
alarms and a separate set of codes for emergency there are any emergency shutdown faults, the red LED
shutdowns. Alarm codes in ESP are identified with the will flash a three-digit code for each shutdown fault
letters “ALM” preceding the alarm code. Emergency that occurred. Then if there are any alarm faults, the
shutdown codes are identified with the letters “ESD” yellow LED will flash a three-digit code for each alarm
preceding the shutdown code. For example, the three that occurred.
digit code “222” for an alarm is identified by ESP as
Also within the Fault Log dialog box, you can view a
list of active faults or the total history of faults that
occurred in the ECU’s lifetime. For more information
on the Fault Log, refer to Section 3.05 ESP Panel
Descriptions “Fault Log Description”.
NOTE: All the fault information is resettable except for
the total number of times the fault occurred during the
lifetime of the ECU.
Figure 4.00-2 View Faults Button On
[F10] Status Panel
This is the only “active” fault listed in the Fault Log. The alarm con-
dition is indicated on the [F10] Status Panel and with flashing LEDs
on the ECU. To troubleshoot this alarm, double-click the fault
description. E-Help then opens directly to the information for that
fault (see Figure 4.00-5).
USING FAULT CODE FOR NOTE: Although E-Help is viewable through ESP,
TROUBLESHOOTING E-Help is its own program and opens in a new window,
separate from ESP. To return to ESP and continue
Once you have determined the fault code, you can monitoring, you need to minimize or close the E-Help
begin ESM system troubleshooting. ESP features an program/window.
electronic help file named E-Help. Detailed trouble-
shooting information is available in E-Help. However, if USING E-HELP
you do not have access to a PC, Table 4.00-2 and To access E-Help while using ESP, press the
Table 4.00-3 provide information on the ESM system’s [F1] function key on the keyboard or select
alarm and shutdown codes. “Help Contents…” from the Help menu. When you
access E-Help by pressing [F1] or by selecting
E-HELP “Help Contents…,” you will open the help file at the
ESP contains an electronic help file named E-Help. E-Help welcome screen (see Figure 4.00-4). Click the
E-Help provides general system and troubleshooting E-Help logo to enter the help file.
information in an instant as long as you are using the
PC with the ESP software. You can quickly and easily
move around in E-Help through electronic links (or
hypertext links) from subject to subject. E-Help is auto-
matically installed when the ESP software is installed.
This is the command bar. The command bar buttons are used as a means to navigate through
E-Help and work like Internet browsing software buttons.
Figure 4.00-6 E-Help Command Bar, Navigation Pane, And Document Pane
Using The Navigation Pane • “Search” Tab: Click the “Search” tab to do a basic
search on the word or phrase you want to find. Type
The navigation pane navigates the user through
in a word or phrase and press [Enter]. In the
E-Help. At the top of the navigation pane are four tabs.
“Search” tab will be listed all the places in E-Help
Clicking these tabs allows you to see a table of con-
where that word or phrase is used exactly as it was
tents for E-Help, an index tool, a search tool, and a
typed. Double-click on a search finding to view that
glossary of ESM system-related terms.
entry in the document pane.
• “Contents” Tab: Click the “Contents” tab to scroll
through the table of contents for E-Help. Double-
clicking the closed book icons in the Contents listing
will reveal all relevant topics. Double-clicking on an
open book icon will close the contents listing.
ALARM FAULT
DESCRIPTION
FAULT CODE CONDITION
ALM211 OIL PRESS Oil pressure sensor/wiring fault
ALM212 IMAP LB/BK Left bank intake manifold pressure sensor/wiring fault
ALM213 OIL TEMP Oil temperature sensor/wiring fault
ALM214 IMAP RB/FT Right bank intake manifold pressure sensor/wiring fault
ALM221 IMAT Intake manifold air temperature sensor/wiring fault
ALM222 MAIN FUEL VALVE Leaking fuel valve/engine failed to stop in a timely fashion
ALM223 LOW OIL PRESS Low oil pressure
ALM224 KNOCK A cylinder is or was at its maximum retarded timing due to knock
Knock sensor ## (where ## is the cylinder number) in the firing order is
ALM225 KNOCK SENS either open circuit or short circuit
ALM231 IGN 1ST CYL* First cylinder in the firing order has a fault with its ignition system
ALM232 IGN 2ND CYL* Second cylinder in the firing order has a fault with its ignition system
ALM233 IGN 3RD CYL* Third cylinder in the firing order has a fault with its ignition system
ALM234 IGN 4TH CYL* Fourth cylinder in the firing order has a fault with its ignition system
ALM235 IGN 5TH CYL* Fifth cylinder in the firing order has a fault with its ignition system
ALM241 IGN 6TH CYL* Sixth cylinder in the firing order has a fault with its ignition system
ALM242 IGN 7TH CYL* Seventh cylinder in the firing order has a fault with its ignition system
ALM243 IGN 8TH CYL* Eighth cylinder in the firing order has a fault with its ignition system
ALM244 IGN 9TH CYL* Ninth cylinder in the firing order has a fault with its ignition system
ALM245 IGN 10TH CYL* Tenth cylinder in the firing order has a fault with its ignition system
ALM251 IGN 11TH CYL* Eleventh cylinder in the firing order has a fault with its ignition system
ALM252 IGN 12TH CYL* Twelfth cylinder in the firing order has a fault with its ignition system
ALM253 IGN 13TH CYL* Thirteenth cylinder in the firing order has a fault with its ignition system
ALM254 IGN 14TH CYL* Fourteenth cylinder in the firing order has a fault with its ignition system
ALM255 IGN 15TH CYL* Fifteenth cylinder in the firing order has a fault with its ignition system
ALARM FAULT
DESCRIPTION
FAULT CODE CONDITION
ALM311 IGN 16TH CYL* Sixteenth cylinder in the firing order has a fault with its ignition system
ALM312 OVERLOAD Engine is overloaded
ALM313 IGN FLT Ignition system signal being received by ECU is out of normal range
ALM314 REMOTE RPM Wiring fault
ALM315 HIGH INTAKE TEMP Intake manifold air temperature too high
ALM322 CALIBRATE ACT Various causes: linkage and actuators
ALM323 STUCK THROT LINK Throttle linkage binding
ALM332 IGN COM FAULT A communications problem exists between the IPM-D and the ECU
ALM333 HIGH COOLANT TEMP Engine coolant temperature too high
ALM335 HIGH OIL TEMP Engine oil temperature too high
ALM341 STEPPER Left bank stepper home/not connected
ALM342 STEPPER Right bank stepper home/not connected
ALM343 OXYGEN LB Left bank oxygen sensor/wiring fault
ALM344 EXH TEMP LB Left bank exhaust temperature sensor/wiring fault
ALM345 OXYGEN RB Right bank oxygen sensor/wiring fault
ALM351 EXH TEMP RB Right bank exhaust temperature sensor/wiring fault
Ignition energy level is at Level 2 (or highest level) – at least one spark
ALM353 HIGH IGN PWR plug on the engine is getting worn and should be replaced
ALM413 LEAN LIMIT Left stepper has reached lean limit
ALM415 RICH LIMIT Left stepper has reached rich limit
ALM422 COOLANT TEMP Sensor/wiring fault
ALM423 LEAN LIMIT Right stepper has reached lean limit
ALM425 RICH LIMIT Right stepper has reached rich limit
ALM432 STEPPER COM FLT Stepper communication fault
ALM441 THROTTLE ACTUATOR Actuator/wiring fault
ALM451 REMOTE RPM Remote rpm analog input is over the acceptable range; wiring fault
ALM454 BATT VOLT Battery voltage out of specification
ECU’s temperature has increased beyond the maximum recommended
ALM455 HIGH ECU TEMP
operating temperature
ALM523 ALTERNATOR Alternator/wiring fault
ALM541 USER DIP User digital input changed state
ALM542 START ON WITH RPM>0 Start engine signal should be off when the engine is running; otherwise
engine will immediately restart upon shutdown
ALM552 ENG BEING DRIVEN Engine is being rotated by the driven equipment; sparks and fuel have
been cut by the ECU
ALM555 INTERNAL FAULT Internal error in ECU; call the factory
NOTE: * The ignition system alarms are in order of engine firing order. Engine firing order is stamped on the engine nameplate. The VHP
Series Four 6 cylinder engine firing order is: cyl. 1, 5, 3, 6, 2, 4. The VHP Series Four 12 cylinder engine firing order is: 1R, 6L,
5R, 2L, 3R, 4L, 6R, 1L, 2R, 5L, 4R, 3L.
SHUTDOWN SHUTDOWN
DESCRIPTION
FAULT CODE CONDITION
ECU detects fewer crankshaft pulses between camshaft pulses
ESD212 CRANK MAG PICKUP
than it was expecting
ESD214 CAM MAG PICKUP Too many crankshaft pulses are identified between magnetic pick-
ups (or no magnetic pickup pulses are detected)
ESD221 OVERSPEED ENGINE Engine overspeed; engine was running faster than allowed
Shutdown has been triggered by an external action; by customer
ESD222 CUST ESD
equipment
Pressure signal from the sensor is below a threshold set-point and
ESD223 LOW OIL PRESS means that the oil pressure may have been below normal operating
conditions
Specific cylinder was at its maximum retarded timing due to knock
ESD224 KNOCK and exceeded an absolute threshold
Time the engine has been cranking has exceeded a maximum
ESD231 OVERCRANK crank time
Engine stopped rotating independent of ECU which did not receive
ESD232 ENGINE STALL
a signal to stop
ESD251 OVERSPEED DRIVE EQUIP Customer set overspeed limit exceeded; check throttle actuator
and linkage
ESD312 OVERLOAD Engine was overloaded
Lockout or E-Stop (emergency stop) button on the engine is “ON”
ESD313 LOCKOUT/IGNITION or there is a power problem with the IPM-D module (either it is not
powered up or the internal fuse is blown)
ESD315 HIGH IMAT Intake manifold air temperature too high
ESD333 HIGH COOLANT TEMP Engine coolant temperature too high
A knock sensor output value exceeded an absolute threshold pro-
ESD335 KNOCK ABS THRESHOLD
grammed to ECU
ESD551 UPDATE ERROR/FAULT Update error/fault
ESD553 SECURITY VIOLATION Engine type that is permanently coded in the ECU does not match
with the downloaded calibration
Serious internal error in ECU; call the factory; do not attempt to
ESD555 INTERNAL FAULT restart engine
IF... THEN
a. View the [F10] Status Panel in ESP. Look at the six fields under the “System/Shutdown Status”
heading on the [F10] Status Panel. Each field should be gray and indicate that the ESM system
is OK or that there are NO shutdowns active. If there are any active shutdowns, correct the prob-
lem indicated in the Fault Log.
b. If the [F10] Status Panel in ESP indicates no shutdowns, view the [F3] Start-Stop Panel and ver-
Engine does not rotate when ify that the “Starting Signal” field turns green when you press the start button. If the “Starting
start button is pressed Signal” field does not turn green, check the wiring.
c. Verify that +24 VDC power is applied to the wires: ESD and RUN/STOP. Correct power supply if
necessary.
d. After a emergency shutdown and RPM is zero, ESD input should be raised to high to reset the
ESM. If ESD input remains low, ESM reset will be delayed and engine may not start for up to 1
minute.
a. Use a timing light to verify whether or not sparks are being generated.
b. If sparks are generated, check to see if the fuel valve is opening. To check if the fuel valve is
opening, feel the solenoid section of the fuel valve as the start engine button is pressed. If you
do not feel movement, check and correct the fuel valve to junction box relay wiring and check
Engine rotates but does not start the junction box relay to ECU for 24 VDC when the start engine button is pressed.
c. View the [F3] Start-Stop Panel to verify purge time is programmed between 0 – 15 seconds.
Although purge time can be programmed from 0 – 1800 seconds (30 minutes), a purge time
greater than 16 seconds will prevent the engine from starting, since an overcrank shutdown fault
(ESD231) occurs at 16 seconds. If purge time is too high, reprogram between 0 – 15 seconds.
a. View the [F2] Engine Panel in ESP and verify that the “Eng Setpoint RPM” field and the
“Eng Speed RPM” field are the same. Note the following:
• If the “Eng Setpoint RPM” and “Eng Speed RPM” fields are the same, there is an electrical
problem. Continue with “b. Electrical Problem” below.
• If the “Eng Setpoint RPM” and “Eng Speed RPM” fields are not the same, there is an engine
problem. Continue with “c. Engine Problem” below.
b. Electrical Problem
Fixed Speed Mode
1) Verify the status of the high/low idle digital input. The GOVHL IDL must be at a nominal
24 VDC to be running at the high idle speed. Correct input as required.
2) Verify that the high idle speed on the [F4] Governor Panel is set correctly. Correct speed
setting as required.
Variable Speed Mode
1) Verify that the Remote Speed digital input of the ECU is at a nominal 24 VDC. See the
Engine is not running at desired speed [F4] Governor Panel to verify the status of the Remote Speed digital input. Correct input as
required.
2) Verify the value of the Remote RPM Setpoint in mA on the [F4] Governor Panel. If you are
using the Remote RPM speed input as either a voltage or milliamp input, the equivalent milli-
amp value is shown in ESP. Should the equivalent milliamp value fall below 2 mA or above
22 mA, the ESM system will assume there is a wiring problem and will run at either the high
or low idle speed, depending on the status of the high/low idle digital input (GOVHL IDL).
Check wiring.
3) If you are unable to reach the lowest speed the engine is allowed to run at, change the
“Low Idle Adj” calibration on the [F4] Governor Panel to -50 rpm.
c. Engine Problem
1) If the engine speed is slower than the setpoint, there is an ignition, turbocharger, or fuel
problem; or the engine is overloaded. Correct as required.
2) If the engine speed is higher than the setpoint, the throttle linkage is probably misadjusted
and is not allowing the throttle to close all the way. Correct as required.
IF... THEN
a. View the [F2] Engine Panel in ESP and verify that the readings for intake manifold air pressure
are outside the acceptable limits. The values of the left and right bank intake manifold air pres-
sure readings should be within 0.5 in-Hg (1.69 kPa) absolute on GSI engines and 1.0 in-Hg
(3.39 kPa) absolute on LT engines of each other.
b. If the values do vary beyond acceptable limits, an engine problem exists, such as the throttle
plates may not be synchronized, the turbochargers or wastegates may not be working correctly,
Intake manifold air pressure or air/fuel ratio may not be balanced from bank-to-bank. For information on these engine sys-
readings vary by more than 0.5 in-Hg
(1.69 kPa) on GSI engines or 1.0 in-Hg tems, refer to the following:
(3.39 kPa) on LT engines • For information on throttle actuator linkage, refer to “Throttle Actuator Linkage” on
(VHP vee engines only) page 4.05-2 in this manual.
• For information on fuel system adjustment and maintenance, refer to Section 4.05 of
Form 6287, Waukesha VHP Series Four Operation & Maintenance Manual.
• For information on turbocharger and wastegate maintenance, refer to Section 4.20 of
Form 6287, Waukesha VHP Series Four Operation & Maintenance Manual.
NOTE: For detailed repair and overhaul information on VHP Series Four 12 cylinder engines,
refer to Form 6296, Waukesha VHP Series Four 12 Cylinder GSI/LT Repair & Overhaul
Manual.
MAINTENANCE CHART vice required, the service interval, and the page
number where specific maintenance information is
This section describes the recommended mainte- found for that item in this manual.
nance procedures for ESM system components. Mini-
mal maintenance is required for the ESM system. IMPORTANT! Continue to perform standard engine
Table 4.05-1 provides a list of the recommended main- maintenance as provided in the applicable engine’s
tenance items and includes a description of the ser- operation and maintenance manual.
INFORMATION
ITEM SERVICE INTERVAL
PROVIDED ON PAGE
Throttle Actuator Linkage Inspect, Lubricate, Test Every year or as needed page 4.05-2
Oxygen Sensors (with AFR option) Replace 2000 hours page 4.05-10
Stepper (with AFR option) Inspect, Clean, Lubricate, Test Every year page 4.05-11
NUT STOP
GOVERNOR ROD
ASSEMBLY WASHER
HEX HEAD
SCREW
GOVERNOR
LEVER
WASHER
NUT STOP
SPLINED
2. To view the Fault Log, click the “View Faults” but- BUSHING
ton on the [F10] Status Panel.
Figure 4.05-2 Governor Terminal Shaft Angles – 7. Check to ensure that no binding occurs.
6 Cylinder GSI VHP Engines 8. Check all fasteners on the rod and levers for tight-
ness. Thread engagement on all rod ends must be a
MAX. FUEL NO FUEL
minimum of seven threads.
POSITION 113° POSITION
9. Verify proper operation of the throttle actuator by
performing a manual calibration of the actuator using
ESP. Refer to Section 3.10 ESP Programming “Per-
forming Manual Calibration” for programming steps.
GOVERNOR 45°
LEVER
0°
56° 107°
39°
0° 0°
THROTTLE
LEVER
THROTTLE
LEVER
NOTE 1: For figures shown above, the throttle lever is mounted on the far side of butterfly valve housing.
NOTE 2: For figures shown above, the butterfly valve is viewed from the right bank side.
THROTTLE
LEVER
BUTTERFLY
VALVE CLOSED 110°
POSITION
BUTTERFLY
VALVE MAX. OPEN 0°
POSITION
56°
35°
0°
THROTTLE
LEVER
124°
BUTTERFLY BUTTERFLY VALVE
VALVE CLOSED MAX. OPEN
POSITION POSITION
L5774LT
(STANDARD NATURAL GAS APPLICATIONS)
BUTTERFLY
BUTTERFLY VALVE MAX. OPEN
VALVE CLOSED POSITION NOTE: For all figures shown, the throttle lever is mounted
POSITION
on the far side of butterfly valve housing.
56°
0°
THROTTLE
LEVER
GREASE FITTING
GREASE FITTING
WARNING WARNING
To prevent severe personal injury or death, always To prevent severe personal injury or death, always
stop the unit before cleaning, servicing, or repair- stop the unit before cleaning, servicing, or repair-
ing the unit or any driven equipment. ing the unit or any driven equipment.
WARNING WARNING
Always install the safety guards after completing Always install the safety guards after completing
any service operation. Never operate the engine any service operation. Never operate the engine
with the safety guards removed. Disregarding this with the safety guards removed. Disregarding this
information could result in product damage and/or information could result in product damage and/or
severe personal injury. severe personal injury.
1. Remove the guarding from the alternator. 1. Remove the guarding from the alternator.
2. Inspect the alternator belt for fraying, cracks, or 2. Loosen the pivot bolt on the alternator (see
wear. Figure 4.05-8).
ADJUSTING
BOLT
PIVOT BOLT
ADJUSTING STUD
ADJUSTING
STUD
POSITION 1
Figure 4.05-8 Alternator Belt Adjustment
KNOCK SENSORS 2. Verify that the mounting surface is flat and smooth
(RMS63) using a Profilometer. Although it is recom-
Every year each knock sensor must be inspected for mended to use a Profilometer, if one is not available,
an accumulation of dirt/grit, connector wear, and corro- lightly run your finger over mounting surface. The sur-
sion. If a knock sensor has an accumulation of dirt, face should be free of any ripples and imperfections
carefully clean visible end of knock sensor and sur- and should be polished smooth.
rounding area. If a knock sensor connector looks worn
or if corrosion is evident, remove the knock sensor to 3. IMPORTANT! When completing Step 4 and
clean or replace as necessary. To reinstall a knock Step 5, verify that the knock sensor is seated flat
sensor, complete the steps in “Installing Knock Sen- against the mounting surface. See next section, “Veri-
sors”. The knock sensors must be properly torqued fying Knock Sensor Is Seated Flat”, for necessary
and seated flat against the mounting surface as the steps.
instructions explain. Do not drop or mishan-
INSTALLING KNOCK SENSORS CAUTION d l e k n o c k s e n s o r.
Knock sensor damage may occur if knock sensor
On VHP Series Four engines the knock sensors are
is mishandled.
installed just below the intake ports on the sides of the
engine crankcase (see Figure 4.05-11). Complete the
4. Install knock sensor into the threaded mounting
steps in this section to install the knock sensors on the
hole.
engine.
D o not over-tighten
CAUTION knock sensor. Over-
INTAKE
MANIFOLD tightening will cause damage to the knock sensor.
• If the imprint on the crankcase and sensor seating 3. Thoroughly clean hole and area around sensor
surface is uniform, the sensor has full-face contact mounting hole. Be careful not to drop debris through
with mounting surface. mounting hole.
• If the imprint on the crankcase and sensor seating Do not drop or mishan-
surface is NOT uniform, the sensor does not have CAUTION dle oxygen sensor. The
full-face contact with mounting surface. The mount- ceramic component inside the sensor is vulnera-
ing hole will have to be plugged and re-tapped to ble to thermal and mechanical shock. Improper
make the hole perpendicular to the mounting sur- handling could damage the oxygen sensor, mak-
face.
ing the sensor unusable.
4. Reinstall knock sensor by completing Step 4 and
Step 5 of knock sensor installation. Do not apply (or con-
CAUTION tact) anti-seize to the
OXYGEN SENSOR REPLACEMENT oxygen sensor’s sensing element (louvered end)
(AFR EQUIPPED) OR to the area above sensor threads. APPLY ANTI-
SEIZE ONLY TO THE THREADED AREA OF SEN-
Oxygen sensors (P/N A740106D) are maintenance SOR. Contact with anti-seize compound on the
items and replacement will be required. Service life of sensing element or area above sensor threads will
the stoichiometric oxygen sensor is typically result in incorrect sensor operation.
2000 hours. Since the sensor has no wearing parts,
theoretical life is indefinite. However, oil additives, fuel NOTE: New sensors are packaged with an anti-seize
contaminants, compounds released from certain RTV compound already applied to the sensor threads.
gasket materials, incorrectly applied thread anti-seize, There is no need to apply additional anti-seize unless
and over-temperature can result in shortened sensor reinstalling a used sensor. If required, very sparingly
life. Replace the oxygen sensors at 2000 hours. use a nickel-based anti-seize compound that will
withstand temperatures of 1500° F (816° C). Apply
If the AFR stepper is reaching the stepper limits and compound ONLY to sensor threads.
you find yourself adjusting the lambda value to com-
pensate for this condition, it may indicate that the oxy- NOTE: A special Waukesha socket (P/N 475039) is
gen sensor is failing. Replacement of the oxygen available to tighten the stoichiometric oxygen sensor.
sensor is recommended. Contact your Waukesha Distributor for ordering
information.
Always purchase ESM
CAUTION AFR oxygen sensors 4. Thread the oxygen sensor into the mounting hole.
from Waukesha Engine. Performance goals of the Tighten oxygen sensor to 28 – 34 ft-lb (38 – 46 N⋅m).
AFR system cannot be met without Waukesha’s 5. Reconnect harness to oxygen sensor.
oxygen sensor specifications.
Replacement oxygen sensors (P/N 740106D) must be
purchased from Waukesha Engine. Oxygen sensors
purchased from other retailers may affect sensor life
and will negatively affect ESM AFR control. Perfor-
mance goals of the AFR system cannot be met without
Waukesha’s oxygen sensor specifications.
To install a new oxygen sensor, complete the following:
WARNING
Allow sufficient time for oxygen sensor to cool to
room temperature before attempting any service
procedure. Contact with hot sensor could cause
severe personal injury.
Every year the stepper(s) must be inspected, cleaned, 10. Fisher 99 Regulator—place control spring in posi-
and lubricated. To perform yearly maintenance to the tion and install stepper onto fuel regulator.
stepper(s), refer to Figure 4.05-13 and Figure 4.05-14 11. Mooney Regulator—apply Lubriplate No. 105 or
and complete the following: petroleum grease to spring washer. Washer prevents
1. Remove power from ESM system. control spring from “binding” on diaphragm assembly
when compressed (see Figure 4.05-14).
2. Disconnect harness from stepper.
12. Mooney Regulator—install control spring and
3. Remove stepper from fuel regulator. secure stepper into pilot body with capscrews.
4. Remove control (main) spring. 13. Reconnect harness to stepper.
5. Inspect and clean interior of stepper.
6. Lubricate spring adjusting nut and stepper shaft
with CITGO Lithoplex Grease NLGI 2 (service temper-
ature range 20° – 250° F [-7° – 121° C]) or equivalent.
7. Verify proper operation of stepper:
FUEL
A. Reconnect harness to stepper. REGULATOR
WARNING
Do not install, set up, or operate any electrical
components unless you are a technically qualified
individual who is familiar with the electrical ele-
ments involved. Electrical shock can cause severe
personal injury or death.
WARNING
Disconnect all electrical power supplies before
making any connections or servicing any part of
the electrical system. Electrical shock can cause
severe personal injury or death.
PILOT BODY
T W
Theory Warranty, W-1
Detonation, 1.10-15 Waukesha Knock Index
Governing, 1.10-17 WKI, 1.10-28
Ignition, 1.10-13 Wiring
Throttle Actuator Diagram, 2.10-1
Calibration, 3.10-11 Fuel Valve, 2.25-1
Description, 1.10-17, 2.20-5 Maintenance, 4.05-12
Linkage Adjustment, 4.05-2 MODBUS, 2.35-1
Maintenance, 4.05-2 Optional Connections, 2.10-4
Photo, 1.10-17 Power Distribution Box, 2.05-1
Programming, 3.10-11 Power Specifications, 2.00-1
Torque Values, 1.05-2 Power Supply
Training Tool, 1.10-27 Air Start And Alternator, 2.00-2
Electric Start And Alternator, 2.00-4
Troubleshooting
Supply By Customer, 2.00-3
Determining Fault Code, 4.00-1
Required Connections, 2.10-4
E-Help, 4.00-3
Requirements, 1.05-5
Fault Codes, 4.00-7
Shutdown Information, 2.05-3
Introduction, 4.00-1
Maintenance Chart, 4.05-1
WKI
Definition, 1.10-28
Non-Code Troubleshooting, 4.00-10
Description, 2.25-1
Programming, 3.10-6
U
Units – U.S./Metric, 3.10-19
User Analog Outputs, 2.35-10
User Digital Inputs, 2.35-10
User Interface Panels
[F10] Status, 1.10-10, 3.00-5, 3.05-30
[F11] Advanced, 1.10-10, 3.00-5, 3.05-36
[F2] Engine, 1.10-9, 3.00-3, 3.05-2
[F3] Start-Stop, 1.10-9, 3.00-3, 3.05-4
[F4] Governor, 1.10-9, 3.00-4, 3.05-8
[F5] Ignition, 1.10-9, 3.00-4, 3.05-14
[F6] AFR PRI, 1.10-10, 3.00-4, 3.05-20
[F8] AFR Setup, 1.10-10, 3.00-4, 3.05-26
Definition, 1.10-27
Description, 1.10-8
Fault Log, 1.10-11
V
Variable Speed
Description, 2.20-1
Logic Diagram, 2.20-3
Programming, 3.10-13
VGA, 1.10-27
W-1
