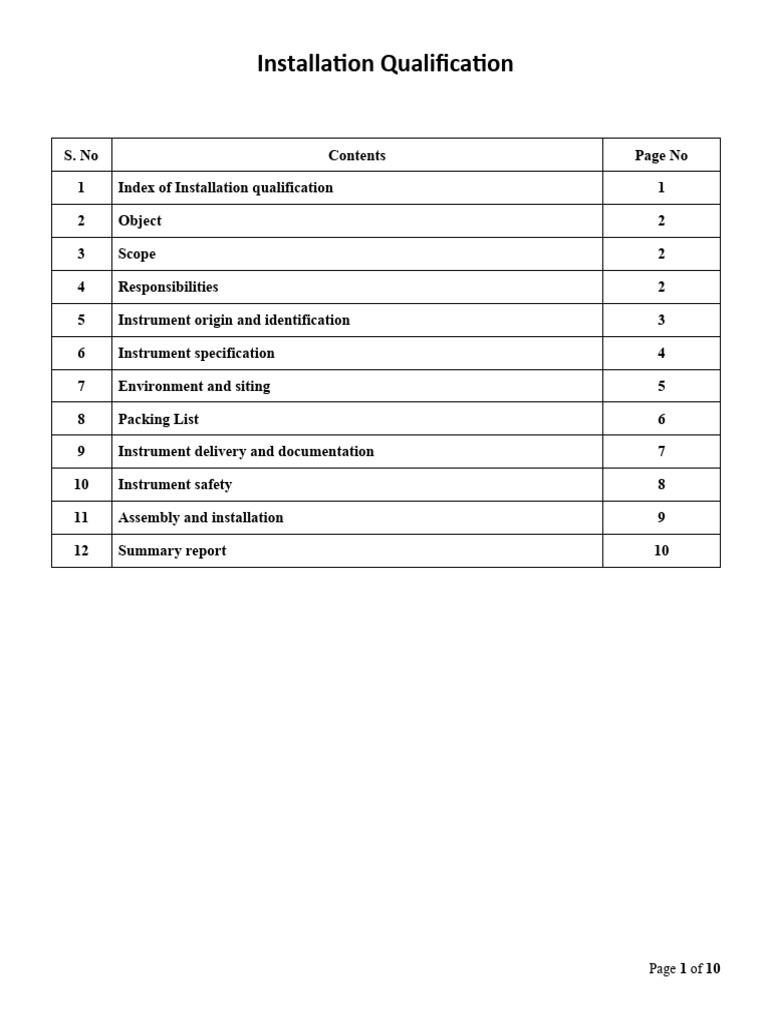

Installation Qualification

S. No Contents Page No

1 Index of Installation qualification 1

2 Object 2

3 Scope 2

4 Responsibilities 2

5 Instrument origin and identification 3

6 Instrument specification 4

7 Environment and siting 5

8 Packing List 6

9 Instrument delivery and documentation 7

10 Instrument safety 8

11 Assembly and installation 9

12 Summary report 10

Page 1 of 10
 Installation Qualification

Objective:
To qualify the Jenco Conductivity meter manufactured by Jenco, for use in Conductivity measurement and
potential difference measurement for quality control conductivity and salinity testing of solutions.
Scope:
The scope of this report is limited to Jenco conductivity meter
Responsibilities:
Vendor
Purchaser/ Buyer

Instrument origin and Identification

Page 2 of 10
 Installation Qualification
Instrument Jenco conductivity meter

Model 3173

Instrument Description Microprocessor based Conductivity meter

Manufacturer manufactured by Jenco company

Tel: +92-42-35846571
Service Contact Tel/Fax: +92-42-35864077
E-Mail: dawncalibrate@gmail.com
New

Condition when received Used ✓

Date Received

Installation Location Instrument Room-1 Quality control

Purchase Order Number

Identification/ Asset Number:

Page 3 of 10
 Installation Qualification
Instrument Specification

Decision
S. No User Requirements Display Range Resolution Accuracy
Pass Fail

0～20.00 uS/cm 0.01 uS/cm ±0.5% FS

Conductivity ✓
1 20.0～200.0 uS/cm 0.1 uS/cm ±0.5% FS
(PROBE CELL CONSTANT = 0.1)
200～2000 uS/cm 1 uS/cm ±0.5% FS
0～200.0 uS/cm 0.1 uS/cm ±0.5% FS
Conductivity
✓
2 200～2000 uS/cm 1 uS/cm ±0.5% FS
(PROBE CELL CONSTANT = 1)
2.00～20.00 mS/cm 0.01 mS/cm ±0.5% FS
0～2000 uS/cm 1 uS/cm ±0.5% FS
Conductivity ✓
3 2.00～20.00 mS/cm 0.01 mS/cm ±0.5% FS
(PROBE CELL CONSTANT = 10)
20.0～200.0 mS/cm 0.1 mS/cm ±0.5% FS

DISPLAY RANGE RESOLUTION ACCURACY

Salinity 0.0～80.0 ppt 0.1 ppt ±1% FS

Temperature -10.0～120.0 ℃ 0.1 ℃ ±0.5 ℃

Comments: the equipment received as per URS and USP Specified standards

Page 4 of 10
 Installation Qualification
Environmental requirements of Equipment

User Decision
S.No Desired features Functions
Requirements Pass Fail
Ambient USP standard for Conductivity ✓
1 (20 to 25) ºC
temperature of Lab measurement
Max relative ✓
2 NMT 56% The humidity threshold of lab set
humidity
Power Supply 6 AA batteries / AC adaptor Standard voltage supplies for
3 ✓
(Output: DC 9V) Conductivity meters
Temperature fluctuations, including
4 Sun light No direct sun light exposure ✓
those caused by direct sunlight
The equipment should be designed to
Should be inert to reactive
5 Reactive gases
gases
avoid any corrosive reaction with ✓
reactive gases
The equipment should be designed to
6 Level Balanced equipment align balanced to avoid unbalanced ✓
Equipment performance.

Comments: environment and sitting of equipment is satisfactory

Page 5 of 10
 Installation Qualification
Packing List

S. No Description Quantity

1 Jenco Conductivity Meter 1

2 Power Cord 1

3 Conductivity meter electrode 1

4 Instruction Manual 1

Page 6 of 10
 Installation Qualification
Instrument Delivery and documentation
Unpack the equipment carefully, Are any items missing against packing list?

Yes No ✓

If Yes State the missing items:________________________________________________

Is there any damage to the instrument or accessories?

Yes No ✓

If Yes Damage Description: __________________________________________

Corrective action: ____________________________________________

manufacturer Informed Yes No

Is all documentation included?

Service Manual Yes ✓ No

Qualification Documents Yes ✓ No

Page 7 of 10
 Installation Qualification
Instrument Safety

Manufacturers Safety Recommendations: Status

 Allow enough space for the instrument ✓

 Temperature fluctuations, including those caused by direct sunlight ✓

 The humidity of the location and the risk of pronounced changes in the relative
✓
humidity

✓
 Position on level, noncombustible surface indoor

✓
 Area free from aggressive/ explosive chemical mixture

✓
 Ensure correct power supply and all power switches easily accessible

✓
 Do not use to heat material that could cause fire or hazard

✓
 Read operator manual before use

Comments: All Instrument safety tests “pass”

Page 8 of 10
 Installation Qualification
Assembly and complete installation
Assembly and User Specialized Engineer ✓
installed by

Installation Procedure Ok Discrepancy N/A

✓
Unpack and retain packaging

✓
Assembly

✓
Site and content to power supply

✓
As mentioned on instruction manual

Comment (Including Discrepencies): Assembly and installation done by a specialized engineer

Page 9 of 10
 Installation Qualification
Model No: 3173
Summary Report:

Instrument: Microprocessor based Conductivity Meter Manufacturer: Jenco conductivity meter

Assessment of complete installation qualification:

No Deviations: ✓ Deviations: (List Below)

Deviation Impact on operation Justification for acceptance

Remarks: successful completion of the proceeding activities and checks indicate that this instrument has been
successfully delivered and installed. The instrument has passed installation qualification procedure and may
now be submitted for operation qualification

IQ Completed By: Date:

Deviation Approved By: Date:

IQ Approved By: Date:

Page 10 of 10
