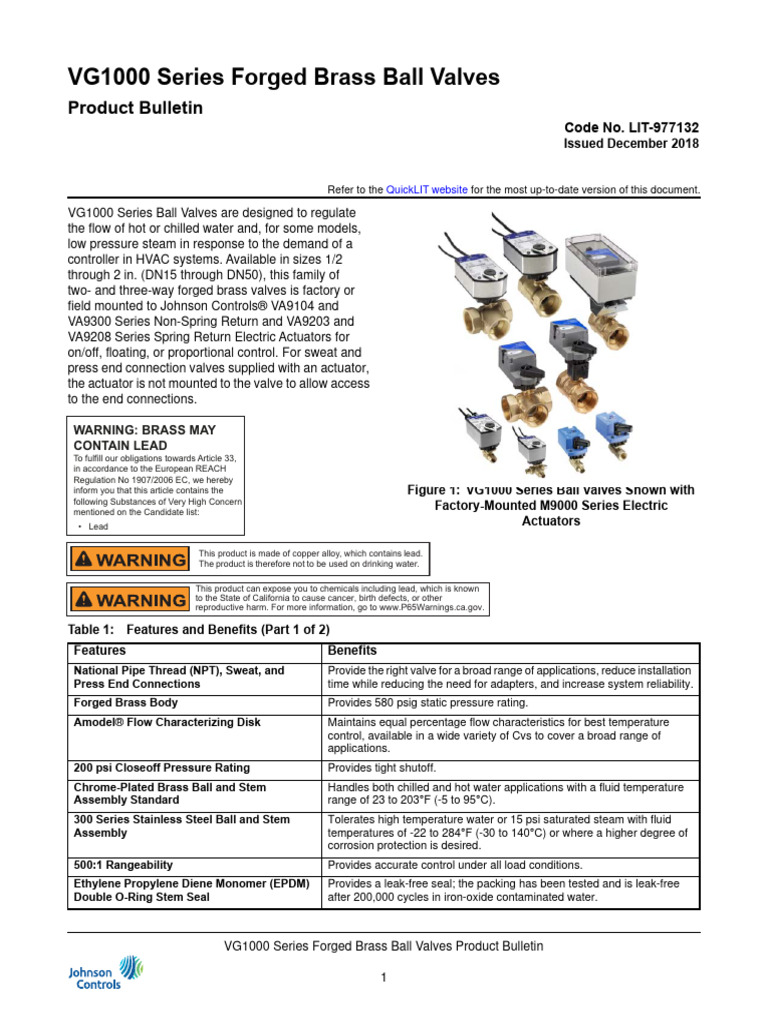

VG1000 Series Forged Brass Ball Valves
Product Bulletin
Code No. LIT-977132
Issued December 2018
Refer to the QuickLIT website for the most up-to-date version of this document.
VG1000 Series Ball Valves are designed to regulate

the flow of hot or chilled water and, for some models,
low pressure steam in response to the demand of a
controller in HVAC systems. Available in sizes 1/2
through 2 in. (DN15 through DN50), this family of
two- and three-way forged brass valves is factory or
field mounted to Johnson Controls® VA9104 and
VA9300 Series Non-Spring Return and VA9203 and
VA9208 Series Spring Return Electric Actuators for
on/off, floating, or proportional control. For sweat and
press end connection valves supplied with an actuator,
the actuator is not mounted to the valve to allow access
to the end connections.
WARNING: BRASS MAY

CONTAIN LEAD
To fulfill our obligations towards Article 33,
in accordance to the European REACH
Regulation No 1907/2006 EC, we hereby
inform you that this article contains the Figure 1: VG1000 Series Ball Valves Shown with
following Substances of Very High Concern
mentioned on the Candidate list:
Factory-Mounted M9000 Series Electric
• Lead Actuators
This product is made of copper alloy, which contains lead.

The product is therefore not to be used on drinking water.
This product can expose you to chemicals including lead, which is known
to the State of California to cause cancer, birth defects, or other
reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Table 1: Features and Benefits (Part 1 of 2)

Features Benefits
National Pipe Thread (NPT), Sweat, and Provide the right valve for a broad range of applications, reduce installation
Press End Connections time while reducing the need for adapters, and increase system reliability.
Forged Brass Body Provides 580 psig static pressure rating.
Amodel® Flow Characterizing Disk Maintains equal percentage flow characteristics for best temperature
control, available in a wide variety of Cvs to cover a broad range of
applications.
200 psi Closeoff Pressure Rating Provides tight shutoff.
Chrome-Plated Brass Ball and Stem Handles both chilled and hot water applications with a fluid temperature
Assembly Standard range of 23 to 203F (-5 to 95C).
300 Series Stainless Steel Ball and Stem Tolerates high temperature water or 15 psi saturated steam with fluid
Assembly temperatures of -22 to 284F (-30 to 140C) or where a higher degree of
corrosion protection is desired.
500:1 Rangeability Provides accurate control under all load conditions.
Ethylene Propylene Diene Monomer (EPDM) Provides a leak-free seal; the packing has been tested and is leak-free
Double O-Ring Stem Seal after 200,000 cycles in iron-oxide contaminated water.
VG1000 Series Forged Brass Ball Valves Product Bulletin
1
Table 1: Features and Benefits (Part 2 of 2)
Features Benefits
Graphite-Reinforced Polytetrafluoroethylene Include 15% graphite-reinforced ball seats, providing better wear
(PTFE) Seats resistance.
Blowout-Proof Stem Protects the user from the risk of injury.
Maintenance-Free Design Performs without failure in excess of 200,000 full stroke cycles in
iron-oxide contaminated water.
Wide Selection of Styles for a Variety of Offers various valve configurations including two- and three-way full port
Applications and reduced port models in chrome-plated brass and stainless steel trim.
Factory-Mounted VA9104, VA9203, VA9208, Reduce installation time, thus reducing overall installation cost.
or VA9300 Series Electric Actuators
M9000-551 Linkage Kit Available for Field Lowers both space requirements and total cost by providing high thermal
Mounting to M9104 Series Electric Actuators isolation in a compact size.
Mounting to M9203 or M9208 Series Electric isolation in a compact size.
Actuators
Mounting M9300 Series Electric Actuators isolation in a compact size.
M9000-561 Thermal Barrier Kit for VA9104, Allows the valve assembly to be used for fluid temperatures up to
VA9203, VA9208, and VA9300 Series Electric 284°F (140°C), or 15 psi (105 kPa) saturated steam.
Actuators
M9000-342 Weather Shield Kit Available for Protects the electric actuators from corrosion, rain, freezing rain, sleet and
Field Mounting VA9104, VA9203, VA9208, and snow. Manufactured to National Electrical Manufacturers’ Association
VA9300 Series Electric Actuators (NEMA) 4X (IP66/67).
2
Ordering Information
Table 2: Ordering Data1
V G Valve Global
1 2 1 Product 1 = Forged Brass Ball Valve
Family
3
2 Body Type 2 = Two-Way, with Equal Percentage Flow Characteristics
and Flow
4 Characteristic 8 = Three-Way Mixing, with Equal Percentage Flow Characteristics of In-line
Port and Linear Flow Characteristics of Angle-Port
4 End Connection 4 = Threaded - NPT Taper

5 7 = Sweat (1/2 to 1 in. Sizes)
9 = Press (ProPress® Fitting Compatible, 1/2 to 1 in. Sizes)
Press End Connections are designed to work with RIDGID® Pressing Tools.
1 Trim 1 = Chrome-Plated Brass Ball and Nickel-Plated Brass Stem
6 5 = Stainless Steel Ball and Stem, 300 Series
A E Size and Maximum Size Control Control Port Bypass Port Cv (Kvs)
Cv Disk Cv (Kvs) (Three-Way Only)
7 8 (Kvs = Cv x 0.857) AD = 1/2 in. (DN15) Yes 1.2 (1.0) 0.7 (0.6)
AE = 1/2 in. (DN15) Yes 1.9 (1.6) 1.2 (1.0)
AF = 1/2 in. (DN15) Yes 2.9 (2.5) 1.9 (1.6)
AG = 1/2 in. (DN15) Yes 4.7 (4.0) 2.9 (2.5)
AL = 1/2 in. (DN15) Yes 7.4 (6.3) 4.7 (4.0)
AN = 1/2 in. (DN15) No 11.7 (10.0) 5.8 (5.0)
BG = 3/4 in. (DN20) Yes 4.7 (4.0) 2.9 (2.5)
BL = 3/4 in. (DN20) Yes 7.4 (6.3) 4.7 (4.0)
BN = 3/4 in. (DN20) No 11.7 (10.0) 5.8 (5.0)
CL = 1 in. (DN25) Yes 7.4 (6.3) 4.7 (4.0)
CN = 1 in. (DN25) Yes 11.7 (10.0) 7.4 (6.3)
CP = 1 in. (DN25) No 18.7 (16.0) 9.4 (8.0)
DN = 1-1/4 in. (DN32) Yes 11.7 (10.0) 7.4 (6.3)
DP = 1-1/4 in. (DN32) Yes 18.7 (16.0) 11.7 (10.0)
DR = 1-1/4 in. (DN32) No 29.2 (25.0) 14.6 (12.5)
EP = 1-1/2 in. (DN40) Yes 18.7 (16.0) 11.7 (10.0)
ER = 1-1/2 in. (DN40) Yes 29.2 (25.0) 18.7 (16.0)
ES = 1-1/2 in. (DN40) No 46.8 (40.0) 23.4 (20.0)
FR = 2 in. (DN50) Yes 29.2 (25.0) 18.7 (16.0)
FS = 2 in. (DN50) Yes 46.8 (40.0) 29.2 (25.0)
FT = 2 in. (DN50) No 73.7 (63.0) 36.8 (31.5)
+ Actuator + = Factory-Mounted Actuator
9 Mounting (Leave Fields 9 through 15 blank for valve without factory-mounted
actuator.)
H = High Temperature Linkage (VA9104, VA9203, VA9208, and VA9300
actuators)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 = Field
V G1 2 4 1 A E + Example: Forged brass ball valve, two-way, threaded (NPT), brass trim, equal %,
1/2 in. (DN15) 1.9 Cv.
Valve + Actuator
1. Before retrofitting older valves with VA9104, VA9300, VA9203, or VA9208 actuators, be sure that the valves have a tapped
hole in the center of the valve stem and no threads in the flange holes. For retrofitting older valves with unthreaded stems
and tapped flange holes, add the M9000-561 thermal barrier on the valve and mount the actuator.
3
See Table 3 to determine the correct factory-mounted
actuator, where needed.
Table 3: Ordering Data – Adding a Factory-Mounted Electric Actuator1

V G1 2 4 1 A E + Actuator + = Factory-Mounted Actuator
Mounting2 H = High Temperature Linkage (VA9104, VA9203, VA9208, and M9300
actuators)
9 (Leave Fields 9 through 15 blank for valve without factory-mounted actuator.)
9 Actuator 9 = VA9000 Series Direct Mounting Actuators
Series
10
1 0 Actuator Series3. 10 = VA9310-HGA-2 Non-Spring Return

11 12 23 = VA9203-xxx-2(Z) Spring Opens
28 = VA9208-AGA-2 and VA9208-GGA-2 Spring Opens
38 = VA9208-xxx-3 Spring Opens (available in AGC, BAA, BAC, BGA, BGC,
and GGC)
43 = VA9203-xxx-2(Z) Spring Closes
48 = VA9208-AGA-2 and VA9208-GGA-2 Spring Closes
58 = VA9208-xxx-3 Spring Closes (available in AGC, BAA, BAC, BGA, BGC,
and GGC)
A4 = VA9104-xGA-2S, Non-Spring Return, 120 in. Cable
(All 1/2, 3/4, and 1 in. Valves)
T4 = VA9104-xGA-3S, Non-Spring Return, Screw Terminals
(All 1/2, 3/4, and 1 in. Valves)
H Control Type A = Floating, AC/DC 24 V Input (VA9104, VA9300, VA9203, and VA9208)
13 B = On/Off (VA9203 and VA9208)
G = Prop. DC 0 (2) to 10 V or 0 (4) to 20 mA (VA9104, VA9203, and VA9208)
H = Universal Input for On/Off, Floating and Proportional
0(2) to 10 VDC with Adjustable Span (VA9300)
I = On/Off Floating with Timeout (VA9104)
G Supply A = AC 120 V (VA9208-BAx Only)

14 Voltage G = 24 VAC (All Models), 24 VAC/VDC (VA9300 Series)
U = AC 85 to 264 V (VA9203-BUx)
C Auxiliary Switch A = No Auxiliary Switch (All models)
B = One Auxiliary Switch
C = Two Auxiliary Switches
15
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 = Field
V G1 2 4 1 A E + 9 1 0 H G C Example: Forged brass ball valve, two-way, threaded (NPT), brass trim, equal %, 1/2 in.
(DN15) 1.9 Cv, factory-mounted direct acting VA9310-HGA-2 Actuator, non-spring
Valve + Actuator return, universal input control, 24 VAC/VDC supply (with feedback), and M9300-2
Accessory Kit with two auxiliary switches.
1. Before retrofitting older valves with VA9104, VA9300, VA9203, or VA9208 actuators, be sure that the valves have a tapped
hole in the center of the valve stem and no threads in the flange holes. For retrofitting older valves with unthreaded stems
and tapped flange holes, add the M9000-561 thermal barrier on the valve and mount the actuator.
2. The high-speed, non-spring return actuators (VA9308-AGA-2Z), the line-voltage, non-spring return actuators
(VA9310-AUA-2), and the line-voltage high speed actuators (VA9308-AUA-2Z) are available for mounting in the field; refer
to the VA9300 Series Electric Non-Spring Return Valve Actuators Product Bulletin (LIT-12012265) for information.
3. Refer to actuator product bulletin for detailed information.
4
Table 4: Two-Way Stainless Steel Trim Ball Valves, Non-Spring Return, VA9104 Series Actuators without
Switches
Fluid Temperatures: AC 24 V
-22 to 212°F (-30 to 100°C) On/Off (Floating) On/Off (Floating) DC 0 to 10 V
Not Rated for Steam Service with Timeout Proportional
without Timeout1
Valve Size, in. Cv Closeoff
psi
Actuators with M3 Screw Terminals VA9104-AGA-3S VA9104-IGA-3S VA9104-GGA-3S
VG1245AD 1/2 1.22 200 VG1245AD+9T4AGA VG1245AD+9T4IGA VG1245AD+9T4GGA

VG1245AE 1.92 VG1245AE+9T4AGA VG1245AE+9T4IGA VG1245AE+9T4GGA
VG1245AF 2.92 VG1245AF+9T4AGA VG1245AF+9T4IGA VG1245AF+9T4GGA
VG1245AG 4.72 VG1245AG+9T4AGA VG1245AG+9T4IGA VG1245AG+9T4GGA
VG1245AL 7.42 VG1245AL+9T4AGA VG1245AL+9T4IGA VG1245AL+9T4GGA
VG1245AN 11.7 VG1245AN+9T4AGA VG1245AN+9T4IGA VG1245AN+9T4GGA
2
VG1245BG 3/4 4.7 200 VG1245BG+9T4AGA VG1245BG+9T4IGA VG1245BG+9T4GGA
VG1245BL 7.42 VG1245BL+9T4AGA VG1245BL+9T4IGA VG1245BL+9T4GGA
VG1245BN 11.7 VG1245BN+9T4AGA VG1245BN+9T4IGA VG1245BN+9T4GGA
VG1245CL 1 7.42 200 VG1245CL+9T4AGA VG1245CL+9T4IGA VG1245CL+9T4GGA
2
VG1245CN 11.7 VG1245CN+9T4AGA VG1245CN+9T4IGA VG1245CN+9T4GGA
VG1245CP 18.7 VG1245CP+9T4AGA VG1245CP+9T4IGA VG1245CP+9T4GGA
Actuators with 120 in. (3.05 m) 19 AWG VA9104-AGA-2S VA9104-IGA-2S VA9104-GGA-2S
Plenum Cable
VG1245AD 1/2 1.22 200 VG1245AD+9A4AGA VG1245AD+9A4IGA VG1245AD+9A4GGA
VG1245AE 1.92 VG1245AE+9A4AGA VG1245AE+9A4IGA VG1245AE+9A4GGA
2
VG1245AF 2.9 VG1245AF+9A4AGA VG1245AF+9A4IGA VG1245AF+9A4GGA
VG1245AG 4.72 VG1245AG+9A4AGA VG1245AG+9A4IGA VG1245AG+9A4GGA
2
VG1245AL 7.4 VG1245AL+9A4AGA VG1245AL+9A4IGA VG1245AL+9A4GGA
VG1245AN 11.7 VG1245AN+9A4AGA VG1245AN+9A4IGA VG1245AN+9A4GGA
2
VG1245BG 3/4 4.7 200 VG1245BG+9A4AGA VG1245BG+9A4IGA VG1245BG+9A4GGA
VG1245BL 7.42 VG1245BL+9A4AGA VG1245BL+9A4IGA VG1245BL+9A4GGA
VG1245BN 11.7 VG1245BN+9A4AGA VG1245BN+9A4IGA VG1245BN+9A4GGA
VG1245CL 1 7.42 200 VG1245CL+9A4AGA VG1245CL+9A4IGA VG1245CL+9A4GGA
VG1245CN 11.72 VG1245CN+9A4AGA VG1245CN+9A4IGA VG1245CN+9A4GGA
VG1245CP 18.7 VG1245CP+9A4AGA VG1245CP+9A4IGA VG1245CP+9A4GGA
1. To avoid excessive wear or drive time on the motor for the AGx models, use a controller or software that provides a timeout
function to remove the signal at the end of rotation (stall).
2. Valve has a characterizing disk.
5
Switches with Optional M9000-561 Thermal Barrier
Fluid Temperatures: AC 24 V
Water and 15 psi Saturated Steam with Timeout Proportional
without Timeout1
psi
Actuators with M3 Screw Terminals with VA9104-AGA-3S VA9104-IGA-3S VA9104-GGA-3S
M9000-561 Thermal Barrier Installed
VG1245AD 1/2 1.22 200 VG1245ADH9T4AGA VG1245ADH9T4IGA VG1245ADH9T4GGA
2
VG1245AE 1.9 VG1245AEH9T4AGA VG1245AEH9T4IGA VG1245AEH9T4GGA
VG1245AF 2.92 VG1245AFH9T4AGA VG1245AFH9T4IGA VG1245AFH9T4GGA
VG1245AG 4.72 VG1245AGH9T4AGA VG1245AGH9T4IGA VG1245AGH9T4GGA
VG1245AL 7.42 VG1245ALH9T4AGA VG1245ALH9T4IGA VG1245ALH9T4GGA
VG1245AN 11.7 VG1245ANH9T4AGA VG1245ANH9T4IGA VG1245ANH9T4GGA
VG1245BG 3/4 4.72 200 VG1245BGH9T4AGA VG1245BGH9T4IGA VG1245BGH9T4GGA
VG1245BL 7.42 VG1245BLH9T4AGA VG1245BLH9T4IGA VG1245BLH9T4GGA
VG1245BN 11.7 VG1245BNH9T4AGA VG1245BNH9T4IGA VG1245BNH9T4GGA
VG1245CL 1 7.42 200 VG1245CLH9T4AGA VG1245CLH9T4IGA VG1245CLH9T4GGA
VG1245CN 11.72 VG1245CNH9T4AGA VG1245CNH9T4IGA VG1245CNH9T4GGA
VG1245CP 18.7 VG1245CPH9T4AGA VG1245CPH9T4IGA VG1245CPH9T4GGA
Plenum Cable with M9000-561 Thermal
Barrier Installed
VG1245AD 1/2 1.22 200 VG1245ADH9A4AGA VG1245ADH9A4IGA VG1245ADH9A4GGA
VG1245AE 1.92 VG1245AEH9A4AGA VG1245AEH9A4IGA VG1245AEH9A4GGA
2
VG1245AF 2.9 VG1245AFH9A4AGA VG1245AFH9A4IGA VG1245AFH9A4GGA
VG1245AG 4.72 VG1245AGH9A4AGA VG1245AGH9A4IGA VG1245AGH9A4GGA
VG1245AL 7.42 VG1245ALH9A4AGA VG1245ALH9A4IGA VG1245ALH9A4GGA
VG1245AN 11.7 VG1245ANH9A4AGA VG1245ANH9A4IGA VG1245ANH9A4GGA
VG1245BG 3/4 4.72 200 VG1245BGH9A4AGA VG1245BGH9A4IGA VG1245BGH9A4GGA
VG1245BL 7.42 VG1245BLH9A4AGA VG1245BLH9A4IGA VG1245BLH9A4GGA
VG1245BN 11.7 VG1245BNH9A4AGA VG1245BNH9A4IGA VG1245BNH9A4GGA
VG1245CL 1 7.42 200 VG1245CLH9A4AGA VG1245CLH9A4IGA VG1245CLH9A4GGA
2
VG1245CN 11.7 VG1245CNH9A4AGA VG1245CNH9A4IGA VG1245CNH9A4GGA
VG1245CP 18.7 VG1245CPH9A4AGA VG1245CPH9A4IGA VG1245CPH9A4GGA
6
Switches
Fluid Temperatures: AC/DC 24 V
-22 to 212°F (-30 to 100°C) On/Off Floating DC 0(2) to 10 V
Not Rated for Steam Service Proportional
Valve Size, in. Cv Closeoff psi VA9310-HGA-2
VG1245DN 1-1/4 11.71 200 VG1245DN+910HGA
1
VG1245DP 18.7 VG1245DP+910HGA
VG1245DR 29.2 VG1245DR+910HGA
VG1245EP 1-1/2 18.71 200 VG1245EP+910HGA
VG1245ER 29.21 VG1245ER+910HGA
VG1245ES 46.8 VG1245ES+910HGA
VG1245FR 2 29.21 200 VG1245FR+910HGA
VG1245FS 48.81 VG1245FS+910HGA
VG1245FT 73.7 VG1245FT+910HGA
Table 7: Two-Way Stainless Steel Trim Ball Valves, Non-Spring Return VA9300 Series Electric Actuators
with Switches
Valve Size, in. Cv Closeoff psi VA9310-HGA-2 actuator with M9300-2 Switch Kit1
VG1245AD 1/2 1.22 200 VG1245AD+910HGC
2
VG1245AE 1.9 VG1245AE+910HGC
VG1245AF 2.92 VG1245AF+910HGC
2
VG1245AG 4.7 VG1245AG+910HGC
VG1245AL 7.42 VG1245AL+910HGC
VG1245AN 11.7 VG1245AN+910HGC
VG1245BG 3/4 4.72 200 VG1245BG+910HGC
VG1245BL 7.42 VG1245BL+910HGC
VG1245BN 11.7 VG1245BN+910HGC
VG1245CL 1 7.42 200 VG1245CL+910HGC
VG1245CN 11.72 VG1245CN+910HGC
VG1245CP 18.7 VG1245CP+910HGC
VG1245DN 1-1/4 11.72 200 VG1245DN+910HGC
VG1245DP 18.72 VG1245DP+910HGC
VG1245DR 29.2 VG1245DR+910HGC
VG1245EP 1-1/2 18.72 200 VG1245EP+910HGC
VG1245ER 29.22 VG1245ER+910HGC
VG1245ES 46.8 VG1245ES+910HGC
VG1245FR 2 29.22 200 VG1245FR+910HGC
VG1245FS 46.82 VG1245FS+910HGC
VG1245FT 73.7 VG1245FT+910HGC
1. For field mounting order VA9310-HGA-2 and the M9300-2 Switch Kit separately.
7
Water and 15 psi Saturated Steam Proportional
Valve Size, in. Cv Closeoff psi VA9310-HGA-2 with M9000-561 Thermal Barrier
VG1245DN 1-1/4 11.71 200 VG1245DNH910HGA
1
VG1245DP 18.7 VG1245DPH910HGA
VG1245DR 29.2 VG1245DRH910HGA
VG1245EP 1-1/2 18.71 200 VG1245EPH910HGA
VG1245ER 29.21 VG1245ERH910HGA
VG1245ES 46.8 VG1245ESH910HGA
VG1245FR 2 29.21 200 VG1245FRH910HGA
VG1245FS 48.81 VG1245FSH910HGA
VG1245FT 73.7 VG1245FTH910HGA
Table 9: Two-Way Stainless Steel Trim Ball Valves, Non-Spring Return VA9300 Series Electric Actuators
with Switches and Optional M9000-561 Thermal Barrier
Valve Size, in. Cv Closeoff psi VA9310-HGA-2 actuator with M9300-2 Switch Kit with M9000-561
Thermal Barrier1
VG1245AD 1/2 1.22 200 VG1245ADH910HGC
VG1245AE 1.92 VG1245AEH910HGC
2
VG1245AF 2.9 VG1245AFH910HGC
VG1245AG 4.72 VG1245AGH910HGC
VG1245AL 7.42 VG1245ALH910HGC
VG1245AN 11.7 VG1245ANH910HGC
VG1245BG 3/4 4.72 200 VG1245BGH910HGC
VG1245BL 7.42 VG1245BLH910HGC
VG1245BN 11.7 VG1245BNH910HGC
VG1245CL 1 7.42 200 VG1245CLH910HGC
2
VG1245CN 11.7 VG1245CNH910HGC
VG1245CP 18.7 VG1245CPH910HGC
2
VG1245DN 1-1/4 11.7 200 VG1245DNH910HGC
VG1245DP 18.72 VG1245DPH910HGC
VG1245DR 29.2 VG1245DRH910HGC
VG1245EP 1-1/2 18.72 200 VG1245EPH910HGC
2
VG1245ER 29.2 VG1245ERH910HGC
VG1245ES 46.8 VG1245ESH910HGC
2
VG1245FR 2 29.2 200 VG1245FRH910HGC
VG1245FS 46.82 VG1245FSH910HGC
VG1245FT 73.7 VG1245FTH0910HGC
1. For field mounting order VA9310-HGA-2, M9300-2 Switch Kit and M9000-561 Thermal Barrier separately.
8
Table 10: Two-Way Stainless Steel Trim Ball Valves, Spring Return Valve Open - Valve Normally Open,
VA9203/VA9208 Series Actuators with Switches
Fluid Temperatures: AC 24 V AC 85–264 V
-22 to 212°F (-30 to 100°C) (VA9203)
Not Rated for Steam Service AC 120 V
(VA9208)
Floating DC 0 to 10 V On/Off On/Off
Proportional
Valve Size, Cv Closeoff Spring Return Open — Valve Normally Open — Actuators with One Switch
in. psi
VA9203-AGB-2Z VA9203-GGB-2Z VA9203-BGB-2 VA9203-BUB-2
VG1245AD 1/2 1.21 200 VG1245AD+923AGB VG1245AD+923GGB VG1245AD+923BGB VG1245AD+923BUB
VG1245AE 1.91 VG1245AE+923AGB VG1245AE+923GGB VG1245AE+923BGB VG1245AE+923BUB
VG1245AF 2.91 VG1245AF+923AGB VG1245AF+923GGB VG1245AF+923BGB VG1245AF+923BUB
VG1245AG 4.71 VG1245AG+923AGB VG1245AG+923GGB VG1245AG+923BGB VG1245AG+923BUB
VG1245AL 7.41 VG1245AL+923AGB VG1245AL+923GGB VG1245AL+923BGB VG1245AL+923BUB
VG1245AN 11.7 VG1245AN+923AGB VG1245AN+923GGB VG1245AN+923BGB VG1245AN+923BUB
VG1245BG 3/4 4.71 200 VG1245BG+923AGB VG1245BG+923GGB VG1245BG+923BGB VG1245BG+923BUB
VG1245BL 7.41 VG1245BL+923AGB VG1245BL+923GGB VG1245BL+923BGB VG1245BL+923BUB
VG1245BN 11.7 VG1245BN+923AGB VG1245BN+923GGB VG1245BN+923BGB VG1245BN+923BUB
VG1245CL 1 7.41 200 VG1245CL+923AGB VG1245CL+923GGB VG1245CL+923BGB VG1245CL+923BUB
VG1245CN 11.71 VG1245CN+923AGB VG1245CN+923GGB VG1245CN+923BGB VG1245CN+923BUB
VG1245CP 18.7 VG1245CP+923AGB VG1245CP+923GGB VG1245CP+923BGB VG1245CP+923BUB
Valve Size, Cv Closeoff Spring Return Open — Valve Normally Open — Actuators with Two Switches
in. psi
VA9208-AGC-3 VA9208-GGC-3 VA9208-BGC-3 VA9208-BAC-3
VG1245DN 1-1/4 11.71 200 VG1245DN+938AGC VG1245DN+938GGC VG1245DN+938BGC VG1245DN+938BAC
VG1245DP 18.71 VG1245DP+938AGC VG1245DP+938GGC VG1245DP+938BGC VG1245DP+938BAC
VG1245DR 29.2 VG1245DR+938AGC VG1245DR+938GGC VG1245DR+938BGC VG1245DR+938BAC
VG1245EP 1-1/2 18.71 200 VG1245EP+938AGC VG1245EP+938GGC VG1245EP+938BGC VG1245EP+938BAC
1
VG1245ER 29.2 VG1245ER+938AGC VG1245ER+938GGC VG1245ER+938BGC VG1245ER+938BAC
VG1245ES 46.8 VG1245ES+938AGC VG1245ES+938GGC VG1245ES+938BGC VG1245ES+938BAC
VG1245FR 2 29.21 200 VG1245FR+938AGC VG1245FR+938GGC VG1245FR+938BGC VG1245FR+938BAC
VG1245FS 46.81 VG1245FS+938AGC VG1245FS+938GGC VG1245FS+938BGC VG1245FS+938BAC
VG1245FT 73.7 VG1245FT+938AGC VG1245FT+938GGC VG1245FT+938BGC VG1245FT+938BAC
9
Table 11: Two-Way Stainless Steel Trim Ball Valves, Spring Return Valve Closed - Valve Normally Closed,
-22 to 212°F (-30 to 100°C) (VA9203)
Not Rated for Steam Service AC 120 V (VA9208)
Proportional
Valve Size, Cv Closeoff Spring Return Closed — Valve Normally Closed — Actuators with One Switch
in. psi
1
Valve Size, Cv Closeoff Spring Return Closed — Valve Normally Closed — Actuators with Two
in. psi Switches
10
Table 12: Two-Way Stainless Steel Trim Ball Valves, Spring Return Valve Open - Valve Normally Open,
VA9203/VA9208 Series Actuators with Switches and Optional M9000-561 Thermal Barrier
-22 to 284°F (-30 to 140°C) (VA9203)
Water and 15 psi Saturated Steam AC 120 V (VA9208)
Proportional
in. psi
VG1245AD 1/2 1.21 200 VG1245ADH923AGB VG1245ADH923GGB VG1245ADH923BGB VG1245ADH923BUB
VG1245AE 1.91 VG1245AEH923AGB VG1245AEH923GGB VG1245AEH923BGB VG1245AEH923BUB
VG1245AF 2.91 VG1245AFH923AGB VG1245AFH923GGB VG1245AFH923BGB VG1245AFH923BUB
VG1245AG 4.71 VG1245AGH923AGB VG1245AGH923GGB VG1245AGH923BGB VG1245AGH923BUB
VG1245AL 7.41 VG1245ALH923AGB VG1245ALH923GGB VG1245ALH923BGB VG1245ALH923BUB
VG1245AN 11.7 VG1245ANH923AGB VG1245ANH923GGB VG1245ANH923BGB VG1245ANH923BUB
VG1245BG 3/4 4.71 200 VG1245BGH923AGB VG1245BGH923GGB VG1245BGH923BGB VG1245BGH923BUB
VG1245BL 7.41 VG1245BLH923AGB VG1245BLH923GGB VG1245BLH923BGB VG1245BLH923BUB
VG1245BN 11.7 VG1245BNH923AGB VG1245BNH923GGB VG1245BNH923BGB VG1245BNH923BUB
1
VG1245CL 1 7.4 200 VG1245CLH923AGB VG1245CLH923GGB VG1245CLH923BGB VG1245CLH923BUB
VG1245CN 11.71 VG1245CNH923AGB VG1245CNH923GGB VG1245CNH923BGB VG1245CNH923BUB
VG1245CP 18.7 VG1245CPH923AGB VG1245CPH923GGB VG1245CPH923BGB VG1245CPH923BUB
in. psi
VG1245DN 1-1/4 11.71 200 VG1245DNH938AGC VG1245DNH938GGC VG1245DNH938BGC VG1245DNH938BAC
VG1245DP 18.71 VG1245DPH938AGC VG1245DPH938GGC VG1245DPH938BGC VG1245DPH938BAC
VG1245DR 29.2 VG1245DRH938AGC VG1245DRH938GGC VG1245DRH938BGC VG1245DRH938BAC
VG1245EP 1-1/2 18.71 200 VG1245EPH938AGC VG1245EPH938GGC VG1245EPH938BGC VG1245EPH938BAC
VG1245ER 29.21 VG1245ERH938AGC VG1245ERH938GGC VG1245ERH938BGC VG1245ERH938BAC
VG1245ES 46.8 VG1245ESH938AGC VG1245ESH938GGC VG1245ESH938BGC VG1245ESH938BAC
VG1245FR 2 29.21 200 VG1245FRH938AGC VG1245FRH938GGC VG1245FRH938BGC VG1245FRH938BAC
VG1245FS 46.81 VG1245FSH938AGC VG1245FSH938GGC VG1245FSH938BGC VG1245FSH938BAC
VG1245FT 73.7 VG1245FTH938AGC VG1245FTH938GGC VG1245FTH938BGC VG1245FTH938BAC
11
-22 to 284°F (-30 to 140°C) (VA9203)
Water and 15 psi Saturated Steam AC 120 V (VA9208)
Proportional
in. psi
VG1245AD 1/2 1.21 200 VG1245ADH943AGB VG1245ADH943GGB VG1245ADH943BGB VG1245ADH943BUB
VG1245AE 1.91 VG1245AEH943AGB VG1245AEH943GGB VG1245AEH943BGB VG1245AEH943BUB
VG1245AF 2.91 VG1245AFH943AGB VG1245AFH943GGB VG1245AFH943BGB VG1245AFH943BUB
1
VG1245AG 4.7 VG1245AGH943AGB VG1245AGH943GGB VG1245AGH943BGB VG1245AGH943BUB
VG1245AL 7.41 VG1245ALH943AGB VG1245ALH943GGB VG1245ALH943BGB VG1245ALH943BUB
VG1245AN 11.7 VG1245ANH943AGB VG1245ANH943GGB VG1245ANH943BGB VG1245ANH943BUB
VG1245BG 3/4 4.71 200 VG1245BGH943AGB VG1245BGH943GGB VG1245BGH943BGB VG1245BGH943BUB
VG1245BL 7.41 VG1245BLH943AGB VG1245BLH943GGB VG1245BLH943BGB VG1245BLH943BUB
VG1245BN 11.7 VG1245BNH943AGB VG1245BNH943GGB VG1245BNH943BGB VG1245BNH943BUB
VG1245CL 1 7.41 200 VG1245CLH943AGB VG1245CLH943GGB VG1245CLH943BGB VG1245CLH943BUB
VG1245CN 11.71 VG1245CNH943AGB VG1245CNH943GGB VG1245CNH943BGB VG1245CNH943BUB
VG1245CP 18.7 VG1245CPH943AGB VG1245CPH943GGB VG1245CPH943BGB VG1245CPH943BUB
Valve Size, Cv Closeoff Spring Return Closed — Valve Normally Closed — Actuators with Two Switches
in. psi
VG1245DN 1-1/4 11.71 200 VG1245DNH958AGC VG1245DNH958GGC VG1245DNH958BGC VG1245DNH958BAC
VG1245DP 18.71 VG1245DPH958AGC VG1245DPH958GGC VG1245DPH958BGC VG1245DPH958BAC
VG1245DR 29.2 VG1245DRH958AGC VG1245DRH958GGC VG1245DRH958BGC VG1245DRH958BAC
VG1245EP 1-1/2 18.71 200 VG1245EPH958AGC VG1245EPH958GGC VG1245EPH958BGC VG1245EPH958BAC
VG1245ER 29.21 VG1245ERH958AGC VG1245ERH958GGC VG1245ERH958BGC VG1245ERH958BAC
VG1245ES 46.8 VG1245ESH958AGC VG1245ESH958GGC VG1245ESH958BGC VG1245ESH958BAC
VG1245FR 2 29.21 200 VG1245FRH958AGC VG1245FRH958GGC VG1245FRH958BGC VG1245FRH958BAC
VG1245FS 46.81 VG1245FSH958AGC VG1245FSH958GGC VG1245FSH958BGC VG1245FSH958BAC
VG1245FT 73.7 VG1245FTH958AGC VG1245FTH958GGC VG1245FTH958BGC VG1245FTH958BAC
12
Table 14: Two-way Stainless Steel Trim Ball Valves, Spring Return Value Open - Valve Normally Open,
VA9203/VA9208 Series Actuators without Switches
Fluid Temperatures: AC 24 V AC 85-264 V
-22 to 212°F (-30 to 100°C) (VA9203)
Not Rated for Steam Service AC 120 V (VA9208)
Proportional
Valve Size, Cv Closeoff Spring Return Open - Valve Normally Open - Actuators without Switches
in. psi
VA9203-AGA-2Z VA9203-GGA-2Z VA9203-BGA-2 VA9203-BUA-2
VG1245AD 1/2 1.21 200 VG1245AD+923AGA VG1245AD+923GGA VG1245AD+923BGA VG1245AD+923BUA
1
VG1245AE 1.9 VG1245AE+923AGA VG1245AE+923GGA VG1245AE+923BGA VG1245AE+923BUA
VG1245AF 2.91 VG1245AF+932AGA VG1245AF+923GGA VG1245AF+923BGA VG1245AF+923BUA
VG1245AG 4.71 VG1245AG+923AGA VG1245AG+923GGA VG1245AG+923BGA VG1245AG+923BUA
1
VG1245AL 7.4 VG1245AL+923AGA VG1245AL+923GGA VG1245AL+923BGA VG1245AL+923BUA
VG1245AN 11.7 VG1245AN+923AGA VG1245AN+923GGA VG1245AN+923BGA VG1245AN+923BUA
1
VG1245BG 3/4 4.7 200 VG1245BG+923AGA VG1245BG+923GGA VG1245BG+923BGA VG1245BG+923BUA
1
VG1245BL 7.4 VG1245BL+923AGA VG1245BL+923GGA VG1245BL+923BGA VG1245BL+923BUA
VG1245BN 11.7 VG1245BN+923AGA VG1245BN+923GGA VG1245BN+923BGA VG1245BN+923BUA
1
VG1245CL 1 7.4 200 VG1245CL+923AGA VG1245CL+923GGA VG1245CL+923BGA VG1245CL+923BUA
VG1245CN 11.71 VG1245CN+923AGA VG1245CN+923GGA VG1245CN+923BGA VG1245CN+923BUA
VG1245CP 18.7 VG1245CP+923AGA VG1245CP+923GGA VG1245CP+923BGA VG1245CP+923BUA
in. psi
VA9208-AGA-2 VA9208-GGA-2 VA9208-BGA-3 VA9208-BAA-3
VG1245DN 1-1/4 11.71 200 VG1245DN+928AGA VG1245DN+928GGA VG1245DN+938BGA VG1245DN+938BAA
1
VG1245DP 18.7 VG1245DP+928AGA VG1245DP+928GGA VG1245DP+938BGA VG1245DP+938BAA
VG1245DR 29.2 VG1245DR+928AGA VG1245DR+928GGA VG1245DR+938BGA VG1245DR+938BAA
1
VG1245EP 1-1/2 18.7 200 VG1245EP+928AGA VG1245EP+928GGA VG1245EP+938BGA VG1245EP+938BAA
1
VG1245ER 29.2 VG1245ER+928AGA VG1245ER+928GGA VG1245ER+938BGA VG1245ER+938BAA
VG1245ES 46.8 VG1245ES+928AGA VG1245ES+928GGA VG1245ES+938BGA VG1245ES+938BAA
VG1245FR 2 29.21 200 VG1245FR+928AGA VG1245FR+928GGA VG1245FR+938BGA VG1245FR+938BAA
1
VG1245FS 46.8 VG1245FS+928AGA VG1245FS+928GGA VG1245FS+938BGA VG1245FS+938BAA
VG1245FT 73.7 VG1245FT+928AGA VG1245FT+928GGA VG1245FT+938BGA VG1245FT+938BAA
13
-22 to 212°F (-30 to 100°C) (VA9203)
(VA9208)
Proportional
Valve Size, Cv Closeoff Spring Return Closed- Valve Normally Closed - Actuators without Switches
in. psi
1
1
1
Valve Size, Cv Closeoff Spring Return Closed - Valve Normally Closed - Actuators without Switches
in. psi
1
1
14
Table 16: Two-Way Stainless Steel Trim Ball Valves, Spring Return Open - Valve Normally Open,
VA9203/VA9208 Series Actuators without Switches with Optional M9000-561 Thermal Barrier
-22 to 284°F (-30 to 140°C) (VA9203)
Water and 15 psi Saturated AC 120 V (VA9208)
Steam
Proportional
in. psi
VG1245AD 1/2 1.21 200 VG1245ADH923AGA VG1245ADH923GGA VG1245ADH923BGA VG1245ADH923BUA
1
VG1245AE 1.9 VG1245AEH923AGA VG1245AEH923GGA VG1245AEH923BGA VG1245AEH923BUA
VG1245AF 2.91 VG1245AFH932AGA VG1245AFH923GGA VG1245AFH923BGA VG1245AFH923BUA
VG1245AG 4.71 VG1245AGH923AGA VG1245AGH923GGA VG1245AGH923BGA VG1245AGH923BUA
VG1245AL 7.41 VG1245ALH923AGA VG1245ALH923GGA VG1245ALH923BGA VG1245ALH923BUA
VG1245AN 11.7 VG1245ANH923AGA VG1245ANH923GGA VG1245ANH923BGA VG1245ANH923BUA
VG1245BG 3/4 4.71 200 VG1245BGH923AGA VG1245BGH923GGA VG1245BGH923BGA VG1245BGH923BUA
VG1245BL 7.41 VG1245BLH923AGA VG1245BLH923GGA VG1245BLH923BGA VG1245BLH923BUA
VG1245BN 11.7 VG1245BNH923AGA VG1245BNH923GGA VG1245BNH923BGA VG1245BNH923BUA
VG1245CL 1 7.41 200 VG1245CLH923AGA VG1245CLH923GGA VG1245CLH923BGA VG1245CLH923BUA
1
VG1245CN 11.7 VG1245CNH923AGA VG1245CNH923GGA VG1245CNH923BGA VG1245CNH923BUA
VG1245CP 18.7 VG1245CPH923AGA VG1245CPH923GGA VG1245CPH923BGA VG1245CPH923BUA
in. psi
VG1245DN 1-1/4 11.71 200 VG1245DNH928AGA VG1245DNH928GGA VG1245DNH938BGA VG1245DNH938BAA
1
VG1245DP 18.7 VG1245DPH928AGA VG1245DPH928GGA VG1245DPH938BGA VG1245DPH938BAA
VG1245DR 29.2 VG1245DRH928AGA VG1245DRH928GGA VG1245DRH938BGA VG1245DRH938BAA
VG1245EP 1-1/2 18.71 200 VG1245EPH928AGA VG1245EPH928GGA VG1245EPH938BGA VG1245EPH938BAA
1
VG1245ER 29.2 VG1245ERH928AGA VG1245ERH928GGA VG1245ERH938BGA VG1245ERH938BAA
VG1245ES 46.8 VG1245ESH928AGA VG1245ESH928GGA VG1245ESH938BGA VG1245ESH938BAA
VG1245FR 2 29.21 200 VG1245FRH928AGA VG1245FRH928GGA VG1245FRH938BGA VG1245FRH938BAA
1
VG1245FS 46.8 VG1245FSH928AGA VG1245FSH928GGA VG1245FSH938BGA VG1245FSH938BAA
VG1245FT 73.7 VG1245FTH928AGA VG1245FTH928GGA VG1245FTH938BGA VG1245FTH938BAA
15
VA9203/VA9208 Series without Switches with Optional M9000-561 Thermal Barrier
-22 to 284°F (-30 to 140°C) (VA9203)
Water and 15 psi Saturated AC 120 V (VA9208)
Steam
Proportional
in. psi
1
1
1
in. psi
1
16
Table 18: Three-Way Stainless Steel Trim Ball Valves, Non-Spring Return, VA9104 Series Electric Actuators
without Switches
Fluid Temperature: AC 24 V
Not Rated for Steam Service with Timeout Proportional
without Timeout1
Valve Size, Cv Closeoff
in. (Port A/B) psi
Actuators with M3 Screw Terminals VA9104-AGA-3S VA9104-IGA-3S VA9104-GGA-3S
2
VG1845AD 1/2 1.2/0.7 200 VG1845AD+9T4AGA VG1845AD+9T4IGA VG1845AD+9T4GGA
VG1845AE 1.9/1.22 VG1845AE+9T4AGA VG1845AE+9T4IGA VG1845AE+9T4GGA
2
VG1845AF 2.9/1.9 VG1845AF+9T4AGA VG1845AF+9T4IGA VG1845AF+9T4GGA
2
VG1845AG 4.7/2.9 VG1845AG+9T4AGA VG1845AG+9T4IGA VG1845AG+9T4GGA
VG1845AL 7.4/4.72 VG1845AL+9T4AGA VG1845AL+9T4IGA VG1845AL+9T4GGA
VG1845AN 11.7/5.8 VG1845AN+9T4AGA VG1845AN+9T4IGA VG1845AN+9T4GGA
VG1845BG 3/4 4.7/2.92 200 VG1845BG+9T4AGA VG1845BG+9T4IGA VG1845BG+9T4GGA
VG1845BL 7.4/4.72 VG1845BL+9T4AGA VG1845BL+9T4IGA VG1845BL+9T4GGA
VG1845BN 11.7/5.8 VG1845BN+9T4AGA VG1845BN+9T4IGA VG1845BN+9T4GGA
VG1845CL 1 7.4/4.72 200 VG1845CL+9T4AGA VG1845CL+9T4IGA VG1845CL+9T4GGA
VG1845CN 11.7/7.42 VG1845CN+9T4AGA VG1845CN+9T4IGA VG1845CN+9T4GGA
VG1845CP 18.7/9.4 VG1845CP+9T4AGA VG1845CP+9T4IGA VG1845CP+9T4GGA
Plenum Cable
VG1845AD 1/2 1.2/0.72 200 VG1845AD+9A4AGA VG1845AD+9A4IGA VG1845AD+9A4GGA
2
VG1845AE 1.9/1.2 VG1845AE+9A4AGA VG1845AE+9A4IGA VG1845AE+9A4GGA
2
VG1845AF 2.9/1.9 VG1845AF+9A4AGA VG1845AF+9A4IGA VG1845AF+9A4GGA
VG1845AG 4.7/2.92 VG1845AG+9A4AGA VG1845AG+9A4IGA VG1845AG+9A4GGA
VG1845AL 7.4/4.72 VG1845AL+9A4AGA VG1845AL+9A4IGA VG1845AL+9A4GGA
VG1845AN 11.7/5.8 VG1845AN+9A4AGA VG1845AN+9A4IGA VG1845AN+9A4GGA
VG1845BG 3/4 4.7/2.92 200 VG1845BG+9A4AGA VG1845BG+9A4IGA VG1845BG+9A4GGA
2
VG1845BL 7.4/4.7 VG1845BL+9A4AGA VG1845BL+9A4IGA VG1845BL+9A4GGA
VG1845BN 11.7/5.8 VG1845BN+9A4AGA VG1845BN+9A4IGA VG1845BN+9A4GGA
VG1845CL 1 7.4/4.72 200 VG1845CL+9A4AGA VG1845CL+9A4IGA VG1845CL+9A4GGA
VG1845CN 11.7/7.42 VG1845CN+9A4AGA VG1845CN+9A4IGA VG1845CN+9A4GGA
VG1845CP 18.7/9.4 VG1845CP+9A4AGA VG1845CP+9A4IGA VG1845CP+9A4GGA
1. To avoid excessive wear or drive time on the motor for the AGA models, use a controller or software that provides a timeout
17
without Switches with M9000-561 Thermal Barrier Installed
Water and 15 pi Saturated Steam with Timeout Proportional
without Timeout1
(Port A/B) psi
Actuators with M3 Screw Terminals with VA9104-AGA-3S VA9104-IGA-3S VA9104-GGA-3S
M9000-561 Thermal Barrier Installed
VG1845AD 1/2 1.2/0.72 200 VG1845ADH9T4AGA VG1845ADH9T4IGA VG1845ADH9T4GGA
VG1845AE 1.9/1.22 VG1845AEH9T4AGA VG1845AEH9T4IGA VG1845AEH9T4GGA
2
VG1845AF 2.9/1.9 VG1845AFH9T4AGA VG1845AFH9T4IGA VG1845AFH9T4GGA
VG1845AG 4.7/2.92 VG1845AGH9T4AGA VG1845AGH9T4IGA VG1845AGH9T4GGA
VG1845AL 7.4/4.72 VG1845ALH9T4AGA VG1845ALH9T4IGA VG1845ALH9T4GGA
VG1845AN 11.7/5.8 VG1845ANH9T4AGA VG1845ANH9T4IGA VG1845ANH9T4GGA
VG1845BG 3/4 4.7/2.92 200 VG1845BGH9T4AGA VG1845BGH9T4IGA VG1845BGH9T4GGA
2
VG1845BL 7.4/4.7 VG1845BLH9T4AGA VG1845BLH9T4IGA VG1845BLH9T4GGA
VG1845BN 11.7/5.8 VG1845BNH9T4AGA VG1845BNH9T4IGA VG1845BNH9T4GGA
VG1845CL 1 7.4/4.72 200 VG1845CLH9T4AGA VG1845CLH9T4IGA VG1845CLH9T4GGA
2
VG1845CN 11.7/7.4 VG1845CNH9T4AGA VG1845CNH9T4IGA VG1845CNH9T4GGA
VG1845CP 18.7/9.4 VG1845CPH9T4AGA VG1845CPH9T4IGA VG1845CPH9T4GGA
Actuators with 120 in. (3.05 m) 19 AWG Plenum VA9104-AGA-2S VA9104-IGA-2S VA9104-GGA-2S
Cable with M9000-561 Thermal Barrier Installed
VG1845AD 1/2 1.2/0.72 200 VG1845ADH9A4AGA VG1845ADH9A4IGA VG1845ADH9A4GGA
2
VG1845AE 1.9/1.2 VG1845AEH9A4AGA VG1845AEH9A4IGA VG1845AEH9A4GGA
VG1845AF 2.9/1.92 VG1845AFH9A4AGA VG1845AFH9A4IGA VG1845AFH9A4GGA
VG1845AG 4.7/2.92 VG1845AGH9A4AGA VG1845AGH9A4IGA VG1845AGH9A4GGA
2
VG1845AL 7.4/4.7 VG1845ALH9A4AGA VG1845ALH9A4IGA VG1845ALH9A4GGA
VG1845AN 11.7/5.8 VG1845ANH9A4AGA VG1845ANH9A4IGA VG1845ANH9A4GGA
VG1845BG 3/4 4.7/2.92 200 VG1845BGH9A4AGA VG1845BGH9A4IGA VG1845BGH9A4GGA
VG1845BL 7.4/4.72 VG1845BLH9A4AGA VG1845BLH9A4IGA VG1845BLH9A4GGA
VG1845BN 11.7/5.8 VG1845BNH9A4AGA VG1845BNH9A4IGA VG1845BNH9A4GGA
VG1845CL 1 7.4/4.72 200 VG1845CLH9A4AGA VG1845CLH9A4IGA VG1845CLH9A4GGA
2
VG1845CN 11.7/7.4 VG1845CNH9A4AGA VG1845CNH9A4IGA VG1845CNH9A4GGA
VG1845CP 18.7/9.4 VG1845CPH9A4AGA VG1845CPH9A4IGA VG1845CPH9A4GGA
1. To avoid excessive wear or drive time on the motor for the AGA models, use a controller or software that provides a timeout
18
without Switches
Valve Size, in. Cv Closeoff psi VA9310-HGA-2
1
VG1845DN 1-1/4 11.7 200 VG1845DN+910HGA
1
VG1845DP 18.7 VG1845DP+910HGA
VG1845DR 29.2 VG1845DR+910HGA
VG1845EP 1-1/2 18.71 200 VG1845EP+910HGA
1
VG1845ER 29.2 VG1845ER+910HGA
VG1845ES 46.8 VG1845ES+910HGA
VG1845FR 2 29.21 200 VG1845FR+910HGA
1
VG1845FS 48.8 VG1845FS+910HGA
VG1845FT 73.7 VG1845FT+910HGA
19
with Switches
Valve Size, in. Cv Closeoff psi VA9310-HGA-2 actuator with M9300-2 Switch Kit1
VG1845AD 1/2 1.22 200 VG1845AD+910HGC
2
VG1845AE 1.9 VG1845AE+910HGC
2
VG1845AF 2.9 VG1845AF+910HGC
VG1845AG 4.72 VG1845AG+910HGC
VG1845AL 7.42 VG1845AL+910HGC
VG1845AN 11.7 VG1845AN+910HGC
2
VG1845BG 3/4 4.7 200 VG1845BG+910HGC
VG1845BL 7.42 VG1845BL+910HGC
VG1845BN 11.7 VG1845BN+910HGC
2
VG1845CL 1 7.4 200 VG1845CL+910HGC
2
VG1845CN 11.7 VG1845CN+910HGC
VG1845CP 18.7 VG1845CP+910HGC
2
VG1845DN 1-1/4 11.7 200 VG1845DN+910HGC
2
VG1845DP 18.7 VG1845DP+910HGC
VG1845DR 29.2 VG1845DR+910HGC
VG1845EP 1-1/2 18.72 200 VG1845EP+910HGC
2
VG1845ER 29.2 VG1845ER+910HGC
VG1845ES 46.8 VG1845ES+910HGC
2
VG1845FR 2 29.2 200 VG1845FR+910HGC
VG1845FS 46.82 VG1845FS+910HGC
VG1845FT 73.7 VG1845FT+910HGC
20
Table 22: Three-Way Stainless Steel Trim Ball Valves, Non-Spring Return, VA9300 Series Actuators without
Valve Size, in. Cv Closeoff psi VA9310-HGA-2 with M9000-561 Thermal Barrier
1
VG1845DN 1-1/4 11.7 200 VG1845DNH910HGA
1
VG1845DP 18.7 VG1845DPH910HGA
VG1845DR 29.2 VG1845DRH910HGA
VG1845EP 1-1/2 18.71 200 VG1845EPH910HGA
1
VG1845ER 29.2 VG1845ERH910HGA
VG1845ES 46.8 VG1845ESH910HGA
VG1845FR 2 29.21 200 VG1845FRH910HGA
1
VG1845FS 48.8 VG1845FSH910HGA
VG1845FT 73.7 VG1845FTH910HGA
21
with Switches with Optional M9000-561 Thermal Barrier
Valve Size, in. Cv Closeoff psi VA9310-HGA-2 actuator with M9300-2 Switch Kit and
M9000-561 Thermal Barrier1
VG1845AD 1/2 1.22 200 VG1845ADH910HGC
2
VG1845AE 1.9 VG1845AEH910HGC
2
VG1845AF 2.9 VG1845AFH910HGC
2
VG1845AG 4.7 VG1845AGH910HGC
VG1845AL 7.42 VG1845ALH910HGC
VG1845AN 11.7 VG1845ANH910HGC
2
VG1845BG 3/4 4.7 200 VG1845BGH910HGC
2
VG1845BL 7.4 VG1845BLH910HGC
VG1845BN 11.7 VG1845BNH910HGC
VG1845CL 1 7.42 200 VG1845CLH910HGC
2
VG1845CN 11.7 VG1845CNH910HGC
VG1845CP 18.7 VG1845CPH910HGC
VG1845DN 1-1/4 11.72 200 VG1845DNH910HGC
VG1845DP 18.72 VG1845DPH910HGC
VG1845DR 29.2 VG1845DRH910HGC
2
VG1845EP 1-1/2 18.7 200 VG1845EPH910HGC
VG1845ER 29.22 VG1845ERH910HGC
VG1845ES 46.8 VG1845ESH910HGC
2
VG1845FR 2 29.2 200 VG1845FRH910HGC
2
VG1845FS 46.8 VG1845FSH910HGC
VG1845FT 73.7 VG1845FTH910HGC
1. For field mounting order VA9310-HGA-2, M9300-2 Switch Kit and M9000-561 Thermal Barrier separately.
22
Table 24: Three-Way Stainless Steel Trim Ball Valves, Spring Return Counterclockwise - Port A (Coil) Open,
-22 to 212°F (-30 to 100°C) (VA9203)
(VA9208)
Proportional
Valve Size, Cv Closeoff Spring Return Port A Open — Valve Spring Return Counterclockwise —
in. (Port A/B) psi Actuator with One Switch
VG1845AD 1/2 1.2/0.71 200 VG1845AD+923AGB VG1845AD+923GGB VG1845AD+923BGB VG1845AD+923BUB
1
VG1845AE 1.9/1.2 VG1845AE+923AGB VG1845AE+923GGB VG1845AE+923BGB VG1845AE+923BUB
VG1845AF 2.9/1.91 VG1845AF+923AGB VG1845AF+923GGB VG1845AF+923BGB VG1845AF+923BUB
VG1845AG 4.7/2.91 VG1845AG+923AGB VG1845AG+923GGB VG1845AG+923BGB VG1845AG+923BUB
1
VG1845AL 7.4/4.7 VG1845AL+923AGB VG1845AL+923GGB VG1845AL+923BGB VG1845AL+923BUB
VG1845AN 11.7/5.8 VG1845AN+923AGB VG1845AN+923GGB VG1845AN+923BGB VG1845AN+923BUB
VG1845BG 3/4 4.7/2.91 200 VG1845BG+923AGB VG1845BG+923GGB VG1845BG+923BGB VG1845BG+923BUB
1
VG1845BL 7.4/4.7 VG1845BL+923AGB VG1845BL+923GGB VG1845BL+923BGB VG1845BL+923BUB
VG1845BN 11.7/5.8 VG1845BN+923AGB VG1845BN+923GGB VG1845BN+923BGB VG1845BN+923BUB
VG1845CL 1 7.4/4.71 200 VG1845CL+923AGB VG1845CL+923GGB VG1845CL+923BGB VG1845CL+923BUB
VG1845CN 11.7/7.41 VG1845CN+923AGB VG1845CN+923GGB VG1845CN+923BGB VG1845CN+923BUB
VG1845CP 18.7/9.4 VG1845CP+923AGB VG1845CP+923GGB VG1845CP+923BGB VG1845CP+923BUB
in. (Port A/B) psi Actuator with Two Switches
VG1845DN 1-1/4 11.7/7.41 200 VG1845DN+938AGC VG1845DN+938GGC VG1845DN+938BGC VG1845DN+938BAC
VG1845DP 18.7/11.71 VG1845DP+938AGC VG1845DP+938GGC VG1845DP+938BGC VG1845DP+938BAC
VG1845DR 29.2/14.6 VG1845DR+938AGC VG1845DR+938GGC VG1845DR+938BGC VG1845DR+938BAC
VG1845EP 1-1/2 18.7/11.71 200 VG1845EP+938AGC VG1845EP+938GGC VG1845EP+938BGC VG1845EP+938BAC
1
VG1845ER 29.2/18.7 VG1845ER+938AGC VG1845ER+938GGC VG1845ER+938BGC VG1845ER+938BAC
VG1845ES 46.8/23.4 VG1845ES+938AGC VG1845ES+938GGC VG1845ES+938BGC VG1845ES+938BAC
VG1845FR 2 29.2/18.71 200 VG1845FR+938AGC VG1845FR+938GGC VG1845FR+938BGC VG1845FR+938BAC
VG1845FS 46.8/29.21 VG1845FS+938AGC VG1845FS+938GGC VG1845FS+938BGC VG1845FS+938BAC
VG1845FT 73.7/36.8 VG1845FT+938AGC VG1845FT+938GGC VG1845FT+938BGC VG1845FT+938BAC
23
Table 25: Three-Way Stainless Steel Trim Ball Valves, Spring Return Clockwise – Port A (Coil) Closed with
Switches
-22 to 212°F (-30 to 100°C) (VA9203)
(VA9208)
Proportional
Valve Size, Cv Closeoff Spring Return Port A Closed — Valve Spring Return Clockwise — Actuator
in. (Port A/B) psi with One Switch
1
1
1
in. (Port A/B) psi with Two Switches
1
1
1
24
Table 26: Three-Way Stainless Steel Trim Ball Valves, Spring Return Counterclockwise - Port A (Coil) Open,
-22 to 212°F (-30 to 100°C) (VA9203)
(VA9208)
Proportional
in. (Port A/B) psi Actuator with One Switch
1
in. (Port A/B) psi Actuator with Two Switches
1
1
1
1
25
Table 27: Three-Way Stainless Steel Trim Ball Valves, Spring Return Clockwise – Port A (Coil) Closed,
-22 to 284°F (-30 to 140°C) (VA9203)
Water and 15 psi Saturated Steam AC 120 V
(VA9208)
Proportional
Valve Size, Cv Closeoff Spring Return Port A Closed — Valve Spring Return Clockwise —
in. (Port A/B) psi Actuator with One Switch with M9000-561 Thermal Barrier
VG1845AD 1/2 1.2/0.71 200 VG1845ADH943AGB VG1845ADH943GGB VG1845ADH943BGB VG1845ADH943BUB
1
VG1845AE 1.9/1.2 VG1845AEH943AGB VG1845AEH943GGB VG1845AEH943BGB VG1845AEH943BUB
VG1845AF 2.9/1.91 VG1845AFH943AGB VG1845AFH943GGB VG1845AFH943BGB VG1845AFH943BUB
VG1845AG 4.7/2.91 VG1845AGH943AGB VG1845AGH943GGB VG1845AGH943BGB VG1845AGH943BUB
1
VG1845AL 7.4/4.7 VG1845ALH943AGB VG1845ALH943GGB VG1845ALH943BGB VG1845ALH943BUB
VG1845AN 11.7/5.8 VG1845ANH943AGB VG1845ANH943GGB VG1845ANH943BGB VG1845ANH943BUB
VG1845BG 3/4 4.7/2.91 200 VG1845BGH943AGB VG1845BGH943GGB VG1845BGH943BGB VG1845BGH943BUB
1
VG1845BL 7.4/4.7 VG1845BLH943AGB VG1845BLH943GGB VG1845BLH943BGB VG1845BLH943BUB
VG1845BN 11.7/5.8 VG1845BNH943AGB VG1845BNH943GGB VG1845BNH943BGB VG1845BNH943BUB
VG1845CL 1 7.4/4.71 200 VG1845CLH943AGB VG1845CLH943GGB VG1845CLH943BGB VG1845CLH943BUB
VG1845CN 11.7/7.41 VG1845CNH943AGB VG1845CNH943GGB VG1845CNH943BGB VG1845CNH943BUB
VG1845CP 18.7/9.4 VG1845CPH943AGB VG1845CPH943GGB VG1845CPH943BGB VG1845CPH943BUB
in. (Port A/B) psi Actuator with Two Switches with M9000-561 Thermal Barrier
1
VG1845DN 1-1/4 11.7/7.4 200 VG1845DNH958AGC VG1845DNH958GGC VG1845DNH958BGC VG1845DNH958BAC
VG1845DP 18.7/11.71 VG1845DPH958AGC VG1845DPH958GGC VG1845DPH958BGC VG1845DPH958BAC
VG1845DR 29.2/14.6 VG1845DRH958AGC VG1845DRH958GGC VG1845DRH958BGC VG1845DRH958BAC
1
VG1845EP 1-1/2 18.7/11.7 200 VG1845EPH958AGC VG1845EPH958GGC VG1845EPH958BGC VG1845EPH958BAC
VG1845ER 29.2/18.71 VG1845ERH958AGC VG1845ERH958GGC VG1845ERH958BGC VG1845ERH958BAC
VG1845ES 46.8/23.4 VG1845ESH958AGC VG1845ESH958GGC VG1845ESH958BGC VG1845ESH958BAC
VG1845FR 2 29.2/18.71 200 VG1845FRH958AGC VG1845FRH958GGC VG1845FRH958BGC VG1845FRH958BAC
1
VG1845FS 46.8/29.2 VG1845FSH958AGC VG1845FSH958GGC VG1845FSH958BGC VG1845FSH958BAC
VG1845FT 73.7/36.8 VG1845FTH958AGC VG1845FTH958GGC VG1845FTH958BGC VG1845FTH958BAC
26
Table 28: Three-Way Stainless Steel Trim Ball Valves, Spring Return Counterclockwise – Port A (Coil)
Open, VA9203/VA9208 Series Actuators without Switches
-22 to 212°F (-30 to 100°C) (VA9203)
(VA9208)
Proportional
in. (Port A/B) psi Actuator without Switches
1
1
1
1
1
27
-22 to 212°F (-30 to 100°C) (VA9203)
(VA9208)
Proportional
1
1
1
1
1
28
Table 30: Three-Way Stainless Steel Trim Ball Valves, Spring Return Counterclockwise – Port A (Coil)
Open, VA9203/VA9208 Series Actuators without Switches with Optional M9000-561 Thermal
Barrier
-22 to 284°F (-30 to 140°C) (VA9203)
(VA9208)
Proportional
in. (Port A/B) psi Actuator without Switches with M9000-561 Thermal Barrier
1
1
1
1
1
1
1
29
VA9203/VA9208 Series Actuators without Switches with Optional M9000-561 Thermal Barrier
-22 to 284°F (-30 to 140°C) (VA9203)
(VA9208)
Proportional
1
1
1
1
1
1
30
Table 32: Two-Way Brass Plated Trim Ball Valves, Non-Spring Return, VA9104 Series Electric Actuators
without Switches
23 to 203°F (-5 to 95°C) On/Off (Floating) On/Off (Floating) DC 0 to 10 V
Not Rated for Steam Service without Timeout1 with Timeout Proportional
Valve Size, Cv Closeoff Actuators with M3 Screw Terminals
in. psi VA9104-AGA-3S VA9104-IGA-3S VA9104-GGA-3S
VG1241AD 1/2 1.22 200 VG1241AD+9T4AGA VG1241AD+9T4IGA VG1241AD+9T4GGA
VG1241AE 1.92 VG1241AE+9T4AGA VG1241AE+9T4IGA VG1241AE+9T4GGA
VG1241AF 2.92 VG1241AF+9T4AGA VG1241AF+9T4IGA VG1241AF+9T4GGA
VG1241AG 4.72 VG1241AG+9T4AGA VG1241AG+9T4IGA VG1241AG+9T4GGA
VG1241AL 7.42 VG1241AL+9T4AGA VG1241AL+9T4IGA VG1241AL+9T4GGA
VG1241AN 11.7 VG1241AN+9T4AGA VG1241AN+9T4IGA VG1241AN+9T4GGA
VG1241BG 3/4 4.72 200 VG1241BG+9T4AGA VG1241BG+9T4IGA VG1241BG+9T4GGA
VG1241BL 7.42 VG1241BL+9T4AGA VG1241BL+9T4IGA VG1241BL+9T4GGA
VG1241BN 11.7 VG1241BN+9T4AGA VG1241BN+9T4IGA VG1241BN+9T4GGA
VG1241CL 1 7.42 200 VG1241CL+9T4AGA VG1241CL+9T4IGA VG1241CL+9T4GGA
VG1241CN 11.72 VG1241CN+9T4AGA VG1241CN+9T4IGA VG1241CN+9T4GGA
VG1241CP 18.7 VG1241CP+9T4AGA VG1241CP+9T4IGA VG1241CP+9T4GGA
Valve Size, Cv Closeoff Actuators with 120 in. (3.05 m) 19 AWG Plenum Cable
in. psi VA9104-AGA-2S VA9104-IGA-2S VA9104-GGA-2S
VG1241AD 1/2 1.22 200 VG1241AD+9A4AGA VG1241AD+9A4IGA VG1241AD+9A4GGA
VG1241AE 1.92 VG1241AE+9A4AGA VG1241AE+9A4IGA VG1241AE+9A4GGA
VG1241AF 2.92 VG1241AF+9A4AGA VG1241AF+9A4IGA VG1241AF+9A4GGA
VG1241AG 4.72 VG1241AG+9A4AGA VG1241AG+9A4IGA VG1241AG+9A4GGA
VG1241AL 7.42 VG1241AL+9A4AGA VG1241AL+9A4IGA VG1241AL+9A4GGA
VG1241AN 11.7 VG1241AN+9A4AGA VG1241AN+9A4IGA VG1241AN+9A4GGA
VG1241BG 3/4 4.72 200 VG1241BG+9A4AGA VG1241BG+9A4IGA VG1241BG+9A4GGA
VG1241BL 7.42 VG1241BL+9A4AGA VG1241BL+9A4IGA VG1241BL+9A4GGA
VG1241BN 11.7 VG1241BN+9A4AGA VG1241BN+9A4IGA VG1241BN+9A4GGA
VG1241CL 1 7.42 200 VG1241CL+9A4AGA VG1241CL+9A4IGA VG1241CL+9A4GGA
VG1241CN 11.72 VG1241CN+9A4AGA VG1241CN+9A4IGA VG1241CN+9A4GGA
VG1241CP 18.7 VG1241CP+9A4AGA VG1241CP+9A4IGA VG1241CP+9A4GGA
function to remove the signal at the end of rotation.
31
Table 33: Two-Way Brass Plated Trim Ball Valves, Non-Spring Return, VA9300 Series Electric Actuators
Fluid Temperature: AC/DC 24 V
23 to 203°F (-5 to 95°C) On/Off Floating DC 0(2) to 10 V
Valve Size, Cv Closeoff Actuators without Switches
in. psi VA9310-HGA-2
VG1241DN 1-1/4 11.71 200 VG1241DN+910HGA
VG1241DP 18.71 VG1241DP+910HGA
VG1241DR 29.2 VG1241DR+910HGA
VG1241EP 1-1/2 18.71 200 VG1241EP+910HGA
VG1241ER 29.21 VG1241ER+910HGA
VG1241ES 46.8 VG1241ES+910HGA
VG1241FR 2 29.21 200 VG1241FR+910HGA
VG1241FS 46.81 VG1241FS+910HGA
VG1241FT 73.7 VG1241FT+910HGA
Valve Size, Cv Closeoff Actuators With Two Switches
in. psi VA9310-HGA-2 actuator with M9300-2 Switch Kit2
VG1241AD 1/2 1.21 200 VG1241AD+910HGC
VG1241AE 1.91 VG1241AE+910HGC
VG1241AF 2.91 VG1241AF+910HGC
VG1241AG 4.71 VG1241AG+910HGC
VG1241AL 7.41 VG1241AL+910HGC
VG1241AN 11.7 VG1241AN+910HGC
VG1241BG 3/4 4.71 200 VG1241BG+910HGC
VG1241BL 7.41 VG1241BL+910HGC
VG1241BN 11.7 VG1241BN+910HGC
VG1241CL 1 7.41 200 VG1241CL+910HGC
VG1241CN 11.71 VG1241CN+910HGC
VG1241CP 18.7 VG1241CP+910HGC
VG1241DN 1-1/4 11.71 200 VG1241DN+910HGC
VG1241DP 18.71 VG1241DP+910HGC
VG1241DR 29.2 VG1241DR+910HGC
VG1241EP 1-1/2 18.71 200 VG1241EP+910HGC
VG1241ER 29.21 VG1241ER+910HGC
VG1241ES 46.8 VG1241ES+910HGC
VG1241FR 2 29.21 200 VG1241FR+910HGC
VG1241FS 46.81 VG1241FS+910HGC
VG1241FT 73.7 VG1241FT+910HGC
32
Table 34: Two-Way Plated Brass Trim Ball Valves, Spring Return Valve Open - Valve Normally Open,
23 to 203°F (-5 to 95°C) (VA9203)
(VA9208)
Proportional
in. psi
1
1
1
in. psi
1
1
1
33
Table 35: Two-Way Plated Brass Trim Ball Valves, Spring Return Valve Closed - Valve Normally Closed,
23 to 203°F (-5 to 95°C) (VA9203)
(VA9208)
Proportional
in. psi
1
1
1
Valve Size, Cv Closeoff Spring Return Closed — Valve Normally Closed — Actuators with Two
in. psi Switches
1
34
Table 36: Three-Way Brass Plated Trim Ball Valves, Non-Spring Return, VA9300 Series Electric Actuators
Fluid Temperature: AC/DC 24 V
23 to 203°F (-5 to 95°C) On/Off Floating DC 0(2) to 10 V
Valve Size, Cv Closeoff Actuators without Switches
in. psi VA9310-HGA-2
VG1841DN 1-1/4 11.71 200 VG1841DN+910HGA
VG1841DP 18.71 VG1841DP+910HGA
VG1841DR 29.2 VG1841DR+910HGA
VG1841EP 1-1/2 18.71 200 VG1841EP+910HGA
VG1841ER 29.21 VG1841ER+910HGA
VG1841ES 46.8 VG1841ES+910HGA
VG1841FR 2 29.21 200 VG1841FR+910HGA
VG1841FS 46.81 VG1841FS+910HGA
VG1841FT 73.7 VG1841FT+910HGA
Valve Size, Cv Closeoff Actuators With Two Switches
in. psi VA9310-HGA-2 actuator with M9300-2 Switch Kit2
VG1841AD 1/2 1.21 200 VG1841AD+910HGC
VG1841AE 1.91 VG1841AE+910HGC
VG1841AF 2.91 VG1841AF+910HGC
VG1841AG 4.71 VG1841AG+910HGC
VG1841AL 7.41 VG1841AL+910HGC
VG1841AN 11.7 VG1841AN+910HGC
VG1841BG 3/4 4.71 200 VG1841BG+910HGC
VG1841BL 7.41 VG1841BL+910HGC
VG1841BN 11.7 VG1841BN+910HGC
VG1841CL 1 7.41 200 VG1841CL+910HGC
VG1841CN 11.71 VG1841CN+910HGC
VG1841CP 18.7 VG1841CP+910HGC
VG1841DN 1-1/4 11.71 200 VG1841DN+910HGC
VG1841DP 18.71 VG1841DP+910HGC
VG1841DR 29.2 VG1841DR+910HGC
VG1841EP 1-1/2 18.71 200 VG1841EP+910HGC
VG1841ER 29.21 VG1841ER+910HGC
VG1841ES 46.8 VG1841ES+910HGC
VG1841FR 2 29.21 200 VG1841FR+910HGC
VG1841FS 46.81 VG1841FS+910HGC
VG1841FT 73.7 VG1841FT+910HGC
35
Table 37: Three-Way Plated Brass Trim Ball Valves, Spring Return Counterclockwise - Port A (Coil) Open,
23 to 203°F (-5 to 95°C) (VA9203)
(VA9208)
Proportional
in. (Port A/B) psig Actuator with One Switch
1
1
1
in. (Port A/B) psig Actuator with Two Switches
1
36
Table 38: Three-Way Plated Brass Trim Ball Valves, Spring Return Clockwise – Port A (Coil) Closed with
Switches
23 to 203°F (-5 to 95°C) (VA9203)
(VA9208)
Proportional
in. (Port A/B) psi with One Switch
1
1
1
in. (Port A/B) psi with Two Switches
1
1
1
37
Table 39: Shipping Weights, lb (kg)
Valve Code Description Shipping Weight,
Number lb (kg)
VG12xxAx 1/2 in. (DN15) Two-Way Forged Brass Ball Valve 0.8 (0.4)
VG12xxBx 3/4 in. (DN20) Two-Way Forged Brass Ball Valve 1.0 (0.5)
VG12xxCx 1 in. (DN25) Two-Way Forged Brass Ball Valve 1.8 (0.8)
VG12xxDx 1-1/4 in. (DN32) Two-Way Forged Brass Ball Valve 2.3 (1.0)
VG12xxEx 1-1/2 in. (DN40) Two-Way Forged Brass Ball Valve 3.8 (1.7)
VG12xxFx 2 in. (DN50) Two-Way Forged Brass Ball Valve 5.0 (2.3)
VG18xxAx 1/2 in. (DN15) Three-Way Forged Brass Ball Valve 1.25 (0.6)
VG18xxBx 3/4 in. (DN20) Three-Way Forged Brass Ball Valve 1.5 (0.7)
VG18xxCx 1 in. (DN25) Three-Way Forged Brass Ball Valve 2.75 (1.3)
VG18xxDx 1-1/4 in. (DN32) Three-Way Forged Brass Ball Valve 4.25 (1.9)
VG18xxEx 1-1/2 in. (DN40) Three-Way Forged Brass Ball Valve 6.25 (2.8)
VG18xxFx 2 in. (DN50) Three-Way Forged Brass Ball Valve 8.2 (3.7)
Table 40: Repair Parts

Linkage Replacement Description Replacement Part
Code Number
M9000-551 Linkage with Handle for VA9104 Series Actuators Unit Replacement
M9000-560 Linkage for VA9203/VA9208 Series Actuators Unit Replacement
M9000-561 Thermal Barrier for VA9104/VA9203/VA9208/VA9300 Series Actuators Unit Replacement
M9310-500 Linkage for M9300 Actuators Unit Replacement
Application Overview VA9000 Series Electric Actuators include mounting

hardware for direct coupling to VG1000 Series Ball
Available in sizes 1/2 through 2 in. (DN15 through
Valves. M9000 Series Electric Actuators require
DN50), VG1000 Series Ball Valves are designed
additional Valve Linkage Kits. See Table 32 and
specifically for automated commercial HVAC service.
Table 33 for valid valve, actuator, and linkage kit
These valves feature a forged brass body with either a
combinations for assembly in the field.
chrome-plated brass ball for water or glycol solutions to
203F (95C), or a 300 Series stainless steel ball for VG1000 Series Ball Valves are designed for factory or
high temperature water to 284°F (140°C) and saturated field mounting to a wide variety of Johnson Controls®
steam to 15 psi. The Amodel Flow Characterizing Disk M9000 and VA9000 Series Electric Actuators. Control
maintains equal percentage flow characteristics for signal selections include:
optimum temperature control, as shown in Figure 2.
• floating point without timeout
The blowout-proof stem and mounting flange,
combined with an innovative double O-ring stem seal • on/off and floating point
and self-centering stem bushing design (shown in
• on/off
Figure 3) provide quick and easy electric actuator field
mounting while ensuring long life and leak-free valve • proportional
performance. The specially engineered,
graphite-reinforced PTFE seat with flexible PTFE seat Valve End Connection
design (backed with EPDM O-rings) significantly VG1000 Series 1/2, 3/4, and 1 in. (DN15, DN20, and
reduces the operating torque, allowing the smallest DN25) valves are available in one of three end
possible electric actuator available to provide the force connections:
required for the specific application. All valve and
• NPT Threaded
actuator assemblies provide 200 psig (1,379 kPa)
closeoff pressure while ensuring operation after long • Sweat end for copper tubing
idle periods. Because of their cost-effective, reliable
• Press end for copper tubing
design, VG1000 Series Ball Valves are maintenance
free.
38
Press end connected valves are designed for
installation using RIDGID Pressing Tool Technology
manufactured by the Ridgid Tool Corporation for use
with the ProPress fitting system. Press end
connections afford significant installation savings.
Additional information on these tools can be found at
www.ridgid.com.
VG1000 Series 1-1/4, 1-1/2, and 2 in. (DN32, DN40,

and DN50) valves are available with NPT threaded
ends only.
120
100
% of Rated Flow
80
60
40
20
FIG:VG1000typcdf
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
Rotation Angle (%)
Figure 2: Typical Two-Way VG1000 Series Ball Valve
39
See Figure 3 for typical VG1000 internal composition.
Blowout-Proof
Valve Stem
(Square-Head)
Centering Actuator
Bushing Mounting Flange
EPDM Thrust
Double O-Ring Washer
Stem Seals
Graphite-Reinforced
PFTE Seats
EPDM
O-Rings
Inlet Port
Outlet
(Port A)
Port
Characterizing
Disc
FIG:VG1000_int
Ball
Figure 3: Internal View of a Typical VG1000 Series Ball Valve
40
See Figure 4 for typical piping applications.
VG184x Three-Way Valve
Port A Port C Return
Port
B
Supply
Typical Three-Way Ball Valve Application
VG124x Two-Way Valve
Port A Port B Return
Supply
FIG:VG1000_typpip
Typical Two-Way Ball Valve Application
Note: Mount the valve downstream from the coil to minimize heat transfer to the actuator.
Figure 4: Typical VG1000 Piping
IMPORTANT: The VG1000 Series Valves are

intended to control saturated steam, hot water, and
chilled water flow under normal equipment operating
conditions. Where failure or malfunction of the
VG1000 Series Valve could lead to personal injury
or property damage to the controlled equipment or
other property, additional precautions must be
designed into the system. Incorporate and maintain
other devices such as supervisory or alarm systems
or safety or limit controls, intended to warn of or
protect against failure or malfunction of the VG1000
Series Valve.
41
Electric Actuator Control Signal Action
Two-way VG1000 Series Ball Valves are fully open
when the electric actuator is fully Counterclockwise
(CCW) and fully closed when the electric actuator is Port C
Port A
fully Clockwise (CW). For three-way valves, the Port A Coil Common
and common port are fully open when the electric
actuator is fully CCW, as shown in Figure 5. Port B and
FIG:VG4145_3wayBC
common port are fully open when the actuator is fully
CW, as shown in Figure 6.
Port B Bypass
Figure 6: VG1841 or VG1845 Series

Three-Way Ball Valve
(Port B Connected to Port C)
Port A Port C
Coil Common For non-spring return floating or on/off (floating) control
models, a control signal to Terminal 2 (or wire 2) of a
FIG:VG4145_3wayAC VA9104, M(VA)910x, or M(VA)93xx Series Actuator
drives the electric actuator to the fully CW position.
Likewise, a control signal to Terminal 3 (or wire 3) of a
Port B Bypass VA9104, M910x, or M(VA)93xx Series Actuator drives
Figure 5: VG1841 or VG1845 Series the electric actuator to the fully CCW position.
Three-Way Ball Valve A control signal to Wire 3 of side A mounted (away
(Port A Connected to Port C) from the valve) VA9203 or VA9208 Series actuated
spring-to-open floating control valve assembly drives
Note: VG1841 and VG1845 three-way ball valves the electric actuator to the fully CW position. Likewise,
have a different port configuration (as shown in a control signal to Wire 4 of a floating CCW-face
Figure 5 and Figure 6) from the older VG1644 Series VA9203 Series or VA9208 Series Actuator, or removal
three-way ball valves (Figure 7), and you must change of the control signal from Wire 3 of an on/off CCW-face
the piping to convert them to the new series of valves. VA9203 Series or VA9208 Series actuated spring-to-
open valve assembly, drives the electric actuator to the
For non-spring return and spring-to-open proportional fully CCW position.
control models in the direct-acting mode, a minimum
control signal drives the electric actuator to the fully A control signal to Wire 3 of a CW-face (mounted away
CCW position, whereas a maximum control signal from the valve) VA9203 Series or VA9208 Series
drives the electric actuator to the fully CW position. actuated spring-to-close floating control valve
assembly drives the electric actuator to the fully CCW
For spring-to-close proportional control models in the position. Likewise, a control signal to Wire 4 of a
direct-acting mode, a minimum control signal drives the floating CW-face VA9203 Series or VA9208 Series
electric actuator to the fully CW position, whereas a Actuator, or removal of the control signal from Wire 3 of
maximum control signal drives the electric actuator to an on/off CW-face VA9203 Series or VA9208 Series
the fully CCW position. actuated spring-to-close valve assembly, drives the
Common
electric actuator to the fully CW position.
Port
Electric Actuator Selection
VG1000 Series Ball Valves are designed for factory or
field mounting to a variety of M9000 and VA9000
Series Actuators. VA9000 Series Actuators include all
Normally Normally hardware necessary for attachment to the valve.
FIG:VG1644_CCW
Open Port Closed Port

M9000 Series Actuators require an additional linkage.
See Table .
Figure 7: Top View of VG1644 Series

Three-Way Ball Valve (Actuator Fully CCW)
42
Note: To avoid excessive wear or drive time on the • M(VA)9300 Series Electric Non-Spring Return
motor for VA9104 and M9104, models, use a controller Actuators Product Bulletin (LIT-12012069)
and/or software that provides a timeout function to
remove the signal at the end of rotation (stall). The IGx Linkage Kit and Weather Shield Selection
and GGx models have an auto shutoff to avoid The M9000-551 and M9000-561 Valve Linkage Kits
excessive wear or drive time on the motor. and M9000-342 Weather Shield are designed
specifically for field mounting Johnson Controls
For more information on these electric actuator series
M(VA)9104 and M(VA)9300 Series Non-Spring Return
as well as details on models available, refer to the
and M(VA)9203 and M(VA)9208 Series Spring Return
following documents:
Electric Actuators to VG1000 Series Ball Valves.
• VA9104-xGA-2S, -3S Series Electric Non-Spring
For more information on the M9000-551 Linkage Kit,
Return Valve Actuators Product Bulletin
refer to the M9000-551 Ball Valve Linkage
(LIT-12011050)
Kit Installation Instructions (Part No. 34-636-1816).
• M9104-xGA-2S, -3S Series Electric Non-Spring
For more information on the M9000-342 Weather
Return Actuators Product Bulletin (LIT-1201742)
Shield, refer to the M9000-342 Valve Weather Shield
• VA9203 Series Electric Spring Return Actuator Kit Installation Instructions (Part No. 34-636-2499).
Product Bulletin (LIT-12011702)
For more information on the M9000-560 Ball Valve
• VA9208 Series Electric Spring Return Actuator Linkage, refer to the M9000-560 Ball Valve Linkage Kit
Product Bulletin (LIT-12011622) and M9000-561 Thermal Barrier Installation
Instructions (Part No. 34-636-2227).
Valid Ball Valve, Electric Actuator, Linkage Kit, and Weather Shield Combinations (for Assembly in the
Field) (Part 1 of 3 )
Valve Valve Code Numbers Actuator Linkage Kit Code Number Weather
Size, in. NPT End Sweat End Press End Base Fluid Fluid Fluid Shield
(DN) Connectio Connectio Connectio Number
1
Temperatures Temperatures Temperatures
n n n (<203°F (<212°F (≥212°F
[95°C]) [100°C]) [100°C])
1/2 VG1241Ax VG1291Ax VA91042 None Required Not Rated Not Rated M9000-
(DN15) VG1841Ax VG1891Ax 342
M91042 M9000-551
VA9300 None Required
M9300 M9310-500
M9203 M9000-560
VG1245Ax VG1275Ax VG1295Ax VA91042 None Required M9000-561
VG1845Ax VG1875Ax VG1895Ax
M91042 M9000-551
M9300 M9310-500
M9203 M9000-560
43
1
n n n (<203°F (<212°F (≥212°F
[95°C]) [100°C]) [100°C])
3/4 VG1241Bx VG1291Bx VA91042 None Required Not Rated Not Rated M9000-
(DN20) VG1841Bx VG1891Bx 342
M91042 M9000-551
M9300 M9310-500
M9203 M9000-560
2
VG1245Bx VG1275Bx VG1295Bx VA9104 None Required M9000-561
VG1845Bx VG1875Bx VG1895Bx M91042 M9000-551
M9300 M9310-500
M9203 M9000-560
1 (DN25) VG1241Cx VG1271Cx VG1291Cx VA91042 None Required Not Rated Not Rated M9000-
VG1841Cx VG1871Cx VG1891Cx 342
M91042 M9000-551
M9300 M9310-500
M9203 M9000-560
2
VG1245Cx VG1275Cx VG1295Cx VA9104 None Required M9000-561
VG1845Cx VG1875Cx VG1895Cx M91042 M9000-551
M9300 M9310-500
M9203 M9000-560
1-1/4 VG1241Dx VA9300 None Required Not Rated Not Rated M9000-
(DN32) VG1841Dx 342
M9300 M9310-500
M9208 M9000-550
VG1245Dx VA9300 None Required M9000-561
VG1845Dx M9300 M9310-500
M9208 M9000-550
44
1
n n n (<203°F (<212°F (≥212°F
[95°C]) [100°C]) [100°C])
1-1/2 VG1241Ex VA9300 None Required Not Rated Not Rated M9000-
(DN40) VG1841Ex 342
M9300 M9310-500
M9208 M9000-550
VG1245Ex VA9300 None Required M9000-561
VG1845Ex M9300 M9310-500
M9208 M9000-550
2 (DN50) VG1241Fx VA9300 None Required Not Rated Not Rated M9000-
VG1841Fx 342
M9300 M9310-500
M9208 M9000-550
VG1245Fx VA9300 None Required M9000-561
VG1845Fx M9300 M9310-500
M9208 M9000-550
1. VA9104, M9104, VA9300, and M9300 Series Actuators are non-spring return, and VA9203, M9203, VA9208, and M9208
Series Actuators are spring return. Note: VA9104, M9104, VA9300, M9300, VA9203, M9203, VA9208, and M9208 have a
maximum fluid temperature limit of 212°F (100°C) unless used with the M9000-561 Thermal Barrier.
2. To avoid excessive wear or drive time on the motor for VA9104 and M9104 use a controller and/or software that provides a
timeout function to remove the signal at the end of rotation (stall). The IGx and GGx models have an automatic shutoff to
avoid excessive wear or drive time on the motor.
45
See Figure 8 for dimension drawings of the Non-Spring
Return VA9104 Series Actuated VG1241, VG1245,
VG1841, and VG1845 Series NPT End Connection
Ball Valves. See Table 41 and Table 42 for specific
model linkage dimensions.
Minimum Clearance Required

3-1/2 (89)
2-13/16 5-1/2
(71) (140)
F
A
Port Marking
Locations
A B C B
C C
E E G
FIG:M9104dims
D
Two-Way Valve Three-Way Valve Two-Way Valve Three-Way Valve
Figure 8: VA9104 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve
with NPT End Connections Dimensions, in. (mm)
Table 41: VA9104 or M9104 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve Dimensions,
in. (mm)
Valve Size, A B C D E F G
in. (DN)1
1/2 (DN15) 3-7/8 (98) 21/32 (17) 1-7/32 (31) 5-7/64 (129) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 3-7/8 (98) 21/32 (17) 1-7/32 (31) 5-7/32 (133) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1 (DN25) 3-11/16 (100) 3/4 (19) 1-19/64 (33) 5-9/16 (141) 3-13/32 (87) 11/32 (9) 1-11/16 (43)
1. Port A must always be connected to the coil.
Table 42: VA9104 Actuated VG1275 and VG1875 Series Ball Valve with Sweat End Connections and VA9104
Actuated VG1295 and VG1895 Series Ball Valves with Press End Connections Dimensions,
in. (mm)
in. (DN)1
1/2 (DN15) 3-7/8 (98) 21/32 (17) 1-7/32 (31) 5-45/64 (145) 3-25/32 (96) 11/32 (9) 2-13/16 (55)
3/4 (DN20) 3-7/8 (98) 21/32 (17) 1-7/32 (31) 5-57/64(150) 4-3/32 (104) 11/32 (9) 2-15/32 (62)
1 (DN25) 3-15/16 (100) 3/4 (19) 1-19/64 (33) 6-1/8 (156) 4 21/32 (118) 11/32 (9) 2-27/32 (72)
46
See Figure 9 for dimensions of the Non-Spring Return
VA9104 Series Actuated VG1241, VG1245, VG1841,
and VG1845 Series NPT End Connection Ball Valve
with optional M9000-561 Thermal Barrier installed. See
Table 43 for specific model dimensions.
3-1/2 (89)
Clearance Required
2-13/16 5-1/2
(71) (140)
Port Marking
Locations
FIG:M9104X_dims
D
Figure 9: VA9104 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with NPT End
Connections with Optional M9000-561 Thermal Barrier Dimensions, in. (mm)
Table 43: VA9104 Actuated VG1241, VG1245, VG1841, and VG1845 Series NPT Ball Valves with Optional
M9000-561 Thermal Barrier Installed Dimensions, in. (mm)
in. (DN)1
1/2 (DN15) 5-11/32 (135) 21/32 (17) 1-7/32 (31) 5-45/64 (145) 3-25/32 (96) 11/32 (9 1-1/4 (32)
3/4 (DN20) 5-11/32 (135) 21/32 (17) 1-7/32 (31) 5-57/64 (150) 4-3/32 (104) 11/32 (9) 1-13/32 (36)
1 (DN25) 5-27/64 (137) 3/4 (19) 1-19/64 (33) 6-1/8 (156) 4-41/64 (118) 11/32 (9) 1-45/46 (43)
1. On models with the flow-characterizing disk, the disk is located in Port A. Port A must be the inlet.
47
See Figure 10 for dimensions of the Spring Return
VA9203 Series Actuated VG1241, VG1245, VG1841,
and VG1845 Series NPT End Connection Ball Valves.
See Table 44 and Table 45 for specific model linkage
dimensions.
3-1/2 (89)
Clearance Required
2-7/8
3-1/4
(82)
(73)
Port Marking
Locations
FIG:VA9203X_dims
D
Figure 10: VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series
Ball Valve with NPT End Connections Dimensions, in. (mm)
Table 44: VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with NPT End
Connections Dimensions, in. (mm)
in. (DN)1
1/2 (DN15) 4-1/4 (108) 21/32 (17) 1-7/32 (31) 6-23/32 (171) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 4-1/4 (108) 21/32 (17) 1-7/32 (31) 6-7/8 (175) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1 (DN25) 4-9/32 (109) 3/4 (19) 1-19/64 (33) 7-7/64 (181) 3-13/32 (87) 11/32 (9) 1-45/64 (43)
Table 45: VA9203 Actuated VG1271, VG1275, VG1871, and VG1875 Series Sweat Ball Valve and VA9203
Actuated VG1291, VG1295, VG1891, and VG1895 Series Press Ball Valve Dimensions, in. (mm)
in. (DN)1
1/2 (DN15) 4-5/8 (117) 21/32 (17) 1-7/32 (31) 7-13/64 (183) 3-25/32 (96) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 4-5/8 (117) 21/32 (17) 1-7/32 (31) 7-3/4 (197) 4-3/32 (104) 11/32 (9) 1-13/32 (36)
1 (DN25) 4-11/16 (119) 3/4 (19) 1-19/64 (33) 8-3/16 (208) 4-41/64 (118) 11/32 (9) 1-45/64 (43)
48
See Figure 11 for dimensions of the VA9203 Spring
Return Series Actuated VG1241, VG1245, VG1841,
and VG1845 Series NPT End Connection Ball Valves
with optional M9000-561 Thermal Barrier installed. See
Table 46 for specific model linkage dimensions.
3-1/2 (89)
Clearance Required
3-1/4 2-7/8
(82) (73)
Port Marking
Locations
FIG:VA9203X_dimsthbr
D
Figure 11: Spring Return VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with
Optional M9000-561 Thermal Barrier Installed Dimensions, in. (mm)
Table 46: VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series NPT Ball Valve with Optional
Thermal Barrier Installed Dimensions, in. (mm)
Valve Size A B C D E F G
in. (DN)1
1/2 (DN15) 6 (152) 21/32 (17) 1-7/32 (31) 6-31/32 (177) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 6 (152) 21/32 (17) 1-7/32 (31) 7-1/8 (181) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1 (DN25) 6-1/16 (154) 3/4 (19) 1-19/64 (33) 7-31/64 (190) 3-13/32 (87) 11/32 (9) 1-45/64 (43)
49
VA9300 Actuated VG1241, VG1245, VG1841, and
VG1845 Series Ball Valve. See Table 47 for specific
3-1/2 in. (89 mm)
A
Port Marking
Locations
B
C
FIG:Thermal Barrier
D
Figure 12: Non-Spring Return VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball
Valve Dimensions, in. (mm)
Table 47: VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve Dimensions, in. (mm)
in. (DN)
1/2 (DN15) 4-3/8 (111) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 4-3/8 (111) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1 (DN25) 4-7/16 (113) 3/4 (19) 1-5/16 (33) 6-13/32 (163) 3-13/32 (87) 11/32 (9) 1-45/64 (43)
1-1/4 (DN32) 4-7/8 (124) 1-1/32 (26) 1-23/32 (44) 6-13/32 (163) 3-15/16 (100) 11/32 (9) 1-31/32 (50)
1-1/2 (DN40) 5-1/32 (128) 1-1/8 (29) 1-7/8 (48) 6-13/32 (163) 4-21/64 (110) 11/32 (9) 2-11/64 (55)
2 (DN50) 5-1/4 (133) 1-15/32 (37) 2-1/16 (53) 6-13/32 (163) 4-27/32 (123) 11/32 (9) 2-27/64 (62)
50
VG1845 Series Ball Valve with a M9300-2 Switch Kit
See Table 48 for specific model linkage dimensions.
Port Marking
Locations
B
C
FIG:Thermal Barrier
D
Valve with M9300-2 Switch Kit Dimensions, in. (mm)
Table 48: VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with M9000-2 Switch
Kit Dimensions, in. (mm)
Valve Size, in. A B C D E F G
(DN)
1/2 (DN15) 4-3/4 (120.7) 21/32 (17) 1-7/32 (31) 6-21/32 (169) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 4-3/4 (120.7) 21/32 (17) 1-7/32 (31) 6-21/32 (169) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1 (DN25) 4-21/25 (122.7) 3/4 (19) 1-5/16 (33) 6-21/32 (169) 3-13/32 (87) 11/32 (9) 1-45/64 (43)
1-1/4 (DN32) 5-1/4 (133.7) 1-1/32 (26) 1-23/32 (44) 6-21/32 (169) 3-15/16 (100) 11/32 (9) 1-31/32 (50)
1-1/2 (DN40) 5-3/7 (137.7) 1-1/8 (29) 1-7/8 (48) 6-21/32 (169) 4-21/64 (110) 11/32 (9) 2-11/64 (55)
2 (DN50) 5-5/8 (142.7) 1-15/32 (37) 2-1/16 (53) 6-21/32 (169) 4-27/32 (123) 11/32 (9) 2-27/64 (62)
51
VG1845 Series Ball Valve with Optional M9000-561
Thermal Barrier. See Table 49 for specific model
linkage dimensions.
Port Marking
Locations
B
C
FIG:Thermal Barrier
Valve with Optional M9000-561 Thermal Barrier Dimensions, in. (mm)
Table 49: VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with Optional
M9000-561 Thermal Barrier Dimensions, in. (mm)
in. (DN)
1/2 (DN15) 5-3/4 (146) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 5-3/4 (146) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1 (DN25) 5-13/16 (148) 3/4 (19) 1-5/16 (33) 6-13/32 (163) 3-13/32 (87) 11/32 (9) 1-45/64 (43)
1-1/4 (DN32) 6-1/4 (159) 1-1/32 (26) 1-23/32 (44) 6-13/32 (163) 3-15/16 (100) 11/32 (9) 1-31/32 (50)
1-1/2 (DN40) 6-13/32 (163) 1-1/8 (29) 1-7/8 (48) 6-13/32 (163) 4-21/64 (110) 11/32 (9) 2-11/64 (55)
2 (DN50) 6-5/8 (168) 1-15/32 (37) 2-1/16 (53) 6-13/32 (163) 4-27/32 (123) 11/32 (9) 2-27/64 (62)
52
VG1845 Series Ball Valve with Optional M9000-561
Thermal Barrier and M9300-2 Switch Kit. See Table 50
for specific model linkage dimensions.
3-1/2 in. (89 mm)
Optional Optional
Thermal Port Marking
Thermal Locations
Barrier Barrier
B
C
FIG:Thermal Barrier
D
Valve with Optional M9000-551 Thermal Barrier and M9000-2 Switch Kit Dimensions, in. (mm)
M9000-561 Thermal Barrier and M9300-2 Switch Kit Dimensions, in. (mm)
in. (DN)
1/2 (DN15) 6-3/25 (155.7) 21/32 (17) 1-7/32 (31) 6-21/32 (169) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 6-3/25 (155.7) 21/32 (17) 1-7/32 (31) 6-21/32 (169) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1 (DN25) 6-1/5 (157.7) 3/4 (19) 1-5/16 (33) 6-21/32 (169) 3-13/32 (87) 11/32 (9) 1-45/64 (43)
1-1/4 (DN32) 6-16/25 (168.7) 1-1/32 (26) 1-23/32 (44) 6-21/32 (169) 3-15/16 (100) 11/32 (9) 1-31/32 (50)
1-1/2 (DN40) 6-4/5 (172.7) 1-1/8 (29) 1-7/8 (48) 6-21/32 (169) 4-21/64 (110) 11/32 (9) 2-11/64 (55)
2 (DN50) 6 (177.2) 1-15/32 (37) 2-1/16 (53) 6-21/32 (169) 4-27/32 (123) 11/32 (9) 2-27/64 (62)
53
VG1845 Series NPT End Connection Ball Valves.
See Table 51 for specific model linkage dimensions.
Figure 16: Spring Return VA9208 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve
Dimensions, in. (mm)
Table 51: VA9208 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve Dimensions, in. (mm)
Valve Size Valve A B C D E F G
in. (DN) Style1
1-1/4 All 7-11/16 1-1/32 1-23/32 7-5/32 (182) 3-15/16 (100) 11/32 (9) 1-31/32 (50)
(DN32) (195) (26) (44)
1-1/2 All 7-7/8 1-9/64 1-57/64 7-3/8 (187) 4-21/64 (110) 11/32 (9) 2-11/64 (55)
(DN40) (200) (29) (48)
2 (DN50) 2-way 8-1/32 1-15/32 2-1/8 (54) 7-19/32 (193) 4-27/32 (123) 11/32 (9) 2-27/64 (62)
(204) (37)
3-way 7-7/8 (200)
54
VG1845 Series NPT End Connection Ball Valves with
M9000-561 Thermal Barrier. See Table 52 for specific
3-1/2 (89)
3-29/32 Clearance Required
(99)
A
F
Port Marking
Locations
C C
E G B
D
Figure 17: Spring Return VA9208 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with
Optional M9000-561 Thermal Barrier Installed Dimensions, in. (mm)
M9000-561 Thermal Barrier Installed Dimensions, in. (mm)
Valve Valve A B C D E F G
Size in. Style
(DN)1
1-1/4 All 9-17/64 (235) 1-1/32 (26) 1-23/32 (44) 7-1/4 (184) 3-15/16 (100) 11/32 1-31/32 (50)
(DN32) (9)
1-1/2 All 9-15/16 (240) 1-9/64 (29) 1-57/64 (48) 7-7/16 (189) 4-21/64 (110) 11/32 2-11/64 (55)
(DN40) (9)
2 (DN50) 2-way 9-31/32 (244) 1-15/32 (37) 2-1/8 (54) 7-11/16 (195) 4-27/32 (123) 11/32 N/A
(9)
3-way 7-7/8 (200) 2-27/64 (62)
55
Technical Specifications
VG1000 Series Forged Brass Ball Valves for Assembly in the Field
Service1 Hot Water, Chilled Water, 50/50 Glycol Solutions, and
15 psig (103 kPa) Saturated Steam2 for HVAC Systems
Fluid Temperature Limits Water VG12x1 and VG18x1 Series: 23 to 203°F (-5 to 95°C)
VG12x5 and VG18x5 Series: -22 to 284°F (-30 to 140°C)
2 VG12x1 and VG18x1 Series: Not Rated for Steam Service
Steam
VG12x5 and VG18x5 Series: 15 psig (103 kPa) at 250°F (121°C)
Maximum Actuator Fluid 212°F (100°C) VA9104, VA9300, VA9203, VA9208
Temperature Limits 284°F (140°C) VA9104, VA9300, VA9203, VA9208 with M9000-561 Thermal Barrier
Valve Body Pressure Rating Water VG1241, VG1245, VG1841, and VG1845 Series: 580 psig (4,000 kPa) (PN40), 464
psig (3,196 kPa) at 284°F (140°C) (PN40)
VG1275 and VG1875 Series: 300 psig (2,067 kPa)
VG1295 and VG1895 Series: 300 psig (2,067 kPa)
2 15 psig (103 kPa) Saturated Steam
Steam
Maximum Closeoff Pressure VG12x1 and 200 psid (1,378 kPa)
VG12x5 Series:
Maximum Recommended Operating Pressure Drop 50 psid (340 kPa)
Flow Characteristics Two-Way Equal Percentage
Three-Way Equal Percentage Flow Characteristics of In-Line Port (Coil) and
Linear Flow Characteristics of Angle Port (Bypass)
Rangeability3 Greater than 500:1
Minimum Ambient Operating -4°F (-20°C) VA9104 Series Non-Spring Return Actuators
Temperature -22°F (-30°C) VA9203 and VA9300 Series Spring Return Actuators
-40°F (-40°C) VA9208 Series Spring Return Actuators
Maximum Ambient 140°F (60°C) VA9104 and VA9300 Series Non-Spring Return Actuators
Operating Temperature2 VA9203 and VA9208 Series Spring Return Actuators
(Limited by the Actuator and
Linkage)
Leakage 0.01% of Maximum Flow per ANSI/FCI 70-2, Class 4
1% of Maximum Flow for Three-Way Bypass Port
End Connections NPT: 1/2 through 2 in.
Sweat: 1/2 through 1 in. (DN15 through DN25)
Press (ProPress® Compatible): 1/2 through 1 in. (DN15 through DN25)
Materials Body Forged Brass
Ball VG12x1 and VG18x1 Series: Chrome Plated Brass
VG12x5 and VG18x5 Series: 300 Series Stainless Steel
Blowout-Proof VG12x1 and VG18x1 Series: Nickel Plated Brass
Stem VG12x5 and VG18x5 Series: 300 Series Stainless Steel
Seats Graphite-Reinforced PTFE with EPDM O-Ring Backing
Stem Seals EPDM Double O-Rings
Characterizing AMODEL® AS-1145HS Polyphthalamide Resin
Disk
Compliance CRN For NPT threaded valves with Stainless Steel Ball (VG1x45...): 0C16910.5C
1. Refer to the VDI 2035 Guideline for recommended proper water treatment.
2. In steam applications, install the valve with the stem horizontal to the piping and wrap the valve and piping with insulation.
3. Rangeability is defined as the ratio of maximum controllable flow to minimum controllable flow.
The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these
specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or
misuse of its products.
56
European Single Point of Contact: NA/SA Single Point of Contact: APAC Single Point of Contact:
JOHNSON CONTROLS JOHNSON CONTROLS JOHNSON CONTROLS
WESTENDHOF 3 507 E MICHIGAN ST C/O CONTROLS PRODUCT MANAGEMENT
45143 ESSEN MILWAUKEE WI 53202 NO. 22 BLOCK D NEW DISTRICT
GERMANY USA WUXI JIANGSU PROVINCE 214142
CHINA
www.johnsoncontrols.com
Metasys® and Johnson Controls® are registered trademarks of Johnson Controls.

All other marks herein are the marks of their respective owners. © 2018 Johnson Controls.
57

VG1000

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

VG1000

Uploaded by

Copyright:

Available Formats

VG1000 Series Forged Brass Ball Valves

VG1000 Series Ball Valves are designed to regulate

WARNING: BRASS MAY

This product is made of copper alloy, which contains lead.

Table 1: Features and Benefits (Part 1 of 2)

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

4 End Connection 4 = Threaded - NPT Taper

VG1000 Series Forged Brass Ball Valves Product Bulletin

Table 3: Ordering Data – Adding a Factory-Mounted Electric Actuator1

1 0 Actuator Series3. 10 = VA9310-HGA-2 Non-Spring Return

G Supply A = AC 120 V (VA9208-BAx Only)

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1245AD 1/2 1.22 200 VG1245AD+9T4AGA VG1245AD+9T4IGA VG1245AD+9T4GGA

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin

VG1000 Series Forged Brass Ball Valves Product Bulletin

1. Valve has a characterizing disk.

VG1000 Series Forged Brass Ball Valves Product Bulletin
