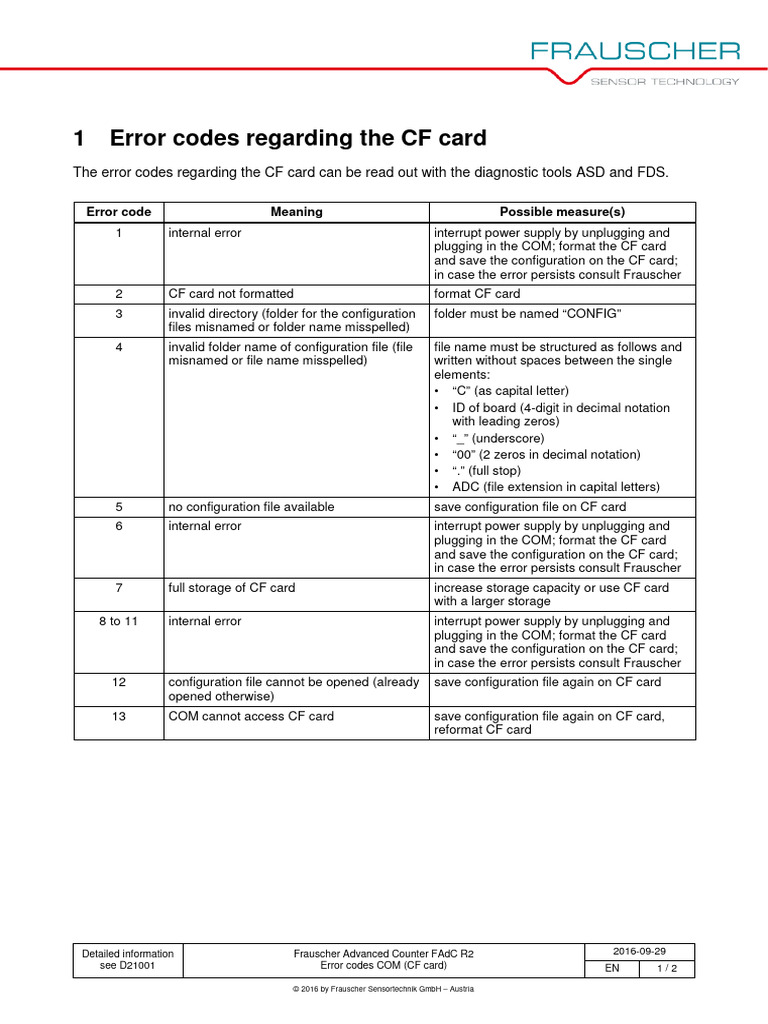

The error codes regarding the CF card can be read out with the diagnostic tools ASD and FDS.
Error code Meaning Possible measure(s)
1 internal error interrupt power supply by unplugging and plugging in the COM; format the CF card and save the configuration on the CF card; in case the error persists consult Frauscher 2 CF card not formatted format CF card 3 invalid directory (folder for the configuration folder must be named “CONFIG” files misnamed or folder name misspelled) 4 invalid folder name of configuration file (file file name must be structured as follows and misnamed or file name misspelled) written without spaces between the single elements: • “C” (as capital letter) • ID of board (4-digit in decimal notation with leading zeros) • “_” (underscore) • “00” (2 zeros in decimal notation) • “.” (full stop) • ADC (file extension in capital letters) 5 no configuration file available save configuration file on CF card 6 internal error interrupt power supply by unplugging and plugging in the COM; format the CF card and save the configuration on the CF card; in case the error persists consult Frauscher 7 full storage of CF card increase storage capacity or use CF card with a larger storage 8 to 11 internal error interrupt power supply by unplugging and plugging in the COM; format the CF card and save the configuration on the CF card; in case the error persists consult Frauscher 12 configuration file cannot be opened (already save configuration file again on CF card opened otherwise) 13 COM cannot access CF card save configuration file again on CF card, reformat CF card
Detailed information Frauscher Advanced Counter FAdC R2 2016-09-29
Error code Meaning Possible measure(s) 14 to 15 internal error interrupt power supply by unplugging and plugging in the COM; format the CF card and save the configuration on the CF card; in case the error persists consult Frauscher 16 CF card was removed insert CF card in COM 17 CF card defective replace defective CF card with new one 18 CF card defective replace defective CF card with new one 19 file system damaged reformat CF card 20 CF card defective replace defective CF card with new one 21 not supported CF card use CF cards recommended by Frauscher 22 to 23 internal error interrupt power supply by unplugging and plugging in the COM; format the CF card and save the configuration on the CF card; in case the error persists consult Frauscher 24 file system not supported (CF card formatted format CF card with FAT16 or FAT32 with FAT12 or NTFS) 25 to 26 internal error interrupt power supply by unplugging and plugging in the COM; format the CF card and save the configuration on the CF card; in case the error persists consult Frauscher 27 CF card formatted incorrect format CF card with FAT16 or FAT32 28 internal error interrupt power supply by unplugging and plugging in the COM; format the CF card and save the configuration on the CF card; in case the error persists consult Frauscher 29 configuration file cannot be opened save configuration file again on CF card
Table 1.1: Error codes regarding the CF card
