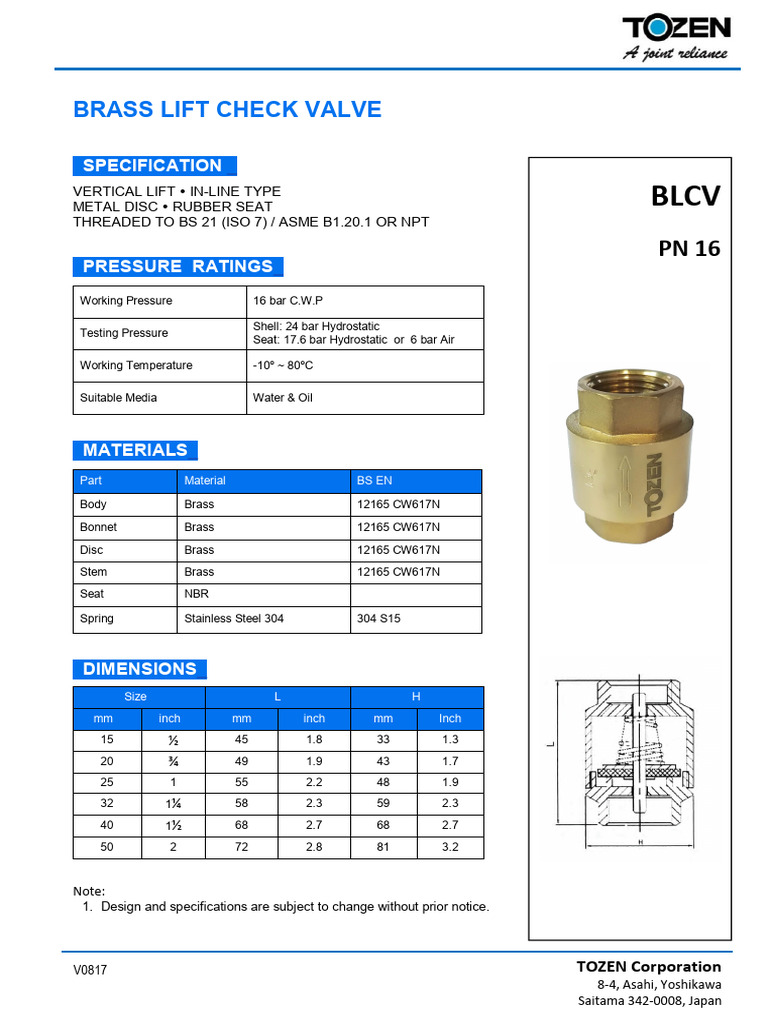

SPECIFICATION _
VERTICAL LIFT IN-LINE TYPE
METAL DISC RUBBER SEAT BLCV
THREADED TO BS 21 (ISO 7) / ASME B1.20.1 OR NPT
PN 16
PRESSURE RATINGS_
Working Pressure 16 bar C.W.P
MATERIALS_
Part Material BS EN
DIMENSIONS_
Size L H
mm inch mm inch mm Inch
15 ½ 45 1.8 33 1.3
20 ¾ 49 1.9 43 1.7
25 1 55 2.2 48 1.9
32 1¼ 58 2.3 59 2.3
40 1½ 68 2.7 68 2.7
50 2 72 2.8 81 3.2
Note:
1. Design and specifications are subject to change without prior notice.
