Engine, sensor locations

Showing Selected Profile

Valid for option/configuration

Model Option no. Option Configuration
A40G Volvo 11371158 Engine D16J US Tier 4 Final
A40G Volvo 11371220 Engine D16J EU Stage IV

Valid for serial numbers

Model Production site Serial number start Serial number stop
A40G Volvo Braås 340001 341999

Control unit sensors

This describes the sensors found on the engine.

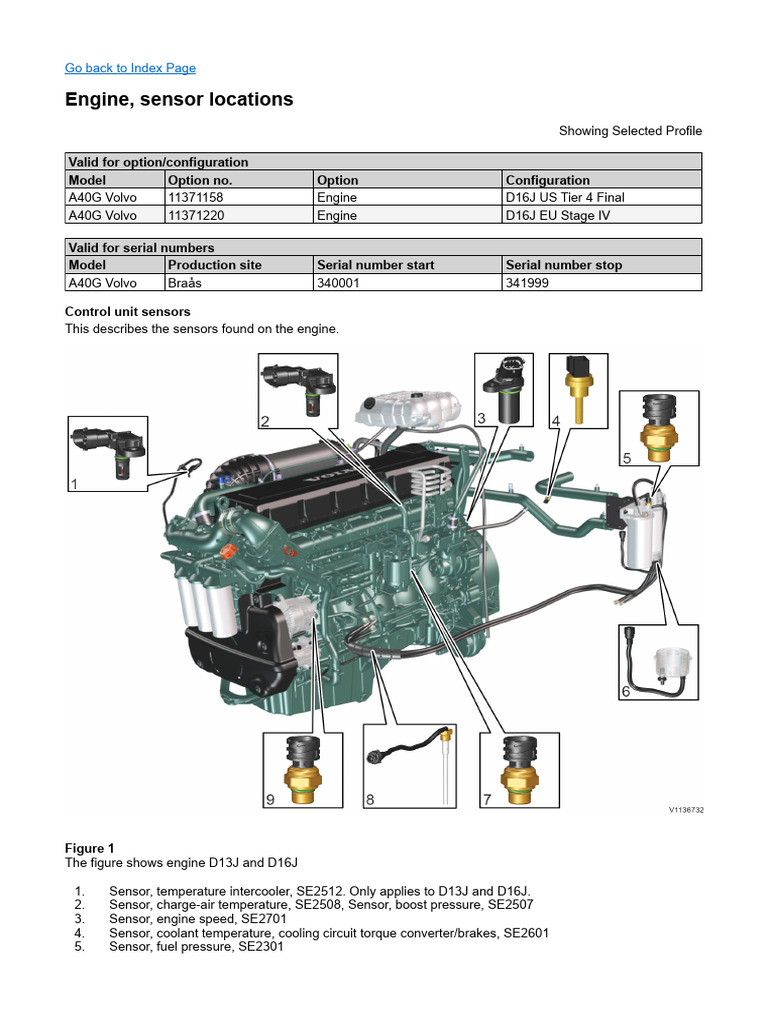

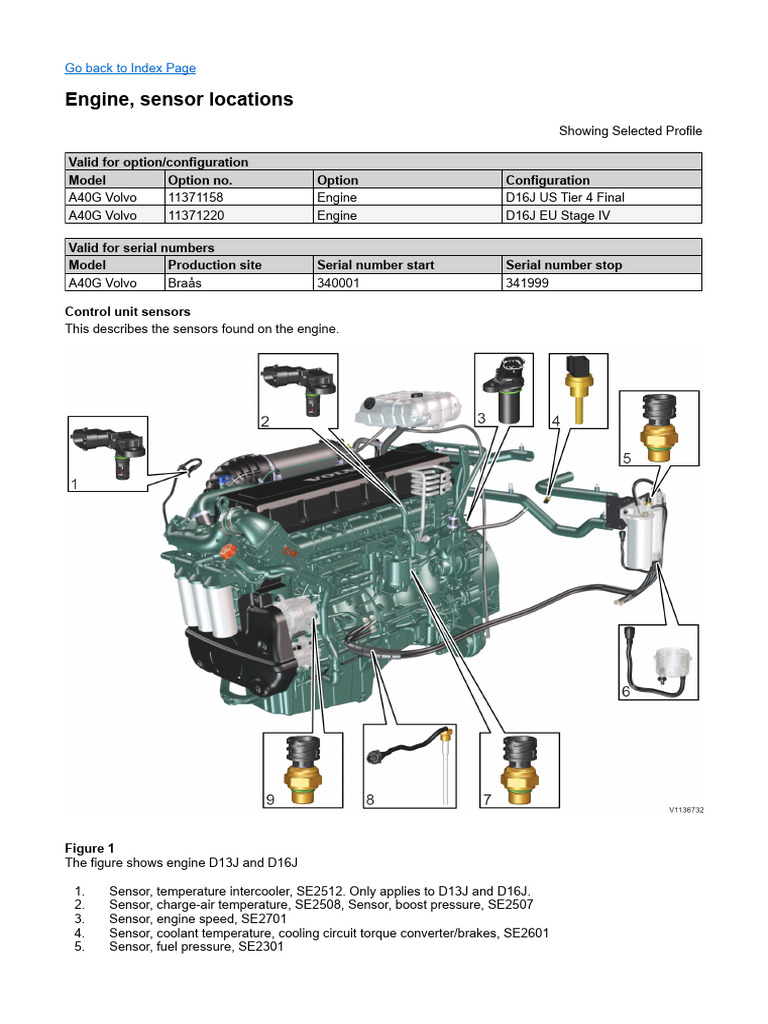

Figure 1
The figure shows engine D13J and D16J

1. Sensor, temperature intercooler, SE2512. Only applies to D13J and D16J.

2. Sensor, charge-air temperature, SE2508, Sensor, boost pressure, SE2507
3. Sensor, engine speed, SE2701
4. Sensor, coolant temperature, cooling circuit torque converter/brakes, SE2601
5. Sensor, fuel pressure, SE2301
 6. Monitor, water in fuel, SE2302
7. Sensor, engine oil pressure, SE2203
8. Sensor, engine oil level, SE2205 Sensor, engine oil temperature, SE2202
9. Sensor, crankcase pressure, SE2509

Figure 2
The figure shows engine D13J and D16J

1. Sensor, ambient temperature, SE2501, Monitor, air filter, pressure, SE2502

2. Monitor, coolant level, SE2603
3. Sensor, exhaust recirculation, pressure (EGR), SE2515. Only applies to D13J and D16J.
4. Sensor, exhaust recirculation, temperature (EGR), SE2516. Only applies to D13J and D16J.
5. Sensor, coolant temperature, cooling circuit engine, SE2602
6. Sensor, coolant temperature, engine, SE2606
7. Sensor, turbo speed, SE2514. Only applies to D13J and D16J.
8. Sensor, camshaft speed, SE2703
9. Sensor, exhaust back-pressure, SE2511. Only applies to D13E, D13F, D16E and D16F.

For other sensors belonging to the exhaust aftertreatment system, see Exhaust aftertreatment system,
component locations.
