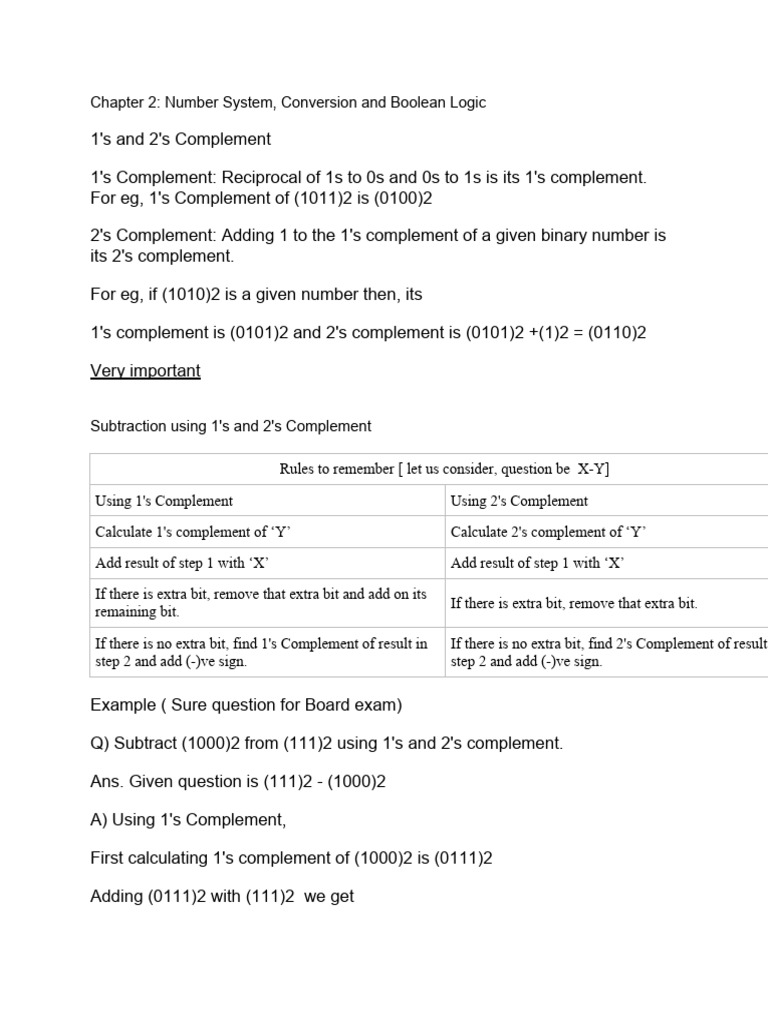

Chapter 2: Number System, Conversion and Boolean Logic

1's and 2's Complement

1's Complement: Reciprocal of 1s to 0s and 0s to 1s is its 1's complement.

For eg, 1's Complement of (1011)2 is (0100)2

2's Complement: Adding 1 to the 1's complement of a given binary number is

its 2's complement.

For eg, if (1010)2 is a given number then, its

1's complement is (0101)2 and 2's complement is (0101)2 +(1)2 = (0110)2

Very important

Subtraction using 1's and 2's Complement

Rules to remember [ let us consider, question be X-Y]

Using 1's Complement Using 2's Complement

Calculate 1's complement of ‘Y’ Calculate 2's complement of ‘Y’

Add result of step 1 with ‘X’ Add result of step 1 with ‘X’

If there is extra bit, remove that extra bit and add on its
If there is extra bit, remove that extra bit.
remaining bit.

If there is no extra bit, find 1's Complement of result in If there is no extra bit, find 2's Complement of result
step 2 and add (-)ve sign. step 2 and add (-)ve sign.

Example ( Sure question for Board exam)

Q) Subtract (1000)2 from (111)2 using 1's and 2's complement.

Ans. Given question is (111)2 - (1000)2

A) Using 1's Complement,

First calculating 1's complement of (1000)2 is (0111)2

Adding (0111)2 with (111)2 we get

(0111)2 + (0111)2 = (1110)2

Since, there is no extra bit i.e. 4 digits added with 4 digits and gives 4 digits
result

Calculating 1's complement of (1110)2 we get (0001)2 and putting (-)ve sign

Hence, result is -(0001)2

B) Using 2's Complement,

First calculating 2's complement of (1000)2 is (0111)2 + (1)2 = (1000)2

Adding (1000)2 with (111)2 we get

(1000)2 + (0111)2 = (1111)2

Since, there is no extra bit i.e. 4 digits added with 4 digits and gives 4 digits
result

Calculating 2's complement of (1111)2 we get (0000)2 + (1)2 = (0001)2 and

putting (-)ve sign

Hence, result is -(0001)2

Q) Subtract (11001)2 from (11101)2 using 1's and 2's complement.

Ans. Given question is (11101)2 - (11001)2

A) Using 1's Complement,

First calculating 1's complement of (11001)2 is (00110)2

Adding (00110)2 with (11101)2 we get

(00110)2 + (11101)2 = (100011)2

Since, there is extra bit i.e. 5 digits added with 5 digits and gives 6 digits
result

Removing that extra bit and adding on it

(00011)2 + (1)2 = (00100)2

Hence, result is (00100)2

B) Using 2's Complement,

First calculating 2's complement of (11001)2 is (00110)2 + (1)2 = (00111)2

Adding (00111)2 with (11101)2 we get

(00111)2 + (11101)2 = (100100)2

Since, there is extra bit i.e. 5 digits added with 5 digits and gives 6 digits
result

Removing that extra bit, we get (00100)2

Hence, result is (00100)2

Click here for more solved examples.

Introduction: Boolean Logic

Boolean Algebra is algebra of logic, which deals with the study of binary
variables and logical operation. As every data are represented in terms binary
values, we need to manipulate those values by using some certain rules and
expression which we can do through Boolean algebra. It is most common and
basic method to analysis and design logic circuit. It was introduced by an
English mathematician George Boole. In Boolean algebra the variables can
have only one of the two possible value 0 and1 (False or True). Every modern
digital computers understand either this two values.

Boolean algebra: It is algebra of logic which could accept either of the

possible two values 0 and 1 and generate a result through logical relationship
and operation.

Boolean variable: Those entities which has either or 0 and 1 and denote some
specific operation ore known as boolean variable. Simply, it is an entity in
Boolean algebra which has only either of the two possible values. This
variable are denoted by A, B, P, Q, X, Y, Z….

Boolean function (logic functions): Boolean function is an expression formed

by binary variables, binary operators such as AND, OR, NOT, parentheses,
and equal sign for a given set of value this boolean function gives the 0 or 1
as a result.

let us consider,

F = XYZ’+XY

Where, F is a boolean function

X, Y, Z are a boolean variable.

X, Y, Z, Z’ are also literals.

Truth Table: A table which represents the input-output relationship between

of the binary variables for each logical gate called truth table. It shows the
relationship between input and output in tabular form. Thus, truth table is table
representing the results the logical operation of the logical operation on all
possible combination of logical values.

Boolean Operator and Operands

Operators are the symbols that define the specific operation. These are three
basic operators used in Boolean Algebra, ie. AND, OR, NOT. Every other
operations can be expressed in terms of this basic operation. For examples,
NOR operator is the combination of NOT and OR operators. The three basic
operators are:

a. AND Operators: AND operator is represented by “.” So, A AND B is

represented by (A.B) . The result of the AND operation is exactly same as
simple arithmetic multiplication. That means result will be high (1) only when
both the inputs are high. Note: A AND B can also represented bu AˆB or AnB.
Truth table of AND operation is given below

A B Y = A.B

0 0 0

0 1 0

1 0 0

1 1 1
b. OR Operator: OR operator is represented by “+” So, A OR B is represented
by (A+B) . The result of the OR operation is exactly same as simple
arithmetic addition. That means result will be low (0) if and only both the
inputs are low. Note: A OR B can also represented bu AvB or AuB. Truth
table of AND operation is given below

A B Y = A+B

0 0 0

0 1 1

1 0 1

1 1 1

c. NOT Operator: NOT operator is represented by “-” or “ ’ ” So, NOT

operation of an operands A is represented as A’ . NOT operation performs
negation. That means it will give high output (1) for low input (0) and vice-
versa. Truth table of NOT operation is given below

A A'

0 1

1 0

Logic Gate

A logic Gate is an electronic circuit that operates on one or more inputs to

produce an output. Logic Gate are used for binary operations which are very
fundamental components for modern digital computer. Logic gates are
embedded unit an Integrated Circuit (IC). Each gate has its specific function
and graphical symbol. In digital computer there are three basic logic
gates. Click here for gate symbol and Venn diagram.

a. AND gate: AND Gate is an electronic Circuit which produce high output
(1) only when both the inputs are high. The output is same as the result
of basic arithmetic multiplication. This gate may have more than two
inputs and produce a single output. Graphically AND gate is
represented as
AND gate is denoted by “ . ” So, output is expressed algebraically as, Y = A.B

Truth table for AND gate is

A B Y = A.B

0 0 0

0 1 0

1 0 0

1 1 1

b. OR Gate: OR Gate is an electronic circuit which produce low output (0),

when all the inputs are low (0) and produce high (1) output for every possible
combination of 0 and 1. The output is same as basic binary addition. The gate
may have two or more than two inputs and produce single result.

Graphically OR gate is represented as

Algebraically output of OR Gate is represented as: Y = A+B

Truth table of OR Gate is

A B Y = A+B

0 0 0

0 1 1

1 0 1

1 1 1

b. NOT Gate: NOT Gate is another fundamental gate whose result is

complement of its input. It is also called inverter. It produces low-0 logic
for high-1 input and vice-versa. This Gate has single input and single
output. Graphically NOT gate is represented as:
Algebraically output of NOT Gate is represented as: Y = A’ for input A

Truth table of NOT gate is:

A A'

0 1

1 0

d. NAND Gate: NAND gate is a derived gate, derived from NOT and AND
gate. This gate reciprocal the output obtain from the AND gate. That means it
will produce low-0 output when both the inputs are high-1 and produce high-1
output when any one of the input is low-0. These gate also may have two or
more than two and a single output.

Graphically NAND gate is represented as:

Algebraically output of NAND Gate is represented as: Y = (A.B)’

Truth table of NAND Gate is:

A B A.B y=(A.B)'

0 0 0 1

0 1 0 1

1 0 0 1

1 1 1 0

e. NOR gate: NOR gate is a derived gate derived from the combination of OR
gate and NOT gate. This gate reciprocal the output obtain from the OR gate.
That means NOR gate will produce high-1 logic when both the inputs are low-
0 and produce low output-0 in all possible combination of 0 and 1. These gate
also may have two or more than two input at a single output.

Graphically NOR gate is represented as

Algebraically output of NOR gate is represented as: Y: (A+B)’

Truth Table of NOR gate is

A B A+B Y = (A+B)'

0 0 0 1

0 1 1 0
1 0 1 0

1 1 1 0

f. Exclusive OR (X-OR): It is the type of digital electronic circuit will generates

low-0 output when both the inputs are either low-0 or high-1. It will give high-1
output only when one of the given input is high. These gate also may have
two or more the two input.

Graphically X-OR gate is represented as

Algebraically output of X-OR gate is represented as: Y: A’.B + A.B’

Truth Table of X-OR gate is

A B A' B' A'.B A.B' A'.B+A.B'

0 0 1 1 0 0 0
0 1 1 0 1 0 1

1 0 0 1 0 1 1

1 1 0 0 0 0 0

g. Exclusive NOR (X-NOR): It is the type of digital electronic circuit will

generates high-1 output when both the inputs are either low-0 or high-1. It will
give low-0 output only when one of the given input is high-1. These gate also
may have two or more the two input.

Graphically X-NOR gate is represented as

Algebraically output of X-NOR gate is represented as: Y: A.B + A’.B’

Truth Table of X-NOR gate is

A B A' B' A.B A'.B' A.B+A'.B'

0 0 1 1 0 1 1

0 1 1 0 0 0 0

1 0 0 1 0 0 0

1 1 0 0 1 0 1

De-Morgan's Theorem

First Theorem: The De-Morgan's first theorem states that, “The complement of
a sum equals to the product of its complement.”

It is represented as: (A+B)' = A'.B''

Graphical symbol

Proof:

A B (A+B) (A+B)' A' B' A'.B'

0 0 0 1 1 1 1

0 1 1 0 1 0 0

1 0 1 0 0 1 0

1 1 1 0 0 0 0

Second Theorem: The De-Morgan's second theorem states that, “The

complement of a product equals to the sum of its complement.”

It is represented as: (A.B)' = A'+B''

Graphical symbol

Proof:

A B (A.B) (A.B)' A' B' A'+B'

0 0 0 1 1 1 1
0 1 0 1 1 0 1

1 0 0 1 0 1 1

1 1 1 0 0 0 0
