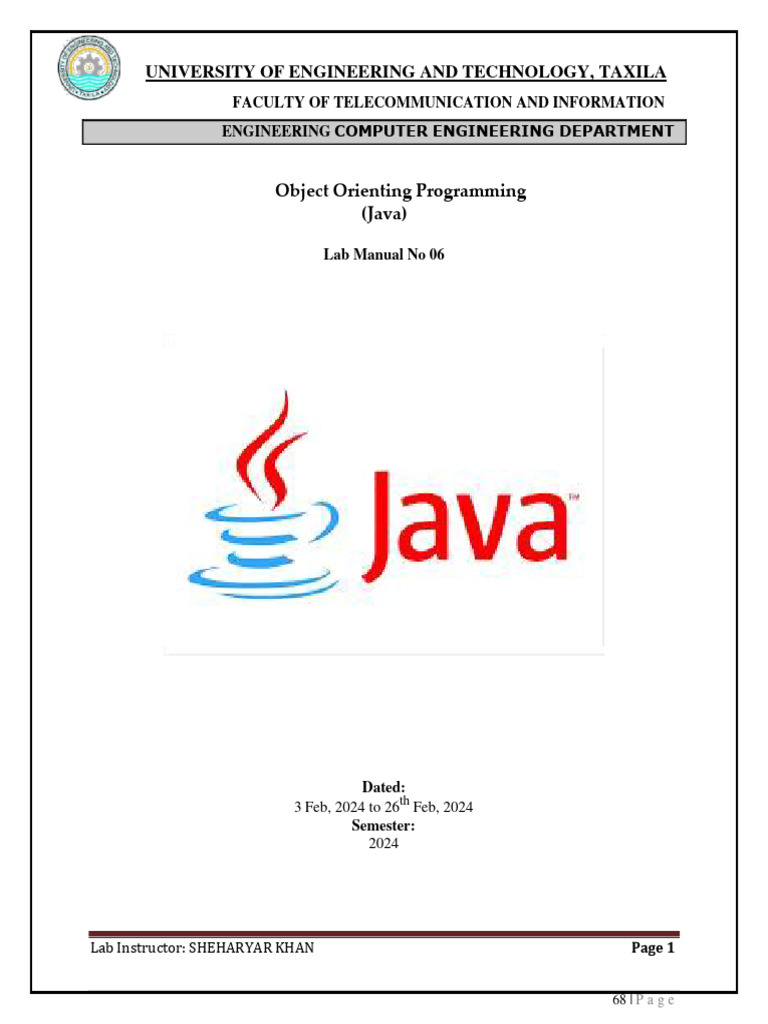

Lab Manual 06

UNIVERSITY OF ENGINEERING AND TECHNOLOGY, TAXILA
FACULTY OF TELECOMMUNICATION AND INFORMATION

ENGINEERING COMPUTER ENGINEERING DEPARTMENT
Object Orienting Programming

(Java)
Lab Manual No 06
Dated:
3 Feb, 2024 to 26th Feb, 2024
Semester:
2024
Lab Instructor: SHEHARYAR KHAN Page 1
68 | P a g e
Introduction to Swing:
Swing API is a set of extensible GUI Components to ease the developer's life to create JAVA based Front End/GUI
Applications. It is built on top of AWT API and acts as a replacement of AWT API, since it has almost every control
corresponding to AWT controls. Swing component follows a Model-View-Controller architecture to fulfill the following
criteria’s.
• A single API is to be sufficient to support multiple look and feel.
• API is to be model driven so that the highest level API is not required to have data.
• API is to use the Java Bean model so that Builder Tools and IDE can provide better services to the
developers for use.
Swing Features:
• Light Weight − Swing components are independent of native Operating System's API as Swing API
controls are rendered mostly using pure JAVA code instead of underlying operating system calls.
• Rich Controls − Swing provides a rich set of advanced controls like Tree, TabbedPane, slider, colorpicker,
and table controls.
• Highly Customizable − Swing controls can be customized in a very easy way as visual apperance is
independent of internal representation.
• Pluggable look-and-feel − SWING based GUI Application look and feel can be changed at run-time, based
on available values
69 | P a g e
SWING – Controls:
Every user interface considers the following three main aspects −
• UI Elements − These are the core visual elements the user eventually sees and interacts with.
GWT(Google Web Toolkit) provides a huge list of widely used and common elements varying from basic to
complex, which we will cover in this Lab Manual.
• Layouts − They define how UI elements should be organized on the screen and provide a final look and
feel to the GUI (Graphical User Interface). This part will be covered in the Layout Lab Manual.
• Behavior − These are the events which occur when the user interacts with UI elements. This part will be
covered in the Event Handling Lab Manual.
Every SWING controls inherits properties from the following Component class hierarchy.
70 | P a g e
S.No. Class & Description
Component
1 A Component is the abstract base class for the non menu user-interface controls of SWING.
Component represents an object with graphical representation
Container
2 A Container is a component that can contain other SWING components
JComponent
A JComponent is a base class for all SWING UI components. In order to use a SWING
3 component that inherits from JComponent, the component must be in a containment hierarchy
whose root is a top-level SWING container
SWING UI Elements:
Following is the list of commonly used controls while designing GUI using SWING.
S.No. Class & Description
JLabel
1
A JLabel object is a component for placing text in a container.
JButton
2 This class creates a labeled button.
JColorChooser
3 A JColorChooser provides a pane of controls designed to allow a user to manipulate and select a
color.
71 | P a g e
JCheck Box
4 A JCheckBox is a graphical component that can be in either an on(true) or off (false) state.
JRadioButton
The JRadioButton class is a graphical component that can be in either an on (true) or off (false)
5
state. in a group.
JList
6 A JList component presents the user with a scrolling list of text items.
JComboBox
7 A JComboBox component presents the user with a to show up menu of choices.
JTextField
8 A JTextField object is a text component that allows for the editing of a single line of text.
JPasswordField
9 A JPasswordField object is a text component specialized for password entry.
JTextArea
10 A JTextArea object is a text component that allows editing of a multiple lines of text.
ImageIcon
11 A ImageIcon control is an implementation of the Icon interface that paints Icons from Images
JScrollbar
A Scrollbar control represents a scroll bar component in order to enable the user to select from
12
range of values.
JOptionPane
13
JOptionPane provides set of standard dialog boxes that prompt users for a value or informs them
72 | P a g e
of something.
JFileChooser
14 A JFileChooser control represents a dialog window from which the user can select a file.
JProgressBar
As the task progresses towards completion, the progress bar displays the task's percentage of
15
completion.
JSlider
16 A JSlider lets the user graphically select a value by sliding a knob within a bounded interval.
JSpinner
A JSpinner is a single line input field that lets the user select a number or an object value from an
17
ordered sequence.
Using Top-Level Containers:
Swing provides three generally useful top-level container classes: JFrame, JDialog, and JApplet. When using these
classes, you should keep these facts in mind:
• To appear onscreen, every GUI component must be part of a containment hierarchy. A containment
hierarchy is a tree of components that has a top-level container as its root. We'll show you one in a bit.
• Each GUI component can be contained only once. If a component is already in a container and you try to
add it to another container, the component will be removed from the first container and then added to the
second.
• Each top-level container has a content pane that, generally speaking, contains (directly or indirectly)
the visible components in that top-level container's GUI.
• You can optionally add a menu bar to a top-level container. The menu bar is by convention positioned within
the top-level container, but outside the content pane. Some look and feels, such as the Mac OS look and
feel, give you the option of placing the menu bar in another place more appropriate for the look and feel,
such as at the top of the screen.
73 | P a g e
JFRAME Example No 1:
import javax.swing.*;
public class JFRAMEEXAMPLE {
public static void main(String[] args) {

// TODO Auto-generated method stub
JFrame f=new JFrame("Title of Window");
f.setSize(400,400); // Size of window

f.setLayout(null);
f.setVisible(true);
}
74 | P a g e
JButton Example No 02:
public class JavaButtonExample {

JFrame f=new JFrame("Button Example");
JButton b=new JButton("Click Here");
b.setBounds(50,100,90,100); // x axis ,y axis width height of Button
f.add(b); // adding Button to Jframe
f.setSize(400,400); // Window width and Height
f.setLayout(null);
f.setVisible(true);
}
JLabel Example No 03:
public class JLabelExample {

JFrame f= new JFrame("Label Example");
JLabel l1,l2;
l1=new JLabel("First Label.");
l1.setBounds(50,50, 100,30);
l2=new JLabel("Second Label.");
l2.setBounds(50,100, 100,30);
f.add(l1); f.add(l2);
f.setSize(300,300);
f.setLayout(null);
f.setVisible(true);
}
75 | P a g e
JTextField Example No 04:
public class JTextFieldExample {

JFrame f= new JFrame("TextField Example");
JTextField t1,t2;
t1=new JTextField("Welcome to Java Course.");
t1.setBounds(50,100, 200,30);
t2=new JTextField("Swing Lab Manual");
t2.setBounds(50,150, 200,30);
f.add(t1); f.add(t2);
f.setSize(400,400);
f.setLayout(null);
f.setVisible(true);
}
JTextArea Example No 05:
public class JTextAreaExample {

JFrame f= new JFrame();
JTextArea area=new JTextArea("Welcome to Text Area
Example"); area.setBounds(10,30, 200,200); f.add(area);
f.setSize(300,300);
f.setLayout(null);
f.setVisible(true);
}
76 | P a g e
JPasswordField Example No 06:
public class PasswordFieldExample {
JFrame f=new JFrame("Password Field Example");
JPasswordField value = new JPasswordField();
JLabel l1=new JLabel("Password:");
l1.setBounds(20,100, 80,30);
value.setBounds(100,100,100,30);
f.add(value); f.add(l1);
f.setSize(300,300);
f.setLayout(null);
f.setVisible(true); }
}
JCheckBox Example No 07:
public class CheckBoxExample {

JFrame f= new JFrame("CheckBox Example");
JCheckBox checkBox1 = new JCheckBox("C++");
checkBox1.setBounds(100,100, 50,50);
JCheckBox checkBox2 = new JCheckBox("Java", true);
checkBox2.setBounds(100,150, 90,50);
f.add(checkBox1);
f.add(checkBox2);
f.setSize(400,400);
f.setLayout(null);
f.setVisible(true);
}
77 | P a g e
JRadioButton Example No 08:
public class RadioButtonExample {

JFrame f=new JFrame();
JRadioButton r1=new JRadioButton("A) Male");
JRadioButton r2=new JRadioButton("B) Female");
r1.setBounds(75,50,100,30);
r2.setBounds(75,100,100,30);
ButtonGroup bg=new ButtonGroup();
bg.add(r1);bg.add(r2);
f.add(r1);f.add(r2);
f.setSize(300,300);
f.setLayout(null);
f.setVisible(true);
}
JComboBox Example No 09:
public class JComboBoxExample {
JFrame f=new JFrame("ComboBox Example");
String country[]={"Pak","Aus","U.S.A","England","Newzealand"};
JComboBox cb=new JComboBox(country);
cb.setBounds(50, 50,90,20);
f.add(cb);
f.setLayout(null);
f.setSize(400,500);
f.setVisible(true);
}
}
78 | P a g e
JTable Example No 10:
public class JTableExample {

//TODO Auto-generated method stub
String data[][]={ {"101","shery","670000"},
{"102","Aamir","780000"},
{"101","imran","700000"}};
String column[]={"ID","NAME","SALARY"};
JTable jt=new JTable(data,column);
jt.setBounds(30,40,200,300);
JScrollPane sp=new JScrollPane(jt);
f.add(sp);
f.setSize(300,400);
f.setVisible(true);
}
JList Example No 11:
public class JListExample {

JFrame f= new JFrame();
DefaultListModel<String> l1 = new DefaultListModel<>();
l1.addElement("Item1");
JList<String> list = new JList<>(l1);
list.setBounds(100,100, 75,75);
f.add(list);
f.setSize(400,400);
f.setLayout(null);
f.setVisible(true);
}
79 | P a g e
JOption Example No 12:
public class JOptionExample {

// TODO Auto-generated method
stub JFrame f=new JFrame();
JOptionPane.showMessageDialog(f,"Hello, Welcome to Uet Taxila.");
}
}
public class JoptionInputExample {

JFrame frame = new JFrame("InputDialog Example #12");
String name = JOptionPane.showInputDialog(frame, "What's your name?");
System.out.printf("The user's name is '%s'.\n", name);
JScrollBar Example No 13:
public class JScrollBarExample {

JFrame f= new JFrame("Scrollbar Example");
JScrollBar s=new JScrollBar();
s.setBounds(100,100, 50,100);
f.add(s);
f.setSize(400,400);
f.setLayout(null);
f.setVisible(true);
}
80 | P a g e
JMenuItem Example No 13:
public class JMenuExample {

JMenu menu, submenu=new JMenu();
JMenuItem i1, i2, i3, i4, i5;
JFrame f= new JFrame("Menu and MenuItem Example");

JMenuBar mb=new JMenuBar();
menu=new JMenu("Menu");
submenu=new JMenu("Sub Menu");
i1=new JMenuItem("Item 1");
menu.add(i1); menu.add(i2); menu.add(i3);
submenu.add(i4); submenu.add(i5);
menu.add(submenu);
mb.add(menu);
f.setJMenuBar(mb);
f.setSize(400,400);
f.setLayout(null);
f.setVisible(true);
}
81 | P a g e
JPanel Example No 14:

import java.awt.Color;
public class JpanelExample {

JFrame f= new JFrame("Panel Example");
JPanel panel=new JPanel();
panel.setBounds(40,80,200,200);
panel.setBackground(Color.gray);
JButton b1=new JButton("Button 1");
b1.setBounds(50,100,80,30);
b1.setBackground(Color.yellow);
JButton b2=new JButton("Button 2");
b2.setBounds(100,100,80,30);
b2.setBackground(Color.green);
panel.add(b1); panel.add(b2);
f.add(panel);
f.setSize(400,400);
f.setLayout(null);
f.setVisible(true);
}
ToolTip Example No 15:

public class ToolTipExample {

JFrame f=new JFrame("Password Field Example");
//Creating PasswordField and label
JPasswordField value = new JPasswordField();
value.setBounds(100,100,100,30);
value.setToolTipText("Enter your Password");
JLabel l1=new JLabel("Password:");
l1.setBounds(20,100, 80,30);
//Adding components to frame
f.add(value); f.add(l1);
f.setSize(300,300);
f.setLayout(null);
f.setVisible(true);
}
82 | P a g e
Layout Manager:
The layout manager automatically positions all the components within the container. Even if you do not use the layout
manager, the components are still positioned by the default layout manager. It is possible to lay out the controls by
hand, however, it becomes very difficult because of the following two reasons.
• It is very tedious to handle a large number of controls within the container.
• Usually, the width and height information of a component is not given when we need to arrange them.
Java provides various layout managers to position the controls. Properties like size, shape, and arrangement varies
from one layout manager to the other. When the size of the applet or the application window changes, the size, shape,
and arrangement of the components also changes in response, i.e. the layout managers adapt to the dimensions of
the appletviewer or the application window.
The layout manager is associated with every Container object. Each layout manager is an object of the class that
implements the LayoutManager interface.
Following are the interfaces defining the functionalities of Layout Managers.
Sr.No. Interface & Description
LayoutManager
1
The LayoutManager interface declares those methods which need to be implemented by the
class, whose object will act as a layout manager.
LayoutManager2
The LayoutManager2 is the sub-interface of the LayoutManager. This interface is for those
2
classes that know how to layout containers based on layout constraint object.
83 | P a g e
AWT Layout Manager Classes:

Following is the list of commonly used controls while designing GUI using AWT.
Sr.No. LayoutManager & Description
BorderLayout
1
The borderlayout arranges the components to fit in the five regions: east, west, north, south, and
center.
CardLayout
The CardLayout object treats each component in the container as a card. Only one card is visible
2
at a time.
FlowLayout
3 The FlowLayout is the default layout. It layout the components in a directional flow.
GridLayout
4 The GridLayout manages the components in the form of a rectangular grid.
GridBagLayout
This is the most flexible layout manager class. The object of GridBagLayout aligns the
5 component vertically, horizontally, or along their baseline without requiring the components of
the same size.
GroupLayout
6 The GroupLayout hierarchically groups the components in order to position them in a Container.
SpringLayout
A SpringLayout positions the children of its associated container according to a set of
7
constraints.
84 | P a g e
BorderLayout Example No 16.1:
import java.awt.BorderLayout;
public class BorderLayoutExample {

JButton b1=new JButton("NORTH");;

JButton b2=new JButton("SOUTH");;
JButton b3=new JButton("EAST");;
JButton b4=new JButton("WEST");;
JButton b5=new JButton("CENTER");;
f.add(b1,BorderLayout.NORTH);
f.add(b2,BorderLayout.SOUTH);
f.add(b3,BorderLayout.EAST);
f.add(b4,BorderLayout.WEST);
f.add(b5,BorderLayout.CENTER);
f.setSize(300,300);
f.setVisible(true);
}
}
BorderLayout Example No 16.02:
import java.awt.BorderLayout;
public class BorderLayout {

// TODO Auto-generated method stub JFrame
f=new JFrame("Example"); JButton b=new
JButton("Set to South"); JLabel l=new
JLabel("Set to North"); JTextArea area=new
JTextArea("set to East");
f.add(b,BorderLayout.SOUTH); // adding Button to Jframe

f.add(l, BorderLayout.NORTH);
f.add(area, BorderLayout.EAST);
f.setSize(400,400); // Window width and Height
f.setVisible(true);
85 | P a g e
GRID LAYOUT:
The GridLayout is used to arrange the components in rectangular grid. One component is displayed in each
rectangle.
Constructors of GridLayout class
1. GridLayout(): creates a grid layout with one column per component in a row.
2. GridLayout(int rows, int columns): creates a grid layout with the given rows and columns but no gaps
between the components.
3. GridLayout(int rows, int columns, int hgap, int vgap): creates a grid layout with the given rows and
columns alongwith given horizontal and vertical gaps.
GridLayout Example No 17:
import java.awt.GridLayout;
public class GridLayoutExample {

JButton b1=new JButton("1");

f.add(b1);f.add(b2);f.add(b3);f.add(b4);f.add(b5);
f.add(b6);f.add(b7);f.add(b8);f.add(b9);
f.setLayout(new GridLayout(3,3));
//setting grid layout of 3 rows and 3 columns
86 | P a g e
f.setSize(300,300);
f.setVisible(true);
}
Flow Layout:
The FlowLayout is used to arrange the components in a line, one after another (in a flow). It is the default layout of
applet or panel.
Fields of FlowLayout class
1. public static final int LEFT
2. public static final int RIGHT
3. public static final int CENTER
4. public static final int LEADING
5. public static final int TRAILING
Constructors of FlowLayout class
1. FlowLayout(): creates a flow layout with centered alignment and a default 5 unit horizontal and vertical gap.
2. FlowLayout(int align): creates a flow layout with the given alignment and a default 5 unit horizontal and
vertical gap.
3. FlowLayout(int align, int hgap, int vgap): creates a flow layout with the given alignment and the given
horizontal and vertical gap.
87 | P a g e
FlowLayout Example No 17:
import java.awt.FlowLayout;
public class FlowLayoutExample {

// TODO Auto-generated method
stub JFrame f=new JFrame();

f.add(b1);f.add(b2);f.add(b3);f.add(b4);f.add(b5);
f.setLayout(new FlowLayout(FlowLayout.RIGHT));
//setting flow layout of right alignment
// f.setLayout(new FlowLayout(FlowLayout.LEFT));
f.setSize(300,300);
f.setVisible(true);
}
Self Study :
*BoxLayout, CardLayout,GridBagLayout,GroupLayout,SpringLayout,ScrollPaneLayout
88 | P a g e
Tasks No 01:
Design this Form Using Swing Controls ?
Task 02:
Design this Login Form Using Swing Controls?
Task 03 : Design Non Functional Calculator using Swing Controls?

89 | P a g e
Task 04 Design this Form using Swing Controls ?
The End
90 | P a g e

Lab Manual 06

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Lab Manual 06

Uploaded by

Copyright:

Available Formats

UNIVERSITY OF ENGINEERING AND TECHNOLOGY, TAXILA

FACULTY OF TELECOMMUNICATION AND INFORMATION

Object Orienting Programming

Lab Instructor: SHEHARYAR KHAN Page 1

• A single API is to be sufficient to support multiple look and feel.

Lab Instructor: SHEHARYAR KHAN Page 2

Lab Instructor: SHEHARYAR KHAN Page 3

S.No. Class & Description

2 A Container is a component that can contain other SWING components

whose root is a top-level SWING container

S.No. Class & Description

A JLabel object is a component for placing text in a container.

Lab Instructor: SHEHARYAR KHAN Page 4

Lab Instructor: SHEHARYAR KHAN Page 5

Using Top-Level Containers:

Lab Instructor: SHEHARYAR KHAN Page 6

public class JFRAMEEXAMPLE {

public static void main(String[] args) {

f.setSize(400,400); // Size of window

Lab Instructor: SHEHARYAR KHAN Page 7

JButton Example No 02:

public class JavaButtonExample {

JLabel Example No 03:

public static void main(String[] args) {

Lab Instructor: SHEHARYAR KHAN Page 8

JTextField Example No 04:

public static void main(String[] args) {

JTextArea Example No 05:

public static void main(String[] args) {

Lab Instructor: SHEHARYAR KHAN Page 9

JPasswordField Example No 06:

JCheckBox Example No 07:

public static void main(String[] args) {

Lab Instructor: SHEHARYAR KHAN Page 10

JRadioButton Example No 08:

public static void main(String[] args) {

JComboBox Example No 09:

Lab Instructor: SHEHARYAR KHAN Page 11

JTable Example No 10:

public static void main(String[] args) {

JList Example No 11:

public static void main(String[] args) {

Lab Instructor: SHEHARYAR KHAN Page 12

JOption Example No 12:

public static void main(String[] args) {

public class JoptionInputExample {

String name = JOptionPane.showInputDialog(frame, "What's your name?");

System.out.printf("The user's name is '%s'.\n", name);

JScrollBar Example No 13:

public static void main(String[] args) {

Lab Instructor: SHEHARYAR KHAN Page 13

JMenuItem Example No 13:

public static void main(String[] args) {

JFrame f= new JFrame("Menu and MenuItem Example");

Lab Instructor: SHEHARYAR KHAN Page 14

JPanel Example No 14:

public static void main(String[] args) {

ToolTip Example No 15:

public static void main(String[] args) {

Lab Instructor: SHEHARYAR KHAN Page 15

• It is very tedious to handle a large number of controls within the container.

Following are the interfaces defining the functionalities of Layout Managers.

Sr.No. Interface & Description

Lab Instructor: SHEHARYAR KHAN Page 16
