Sheet

1 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

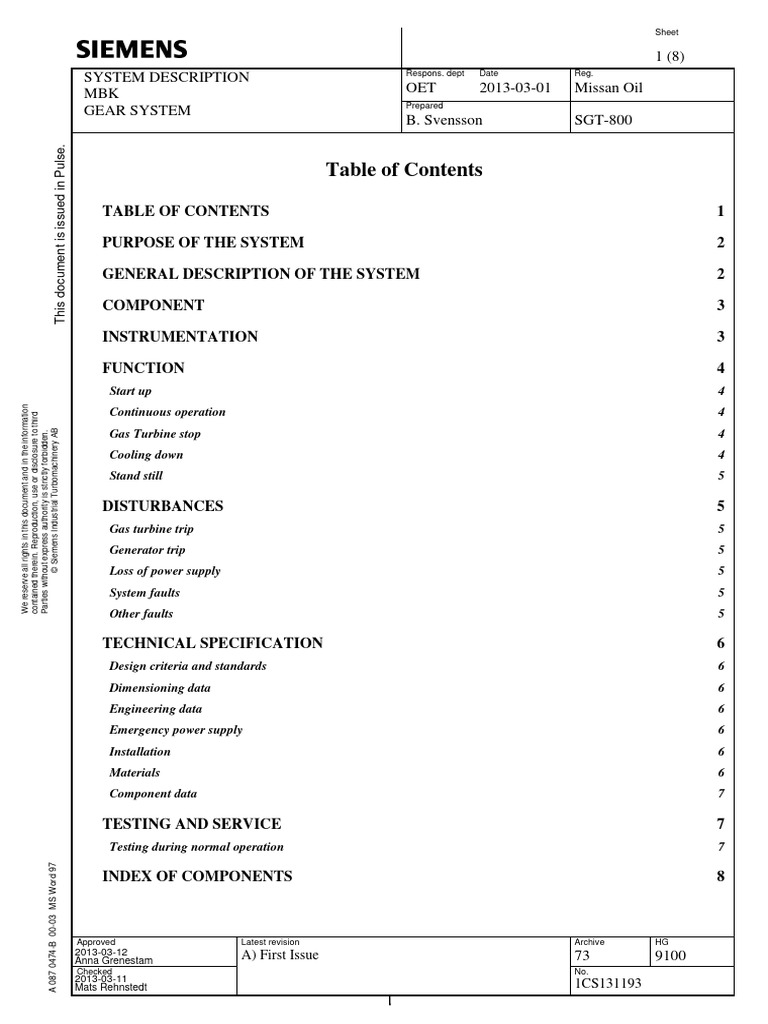

Table of Contents

TABLE OF CONTENTS 1

PURPOSE OF THE SYSTEM 2

GENERAL DESCRIPTION OF THE SYSTEM 2

COMPONENT 3

INSTRUMENTATION 3

FUNCTION 4
Start up 4
We reserve all rights in this document and in the information

Continuous operation 4
contained therein. Reproduction, use or disclosure to third

© Siemens Industrial Turbomachinery AB

Gas Turbine stop 4

Parties without express authority is strictly forbidden.

Cooling down 4
Stand still 5

DISTURBANCES 5
Gas turbine trip 5
Generator trip 5
Loss of power supply 5
System faults 5
Other faults 5

TECHNICAL SPECIFICATION 6
Design criteria and standards 6
Dimensioning data 6
Engineering data 6
Emergency power supply 6
Installation 6
Materials 6
Component data 7

TESTING AND SERVICE 7

Testing during normal operation 7
A 087 0474-B 00-03 MS Word 97

INDEX OF COMPONENTS 8

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
 Sheet

2 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

Purpose of the system

Main gear
The function of the system is to reduce the speed of the gas turbine to a speed compatible with the
electric generator.

That is:
• To permit the generator and the gas turbine to have different and optimised shaft speeds.
• To transmit power from the gas turbine to the generator.

General description of the system

Refer to P&ID 2910405.

Main gear
We reserve all rights in this document and in the information

The gearbox is a parallel shaft gear of double helical design connected to the gas turbine via a quill
contained therein. Reproduction, use or disclosure to third

shaft. The gear is connected to the generator with a quill shaft.

© Siemens Industrial Turbomachinery AB
Parties without express authority is strictly forbidden.

Casing
The gear casing is a casted or welded design and with a horizontal split. Inspection openings allow
easy inspection of the gear mesh.
Provision for mounting of RTD’s, vibration probes and key phasor are standard.

Gearing and shafts

The pinion and the wheel are always manufactured from high alloy, special quality steel and case
hardened. The tooth flanks are precision ground with lead and profile correction to compensate for
torsional and thermal deflections and to provide low vibration and noise levels. Angular and parallel
misalignment is compensated by means of quill shafts. The quill shaft forging (incl. solid flange) is
made from high quality tempered steel.

Lubrication
The bearings and the gear receive lubricating oil from the turbine lube oil system through a central
connection in the gear casing. The lube oil amount for each bearing and gear mesh is optimised in
order to obtain the highest efficiency.
The lube oil returns to the reservoir through the oil drain openings on the short sides of the gear casing.
A 087 0474-B 00-03 MS Word 97

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
 Sheet

3 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

Bearings and seals

On low speed side the gear is equipped with cylindrical journal bearings, of sleeve type, which are
horizontally split and white metal lined.

High speed side is equipped with metal lined tilting pads.

The bearings are equipped with jacking oil. There is no thrust bearing in the gear, thus the axial
position is controlled by the thrust bearing in the gas turbine.
To prevent oil leakage out of the gear casing, the shaft penetrations through the casing are provided
with non-contact shaft seals of labyrinth type.

Component
• Main gear.
MBK10AZ005
We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third

© Siemens Industrial Turbomachinery AB

Parties without express authority is strictly forbidden.

Instrumentation
• Temperature transmitter. Radial bearing pinion turbine side.
MBK10CT005
The PT100 sensor measures the bearing metal temperature in the pinion bearing at the turbine end.
High metal temperature (H1) gives an alarm.
High metal temperature (H2) gives an alarm.

• Temperature transmitter. Radial bearing pinion generator side.

MBK10CT010
The PT100 sensor measures the bearing metal temperature in the pinion bearing at the free end.
High metal temperature (H1) gives an alarm.
High metal temperature (H2) gives an alarm.

• Temperature transmitter. Radial bearing wheel turbine side.

MBK10CT025
The PT100 sensor measures the bearing metal temperature in the wheel bearing at the free end.
High metal temperature (H1) gives an alarm.
High metal temperature (H2) gives an alarm.

• Temperature transmitter. Radial bearing wheel generator side.

MBK10CT030
The PT100 sensor measures the bearing metal temperature in the wheel bearing at the generator end.
High metal temperature (H1) gives an alarm.
High metal temperature (H2) gives an alarm.
A 087 0474-B 00-03 MS Word 97

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
 Sheet

4 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

• Vibration transducer. Pinion turbine side.

MBK10CY005
The accelerometer sensor measures vibration on the gear box casing.
High vibration (H1) gives an alarm.
High vibration (H2) gives an unloading trip.
High vibration (H3) gives a turbine trip.

• Vibration transducer. Pinion turbine side.

MBK10CY006
The accelerometer sensor measures vibration on the gear box casing.
High vibration (H1) gives an alarm.
High vibration (H2) gives an unloading trip.
High vibration (H3) gives a turbine trip.

• Vibration transducer. Pinion turbine side.

We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third

MBK10CY007
© Siemens Industrial Turbomachinery AB
Parties without express authority is strictly forbidden.

The accelerometer sensor measures vibration on the gear box casing.

High vibration (H1) gives an alarm.
High vibration (H2) gives an unloading trip.
High vibration (H3) gives a turbine trip.

• Vibration transducer. Wheel generator side.

MBK10CY030
The accelerometer sensor measures vibration on the gear box casing.
High vibration (H1) gives an alarm.

Function

Start up
The gear speed is determined by the starting motor during start up.

Continuous operation
The gear load is determined by the gas turbine during continuous operation. The gear is designed for
all normal operating modes, including starting up, normal running and shut down.

Gas Turbine stop

The gear coasts down with the gas turbine and generator.

Cooling down
A 087 0474-B 00-03 MS Word 97

The gear, gas turbine and generator are rotating at barring speed during the gas turbine cooling down
period.

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
 Sheet

5 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

Stand still
The system is not active

Disturbances

Gas turbine trip

After a gas turbine trip the gear coasts down with the gas turbine and generator. The lube oil
supply to the gear is ensured by the gas turbine lube oil system.

Generator trip
After a generator trip the gear coasts down with the gas turbine and the generator.

Loss of power supply

We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third

Loss of power supply does not directly affect the system. The lube oil supply to the gear is
© Siemens Industrial Turbomachinery AB
Parties without express authority is strictly forbidden.

ensured by the gas turbine lube oil system.

System faults
If there are any damages on the gearbox or couplings the gas turbine unit may not be started or has
to be shut down.

- Gearing and shafts

Wear or damage to the gearing or shafts gives high vibration on the gear box.

- Bearings
Wear or damage to the bearings gives high vibration or/and high bearing metal temperature. Gear
vibration and bearing metal temperature are monitored and alarms are given if any of them
exceeds the setting values for alarm. In this case the load should be reduced. If the bearing metal
temperature continuous to rise, the turbine should be shut down manually. The turbine trips if the
vibration level increases.

Other faults
Fault in connecting systems:

- Lube oil system

Fault in the lube oil system which results in incorrect incoming lube oil temperature and/or
pressure to the gear box. These parameters are monitored in the lube oil system and the turbine is
tripped at too low pressure respective at too high temperature. In case of reduced or interrupted oil
flow the gear is not available for operation.
A 087 0474-B 00-03 MS Word 97

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
 Sheet

6 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

Technical specification

Design criteria and standards

Main gear

The reduction gear is designed for maximum load during continuous operating and for 5 time’s
nominal torque during short circuit. The design is according to API 613 with SF 1.1.

Direction of high speed shaft rotation Counterclockwise, facing gear

from turbine

High speed shaft, nominal speed at 50Hz 6608 rpm

High speed shaft, nominal speed at 60Hz 6616 rpm
We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third

© Siemens Industrial Turbomachinery AB

Parties without express authority is strictly forbidden.

Dimensioning data
Low speed shaft, nominal speed. 1500 rpm
Power output, maximum 60 MW
Net weight 26000 kg

Engineering data
Lubrication
Inlet pressure nominal 150 kPa
max 200 kPa
alarm 130 kPa
shutdown 80 kPai

Emergency power supply

The gearbox needs no auxiliary power.

Installation
The gearbox is installed on the same skid as the gas turbine. All rotating parts have protecting
covers (coupling guards). The internal alignment is controlled by vibracons under the feet of the
casing and adjustable pinion bearings.

Materials
The materials are selected in accordance with the supplier’s standard.
A 087 0474-B 00-03 MS Word 97

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
 Sheet

7 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

Component data
Gear mesh type Double helical design

Journal bearing type Cylindrical and Tilting pad

Testing and service

Testing during normal operation

Accessibility during normal operation
We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third

© Siemens Industrial Turbomachinery AB

Parties without express authority is strictly forbidden.
A 087 0474-B 00-03 MS Word 97

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
 Sheet

8 (8)
Respons. dept Date Reg.
SYSTEM DESCRIPTION
MBK OET 2013-03-01 Missan Oil
Prepared
GEAR SYSTEM
B. Svensson SGT-800
This document is issued in Pulse.

Index of Components
MBK10AZ005 Temperature Transmitter 3
Main gear 3 MBK10CY005
MBK10CT005 Vibration Transducer 4
Temperature Transmitter 3 MBK10CY006
MBK10CT010 Vibration Transducer 4
Temperature Transmitter 3 MBK10CY007
MBK10CT025 Vibration Transducer 4
Temperature Transmitter 3 MBK10CY030
MBK10CT030 Vibration Transducer 4
We reserve all rights in this document and in the information
contained therein. Reproduction, use or disclosure to third

© Siemens Industrial Turbomachinery AB

Parties without express authority is strictly forbidden.
A 087 0474-B 00-03 MS Word 97

Approved Latest revision Archive HG

2013-03-12 A) First Issue 73 9100
Anna Grenestam
Checked No.
2013-03-11
Mats Rehnstedt 1CS131193
