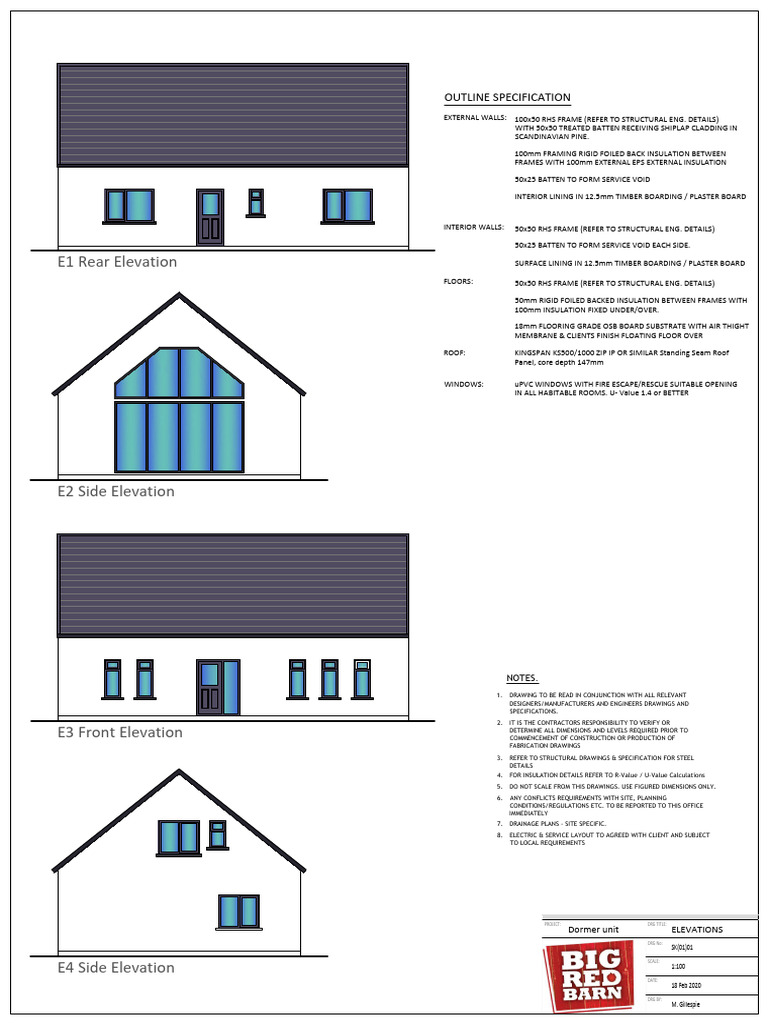

OUTLINE SPECIFICATION
EXTERNAL WALLS: 100x50 RHS FRAME (REFER TO STRUCTURAL ENG. DETAILS)
WITH 50x50 TREATED BATTEN RECEIVING SHIPLAP CLADDING IN
SCANDINAVIAN PINE.
100mm FRAMING RIGID FOILED BACK INSULATION BETWEEN
FRAMES WITH 100mm EXTERNAL EPS EXTERNAL INSULATION
50x25 BATTEN TO FORM SERVICE VOID
INTERIOR LINING IN 12.5mm TIMBER BOARDING / PLASTER BOARD
INTERIOR WALLS: 50x50 RHS FRAME (REFER TO STRUCTURAL ENG. DETAILS)
50x25 BATTEN TO FORM SERVICE VOID EACH SIDE.
E1 Rear Elevation SURFACE LINING IN 12.5mm TIMBER BOARDING / PLASTER BOARD
FLOORS: 50x50 RHS FRAME (REFER TO STRUCTURAL ENG. DETAILS)
50mm RIGID FOILED BACKED INSULATION BETWEEN FRAMES WITH
100mm INSULATION FIXED UNDER/OVER.
18mm FLOORING GRADE OSB BOARD SUBSTRATE WITH AIR THIGHT
MEMBRANE & CLIENTS FINISH FLOATING FLOOR OVER
ROOF: KINGSPAN KS500/1000 ZIP IP OR SIMILAR Standing Seam Roof
Panel, core depth 147mm
WINDOWS: uPVC WINDOWS WITH FIRE ESCAPE/RESCUE SUITABLE OPENING
IN ALL HABITABLE ROOMS. U- Value 1.4 or BETTER
E2 Side Elevation
NOTES.
1. DRAWING TO BE READ IN CONJUNCTION WITH ALL RELEVANT
DESIGNERS/MANUFACTURERS AND ENGINEERS DRAWINGS AND
SPECIFICATIONS.
2. IT IS THE CONTRACTORS RESPONSIBILITY TO VERIFY OR
E3 Front Elevation DETERMINE ALL DIMENSIONS AND LEVELS REQUIRED PRIOR TO
COMMENCEMENT OF CONSTRUCTION OR PRODUCTION OF
FABRICATION DRAWINGS
3. REFER TO STRUCTURAL DRAWINGS & SPECIFICATION FOR STEEL
DETAILS
4. FOR INSULATION DETAILS REFER TO R-Value / U-Value Calculations
5. DO NOT SCALE FROM THIS DRAWINGS. USE FIGURED DIMENSIONS ONLY.
6. ANY CONFLICTS REQUIREMENTS WITH SITE, PLANNING
CONDITIONS/REGULATIONS ETC. TO BE REPORTED TO THIS OFFICE
IMMEDIATELY
7. DRAINAGE PLANS - SITE SPECIFIC.
8. ELECTRIC & SERVICE LAYOUT TO AGREED WITH CLIENT AND SUBJECT
TO LOCAL REQUIREMENTS
PROJECT: DRG TITLE:
Dormer unit ELEVATIONS
DRG No:
SK(01)01
E4 Side Elevation
SCALE:
1:100
DATE:
18 Feb 2020
DRG BY:
M. Gillespie
E1
12.48
3.65 2.04 1.68 4.75 Schedule of areas (m²)
Ground floor gross 105.79
First floor gross 52.73
2.46
Total gross Floor area 158.52
Bed 1
4.28
COPYRIGHT
OPEN PLAN 40.28
Kit./Liv./Din.
ENTRANCE 13.44
Kit/Liv/Din
8.48
E4 E2
8.60
BED ROOM 1 15.61
BED ROOM 2 17.11
BED ROOM 3 15.07
Bed 2
BATH ROOM 5.00
4.02
UTILITY 10.87
LANDING 13.56
EN SUITE 4.51
4.25 8.10 WARDROBE 4.51
Ground floor PLANT ROOM 8.41
E3
0.45
3.66 3.81
Plant room
& Store
Bed 3
COPYRIGHT
4.02
Void to below
8.60
COPYRIGHT
2.21
COPYRIGHT
2.04 2.05
First floor NOTES.
1. DRAWING TO BE READ IN CONJUNCTION WITH ALL RELEVANT
DESIGNERS/MANUFACTURERS AND ENGINEERS DRAWINGS AND
SPECIFICATIONS.
APEX OF FRAME 7.2m
2. IT IS THE CONTRACTORS RESPONSIBILITY TO VERIFY OR
DETERMINE ALL DIMENSIONS AND LEVELS REQUIRED PRIOR TO
COMMENCEMENT OF CONSTRUCTION OR PRODUCTION OF
FABRICATION DRAWINGS
40°
6 3. REFER TO STRUCTURAL DRAWINGS & SPECIFICATION FOR STEEL
6.1 DETAILS
4. FOR INSULATION DETAILS REFER TO R-Value / U-Value Calculations
5. DO NOT SCALE FROM THIS DRAWINGS. USE FIGURED DIMENSIONS ONLY.
Balcony 6. ANY CONFLICTS REQUIREMENTS WITH SITE, PLANNING
CONDITIONS/REGULATIONS ETC. TO BE REPORTED TO THIS OFFICE
IMMEDIATELY
TOP OF FRAME/PANEL 3.59m 7. DRAINAGE PLANS - SITE SPECIFIC.
8. ELECTRIC & SERVICE LAYOUT TO AGREED WITH CLIENT AND SUBJECT
TO LOCAL REQUIREMENTS
Entrance
TOP OF FLOOR PANEL STEEL ~0.3m
Section
PROJECT: DRG TITLE:
Dormer unit FLOOR PLANS
DRG No:
SK(01)02
SCALE:
1:100
DATE:
18 Feb 2020
DRG BY:
M. Gillespie
