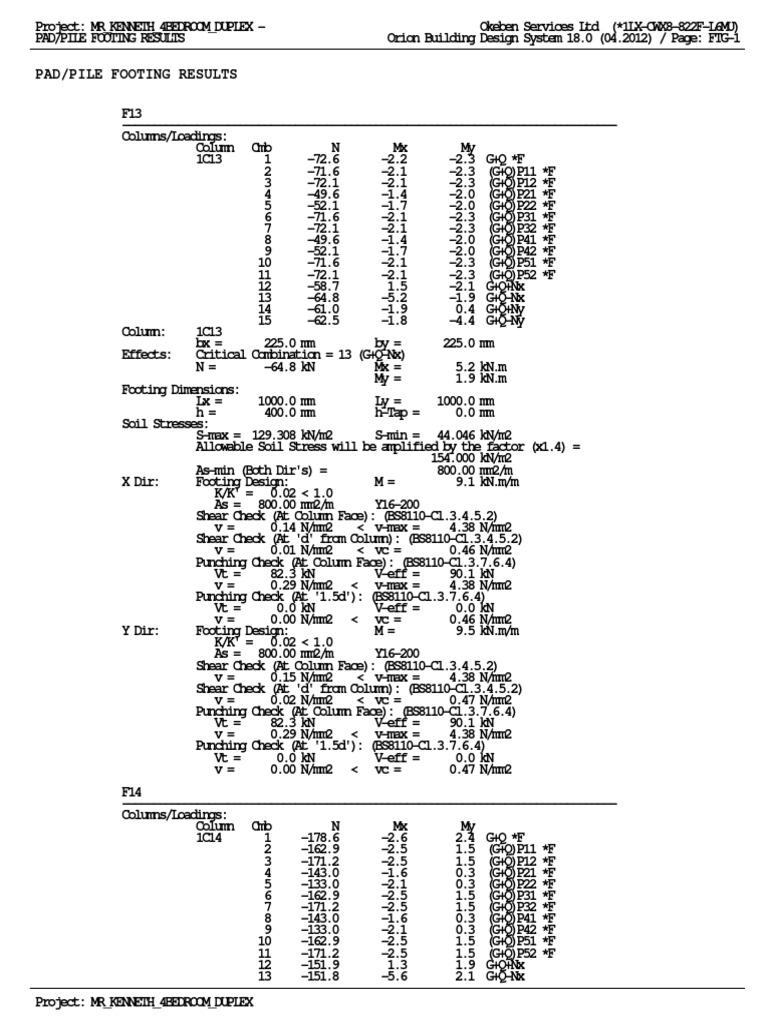

Project: MR_KENNETH_4BEDROOM_DUPLEX - Okeben Services Ltd (*1LX-CWX8-822F-L6MU)

PAD/PILE FOOTING RESULTS Orion Building Design System 18.0 (04.2012) / Page: FTG-1

PAD/PILE FOOTING RESULTS

F13
--------------------------------------------------------------------------------
Columns/Loadings:
Column Cmb N Mx My
1C13 1 -72.6 -2.2 -2.3 G+Q *F
2 -71.6 -2.1 -2.3 (G+Q)P11 *F
3 -72.1 -2.1 -2.3 (G+Q)P12 *F
4 -49.6 -1.4 -2.0 (G+Q)P21 *F
5 -52.1 -1.7 -2.0 (G+Q)P22 *F
6 -71.6 -2.1 -2.3 (G+Q)P31 *F
7 -72.1 -2.1 -2.3 (G+Q)P32 *F
8 -49.6 -1.4 -2.0 (G+Q)P41 *F
9 -52.1 -1.7 -2.0 (G+Q)P42 *F
10 -71.6 -2.1 -2.3 (G+Q)P51 *F
11 -72.1 -2.1 -2.3 (G+Q)P52 *F
12 -58.7 1.5 -2.1 G+Q+Nx
13 -64.8 -5.2 -1.9 G+Q-Nx
14 -61.0 -1.9 0.4 G+Q+Ny
15 -62.5 -1.8 -4.4 G+Q-Ny
Column: 1C13
bx = 225.0 mm by = 225.0 mm
Effects: Critical Combination = 13 (G+Q-Nx)
N= -64.8 kN Mx = 5.2 kN.m
My = 1.9 kN.m
Footing Dimensions:
Lx = 1000.0 mm Ly = 1000.0 mm
h= 400.0 mm h-Tap = 0.0 mm
Soil Stresses:
S-max = 129.308 kN/m2 S-min = 44.046 kN/m2
Allowable Soil Stress will be amplified by the factor (x1.4) =
154.000 kN/m2
As-min (Both Dir's) = 800.00 mm2/m
X Dir: Footing Design: M= 9.1 kN.m/m
K/K' = 0.02 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v= 0.14 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)
v= 0.01 N/mm2 < vc = 0.46 N/mm2
Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 82.3 kN V-eff = 90.1 kN
v= 0.29 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 0.0 kN V-eff = 0.0 kN
v= 0.00 N/mm2 < vc = 0.46 N/mm2
Y Dir: Footing Design: M= 9.5 kN.m/m
K/K' = 0.02 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v= 0.15 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)
v= 0.02 N/mm2 < vc = 0.47 N/mm2
Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 82.3 kN V-eff = 90.1 kN
v= 0.29 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 0.0 kN V-eff = 0.0 kN
v= 0.00 N/mm2 < vc = 0.47 N/mm2
F14
--------------------------------------------------------------------------------
Columns/Loadings:
Column Cmb N Mx My
1C14 1 -178.6 -2.6 2.4 G+Q *F
2 -162.9 -2.5 1.5 (G+Q)P11 *F
3 -171.2 -2.5 1.5 (G+Q)P12 *F
4 -143.0 -1.6 0.3 (G+Q)P21 *F
5 -133.0 -2.1 0.3 (G+Q)P22 *F
6 -162.9 -2.5 1.5 (G+Q)P31 *F
7 -171.2 -2.5 1.5 (G+Q)P32 *F
8 -143.0 -1.6 0.3 (G+Q)P41 *F
9 -133.0 -2.1 0.3 (G+Q)P42 *F
10 -162.9 -2.5 1.5 (G+Q)P51 *F
11 -171.2 -2.5 1.5 (G+Q)P52 *F
12 -151.9 1.3 1.9 G+Q+Nx
13 -151.8 -5.6 2.1 G+Q-Nx
Project: MR_KENNETH_4BEDROOM_DUPLEX
Project: MR_KENNETH_4BEDROOM_DUPLEX - Okeben Services Ltd (*1LX-CWX8-822F-L6MU)
PAD/PILE FOOTING RESULTS Orion Building Design System 18.0 (04.2012) / Page: FTG-2

14 -150.7 -2.2 4.5 G+Q+Ny


15 -153.0 -2.1 -0.6 G+Q-Ny
Column: 1C14
bx = 225.0 mm by = 225.0 mm
Effects: Critical Combination = 1 (G+Q *F)
N = -178.6 kN Mx = 2.6 kN.m
My = 2.4 kN.m
Footing Dimensions:
Lx = 1300.0 mm Ly = 1300.0 mm
h = 400.0 mm h-Tap = 0.0 mm
Soil Stresses:
S-max = 141.231 kN/m2 S-min = 114.157 kN/m2
Allowable Soil Stress will be amplified by the factor (x1.4) =
154.000 kN/m2
As-min (Both Dir's) = 800.00 mm2/m
X Dir: Footing Design: M = 20.1 kN.m/m
K/K' = 0.03 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v = 0.22 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)
v = 0.07 N/mm2 < vc = 0.46 N/mm2
Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 209.3 kN V-eff = 212.4 kN
v = 0.69 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 14.0 kN V-eff = 17.1 kN
v = 0.01 N/mm2 < vc = 0.46 N/mm2
Y Dir: Footing Design: M = 20.1 kN.m/m
K/K' = 0.04 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v = 0.23 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)
v = 0.08 N/mm2 < vc = 0.47 N/mm2
Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 209.3 kN V-eff = 212.4 kN
v = 0.69 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 14.0 kN V-eff = 16.9 kN
v = 0.01 N/mm2 < vc = 0.47 N/mm2

F19
--------------------------------------------------------------------------------
Columns/Loadings:
Column Cmb N Mx My
1C19 1 -154.7 -6.8 -98.0 G+Q *F
2 -154.6 -6.6 -98.0 (G+Q)P11 *F
3 -154.6 -6.6 -98.1 (G+Q)P12 *F
4 -98.7 -3.7 -57.0 (G+Q)P21 *F
5 -99.0 -4.6 -55.3 (G+Q)P22 *F
6 -154.6 -6.6 -98.0 (G+Q)P31 *F
7 -154.6 -6.6 -98.1 (G+Q)P32 *F
8 -98.7 -3.7 -57.0 (G+Q)P41 *F
9 -99.0 -4.6 -55.3 (G+Q)P42 *F
10 -154.6 -6.6 -98.0 (G+Q)P51 *F
11 -154.6 -6.6 -98.1 (G+Q)P52 *F
12 -128.4 -2.3 -82.4 G+Q+Nx
13 -130.1 -9.0 -80.7 G+Q-Nx
14 -129.2 -5.7 -71.9 G+Q+Ny
15 -129.2 -5.5 -91.3 G+Q-Ny
Column: 1C19
bx = 225.0 mm by = 600.0 mm
Effects: Critical Combination = 1 (G+Q *F)
N = -154.7 kN Mx = 6.8 kN.m
My = 98.0 kN.m
Footing Dimensions:
Lx = 2300.0 mm Ly = 2300.0 mm
h = 400.0 mm h-Tap = 0.0 mm
Soil Stresses:
S-max = 102.986 kN/m2 S-min = 0.000 kN/m2
Allowable Soil Stress will be amplified by the factor (x1.4) =
154.000 kN/m2
As-min (Both Dir's) = 800.00 mm2/m
X Dir: Footing Design: M = 54.9 kN.m/m
K/K' = 0.09 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v = 0.30 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)

Project: MR_KENNETH_4BEDROOM_DUPLEX
Project: MR_KENNETH_4BEDROOM_DUPLEX - Okeben Services Ltd (*1LX-CWX8-822F-L6MU)
PAD/PILE FOOTING RESULTS Orion Building Design System 18.0 (04.2012) / Page: FTG-3

v = 0.20 N/mm2 < vc = 0.46 N/mm2


Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 264.4 kN V-eff = 381.4 kN
v = 0.67 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 165.9 kN V-eff = 172.2 kN
v = 0.09 N/mm2 < vc = 0.46 N/mm2
Y Dir: Footing Design: M = 32.9 kN.m/m
K/K' = 0.06 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v = 0.26 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)
v = 0.16 N/mm2 < vc = 0.47 N/mm2
Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 264.4 kN V-eff = 381.4 kN
v = 0.67 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 165.9 kN V-eff = 282.9 kN
v = 0.14 N/mm2 < vc = 0.47 N/mm2

F12
--------------------------------------------------------------------------------
Columns/Loadings:
Column Cmb N Mx My
1C12 1 -283.7 10.2 1.4 G+Q *F
2 -283.7 10.3 1.5 (G+Q)P11 *F
3 -281.8 10.3 1.5 (G+Q)P12 *F
4 -211.1 6.5 0.9 (G+Q)P21 *F
5 -238.9 10.2 0.6 (G+Q)P22 *F
6 -283.7 10.3 1.5 (G+Q)P31 *F
7 -281.8 10.3 1.5 (G+Q)P32 *F
8 -211.1 6.5 0.9 (G+Q)P41 *F
9 -238.9 10.2 0.6 (G+Q)P42 *F
10 -283.7 10.3 1.5 (G+Q)P51 *F
11 -281.8 10.3 1.5 (G+Q)P52 *F
12 -239.9 11.7 1.3 G+Q+Nx
13 -237.1 5.6 1.0 G+Q-Nx
14 -237.9 8.6 3.7 G+Q+Ny
15 -239.1 8.6 -1.4 G+Q-Ny
Column: 1C12
bx = 225.0 mm by = 225.0 mm
Effects: Critical Combination = 2 ((G+Q)P11 *F)
N = -283.7 kN Mx = 10.3 kN.m
My = 1.5 kN.m
Footing Dimensions:
Lx = 1600.0 mm Ly = 1600.0 mm
h = 400.0 mm h-Tap = 0.0 mm
Soil Stresses:
S-max = 150.133 kN/m2 S-min = 115.723 kN/m2
Allowable Soil Stress will be amplified by the factor (x1.4) =
154.000 kN/m2
As-min (Both Dir's) = 800.00 mm2/m
X Dir: Footing Design: M = 34.5 kN.m/m
K/K' = 0.06 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v = 0.29 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)
v = 0.14 N/mm2 < vc = 0.46 N/mm2
Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 333.6 kN V-eff = 345.8 kN
v = 1.12 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 130.3 kN V-eff = 142.5 kN
v = 0.08 N/mm2 < vc = 0.46 N/mm2
Y Dir: Footing Design: M = 35.3 kN.m/m
K/K' = 0.07 < 1.0
As = 800.00 mm2/m Y16-200
Shear Check (At Column Face): (BS8110-Cl.3.4.5.2)
v = 0.31 N/mm2 < v-max = 4.38 N/mm2
Shear Check (At 'd' from Column): (BS8110-Cl.3.4.5.2)
v = 0.16 N/mm2 < vc = 0.47 N/mm2
Punching Check (At Column Face): (BS8110-Cl.3.7.6.4)
Vt = 333.6 kN V-eff = 345.8 kN
v = 1.12 N/mm2 < v-max = 4.38 N/mm2
Punching Check (At '1.5d'): (BS8110-Cl.3.7.6.4)
Vt = 130.3 kN V-eff = 132.0 kN
v = 0.08 N/mm2 < vc = 0.47 N/mm2

Project: MR_KENNETH_4BEDROOM_DUPLEX
