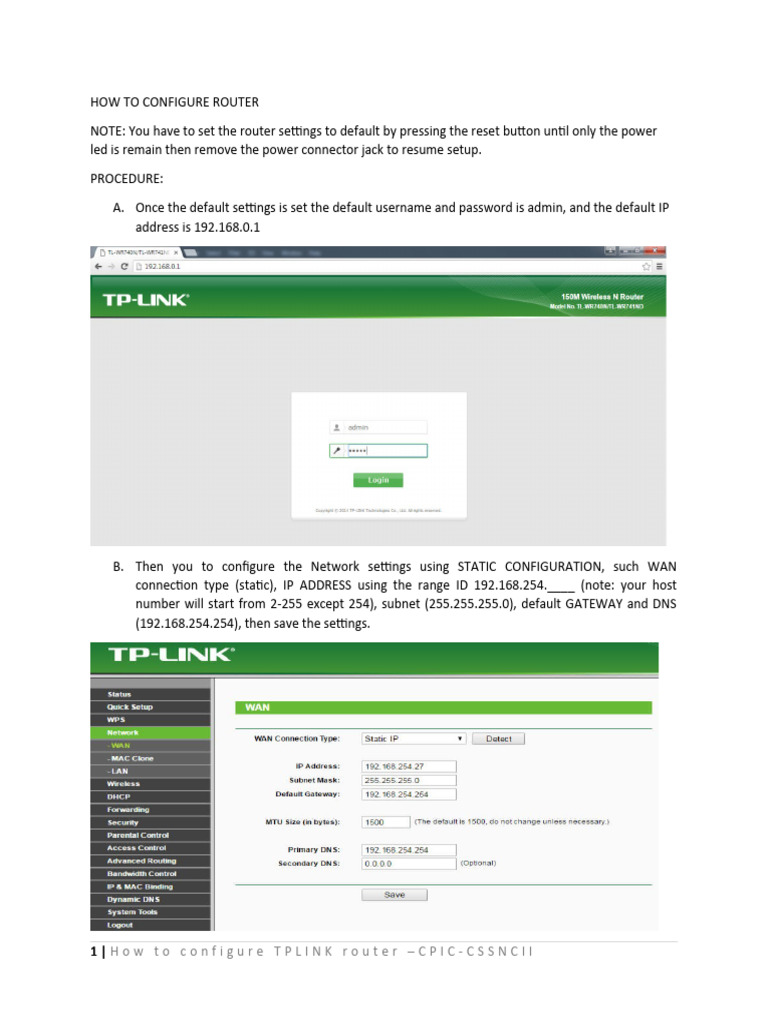

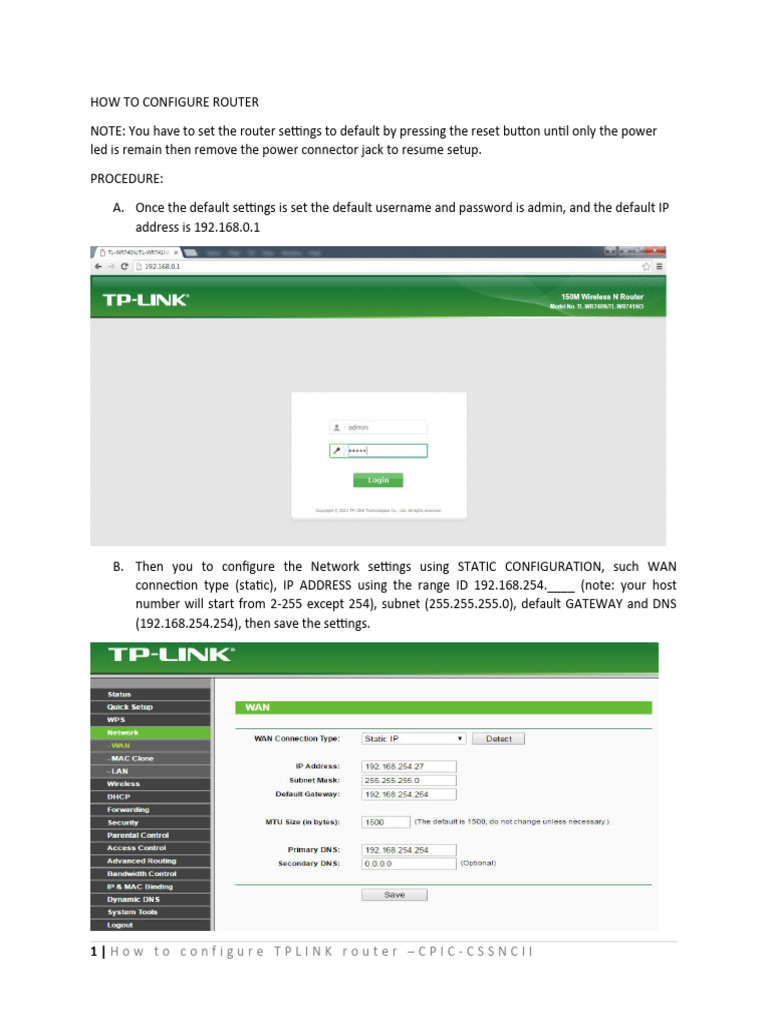

HOW TO CONFIGURE ROUTER

NOTE: You have to set the router settings to default by pressing the reset button until only the power
led is remain then remove the power connector jack to resume setup.

PROCEDURE:

A. Once the default settings is set the default username and password is admin, and the default IP
address is 192.168.0.1

B. Then you to configure the Network settings using STATIC CONFIGURATION, such WAN
connection type (static), IP ADDRESS using the range ID 192.168.254.____ (note: your host
number will start from 2-255 except 254), subnet (255.255.255.0), default GATEWAY and DNS
(192.168.254.254), then save the settings.

1|How to configure TPLINK router –CPIC-CSSNCII

 C. Then change the default LAN IP SETTINGS (depending on the prescribe IP class given, you can
use IP CLASS A, B or CLASS C. (For class A ,1-127, class B,128-191, class C, 192-223), then save
your settings.

D. then configure the WIRELESS SETTINGS, such as wireless network name, region, mode, channel
width and channel. Note channel must be identical, then save your settings.

2|How to configure TPLINK router –CPIC-CSSNCII

 E. then change the WIRELESS SECURITY, password must be a combination of CAPITAL, LETTERS,
small letters, numbers, and symbols.

3|How to configure TPLINK router –CPIC-CSSNCII

 F. then configure the MAC filtering capability of your router, (It must be ENABLE and the MAC
address to be filtered is from a WIRELESS ENABLE DEVICE. NOTE: your wireless client can browse
and internet webpage once allowed, and unable to load webpage once denied)

4|How to configure TPLINK router –CPIC-CSSNCII

 G. Then configure the QUALITY OF SERVICE (bandwidth control). Note: Your bandwidth control
must be ENABLE and You have to define the RULE LIST

5|How to configure TPLINK router –CPIC-CSSNCII

NOTE: IP range are from DHCP range, PORT range (list below) egress (Upload speed) & ingress
(download speed)

Port # TCP UDP DESCRIPTION

1433 √ √ SQL server

1434 √ √ SQL server monitor
20 -21 √ √ FTP
989 √ √ FTP data
990 √ √ FTP control
22 √ √ Secure Shell
23 √ √ Telnet
25 √ √ SMTP
53 √ √ DNS
67-68 √ √ DHCP
80 √ √ HTTP
137-139 √ √ NetBios for allowing applications on separate computers to
communicate over a local area network.
1503 √ √ windows live messenger
2948-2949 √ √ WAP
3000 √ Bittorrent
3899 √ Remote Admin
4899 √ √ Radmin
6660-6669 √ √ Internet relay chat
8008 √ HTTP alternate
8080 √ HTTP web proxy
8081 √ HTTP alternate
